Renault Talisman
Date of manufacture
2015 – 2020 (Sedan)
2016 – 2020 (Estate)
Platform
CMF-CD
Manufacturing locations
Douai, France
Busan (Pusan), South Korea
Designer
Alexis Martot
Tags
D-segment
French cars
Renault Talisman is a modern car that has been manufactured since 2015 in France and South Korea. This model has a sedan and estate body and is based on the CMF-CD platform. It offers a wide range of engines, from petrol to diesel, with the highest power of 165 kW (Energy TCe 225). The maximum speed reaches 240 km/h and the best acceleration 0-100 km/h in 7.4 seconds is also Energy TCe 225. Fuel consumption is 3.6 l/100 km for Energy dCi 110 and emissions 95 g/km. The trunk of the sedan has a capacity of 515 l and the estate version 572 l. The Renault Talisman model was rated by EURONCAP in 2015 as 5 out of 5 for safety.
Car body style

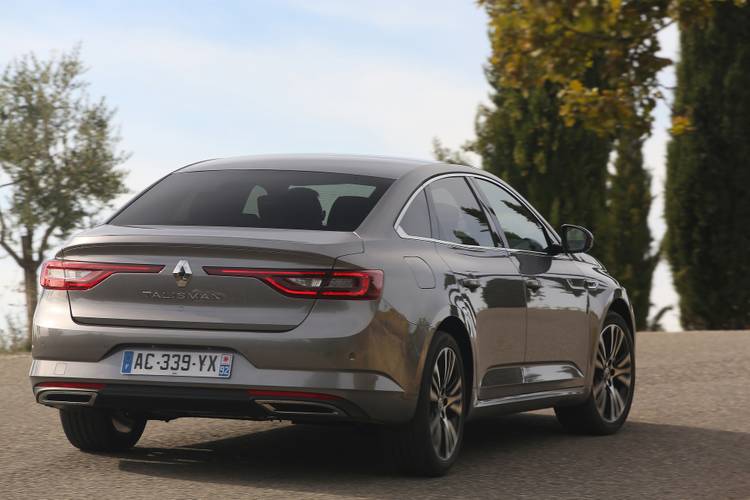

Sedan
Date of manufacture
2015 – 2020Internal designation

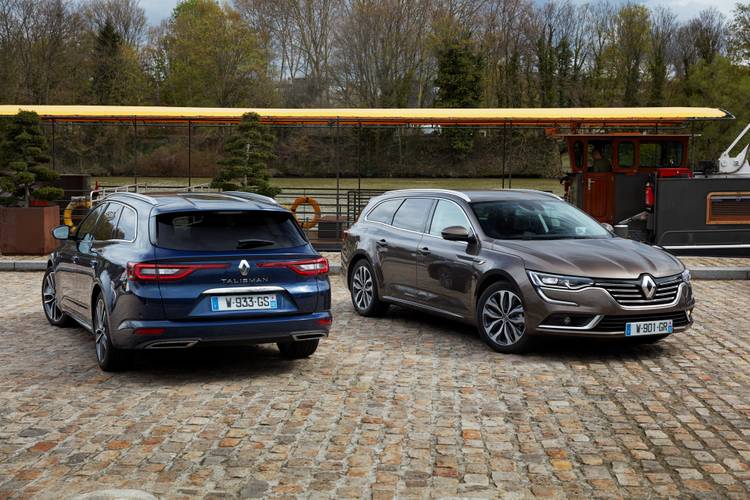

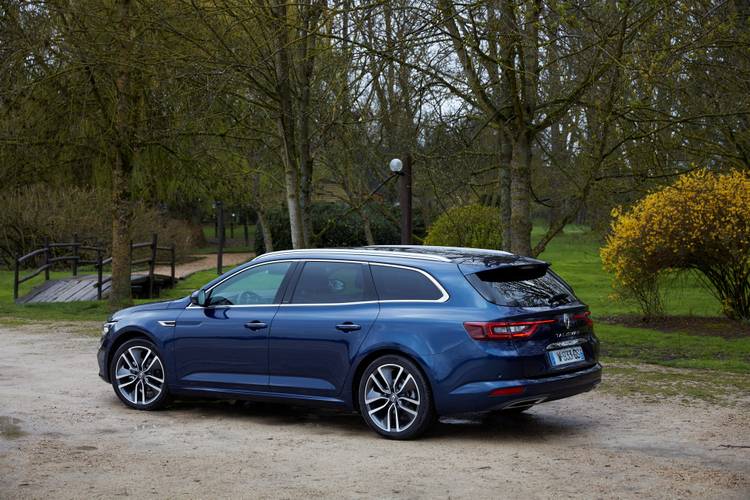

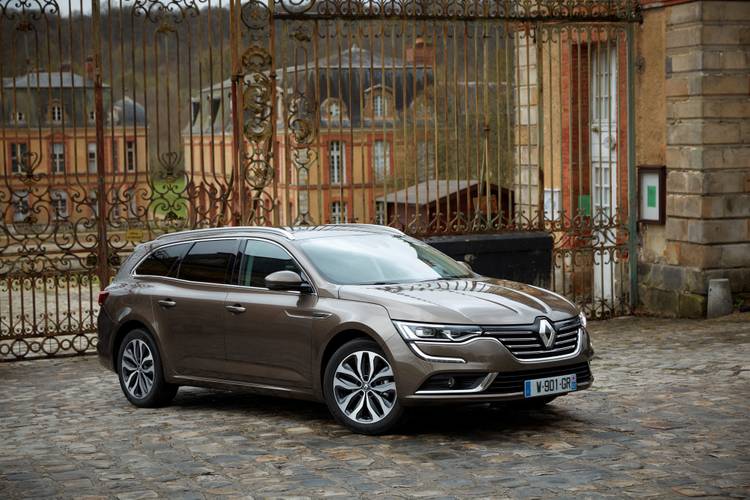

Estate (Grandtour)
Date of manufacture
2016 – 2020Internal designation
Technical data
Sedan
| Energy TCe 150 | TCe 160 | Energy TCe 200 | Energy TCe 225 | Energy dCi 110 | Blue dCi 120 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1618 | 1333 | 1618 | 1798 | 1461 | 1749 |
| Maximum output / speed [kW/min-1] | 110/5200 | 117/5500 | 147/6000 | 165/5500 | 81/4000 | 88/3500 |
| Maximum torque [Nm/min-1] | 220/1750 | 270/1800 | 260/2500 | 300/2000 | 260/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 72.2 x 81.4 | 79,5 x 80,5 | 79,7 x 90.1 | 76,0 x 80,5 | 80.0 x 87.0 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,0:1 | - | 15,5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 215 | 210 | 237 | 240 | 192 | 203 |
| Acceleration 0–100 km/h [s] | 9.6 | 8.9-9.1 | 7.6 | 7,4 [7,6 4Control] | 11.9 | 11.9-12.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 7.2-7.4 | - | 5.4 [5.5 4Control] | - | 8.8 (4th gear) |
| City [l] | 7.5 | - | 7.5 | 9,9-10,1 | 4.0 | - |
| Out of town [l] | 4.6 | - | 4.6 | 5,6-5,7 | 3.4 | - |
| Combined [l] | 5.6 | - | 5.6 | 7,2-7,3 | 3.6 | - |
| CO2 emissions [g/km] | 127 | - | 127 | 164-169 | 95 | - |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6.9-6.7 | - | 8.1-7.9 | - | 5.3 |
| CO2 emissions [g/km] | - | 156 | - | 183-180 | - | 139 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1406-1469 | 1505 | 1487-1535 | 1462 | 1533-1610 |
| Overall weight [kg] | 2030 | 2016 | 2030 | 2064 | 1987 | 2157 |
| Maximum trailer weight unbraked/braked [kg] | 750/1850 | 750/1500 | 750/1850 | 750/1500 | 730/1850 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 88/- | 88/- | 88/- | 88/- | 88/- | 88/- |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1022 | -/1022 | -/1022 | -/1022 | -/1022 | -/1022 |
| Boot length [mm] | 1204 | 1204 | 1204 | 1204 | 1204 | 1204 |
| Boot length with rear seats folded [mm] | 2076 | 2076 | 2076 | 2076 | 2076 | 2076 |
| Boot width between wheels/max [mm] | 935/- | 935/- | 935/- | 935/- | 935/- | 935/- |
| Boot height to headliner/ceiling [mm] | 417/- | 417/- | 417/- | 417/- | 417/- | 417/- |
| Loading edge height [mm] | 718 | 718 | 718 | 718 | 718 | 718 |
| Height of the open boot door [mm] | 1752 | 1752 | 1752 | 1752 | 1752 | 1752 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1038/1136 | 1038/1136 | 1038/1136 | 1038/1136 | 1038/1136 | 1038/1136 |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 [47 4Control] | 51 | 51 [ 47 4Control] | 52 | 51 [47 4Control] |
| AdBlue tank volume [l] | - | - | - | - | - | 17 |
| Air resistance [Cd] | 0.27 | - | 0.27 | - | 0.27 | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | multilink |
| Tyre dimensions front | 225/55 R17 101W | 225/55 R17 101W | 245/40 R19 98Y | 225/55 R17 101W | 215/60 R16 95H | 225/55 R17 101W |
| Tyre dimensions rear | 225/55 R17 101W | 225/55 R17 101W | 245/40 R19 98Y | 225/55 R17 101W | 215/60 R16 95H | 225/55 R17 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 x 26 | 296 x 26 | 320 x 28 | 320 x 28 | 296 x 26 | 296 x 26 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | - | Electric power steering | - | Electric variable power steering | - | Electric power steering |
| Number of steering wheel turns | - | 2,8 [2,4 4Control] | - | 2,8 [2,4 4Control] | - | 2,8 [2,4 4Control] |
| Turning diameter track/circumference [m] | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] | 10.8/11.3 | 11.6/12.1 [10.8/11.3 4Control] | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] |
| Overall length [mm] | 4849 | 4849 | 4849 | 4849 | 4849 | 4849 |
| Overall width without/including mirrors [mm] | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 |
| Overall height [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1614 | 1614 | 1614 | 1614 | 1614 | 1614 |
| Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
| Forward overhang [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Rear overhang [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 902 | 902 | 902 | 902 | 902 | 902 |
| Headroom rear [mm] | 854 | 854 | 854 | 854 | 854 | 854 |
| Front elbow/shoulder width [mm] | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 |
| Rear elbow/shoulder width [mm] | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 262/- | 262/- | 262/- | 262/- | 262/- | 262/- |
| Energy dCi 130 | Energy dCi 130 | Blue dCi 150 | Energy dCi 160 | Blue dCi 160 | Blue dCi 200 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1749 | 1598 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 96/4000 | 96/4000 | 110/3500 | 118/4000 | 118/3750 | 147/3500 |
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | 340/1750 | 380/1750 | 360/1500 | 400/1750 |
| Bore and stroke [mm x mm] | 80,0 x 79,5 | 80,0 x 79,5 | 80.0 x 87.0 | 80,0 x 79,5 | 85.0 x 88.0 | 85.0 x 88.0 |
| Compression ratio | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 205 | 205 | 210 | 215 | 216 | 230 |
| Acceleration 0–100 km/h [s] | 10.4 | 10.8 | 10,3 [10,5 4Control] | 9.4 | 9,9 [10,0 4Control] | 8,8 [8,9 4Control] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | 7.4 (4th gear) | - | 7.6 | 6.1 |
| City [l] | 4.5 | 4.8 | 5,4-5,6 | 5.0 | 5,5-5,9 | 5,5-6,0 |
| Out of town [l] | 3.5 | 3.9 | 4,2-4,4 | 4.0 | 4,4-4,7 | 4,6-4,7 |
| Combined [l] | 3.9 | 4.2 | 4,6-4,8 | 4.4 | 4,8-5,1 | 4,9-5,1 |
| CO2 emissions [g/km] | 102 | 115-112 | 122-126 | 115 | 126-135 | 130-135 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 5.6-5.4 | - | 6.1-5.9 | 6.1-5.9 |
| CO2 emissions [g/km] | - | - | 146-142 | - | 159-156 | 159-156 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1556 | 1533-1610 | 1593 | 1595-1650 | 1595-1650 |
| Overall weight [kg] | 2030 | 2081 | 2157 | 2118 | 2197 | 2197 |
| Maximum trailer weight unbraked/braked [kg] | 750/1850 | 750/1850 | 750/1800 | 750/1850 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 88/- | 88/- | 88/- | 88/- | 88/- | 88/- |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1022 | -/1022 | -/1022 | -/1022 | -/1022 | -/1022 |
| Boot length [mm] | 1204 | 1204 | 1204 | 1204 | 1204 | 1204 |
| Boot length with rear seats folded [mm] | 2076 | 2076 | 2076 | 2076 | 2076 | 2076 |
| Boot width between wheels/max [mm] | 935/- | 935/- | 935/- | 935/- | 935/- | 935/- |
| Boot height to headliner/ceiling [mm] | 417/- | 417/- | 417/- | 417/- | 417/- | 417/- |
| Loading edge height [mm] | 718 | 718 | 718 | 718 | 718 | 718 |
| Height of the open boot door [mm] | 1752 | 1752 | 1752 | 1752 | 1752 | 1752 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 1038/1136 | 1038/1136 | 1038/1136 | 1038/1136 | 1038/1136 | 1038/1136 |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 51 [47 4Control] | 52 | 51 [47 4Control] | 51 [47 4Control] |
| AdBlue tank volume [l] | - | - | 17 | - | 17 | 17 |
| Air resistance [Cd] | 0.27 | 0.27 | - | 0.27 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | multilink | multilink |
| Tyre dimensions front | 215/60 R16 95H | 215/60 R16 95H | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W |
| Tyre dimensions rear | 215/60 R16 95H | 215/60 R16 95H | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 x 26 | 296 x 26 | 296 x 26 | 320 x 28 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | - | - | Electric power steering | - | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | 2,8 [2,4 4Control] | - | 2,8 [2,4 4Control] | 2,8 [2,4 4Control] |
| Turning diameter track/circumference [m] | 11.6/12.1 | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] | 11.6/12.1 [10.8/11.3 4Control] |
| Overall length [mm] | 4849 | 4849 | 4849 | 4849 | 4849 | 4849 |
| Overall width without/including mirrors [mm] | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 |
| Overall height [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Wheelbase [mm] | 2808 | 2808 | 2808 | 2808 | 2808 | 2808 |
| Front wheel track [mm] | 1614 | 1614 | 1614 | 1614 | 1614 | 1614 |
| Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
| Forward overhang [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Rear overhang [mm] | 1081 | 1081 | 1081 | 1081 | 1081 | 1081 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 902 | 902 | 902 | 902 | 902 | 902 |
| Headroom rear [mm] | 854 | 854 | 854 | 854 | 854 | 854 |
| Front elbow/shoulder width [mm] | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 |
| Rear elbow/shoulder width [mm] | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 262/- | 262/- | 262/- | 262/- | 262/- | 262/- |
Estate (Grandtour)
| Energy TCe 150 | TCe 160 | Energy TCe 200 | Energy TCe 225 | Energy dCi 110 | Blue dCi 120 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1618 | 1333 | 1618 | 1798 | 1461 | 1749 |
| Maximum output / speed [kW/min-1] | 110/5200 | 117/5500 | 147/6000 | 165/5500 | 81/4000 | 88/3500 |
| Maximum torque [Nm/min-1] | 220/1750 | 270/1800 | 260/2500 | 300/2000 | 260/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 72.2 x 81.4 | 79,5 x 80,5 | 79,7 x 90.1 | 76,0 x 80,5 | 80.0 x 87.0 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,0:1 | - | 15,5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 209 | 205 | 231 | 240 | 185 | 197 |
| Acceleration 0–100 km/h [s] | 9.9 | 9.1-9.2 | 7.9 | 7,5 [7,7 4Control] | 12.2 | 12.2-12.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 7.5-7.6 | - | 5.4 | - | 9.1 (4th gear) |
| City [l] | 7.6 | - | 7.6 | 9,9-10,1 | 4.2 | - |
| Out of town [l] | 4.8 | - | 4.8 | 5,6-5,8 | 3.5 | - |
| Combined [l] | 5.8 | - | 5.8 | 7,2-7,4 | 3.7 | - |
| CO2 emissions [g/km] | 132 | - | 132 | 164-169 | 98 | - |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6.7-6.4 | - | 7.9-7.7 | - | 5.2 |
| CO2 emissions [g/km] | - | 151-145 | - | 179-175 | - | 137 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1565 | 1439-1497 | 1565 | 1514-1559 | 1502 | 1560-1633 |
| Overall weight [kg] | 2140 | 2049 | 2140 | 2105 | 2073 | 2198 |
| Maximum trailer weight unbraked/braked [kg] | 750/1850 | 750/1500 | 750/1850 | 750/1500 | 730/1850 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 88/- | 88/- | 88/- | 88/- | 88/- | 88/- |
| Boot volume [l] | 572 | 572 | 572 | 572 | 572 | 572 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1681 | -/1681 | -/1681 | -/1681 | -/1681 | -/1681 |
| Boot length [mm] | 1116 | 1204 | 1116 | 1204 | 1116 | 1204 |
| Boot length with rear seats folded [mm] | 2011 | 2076 | 2011 | 2076 | 2011 | 2076 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | 432/- | 432/- | 432/- | 432/- | 432/- | 432/- |
| Loading edge height [mm] | 736 | 736 | 736 | 736 | 736 | 736 |
| Height of the open boot door [mm] | 2111 | 2111 | 2111 | 2111 | 2111 | 2111 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 969/1075 | 969/1075 | 969/1075 | 969/1075 | 969/1075 | 969/1075 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 [47 4Control] | 51 | 51 [ 47 4Control] | 52 | 51 [47 4Control] |
| AdBlue tank volume [l] | - | - | - | - | - | 17 |
| Air resistance [Cd] | 0.3 | - | 0.3 | - | 0.3 | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | multilink |
| Tyre dimensions front | 225/55 R17 101W | 225/55 R17 101W | 245/40 R19 98Y | 225/55 R17 101W | 215/60 R16 95H | 225/55 R17 101W |
| Tyre dimensions rear | 225/55 R17 101W | 225/55 R17 101W | 245/40 R19 98Y | 225/55 R17 101W | 215/60 R16 95H | 225/55 R17 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 x 26 | 296 x 26 | 320 x 28 | 320 x 28 | 296 x 26 | 296 x 26 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | - | Electric power steering | - | Electric variable power steering | - | Electric power steering |
| Number of steering wheel turns | - | 2,8 [2,4 4Control] | - | 2,8 [2,4 4Control] | - | 2,8 [2,4 4Control] |
| Turning diameter track/circumference [m] | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] | 10.8/11.3 | 11.6/12.1 [10.8/11.3 4Control] | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] |
| Overall length [mm] | 4865 | 4849 | 4865 | 4849 | 4865 | 4849 |
| Overall width without/including mirrors [mm] | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 |
| Overall height [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Wheelbase [mm] | 2809 | 2808 | 2809 | 2808 | 2809 | 2808 |
| Front wheel track [mm] | 1614 | 1614 | 1614 | 1614 | 1614 | 1614 |
| Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
| Forward overhang [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Rear overhang [mm] | 1097 | 1081 | 1097 | 1081 | 1097 | 1081 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 902 | 902 | 902 | 902 | 902 | 902 |
| Headroom rear [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Front elbow/shoulder width [mm] | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 |
| Rear elbow/shoulder width [mm] | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 262/- | 262/- | 262/- | 262/- | 262/- | 262/- |
| Energy dCi 130 | Energy dCi 130 | Blue dCi 150 | Energy dCi 160 | Blue dCi 160 | Blue dCi 200 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1749 | 1598 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 96/4000 | 96/4000 | 110/3500 | 118/4000 | 118/3750 | 147/3500 |
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | 340/1750 | 380/1750 | 360/1500 | 400/1750 |
| Bore and stroke [mm x mm] | 80,0 x 79,5 | 80,0 x 79,5 | 80.0 x 87.0 | 80,0 x 79,5 | 85.0 x 88.0 | 85.0 x 88.0 |
| Compression ratio | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 200 | 200 | 203 | 213 | 210 | 224 |
| Acceleration 0–100 km/h [s] | 10.8 | 11.2 | 10,5 [10,7 4Control] | 9.6 | 10,1 [10,2 4Control] | 9,0 [9,1 4Control] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | 7.7 (4th gear) | - | 7.8 | 6.3 |
| City [l] | 4.6 | 5.0 | 5,4-5,6 | 5.0 | 5,5-5,9 | 5,5-6,0 |
| Out of town [l] | 3.7 | 4.0 | 4,2-4,4 | 4.2 | 4,4-4,7 | 4,6-4,7 |
| Combined [l] | 4.0 | 4.4 | 4,6-4,8 | 4.5 | 4,8-5,1 | 4,9-5,1 |
| CO2 emissions [g/km] | 106 | 115 | 129-132 | 117 | 126-135 | 130-135 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 5.4-5.2 | - | 5.9-5.8 | 5.9-5.8 |
| CO2 emissions [g/km] | - | - | 141-137 | - | 155-152 | 155-152 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1579 | 1611 | 1560-1633 | 1615 | 1638-1689 | 1638-1689 |
| Overall weight [kg] | 2152 | 2184 | 2198 | 2190 | 2241 | 2241 |
| Maximum trailer weight unbraked/braked [kg] | 750/1850 | 750/1850 | 750/1800 | 750/1850 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 88/- | 88/- | 88/- | 88/- | 88/- | 88/- |
| Boot volume [l] | 572 | 572 | 572 | 572 | 572 | 572 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1681 | -/1681 | -/1681 | -/1681 | -/1681 | -/1681 |
| Boot length [mm] | 1116 | 1116 | 1204 | 1116 | 1204 | 1204 |
| Boot length with rear seats folded [mm] | 2011 | 2011 | 2076 | 2011 | 2076 | 2076 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | 432/- | 432/- | 432/- | 432/- | 432/- | 432/- |
| Loading edge height [mm] | 736 | 736 | 736 | 736 | 736 | 736 |
| Height of the open boot door [mm] | 2111 | 2111 | 2111 | 2111 | 2111 | 2111 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 969/1075 | 969/1075 | 969/1075 | 969/1075 | 969/1075 | 969/1075 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 51 [47 4Control] | 52 | 51 [47 4Control] | 51 [47 4Control] |
| AdBlue tank volume [l] | - | - | 17 | - | 17 | 17 |
| Air resistance [Cd] | 0.3 | 0.3 | - | 0.3 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | multilink | multilink |
| Tyre dimensions front | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W |
| Tyre dimensions rear | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 x 26 | 296 x 26 | 296 x 26 | 320 x 28 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | - | - | Electric power steering | - | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | 2,8 [2,4 4Control] | - | 2,8 [2,4 4Control] | 2,8 [2,4 4Control] |
| Turning diameter track/circumference [m] | 11.6/12.1 | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] | 11.6/12.1 | 11.6/12.1 [10.8/11.3 4Control] | 11.6/12.1 [10.8/11.3 4Control] |
| Overall length [mm] | 4865 | 4865 | 4849 | 4865 | 4849 | 4849 |
| Overall width without/including mirrors [mm] | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 | 1868/2081 |
| Overall height [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Wheelbase [mm] | 2809 | 2809 | 2808 | 2809 | 2808 | 2808 |
| Front wheel track [mm] | 1614 | 1614 | 1614 | 1614 | 1614 | 1614 |
| Rear wheel track [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
| Forward overhang [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Rear overhang [mm] | 1097 | 1097 | 1081 | 1097 | 1081 | 1081 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 902 | 902 | 902 | 902 | 902 | 902 |
| Headroom rear [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Front elbow/shoulder width [mm] | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 | 1512/1485 |
| Rear elbow/shoulder width [mm] | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 | 1461/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 262/- | 262/- | 262/- | 262/- | 262/- | 262/- |

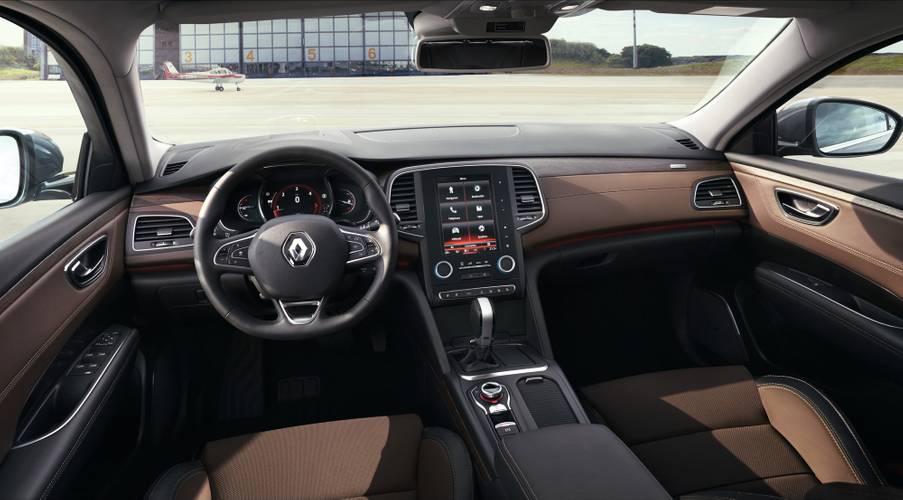

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
