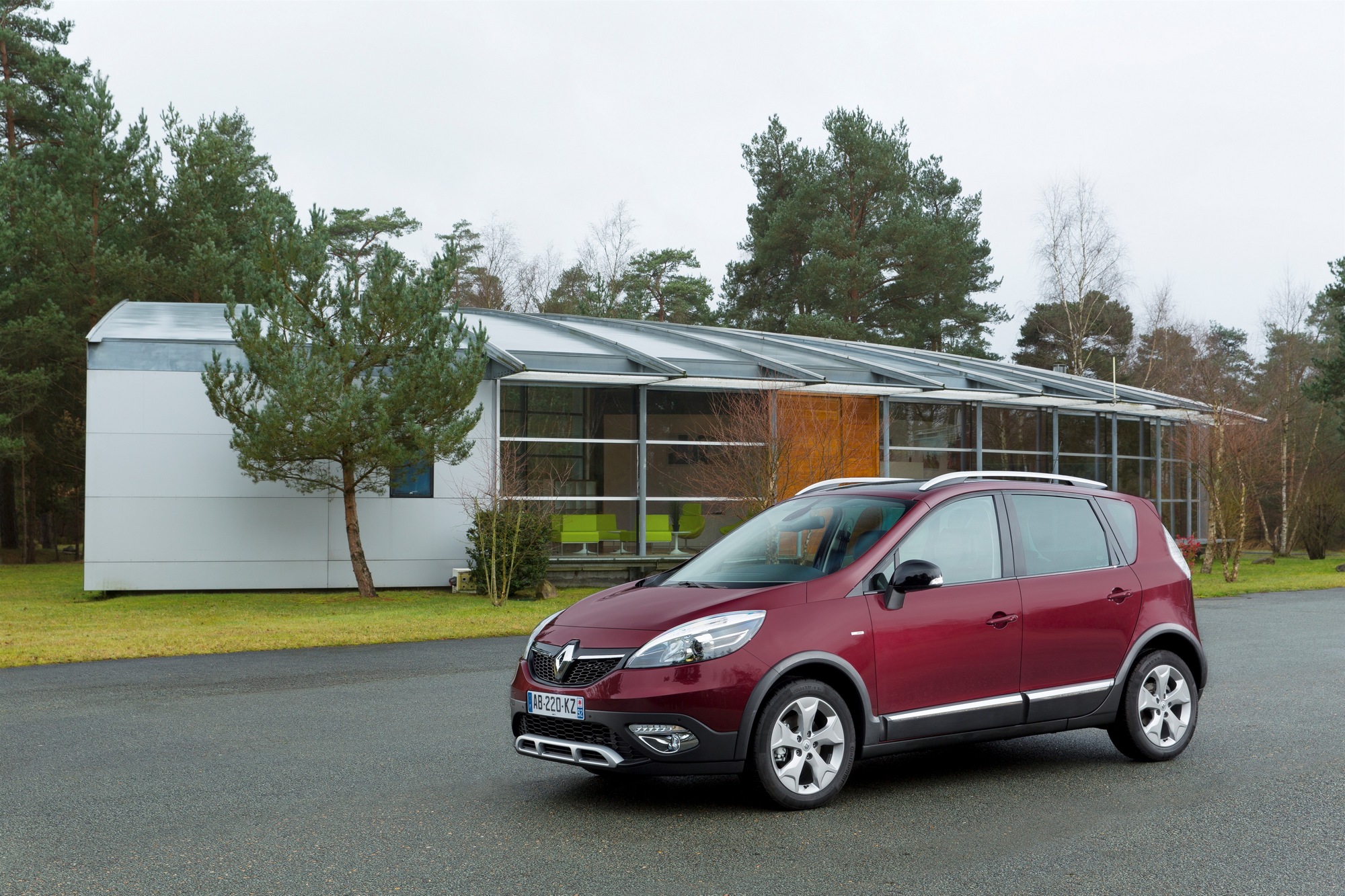

Renault Scénic
Date of manufacture
2013 – 2016 (MPV)
Platform
Renault C
Manufacturing locations
Douai, France
Designer
-
Tags
Mid-size MPV
French cars
Renault Scenic is an MPV that has been manufactured in France since 2013. The vehicle is built on the Renault C platform and offers a wide range of petrol and diesel engines. The most powerful engine is the 1.2 TCE XMOD with 97 kW, which reaches a top speed of 195 km/h. The best acceleration 0-100 km/h in 10.3 seconds is provided by the Energy 1.6 dCi model, while the most economical variant 1.5 dCi has a consumption of 4.1 l/100 km and emissions of 105 g/km. The trunk volume is 470 l, providing enough space for cargo transport. The safety of the vehicle was rated 5 out of 5 by EURONCAP in 2009.
Car body style
MPV
after upgrade (facelift) (II.)
Date of manufacture
2013 – 2016Internal designation
JZ
Technical data
MPV
| 1.6 16V | 1.6 16V XMOD | Energy 1.2 TCE | Energy 1.2 TCE XMOD | Energy 1.2 TCE | Energy 1.2 TCE XMOD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1198 | 1198 | 1198 | 1198 |
| Maximum output / speed [kW/min-1] | 81/6000 | 81/6000 | 85/4500 | 85/4500 | 97/5500 | 97/5500 |
| Maximum torque [Nm/min-1] | 151/4250 | 151/4250 | 190/2000 | 190/2000 | 205/2000 | 205/2000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 190 | 190 | 185 | 185 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 11.7 | 11.7 | 11.4 | 11.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.1 | 10.4 | 7.2 | 7.5 | 7.5-7.6 | 7.7 |
| Out of town [l] | 5.9 | 6.2 | 5.2 | 5.4 | 5.4 | 5.6 |
| Combined [l] | 7.4 | 7.7 | 5.9 | 6.1 | 6.2 | 6.4 |
| CO2 emissions [g/km] | 174 | 178 | 135 | 140 | 140 | 145 |
| Emission standard | EU5 | EU5 | EU5-EU6 | EU5 | EU5-EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1446 | 1400 | 1410 | 1424 | 1410 | 1424 |
| Overall weight [kg] | 1904 | 1936 | 1955 | 1968 | 1955 | 1968 |
| Maximum trailer weight unbraked/braked [kg] | 695/1300 | 715/1300 | 695/1300 | 705/1300 | 695/1300 | 705/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1870 | -/1870 | -/1870 | -/1870 | -/1870 | -/1870 |
| Boot length [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Boot length with rear seats folded [mm] | 1680 | 1680 | 1680 | 1680 | 1680 | 1680 |
| Boot width between wheels/max [mm] | 1105/- | 1105/- | 1105/- | 1105/- | 1105/- | 1105/- |
| Boot height to headliner/ceiling [mm] | 550/- | 550/- | 550/- | 550/- | 550/- | 550/- |
| Loading edge height [mm] | 602 | 612 | 602 | 612 | 602 | 612 |
| Height of the open boot door [mm] | 2014 | 2008 | 2014 | 2008 | 2014 | 2008 |
| Boot opening height [mm] | 858 | 858 | 858 | 858 | 858 | 858 |
| Boot opening width min/max [mm] | 980/1092 | 980/1092 | 980/1092 | 980/1092 | 980/1092 | 980/1092 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R17 |
| Wheel size front | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 7.0J x17 ET49 |
| Wheel size rear | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 7.0J x17 ET49 |
| Brake dimensions front | 280 | 280 | 296 | 296 | 296 | 296 |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 260 | 260 |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4366 | 4372 | 4366 | 4372 | 4366 | 4372 |
| Overall width without/including mirrors [mm] | 1845/2077 | 1845/2077 | 1845/2077 | 1845/2077 | 1845/2077 | 1845/2077 |
| Overall height [mm] | 1640 | 1656 | 1640 | 1656 | 1640 | 1656 |
| Wheelbase [mm] | 2702 | 2704 | 2702 | 2704 | 2702 | 2704 |
| Front wheel track [mm] | 1545 | 1544 | 1545 | 1544 | 1545 | 1544 |
| Rear wheel track [mm] | 1547 | 1549 | 1547 | 1549 | 1547 | 1549 |
| Forward overhang [mm] | 885 | 912 | 885 | 912 | 885 | 912 |
| Rear overhang [mm] | 757 | 756 | 757 | 756 | 757 | 756 |
| Clearance [mm] | 120 | 150 | 120 | 150 | 120 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Headroom rear [mm] | 901 | 900 | 901 | 900 | 901 | 900 |
| Front elbow/shoulder width [mm] | 1478/1445 | 1487/1342 | 1478/1445 | 1487/1342 | 1478/1445 | 1487/1342 |
| Rear elbow/shoulder width [mm] | 1475/1436 | 1490/1344 | 1475/1436 | 1490/1344 | 1475/1436 | 1490/1344 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 dCi | Energy 1.5 dCi | 1.5 dCi XMOD | 1.5 dCi | 1.5 dCi XMOD | Energy 1.6 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | 1461 | 1598 |
| Maximum output / speed [kW/min-1] | 81/4000 | 81/4000 | 81/4000 | 81/4000 | 81/4000 | 96/4000 |
| Maximum torque [Nm/min-1] | 240/1750 | 240/1750 | 240/1750 | 240/1750 | 240/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 |
| Compression ratio | 15,2:1 | 15,2:1 | 15,2:1 | 15,2:1 | 15,2:1 | 15,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - | - |
|
| - |
| Top speed [km/h] | 180 | 180 | 180 | 180 | 180 | 195 |
| Acceleration 0–100 km/h [s] | 12.3 | 12.3 | 12.5 | 13.4 | 13.4 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8 | 4.5 | 5.5 | 4.8-5.4 | 5.4 | 5.0-5.1 |
| Out of town [l] | 4.4 | 3.9 | 4.1 | 4.1-4.3 | 4.3 | 4.0 |
| Combined [l] | 4.9 | 4.1 | 4.6 | 4.4-4.7 | 4.7 | 4.4 |
| CO2 emissions [g/km] | 128 | 105 | 120 | 114-124 | 124 | 114 |
| Emission standard | EU5 | EU6 | EU5 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1507 | 1507 | 1446 | 1536 | 1479 | 1565 |
| Overall weight [kg] | 1964 | 1964 | 1989 | 1993 | 2028 | 2035 |
| Maximum trailer weight unbraked/braked [kg] | 730/1300 | 730/1300 | 715/1300 | 750/1300 | 750/1300 | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1870 | -/1870 | -/1870 | -/1870 | -/1870 | -/1870 |
| Boot length [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Boot length with rear seats folded [mm] | 1680 | 1680 | 1680 | 1680 | 1680 | 1680 |
| Boot width between wheels/max [mm] | 1105/- | 1105/- | 1105/- | 1105/- | 1105/- | 1105/- |
| Boot height to headliner/ceiling [mm] | 550/- | 550/- | 550/- | 550/- | 550/- | 550/- |
| Loading edge height [mm] | 602 | 602 | 612 | 602 | 612 | 602 |
| Height of the open boot door [mm] | 2014 | 2014 | 2008 | 2014 | 2008 | 2014 |
| Boot opening height [mm] | 858 | 858 | 858 | 858 | 858 | 858 |
| Boot opening width min/max [mm] | 980/1092 | 980/1092 | 980/1092 | 980/1092 | 980/1092 | 980/1092 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R17 | 205/60 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R17 | 205/60 R16 |
| Wheel size front | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 7.0J x17 ET49 | 6.5J x 16 ET47 |
| Wheel size rear | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 7.0J x17 ET49 | 6.5J x 16 ET47 |
| Brake dimensions front | 296 | 296 | 296 | 296 | 296 | 296 |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 260 | 260 |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4366 | 4366 | 4372 | 4366 | 4372 | 4366 |
| Overall width without/including mirrors [mm] | 1845/2077 | 1845/2077 | 1845/2077 | 1845/2077 | 1845/2077 | 1845/2077 |
| Overall height [mm] | 1640 | 1640 | 1656 | 1640 | 1656 | 1640 |
| Wheelbase [mm] | 2702 | 2702 | 2704 | 2702 | 2704 | 2702 |
| Front wheel track [mm] | 1545 | 1545 | 1544 | 1545 | 1544 | 1545 |
| Rear wheel track [mm] | 1547 | 1547 | 1549 | 1547 | 1549 | 1547 |
| Forward overhang [mm] | 885 | 885 | 912 | 885 | 912 | 885 |
| Rear overhang [mm] | 757 | 757 | 756 | 757 | 756 | 757 |
| Clearance [mm] | 120 | 120 | 150 | 120 | 150 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Headroom rear [mm] | 901 | 901 | 900 | 901 | 900 | 901 |
| Front elbow/shoulder width [mm] | 1478/1445 | 1478/1445 | 1487/1342 | 1478/1445 | 1487/1342 | 1478/1445 |
| Rear elbow/shoulder width [mm] | 1475/1436 | 1475/1436 | 1490/1344 | 1475/1436 | 1490/1344 | 1475/1436 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Energy 1.6 dCi XMOD | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1598 | |||||
| Maximum output / speed [kW/min-1] | 96/4000 | |||||
| Maximum torque [Nm/min-1] | 320/1750 | |||||
| Bore and stroke [mm x mm] | 80,0 x 79,5 | |||||
| Compression ratio | 15,4:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 195 | |||||
| Acceleration 0–100 km/h [s] | 10.3 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5.1 | |||||
| Out of town [l] | 4.0 | |||||
| Combined [l] | 4.4 | |||||
| CO2 emissions [g/km] | 114 | |||||
| Emission standard | EU5-EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1511 | |||||
| Overall weight [kg] | 2055 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 470 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1870 | |||||
| Boot length [mm] | 977 | |||||
| Boot length with rear seats folded [mm] | 1680 | |||||
| Boot width between wheels/max [mm] | 1105/- | |||||
| Boot height to headliner/ceiling [mm] | 550/- | |||||
| Loading edge height [mm] | 612 | |||||
| Height of the open boot door [mm] | 2008 | |||||
| Boot opening height [mm] | 858 | |||||
| Boot opening width min/max [mm] | 980/1092 | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 205/55 R17 | |||||
| Tyre dimensions rear | 205/55 R17 | |||||
| Wheel size front | 7.0J x17 ET49 | |||||
| Wheel size rear | 7.0J x17 ET49 | |||||
| Brake dimensions front | 296 | |||||
| Brake dimensions rear | 260 | |||||
| Steering | Electric variable power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.05/- | |||||
| Overall length [mm] | 4372 | |||||
| Overall width without/including mirrors [mm] | 1845/2077 | |||||
| Overall height [mm] | 1656 | |||||
| Wheelbase [mm] | 2704 | |||||
| Front wheel track [mm] | 1544 | |||||
| Rear wheel track [mm] | 1549 | |||||
| Forward overhang [mm] | 912 | |||||
| Rear overhang [mm] | 756 | |||||
| Clearance [mm] | 150 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 968 | |||||
| Headroom rear [mm] | 900 | |||||
| Front elbow/shoulder width [mm] | 1487/1342 | |||||
| Rear elbow/shoulder width [mm] | 1490/1344 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
