Renault Mégane
Date of manufacture
2020 – to this day (Sedan)
2020 – to this day (Five-door hatchback)
2020 – to this day (Estate)
Platform
CMF-CD
Manufacturing locations
Palencia, Spain
Bursa, Turkey
Designer
Franck Le Gall
Tags
C-segment
French cars
The new Renault Mégane model is available in three body styles - sedan, five-door hatchback and estate. The car manufactured since 2020 has countries of origin such as Spain and Turkey and is based on the CMF-CD platform. Petrol, diesel and hybrid engines are available, the most powerful model is the R.S. Trophy 300 with 221 kW of power and a top speed of 255 km/h. The quickest acceleration from 0-100 km/h is 5.7 seconds and the most fuel-efficient version is the E-TECH 160 (1.3 l/100 km). CO2 emissions reach 37 g/km. The luggage compartment volume of the estate is 521 l, the hatchback 402 l and the sedan 550 l. EURONCAP safety tests rated this model 5 out of 5 points.
Car body style
Sedan (GrandCoupe)
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
-Engine size
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
-Engine size
Diesel
Estate (Grandtour)
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
-Engine size
Technical data
Sedan (GrandCoupe)
| TCe 115 | TCe 140 | TCe 140 | Blue dCi 115 | Blue dCi 115 | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/8 | 4/8 | |
| Engine displacement [cm³] | 999 | 1333 | 1333 | 1461 | 1461 | |
| Maximum output / speed [kW/min-1] | 84/5000-5250 | 103/4500 | 103/4500 | 85/3750 | 85/3750 | |
| Maximum torque [Nm/min-1] | 200/2900-3500 | 260/1750-3500 | 240/1600-3750 | 270/1750 | 270/1750 | |
| Bore and stroke [mm x mm] | 72,2 x 81,3 | 72.2 x 81.4 | 72.2 x 81.4 | 76,0 x 80,5 | 76,0 x 80,5 | |
| Compression ratio | - | 10,5:1 | 10,5:1 | 15.2:1 | 15.2:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | |
| Drive specifications | - | - |
| - |
| |
| Top speed [km/h] | 190 | 205 | 205 | 190 | 190 | |
| Acceleration 0–100 km/h [s] | 11,2 | 9,6 | 9,8 | 11,3 | 11,2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | - | - | - | - | - | |
| Out of town [l] | - | - | - | - | - | |
| Combined [l] | - | - | - | - | - | |
| CO2 emissions [g/km] | - | - | - | - | - | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 5,8 | 5,9 | 6,0 | 4,6 | 4,7 | |
| CO2 emissions [g/km] | 131 | 134-133 | 135 | 120-119 | 121 | |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1238-1326 | 1278-1367 | 1306-1392 | 1367-1455 | 1394-1481 | |
| Overall weight [kg] | 1788 | 1829 | 1854 | 1917 | 1943 | |
| Maximum trailer weight unbraked/braked [kg] | 655/1300 | 675/1650 | 690/1650 | 720/1650 | 730/1650 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1258 | -/1258 | -/1258 | -/1258 | -/1258 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1108/- | 1108/- | 1108/- | 1108/- | 1108/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | 1708 | 1708 | 1708 | 1708 | 1708 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 49 | 49 | |
| AdBlue tank volume [l] | - | - | - | 16 | 16 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | |
| Overall length [mm] | 4632 | 4632 | 4632 | 4632 | 4632 | |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | |
| Overall height [mm] | 1443 | 1443 | 1443 | 1443 | 1443 | |
| Wheelbase [mm] | 2711 | 2711 | 2711 | 2711 | 2711 | |
| Front wheel track [mm] | 1582 | 1582 | 1582 | 1582 | 1582 | |
| Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | |
| Rear overhang [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | |
| Headroom rear [mm] | 844 | 844 | 844 | 844 | 844 | |
| Front elbow/shoulder width [mm] | -/1492 | -/1492 | -/1492 | -/1492 | -/1492 | |
| Rear elbow/shoulder width [mm] | -/1413 | -/1413 | -/1413 | -/1413 | -/1413 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 216/- | 216/- | 216/- | 216/- | 216/- |
Five-door hatchback
| TCe 115 | TCe 115 | TCe 140 | TCe 140 | TCe 160 | R.S 300 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from 2021 to | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 999 | 1333 | 1333 | 1333 | 1798 |
| Maximum output / speed [kW/min-1] | 84/4500 | 84/5000-5250 | 103/4500 | 103/4500 | 116/5500 | 221/6000 |
| Maximum torque [Nm/min-1] | 220/1500 | 200/2900-3500 | 240/1600 | 240/1600 | 270/1800 | 420/4000 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72,2 x 81,3 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 79,7 x 90.1 |
| Compression ratio | 10,5:1 | - | 10,5:1 | 10,5:1 | 10,5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 190 | 190 | 205 | 205 | 205 | 255 |
| Acceleration 0–100 km/h [s] | 10.6 | 10.6 | 9,4 | 9.0 | 8.3 | 5,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9.0 (4th gear) | 7.7 (4th gear) | 8.2 | - | - |
| City [l] | 6.8-6.5 | 7,6-7,5 | 7,2-7,2 | 6,9-6,4 | 7,0-6,5 | 10,7-10,4 |
| Out of town [l] | 4.9-4.5 | 4,9-4,9 | 4,9-4,7 | 4,8-4,7 | 4,9-4,6 | 6,9-6,7 |
| Combined [l] | 5.6-5.3 | 5,7-5,5 | 5,6-5,4 | 5,5-5,2 | 5,5-5,2 | 8,3-8,1 |
| CO2 emissions [g/km] | 127-120 | 131-125 | 128-123 | 125-119 | 125-119 | 189-183 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 5.7-5.6 | 6.6-5.9 | 6.6-6.0 | 6.6-6.1 | 8.6-8.3 |
| CO2 emissions [g/km] | 149-133 | 139-126 | 141-129 | 142-132 | 141-133 | 194-189 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1306 | 1272 | 1289 | 1317 | 1347 | 1522 |
| Overall weight [kg] | 1799 | 1795 | 1784 | 1810 | 1813 | 1931 |
| Maximum trailer weight unbraked/braked [kg] | 635/1650 | 635/1300 | 640/1650 | 655/1650 | 670/1650 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 402 | 402 | 402 | 402 | 402 | 294 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 | - |
| Boot length [mm] | 469 | 469 | 469 | 469 | 469 | 469 |
| Boot length with rear seats folded [mm] | 1582 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Boot width between wheels/max [mm] | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Height of the open boot door [mm] | 2044 | 2044 | 2044 | 2044 | 2044 | 2044 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 904/1080 | 904/1080 | 904/1080 | 904/1080 | 904/1080 | 904/1080 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 235/40 R18 |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 235/40 R18 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 296 x 26 | 355 x 28 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 290 x 11 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 |
| Overall length [mm] | 4359 | 4359 | 4359 | 4359 | 4359 | 4364 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1875/- |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1615 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1596 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Rear overhang [mm] | 771 | 771 | 771 | 771 | 771 | 786 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 101 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Front elbow/shoulder width [mm] | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 |
| Rear elbow/shoulder width [mm] | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 179/- | 179/- | 179/- | 179/- | 179/- | 179/- |
| R.S. Trophy 300 | E-TECH 160 | Blue dCi 115 | Blue dCi 115 | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Petrol + Electric | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | ||
| Engine displacement [cm³] | 1798 | 1598 | 1461 | 1461 | ||
| Maximum output / speed [kW/min-1] | 221/6000 | 68/5600 combustion 51 el. 25 starter-generator 117 total | 85/3750 | 85/3750 | ||
| Maximum torque [Nm/min-1] | 420/4000 | 144/3200 combustion 205 el. 50 starter-generator | 270/1750 | 270/1750 | ||
| Bore and stroke [mm x mm] | 79,7 x 90.1 | - | 76,0 x 80,5 | 76,0 x 80,5 | ||
| Compression ratio | - | - | 15.2:1 | 15.2:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear automatic | 2+4 gear automatic | 6 gear manual | 7 gear automatic | ||
| Drive specifications |
|
| - |
| ||
| Top speed [km/h] | 255 | 175 [135 el.] | 190 | 190 | ||
| Acceleration 0–100 km/h [s] | 5,7 | 9,8 | 11,1 | 11.0 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | 6.6 | 8.0 (4th gear) | 8.0 | ||
| City [l] | 10,7-10,4 | - | 5,0-4,5 | 4,6-4,5 | ||
| Out of town [l] | 6,9-6,7 | - | 3,8-3,6 | 3,8-3,6 | ||
| Combined [l] | 8,3-8,1 | 1,2-1,2 [15.0-13.0 kWh] | 4,3-4,0 | 4,1-3,9 | ||
| CO2 emissions [g/km] | 189-183 | 29-27 | 112-104 | 108-104 | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | 8.6-8.3 | 1.6-1.3 | 4.9-4.5 | 4.9-4.6 | ||
| CO2 emissions [g/km] | 194-189 | 32-27 | 131-120 | 131-120 | ||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | - | 400 | - | - | ||
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 9.8 kWh | - | - | ||
| Range with fully charged battery [km] | - | 50 [WLTP] | - | - | ||
| Charging time | - |
| - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | 105 | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1522 | 1605 | 1395 | 1422 | ||
| Overall weight [kg] | 1931 | 2060 | 1889 | 1916 | ||
| Maximum trailer weight unbraked/braked [kg] | - | 750/750 | 695/1650 | 710/1650 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | 75 | 75 | 75 | ||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | ||
| Boot volume [l] | 294 | 261 | 402 | 402 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | -/1117 | -/1247 | -/1247 | ||
| Boot length [mm] | 469 | 469 | 469 | 469 | ||
| Boot length with rear seats folded [mm] | 1582 | 1582 | 1582 | 1582 | ||
| Boot width between wheels/max [mm] | 1111/- | 1111/- | 1111/- | 1111/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 750 | 750 | 750 | 750 | ||
| Height of the open boot door [mm] | 2044 | 2044 | 2044 | 2044 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | 904/1080 | 904/1080 | 904/1080 | 904/1080 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 39 | 45 | 45 | ||
| AdBlue tank volume [l] | - | - | 16 | 16 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 245/35 R19 | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | ||
| Tyre dimensions rear | 245/35 R19 | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 355 x 28 | 280 x 24 | 280 x 24 | 280 x 24 | ||
| Brake dimensions rear | 290 x 11 | 260 x 8 | 260 x 8 | 260 x 8 | ||
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | ||
| Overall length [mm] | 4364 | 4359 | 4359 | 4359 | ||
| Overall width without/including mirrors [mm] | 1875/- | 1814/2058 | 1814/2058 | 1814/2058 | ||
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | ||
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | ||
| Front wheel track [mm] | 1615 | 1591 | 1591 | 1591 | ||
| Rear wheel track [mm] | 1596 | 1586 | 1586 | 1586 | ||
| Forward overhang [mm] | 919 | 919 | 919 | 919 | ||
| Rear overhang [mm] | 786 | 771 | 771 | 771 | ||
| Clearance [mm] | 101 | 145 | 145 | 145 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 886 | 886 | 886 | 886 | ||
| Headroom rear [mm] | 866 | 866 | 866 | 866 | ||
| Front elbow/shoulder width [mm] | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | ||
| Rear elbow/shoulder width [mm] | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | 179/- | 179/- | 179/- | 179/- |
Estate (Grandtour)
| TCe 115 | TCe 115 | TCe 140 | TCe 140 | TCe 160 | E-TECH 160 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from 2021 to | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol + Electric |
| Number of cylinders/valves | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 999 | 1333 | 1333 | 1333 | 1598 |
| Maximum output / speed [kW/min-1] | 84/4500 | 84/5000-5250 | 103/4500 | 103/4500 | 116/5500 | 68/5600 combustion 51 el. 25 starter-generator 117 total |
| Maximum torque [Nm/min-1] | 220/1500 | 200/2900-3500 | 240/1600 | 240/1600 | 270/1800 | 144/3200 combustion 205 el. 50 starter-generator |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72,2 x 81,3 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | - |
| Compression ratio | 10,5:1 | - | 10,5:1 | 10,5:1 | 10,5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 2+4 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 192 | 190 | 205 | 205 | 205 | 183 [135 el.] |
| Acceleration 0–100 km/h [s] | 11.0 | 11,4 | 9,7 | 10,0 | 9,3 | 9,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9.3 (4th gear) | 8.1 (4th gear) | 8.5 | 7.3 | - |
| City [l] | 6.8-6.5 | 7,6-7,5 | 7,2-7,2 | 6,9-6,4 | 7,0-6,5 | - |
| Out of town [l] | 4.9-4.5 | 4,9-4,9 | 4,9-4,7 | 4,8-4,7 | 4,9-4,6 | - |
| Combined [l] | 5.6-5.3 | 5,7-5,5 | 5,6-5,4 | 5,5-5,2 | 5,5-5,2 | 1,4-1,3 [15.0-13.0 kWh] |
| CO2 emissions [g/km] | 127-120 | 131-125 | 128-123 | 125-119 | 125-119 | 32-29 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 5.9-5.8 | 6.0 | 6.0-5.9 | 1.3 |
| CO2 emissions [g/km] | 149-133 | 139-126 | 133-132 | 135 | 135-134 | 37-28 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 400 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 9.8 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 50 [WLTP] |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | 105 |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1354 | 1324 | 1356 | 1383 | 1431 | 1678 |
| Overall weight [kg] | 1859 | 1828 | 1863 | 1888 | 1892 | 2131 |
| Maximum trailer weight unbraked/braked [kg] | 675/1700 | 660/1300 | 675/1700 | 690/1700 | 715/1700 | 750/750 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 521 | 521 | 521 | 521 | 521 | 521 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 |
| Boot length [mm] | 950 | 950 | 950 | 950 | 950 | 876 |
| Boot length with rear seats folded [mm] | 1754 | 1754 | 1754 | 1754 | 1754 | 1856 |
| Boot width between wheels/max [mm] | 1109/- | 1109/- | 1109/- | 1109/- | 1109/- | 1121/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 597 | 597 | 597 | 597 | 597 | 613 |
| Height of the open boot door [mm] | 2033 | 2033 | 2033 | 2033 | 2033 | 2040 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1032 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 39 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 296 x 26 | 296 x 26 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 290 x 13 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 |
| Overall length [mm] | 4625 | 4625 | 4625 | 4625 | 4625 | 4625 |
| Overall width without/including mirrors [mm] | 1870/2058 | 1870/2058 | 1870/2058 | 1870/2058 | 1870/2058 | 1871/2058 |
| Overall height [mm] | 1446 | 1446 | 1446 | 1446 | 1446 | 1446 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Rear overhang [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 |
| Rear elbow/shoulder width [mm] | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 216/- | 216/- | 216/- | 216/- | 216/- | 216/- |
| Blue dCi 115 | Blue dCi 115 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/8 | 4/8 | ||||
| Engine displacement [cm³] | 1461 | 1461 | ||||
| Maximum output / speed [kW/min-1] | 85/3750 | 85/3750 | ||||
| Maximum torque [Nm/min-1] | 270/1750 | 270/1750 | ||||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | ||||
| Compression ratio | 15.2:1 | 15.2:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 7 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 191 | 190 | ||||
| Acceleration 0–100 km/h [s] | 11,4 | 11,3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 8.1 (4th gear) | 8.3 | ||||
| City [l] | 5,0-4,5 | 4,6-4,5 | ||||
| Out of town [l] | 3,8-3,6 | 3,8-3,6 | ||||
| Combined [l] | 4,3-4,0 | 4,1-3,9 | ||||
| CO2 emissions [g/km] | 112-104 | 108-104 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 4.7 | 4.7 | ||||
| CO2 emissions [g/km] | 123-122 | 123-122 | ||||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1448 | 1475 | ||||
| Overall weight [kg] | 1954 | 1980 | ||||
| Maximum trailer weight unbraked/braked [kg] | 720/1700 | 735/1700 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 521 | 521 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1504 | -/1504 | ||||
| Boot length [mm] | 950 | 950 | ||||
| Boot length with rear seats folded [mm] | 1754 | 1754 | ||||
| Boot width between wheels/max [mm] | 1109/- | 1109/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 597 | 597 | ||||
| Height of the open boot door [mm] | 2033 | 2033 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | 854/1036 | 854/1036 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 45 | 45 | ||||
| AdBlue tank volume [l] | 16 | 16 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | ||||
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 280 x 24 | 280 x 24 | ||||
| Brake dimensions rear | 260 x 8 | 260 x 8 | ||||
| Steering | Electric power steering | Electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | ||||
| Overall length [mm] | 4625 | 4625 | ||||
| Overall width without/including mirrors [mm] | 1870/2058 | 1870/2058 | ||||
| Overall height [mm] | 1446 | 1446 | ||||
| Wheelbase [mm] | 2712 | 2712 | ||||
| Front wheel track [mm] | 1591 | 1591 | ||||
| Rear wheel track [mm] | 1586 | 1586 | ||||
| Forward overhang [mm] | 918 | 918 | ||||
| Rear overhang [mm] | 995 | 995 | ||||
| Clearance [mm] | 145 | 145 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 886 | 886 | ||||
| Headroom rear [mm] | 871 | 871 | ||||
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | ||||
| Rear elbow/shoulder width [mm] | 1412/1377 | 1412/1377 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | 216/- | 216/- |

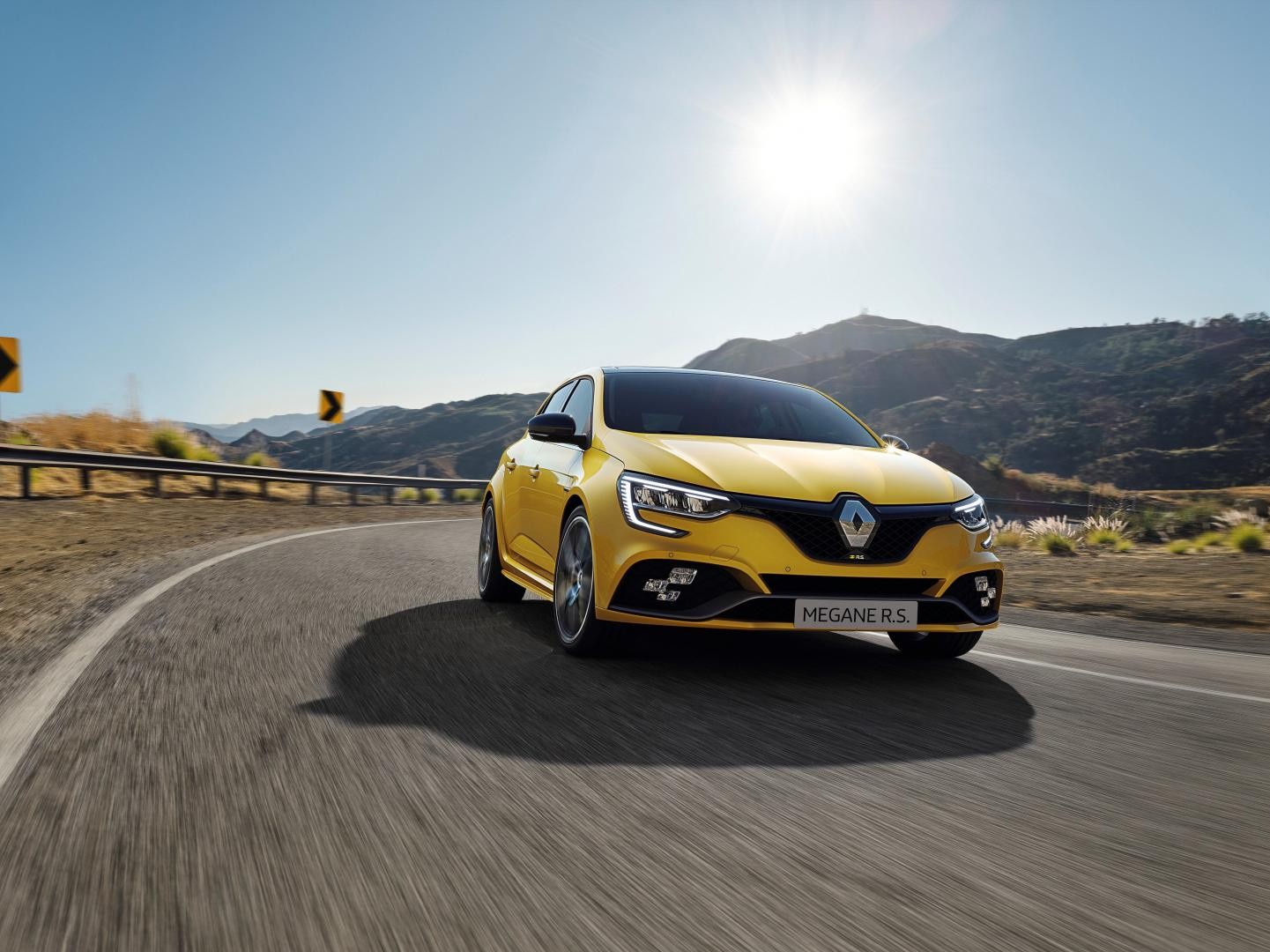

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
