Renault Mégane
Date of manufacture
2012 – 2013 (Three-door hatchback)
2012 – 2013 (Five-door hatchback)
2012 – 2013 (Estate)
Platform
Renault C
Manufacturing locations
Palencia, Spain
Douai, France
Bursa, Turkey
Designer
-
Tags
C-segment
French cars
Renault Mégane is available in three body styles - three-door hatchback, five-door hatchback and estate. It has been produced since 2012 in countries like Spain, France and Turkey and is based on the Renault C platform. The engine range includes petrol and diesel engines, the most powerful model being the R.S with 195 kW. The highest speed is achieved by the R.S model with 254 km/h and the best acceleration 0-100 km/h in 6.0 seconds is also achieved by this model. The Energy 1.6 dCi model offers the lowest consumption of 4 l/100 km and emissions of 104 g/km. The luggage compartment has a size of 344 l (three-door hatchback), 372 l (five-door hatchback) and 491 l (estate). The EURONCAP safety test rated the model with 5 out of 5 points.
Car body style
Three-door hatchback
after upgrade (facelift) (I.)
Date of manufacture
2012 – 2013Internal designation
X95Engine size

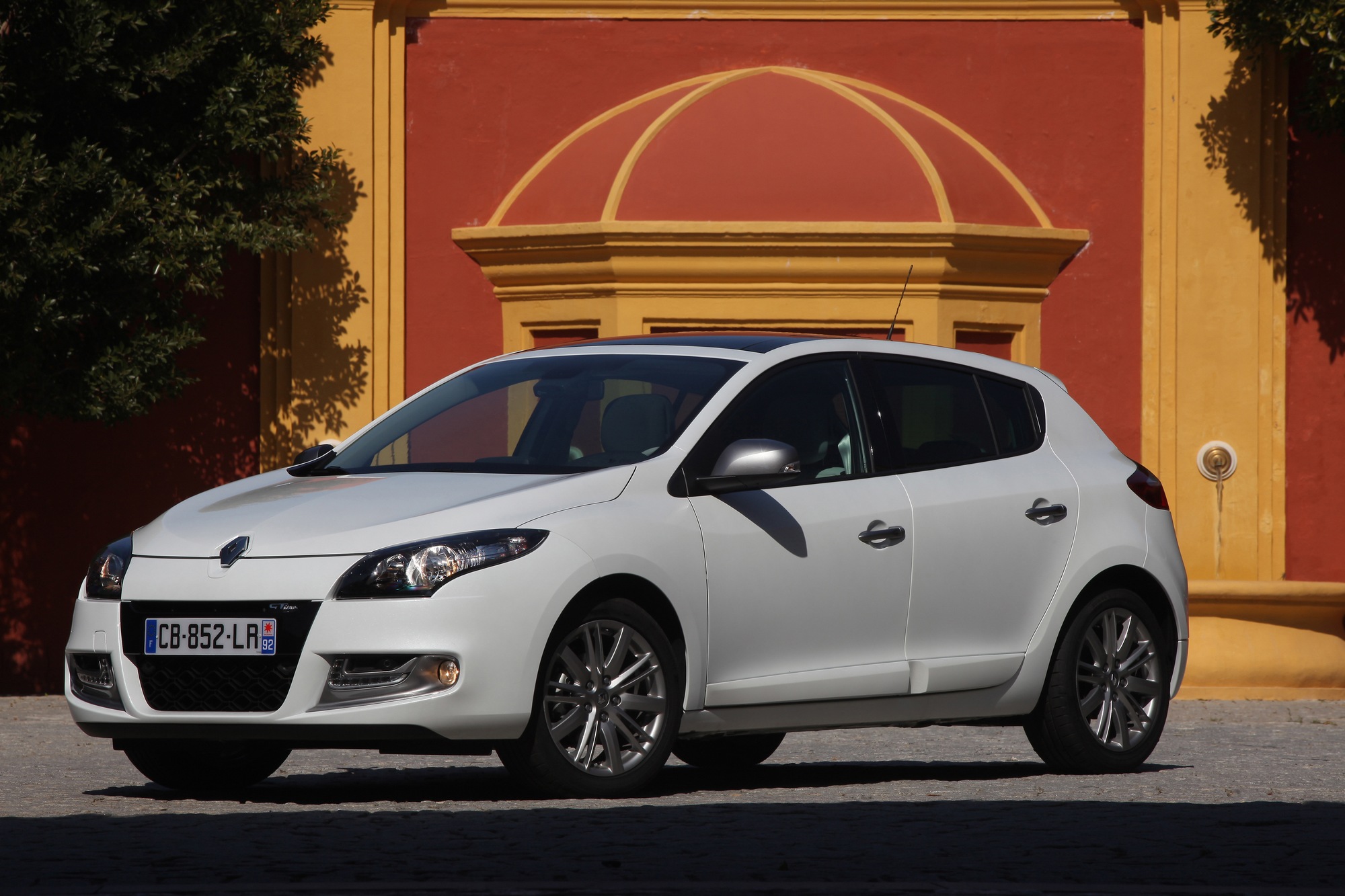

Five-door hatchback
after upgrade (facelift) (I.)
Date of manufacture
2012 – 2013Internal designation
X95Estate (Grandtour)
after upgrade (facelift) (I.)
Date of manufacture
2012 – 2013Internal designation
X95Engine size
Technical data
Three-door hatchback
| 1.6 16V | Energy 1.2 TCe | 2.0 TCe | R.S | 1.5 dCi | 1.5 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1197 | 1998 | 1998 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 81/6000 | 85/4500 | 132/5500 | 195/5500 | 81/4000 | 81/4000 |
| Maximum torque [Nm/min-1] | 151/4250 | 190/2000 | 300/2250 | 360/3000-5000 | 240/1750 | 240/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 72,2 x 73,2 | 82,7 x 93,0 | 82,7 x 93,0 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 9,5:1 | 9,0:1 | 15,2:1 | 15,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 190 | 190 | 215 | 254 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 10.5 | 10.9 | 8.5 | 6.0 | 10.8 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 6.4 | 10.9 | 11.3 | 5.1 | 5.1 |
| Out of town [l] | 5.5 | 4.6 | 5.9 | 6.5 | 4.0 | 3.7 |
| Combined [l] | 6.9 | 5.3 | 7.7 | 8.2 | 4.4 | 4.2 |
| CO2 emissions [g/km] | 159 | 119 | 178 | 190 | 114 | 110 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1280 | 1410 | 1462 | 1280 | 1280 |
| Overall weight [kg] | 1746 | 1774 | 1830 | 1835 | 1795 | 1829 |
| Maximum trailer weight unbraked/braked [kg] | 640/1300 | 640/1300 | 695/1300 | - | 635/1300 | 635/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 344 | 344 | 344 | 344 | 344 | 344 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/991 | -/991 | -/991 | -/991 | -/991 | -/991 |
| Boot length [mm] | 510 | 510 | 510 | 510 | 510 | 510 |
| Boot length with rear seats folded [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Boot width between wheels/max [mm] | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 |
| Boot height to headliner/ceiling [mm] | 510/- | 510/- | 510/- | 510/- | 510/- | 510/- |
| Loading edge height [mm] | 804 | 804 | 804 | 830 | 804 | 804 |
| Height of the open boot door [mm] | 2000 | 2000 | 2000 | 1990 | 2000 | 2000 |
| Boot opening height [mm] | 484 | 484 | 484 | 484 | 484 | 484 |
| Boot opening width min/max [mm] | 940/980 | 940/980 | 940/980 | 940/980 | 940/980 | 940/980 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 195/65 R15 | 205/55 R16 91T | 225/40 R18 92Y | 225/40 R18 92W | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 91T | 225/40 R18 92Y | 225/40 R18 92W | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 7.5J x 18 ET49 | 7.5J x 18 ET49 | 6.5J x 16 ET47 | 6.5J x 16 ET47 |
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 7.5J x 18 ET49 | 7.5J x 18 ET49 | 6.5J x 16 ET47 | 6.5J x 16 ET47 |
| Brake dimensions front | 280 | 280 | 296 | 340 | 280 | 280 |
| Brake dimensions rear | 260 | 260 | 260 | 290 | 260 | 260 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.95/- | 11.95/- | 11.95/- | 11.35/- | 11.95/- | 11.95/- |
| Overall length [mm] | 4312 | 4312 | 4312 | 4299 | 4312 | 4312 |
| Overall width without/including mirrors [mm] | 1804/2037 | 1804/2037 | 1804/2037 | 1848/2037 | 1804/2037 | 1804/2037 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1590 | 1546 | 1546 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1550 | 1547 | 1547 |
| Forward overhang [mm] | 880 | 880 | 880 | 860 | 880 | 880 |
| Rear overhang [mm] | 797 | 797 | 797 | 803 | 797 | 797 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 873 | 873 | 873 | 873 | 873 | 873 |
| Headroom rear [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Front elbow/shoulder width [mm] | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 |
| Rear elbow/shoulder width [mm] | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Energy 1.6 dCi | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1598 | |||||
| Maximum output / speed [kW/min-1] | 96/4000 | |||||
| Maximum torque [Nm/min-1] | 320/1750 | |||||
| Bore and stroke [mm x mm] | 80,0 x 79,5 | |||||
| Compression ratio | 15,4:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 200 | |||||
| Acceleration 0–100 km/h [s] | 9.8 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 4.8 | |||||
| Out of town [l] | 3.6 | |||||
| Combined [l] | 4.0 | |||||
| CO2 emissions [g/km] | 104 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1395 | |||||
| Overall weight [kg] | 1849 | |||||
| Maximum trailer weight unbraked/braked [kg] | 695/1300 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 344 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/991 | |||||
| Boot length [mm] | 510 | |||||
| Boot length with rear seats folded [mm] | 1550 | |||||
| Boot width between wheels/max [mm] | -/1152 | |||||
| Boot height to headliner/ceiling [mm] | 510/- | |||||
| Loading edge height [mm] | 804 | |||||
| Height of the open boot door [mm] | 2000 | |||||
| Boot opening height [mm] | 484 | |||||
| Boot opening width min/max [mm] | 940/980 | |||||
| Number of doors | 3 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with torsion bar | |||||
| Tyre dimensions front | 205/55 R16 | |||||
| Tyre dimensions rear | 205/55 R16 | |||||
| Wheel size front | 6.5J x 16 ET47 | |||||
| Wheel size rear | 6.5J x 16 ET47 | |||||
| Brake dimensions front | 280 | |||||
| Brake dimensions rear | 260 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.95/- | |||||
| Overall length [mm] | 4312 | |||||
| Overall width without/including mirrors [mm] | 1804/2037 | |||||
| Overall height [mm] | 1423 | |||||
| Wheelbase [mm] | 2640 | |||||
| Front wheel track [mm] | 1546 | |||||
| Rear wheel track [mm] | 1547 | |||||
| Forward overhang [mm] | 880 | |||||
| Rear overhang [mm] | 797 | |||||
| Clearance [mm] | 120 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 873 | |||||
| Headroom rear [mm] | 832 | |||||
| Front elbow/shoulder width [mm] | 1480/1420 | |||||
| Rear elbow/shoulder width [mm] | 1400/1266 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Five-door hatchback
| 1.6 16V Generation | 1.6 16V | 1.6 16V | Energy 1.2 TCe | 1.5 dCi Generation | 1.5 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1197 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 74/5500 | 74/5500 | 81/6000 | 85/4500 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 148/4250 | 148/4250 | 151/4250 | 190/2000 | 200/1750 | 200/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 72,2 x 73,2 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 10,0:1 | 10,0:1 | 15,2:1 | 15,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 181 | 190 | 190 | 190 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 11.8 | 10.9 | 10.5 | 10.9 | 13.0 | 12.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | 9.1 | 9.4 | 6.4 | 5.3 | 4.8 |
| Out of town [l] | 5.4 | 5.5 | 5.5 | 4.6 | 4.0 | 3.6 |
| Combined [l] | 6.7 | 6.8 | 6.9 | 5.3 | 4.4 | 4.0 |
| CO2 emissions [g/km] | 155 | 159 | 159 | 119 | 115 | 104 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1295 | 1280 | 1290 | 1280 | 1341 | 1290 |
| Overall weight [kg] | 1720 | 1722 | 1762 | 1787 | 1766 | 1762 |
| Maximum trailer weight unbraked/braked [kg] | 650/1055 | 645/1300 | 640/1300 | 640/1300 | 650/1300 | 645/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 372 | 372 | 372 | 372 | 372 | 372 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1162 | -/1162 | -/1162 | -/1162 | -/1162 | -/1162 |
| Boot length [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Boot length with rear seats folded [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Boot width between wheels/max [mm] | 1152/- | 1152/- | 1152/- | 1152/- | 1152/- | 1152/- |
| Boot height to headliner/ceiling [mm] | 510/- | 510/- | 510/- | 510/- | 510/- | 510/- |
| Loading edge height [mm] | 749 | 749 | 749 | 749 | 749 | 749 |
| Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 941/1067 | 941/1067 | 941/1067 | 941/1067 | 941/1067 | 941/1067 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 205/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 205/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R15 | 195/65 R15 |
| Wheel size front | - | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 15 ET43 | - | 6.5J x 15 ET43 |
| Wheel size rear | - | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 15 ET43 | - | 6.5J x 15 ET43 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 260 | 260 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- |
| Overall length [mm] | 4295 | 4302 | 4302 | 4302 | 4295 | 4302 |
| Overall width without/including mirrors [mm] | 1808/2037 | 1808/2037 | 1808/2037 | 1808/2037 | 1808/2037 | 1808/2037 |
| Overall height [mm] | 1491 | 1471 | 1471 | 1471 | 1491 | 1471 |
| Wheelbase [mm] | 2640 | 2641 | 2641 | 2641 | 2640 | 2641 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 870 | 870 | 870 | 870 | 870 | 870 |
| Rear overhang [mm] | 792 | 792 | 792 | 792 | 792 | 792 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 884 | 884 | 884 | 884 | 884 | 884 |
| Front elbow/shoulder width [mm] | 1476/1420 | 1476/1418 | 1476/1418 | 1476/1418 | 1476/1420 | 1476/1418 |
| Rear elbow/shoulder width [mm] | 1417/1363 | 1417/1363 | 1417/1363 | 1417/1363 | 1417/1363 | 1417/1363 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 dCi | 1.5 dCi | Energy 1.6 dCi | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | |||
| Engine displacement [cm³] | 1461 | 1461 | 1598 | |||
| Maximum output / speed [kW/min-1] | 81/4000 | 81/4000 | 96/4000 | |||
| Maximum torque [Nm/min-1] | 240/1750 | 240/1750 | 320/1750 | |||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 | |||
| Compression ratio | 15,2:1 | 15,2:1 | 15,4:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | |||
| Drive specifications | - |
| - | |||
| Top speed [km/h] | 190 | 190 | 200 | |||
| Acceleration 0–100 km/h [s] | 10.8 | 11.7 | 9.8 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.1 | 5.1 | 4.8 | |||
| Out of town [l] | 4.0 | 3.7 | 3.6 | |||
| Combined [l] | 4.4 | 4.2 | 4.0 | |||
| CO2 emissions [g/km] | 114 | 110 | 104 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1290 | 1365 | 1395 | |||
| Overall weight [kg] | 1797 | 1845 | 1859 | |||
| Maximum trailer weight unbraked/braked [kg] | 640/1300 | 680/1300 | 695/1300 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 372 | 372 | 372 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1162 | -/1162 | -/1162 | |||
| Boot length [mm] | 862 | 862 | 862 | |||
| Boot length with rear seats folded [mm] | 1550 | 1550 | 1550 | |||
| Boot width between wheels/max [mm] | 1152/- | 1152/- | 1152/- | |||
| Boot height to headliner/ceiling [mm] | 510/- | 510/- | 510/- | |||
| Loading edge height [mm] | 749 | 749 | 749 | |||
| Height of the open boot door [mm] | 1989 | 1989 | 1989 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 941/1067 | 941/1067 | 941/1067 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 60 | 60 | 60 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | |||
| Tyre dimensions front | 195/65 R15 | 205/55 R16 | 205/55 R16 | |||
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 205/55 R16 | |||
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | |||
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | |||
| Brake dimensions front | 280 | 280 | 280 | |||
| Brake dimensions rear | 260 | 260 | 260 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | |||
| Overall length [mm] | 4302 | 4302 | 4302 | |||
| Overall width without/including mirrors [mm] | 1808/2037 | 1808/2037 | 1808/2037 | |||
| Overall height [mm] | 1471 | 1471 | 1471 | |||
| Wheelbase [mm] | 2641 | 2641 | 2641 | |||
| Front wheel track [mm] | 1546 | 1546 | 1546 | |||
| Rear wheel track [mm] | 1547 | 1547 | 1547 | |||
| Forward overhang [mm] | 870 | 870 | 870 | |||
| Rear overhang [mm] | 792 | 792 | 792 | |||
| Clearance [mm] | 120 | 120 | 120 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 890 | 890 | 890 | |||
| Headroom rear [mm] | 884 | 884 | 884 | |||
| Front elbow/shoulder width [mm] | 1476/1418 | 1476/1418 | 1476/1418 | |||
| Rear elbow/shoulder width [mm] | 1417/1363 | 1417/1363 | 1417/1363 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (Grandtour)
| 1.6 16V | 1.6 16V | Energy 1.2 TCe | Energy 2.0 TCe | 1.5 dCi | 1.5 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1197 | 1998 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 74/5500 | 81/6000 | 85/4500 | 162/5500 | 66/4000 | 81/4000 |
| Maximum torque [Nm/min-1] | 148/4250 | 151/4250 | 190/2000 | 340/2400 | 200/1750 | 240/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 72,2 x 73,2 | 82,7 x 93,0 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,8:1 | 10,0:1 | 10,0:1 | - | 15,2:1 | 15,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 190 | 190 | 190 | 240 | 180 | 190 |
| Acceleration 0–100 km/h [s] | 11.2 | 10.8 | 11.2 | 7.6 | 12.9 | 11.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1 | 9.4 | 6.4 | 9.6 | 4.8 | 5.1 |
| Out of town [l] | 5.5 | 5.5 | 4.6 | 6.0 | 3.6 | 4.0 |
| Combined [l] | 6.8 | 6.9 | 5.3 | 7.3 | 4.0 | 4.4 |
| CO2 emissions [g/km] | 159 | 159 | 119 | 169 | 104 | 114 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1342 | 1359 | 1463 | 1355 | 1377 |
| Overall weight [kg] | 1802 | 1824 | 1835 | 1884 | 1815 | 1825 |
| Maximum trailer weight unbraked/braked [kg] | 640/1500 | 670/1500 | 675/1500 | 695/1600 | 675/1500 | 685/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 491 | 491 | 491 | 491 | 491 | 491 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1567 | -/1567 | -/1567 | -/1567 | -/1567 | -/1567 |
| Boot length [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Boot length with rear seats folded [mm] | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | 505/- | 505/- | 505/- | 505/- | 505/- | 505/- |
| Loading edge height [mm] | 561 | 561 | 561 | 561 | 561 | 561 |
| Height of the open boot door [mm] | 2019 | 2019 | 2019 | 2019 | 2019 | 2019 |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | 905/1070 | 905/1070 | 905/1070 | 905/1070 | 905/1070 | 905/1070 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40 R18 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/40 R18 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 7.5J x 18 ET49 | 6.5J x 15 ET43 | 6.5J x 15 ET43 |
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 7.5J x 18 ET49 | 6.5J x 15 ET43 | 6.5J x 15 ET43 |
| Brake dimensions front | 280 | 280 | 280 | 320 | 280 | 280 |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 260 | 260 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.95/- | 11.95/- | 11.95/- | 11.95/- | 11.95/- | 11.95/- |
| Overall length [mm] | 4567 | 4567 | 4567 | 4567 | 4567 | 4567 |
| Overall width without/including mirrors [mm] | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 |
| Overall height [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | 2703 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 870 | 870 | 870 | 870 | 870 | 870 |
| Rear overhang [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 884 | 884 | 884 | 884 | 884 | 884 |
| Front elbow/shoulder width [mm] | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 |
| Rear elbow/shoulder width [mm] | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 dCi | Energy 1.6 dCi | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/8 | 4/16 | ||||
| Engine displacement [cm³] | 1461 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 81/4000 | 96/4000 | ||||
| Maximum torque [Nm/min-1] | 240/1750 | 320/1750 | ||||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 80,0 x 79,5 | ||||
| Compression ratio | 15,2:1 | 15,4:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear automatic | 6 gear manual | ||||
| Drive specifications |
| - | ||||
| Top speed [km/h] | 190 | 200 | ||||
| Acceleration 0–100 km/h [s] | 12.1 | 10.1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.1 | 4.8 | ||||
| Out of town [l] | 3.7 | 3.6 | ||||
| Combined [l] | 4.2 | 4.0 | ||||
| CO2 emissions [g/km] | 110 | 104 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1364 | 1395 | ||||
| Overall weight [kg] | 1850 | 1885 | ||||
| Maximum trailer weight unbraked/braked [kg] | 680/1500 | 695/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 491 | 491 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1567 | -/1567 | ||||
| Boot length [mm] | 994 | 994 | ||||
| Boot length with rear seats folded [mm] | 1850 | 1850 | ||||
| Boot width between wheels/max [mm] | 1100/- | 1100/- | ||||
| Boot height to headliner/ceiling [mm] | 505/- | 505/- | ||||
| Loading edge height [mm] | 561 | 561 | ||||
| Height of the open boot door [mm] | 2019 | 2019 | ||||
| Boot opening height [mm] | 750 | 750 | ||||
| Boot opening width min/max [mm] | 905/1070 | 905/1070 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 60 | 60 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 6.5J x 16 ET47 | 6.5J x 16 ET47 | ||||
| Wheel size rear | 6.5J x 16 ET47 | 6.5J x 16 ET47 | ||||
| Brake dimensions front | 280 | 280 | ||||
| Brake dimensions rear | 260 | 260 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.95/- | 11.95/- | ||||
| Overall length [mm] | 4567 | 4567 | ||||
| Overall width without/including mirrors [mm] | 1804/2037 | 1804/2037 | ||||
| Overall height [mm] | 1507 | 1507 | ||||
| Wheelbase [mm] | 2703 | 2703 | ||||
| Front wheel track [mm] | 1543 | 1543 | ||||
| Rear wheel track [mm] | 1547 | 1547 | ||||
| Forward overhang [mm] | 870 | 870 | ||||
| Rear overhang [mm] | 994 | 994 | ||||
| Clearance [mm] | 120 | 120 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 890 | 890 | ||||
| Headroom rear [mm] | 884 | 884 | ||||
| Front elbow/shoulder width [mm] | 1475/1418 | 1475/1418 | ||||
| Rear elbow/shoulder width [mm] | 1418/1379 | 1418/1379 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
