Renault Captur
Date of manufacture
5/2013 – 2017 (SUV)
Platform
Renault B
Manufacturing locations
Valladolid, Spain
Designer
Laurens van den Acker
Tags
Small SUV
French cars

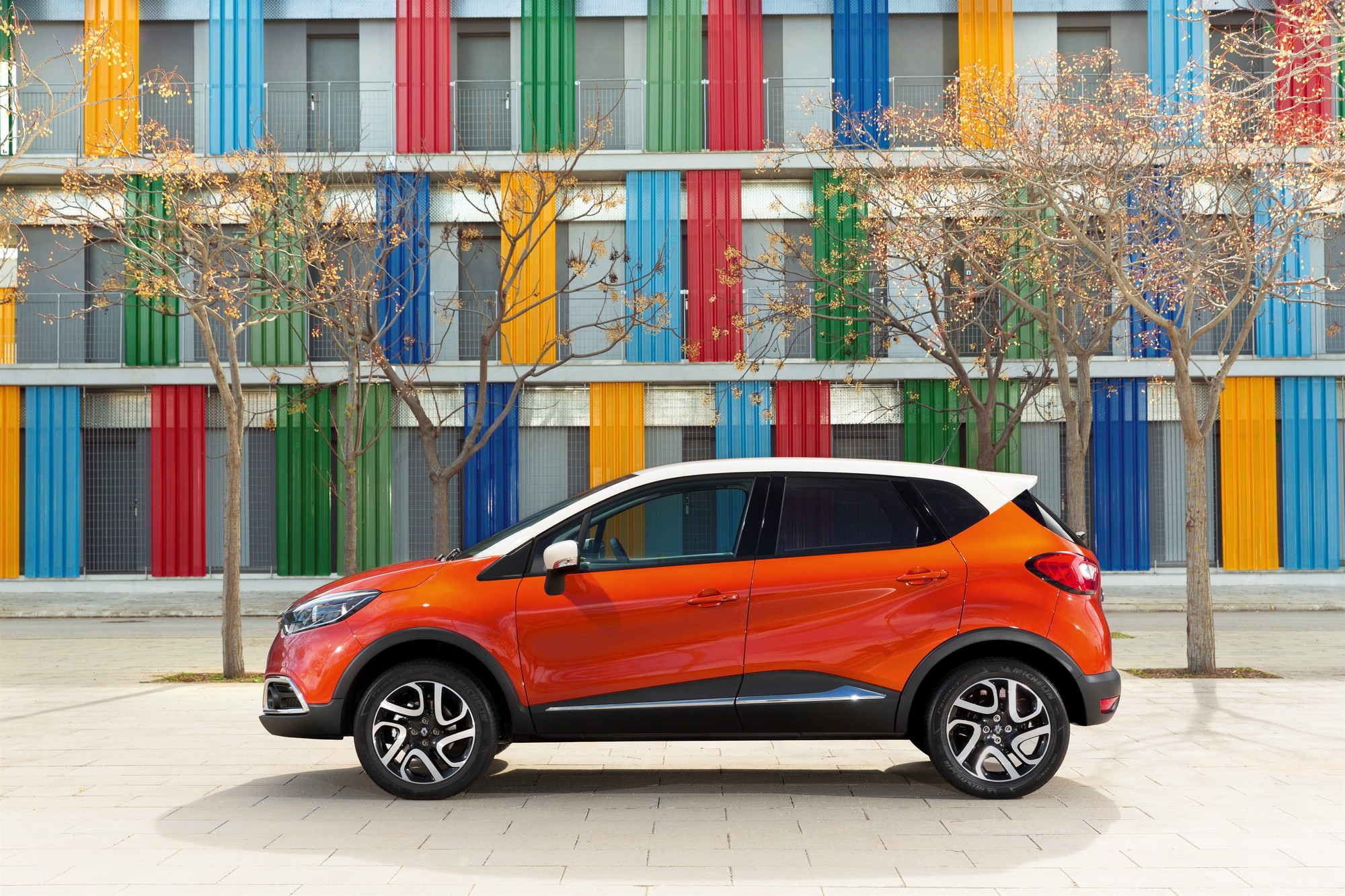

Renault Captur is an SUV that has been manufactured in Spain since 2013. The vehicle is built on the Renault B platform and offers petrol and diesel engines. The highest power of 88 kW is achieved by the Energy TCe 120 model, which has a top speed of 192 km/h and the best acceleration 0-100 km/h in 9.9 seconds. The most economical version Energy dCi 90 has a combined consumption of 3.6 l/100 km and CO2 emissions of 95 g/km. The trunk of the car has a volume of 377 l. EURONCAP safety tests from 2013 gave the Renault Captur a rating of 5 out of 5.
Car body style
SUV
Date of manufacture
5/2013 – 2017Internal designation
J87Technical data
SUV
Energy TCe 90 | Energy TCe 120 | Energy TCe 120 | Energy TCe 120 | Energy dCi 90 | Energy dCi 90 | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
Engine displacement [cm³] | 898 | 1197 | 1197 | 1197 | 1461 | 1461 |
Maximum output / speed [kW/min-1] | 66/5000 [71 overboost] | 87/5000 | 87/5000 | 88/4900 | 66/4000 | 66/4000 |
Maximum torque [Nm/min-1] | 140/2250 [150 overboost] | 205/2000 | 205/2000 | 190/2000 | 220/1750 | 220/1750 |
Bore and stroke [mm x mm] | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 76,0 x 80,5 | 76,0 x 80,5 |
Compression ratio | 9,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 15,5:1 | 15,5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 5 gear manual | 6 gear automatic |
Drive specifications | - | - |
|
| - |
|
Top speed [km/h] | 171 | 182 | 192 | 192 | 171 | 170 |
Acceleration 0–100 km/h [s] | 13.0 | 9.9 | 10.6 | 10.9 | 13.1 | 13.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.0 | 6.8-7.0 | 6.8-7.0 | 6.6 | 4.0 | 4.6 |
Out of town [l] | 4.3-4.5 | 4.7-4.9 | 4.7-4.9 | 4.7 | 3.4 | 3.6 |
Combined [l] | 4.9-5.1 | 5.5-5.6 | 5.5-5.6 | 5.4 | 3.6 | 3.9 |
CO2 emissions [g/km] | 113 | 125-127 | 125-127 | 125 | 95 | 103 |
Emission standard | EU5-EU6 | EU6 | EU6 | EU5 | EU5-EU6 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1176-1180 | 1227 | 1259 | 1255 | 1245-1253 | 1288 |
Overall weight [kg] | 1653-1658 | 1693 | 1723 | 1726 | 1727-1729 | 1763 |
Maximum trailer weight unbraked/braked [kg] | 590/900 | 625/900 | 625/900 | 625/900 | 625/900 | 635/900 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 377 | 377 | 377 | 377 | 377 | 377 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 |
Boot length [mm] | 884 | 884 | 884 | 884 | 884 | 884 |
Boot length with rear seats folded [mm] | 1388 | 1388 | 1388 | 1388 | 1388 | 1388 |
Boot width between wheels/max [mm] | 990/- | 990/- | 990/- | -/990 | 990/- | 990/- |
Boot height to headliner/ceiling [mm] | 595/- | 595/- | 595/- | - | 595/- | 595/- |
Loading edge height [mm] | 723 | 723 | 723 | - | 723 | 723 |
Height of the open boot door [mm] | 1920 | 1920 | 1920 | - | 1920 | 1920 |
Boot opening height [mm] | 685 | 685 | 685 | - | 685 | 685 |
Boot opening width min/max [mm] | 940/1010 | 940/1010 | 940/1010 | - | 940/1010 | 940/1010 |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
Tyre dimensions front | 205/60 R16 92H | 205/55 R17 95V | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H |
Tyre dimensions rear | 205/60 R16 92H | 205/55 R17 95V | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H |
Wheel size front | 6.5J x 16 ET40 | 6.5J x 17 ET40 | 6.5J x 16 ET40 | 6.5J x 16 ET40 | 6.5J x 16 ET40 | 6.5J x 16 ET40 |
Wheel size rear | 6.5J x 16 ET40 | 6.5J x 17 ET40 | 6.5J x 16 ET40 | 6.5J x 16 ET40 | 6.5J x 16 ET40 | 6.5J x 16 ET40 |
Brake dimensions front | 258 x 22 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 |
Brake dimensions rear | - | - | - | - | - | - |
Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.42/11.0 | 10.42/11.0 | 10.42/11.0 | 10.42/11.0 | 10.42/11.0 | 10.42/11.0 |
Overall length [mm] | 4122 | 4122 | 4122 | 4122 | 4122 | 4122 |
Overall width without/including mirrors [mm] | 1778/- | 1778/- | 1778/- | 1778/- | 1778/- | 1778/- |
Overall height [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
Wheelbase [mm] | 2606 | 2606 | 2606 | 2606 | 2606 | 2606 |
Front wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
Rear wheel track [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
Forward overhang [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
Rear overhang [mm] | 650 | 650 | 650 | 650 | 650 | 650 |
Clearance [mm] | 170 | 170 | 170 | 170 | 170 | 170 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
Headroom rear [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
Front elbow/shoulder width [mm] | 1380/1386 | 1380/1386 | 1380/1386 | 1380/1386 | 1380/1386 | 1380/1386 |
Rear elbow/shoulder width [mm] | 1370/1330 | 1370/1330 | 1370/1330 | 1370/1330 | 1370/1330 | 1370/1330 |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
Energy dCi 90 | Energy dCi 110 | |||||
---|---|---|---|---|---|---|
Date of sale | - | - | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/8 | 4/8 | ||||
Engine displacement [cm³] | 1461 | 1461 | ||||
Maximum output / speed [kW/min-1] | 66/4000 | 81/4000 | ||||
Maximum torque [Nm/min-1] | 220/1750 | 260/1750 | ||||
Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | ||||
Compression ratio | 15,5:1 | 15,5:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Front | Front | ||||
Gearbox | 6 gear automatic | 6 gear manual | ||||
Drive specifications |
| - | ||||
Top speed [km/h] | 172 | 175-180 | ||||
Acceleration 0–100 km/h [s] | 13.8 | 11.0-11.4 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 4.2 | 4.0-4.3 | ||||
Out of town [l] | 3.9 | 3.6-3.8 | ||||
Combined [l] | 4.0 | 3.7-3.9 | ||||
CO2 emissions [g/km] | 103 | 98-101 | ||||
Emission standard | EU6 | EU5-EU6 | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1279 | 1265 | ||||
Overall weight [kg] | 1759 | 1743 | ||||
Maximum trailer weight unbraked/braked [kg] | 635/900 | 635/900 | ||||
Maximum front/rear axle load [kg] | - | - | ||||
Maximum vertical load on the tow bar [kg] | - | - | ||||
Maximum load on roof/carrier [kg] | - | - | ||||
Boot volume [l] | 377 | 377 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | ||||
Boot length [mm] | 884 | 884 | ||||
Boot length with rear seats folded [mm] | 1388 | 1388 | ||||
Boot width between wheels/max [mm] | 990/- | 990/- | ||||
Boot height to headliner/ceiling [mm] | 595/- | 595/- | ||||
Loading edge height [mm] | 723 | 723 | ||||
Height of the open boot door [mm] | 1920 | 1920 | ||||
Boot opening height [mm] | 685 | 685 | ||||
Boot opening width min/max [mm] | 940/1010 | 940/1010 | ||||
Number of doors | 5 | 5 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 45 | 45 | ||||
AdBlue tank volume [l] | - | - | ||||
Air resistance [Cd] | - | - | ||||
Front suspension | MacPherson | MacPherson | ||||
Rear suspension | torsion bar | torsion bar | ||||
Tyre dimensions front | 205/55 R17 95V | 205/55 R17 95V | ||||
Tyre dimensions rear | 205/55 R17 95V | 205/55 R17 95V | ||||
Wheel size front | 6.5J x 17 ET40 | 6.5J x 17 ET40 | ||||
Wheel size rear | 6.5J x 17 ET40 | 6.5J x 17 ET40 | ||||
Brake dimensions front | 280 x 24 | 280 x 24 | ||||
Brake dimensions rear | - | - | ||||
Steering | Electric variable power steering | Electric variable power steering | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 10.42/11.0 | 10.42/11.0 | ||||
Overall length [mm] | 4122 | 4122 | ||||
Overall width without/including mirrors [mm] | 1778/- | 1778/- | ||||
Overall height [mm] | 1566 | 1566 | ||||
Wheelbase [mm] | 2606 | 2606 | ||||
Front wheel track [mm] | 1531 | 1531 | ||||
Rear wheel track [mm] | 1516 | 1516 | ||||
Forward overhang [mm] | 866 | 866 | ||||
Rear overhang [mm] | 650 | 650 | ||||
Clearance [mm] | 170 | 170 | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | - | - | ||||
Approach angle rear [°] | - | - | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | 905 | 905 | ||||
Headroom rear [mm] | 860 | 860 | ||||
Front elbow/shoulder width [mm] | 1380/1386 | 1380/1386 | ||||
Rear elbow/shoulder width [mm] | 1370/1330 | 1370/1330 | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
