Renault Arkana

Arkana 2019

Date of manufacture

2019 – to this day (Medium SUV)

Platform

CMF-B

Manufacturing locations

Busan (Pusan), South Korea
Moscow, Russia

Designer

Laurens van den Acker

Tags

Compact SUV
French cars
Renault Arkana is a mid-size SUV that has been produced since 2019. The car has countries of origin such as South Korea or Russia and is built on the CMF-B platform. The engine range includes petrol and hybrid variants, the most powerful model being the TCe 160 with 116 kW of power and a top speed of 205 km/h. The best 0-100 km/h acceleration is achieved by the TCe 160 model in 9.1 seconds. The Hybrid E-TECH 145 has the lowest consumption of 5.1 l/100 km and emissions of 117 g/km. The trunk size is 480 l. The Renault Arkana was tested in the safety area according to EURONCAP in 2019 and achieved an overall rating of 5 out of 5 points.

Car body style

Medium SUV

Date of manufacture
2019 – to this day
Internal designation
-
Engine size
PetrolPetrol + Electric

Euro NCAP

Test year 2019
Rating
star iconstar iconstar iconstar iconstar icon
Adults
96 %
Adults
Children
83 %
Children
Pedestrians
75 %
Pedestrians
Assist systems
74 %
Assist systems

Technical data

Medium SUV

TCe 140 TCe 160 E-TECH 145
Date of sale---
Engine typeIgnition superchargedIgnition superchargedPetrol + Electric
Number of cylinders/valves4/164/164/16
Engine displacement [cm³]133313331598
Maximum output / speed [kW/min-1]
103/4500-6000
116/5500
69/5600 combustion
36 el.
15 starter-generator
105 total
Maximum torque [Nm/min-1]
260/1750-3500
270/1800
144/3200 combustion
205 el.
50 starter-generator
Drive axleFrontFrontFront
Gearbox7 gear automatic7 gear automatic2+4 gear automatic
Top speed [km/h]200205172
Acceleration 0–100 km/h [s]9.89.110.8
City [l]6.6-6.56.64.6
Out of town [l]4.7-4.75.0-4.83.5
Combined [l]5.4-5.35.4-5.34.2
CO2 emissions [g/km]138-132124-122112
Combined speed [l]6.1-5.86.1-5.85.1-4.9
CO2 emissions [g/km]138-132138-131117-111
Emission standardEuro 6dEuro 6dEuro 6d
System voltage [V]1212230
Battery type and capacityLithium-Ionen-Akkumulator, 0.13 kWhLithium-Ionen-Akkumulator, 0.13 kWhLithium-Ionen-Akkumulator, 1.2 kWh
Range with fully charged battery [km]---
Charging time---
Standby weight [kg]141114221435
Overall weight [kg]187618761961
Maximum trailer weight unbraked/braked [kg]705/900710/900750/760
Boot volume [l]485485480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1269-/1269-/1263
Number of doors555
Number of seats555
Fuel tank volume [l]505050
AdBlue tank volume [l]---
Overall length [mm]456845684568
Overall width without/including mirrors [mm]1820/20341820/20341820/2034
Overall height [mm]157615761576
Wheelbase [mm]272027202720
Headroom front [mm]877877877
Headroom rear [mm]862862862
Front elbow/shoulder width [mm]1439/14061439/14061439/1406
Rear elbow/shoulder width [mm]1453/13971453/13971453/1397

Gallery

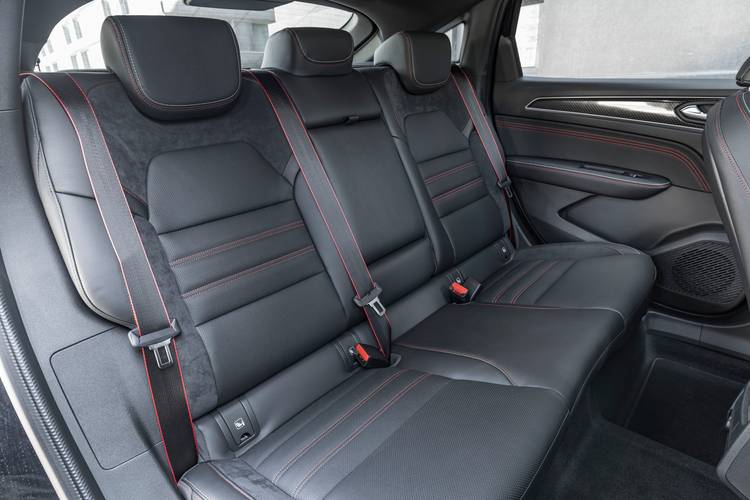

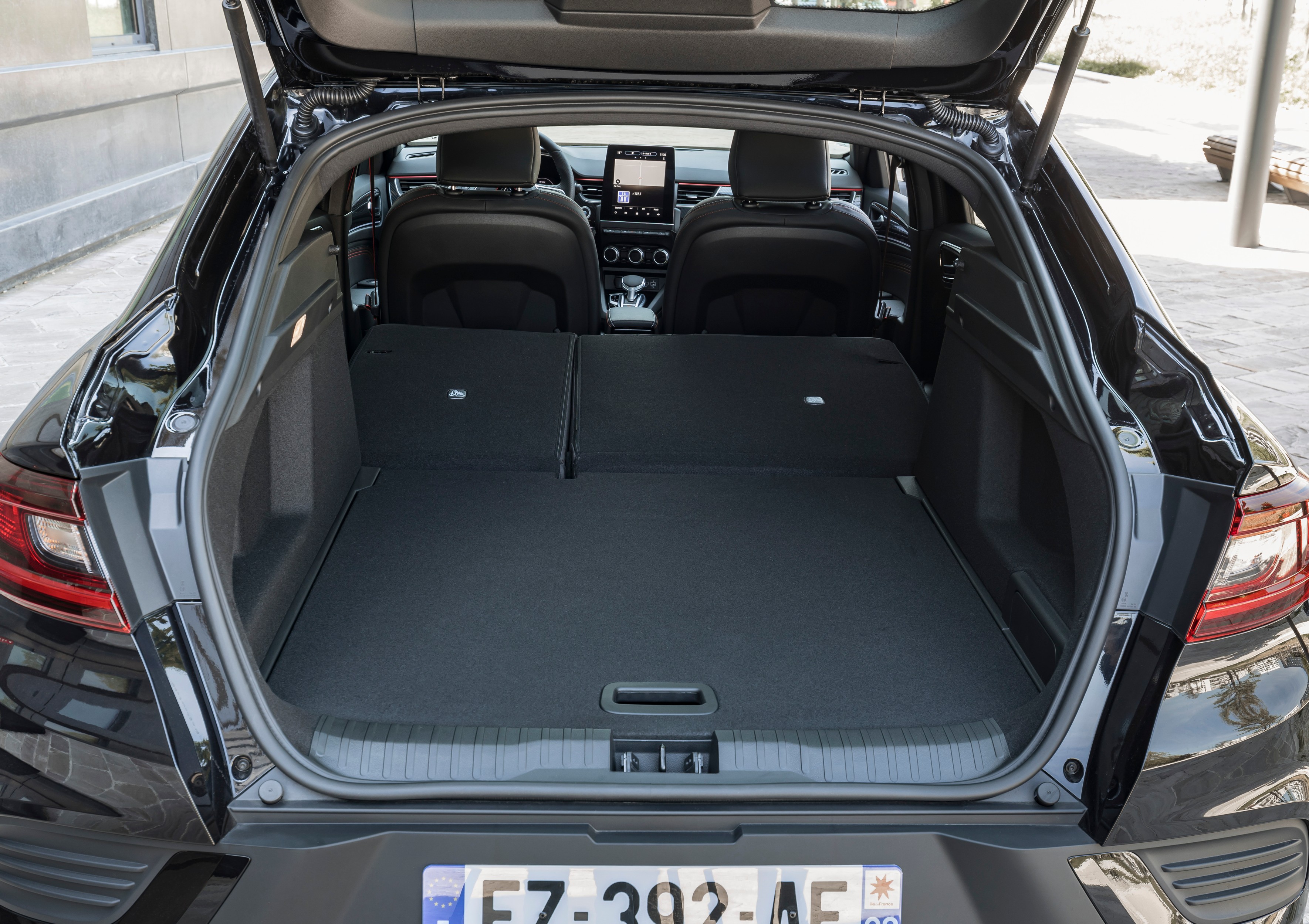

Renault Arkana 2021 interiorRenault Arkana 2022 front seatsRenault Arkana 2022 rear seatsRenault Arkana 2021 bootRenault Arkana 2022 rear folding seats
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
