Porsche Panamera
Date of manufacture
2016 – 2020 (Liftback)
7/2017 – 2020 (Estate)
Platform
-
Manufacturing locations
Leipzig, Germany
Designer
Michael Mauer
Tags
F-segment
German cars
The Porsche Panamera is available as a liftback and estate since 2016, manufactured in Germany. The engine range includes petrol, diesel and hybrid powertrains. The most powerful model is the Panamera Turbo S E-Hybrid with a maximum output of 500 kW and a top speed of 310 km/h. The fastest acceleration 0-100 km/h is achieved by the Panamera Turbo S E-Hybrid in 3.4 seconds. The most fuel-efficient consumption of 3.6 l/100 km and emissions of 81 g/km are for the Panamera 4 E-Hybrid. The liftback version offers a luggage compartment volume of 500 l, while the estate 520 l.
Car body style
Liftback
Date of manufacture
2016 – 2020Internal designation
971Engine size
Estate (Sport Turismo)
Date of manufacture
7/2017 – 2020Internal designation
971Engine size
PetrolPetrol + Electric
Technical data

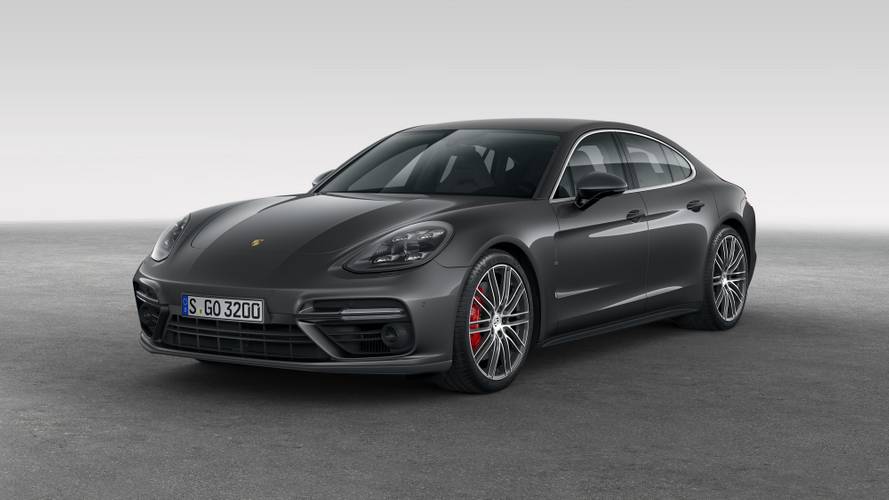

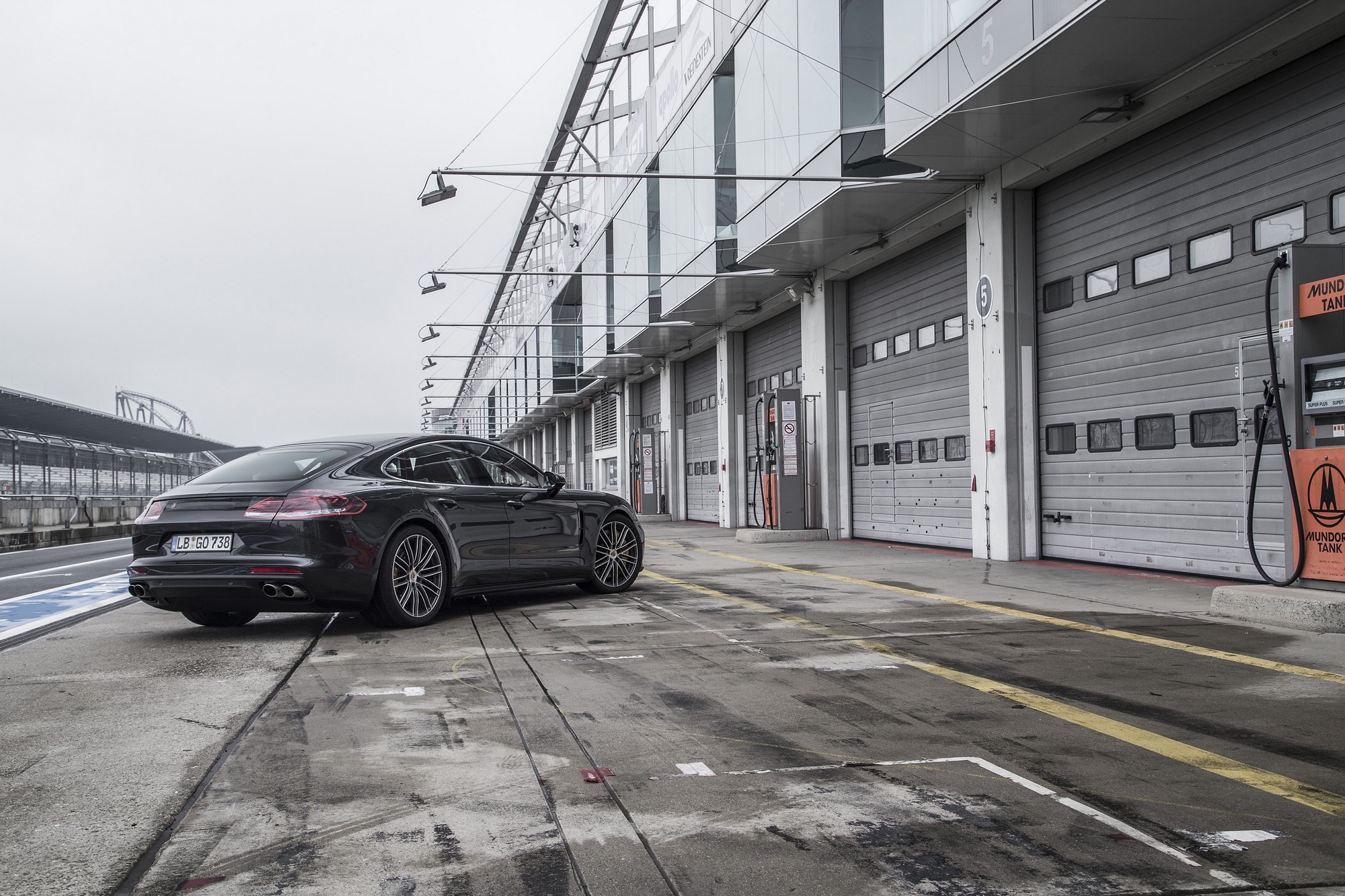

Liftback
| Panamera | Panamera 4 | Panamera 4S | Panamera GTS | Panamera Turbo | Panamera 4 E-Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2019 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 6/24 |
| Engine displacement [cm³] | 2995 | 2995 | 2894 | 3996 | 3996 | 2894 |
| Maximum output / speed [kW/min-1] | 243/5400-6400 | 243/5400-6400 | 324/5650-6600 | 338/6000-6500 | 404/5750-6000 | 243/5250-6500 total 100/2800 el. 340/6000 total |
| Maximum torque [Nm/min-1] | 450/1340-4900 | 450/1340-4900 | 550/1750-5500 | 620/1800-4500 | 770/1960-4500 | 450/1750-5000 combustion 400/2300 el. 700/1100-4500 total |
| Bore and stroke [mm x mm] | 84.5 x 89.0 | 84.5 x 89.0 | 84,5 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | 84,5 x 86,0 |
| Compression ratio | 11.2:1 | 11.2:1 | 10,5:1 | 10,1:1 | 10,1:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 264 | 262 | 289 | 292 | 306 | 278 [140 el.] |
| Acceleration 0–100 km/h [s] | 5.7 [5.5 Launch Control] | 5.5 [5.3 Launch Control] | 4.4 [4.2 Sport Chrono Paket] | 4.1 | 3.8 [3.6 Sport Chrono Paket] | 4.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 3.9 | - | 2.8 | 2.4 | 3.1 |
| City [l] | 9.8-9.7 | 11.1-9.8 | 10.1-10.2 | 14.6-14.2 | 14.4-12.9 | - |
| Out of town [l] | 6.3 | 6.9-6.4 | 6.7-6.8 | 7.8-8.1 | 8.1-7.3 | - |
| Combined [l] | 7.6-7.5 | 8.4-7.7 | 8.1-8.2 | 10.3 | 10.4-9.4 | 2.7-2.5 [16.1-15.9 kWh] |
| CO2 emissions [g/km] | 173-171 | 194-175 | 184-186 | 235 | 238-214 | 56 |
| Low speed [l] | - | 15.5-14.7 | - | 20.4-19.6 | 20.4-20.1 | - |
| Medium speed [l] | - | 11.7-11.0 | - | 12.9-12.4 | 13.1-12.6 | - |
| High speed [l] | - | 9.9-9.3 | - | 10.8-10.3 | 11.0-10.6 | - |
| Extra high speed [l] | - | 10.7-9.8 | - | 11.2-10.5 | 11.1-10.6 | - |
| Combined speed [l] | - | 11.3-10.5 | - | 12.7-12.0 | 12.7-12.3 | 3.6-3.3 [21.7-21.0 kWh] |
| CO2 emissions [g/km] | - | 258-240 | - | 287-273 | 289-278 | 81-74 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 382 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 14.1 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 36-44 [WLTP] |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1945 | 1945 | 1945 | 2070 | 2070 | 2245 |
| Overall weight [kg] | 2495 | 2495 | 2495 | 2585 | 2585 | 2710 |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | 750/2200 | 750/2200 | 750/2200 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | - |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 405 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1340 | -/1340 | -/1340 | -/1340 | -/1340 | -/1245 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 75 | 75 | 75 | 90 | 90 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.31 | 0.3 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 265/45 ZR19 | 265/45 ZR19 | 265/45 ZR19 | 275/40 ZR20 | 275/40 RZ20 | 265/45 ZR19 |
| Tyre dimensions rear | 295/40 ZR19 | 295/40 ZR19 | 295/40 ZR19 | 315/35 ZR20 | 315/35 ZR20 | 295/40 ZR19 |
| Wheel size front | 9J x 19 ET64 | 9J x 19 ET64 | 9.0J x 19 ET64 | 9.5 J x 20 ET 71 | 9.5J x 20 ET71 | 9.0J x 19 ET64 |
| Wheel size rear | 10.5 x 19 ET62 | 10.5 x 19 ET62 | 10.5 x 19 ET62 | 11.5 J x 20 ET 68 | 11.5 x 20 ET68 | 10.5 x 19 ET62 |
| Brake dimensions front | 350 x 34 | 350 x 34 | 360 x 36 | 390 x 38 | 410 x 38 | 390 x 38 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | 330 x 28 | 365 x 28 | 380 x 30 | 365 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 5049 | 5049 | 5049 | 5053 | 5049 | 5049 |
| Overall width without/including mirrors [mm] | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1417 | 1427 | 1423 |
| Wheelbase [mm] | 2950 | 2950 | 2950 | 2950 | 2950 | 2950 |
| Front wheel track [mm] | 1671 | 1671 | 1671 | 1657 | 1657 | 1671 |
| Rear wheel track [mm] | 1651 | 1651 | 1651 | 1639 | 1639 | 1651 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 124 | 124 | 133 | 128 | 138 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
| Approach angle rear [°] | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 |
| Transition angle [°] | 12.4 | 12.4 | 12.4 | 11 | 11 | 11 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Panamera Turbo S E-Hybrid | Panamera 4S Diesel | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | from to 2018 | ||||
| Engine type | Petrol supercharged + Electric | Diesel supercharged | ||||
| Number of cylinders/valves | 8/32 | 8/32 | ||||
| Engine displacement [cm³] | 3996 | 3956 | ||||
| Maximum output / speed [kW/min-1] | 404/5750-6000 total 100/2800 el. 500/5750-6000 total | 310/3500-5000 | ||||
| Maximum torque [Nm/min-1] | 770/1960-4500 combustion 400/2300 el. 850/1400-5500 total | 850/1000-3250 | ||||
| Bore and stroke [mm x mm] | 86,0 x 86,0 | 83,0 x 91,4 | ||||
| Compression ratio | 10,1:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 310 [140 el.] | 285 | ||||
| Acceleration 0–100 km/h [s] | 3.4 | 4.5 [4.3 Sport Chrono Paket] | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 2.2 | - | ||||
| City [l] | - | 7.9 | ||||
| Out of town [l] | - | 5.8-5.9 | ||||
| Combined [l] | 3.3 [16.0 kWh] | 6.7-6.8 | ||||
| CO2 emissions [g/km] | 74 | 176-178 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 3.8-3.5 [21.2-20.4 kWh] | - | ||||
| CO2 emissions [g/km] | 86-80 | - | ||||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 382 | - | ||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 14.1 kWh | - | ||||
| Range with fully charged battery [km] | 36-39 [WLTP] | - | ||||
| Charging time |
| - | ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 2385 | 2125 | ||||
| Overall weight [kg] | 2795 | 2635 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | 750/2200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | 100 | ||||
| Maximum load on roof/carrier [kg] | - | 75/- | ||||
| Boot volume [l] | 405 | 500 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1340 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 80 | 75 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.29 | 0.29 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 275/35 ZR21 103Y | 265/45 ZR19 | ||||
| Tyre dimensions rear | 315/30 ZR21 108Y | 295/40 ZR19 | ||||
| Wheel size front | 9,5J x 21 ET71 | 9.0J x 19 ET64 | ||||
| Wheel size rear | 11,5J x 21 ET69 | 10.5 x 19 ET62 | ||||
| Brake dimensions front | 420 x 40 | 360 x 36 | ||||
| Brake dimensions rear | 410 x 32 | 330 x 28 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | ||||
| Overall length [mm] | 5049 | 5049 | ||||
| Overall width without/including mirrors [mm] | 1937/2165 | 1937/2165 | ||||
| Overall height [mm] | 1427 | 1423 | ||||
| Wheelbase [mm] | 2950 | 2950 | ||||
| Front wheel track [mm] | 1657 | 1671 | ||||
| Rear wheel track [mm] | 1637 | 1651 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 138 | 124 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 12.9 | 12.6 | ||||
| Approach angle rear [°] | 16.8 | 16.6 | ||||
| Transition angle [°] | 11.1 | 11.8 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

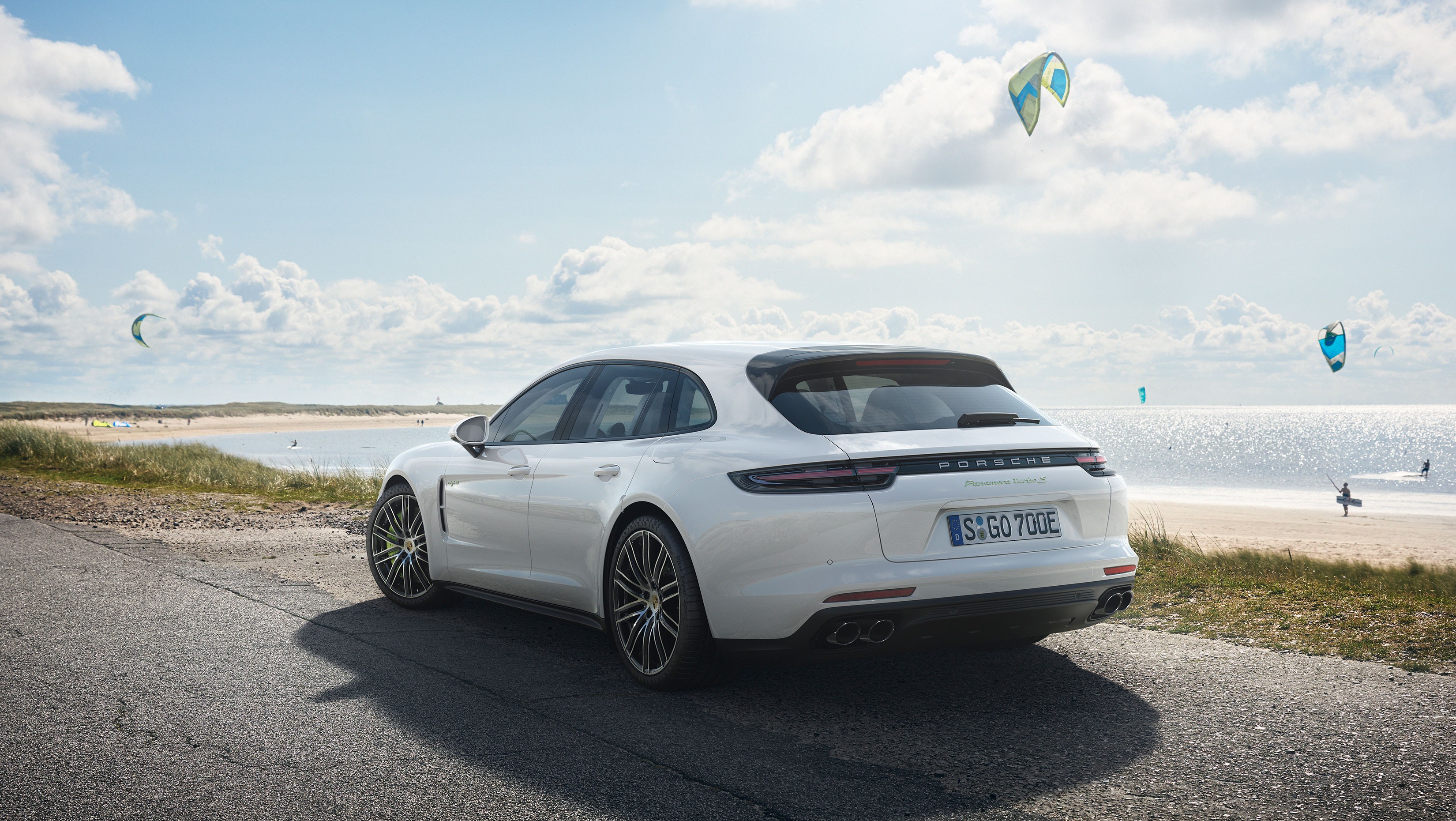

Estate (Sport Turismo)
| Panamera 4 | Panamera 4S | Panamera GTS | Panamera Turbo | Panamera 4 E-Hybrid | Panamera Turbo S E-Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2019 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 6/24 | 8/32 |
| Engine displacement [cm³] | 2995 | 2894 | 3996 | 3996 | 2894 | 3996 |
| Maximum output / speed [kW/min-1] | 243/5400-6400 | 324/5650-6600 | 338/6000-6500 | 404/5750-6000 | 243/5250-6500 total 100/2800 el. 340/6000 total | 404/5750-6000 total 100/2800 el. 500/5750-6000 total |
| Maximum torque [Nm/min-1] | 450/1340-4900 | 550/1750-5500 | 620/1800-4500 | 770/1960-4500 | 450/1750-5000 combustion 400/2300 el. 700/1100-4500 total | 770/1960-4500 combustion 400/2300 el. 850/1400-5500 total |
| Bore and stroke [mm x mm] | 84.5 x 89.0 | 84,5 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | 84,5 x 86,0 | 86,0 x 86,0 |
| Compression ratio | 11.2:1 | 10,5:1 | 10,1:1 | 10,1:1 | - | 10,1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 259 | 286 | 289 | 304 | 275 [140 el.] | 310 [140 el.] |
| Acceleration 0–100 km/h [s] | 5.5 [5.3 Launch Control] | 4.4 [4.2 Sport Chrono Paket] | 4.1 | 3.8 [3.6 Sport Chrono Paket] | 4.6 | 3.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3.9 | - | 2.8 | 2.4 | 3.1 | 2.2 |
| City [l] | 10.0-9.9 | 10.4-10.3 | 14.8-14.6 | 14.7-12.9 | - | - |
| Out of town [l] | 6.7-6.6 | 6.9-6.8 | 8.2-8.1 | 8.3-7.3 | - | - |
| Combined [l] | 7.9-7.8 | 8.3-8.2 | 10.6 | 10.6-9.4 | 2.9-2.6 [15.9 kWh] | 3.3-3.0 [18.1-17.6 kWh] |
| CO2 emissions [g/km] | 180-178 | 189-187 | 242 | 243-215 | 59 | 69 |
| Low speed [l] | - | - | 20.4-19.7 | 20.4-20.1 | - | - |
| Medium speed [l] | - | - | 12.9-12.5 | 13.1-12.7 | - | - |
| High speed [l] | - | - | 10.9-10.5 | 11.0-10.6 | - | - |
| Extra high speed [l] | - | - | 11.3-10.9 | 11.2-10.8 | - | - |
| Combined speed [l] | - | - | 12.7-12.2 | 12.7-12.4 | 3.7-3.5 [21.8-21.4 kWh] | 3.9-3.8 [21.5-21.1 kWh] |
| CO2 emissions [g/km] | - | - | 288-278 | 289-280 | 84-80 | 89-85 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 382 | 382 |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 14.1 kWh | Lithium-Ionen-Akkumulator, 14.1 kWh |
| Range with fully charged battery [km] | - | - | - | - | 36-39 [WLTP] | 36-38 [WLTP] |
| Charging time | - | - | - | - |
|
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1955 | 1990 | 2100 | 2110 | 2265 | 2400 |
| Overall weight [kg] | 2550 | 2615 | 2615 | 2610 | 2810 | 2900 |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | 750/2200 | 750/2200 | - | - |
| Maximum front/rear axle load [kg] | 1215/1395 | 1240/1435 | - | 1315/1440 | 1300/1580 | 1365/1585 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | - | - |
| Boot volume [l] | 520 | 520 | 520 | 520 | 425 | 425 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1390 | -/1295 | -/1295 |
| Boot length [mm] | 1088 | 1088 | 1088 | 1088 | 1088 | 1088 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 920/- | 920/- | 920/- | 920/- | 920/- | 920/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 75 | 75 | 90 | 90 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.33 | 0.34 | 0.34 | 0.30 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 265/45 ZR19 | 265/45 ZR19 | 275/40 ZR20 | 275/40 RZ20 | 265/45 ZR19 | 275/35 ZR21 103Y |
| Tyre dimensions rear | 295/40 ZR19 | 295/40 ZR19 | 315/35 ZR20 | 315/35 ZR20 | 295/40 ZR19 | 315/30 ZR21 108Y |
| Wheel size front | 9J x 19 ET64 | 9.0J x 19 ET64 | 9.5 J x 20 ET 71 | 9.5J x 20 ET71 | 9.0J x 19 ET64 | 9,5J x 21 ET71 |
| Wheel size rear | 10.5 x 19 ET62 | 10.5 x 19 ET62 | 11.5 J x 20 ET 68 | 11.5 x 20 ET68 | 10.5 x 19 ET62 | 11,5J x 21 ET69 |
| Brake dimensions front | 390 x 38 | 390 x 38 | 390 x 38 | 410 x 38 | 390 x 38 | 420 x 40 |
| Brake dimensions rear | 365 x 28 | 365 x 28 | 365 x 28 | 380 x 30 | 365 x 28 | 410 x 32 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 5049 | 5049 | 5053 | 5049 | 5049 | 5049 |
| Overall width without/including mirrors [mm] | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 |
| Overall height [mm] | 1428 | 1428 | 1422 | 1432 | 1428 | 1432 |
| Wheelbase [mm] | 2950 | 2950 | 2950 | 2950 | 2950 | 2950 |
| Front wheel track [mm] | 1671 | 1671 | 1657 | 1657 | 1671 | 1657 |
| Rear wheel track [mm] | 1651 | 1651 | 1639 | 1639 | 1651 | 1637 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 124 | 133 | 128 | 138 | 133 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.6 | 12.6 | 12.6 | 12.9 | 12.6 | 12.9 |
| Approach angle rear [°] | 16.6 | 16.6 | 16.6 | 16.8 | 16.6 | 16.8 |
| Transition angle [°] | 12.4 | 12.4 | 11 | 12.5 | 11.0 | 11.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
