Porsche Cayenne
Date of manufacture
2014 – 2017 (SUV)
Platform
PL72
Manufacturing locations
Bratislava, Slovakia
Leipzig, Germany
Osnabrück, Germany
Designer
-
Tags
Large SUV
German cars

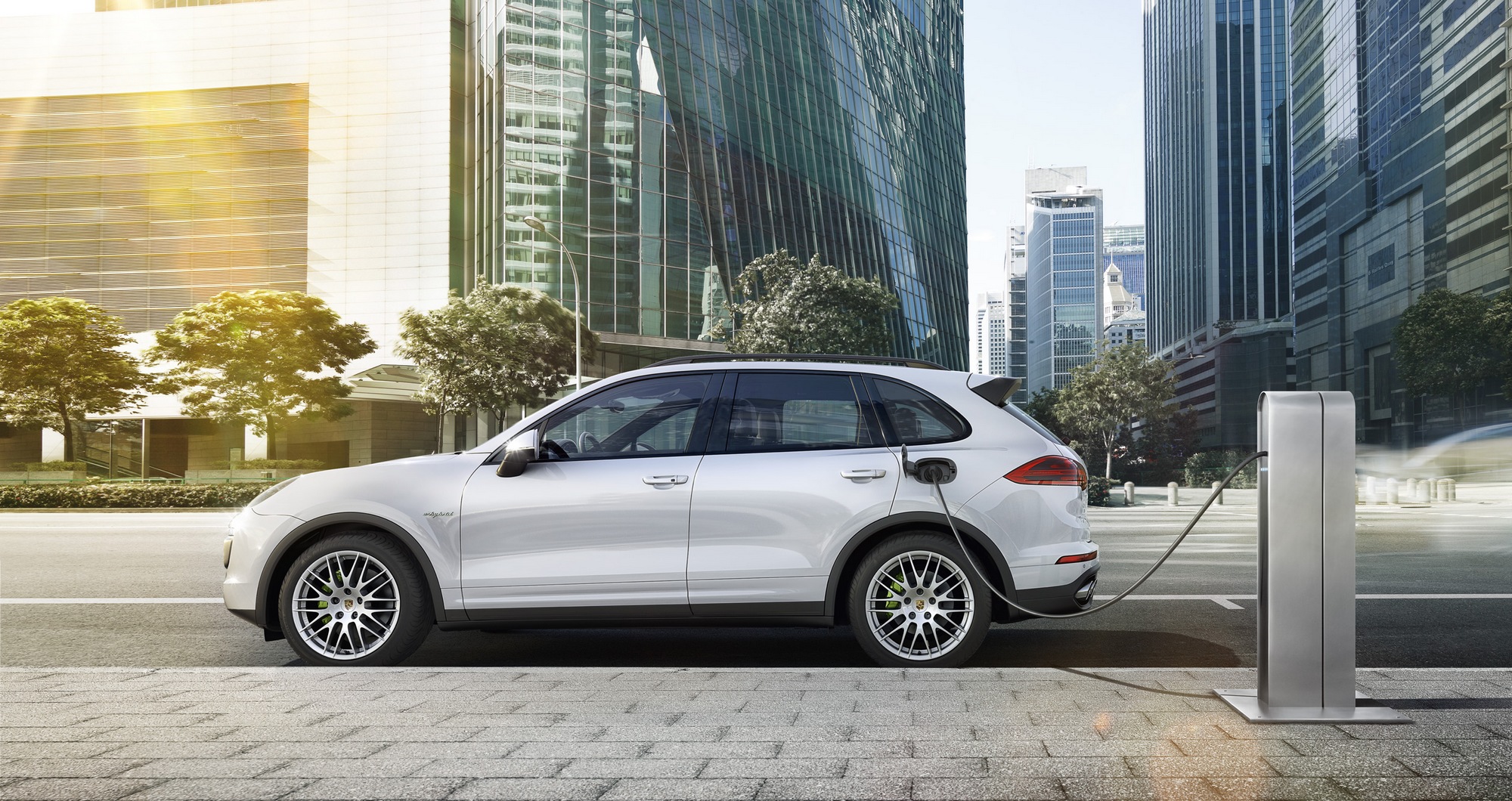

The Porsche Cayenne, an SUV built on the PL72 platform, has been available as a plug-in hybrid since 2014. The engine range includes petrol, diesel and hybrid power units. The most powerful model is the Cayenne Turbo S with 419 kW, which has a top speed of 284 km/h and a 0-100 km/h acceleration time of 4.1 seconds. The most economical variant is the Cayenne S E-Hybrid with a combined fuel consumption of 3.4 l/100 km and CO2 emissions of 79 g/km. The luggage compartment can hold 580 litres of cargo. In the EURONCAP safety tests, the model received a rating of 5 out of 5 according to the 2017 methodology.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2014 – 2017Internal designation
92A Engine size
Technical data
SUV
| Cayenne | Cayenne S | Cayenne GTS | Cayenne Turbo | Cayenne Turbo S | Cayenne S E-Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 6/24 |
| Engine displacement [cm³] | 3598 | 3604 | 3604 | 4806 | 4806 | 2995 |
| Maximum output / speed [kW/min-1] | 220/6300 | 309/6000 | 324/6000 | 382/6000 | 419/6000 | 245/5500-6500 combustion 70/2200-2600 el. 306/5500 total |
| Maximum torque [Nm/min-1] | 400/3000 | 550/1350-4500 | 600/1600-5000 | 750/2250-4000 | 800/2500-4000 | 440/3000-5250 combustion 310/1700 el. 590/1250-4000 total |
| Bore and stroke [mm x mm] | 89,0 x 96,4 | 96,0 x 83,0 | 96,0 x 83,0 | 96,0 x 83,0 | 96,0 x 83,0 | 84,5 x 89,0 |
| Compression ratio | 11,65:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 230 | 259 | 262 | 279 | 284 | 243 [125 el.] |
| Acceleration 0–100 km/h [s] | 7.7 [7.6 Sport Chrono Paket] | 5.5 [5.4 Sport Chrono Paket] | 5.2 [5.1 Sport Chrono Paket] | 4.5 [4.4 Sport Chrono Paket] | 4.1 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.3 | 12.4-13.0 | 12.9-13.2 | 15.5-15.9 | 15.9 | - |
| Out of town [l] | 7.5 | 7.8-8.0 | 8.1-8.3 | 8.7-8.9 | 8.9 | - |
| Combined [l] | 9.2 | 9.5-9.8 | 9.8-10.0 | 11.2-11.5 | 11.5 | 3.4 [20.8 kWh] |
| CO2 emissions [g/km] | 215 | 223-229 | 228-234 | 261-267 | 267 | 79 |
| Emission standard | EU5 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 10.8 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 36 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2115 | 2160 | 2185 | 2260 | 2310 | 2425 |
| Overall weight [kg] | 2810 | 2860 | 2865 | 2895 | 2900 | 3050 |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 670 | 670 | 670 | 670 | 670 | 580 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1705 | -/1705 | -/1705 | -/1690 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 85 | 85 | 85 | 100 | 100 | 85 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/55 R18 | 255/55 R18 | 275/45 R20 | 265/50 R19 | 295/35 R21 | 255/55 R18 |
| Tyre dimensions rear | 255/55 R18 | 255/55 R18 | 275/45 R20 | 265/50 R19 | 295/35 R21 | 255/55 R18 |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 9.5J x 20 | 8.5J x 19 | 10.0J x 21 ET50 | 8.0J x 18 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 9.5J x 20 | 8.5J x 19 | 10.0J x 21 ET50 | 8.0J x 18 |
| Brake dimensions front | 350 x 34 | 360 x 36 | 390 x 38 | 390 x 38 | 420 x 40 | 360 x 36 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | 358 x 28 | 358 x 28 | 370 x 30 | 330 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4855 | 4855 | 4855 | 4855 | 4855 | 4855 |
| Overall width without/including mirrors [mm] | 1939/2165 | 1939/2165 | 1954/2165 | 1939/2165 | 1954/2165 | 1939/2165 |
| Overall height [mm] | 1705 | 1705 | 1688 | 1702 | 1702 | 1705 |
| Wheelbase [mm] | 2895 | 2895 | 2895 | 2895 | 2895 | 2895 |
| Front wheel track [mm] | 1655 | 1655 | 1660 | 1643 | 1661 | 1655 |
| Rear wheel track [mm] | 1669 | 1669 | 1678 | 1657 | 1675 | 1669 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 215 | 215 | 204 | 215 | 215 | 215 |
| Wading depth [mm] | 500 | 500 | 482 | 555 | 555 | 500 |
| Approach angle front [°] | 25.8 | 25.8 | 24.8 | 29.8 | 29.8 | 25.8 |
| Approach angle rear [°] | 23.4 | 23.4 | 22.5 | 26.7 | 26.7 | 23.4 |
| Transition angle [°] | 20.4 | 20.4 | 19 | 25 | 25 | 20.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1496/1467 | 1496/1467 | 1496/1467 | 1496/1467 | 1496/1467 | 1496/1467 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cayenne Diesel | Cayenne S Diesel | Cayenne S Diesel | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | |||
| Engine displacement [cm³] | 2967 | 4134 | 4134 | |||
| Maximum output / speed [kW/min-1] | 193/4000 | 283/3750 | 283/3750 | |||
| Maximum torque [Nm/min-1] | 580/1750-2500 | 850/2000-2750 | 850/2000-2750 | |||
| Bore and stroke [mm x mm] | 83,0 x 91,4 | 83,0 x 95,5 | 83,0 x 95,5 | |||
| Compression ratio | 16,8:1 | 16,4:1 | 16,4:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 221 | 252 | 252 | |||
| Acceleration 0–100 km/h [s] | 7.3 [7.2 Sport Chrono Paket] | 5.4 [5.3 Sport Chrono Paket] | 5.4 [5.3 Sport Chrono Paket] | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.6-7.8 | 10.0 | 10.1-10.3 | |||
| Out of town [l] | 6.0-6.2 | 7.0 | 7.0-7.2 | |||
| Combined [l] | 6.6-6.8 | 8.0 | 8.0-8.2 | |||
| CO2 emissions [g/km] | 173-179 | 209 | 209-215 | |||
| Emission standard | EU6 | EU5 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 2185 | 2290 | 2335 | |||
| Overall weight [kg] | 2870 | 2955 | 3000 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 618 | 670 | 618 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1728 | -/1780 | -/1728 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 85 | 85 | 85 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 255/55 R18 | 255/55 R18 | 255/55 R18 | |||
| Tyre dimensions rear | 255/55 R18 | 255/55 R18 | 255/55 R18 | |||
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |||
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |||
| Brake dimensions front | 350 x 34 | 360 x 36 | 360 x 36 | |||
| Brake dimensions rear | 330 x 28 | 330 x 28 | 330 x 28 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | - | - | - | |||
| Overall length [mm] | 4855 | 4855 | 4855 | |||
| Overall width without/including mirrors [mm] | 1939/2165 | 1939/2165 | 1939/2165 | |||
| Overall height [mm] | 1705 | 1705 | 1705 | |||
| Wheelbase [mm] | 2895 | 2895 | 2895 | |||
| Front wheel track [mm] | 1655 | 1655 | 1655 | |||
| Rear wheel track [mm] | 1669 | 1669 | 1669 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 215 | 215 | 215 | |||
| Wading depth [mm] | 500 | 500 | 500 | |||
| Approach angle front [°] | 25.8 | 25.8 | 25.8 | |||
| Approach angle rear [°] | 23.4 | 23.4 | 23.4 | |||
| Transition angle [°] | 20.4 | 20.4 | 20.4 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1005 | 1005 | 1005 | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | 1496/1467 | 1496/1467 | 1496/1467 | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
