Peugeot 508
Date of manufacture
2019 – to this day (Estate)
2018 – to this day (Liftback)
Platform
PSA EMP2
Manufacturing locations
Mulhouse, France
Wuhan, People's Republic of China
Designer
-
Tags
D-segment
French cars
The Peugeot 508 is available as a station wagon and liftback. The car has been produced since 2018. France and the People's Republic of China are the countries where the 508 model is manufactured. The car is built on the PSA EMP2 platform. Hybrid and plug-in hybrid models are also available. The engine range has gasoline, diesel and hybrid powertrains. The most powerful unit (265 kW) is the HYBRID4 360 PSE. The fastest version is the 1.6 PureTech 225. The maximum speed is 248 km/h. The most fuel-efficient model is the HYBRID 225 with a combined consumption of 1.3 l/100 km and CO2 emissions of 30 g/km. The station wagon version has a trunk size of 530 l. The liftback version offers a trunk volume of 487 l. During the EURONCAP safety tests, the car scored 5 out of 5. Tested according to the 2018 methodology.
Car body style

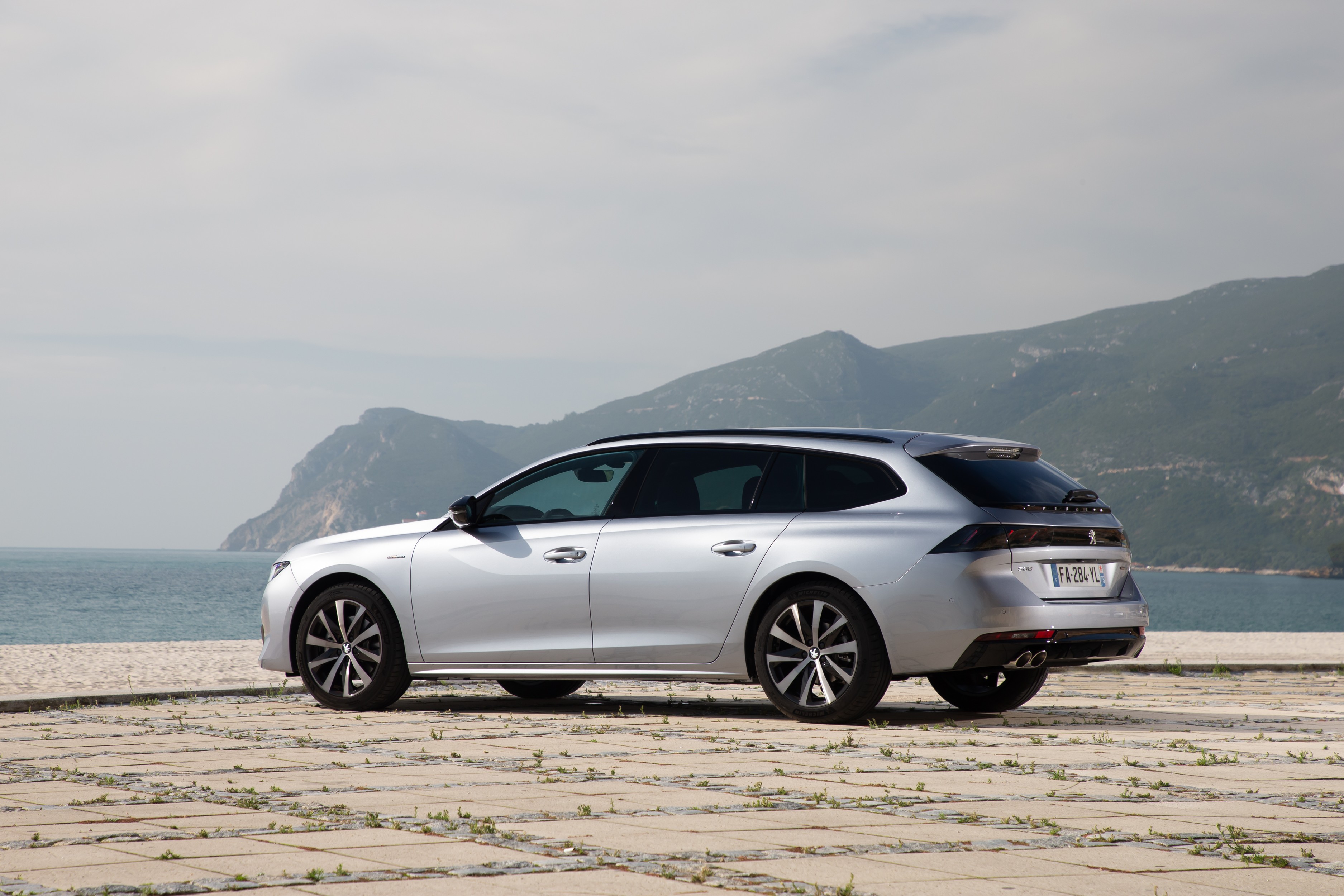

Estate (SW)
Date of manufacture
2019 – to this dayInternal designation
-Engine size

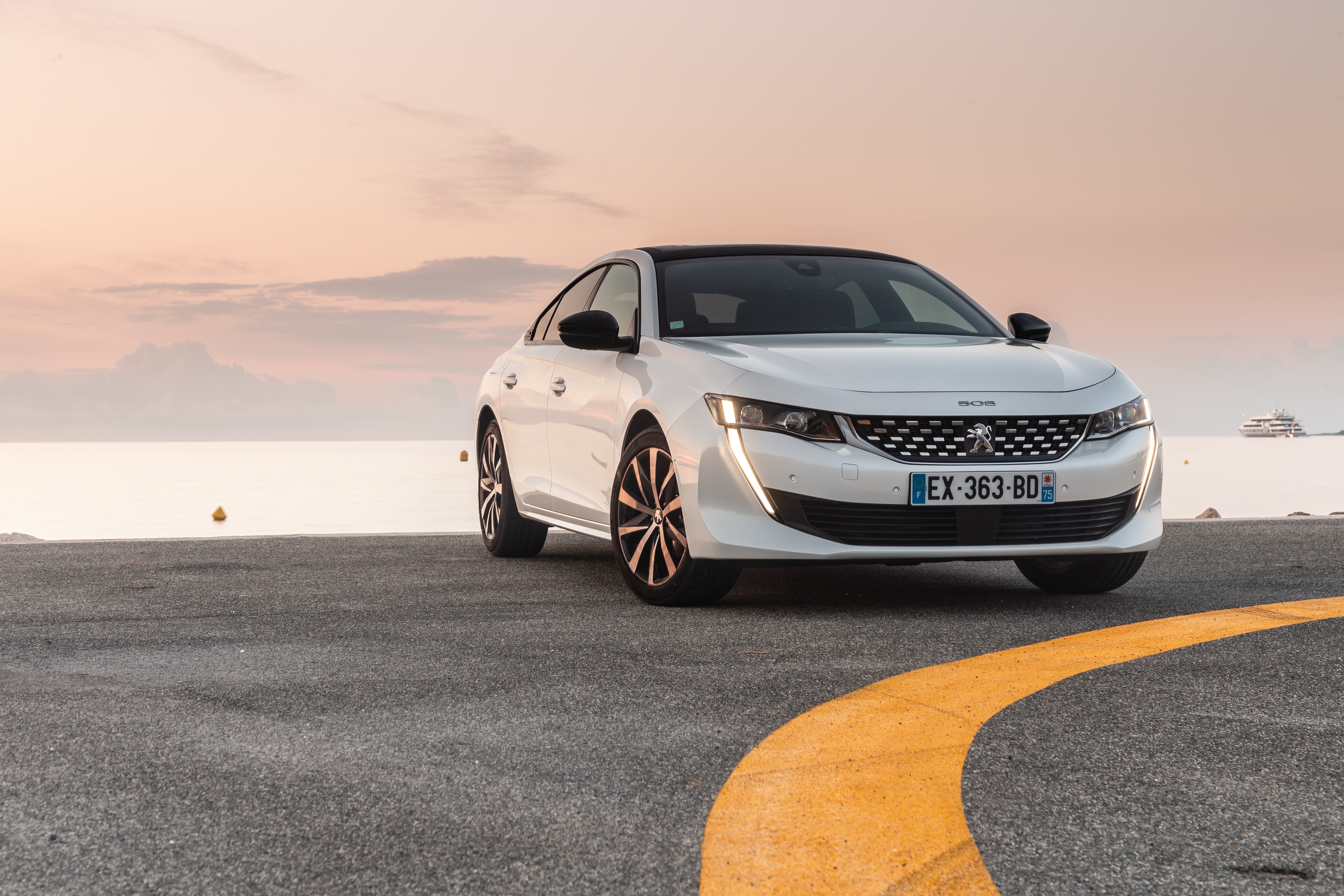

Liftback
Date of manufacture
2018 – to this dayInternal designation
-Engine size
Technical data
Estate (SW)
| 1.2 PureTech 130 | 1.6 PureTech 180 | 1.6 PureTech 225 | HYBRID 225 | HYBRID4 360 PSE | 1.5 BlueHDi 130 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2020 to | from 2021 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1199 | 1598 | 1598 | 1598 | 1598 | 1499 |
| Maximum output / speed [kW/min-1] | 96/5500 | 133/5500 | 165/5500 | 133/6000 combustion 81/2500 el. 165 total | 147/6000 combustion 81/2500 el. 83/14000 el. 265 total | 96/3750 |
| Maximum torque [Nm/min-1] | 230/1750 | 250/1650 | 300/1900 | 250/1750 combustion 320 el. 360 total | 300/3000 combustion 320 el. 166 el. 520 total | 300/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75 x 84,8 |
| Compression ratio | 10.5:1 | 10.8:1 | - | - | - | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 204 | 225 | 248 | 240 [135 el.] | 250 [135 el.] | 208 |
| Acceleration 0–100 km/h [s] | 10.0 | 8,0 | 7,4 | 8.0 | 7.9 | 9,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9-5.7 | 6,2-6,3 | 6,9 | - | - | 4,7 |
| Out of town [l] | 4.5-4.3 | 4,4-4,5 | 4,6 | - | - | 3,5 |
| Combined [l] | 5.0-4.8 | 5,1-5,2 | 5,4 | 1.6-1.4 | 1.9 | 4,0 |
| CO2 emissions [g/km] | 114-110 | 116-118 | 124 | 36-33 | 42 | 104 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.4-6.0 | - | - | 1.6-1.3 [15.7-14.7 kWh] | 1.8 [15.9 kWh] | - |
| CO2 emissions [g/km] | 145-134 | - | - | 36-30 | 42 | - |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 11.5 kWh | Lithium-Ionen-Akkumulator, 11.5 kWh | - |
| Range with fully charged battery [km] | - | - | - | 47-52 [WLTP] | 45 [WLTP] | - |
| Charging time | - | - | - |
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1495-1654 | 1505-1664 | 1505-1662 | 1820-1959 | 1950-2027 | 1505-1675 |
| Overall weight [kg] | 2010 | 2027 | 2028 | 2290 | 2360 | 2023 |
| Maximum trailer weight unbraked/braked [kg] | 745/1290 | 745/1600 | 745/1600 | 745/1340 | 745/1270 | 745/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 70 | 75 | 75 | 62 | 70 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 |
| Boot length [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Boot length with rear seats folded [mm] | 1876 | 1876 | 1876 | 1876 | 1876 | 1876 |
| Boot width between wheels/max [mm] | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- |
| Boot height to headliner/ceiling [mm] | 499/- | 499/- | 499/- | 499/- | 499/- | 499/- |
| Loading edge height [mm] | 635 | 635 | 635 | 635 | 635 | 635 |
| Height of the open boot door [mm] | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 43 | 43 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 95V | 215/60 R16 99V | 235/45 R18 98Y | 215/55 R17 98W | 245/35 R20 95Y | 215/60 R16 95V |
| Tyre dimensions rear | 215/60 R16 95V | 215/60 R16 99V | 235/45 R18 98Y | 215/55 R17 98W | 245/35 R20 95Y | 215/60 R16 95V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4778 | 4778 | 4778 | 4778 | 4778 | 4778 |
| Overall width without/including mirrors [mm] | 1859/2079 | 1859/2079 | 1859/2079 | 1859/2079 | 1859/2079 | 1859/2079 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Wheelbase [mm] | 2793 | 2793 | 2793 | 2793 | 2793 | 2793 |
| Front wheel track [mm] | 1601 | 1601 | 1601 | 1601 | 1601 | 1601 |
| Rear wheel track [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Forward overhang [mm] | 948 | 948 | 948 | 948 | 948 | 948 |
| Rear overhang [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Headroom rear [mm] | 883 | 883 | 883 | 883 | 883 | 883 |
| Front elbow/shoulder width [mm] | 1455/1418 | 1455/1418 | 1455/1418 | 1455/1418 | 1455/1418 | 1455/1418 |
| Rear elbow/shoulder width [mm] | 1413/1362 | 1413/1362 | 1413/1362 | 1413/1362 | 1413/1362 | 1413/1362 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 BlueHDi 130 | 2.0 BlueHDI 160 | 2.0 BlueHDI 180 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1499 | 1997 | 1997 | |||
| Maximum output / speed [kW/min-1] | 96/3750 | 120/3750 | 130/3750 | |||
| Maximum torque [Nm/min-1] | 300/1750 | 400/2000 | 400/2000 | |||
| Bore and stroke [mm x mm] | 75 x 84,8 | 85,0 x 88,0 | 85,0 x 88,0 | |||
| Compression ratio | 16.5:1 | 16.7:1 | 16.7:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 208 | 226 | 231 | |||
| Acceleration 0–100 km/h [s] | 10,1 | 8,5 | 8,4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4,6-4.2 | 5,5-5,6 | 5,9 | |||
| Out of town [l] | 3,6-3.4 | 3,9-4,0 | 4,0 | |||
| Combined [l] | 4,0-3.7 | 4,5-4,6 | 4,7 | |||
| CO2 emissions [g/km] | 104-97 | 119-122 | 124 | |||
| Low speed [l] | - | - | - | |||
| Medium speed [l] | - | - | - | |||
| High speed [l] | - | - | - | |||
| Extra high speed [l] | - | - | - | |||
| Combined speed [l] | 5.1-4.7 | - | - | |||
| CO2 emissions [g/km] | 133-123 | - | - | |||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1505-1698 | 1615-1774 | 1615-1774 | |||
| Overall weight [kg] | 2043 | 2146 | 2146 | |||
| Maximum trailer weight unbraked/braked [kg] | 745/1500 | 750/1800 | 750/1800 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 530 | 530 | 530 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1780 | |||
| Boot length [mm] | 1059 | 1059 | 1059 | |||
| Boot length with rear seats folded [mm] | 1876 | 1876 | 1876 | |||
| Boot width between wheels/max [mm] | 1133/- | 1133/- | 1133/- | |||
| Boot height to headliner/ceiling [mm] | 499/- | 499/- | 499/- | |||
| Loading edge height [mm] | 635 | 635 | 635 | |||
| Height of the open boot door [mm] | 2100 | 2100 | 2100 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 55 | 55 | 55 | |||
| AdBlue tank volume [l] | 17 | 17 | 17 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 215/60 R16 95V | 215/55 R17 98W | 235/45 R18 98W | |||
| Tyre dimensions rear | 215/60 R16 95V | 215/55 R17 98W | 235/45 R18 98W | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | |||
| Overall length [mm] | 4778 | 4778 | 4778 | |||
| Overall width without/including mirrors [mm] | 1859/2079 | 1859/2079 | 1859/2079 | |||
| Overall height [mm] | 1420 | 1420 | 1420 | |||
| Wheelbase [mm] | 2793 | 2793 | 2793 | |||
| Front wheel track [mm] | 1601 | 1601 | 1601 | |||
| Rear wheel track [mm] | 1597 | 1597 | 1597 | |||
| Forward overhang [mm] | 948 | 948 | 948 | |||
| Rear overhang [mm] | 1037 | 1037 | 1037 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 881 | 881 | 881 | |||
| Headroom rear [mm] | 883 | 883 | 883 | |||
| Front elbow/shoulder width [mm] | 1455/1418 | 1455/1418 | 1455/1418 | |||
| Rear elbow/shoulder width [mm] | 1413/1362 | 1413/1362 | 1413/1362 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Liftback
| 1.2 PureTech 130 | 1.6 PureTech 180 | 1.6 PureTech 225 | HYBRID 225 | HYBRID4 360 PSE | 1.5 BlueHDi 130 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2020 to | from 2021 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1199 | 1598 | 1598 | 1598 | 1598 | 1499 |
| Maximum output / speed [kW/min-1] | 96/5500 | 133/5500 | 165/5500 | 133/6000 combustion 81/2500 el. 165 total | 147/6000 combustion 81/2500 el. 83/14000 el. 265 total | 96/3750 |
| Maximum torque [Nm/min-1] | 230/1750 | 250/1650 | 300/1900 | 250/1750 combustion 320 el. 360 total | 300/3000 combustion 320 el. 166 el. 520 total | 300/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75 x 84,8 |
| Compression ratio | 10.5:1 | 10.8:1 | - | - | - | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 204 | 225 | 248 | 240 [135 el.] | 250 [135 el.] | 208 |
| Acceleration 0–100 km/h [s] | 10,0 | 7,9 | 7,3 | 7.9 | 7.9 | 9,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9-5.7 | 6,2-6,3 | 6,9 | - | - | 4,7-4.2 |
| Out of town [l] | 4.4-4.2 | 4,3-4,4 | 4,5 | - | - | 3,4-3.3 |
| Combined [l] | 4.9-4.8 | 5,0-5,1 | 5,3 | 1.5-1.4 | 1.9 | 3,9-3.6 |
| CO2 emissions [g/km] | 112-108 | 114-116 | 122 | 35-32 | 42 | 101-96 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.3-5.8 | - | - | 1.5-1.3 [15.3-14.3 kWh] | 1.8 [15.9 kWh] | - |
| CO2 emissions [g/km] | 141-130 | - | - | 28-32 | 42 | - |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 11.5 kWh | Lithium-Ionen-Akkumulator, 11.5 kWh | - |
| Range with fully charged battery [km] | - | - | - | 49-54 [WLTP] | 45 [WLTP] | - |
| Charging time | - | - | - |
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1475-1635 | 1495-1655 | 1495-1632 | 1795-1934 | 1925-2002 | 1490-1657 |
| Overall weight [kg] | 1970 | 1999 | 2001 | 2270 | 2340 | 1999-2020 |
| Maximum trailer weight unbraked/braked [kg] | 735/1330 | 745/1600 | 745/1600 | 755/1330 | 745/1260 | 745/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 54 | 70 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 487 | 487 | 487 | 487 | 487 | 487 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1537 | -/1537 | -/1537 | -/1537 | -/1537 | -/1537 |
| Boot length [mm] | 1035 | 1035 | 1035 | 1035 | 1035 | 1035 |
| Boot length with rear seats folded [mm] | 1983 | 1983 | 1983 | 1983 | 1983 | 1983 |
| Boot width between wheels/max [mm] | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- | 1133/- |
| Boot height to headliner/ceiling [mm] | 488/- | 488/- | 488/- | 488/- | 488/- | 488/- |
| Loading edge height [mm] | 697 | 697 | 697 | 697 | 697 | 697 |
| Height of the open boot door [mm] | 2152 | 2152 | 2152 | 2152 | 2152 | 2152 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 43 | 43 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 95V | 215/60 R16 99V | 235/45 R18 98Y | 215/55 R17 98W | 245/35 R20 95Y | 215/60 R16 95V |
| Tyre dimensions rear | 215/60 R16 95V | 215/60 R16 99V | 235/45 R18 98Y | 215/55 R17 98W | 245/35 R20 95Y | 215/60 R16 95V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4750 | 4750 | 4750 | 4750 | 4750 | 4750 |
| Overall width without/including mirrors [mm] | 1859/2079 | 1859/2079 | 1859/2079 | 1859/2079 | 1859/2079 | 1859/2079 |
| Overall height [mm] | 1403 | 1403 | 1403 | 1403 | 1403 | 1403 |
| Wheelbase [mm] | 2793 | 2793 | 2793 | 2793 | 2793 | 2793 |
| Front wheel track [mm] | 1601 | 1601 | 1601 | 1601 | 1601 | 1601 |
| Rear wheel track [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Forward overhang [mm] | 948 | 948 | 948 | 948 | 948 | 948 |
| Rear overhang [mm] | 1009 | 1009 | 1009 | 1009 | 1009 | 1009 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Headroom rear [mm] | 843 | 843 | 843 | 843 | 843 | 843 |
| Front elbow/shoulder width [mm] | 1455/1418 | 1455/1418 | 1455/1418 | 1455/1418 | 1455/1418 | 1455/1418 |
| Rear elbow/shoulder width [mm] | 1413/1362 | 1413/1362 | 1413/1362 | 1413/1362 | 1413/1362 | 1413/1362 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 BlueHDi 130 | 2.0 BlueHDI 160 | 2.0 BlueHDI 180 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1499 | 1997 | 1997 | |||
| Maximum output / speed [kW/min-1] | 96/3750 | 120/3750 | 130/3750 | |||
| Maximum torque [Nm/min-1] | 300/1750 | 400/2000 | 400/2000 | |||
| Bore and stroke [mm x mm] | 75 x 84,8 | 85,0 x 88,0 | 85,0 x 88,0 | |||
| Compression ratio | 16.5:1 | 16.7:1 | 16.7:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 208 | 230 | 235 | |||
| Acceleration 0–100 km/h [s] | 10,0 | 8,4 | 8,3 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4,4-4,6 | 5,5-5,9 | 5,9 | |||
| Out of town [l] | 3,4-3,5 | 3,8-3,9 | 3,9 | |||
| Combined [l] | 3,8-3,9 | 4,5-4,5 | 4,7 | |||
| CO2 emissions [g/km] | 99-102 | 118-120 | 124 | |||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1495-1653 | 1605-1761 | 1610-1756 | |||
| Overall weight [kg] | 2020 | 2124 | 2127 | |||
| Maximum trailer weight unbraked/braked [kg] | 745/1500 | 750/1800 | 750/1800 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 487 | 487 | 487 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1537 | -/1537 | -/1537 | |||
| Boot length [mm] | 1035 | 1035 | 1035 | |||
| Boot length with rear seats folded [mm] | 1983 | 1983 | 1983 | |||
| Boot width between wheels/max [mm] | 1133/- | 1133/- | 1133/- | |||
| Boot height to headliner/ceiling [mm] | 488/- | 488/- | 488/- | |||
| Loading edge height [mm] | 697 | 697 | 697 | |||
| Height of the open boot door [mm] | 2152 | 2152 | 2152 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 55 | 55 | 55 | |||
| AdBlue tank volume [l] | 17 | 17 | 17 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 215/60 R16 95V | 215/55 R17 98W | 235/45 R18 98W | |||
| Tyre dimensions rear | 215/60 R16 95V | 215/55 R17 98W | 235/45 R18 98W | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | |||
| Overall length [mm] | 4750 | 4750 | 4750 | |||
| Overall width without/including mirrors [mm] | 1859/2079 | 1859/2079 | 1859/2079 | |||
| Overall height [mm] | 1403 | 1403 | 1403 | |||
| Wheelbase [mm] | 2793 | 2793 | 2793 | |||
| Front wheel track [mm] | 1601 | 1601 | 1601 | |||
| Rear wheel track [mm] | 1597 | 1597 | 1597 | |||
| Forward overhang [mm] | 948 | 948 | 948 | |||
| Rear overhang [mm] | 1009 | 1009 | 1009 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 881 | 881 | 881 | |||
| Headroom rear [mm] | 843 | 843 | 843 | |||
| Front elbow/shoulder width [mm] | 1455/1418 | 1455/1418 | 1455/1418 | |||
| Rear elbow/shoulder width [mm] | 1413/1362 | 1413/1362 | 1413/1362 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
