Peugeot 508
Date of manufacture
2011 – 6/2014 (Sedan)
2011 – 6/2014 (Estate)
Platform
PSA PF3
Manufacturing locations
Rennes, France
Wuhan, People's Republic of China
Designer
-
Tags
D-segment
French cars
The Peugeot 508 model has body variants of sedan and station wagon. The car has been produced since 2011. The car is produced in countries such as France and the People's Republic of China. The car is built on the PSA PF3 platform. Hybrid models are also part of the offer. The list of power units includes petrol, diesel and hybrid engines. The 2.2 HDI has the most power at 150 kW. The 2.2 HDI version reaches a maximum speed of 234 km/h. The 508 RXH 2.0 HDi Hybrid4 has the lowest consumption of 4.1 l/100 km and emissions of 72 g/km. The station wagon version has a luggage compartment volume of 560 l. The sedan version has a luggage compartment size of 515 l. During the EURONCAP safety tests, the car received a rating of 5 out of 5. Tested according to the methodology of 2011.
Car body style
Sedan
Date of manufacture
2011 – 6/2014Internal designation
Technical data
Sedan
| 1.6 THP | 1.6 THP | 1.6 HDI | 1.6 e-HDI | 1.6 HDI | 1.6 e-HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1560 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 115/6000 | 115/6000 | 82/3600 | 82/3600 | 84/3600 | 84/3600 |
| Maximum torque [Nm/min-1] | 240/1400 | 240/1400 | 240/1750 | 270/1750 | 240/1500 | 240/1500 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear robotic manual | 5 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 224 | 220 | 190 | 197 | 190 | 200 |
| Acceleration 0–100 km/h [s] | 8.6 | 9.2 | 11.3 | 11.9 | 11.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2 | 10.2 | 5.9 | 4.9 | 5.7 | 5.1 |
| Out of town [l] | 4.8 | 5.3 | 4.1 | 3.8 | 4.0 | 3.7 |
| Combined [l] | 6.4 | 7.1 | 4.7 | 4.2 | 4.6 | 4.2 |
| CO2 emissions [g/km] | 149 | 164 | 124 | 109 | 119 | 111 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1561 | 1561 | 1552 | 1560 | 1552 | 1560 |
| Overall weight [kg] | 1995 | 1995 | 1975 | 2005 | 1975 | 2005 |
| Maximum trailer weight unbraked/braked [kg] | 735/1775 | 735/1775 | 740/1475 | 740/1475 | 740/1475 | 740/1475 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 996/1381 | 996/1381 | 996/1381 | 996/1381 | 996/1381 | 996/1381 |
| Boot length [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Boot length with rear seats folded [mm] | 2080 | 2080 | 2080 | 2080 | 2080 | 2080 |
| Boot width between wheels/max [mm] | -/1117 | -/1117 | -/1117 | -/1117 | -/1117 | -/1117 |
| Boot height to headliner/ceiling [mm] | -/504 | -/504 | -/504 | -/504 | -/504 | -/504 |
| Loading edge height [mm] | 699 | 699 | 699 | 699 | 699 | 699 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | 72 | 72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16H | 215/55 R17H | 215/60 R16T | 215/60 R16H | 215/60 R16T | 215/60 R16H |
| Tyre dimensions rear | 215/60 R16H | 215/55 R17H | 215/60 R16T | 215/60 R16H | 215/60 R16T | 215/60 R16H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |

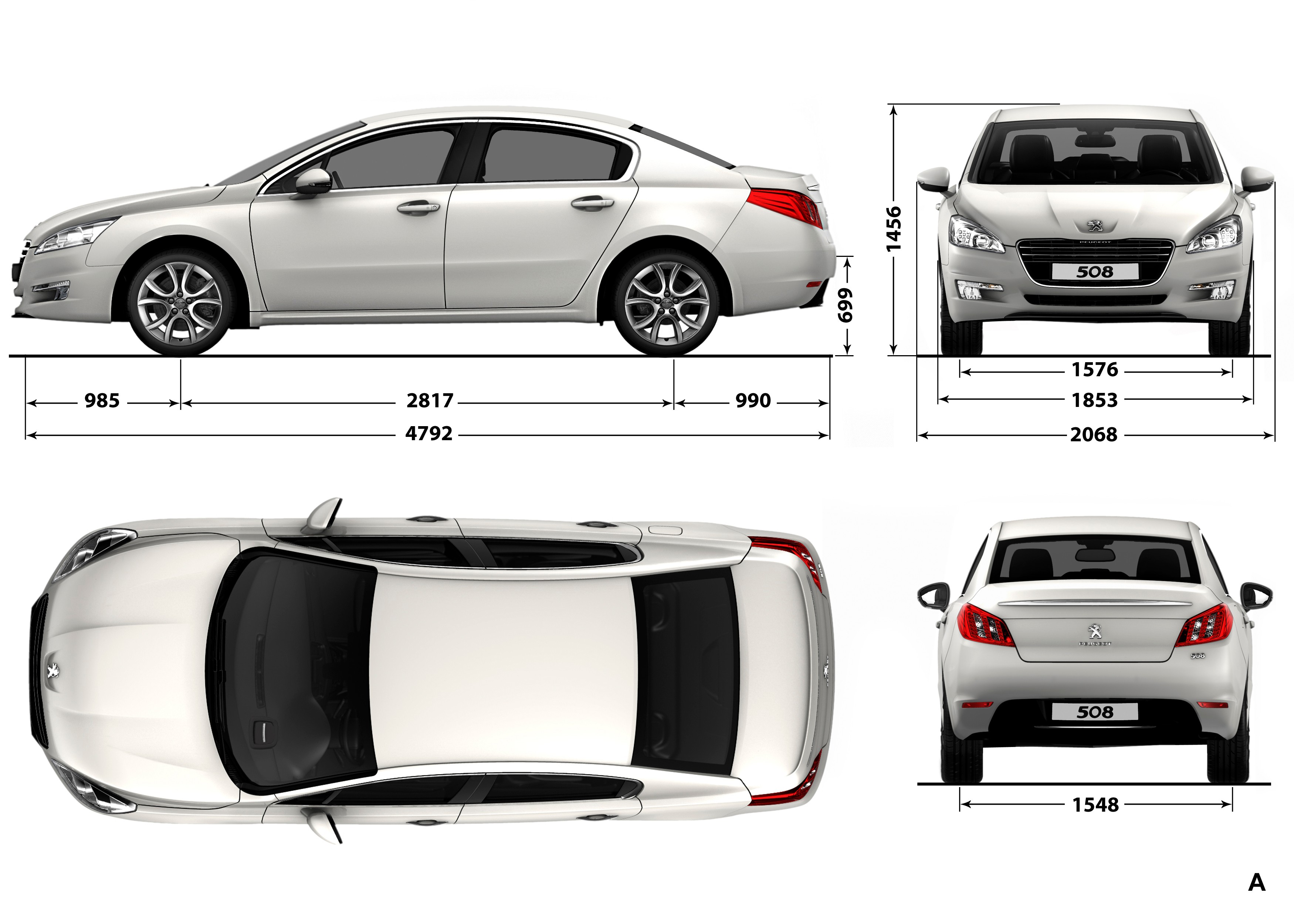

| Overall length [mm] | 4792 | 4792 | 4792 | 4792 | 4792 | 4792 |
| Overall width without/including mirrors [mm] | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2817 | 2817 | 2817 |
| Front wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Rear wheel track [mm] | 1548 | 1548 | 1548 | 1548 | 1548 | 1548 |
| Forward overhang [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Rear overhang [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 896 | 896 | 896 | 896 | 896 | 896 |
| Headroom rear [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 |
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 HDI | 2.0 HDI | 2.0 HDI | 2.2 HDI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | ||
| Maximum output / speed [kW/min-1] | 103/4000 | 120/3750 | 120/3750 | 150/3500 | ||
| Maximum torque [Nm/min-1] | 320/2000 | 340/2000 | 340/2000 | 450/2000 | ||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | ||
| Drive specifications | - | - |
|
| ||
| Top speed [km/h] | 210 | 226 | 225 | 234 | ||
| Acceleration 0–100 km/h [s] | 9.8 | 8.6 | 9.2 | 8.2 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6.2-6.4 | 6.7 | 7.6 | 8.0 | ||
| Out of town [l] | 3.7-3.9 | 3.9 | 4.6 | 4.4 | ||
| Combined [l] | 4.6-4.8 | 4.9 | 5.7 | 5.7 | ||
| CO2 emissions [g/km] | 119-125 | 129 | 149 | 150 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1618 | 1630 | 1675 | 1736 | ||
| Overall weight [kg] | 2065 | 2075 | 2105 | 2155 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1775 | 750/1875 | 750/1375 | 750/1875 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 515 | 515 | 515 | 515 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 996/1381 | 996/1381 | 996/1381 | 996/1381 | ||
| Boot length [mm] | 1052 | 1052 | 1052 | 1052 | ||
| Boot length with rear seats folded [mm] | 2080 | 2080 | 2080 | 2080 | ||
| Boot width between wheels/max [mm] | -/1117 | -/1117 | -/1117 | -/1117 | ||
| Boot height to headliner/ceiling [mm] | -/504 | -/504 | -/504 | -/504 | ||
| Loading edge height [mm] | 699 | 699 | 699 | 699 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | double wishbone | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/60 R16H | 215/60 R16V | 215/60 R16V | 235/45 R18W | ||
| Tyre dimensions rear | 215/60 R16H | 215/60 R16V | 215/60 R16V | 235/45 R18W | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | - | ||
| Overall length [mm] | 4792 | 4792 | 4792 | 4792 | ||
| Overall width without/including mirrors [mm] | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 | ||
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | ||
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2815 | ||
| Front wheel track [mm] | 1576 | 1576 | 1576 | 1576 | ||
| Rear wheel track [mm] | 1548 | 1548 | 1548 | 1548 | ||
| Forward overhang [mm] | 985 | 985 | 985 | 985 | ||
| Rear overhang [mm] | 990 | 990 | 990 | 990 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 896 | 896 | 896 | 896 | ||
| Headroom rear [mm] | 857 | 857 | 857 | 857 | ||
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | ||
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Estate (SW)
| 1.6 THP | 1.6 THP | 1.6 HDI | 1.6 e-HDI | 1.6 HDI | 1.6 e-HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1560 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 115/6000 | 115/6000 | 82/3600 | 82/3600 | 84/3600 | 84/3600 |
| Maximum torque [Nm/min-1] | 240/1400 | 240/1400 | 240/1750 | 270/1750 | 240/1500 | 240/1500 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear robotic manual | 5 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 220 | 217 | 182 | 194 | 188 | 197 |
| Acceleration 0–100 km/h [s] | 8.8 | 9.5 | 11.6 | 12.3 | 11.6 | 11.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.3 | 10.4 | 5.7 | 4.9 | 5.7 | 5.2 |
| Out of town [l] | 5.0 | 5.5 | 4.0 | 3.9 | 4.0 | 3.8 |
| Combined [l] | 6.5 | 7.3 | 4.6 | 4.3 | 4.6 | 4.3 |
| CO2 emissions [g/km] | 150 | 169 | 119 | 110 | 119 | 112 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1596 | 1596 | 1578 | 1609 | 1578 | 1609 |
| Overall weight [kg] | 2080 | 2080 | 2080 | 2100 | 2080 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 745/1800 | 745/1800 | 745/1400 | 750/1400 | 745/1375 | 750/1375 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 |
| Boot length [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
| Boot length with rear seats folded [mm] | 2120 | 2120 | 2120 | 2120 | 2120 | 2120 |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 |
| Boot height to headliner/ceiling [mm] | -/886 | -/886 | -/886 | -/886 | -/886 | -/886 |
| Loading edge height [mm] | 611 | 611 | 611 | 611 | 611 | 611 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | 72 | 72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16H | 215/55 R17H | 215/60 R16T | 215/60 R16H | 215/60 R16T | 215/60 R16H |
| Tyre dimensions rear | 215/60 R16H | 215/55 R17H | 215/60 R16T | 215/60 R16H | 215/60 R16T | 215/60 R16H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4813 | 4813 | 4813 | 4813 | 4813 | 4813 |
| Overall width without/including mirrors [mm] | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 |
| Overall height [mm] | 1487 | 1487 | 1487 | 1487 | 1487 | 1487 |
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2817 | 2817 | 2817 |
| Front wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Rear wheel track [mm] | 1548 | 1548 | 1548 | 1548 | 1548 | 1548 |
| Forward overhang [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Rear overhang [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 |
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 HDI | 2.0 HDI | 2.0 HDI | 2.2 HDI | 508 RXH 2.0 HDi HYbrid4 | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2012 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | 1997 | |
| Maximum output / speed [kW/min-1] | 103/4000 | 120/3750 | 120/3750 | 150/3500 | 120/3850 combustion 27/2500 el. 147 total | |
| Maximum torque [Nm/min-1] | 320/2000 | 340/2000 | 340/2000 | 450/2000 | 300/1750 combustion 200/1290 el. 450 total | |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | 85,0 x 88,0 | |
| Compression ratio | - | - | - | - | - | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | 4x4 | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear robotic manual | |
| Drive specifications | - | - |
|
|
| |
| Top speed [km/h] | 210 | 222 | 223 | 232 | 213 | |
| Acceleration 0–100 km/h [s] | 10.1 | 8.9 | 9.5 | 8.4 | 8.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.4-6.7 | 6.7 | 7.6 | 8.1 | 4.0 | |
| Out of town [l] | 3.9-4.0 | 4.0 | 4.6 | 4.7 | 4.2 | |
| Combined [l] | 4.8-5.0 | 5.0 | 5.7 | 5.9 | 4.1 | |
| CO2 emissions [g/km] | 125-130 | 130 | 150 | 154 | 72 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | - | - | - | - | - | |
| Battery type and capacity | - | - | - | - | Nickel-metal hydride | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1681 | 1681 | 1710 | 1780 | 1910 | |
| Overall weight [kg] | 2140 | 2140 | 2180 | 2280 | 2325 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1775 | 750/1775 | 750/1300 | 750/1900 | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 560 | 560 | 560 | 560 | 423 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 | -/1439 | |
| Boot length [mm] | 1060 | 1060 | 1060 | 1060 | - | |
| Boot length with rear seats folded [mm] | 2120 | 2120 | 2120 | 2120 | - | |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | - | |
| Boot height to headliner/ceiling [mm] | -/886 | -/886 | -/886 | -/886 | - | |
| Loading edge height [mm] | 611 | 611 | 611 | 611 | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | 72 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | double wishbone | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 215/60 R16H | 215/60 R16V | 215/60 R16V | 235/45 R18W | 245/45 R18V | |
| Tyre dimensions rear | 215/60 R16H | 215/60 R16V | 215/60 R16V | 235/45 R18W | 245/45 R18V | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | - | - | |
| Overall length [mm] | 4813 | 4813 | 4813 | 4813 | 4823 | |
| Overall width without/including mirrors [mm] | 1853/2068 | 1853/2068 | 1853/2068 | 1853/2068 | 1864/2068 | |
| Overall height [mm] | 1487 | 1487 | 1487 | 1487 | 1525 | |
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2815 | 2815 | |
| Front wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1592 | |
| Rear wheel track [mm] | 1548 | 1548 | 1548 | 1548 | 1564 | |
| Forward overhang [mm] | 985 | 985 | 985 | 985 | 987 | |
| Rear overhang [mm] | 1011 | 1011 | 1011 | 1011 | 1021 | |
| Clearance [mm] | - | - | - | - | 184 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | 15.6 | |
| Approach angle rear [°] | - | - | - | - | 19.8 | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 916 | 916 | 916 | 916 | 916 | |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | |
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | |
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

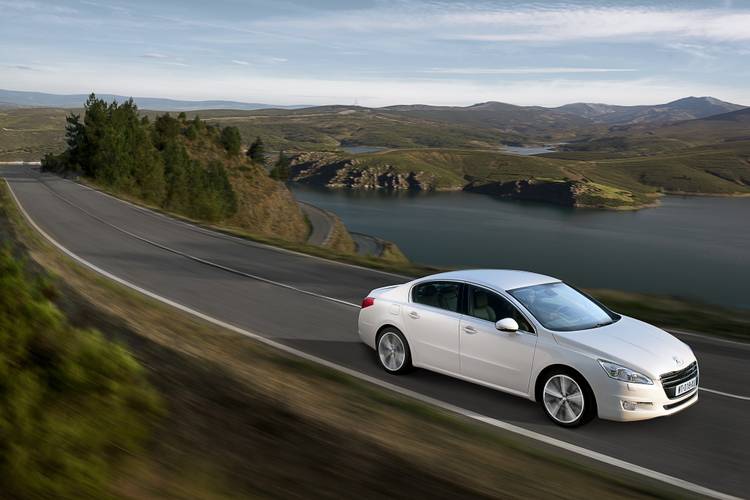

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
