Basic information Technical Specifications Gallery

Peugeot 5008

Date of manufacture

2020 – to this day (Medium SUV)

Platform

PSA EMP2

Manufacturing locations

Rennes, France

Chengdu, People's Republic of China

Designer

Sandeep Bhambra

Car body style

Medium SUV

after upgrade (facelift)

Date of manufacture

2020 – to this day

Internal designation

T87

Engine size

Petrol

Diesel

Euro NCAP

Test year 2016

pre-facelift version (2016)

Technical data

Medium SUV

	1.2 PureTech 130	1.2 PureTech 130	1.6 PureTech 180	1.5 BlueHDi 130	1.5 BlueHDi 130	2.0 BlueHDI 180
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	3/12	3/12	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1199	1199	1598	1499	1499	1997
Maximum output / speed [kW/min-1]	96/5500	96/5500	133/5500	96/3750	96/3750	130/3750
Maximum torque [Nm/min-1]	230/1750	230/1750	250/1650	300/1750	300/1750	400/2000
Bore and stroke [mm x mm]	75,0 x 90,5	75,0 x 90,5	77,0 x 85,8	75 x 84,8	75 x 84,8	85,0 x 88,0
Compression ratio	10.5:1	10.5:1	10.8:1	16.5:1	16.5:1	16.7:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves variable lift of intake valves Gasoline Particulate Filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	8 gear automatic	8 gear automatic	6 gear manual	8 gear automatic	8 gear automatic
Drive specifications	-	eight-speed automatic gearbox EAT8	eight-speed automatic gearbox EAT8	-	eight-speed automatic gearbox EAT8	eight-speed automatic gearbox EAT8

Top speed [km/h]	188	188	219	191	190	215
Acceleration 0–100 km/h [s]	9,9	10,2	8,3	11,1	11,8	9,2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5,9	6,1	6,3	4,6	4,5	5,5
Out of town [l]	4,6	4,7	5,0	3,7	3,8	4,3
Combined [l]	5,1	5,2	5,5	4,0	4,1	4,7
CO2 emissions [g/km]	117	118	125	107	107	124

Low speed [l]	-	-	-	-	-	-
Medium speed [l]	-	-	-	-	-	-
High speed [l]	-	-	-	-	-	-
Extra high speed [l]	-	-	-	-	-	-
Combined speed [l]	6,4-6,3	6,8-6,6	7,1-7,0	5,1	5,5-5,3	6,0-5,9
CO2 emissions [g/km]	145-143	154-149	161-158	135-133	143-139	157-153

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1504-1619	1505-1651	1596-1711	1590-1705	1611-1726	1682-1797
Overall weight [kg]	2140	2160	2190	2200	2230	2280
Maximum trailer weight unbraked/braked [kg]	600/1100	600/1100	750/1300	750/1300	750/1200	750/1750
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	70	70	70	70	70	70
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	702	702	702	702	702	702
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1940	-/1940	-/1940	-/1940	-/1940	-/1940
Boot volume, third row of seats [l]	-	-	-	-	-	-
Boot volume, third row seats folded [l]	-	-	-	-	-	-
Boot length [mm]	1153 [345 seven seats]	1153 [345 seven seats]	1153 [345 seven seats]	1153 [345 seven seats]	1153 [345 seven seats]	1153 [345 seven seats]
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1172/-	1172/-	1172/-	1172/-	1172/-	1172/-
Boot height to headliner/ceiling [mm]	553/931	553/931	553/931	553/931	553/931	553/931
Loading edge height [mm]	676	676	676	676	676	676
Height of the open boot door [mm]	2060	2060	2060	2060	2060	2060
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	7	7	7	7	7	7
Fuel tank volume [l]	56	56	56	56	56	56
AdBlue tank volume [l]	-	-	-	17	17	17
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	215/65 R17 90H	215/65 R17 90H	225/55 R18 92V	215/65 R17 90H	215/65 R17 90H	225/55 R18 91V
Tyre dimensions rear	215/65 R17 90H	215/65 R17 90H	225/55 R18 92V	215/65 R17 90H	215/65 R17 90H	225/55 R18 91V
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.2/-	11.2/-	11.2/-	11.2/-	11.2/-	11.2/-

Overall length [mm]	4641	4641	4641	4641	4641	4641
Overall width without/including mirrors [mm]	1844/2098	1844/2098	1844/2098	1844/2098	1844/2098	1844/2098
Overall height [mm]	1646	1646	1646	1646	1646	1646
Wheelbase [mm]	2840	2840	2840	2840	2840	2840
Front wheel track [mm]	1593	1593	1601	1593	1593	1601
Rear wheel track [mm]	1587	1587	1610	1587	1587	1610
Forward overhang [mm]	926	926	926	926	926	926
Rear overhang [mm]	875	875	875	875	875	875
Clearance [mm]	236	236	236	236	236	236
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	19	19	19	19	19	19
Approach angle rear [°]	28	28	28	28	28	28
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	916	916	916	916	916	916
Headroom rear [mm]	889	889	889	889	889	889
Front elbow/shoulder width [mm]	1487/1453	1487/1453	1487/1453	1487/1453	1487/1453	1487/1453
Rear elbow/shoulder width [mm]	1505/1432	1505/1432	1505/1432	1505/1432	1505/1432	1505/1432
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-
Third row of seats, headroom [mm]	820	820	820	820	820	820
Third row elbow/shoulder width [mm]	1264/1198	1264/1198	1264/1198	1264/1198	1264/1198	1264/1198

Gallery

Peugeot 5008 T87 facelift 2021 front seats

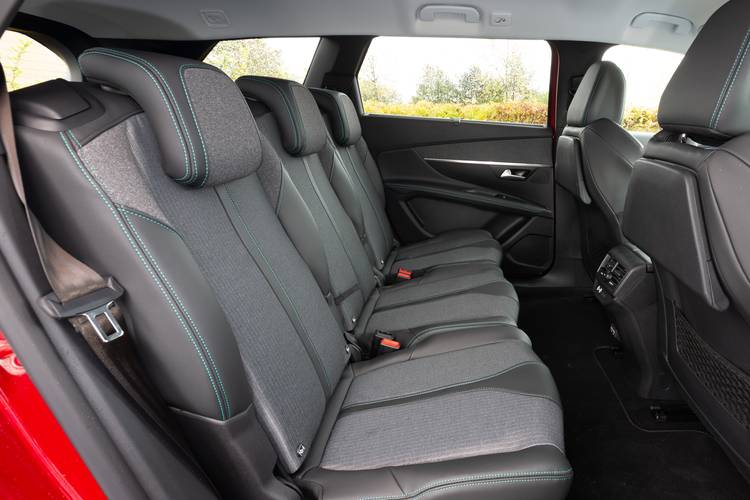

Peugeot 5008 T87 facelift 2021 rear seats

Peugeot 5008 T87 facelift 2020 rear seats

Peugeot 5008 T87 facelift 2021 rear folding seats

Peugeot 5008 T87 facelift 2020 dimensions

Technical data, specifications and dimensions Peugeot 5008 T87 facelift 2021

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
