Peugeot 308
Date of manufacture
2017 – 2021 (Estate)
2017 – 2021 (Five-door hatchback)
Platform
PSA PF2
Manufacturing locations
Sochaux, France
Mulhouse, France
Wuhan, People's Republic of China
Designer
Gilles Vidal
Tags
C-segment
French cars
The Peugeot 308 is available in two versions - a station wagon and a five-door hatchback. This car was first manufactured in 2017 and is built on the PSA PF2 platform. The engine range includes petrol and diesel engines, the most powerful model being the 1.6 THP GTI with 200 kW, which has a top speed of 250 km/h and a 0-100 km/h acceleration time of 6 seconds. The most economical model is the 1.6 BlueHDI with CO2 emissions of 95 g/km and fuel consumption of 3.6 l/100 km. The five-door hatchback has a trunk capacity of 420 l, while the station wagon has a capacity of 610 l. According to EURONCAP, this car received a 5 out of 5 rating for safety in 2013.
Car body style

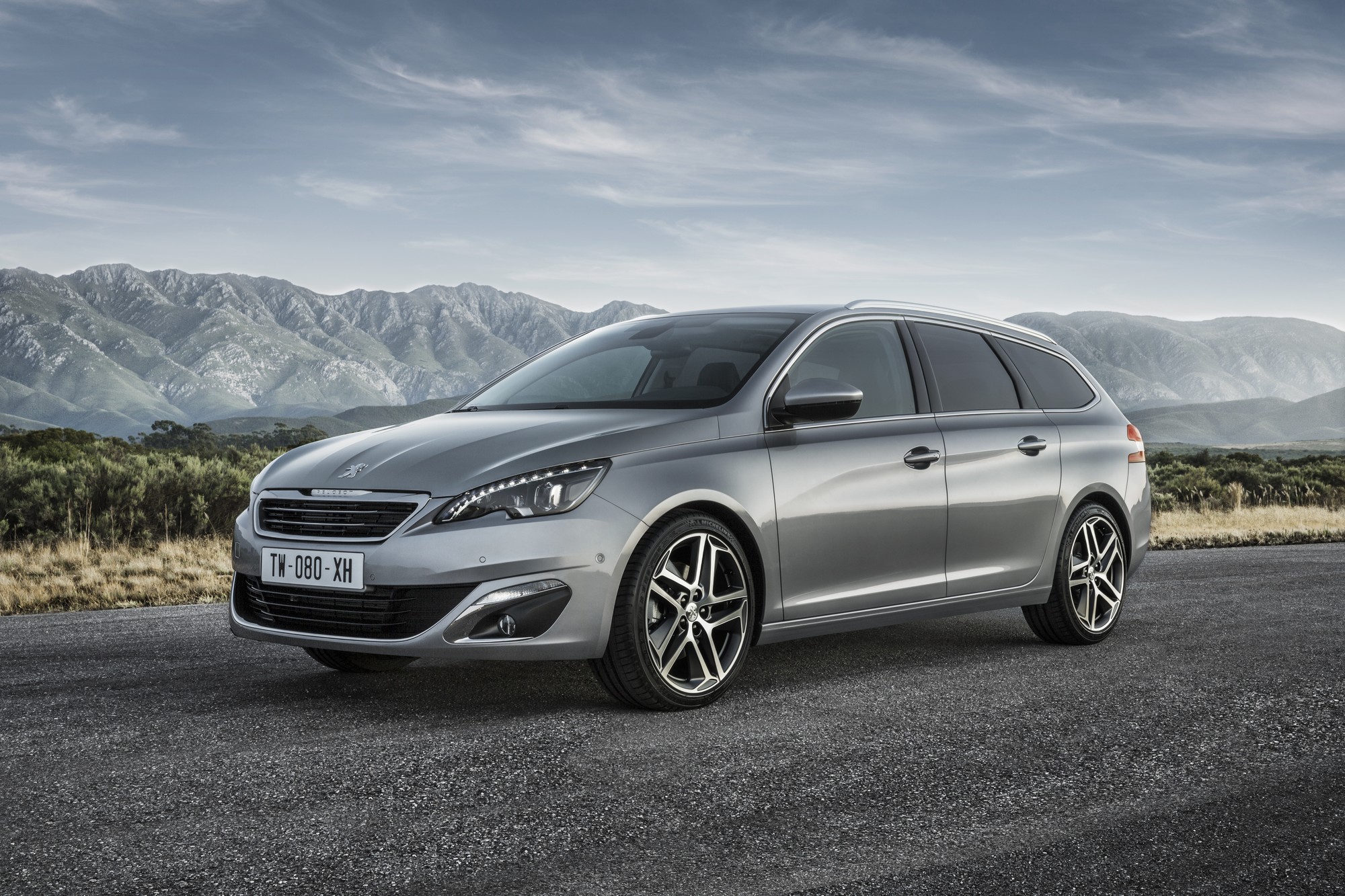

Estate (SW)
after upgrade (facelift)
Date of manufacture
2017 – 2021Internal designation

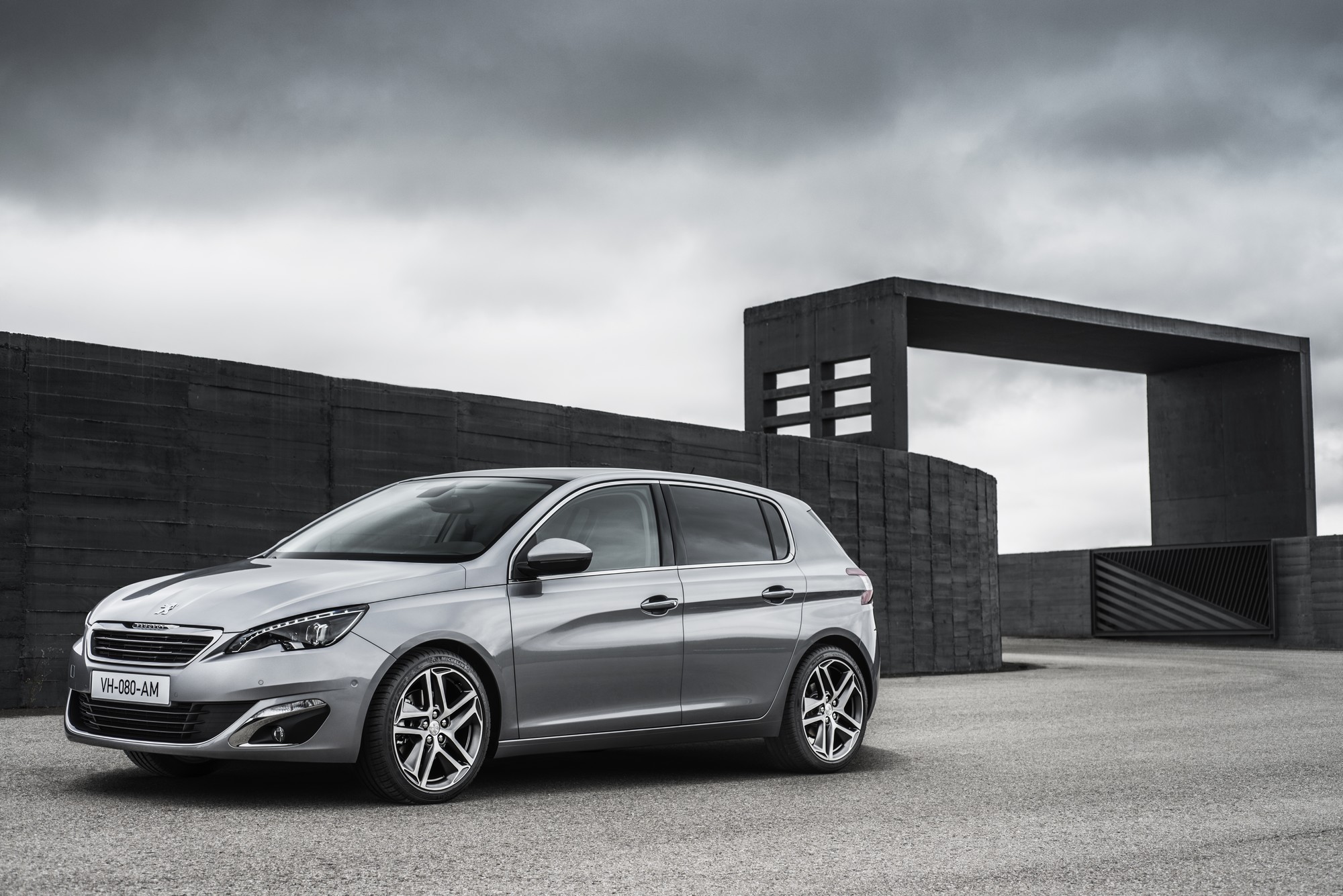

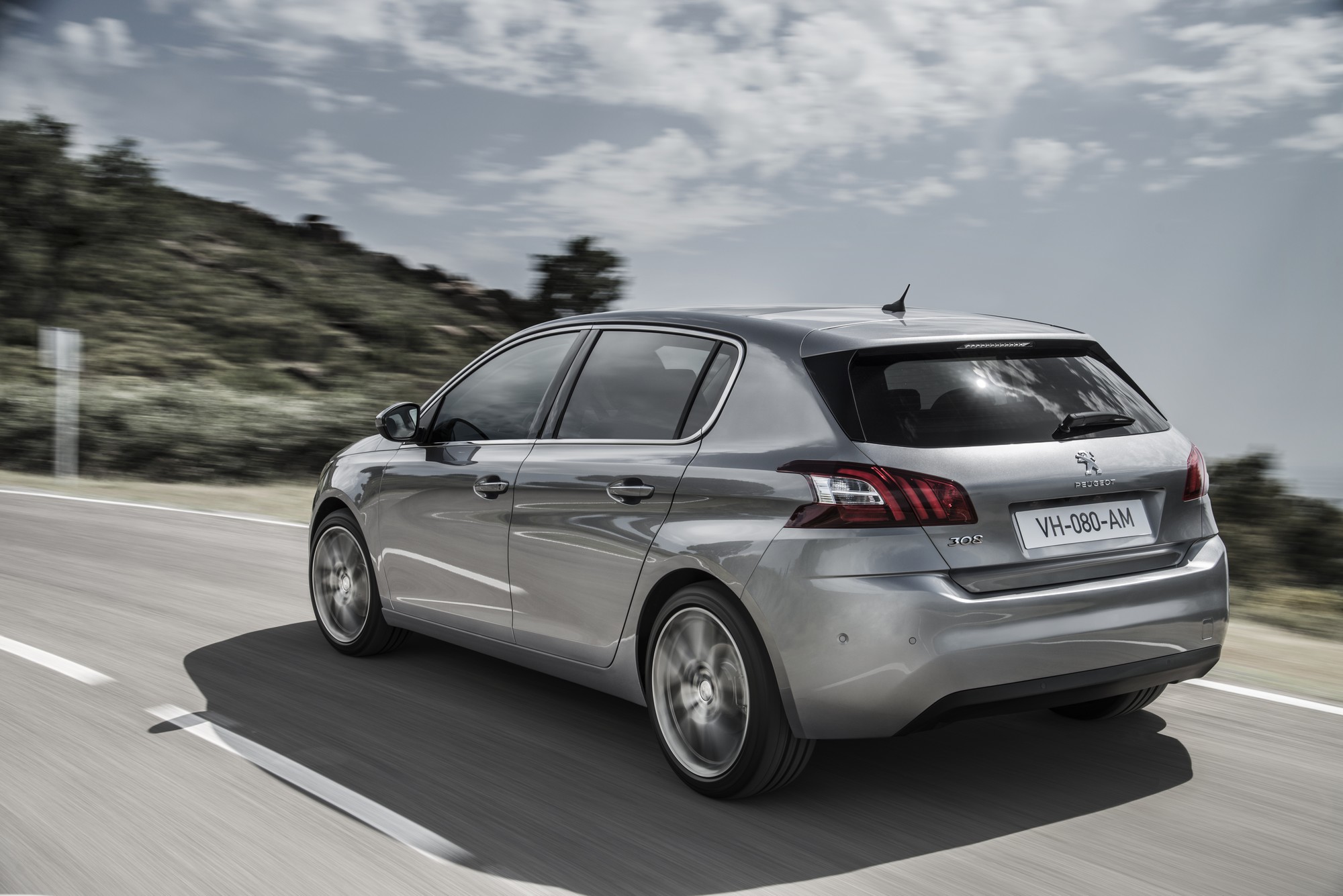

T9 Five-door hatchback
Date of manufacture
2017 – 2021Internal designation
T9
Technical data
Estate (SW)
| 1.2 PureTech | 1.2 PureTech 110 | 1.2 PureTech | 1.2 PureTech | 1.2 PureTech 130 | 1.2 PureTech 130 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from to 2018 | from 2018 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1199 | 1199 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 96/5500 | 96/5500 | 96/5500 | 96/5500 |
| Maximum torque [Nm/min-1] | 205/1500 | 205/1500 | 230/1750 | 230/1750 | 230/1750 | 230/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 188 | 189 | 203 | 202 | 199 | 203 |
| Acceleration 0–100 km/h [s] | 11.6 | 10,4 | 10.0 | 9.5 | 10,1 | 9,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6 | 5,6-5.3 | 6.7 | 6.4 | 5,7-5.4 | 5,7 |
| Out of town [l] | 4.3 | 4,0-3.9 | 4.3 | 4.2 | 4,0-3.9 | 4,2 |
| Combined [l] | 5.1 | 4,6-4.4 | 5.1 | 5.0 | 4,6-4.5 | 4,8 |
| CO2 emissions [g/km] | 115 | 105-101 | 115 | 112 | 105-102 | 109 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 5.9 | - | - | 6.0-5.9 | 6.3-6.2 |
| CO2 emissions [g/km] | - | 133 | - | - | 136-133 | 143-140 |
| Emission standard | EU6 | Euro 6d-TEMP - Euro 6d | EU6 | EU6 | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1265 | 1280-1440 | 1265 | 1275 | 1280-1440 | 1385-1522 |
| Overall weight [kg] | 1825 | 1800 | 1840 | 1855 | 1810 | 1825 |
| Maximum trailer weight unbraked/braked [kg] | 630/1100 | 620/1200 | 630/1200 | 635/1100 | 630/1200 | 630-698/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 71 | 71 | 71 | 71 | 71 | 71 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |

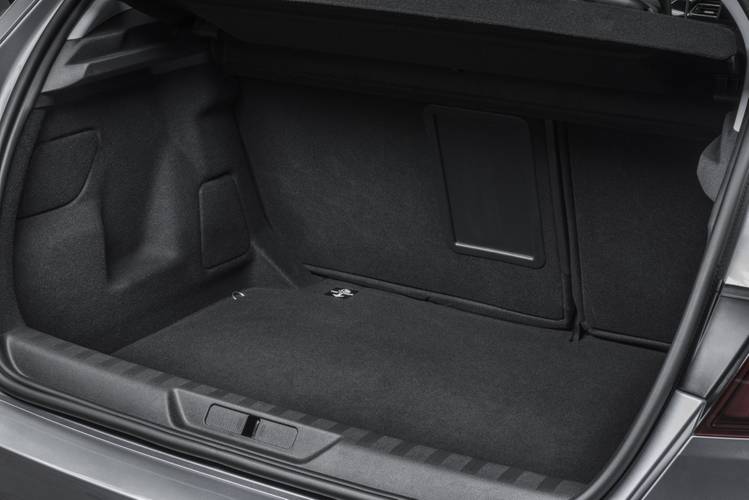

| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- |
| Boot height to headliner/ceiling [mm] | 499/741 | 499/741 | 499/741 | 499/741 | 499/741 | 499/741 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 52.5 | 53 | 53 | 52.5 | 52.5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 88H | 205/55 R16 91H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 91H |
| Tyre dimensions rear | 195/65 R15 88H | 205/55 R16 91H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 91H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | 4585 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Wheelbase [mm] | 2730 | 2730 | 2730 | 2730 | 2730 | 2730 |
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |

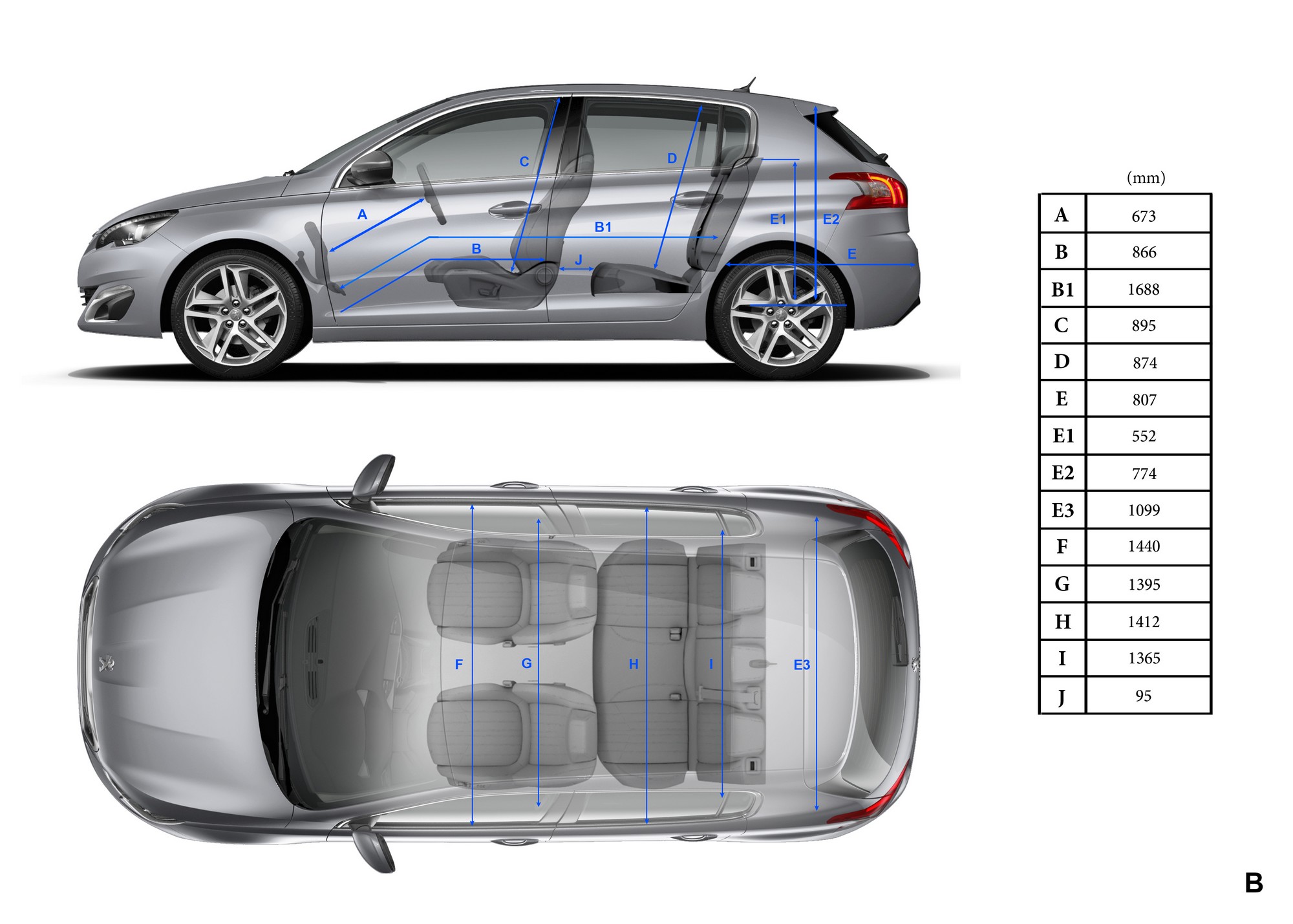

| Headroom front [mm] | 907 | 907 | 907 | 907 | 907 | 907 |
| Headroom rear [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 THP GT | 1.6 BlueHDI | 1.6 BlueHDI | 1.6 BlueHDI | 1.5 BlueHDI 100 | 1.5 BlueHDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from 2018 to | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1560 | 1560 | 1560 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 151/6000 | 73/3750 | 88/3500 | 88/3500 | 75/3500 | 96/3750 |
| Maximum torque [Nm/min-1] | 285/1750 | 254/1750 | 300/1750 | 300/1750 | 250/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75 x 84,8 | - |
| Compression ratio | - | - | - | - | 16.5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 235 | 184 | 195 | 192 | 183 | 203 |
| Acceleration 0–100 km/h [s] | 7.6 | 11.8 | 10.1 | 9.9 | 11,9 | 10.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 4.3 | 4.5 | 4.4 | 4,4 | 4.4-4.2 |
| Out of town [l] | 4.8 | 3.2 | 3.3 | 3.6 | 3,3 | 3.3 |
| Combined [l] | 5.8 | 3.6 | 3.8 | 3.9 | 3,7 | 3.7-3.6 |
| CO2 emissions [g/km] | 134 | 95 | 99 | 105 | 98 | 96-95 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | 4.7-4.6 |
| CO2 emissions [g/km] | - | - | - | - | - | 124-121 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1390 | 1275 | 1370 | 1385 | 1280-1495 | 1370-1534 |
| Overall weight [kg] | 1880 | 1880 | 1900 | 1910 | 1840 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 695/1300 | 630/1200 | 680/3200 | 690/1200 | 620/1200 | 680/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 71 | 71 | 71 | 71 | 71 | 71 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- |
| Boot height to headliner/ceiling [mm] | 499/741 | 499/741 | 499/741 | 499/741 | 499/741 | 499/741 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 52.5 | 53 |
| AdBlue tank volume [l] | - | - | - | - | 17 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/40 R18 91V | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 88H |
| Tyre dimensions rear | 225/40 R18 91V | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 88H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 330 x 30 | - | - | - | - | - |
| Brake dimensions rear | 268 | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | 4585 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Wheelbase [mm] | 2730 | 2730 | 2730 | 2730 | 2730 | 2730 |
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 907 | 907 | 907 | 907 | 907 | 907 |
| Headroom rear [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 BlueHDI 130 | 2.0 BlueHDI | 2.0 BlueHDI | 2.0 BlueHDI GT | |||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | from to 2018 | from to 2018 | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1499 | 1997 | 1997 | 1997 | ||
| Maximum output / speed [kW/min-1] | 96/3750 | 110/4000 | 110/4000 | 130/3750 | ||
| Maximum torque [Nm/min-1] | 300/1750 | 370/2000 | 370/2000 | 400/2000 | ||
| Bore and stroke [mm x mm] | 75 x 84,8 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | ||
| Compression ratio | 16.5:1 | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 8 gear automatic | ||
| Drive specifications |
| - |
|
| ||
| Top speed [km/h] | 205 | 215 | 210 | 223 | ||
| Acceleration 0–100 km/h [s] | 9,7 | 8.9 | 8.9 | 8.4 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4,2 | 4.4 | 4.9 | 5.1 | ||
| Out of town [l] | 3,4 | 3.4 | 3.7 | 4.2 | ||
| Combined [l] | 3,7 | 3.7 | 4.2 | 4.6 | ||
| CO2 emissions [g/km] | 97 | 97 | 109 | 120 | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | 4.9-4.8 | - | - | - | ||
| CO2 emissions [g/km] | 128-125 | - | - | - | ||
| Emission standard | Euro 6d-TEMP - Euro 6d | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1394-1563 | 1365 | 1495 | 1500-1683 | ||
| Overall weight [kg] | 1890 | 1870 | 2000 | 2020 | ||
| Maximum trailer weight unbraked/braked [kg] | 690/1300 | 680/1600 | 740/1400 | 750/1600 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 71 | 71 | 71 | 71 | ||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | ||
| Boot volume [l] | 610 | 610 | 610 | 610 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | ||
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | ||
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | ||
| Boot width between wheels/max [mm] | 1107/- | 1107/- | 1107/- | 1107/- | ||
| Boot height to headliner/ceiling [mm] | 499/741 | 499/741 | 499/741 | 499/741 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | 1900 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 52.5 | 53 | 53 | 52,5 | ||
| AdBlue tank volume [l] | 17 | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 205/55 R16 91H | 205/55 R16 91V | 205/55 R16 91V | 225/40 R18 91V | ||
| Tyre dimensions rear | 205/55 R16 91H | 205/55 R16 91V | 205/55 R16 91V | 225/40 R18 91V | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | - | - | - | 330 x 30 | ||
| Brake dimensions rear | - | - | - | 268 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | ||
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | ||
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | ||
| Overall height [mm] | 1472 | 1472 | 1472 | 1472 | ||
| Wheelbase [mm] | 2730 | 2730 | 2730 | 2730 | ||
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | ||
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | ||
| Forward overhang [mm] | 863 | 863 | 863 | 863 | ||
| Rear overhang [mm] | 992 | 992 | 992 | 992 | ||
| Clearance [mm] | 110 | 110 | 110 | 110 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 907 | 907 | 907 | 907 | ||
| Headroom rear [mm] | 885 | 885 | 885 | 885 | ||
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | ||
| Rear elbow/shoulder width [mm] | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Five-door hatchback
| 1.2 PureTech | 1.2 PureTech 110 | 1.2 PureTech | 1.2 PureTech | 1.2 PureTech 130 | 1.2 PureTech 130 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from to 2018 | from 2018 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1199 | 1199 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 96/5500 | 96/5500 | 96/5500 | 96/5500 |
| Maximum torque [Nm/min-1] | 205/1500 | 205/1500 | 230/1750 | 230/1750 | 230/1750 | 230/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 188 | 191 | 205 | 204 | 200 | 204 |
| Acceleration 0–100 km/h [s] | 11.1 | 10,0 | 9.6 | 9.1 | 9,7 | 9,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6 | 5,6-5.3 | 6.6-6.9 | 6.4 | 5,6-5.4 | 5.7-5,6 |
| Out of town [l] | 4.1-4.3 | 4,0-3.9 | 4.2-4.4 | 4.2-4.4 | 4,0-3.9 | 4.2-4,1 |
| Combined [l] | 5.0-5.1 | 4,6-4.4 | 5.1-5.3 | 5.0-5.1 | 4,6-4.5 | 4.8-4,6 |
| CO2 emissions [g/km] | 113-115 | 104-101 | 114-119 | 112-115 | 105-102 | 108-105 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 5.5-5.4 | - | - | 5.8-5.5 | 6.1-5.8 |
| CO2 emissions [g/km] | - | 123-121 | - | - | 131-125 | 137-131 |
| Emission standard | EU6 | Euro 6d-TEMP - Euro 6d | EU6 | EU6 | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1155 | 1278-1434 | 1165 | 1225 | 1278-1434 | 1280-1425 |
| Overall weight [kg] | 1720 | 1735 | 1750 | 1750 | 1750 | 1770 |
| Maximum trailer weight unbraked/braked [kg] | 575/1200 | 580/1300 | 580/1300 | 610/1200 | 580/1300 | 570-680/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1228 | -/1228 | -/1228 | -/1228 | -/1228 | -/1228 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- |
| Boot height to headliner/ceiling [mm] | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1895 | 1895 | 1895 | 1895 | 1895 | 1895 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 88H | 205/55 R16 91H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 91H |
| Tyre dimensions rear | 195/65 R15 88H | 205/55 R16 91H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 91H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | 4253 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Headroom rear [mm] | 874 | 874 | 874 | 874 | 874 | 874 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 THP GT | 1.6 THP GT | 1.6 THP GTI | 1.6 THP GTI | 1.6 BlueHDI | 1.5 BlueHDI 100 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to 2020 | from to 2018 | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1560 | 1499 |
| Maximum output / speed [kW/min-1] | 151/6000 | 165/5500 | 200/6000 | 193/6000 | 73/3750 | 75/3500 |
| Maximum torque [Nm/min-1] | 285/1750 | 300/1900 | 330/1900 | 340/2100 | 254/1750 | 250/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75 x 84,8 |
| Compression ratio | - | - | - | - | - | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - |
| - | - | - | - |
| Top speed [km/h] | 235 | 235 | 250 | 250 | 186 | 186 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.4 | 6.0 | 6.0 | 11.3 | 11,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 7.3 | 8.1 | 8.5 | 4.3 | 4,4 |
| Out of town [l] | 4.6 | 4.8 | 4.9 | 5.3 | 3.2 | 3,3 |
| Combined [l] | 5.6 | 5.7 | 6.0 | 6.5 | 3.6 | 3,7 |
| CO2 emissions [g/km] | 130 | 132 | 139 | 148 | 95 | 97 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 7.5 | - | - |
| CO2 emissions [g/km] | - | - | - | 169 | - | - |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1275 | 1279 | 1280 | 1390 | 1235 | 1280-1433 |
| Overall weight [kg] | 1790 | 1815 | 1790 | 1790 | 1780 | 1785 |
| Maximum trailer weight unbraked/braked [kg] | 635/1400 | 635/1400 | - | - | 615/1300 | 600/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1228 | -/1228 | -/1228 | -/1228 | -/1228 | -/1228 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- |
| Boot height to headliner/ceiling [mm] | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1895 | 1895 | 1895 | 1895 | 1895 | 1895 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| AdBlue tank volume [l] | - | - | - | - | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/40 R18 91V | 225/40 R18 91V | 235/35 R19 90W | 235/35 R19 90W | 195/65 R15 88H | 205/55 R16 91H |
| Tyre dimensions rear | 225/40 R18 91V | 225/40 R18 91V | 235/35 R19 90W | 235/35 R19 90W | 195/65 R15 88H | 205/55 R16 91H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 330 x 30 | 330 x 30 | 380 | 380 | - | - |
| Brake dimensions rear | 268 | 268 | 268 | 268 | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | 4253 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1457 | 1457 | 1446 | 1457 | 1457 | 1457 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2617 | 2620 | 2620 |
| Front wheel track [mm] | 1559 | 1559 | 1570 | 1570 | 1559 | 1559 |
| Rear wheel track [mm] | 1553 | 1553 | 1554 | 1554 | 1553 | 1553 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Headroom rear [mm] | 874 | 874 | 874 | 874 | 874 | 874 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 BlueHDI | 1.6 BlueHDI | 1.5 BlueHDI 130 | 1.5 BlueHDI 130 | 2.0 BlueHDI | 2.0 BlueHDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | - | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1499 | 1499 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 88/3500 | 88/3500 | 96/3750 | 96/3750 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | 300/1750 | 300/1750 | 370/2000 | 370/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75 x 84,8 | 75 x 84,8 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | 16.5:1 | 16.5:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 196 | 193 | 204 | 206 | 218 | 214 |
| Acceleration 0–100 km/h [s] | 9.6 | 9.5 | 9,8 | 9,4 | 8.6 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.5 | 4.1 | 4,4-4.1 | 4.2-4,0 | 4.4 | 4.6 |
| Out of town [l] | 3.4 | 3.5 | 3.4-3,2 | 3.4-3,3 | 3.4 | 3.6 |
| Combined [l] | 3.8 | 3.7 | 3.7-3,5 | 3.7-3,6 | 3.7 | 4.0 |
| CO2 emissions [g/km] | 98 | 98 | 99-93 | 97-93 | 97 | 102 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 4.8-4.6 | 4.9-4.7 | - | - |
| CO2 emissions [g/km] | - | - | 125-120 | 128-123 | - | - |
| Emission standard | EU6 | EU6 | Euro 6 - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1255 | 1275 | 1255-1491 | 1279-1510 | 1365 | 1385 |
| Overall weight [kg] | 1805 | 1820 | 1810 | 1840 | 1870 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 615/1400 | 635/1300 | 615-695/1500 | 635-695/1400 | 680/1600 | 690/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1228 | -/1228 | -/1228 | -/1228 | -/1228 | -/1228 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- |
| Boot height to headliner/ceiling [mm] | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1895 | 1895 | 1895 | 1895 | 1895 | 1895 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| AdBlue tank volume [l] | 17 | 17 | 17 | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 91H | 205/55 R16 91V | 205/55 R16 91V |
| Tyre dimensions rear | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91H | 205/55 R16 91H | 205/55 R16 91V | 205/55 R16 91V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | 4253 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Headroom rear [mm] | 874 | 874 | 874 | 874 | 874 | 874 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 BlueHDI GT | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1997 | |||||
| Maximum output / speed [kW/min-1] | 130/3750 | |||||
| Maximum torque [Nm/min-1] | 400/2000 | |||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 225 | |||||
| Acceleration 0–100 km/h [s] | 8.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5.2 | |||||
| Out of town [l] | 3,9-4,0 | |||||
| Combined [l] | 4.4 | |||||
| CO2 emissions [g/km] | 116 | |||||
| Emission standard | EU6 - Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1395-1593 | |||||
| Overall weight [kg] | 1930 | |||||
| Maximum trailer weight unbraked/braked [kg] | 695/1600 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 80/- | |||||
| Boot volume [l] | 420 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1228 | |||||
| Boot length [mm] | 807 | |||||
| Boot length with rear seats folded [mm] | 1861 | |||||
| Boot width between wheels/max [mm] | 1099/- | |||||
| Boot height to headliner/ceiling [mm] | 552/774 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 1895 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 52.5 | |||||
| AdBlue tank volume [l] | 17 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 225/40 R18 91V | |||||
| Tyre dimensions rear | 225/40 R18 91V | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | 330 x 30 | |||||
| Brake dimensions rear | 268 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.4/- | |||||
| Overall length [mm] | 4253 | |||||
| Overall width without/including mirrors [mm] | 1804/2043 | |||||
| Overall height [mm] | 1457 | |||||
| Wheelbase [mm] | 2620 | |||||
| Front wheel track [mm] | 1559 | |||||
| Rear wheel track [mm] | 1553 | |||||
| Forward overhang [mm] | 863 | |||||
| Rear overhang [mm] | 770 | |||||
| Clearance [mm] | 110 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 895 | |||||
| Headroom rear [mm] | 874 | |||||
| Front elbow/shoulder width [mm] | 1440/1395 | |||||
| Rear elbow/shoulder width [mm] | 1412/1365 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

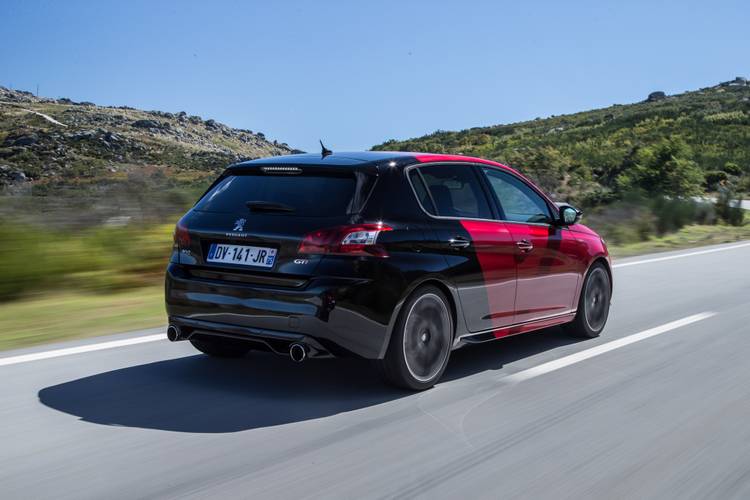

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
