Peugeot 308
Date of manufacture
7/2013 – 2017 (Five-door hatchback)
3/2014 – 2017 (Estate)
Platform
PSA EMP2
Manufacturing locations
Sochaux, France
Mulhouse, France
Wuhan, People's Republic of China
Designer
Gilles Vidal
Tags
C-segment
French cars
The Peugeot 308 model in the hatchback and estate versions. The car has been produced since 2013. The car is manufactured in countries such as France and the People's Republic of China. The car is built on the PSA EMP2 platform. The engine range includes petrol and diesel engines. The highest power is achieved by the 1.6 THP GTI (200 kW). The highest speed is achieved by the 1.6 THP GTI model and is 250 km/h. The lowest combined consumption is 3.2 l/100 km for the 1.6 BlueHDI ECO version. CO2 emissions are 84 g/km. The five-door hatchback car offers a luggage compartment volume of 420 l. The estate car has a luggage compartment size of 610 l. During the EURONCAP safety tests, the car received a rating of 5 out of 5. Tested according to the 2013 methodology.

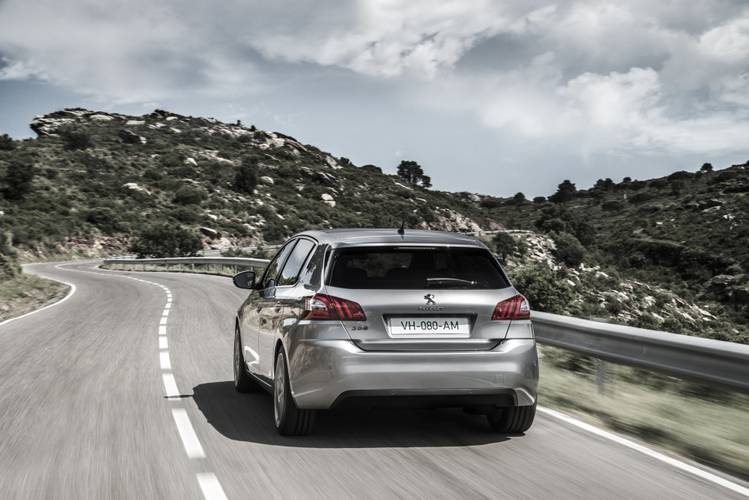

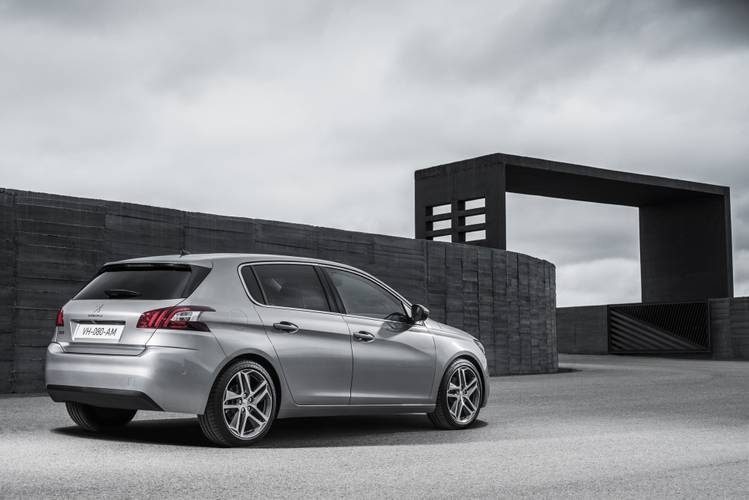

Car body style
Five-door hatchback
Date of manufacture
7/2013 – 2017Internal designation

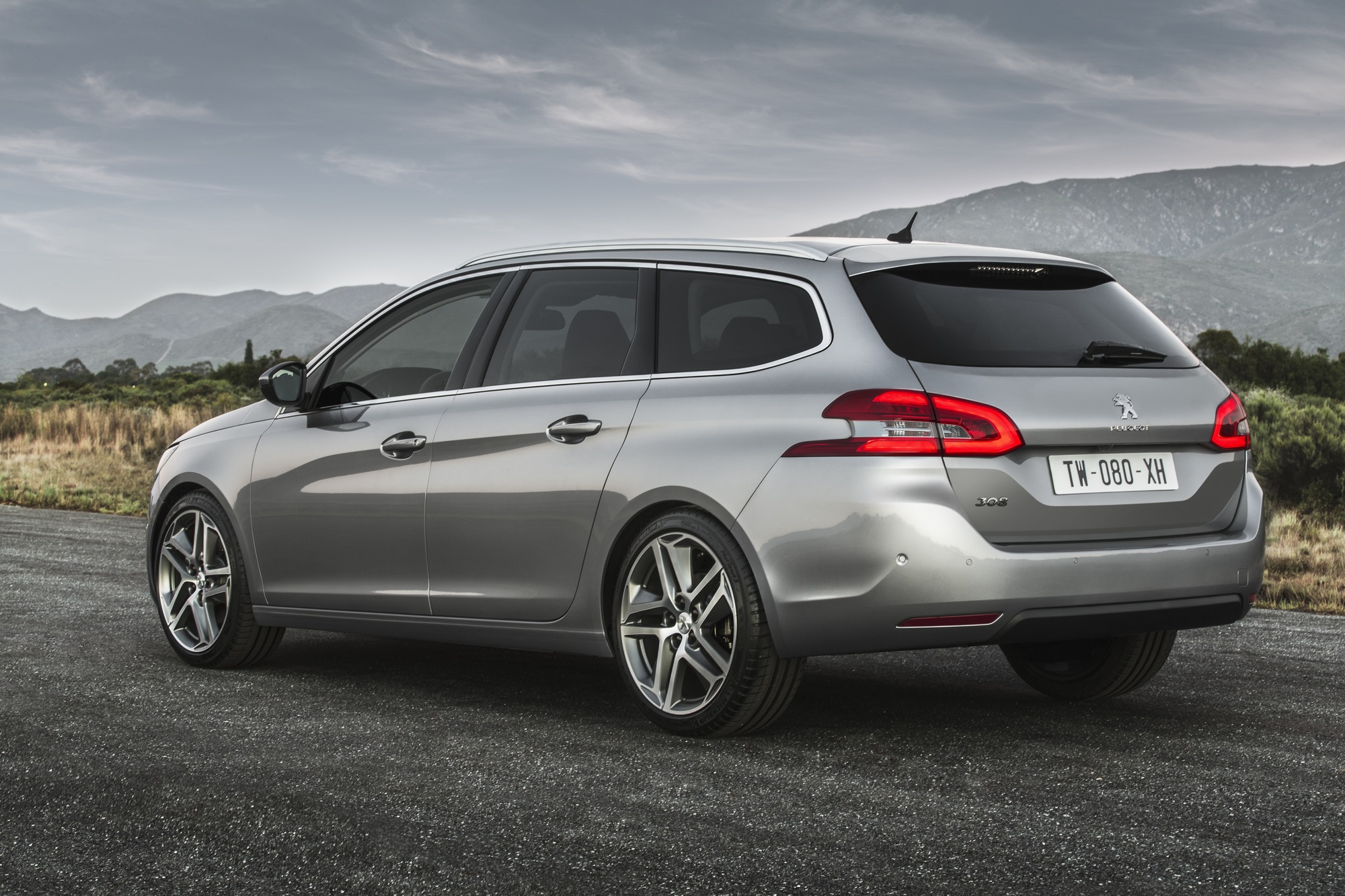

T9Estate
Date of manufacture
3/2014 – 2017Internal designation
T9
Technical data
Five-door hatchback
| 1.2 PureTech | 1.2 PureTech | 1.6 THP | 1.2 PureTech | 1.2 PureTech | 1.6 THP | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1598 | 1199 | 1199 | 1598 |
| Maximum output / speed [kW/min-1] | 60/5750 | 81/5500 | 92/6000 | 96/5500 | 96/5500 | 115/6000 |
| Maximum torque [Nm/min-1] | 118/2750 | 205/1500 | 200/1400 | 230/1750 | 230/1750 | 240/1400 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 85,8 | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 172 | 188 | 196 | 201 | 200 | 210 |
| Acceleration 0–100 km/h [s] | 13.3 | 11.1 | 9.2 | 9.6 | 9.1 | 8.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 5.8-6.9 | 7.6 | 6.0-6.9 | 5.9-6.4 | 7.6 |
| Out of town [l] | 4.2 | 4.0-4.3 | 4.4 | 4.1-4.4 | 4.3-4.4 | 4.4 |
| Combined [l] | 5.0 | 4.6-5.1 | 5.6 | 4.8-5.3 | 4.9-5.1 | 5.6 |
| CO2 emissions [g/km] | 114 | 107-115 | 129 | 110-119 | 112-115 | 129 |
| Emission standard | EU5-EU6 | EU6 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1150-1280 | 1155-1345 | 1375 | 1165-1370 | 1225-1370 | 1375 |
| Overall weight [kg] | 1670 | 1720 | 1770 | 1750 | 1750 | 1770 |
| Maximum trailer weight unbraked/braked [kg] | 570/750 | 575/1200 | 615/1400 | 580/1300 | 610/1200 | 615/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 811/1228 | 811/1228 | 811/1228 | 811/1228 | 811/1228 | 811/1228 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- |
| Boot height to headliner/ceiling [mm] | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 88H | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 V |
| Tyre dimensions rear | 195/65 R15 88H | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | 4253 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Headroom rear [mm] | 874 | 874 | 874 | 874 | 874 | 874 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 THP GT | 1.6 THP GTI | 1.6 HDI | 1.6 BlueHDI | 1.6 e-HDI | 1.6 BlueHDI ECO | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1560 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 151/6000 | 200/6000 | 68/4000 | 73/3750 | 84/3600 | 88/3500 |
| Maximum torque [Nm/min-1] | 285/1750 | 330/1900 | 230/1750 | 230/1750 | 270/1750 | 270/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 235 | 250 | 178 | 181 | 191 | 196 |
| Acceleration 0–100 km/h [s] | 7.5 | 6.0 | 11.3 | 11.3 | 10.2 | 10.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 8.1 | 4.5 | 4.4 | 4.4 | 3.6 |
| Out of town [l] | 4.6 | 4.9 | 3.4 | 3.2 | 3.5 | 3.0 |
| Combined [l] | 5.6 | 6.0 | 3.8 | 3.7 | 3.8 | 3.2 |
| CO2 emissions [g/km] | 130 | 139 | 99 | 96 | 100 | 84 |
| Emission standard | EU6 | EU6 | EU5 | EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1275-1415 | 1280 | 1340 | 1235-1400 | 1395 | 1430 |
| Overall weight [kg] | 1790 | 1790 | 1740 | 1780 | 1780 | 1810 |
| Maximum trailer weight unbraked/braked [kg] | 635/1400 | - | 580/1300 | 615/1300 | 615/1400 | 615/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 811/1228 | 811/1228 | 811/1228 | 811/1228 | 811/1228 | 811/1228 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- |
| Boot height to headliner/ceiling [mm] | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/40 R18 91V | 235/35 R19 90W | 195/65 R15 88H | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H |
| Tyre dimensions rear | 225/40 R18 91V | 235/35 R19 90W | 195/65 R15 88H | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 330 x 30 | 380 | - | - | - | - |
| Brake dimensions rear | 268 | 268 | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | 4253 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1559 | 1570 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1553 | 1554 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Headroom rear [mm] | 874 | 874 | 874 | 874 | 874 | 874 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 BlueHDI | 1.6 BlueHDI | 2.0 BlueHDI | 2.0 BlueHDI | 2.0 BlueHDI GT | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1560 | 1560 | 1997 | 1997 | 1997 | |
| Maximum output / speed [kW/min-1] | 88/3500 | 88/3500 | 110/4000 | 110/4000 | 133/3750 | |
| Maximum torque [Nm/min-1] | 270/1750 | 270/1750 | 370/2000 | 370/2000 | 400/2000 | |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | |
| Compression ratio | - | - | - | - | - | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | |
| Drive specifications | - |
| - |
|
| |
| Top speed [km/h] | 196 | 196 | 213 | 211 | 220 | |
| Acceleration 0–100 km/h [s] | 10.2 | 11.4 | 8.6 | 8.9 | 8.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4.4-4.5 | 4.1-4.4 | 4.6 | 4.7 | 4.7 | |
| Out of town [l] | 3.2-3.4 | 3.5-3.6 | 3.5 | 3.6 | 3.5 | |
| Combined [l] | 3.7-3.8 | 3.7-3.9 | 3.9 | 4.0 | 4.0 | |
| CO2 emissions [g/km] | 96-98 | 98-101 | 102 | 105 | 123 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1255 | 1275 | 1365-1490 | 1385-1535 | 1395-1540 | |
| Overall weight [kg] | 1805 | 1820 | 1870 | 1900 | 1920 | |
| Maximum trailer weight unbraked/braked [kg] | 615/1400 | 635/1300 | 680/1600 | 690/1500 | 695/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 811/1228 | 811/1228 | 811/1228 | 811/1228 | 811/1228 | |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | |
| Boot height to headliner/ceiling [mm] | 552/774 | 552/774 | 552/774 | 552/774 | 552/774 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 V | 205/55 R16 V | 225/40 R18 V | |
| Tyre dimensions rear | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 V | 205/55 R16 V | 225/40 R18 V | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | - | - | - | - | 330 x 30 | |
| Brake dimensions rear | - | - | - | - | 268 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | |
| Overall height [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | |
| Rear overhang [mm] | 770 | 770 | 770 | 770 | 770 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 895 | 895 | 895 | 895 | 895 | |
| Headroom rear [mm] | 874 | 874 | 874 | 874 | 874 | |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | |
| Rear elbow/shoulder width [mm] | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | 1412/1365 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Estate
| 1.2 PureTech | 1.2 PureTech | 1.2 PureTech | 1.6 THP | 1.6 THP GT | 1.6 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1598 | 1598 | 1560 |
| Maximum output / speed [kW/min-1] | 81/5500 | 96/5500 | 96/5500 | 115/6000 | 151/6000 | 68/4000 |
| Maximum torque [Nm/min-1] | 205/1500 | 230/1750 | 230/1750 | 240/1400 | 285/1750 | 230/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 188 | 203 | 202 | 205 | 235 | 176 |
| Acceleration 0–100 km/h [s] | 11.6 | 10.0 | 9.5 | 8.3 | 7.6 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0-6.9 | 6.2-6.8 | 6.4-6.5 | 7.6 | 7.6 | 4.7 |
| Out of town [l] | 4.1-4.4 | 4.3-4.5 | 4.4 | 4.4 | 4.8 | 3.7 |
| Combined [l] | 4.8-5.3 | 5.0-5.3 | 5.1-5.2 | 5.6 | 5.8 | 4.0 |
| CO2 emissions [g/km] | 111-119 | 115-119 | 119 | 129 | 134 | 104 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1265-1405 | 1265-1420 | 1275-1440 | 1435 | 1390-1465 | 1430 |
| Overall weight [kg] | 1825 | 1840 | 1855 | 1860 | 1880 | 1850 |
| Maximum trailer weight unbraked/braked [kg] | 630/1100 | 630/1200 | 635/1100 | 630/1300 | 695/1300 | 620/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- |
| Boot height to headliner/ceiling [mm] | 449/741 | 449/741 | 449/741 | 449/741 | 449/741 | 449/741 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 V | 225/40 R18 91V | 195/65 R15 88H |
| Tyre dimensions rear | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 V | 225/40 R18 91V | 195/65 R15 88H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | 330 x 30 | - |
| Brake dimensions rear | - | - | - | - | 290 | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | 4585 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2730 | 2730 | 2730 | 2730 | 2730 | 2730 |
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 907 | 907 | 907 | 907 | 907 | 907 |
| Headroom rear [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 BlueHDI | 1.6 e-HDI | 1.6 BlueHDI ECO | 1.6 BlueHDI | 1.6 BlueHDI | 2.0 BlueHDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1560 | 1560 | 1997 |
| Maximum output / speed [kW/min-1] | 73/3750 | 85/3600 | 88/3500 | 88/3500 | 88/3500 | 110/4000 |
| Maximum torque [Nm/min-1] | 230/1750 | 270/1750 | 270/1750 | 270/1750 | 270/1750 | 370/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 179 | 189 | 194 | 189 | 189 | 210 |
| Acceleration 0–100 km/h [s] | 11.5 | 10.6 | 10.1 | 10.1 | 11.9 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.4 | 4.4 | 3.6 | 4.5-4.7 | 4.5 | 4.4-4.7 |
| Out of town [l] | 3.2 | 3.5 | 3.2 | 3.3-3.5 | 3.7 | 3.4-3.7 |
| Combined [l] | 3.7 | 3.8 | 3.3 | 3.8-3.9 | 4.0 | 3.7-4.0 |
| CO2 emissions [g/km] | 96 | 100 | 88 | 99-102 | 105 | 97-105 |
| Emission standard | EU6 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1275-1460 | 1455 | 1430 | 1370 | 1385 | 1390-1550 |
| Overall weight [kg] | 1880 | 1870 | 1810 | 1900 | 1910 | 1970 |
| Maximum trailer weight unbraked/braked [kg] | 630/1200 | 630/1300 | 615/1400 | 680/1300 | 690/1200 | 690/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 | 1425/1660 |
| Boot length [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- | 1107/- |
| Boot height to headliner/ceiling [mm] | 449/741 | 449/741 | 449/741 | 449/741 | 449/741 | 449/741 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91V |
| Tyre dimensions rear | 195/65 R15 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 88H | 205/55 R16 91V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | 4585 |
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 | 1804/2043 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2730 | 2730 | 2730 | 2730 | 2730 | 2730 |
| Front wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 863 | 863 | 863 | 863 | 863 | 863 |
| Rear overhang [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 907 | 907 | 907 | 907 | 907 | 907 |
| Headroom rear [mm] | 885 | 885 | 885 | 885 | 885 | 885 |
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 | 1440/1395 |
| Rear elbow/shoulder width [mm] | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 | 1409/1363 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 BlueHDI | 2.0 BlueHDI GT | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1997 | 1997 | ||||
| Maximum output / speed [kW/min-1] | 110/4000 | 133/3750 | ||||
| Maximum torque [Nm/min-1] | 370/2000 | 400/2000 | ||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear automatic | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 209 | 218 | ||||
| Acceleration 0–100 km/h [s] | 8.9 | 8.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.9-5.0 | 4.8 | ||||
| Out of town [l] | 3.7-3.8 | 3.7 | ||||
| Combined [l] | 3.7-4.2 | 4.1 | ||||
| CO2 emissions [g/km] | 97-111 | 126 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1495-1580 | 1500-1595 | ||||
| Overall weight [kg] | 2000 | 2020 | ||||
| Maximum trailer weight unbraked/braked [kg] | 740/1400 | 750/1400 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 610 | 610 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1425/1660 | 1425/1660 | ||||
| Boot length [mm] | 1037 | 1037 | ||||
| Boot length with rear seats folded [mm] | 1861 | 1861 | ||||
| Boot width between wheels/max [mm] | 1107/- | 1107/- | ||||
| Boot height to headliner/ceiling [mm] | 449/741 | 449/741 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 53 | 53 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/55 R16 91V | 225/40 R18 91V | ||||
| Tyre dimensions rear | 205/55 R16 91V | 225/40 R18 91V | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | - | 330 x 30 | ||||
| Brake dimensions rear | - | 290 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | ||||
| Overall length [mm] | 4585 | 4585 | ||||
| Overall width without/including mirrors [mm] | 1804/2043 | 1804/2043 | ||||
| Overall height [mm] | 1470 | 1470 | ||||
| Wheelbase [mm] | 2730 | 2730 | ||||
| Front wheel track [mm] | 1551 | 1551 | ||||
| Rear wheel track [mm] | 1546 | 1546 | ||||
| Forward overhang [mm] | 863 | 863 | ||||
| Rear overhang [mm] | 992 | 992 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 907 | 907 | ||||
| Headroom rear [mm] | 885 | 885 | ||||
| Front elbow/shoulder width [mm] | 1440/1395 | 1440/1395 | ||||
| Rear elbow/shoulder width [mm] | 1409/1363 | 1409/1363 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
