Peugeot 208
Date of manufacture
11/2011 – 5/2015 (Three-door hatchback)
11/2011 – 5/2015 (Five-door hatchback)
Platform
PF1
Manufacturing locations
Mulhouse, France
Poissy, France
Trnava, Slovakia
Designer
Pierre Authier
Tags
B-segment
French cars

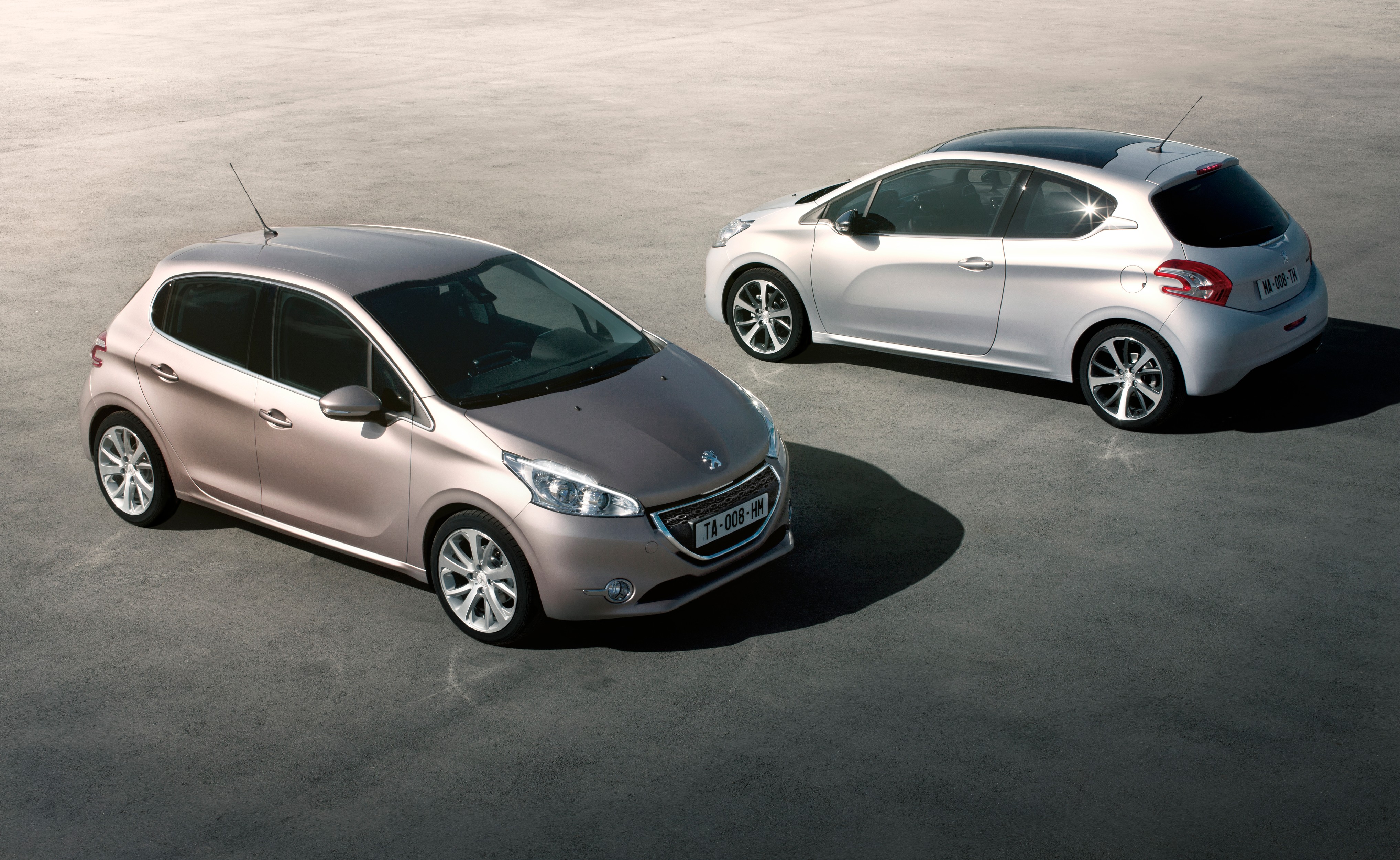

The Peugeot 208 is available in three-door hatchback and five-door hatchback body styles. The car has been produced since 2011. Countries of production include France and Slovakia. The car is built on the PF1 platform. The powertrain lineup includes petrol and diesel engines. The most powerful unit (147 kW) is the 1.6 THP GTi. The fastest model is the 1.6 THP GTi, with a top speed of 230 km/h. The most fuel-efficient version is the 1.4 e-HDI, with a combined fuel consumption of 3.4 l/100 km and CO2 emissions of 87 g/km. The five-door hatchback body has a luggage capacity of 285 l. The three-door hatchback body has a luggage capacity of 285 l. The car underwent EURONCAP safety tests in 2012 and received a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
11/2011 – 5/2015Internal designation
A9Engine size
Five-door hatchback
Date of manufacture
11/2011 – 5/2015Internal designation
A9
Technical data
Three-door hatchback
| 1.0 PureTech | 1.2 PureTech | 1.4 VTi | 1.6 VTi | 1.6 THP GTi | 1.4 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2013 to | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 999 | 1199 | 1397 | 1598 | 1598 | 1398 |
| Maximum output / speed [kW/min-1] | 50/6000 | 60/5750 | 70/6000 | 88/6000 | 147/5800 | 50/4000 |
| Maximum torque [Nm/min-1] | 95/3000 | 118/2750 | 136/4000 | 160/4250 | 275/1750 | 160/2000 |
| Bore and stroke [mm x mm] | 71,0 x 84,0 | 75,0 x 90,5 | 77,0 x 75,0 | 77,0 x 85,8 | 77,0 x 85,8 | 73,7 x 82,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 163 | 175 | 188 | 190 | 230 | 163 |
| Acceleration 0–100 km/h [s] | 14.0 | 12.2 | 10.5 | 8.9 | 6.8 | 13.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.1-5.5 | 5.5-5.8 | 7.5 | 7.4-8.1 | 8.2 | 4.4-4.5 |
| Out of town [l] | 3.8-3.9 | 3.9-4.0 | 4.5 | 4.5 | 4.7 | 3.4-3.5 |
| Combined [l] | 4.3-4.5 | 4.5-4.7 | 5.6 | 5.6-5.8 | 5.9 | 3.8 |
| CO2 emissions [g/km] | 105 | 104-108 | 129 | 129-134 | 139 | 98-100 |
| Emission standard | EU5 | EU5-EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1110 | 1163 | 1189 | 1195 | 1265 | 1205 |
| Overall weight [kg] | 1485 | 1530 [1546 EU6] | 1590 | 1605 | 1650 | 1580 |
| Maximum trailer weight unbraked/braked [kg] | 450/760 | 520/1150 | 570/1150 | 580/1150 | 580/1150 | 400/675 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |

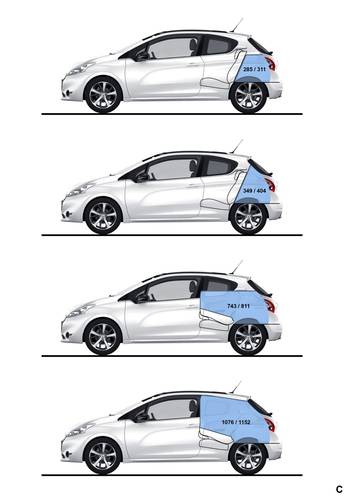

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1076 | -/1076 | -/1076 | -/1076 | -/1076 | -/1076 |
| Boot length [mm] | 697 | 697 | 697 | 697 | 697 | 697 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot height to headliner/ceiling [mm] | -/509 | -/509 | -/509 | -/509 | -/509 | -/509 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 195/55 R16 T | 205/45 R17V | 185/65 R15 T |
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 195/55 R16 T | 205/45 R17V | 185/65 R15 T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 3962 | 3962 | 3962 | 3962 | 3962 | 3962 |
| Overall width without/including mirrors [mm] | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 |
| Overall height [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Wheelbase [mm] | 2538 | 2538 | 2538 | 2538 | 2538 | 2538 |
| Front wheel track [mm] | 1475 | 1475 | 1475 | 1475 | 1485 | 1475 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1491 | 1471 |
| Forward overhang [mm] | 772 | 772 | 772 | 772 | 772 | 772 |
| Rear overhang [mm] | 652 | 652 | 652 | 652 | 652 | 652 |
| Clearance [mm] | 129 | 129 | 129 | 129 | 110 | 129 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 882 | 882 | 882 | 882 | 882 | 882 |
| Headroom rear [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Front elbow/shoulder width [mm] | 1413/1360 | 1413/1360 | 1413/1360 | 1413/1360 | 1413/1360 | 1413/1360 |
| Rear elbow/shoulder width [mm] | 1408/1292 | 1408/1292 | 1408/1292 | 1408/1292 | 1408/1292 | 1408/1292 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 e-HDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/8 | |||||
| Engine displacement [cm³] | 1560 | |||||
| Maximum output / speed [kW/min-1] | 68/4000 | |||||
| Maximum torque [Nm/min-1] | 230/1750 | |||||
| Bore and stroke [mm x mm] | 75,0 x 88,3 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 5 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 185 | |||||
| Acceleration 0–100 km/h [s] | 10.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 4.2-4.5 | |||||
| Out of town [l] | 3.3-3.4 | |||||
| Combined [l] | 3.6-3.8 | |||||
| CO2 emissions [g/km] | 95-98 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1249 | |||||
| Overall weight [kg] | 1625 | |||||
| Maximum trailer weight unbraked/braked [kg] | 570/1150 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 285 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1076 | |||||
| Boot length [mm] | 697 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | -/960 | |||||
| Boot height to headliner/ceiling [mm] | -/509 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 3 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 50 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | torsion bar | |||||
| Tyre dimensions front | 185/65 R15 T | |||||
| Tyre dimensions rear | 185/65 R15 T | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.4/- | |||||
| Overall length [mm] | 3962 | |||||
| Overall width without/including mirrors [mm] | 1739/2004 | |||||
| Overall height [mm] | 1471 | |||||
| Wheelbase [mm] | 2538 | |||||
| Front wheel track [mm] | 1475 | |||||
| Rear wheel track [mm] | 1471 | |||||
| Forward overhang [mm] | 772 | |||||
| Rear overhang [mm] | 652 | |||||
| Clearance [mm] | 129 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 882 | |||||
| Headroom rear [mm] | 861 | |||||
| Front elbow/shoulder width [mm] | 1413/1360 | |||||
| Rear elbow/shoulder width [mm] | 1408/1292 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Five-door hatchback
| 1.0 PureTech | 1.2 PureTech | 1.2 PureTech | 1.4 VTi | 1.6 VTi | 1.4 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 999 | 1199 | 1199 | 1397 | 1598 | 1398 |
| Maximum output / speed [kW/min-1] | 50/6000 | 60/5750 | 60/5750 | 70/6000 | 88/6000 | 50/4000 |
| Maximum torque [Nm/min-1] | 95/3000 | 118/2750 | 118/2750 | 136/4000 | 160/4250 | 160/2000 |
| Bore and stroke [mm x mm] | 71,0 x 84,0 | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 75,0 | 77,0 x 85,8 | 73,7 x 82,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 163 | 175 | 178 | 188 | 190 | 163 |
| Acceleration 0–100 km/h [s] | 14.0 | 12.2 | 13.9 | 10.5 | 8.9 | 13.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.1-5.5 | 5.5-5.8 | 4.5 | 7.5 | 7.4-8.1 | 4.4-4.5 |
| Out of town [l] | 3.8-3.9 | 3.9-4.0 | 3.9 | 4.5 | 4.5 | 3.4-3.5 |
| Combined [l] | 4.3-4.5 | 4.5-4.7 | 4.1 | 5.6 | 5.6-5.8 | 3.8 |
| CO2 emissions [g/km] | 105 | 104-108 | 95 | 129 | 129-134 | 98-100 |
| Emission standard | EU5 | EU5-EU6 | EU5-EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1125 | 1168 | 1170 | 1205 | 1210 | 1221 |
| Overall weight [kg] | 1485 | 1530 [1546 EU6] | 1540-1553 | 1590 | 1605 | 1580 |
| Maximum trailer weight unbraked/braked [kg] | 450/760 | 520/1150 | 500/825 | 570/1150 | 580/1150 | 400/675 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1076 | -/1076 | -/1076 | -/1076 | -/1076 | -/1076 |
| Boot length [mm] | 697 | 697 | 697 | 697 | 697 | 697 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot height to headliner/ceiling [mm] | -/509 | -/509 | -/509 | -/509 | -/509 | -/509 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 195/65 R16 T | 185/65 R15 T |
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 195/65 R16 T | 185/65 R15 T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- |
| Overall length [mm] | 3962 | 3962 | 3962 | 3962 | 3962 | 3962 |
| Overall width without/including mirrors [mm] | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 |
| Overall height [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Wheelbase [mm] | 2538 | 2538 | 2538 | 2538 | 2538 | 2538 |
| Front wheel track [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Forward overhang [mm] | 772 | 772 | 772 | 772 | 772 | 772 |
| Rear overhang [mm] | 652 | 652 | 652 | 652 | 652 | 652 |
| Clearance [mm] | 129 | 129 | 129 | 129 | 129 | 129 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 882 | 882 | 882 | 882 | 882 | 882 |
| Headroom rear [mm] | 861 | 861 | 861 | 861 | 861 | 861 |
| Front elbow/shoulder width [mm] | 1408/1042 | 1408/1042 | 1408/1042 | 1408/1042 | 1408/1042 | 1408/1042 |
| Rear elbow/shoulder width [mm] | 1380/1335 | 1380/1335 | 1380/1335 | 1380/1335 | 1380/1335 | 1380/1335 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 e-HDI | 1.6 e-HDI | 1.6 e-HDI | 1.6 e-HDI | 1.6 BlueHDI | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | |
| Engine displacement [cm³] | 1398 | 1560 | 1560 | 1560 | 1560 | |
| Maximum output / speed [kW/min-1] | 50/4000 | 68/4000 | 68/4000 | 88/3500 | 88/3500 | |
| Maximum torque [Nm/min-1] | 160/2000 | 230/1750 | 230/1750 | 285/1750 | 285/1750 | |
| Bore and stroke [mm x mm] | 73,7 x 82,0 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | |
| Compression ratio | - | - | - | - | - | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear robotic manual | 5 gear manual | 6 gear robotic manual | 6 gear manual | 6 gear manual | |
| Drive specifications |
| - |
| - | - | |
| Top speed [km/h] | 165 | 185 | 183 | 190 | 190 | |
| Acceleration 0–100 km/h [s] | 16.2 | 10.9 | 11.8 | 9.4 | 9.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 3.6 | 4.2-4.5 | 4.3 | 4.6 | 4.4 | |
| Out of town [l] | 3.2 | 3.3-3.4 | 3.5 | 3.4 | 3.2 | |
| Combined [l] | 3.4 | 3.6-3.8 | 3.8 | 3.8 | 3.6 | |
| CO2 emissions [g/km] | 87 | 95-98 | 98 | 99 | 94 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1246 | 1265 | 1260 | 1283 | 1295 | |
| Overall weight [kg] | 1580 | 1625 | 1640 | 1664 | 1684 | |
| Maximum trailer weight unbraked/braked [kg] | 500/725 | 570/1150 | 580/1150 | 580/1150 | 570/1150 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1076 | -/1076 | -/1076 | -/1076 | -/1076 | |
| Boot length [mm] | 697 | 697 | 697 | 697 | 697 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | |
| Boot height to headliner/ceiling [mm] | -/509 | -/509 | -/509 | -/509 | -/509 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | 195/65 R16 T | 195/65 R16 T | 195/65 R16 T | |
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | 195/65 R16 T | 195/65 R16 T | 195/65 R16 T | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.4/- | 10.4/- | 10.4/- | 10.4/- | 10.4/- | |
| Overall length [mm] | 3962 | 3962 | 3962 | 3962 | 3962 | |
| Overall width without/including mirrors [mm] | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 | 1739/2004 | |
| Overall height [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | |
| Wheelbase [mm] | 2538 | 2538 | 2538 | 2538 | 2538 | |
| Front wheel track [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | |
| Rear wheel track [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | |
| Forward overhang [mm] | 772 | 772 | 772 | 772 | 772 | |
| Rear overhang [mm] | 652 | 652 | 652 | 652 | 652 | |
| Clearance [mm] | 129 | 129 | 129 | 129 | 129 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 882 | 882 | 882 | 882 | 882 | |
| Headroom rear [mm] | 861 | 861 | 861 | 861 | 861 | |
| Front elbow/shoulder width [mm] | 1408/1042 | 1408/1042 | 1408/1042 | 1408/1042 | 1408/1042 | |
| Rear elbow/shoulder width [mm] | 1380/1335 | 1380/1335 | 1380/1335 | 1380/1335 | 1380/1335 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

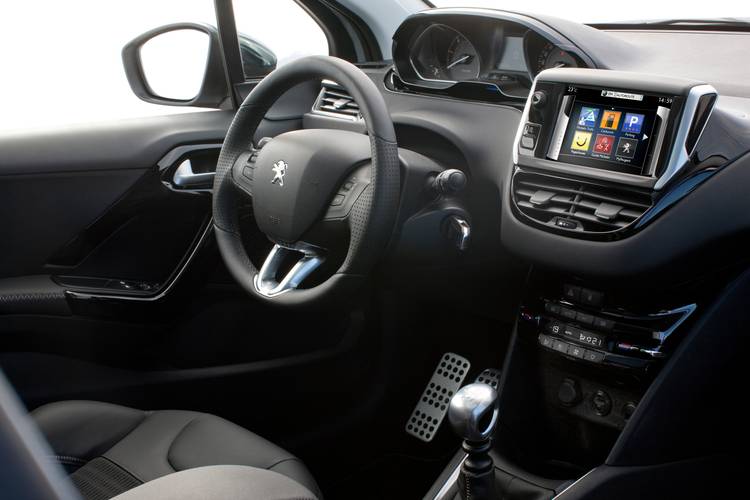

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
