Peugeot 2008

Date of manufacture

2019 – to this day (Small SUV)

Platform

PSA CMP EMP1

Manufacturing locations

Mulhouse, France

Vigo, Spain

Wuhan, People's Republic of China

Designer

Sandeep Bhambra

Car body style

Small SUV

Date of manufacture

2019 – to this day

Internal designation

P24

Engine size

Petrol

Electric

Diesel

Euro NCAP

Technical data

Small SUV

	1.2 PureTech 100	1.2 PureTech 130	1.2 PureTech 130	1.2 PureTech 155	Elektromotor 136	1.5 BlueHDi 110
Date of sale	-	-	-	-	from 2020 to	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Electric	Diesel supercharged
Number of cylinders/valves	3/12	3/12	3/12	3/12	-	4/16
Engine displacement [cm³]	1199	1199	1199	1199	-	1499
Maximum output / speed [kW/min-1]	74/5500	96/5500	96/5500	114/5500	100	81/3750
Maximum torque [Nm/min-1]	205/1750	230/1750	230/1750	240/1750	260	250/1750
Bore and stroke [mm x mm]	75,0 x 90,5	75,0 x 90,5	75,0 x 90,5	75,0 x 90,5	-	75 x 84,8
Compression ratio	10.5:1	10.5:1	10.5:1	10.5:1	-	16.5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	electric synchronous motor with permanent magnet	direct injection Common Rail turbo-supercharged particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic	1 gear automatic	6 gear manual
Drive specifications	-	-	eight-speed automatic gearbox EAT8	eight-speed automatic gearbox EAT8	constant ratio gearbox	-

Top speed [km/h]	185	196	196	208	150	180
Acceleration 0–100 km/h [s]	10,9	8,9	9,1	8,2	9.0	9,5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5,5	5,3	5,8	6,0	-	4,4
Out of town [l]	4,0	4,0	4,2	4,7	-	3,4
Combined [l]	4,6	4,5	4,8	5,2	-	3,7
CO2 emissions [g/km]	105	103	109	118	-	99

Low speed [l]	-	-	-	-	-	-
Medium speed [l]	-	-	-	-	-	-
High speed [l]	-	-	-	-	-	-
Extra high speed [l]	-	-	-	-	-	-
Combined speed [l]	5,5-5,4	5,7-5,5	6,1-5,9	6,3-6,1	16.1-15.7 kWh	4,5-4,4
CO2 emissions [g/km]	125-122	128-124	137-134	142-139	-	118-116

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d	-	Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	-	-
Battery type and capacity	-	-	-	-	Lithium-Ionen-Akkumulator, 50 kWh	-
Range with fully charged battery [km]	-	-	-	-	330-342	-
Charging time	-	-	-	-	from 0% to 100%, 31:10 hours, charger 1.8 kW AC from 0% to 100%, 5:05 hours, charger 11 kW AC from 0% to 80%, 0:30 hours, charger 100 kW DC	-
Number of modules/cells	-	-	-	-	18/216	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1263-1384	1267-1390	1280-1395	1280-1407	1623-1702	1280-1402
Overall weight [kg]	1710	1715	1740	1748	2030	1730
Maximum trailer weight unbraked/braked [kg]	630/1200	633/1200	640/1200	640/1200	-	640/1200
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	61	61	61	61	-	61
Maximum load on roof/carrier [kg]	70/-	70/-	70/-	70/-	-	70/-

Boot volume [l]	405	405	405	405	405	405
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1467	-/1467	-/1467	-/1467	-/1467	-/1467
Boot length [mm]	791	791	791	791	791	791
Boot length with rear seats folded [mm]	1592	1592	1592	1592	1592	1592
Boot width between wheels/max [mm]	1014/-	1014/-	1014/-	1014/-	1014/-	1014/-
Boot height to headliner/ceiling [mm]	545/-	545/-	545/-	545/-	545/-	545/-
Loading edge height [mm]	700	700	700	700	700	700
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	44	44	44	44	-	41
AdBlue tank volume [l]	-	-	-	-	-	15
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	215/60 R16 84T	215/60 R16 84H	215/60 R16 83H	215/60 R17 84H	215/60 R16 87P	215/60 R16 84T
Tyre dimensions rear	215/60 R16 84T	215/60 R16 84H	215/60 R16 83H	215/60 R17 84H	215/60 R16 87P	215/60 R16 84T
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.4/-	10.4/-	10.4/-	10.4/-	10.4/-	10.4/-

Overall length [mm]	4300	4300	4300	4300	4300	4300
Overall width without/including mirrors [mm]	1770/1987	1770/1987	1770/1987	1770/1987	1770/1987	1770/1987
Overall height [mm]	1530	1530	1530	1530	1530	1530
Wheelbase [mm]	2605	2605	2605	2605	2605	2605
Front wheel track [mm]	1540	1540	1540	1540	1540	1540
Rear wheel track [mm]	1540	1540	1540	1540	1540	1540
Forward overhang [mm]	870	870	870	870	870	870
Rear overhang [mm]	825	825	825	825	825	825
Clearance [mm]	189	189	189	189	189	189
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	906	906	906	906	906	906
Headroom rear [mm]	906	906	906	906	906	906
Front elbow/shoulder width [mm]	1408/1370	1408/1370	1408/1370	1408/1370	1408/1370	1408/1370
Rear elbow/shoulder width [mm]	1378/1317	1378/1317	1378/1317	1378/1317	1378/1317	1378/1317
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.5 BlueHDi 130
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1499
Maximum output / speed [kW/min-1]	96/3750
Maximum torque [Nm/min-1]	300/1750
Bore and stroke [mm x mm]	75 x 84,8
Compression ratio	16.5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front
Gearbox	8 gear automatic
Drive specifications	eight-speed automatic gearbox EAT8

Top speed [km/h]	195
Acceleration 0–100 km/h [s]	9,3
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	4,3
Out of town [l]	3,6
Combined [l]	3,8
CO2 emissions [g/km]	101

Low speed [l]	-
Medium speed [l]	-
High speed [l]	-
Extra high speed [l]	-
Combined speed [l]	4,9-4,8
CO2 emissions [g/km]	128-125

Emission standard	Euro 6d
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1345-1467
Overall weight [kg]	1775
Maximum trailer weight unbraked/braked [kg]	670/1200
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	61
Maximum load on roof/carrier [kg]	70/-

Boot volume [l]	405
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1467
Boot length [mm]	791
Boot length with rear seats folded [mm]	1592
Boot width between wheels/max [mm]	1014/-
Boot height to headliner/ceiling [mm]	545/-
Loading edge height [mm]	700
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	41
AdBlue tank volume [l]	15
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	twist beam axle with trailing arms
Tyre dimensions front	215/60 R17 84H
Tyre dimensions rear	215/60 R17 84H
Wheel size front	-
Wheel size rear	-
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.4/-

Overall length [mm]	4300
Overall width without/including mirrors [mm]	1770/1987
Overall height [mm]	1530
Wheelbase [mm]	2605
Front wheel track [mm]	1540
Rear wheel track [mm]	1540
Forward overhang [mm]	870
Rear overhang [mm]	825
Clearance [mm]	189
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	906
Headroom rear [mm]	906
Front elbow/shoulder width [mm]	1408/1370
Rear elbow/shoulder width [mm]	1378/1317
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

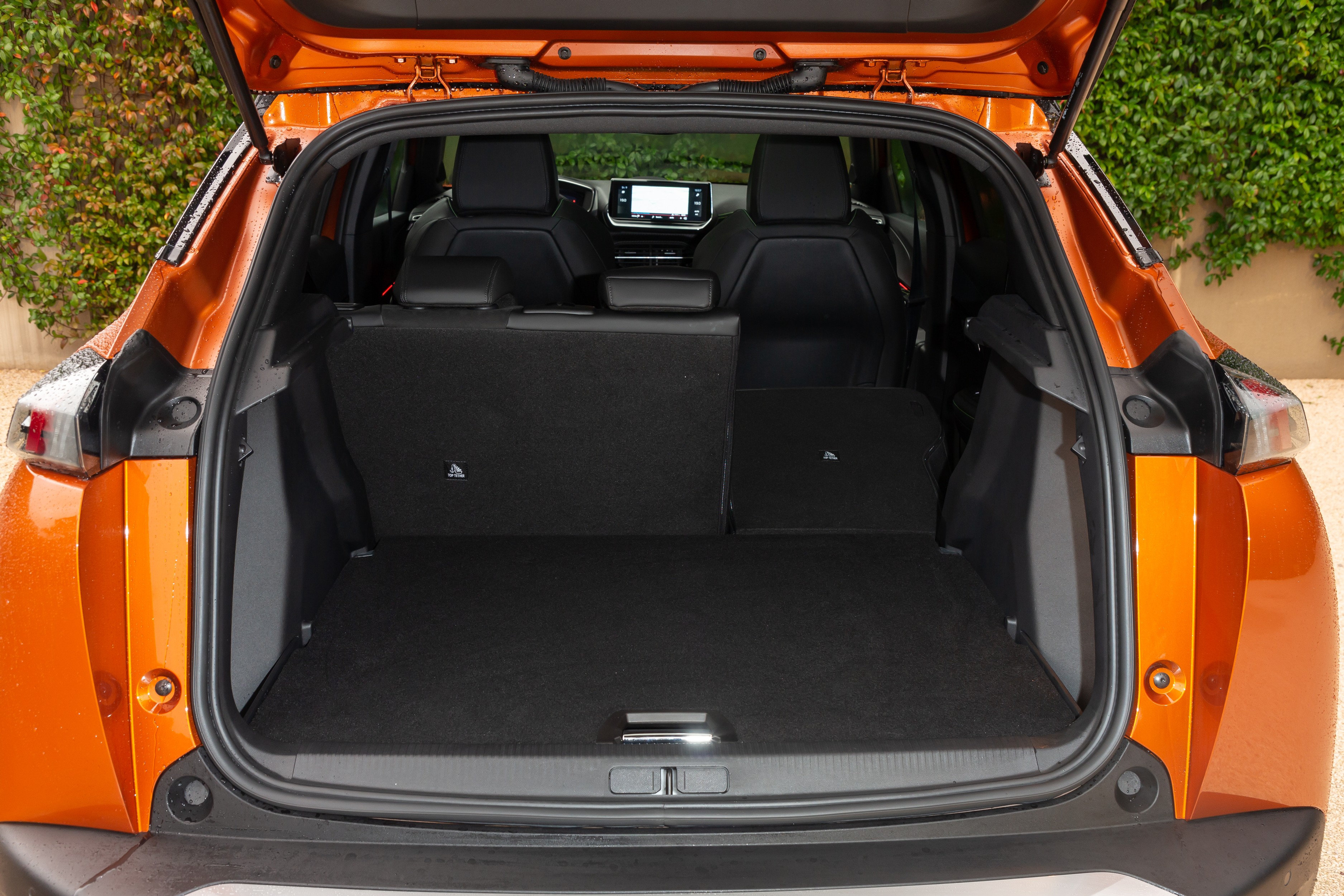

Peugeot 2008 P24 2021 rear folding seats

Technical data, specifications and dimensions Peugeot 2008 P24 2019

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
