Opel Zafira Life
Date of manufacture
2019 – to this day (Large MPV)
Platform
PSA EMP2
Manufacturing locations
Lieu-Saint-Amand, France
Designer
-
Tags
Large MPV
German cars
The new Opel Zafira Life is available in the large MPV version, which was launched in 2019. The car is built on the PSA EMP2 platform and is manufactured in France. The engine range includes both diesel and electric powertrains with a maximum output of 130 kW. The most powerful model 2.0 Diesel 177 L has a top speed of 170 km/h and the best acceleration 0-100 km/h in 10.4 seconds. The most economical version 1.5 Diesel 120 S has a combined fuel consumption of 7.1 l/100 km and CO2 emissions of 185 g/km.
Car body style
Large MPV
Date of manufacture
2019 – to this dayInternal designation
-Engine size
ElectricDiesel
Technical data
Large MPV
| 50 kWh M | 75 kWh M | 50 kWh L | 75 kWh L | 1.5 Diesel 120 S | 2.0 Diesel 122 S | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from 2020 to | from 2020 to | from to 2020 | from to 2020 |
| Engine type | Electric | Electric | Electric | Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | - | - | - | - | 4/16 | 4/16 |
| Engine displacement [cm³] | - | - | - | - | 1499 | 1997 |
| Maximum output / speed [kW/min-1] | 100 | 100 | 100 | 100 | 88/3500 | 90/3750 |
| Maximum torque [Nm/min-1] | 260 | 260 | 260 | 260 | 300/1750 | 340/1750 |
| Bore and stroke [mm x mm] | - | - | - | - | 75,0 x 84.8 | 85,0 x 88,0 |
| Compression ratio | - | - | - | - | 16.5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 130 | 130 | 130 | 130 | 160 | 170-185 |
| Acceleration 0–100 km/h [s] | 12.1 | 13.3 | 12.1 | 13.3 | 14.3 | 15.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 13.3 | 13.3 | 13.3 | 13.3 | 15.9 | 16.5 |
| City [l] | - | - | - | - | 5.3-5.2 | 6.4-6.2 |
| Out of town [l] | - | - | - | - | 4.7-4.6 | 5.4-5.2 |
| Combined [l] | - | - | - | - | 4.9-4.8 | 5.7-5.6 |
| CO2 emissions [g/km] | - | - | - | - | 130-126 | 151-148 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 26.1-21.7 kWh | 27.3-24.4 kWh | 26.1-21.7 kWh | 27.3-24.4 kWh | 7.1-6.0 | 7.8-6.9 |
| CO2 emissions [g/km] | - | - | - | - | 185-158 | 204-179 |
| Emission standard | - | - | - | - | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 50 kWh | Lithium-Ionen-Akkumulator, 75 kWh | Lithium-Ionen-Akkumulator, 50 kWh | Lithium-Ionen-Akkumulator, 75 kWh | - | - |
| Range with fully charged battery [km] | 231 | 329 | 231 | 329 | - | - |
| Charging time |
|
|
|
| - | - |
| Number of modules/cells | 18/216 | - | 18/216 | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1969-2087 | 2140-2258 | 1989-2102 | 2167-2264 | 1709-1723 | 1845 |
| Overall weight [kg] | 2950-3015 | 3100 | 2965-3030 | 3100 | 2650-2685 | 2820-2860 |
| Maximum trailer weight unbraked/braked [kg] | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1800 | 750/2300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 72 | 92 |
| Maximum load on roof/carrier [kg] | 150/- | 150/- | 150/- | 150/- | 150/- | 150/- |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4200 | -/4200 | -/4900 | -/4900 | -/3600 | -/3600 |
| Boot length [mm] | 608 | 608 | 958 | 958 | 226 | 226 |
| Boot length with rear seats folded [mm] | 2413 | 2413 | 2763 | 2763 | 2063 | 2063 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 |
| Boot height to headliner/ceiling [mm] | -/1337 | -/1337 | -/1339 | -/1339 | -/1334 | -/1334 |
| Loading edge height [mm] | 584-653 | 584-653 | 584-664 | 584-664 | 587-610 | 587-610 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1229 | 1229 | 1229 | 1229 | 1229 | 1229 |
| Boot opening width min/max [mm] | -/1229 | -/1229 | -/1229 | -/1229 | -/1229 | -/1229 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 8-9 | 8-9 | 8-9 | 8-9 | 8-9 | 8-9 |
| Fuel tank volume [l] | - | - | - | - | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | 22.5 | 22.5 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 | 11.3/11.8 | 11.3/11.8 |
| Overall length [mm] | 4956 | 4956 | 5306 | 5306 | 4606 | 4606 |
| Overall width without/including mirrors [mm] | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 |
| Overall height [mm] | 1890-1930 | 1890-1930 | 1890-1940 | 1890-1940 | 1905 | 1905 |
| Wheelbase [mm] | 3275 | 3275 | 3275 | 3275 | 2925 | 2925 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 803 | 803 | 1153 | 1153 | 803 | 803 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 Diesel 150 S | 2.0 Diesel 177 S | 1.5 Diesel 102 M | 1.5 Diesel 120 M | 2.0 Diesel 122 M | 2.0 Diesel 145 M | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2021 | - | from to 2021 | from 2021 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1499 | 1499 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 110/4000 | 130/3750 | 75/3500 | 88/3500 | 90/3750 | 106/3700 |
| Maximum torque [Nm/min-1] | 370/2000 | 400/2000 | 270/1600 | 300/1750 | 340/1750 | 340/2000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 75,0 x 84.8 | 75,0 x 84.8 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | 16.5:1 | 16.5:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 170-183 | 170-185 | 145 | 160 | 170-185 | 170-180 |
| Acceleration 0–100 km/h [s] | 12.0 | 10.4 | 17.1 | 14.3 | 15.5 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 12.3 | 7.9 | 17.4 | 15.9 | 16.5 | 12.8 |
| City [l] | 6.6-6.1 | 6.5-6.2 | 5.4-5.3 | 5.3-5.2 | 6.4-6.2 | 6.2-5.6 |
| Out of town [l] | 5.4-5.0 | 5.4-5.0 | 4.8-4.7 | 4.7-4.6 | 5.4-5.2 | 5.4-4.8 |
| Combined [l] | 5.8-5.4 | 5.8-5.4 | 5.0-4.9 | 4.9-4.8 | 5.7-5.6 | 5.7-5.1 |
| CO2 emissions [g/km] | 154-142 | 153-143 | 133-130 | 130-126 | 151-148 | 151-135 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7.9-6.8 | 8.0-7.0 | 7.1-6.1 | 7.1-6.0 | 7.8-6.9 | 7.7-6.8 |
| CO2 emissions [g/km] | 206-177 | 209-183 | 186-159 | 185-158 | 204-179 | 202-178 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1802-1816 | 1735 | 1735 | 1845 | 1793-1808 |
| Overall weight [kg] | 2700-2740 | 2780 | 2750-2830 | 2695-2830 | 2810-3100 | 2760-2810 |
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | 750/2300 | 750/1400 | 750/1800-2000 | 750/2300-2500 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 92 | 92 | 56 | 72-80 | 92-100 | 84 |
| Maximum load on roof/carrier [kg] | 150/- | 150/- | 150/- | 150/- | 150/- | 150/- |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3600 | -/3600 | -/4200 | -/4200 | -/4200 | -/4200 |
| Boot length [mm] | 226 | 226 | 608 | 608 | 608 | 608 |
| Boot length with rear seats folded [mm] | 2063 | 2063 | 2413 | 2413 | 2413 | 2413 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 |
| Boot height to headliner/ceiling [mm] | -/1334 | -/1334 | -/1337 | -/1337 | -/1337 | -/1337 |
| Loading edge height [mm] | 587-610 | 587-610 | 584-653 | 584-653 | 584-653 | 584-653 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1229 | 1229 | 1229 | 1229 | 1229 | 1229 |
| Boot opening width min/max [mm] | -/1229 | -/1229 | -/1229 | -/1229 | -/1229 | -/1229 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 8-9 | 8-9 | 8-9 | 8-9 | 6-9 | 6-9 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/11.8 | 11.3/11.8 | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 |
| Overall length [mm] | 4606 | 4606 | 4956 | 4956 | 4956 | 4956 |
| Overall width without/including mirrors [mm] | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 |
| Overall height [mm] | 1905 | 1905 | 1890-1930 | 1890-1930 | 1890-1930 | 1890-1930 |
| Wheelbase [mm] | 2925 | 2925 | 3275 | 3275 | 3275 | 3275 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - |    | - | - | - | - |
| Clean Air Index | - | 6.8/10 | - | - | - | - |
| Energy Efficiency Index | - | 1.3/10 | - | - | - | - |
| GHG index | - | 0.1/10 | - | - | - | - |
| 2.0 Diesel 145 M | 2.0 Diesel 150 M | 2.0 Diesel 177 M | 1.5 Diesel 120 L | 2.0 Diesel 122 L | 2.0 Diesel 145 L | |
|---|---|---|---|---|---|---|
| Date of sale | from 2021 to | from to 2021 | - | - | from to 2021 | from 2021 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1499 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 106/3700 | 110/4000 | 130/3750 | 88/3500 | 90/3750 | 106/3700 |
| Maximum torque [Nm/min-1] | 340/2000 | 370/2000 | 400/2000 | 300/1750 | 340/1750 | 340/2000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 75,0 x 84.8 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | - | 16.5:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - | - | - |
| - |
| Top speed [km/h] | 170-179 | 170-183 | 170-185 | 160 | 170-185 | 170-180 |
| Acceleration 0–100 km/h [s] | 11.0 | 12.0 | 10.4 | 14.3 | 15.5 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 8.8 | 12.3 | 7.9 | 15.9 | 16.5 | 12.8 |
| City [l] | 5.6-5.5 | 6.6-6.1 | 6.5-6.2 | 5.3-5.2 | 6.4-6.2 | 6.2-5.6 |
| Out of town [l] | 5.0-4.8 | 5.4-5.0 | 5.4-5.0 | 4.7-4.6 | 5.4-5.2 | 5.4-4.8 |
| Combined [l] | 5.2-5.0 | 5.8-5.4 | 5.8-5.4 | 4.9-4.8 | 5.7-5.6 | 5.7-5.1 |
| CO2 emissions [g/km] | 138-133 | 154-142 | 153-143 | 130-126 | 151-148 | 151-135 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7.6-6.9 | 7.9-6.8 | 8.0-7.0 | 7.1-6.0 | 7.8-6.9 | 7.7-6.8 |
| CO2 emissions [g/km] | 200-182 | 206-177 | 209-183 | 185-158 | 204-179 | 202-178 |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1838-2043 | 1801-1955 | 1838-2040 | 1735 | 1845 | 1823-2037 |
| Overall weight [kg] | 2730-2830 | 2675-3100 | 2780-3100 | 2730-2830 | 2820-3100 | 2790-2850 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2300-2500 | 750/2300-2500 | 750/1800-2000 | 750/2300-2500 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 84 | 92-100 | 92-100 | 72-80 | 92-100 | 84 |
| Maximum load on roof/carrier [kg] | 150/- | 150/- | 150/- | 150/- | 150/- | 150/- |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4200 | -/4200 | -/4200 | -/4900 | -/4900 | -/4900 |
| Boot length [mm] | 608 | 608 | 608 | 958 | 958 | 958 |
| Boot length with rear seats folded [mm] | 2413 | 2413 | 2413 | 2763 | 2763 | 2763 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | - |
| Boot height to headliner/ceiling [mm] | -/1337 | -/1337 | -/1337 | -/1339 | -/1339 | -/1339 |
| Loading edge height [mm] | 584-653 | 584-653 | 584-653 | 584-664 | 584-664 | 584-664 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1229 | 1229 | 1229 | 1229 | 1229 | - |
| Boot opening width min/max [mm] | -/1229 | -/1229 | -/1229 | -/1229 | -/1229 | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 8-9 | 6-9 | 6-9 | 8-9 | 6-9 | 6-9 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 |
| Overall length [mm] | 4956 | 4956 | 4956 | 5306 | 5306 | 5306 |
| Overall width without/including mirrors [mm] | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 | 2010/2204 |
| Overall height [mm] | 1890-1930 | 1890-1930 | 1890-1930 | 1890-1940 | 1890-1940 | 1890-1940 |
| Wheelbase [mm] | 3275 | 3275 | 3275 | 3275 | 3275 | 3275 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Rear overhang [mm] | 803 | 803 | 803 | 1153 | 1153 | 1153 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - | | - | - | - |
| Clean Air Index | - | - | 6.8/10 | - | - | - |
| Energy Efficiency Index | - | - | 1.3/10 | - | - | - |
| GHG index | - | - | 0.1/10 | - | - | - |
| 2.0 Diesel 145 L | 2.0 Diesel 150 L | 2.0 Diesel 177 L | ||||
|---|---|---|---|---|---|---|
| Date of sale | from 2021 to | from to 2021 | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | |||
| Maximum output / speed [kW/min-1] | 106/3700 | 110/4000 | 130/3750 | |||
| Maximum torque [Nm/min-1] | 340/2000 | 370/2000 | 400/2000 | |||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | |||
| Drive specifications |
| - | - | |||
| Top speed [km/h] | 170-179 | 170-183 | 170-185 | |||
| Acceleration 0–100 km/h [s] | 11.0 | 12.0 | 10.4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | 8.8 | 12.3 | 7.9 | |||
| City [l] | 5.6-5.5 | 6.6-6.1 | 6.5-6.2 | |||
| Out of town [l] | 5.0-4.8 | 5.4-5.0 | 5.4-5.0 | |||
| Combined [l] | 5.2-5.0 | 5.8-5.4 | 5.8-5.4 | |||
| CO2 emissions [g/km] | 138-133 | 154-142 | 153-143 | |||
| Low speed [l] | - | - | - | |||
| Medium speed [l] | - | - | - | |||
| High speed [l] | - | - | - | |||
| Extra high speed [l] | - | - | - | |||
| Combined speed [l] | 7.6-6.9 | 7.9-6.8 | 8.0-7.0 | |||
| CO2 emissions [g/km] | 200-182 | 206-177 | 209-183 | |||
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1842-2037 | 1834-2043 | 1845-2061 | |||
| Overall weight [kg] | 2790-2850 | 2785-3100 | 2740-3100 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2300-2500 | 750/2300-2500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 84 | 92-100 | 92-100 | |||
| Maximum load on roof/carrier [kg] | 150/- | 150/- | 150/- | |||
| Boot volume [l] | - | - | - | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4900 | -/4900 | -/4900 | |||
| Boot length [mm] | 958 | 958 | 958 | |||
| Boot length with rear seats folded [mm] | 2763 | 2763 | 2763 | |||
| Boot width between wheels/max [mm] | - | 1228/1618 | 1228/1618 | |||
| Boot height to headliner/ceiling [mm] | -/1339 | -/1339 | -/1339 | |||
| Loading edge height [mm] | 584-664 | 584-664 | 584-664 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | 1229 | 1229 | |||
| Boot opening width min/max [mm] | - | -/1229 | -/1229 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 8-9 | 6-9 | 6-9 | |||
| Fuel tank volume [l] | 70 | 70 | 70 | |||
| AdBlue tank volume [l] | 22.5 | 22.5 | 22.5 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | - | - | - | |||
| Tyre dimensions rear | - | - | - | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 12.4/12.9 | 12.4/12.9 | 12.4/12.9 | |||
| Overall length [mm] | 5306 | 5306 | 5306 | |||
| Overall width without/including mirrors [mm] | 2010/2204 | 2010/2204 | 2010/2204 | |||
| Overall height [mm] | 1890-1940 | 1890-1940 | 1890-1940 | |||
| Wheelbase [mm] | 3275 | 3275 | 3275 | |||
| Front wheel track [mm] | 1627 | 1627 | 1627 | |||
| Rear wheel track [mm] | 1600 | 1600 | 1600 | |||
| Forward overhang [mm] | 878 | 878 | 878 | |||
| Rear overhang [mm] | 1153 | 1153 | 1153 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - | |||
| Rating | - | - | | |||
| Clean Air Index | - | - | 6.8/10 | |||
| Energy Efficiency Index | - | - | 1.3/10 | |||
| GHG index | - | - | 0.1/10 |

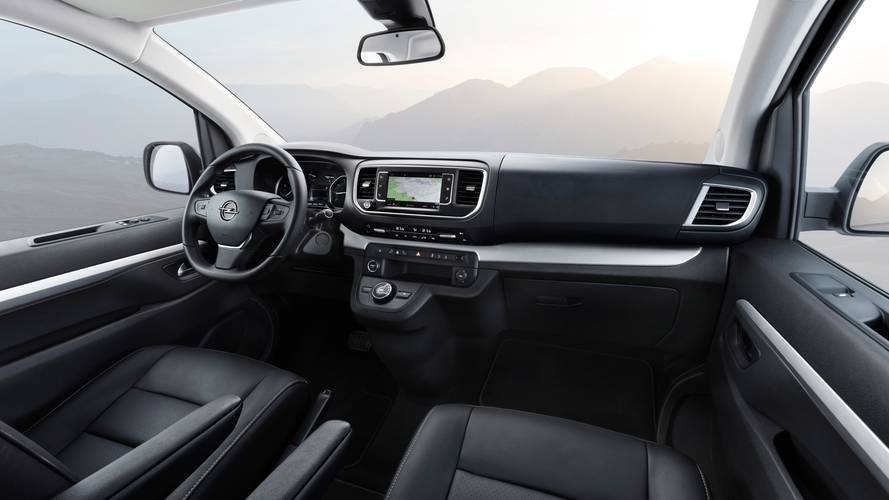

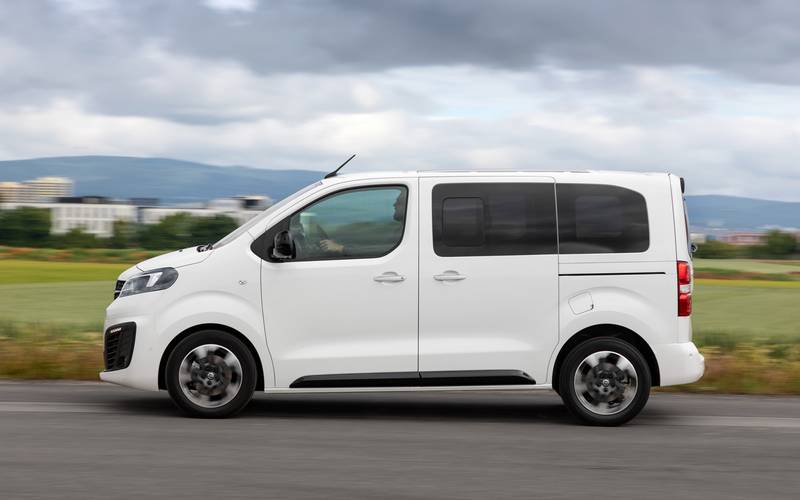

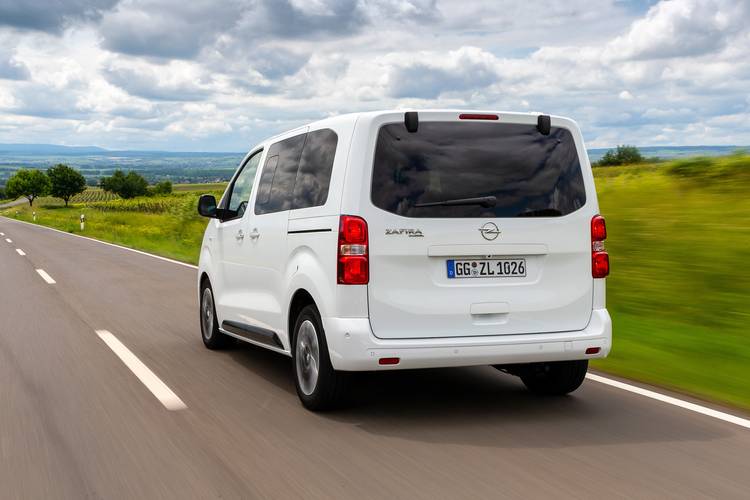

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
