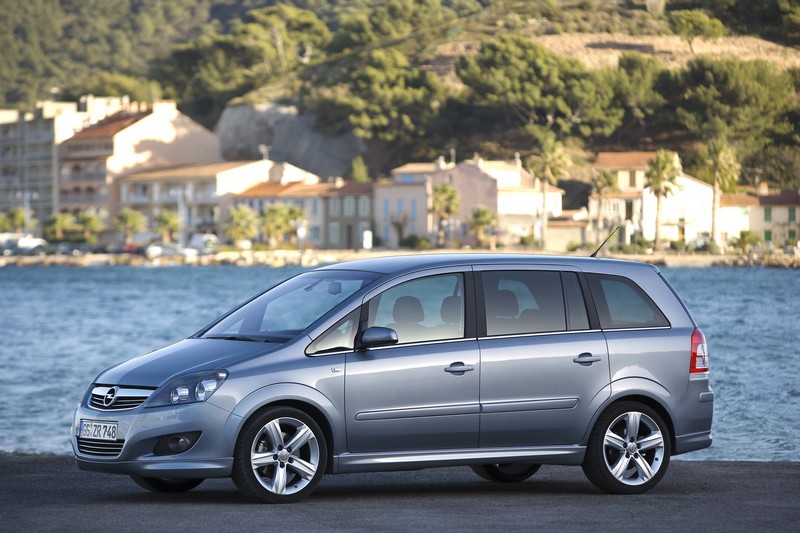

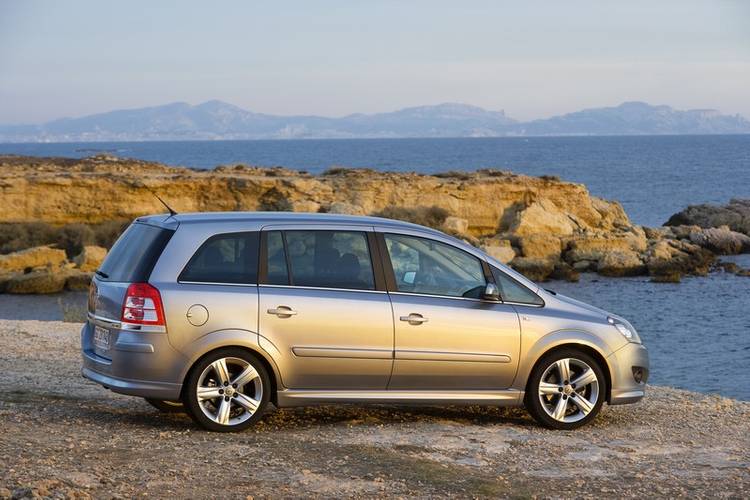

Opel Zafira
Date of manufacture
2008 – 2011 (MPV)
Platform
Delta
Manufacturing locations
Bochum, Germany
Gliwice, Poland
Designer
-
Tags
Mid-size MPV
German cars
The Opel Zafira is available in the MPV variant. This model has been produced since 2008 and is manufactured in Germany and Poland on the Delta platform. It offers petrol and diesel engines, the highest power of 177 kW is achieved by the OPC version, which can reach a speed of 230 km/h and acceleration from 0-100 km/h in 7.8 seconds. The most economical version 1.6 CNG has a consumption of 5 kg/100 km with emissions of 138 g/km. The volume of the luggage compartment is 645 l. EURONCAP safety tests ended with a rating of 5 out of 5 for the Opel Zafira.
Car body style
Technical data
MPV
| 1.6 | 1.6 CNG | 1.8 VVA | 1.8 VVA | 1.6 CNG Turbo | 2.2 Direct | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1796 | 1796 | 1598 | 2198 |
| Maximum output / speed [kW/min-1] | 85/6000 | 69/6200 | 103/6300 | 103/6300 | 110/5000 | 110/5600 |
| Maximum torque [Nm/min-1] | 155/4000 | 133/4200 | 175/3800 | 175/3800 | 210/2300-5000 | 215/4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 78,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 | 78,0 x 81,5 | 86,0 x 94,6 |
| Compression ratio | 10,8:1 | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 185 | 165 | 197 | 197 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 13.4 | 17.0 | 11.5 | 12.9 | 11.5 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7-9.3 | 6.6 kg | 9.6-9.9 | 9.6-9.9 | 7.3 kg | 11.3 |
| Out of town [l] | 5.5-5.7 | 4.2 kg | 5.7-6.0 | 5.5-6.0 | 4.1 kg | 6.4 |
| Combined [l] | 6.7-7.1 | 5.0 kg | 7.1-7.4 | 7.0-7.4 | 5.3 kg | 8.2 |
| CO2 emissions [g/km] | 157-169 | 138 | 169-177 | 164-177 | 144 | 197 |
| Emission standard | EU4-EU5 | EU4 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1503-1855 | 1503-1855 | 1503-1855 | 1503-1855 | 1503-1855 | 1503-1855 |
| Overall weight [kg] | 2075-2250 | 2075-2250 | 2075-2250 | 2075-2250 | 2075-2250 | 2075-2250 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/100 | 75/100 | 75/100 | 75/100 | 75/100 | 75/100 |
| Boot volume [l] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 |
| Boot length [mm] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] |
| Boot length with rear seats folded [mm] | 1809 | 1809 | 1809 | 1809 | 1809 | 1809 |
| Boot width between wheels/max [mm] | 1071/1114 | 1071/1114 | 1071/1114 | 1071/1114 | 1071/1114 | 1071/1114 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 7 | 7 | 7 | 7 | 7 |
| Fuel tank volume [l] | 58 | 21 kg | 58 | 58 | 21 kg | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 |
| Overall length [mm] | 4476 | 4476 | 4476 | 4476 | 4476 | 4476 |
| Overall width without/including mirrors [mm] | 1801/2026 | 1801/2026 | 1801/2026 | 1801/2026 | 1801/2026 | 1801/2026 |
| Overall height [mm] | 1635 | 1635 | 1635 | 1635 | 1635 | 1635 |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | 2703 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.2 Direct | 2.0 Turbo | OPC | 1.9 CDTI | 1.7 CDTI | 1.9 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 | 4/8 |
| Engine displacement [cm³] | 2198 | 1998 | 1998 | 1910 | 1686 | 1910 |
| Maximum output / speed [kW/min-1] | 110/5600 | 147/5400 | 177/5600 | 74/3500 | 81/5600 | 88/3500 |
| Maximum torque [Nm/min-1] | 215/4000 | 262/4200 | 320/2400-5000 | 260/1700-2500 | 280/2300 | 280/2000-2750 |
| Bore and stroke [mm x mm] | 86,0 x 94,6 | 86,0 x 86,0 | 86,0 x 86,0 | 82,0 x 90,4 | 79,0 x 86,0 | 82,0 x 90,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 4 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - | - | - | - | - |
| Top speed [km/h] | 190 | 225 | 230 | 174 | 179 | 186 |
| Acceleration 0–100 km/h [s] | 11.6 | 9.0 | 7.8 | 14.1 | 13.4 | 12.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.6 | 13.3 | 13.4 | 7.5-7.6 | 6.1-7.1 | 7.5 |
| Out of town [l] | 6.7 | 7.3 | 7.4 | 5.0-5.1 | 4.5-4.9 | 5.0 |
| Combined [l] | 8.5 | 9.5 | 9.6 | 5.9-6.0 | 5.1-5.7 | 5.9 |
| CO2 emissions [g/km] | 204 | 228 | 230 | 156-159 | 134-152 | 156 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4-EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1503-1855 | 1503-1855 | 1503-1855 | 1503-1855 | 1503-1855 | 1503-1855 |
| Overall weight [kg] | 2075-2250 | 2075-2250 | 2075-2250 | 2075-2250 | 2075-2250 | 2075-2250 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/100 | 75/100 | 75/100 | 75/100 | 75/100 | 75/100 |
| Boot volume [l] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 | -/1820 |
| Boot length [mm] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] |
| Boot length with rear seats folded [mm] | 1809 | 1809 | 1809 | 1809 | 1809 | 1809 |
| Boot width between wheels/max [mm] | 1071/1114 | 1071/1114 | 1071/1114 | 1071/1114 | 1071/1114 | 1071/1114 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 7 | 7 | 7 | 7 | 7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/40 R18 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/40 R18 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 |
| Overall length [mm] | 4476 | 4476 | 4503 | 4476 | 4476 | 4476 |
| Overall width without/including mirrors [mm] | 1801/2026 | 1801/2026 | 1801/2026 | 1801/2026 | 1801/2026 | 1801/2026 |
| Overall height [mm] | 1635 | 1635 | 1625 | 1635 | 1635 | 1635 |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | 2703 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1448 |
| Rear wheel track [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 CDTI | 1.7 CDTI | 1.9 CDTI | 1.9 CDTI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1910 | 1686 | 1910 | 1910 | ||
| Maximum output / speed [kW/min-1] | 88/3500 | 92/4000 | 110/4000 | 110/4000 | ||
| Maximum torque [Nm/min-1] | 280/2000-2750 | 280/2300 | 320/2000-2750 | 320/2000-2750 | ||
| Bore and stroke [mm x mm] | 82,0 x 90,4 | 79,0 x 86,0 | 82,0 x 90,4 | 82,0 x 90,4 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear automatic | 6 gear manual | 5 gear manual | 6 gear automatic | ||
| Drive specifications |
| - | - |
| ||
| Top speed [km/h] | 182 | 189 | 202 | 198 | ||
| Acceleration 0–100 km/h [s] | 12.5 | 12.3 | 10.4 | 10.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 9.7 | 6.1-7.1 | 7.6 | 9.7 | ||
| Out of town [l] | 5.6 | 4.5-4.9 | 5.1 | 5.6 | ||
| Combined [l] | 7.1 | 5.1-5.7 | 6.0 | 7.1 | ||
| CO2 emissions [g/km] | 192 | 134-152 | 160 | 192 | ||
| Emission standard | EU4 | EU4-EU5 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1503-1855 | 1503-1855 | 1503-1855 | 1503-1855 | ||
| Overall weight [kg] | 2075-2250 | 2075-2250 | 2075-2250 | 2075-2250 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/100 | 75/100 | 75/100 | 75/100 | ||
| Boot volume [l] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | 645 [140 seven seats] | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1820 | -/1820 | -/1820 | -/1820 | ||
| Boot length [mm] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | 1088 [405 seven seats] | ||
| Boot length with rear seats folded [mm] | 1809 | 1809 | 1809 | 1809 | ||
| Boot width between wheels/max [mm] | 1071/1114 | 1071/1114 | 1071/1114 | 1071/1114 | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 7 | 7 | 7 | 7 | ||
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | ||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | ||
| Overall length [mm] | 4476 | 4476 | 4476 | 4476 | ||
| Overall width without/including mirrors [mm] | 1801/2026 | 1801/2026 | 1801/2026 | 1801/2026 | ||
| Overall height [mm] | 1635 | 1635 | 1635 | 1635 | ||
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | ||
| Front wheel track [mm] | 1448 | 1488 | 1448 | 1448 | ||
| Rear wheel track [mm] | 1512 | 1512 | 1512 | 1512 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
