Opel Vectra
Date of manufacture
2005 – 2008 (Sedan)
2005 – 2008 (Liftback)
2005 – 2008 (Estate)
Platform
Epsilon platform
Manufacturing locations
Rüsselsheim am Main, Germany
Designer
-
Tags
D-segment
German cars
The Opel Vectra has been produced since 2005 in three body styles - sedan, liftback and estate. It is manufactured in Germany and is based on the Epsilon platform. It offers petrol and diesel engines, with the most powerful model being the OPC with 206 kW and a top speed of 250 km/h. The OPC also has the best acceleration from 0-100 km/h in 6.3 seconds. The most economical version, the 1.9 CDTI, has a fuel consumption of 5.7 l/100 km and emissions of 154 g/km. The boot capacity of the sedan is 500 l, the same size as the liftback, and 530 l for the estate. EURONCAP safety tests rated the Opel Vectra 4 out of 5 points.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2005 – 2008Internal designation
Vectra C Liftback
after upgrade (facelift)
Date of manufacture
2005 – 2008Internal designation

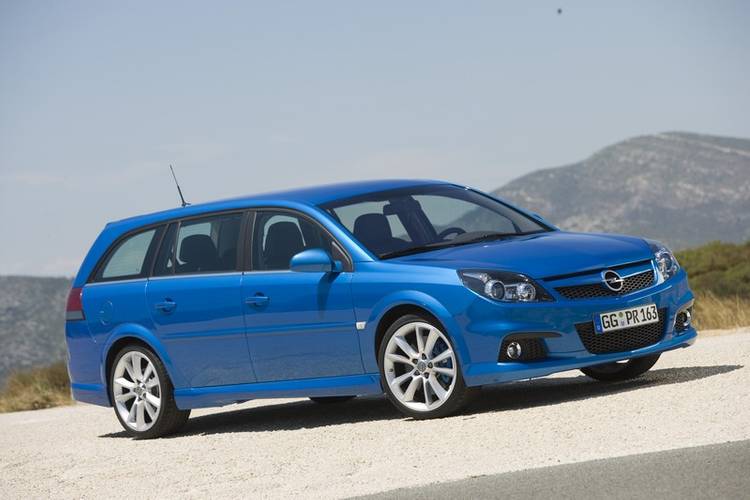

Vectra C Estate (Caravan)
after upgrade (facelift)
Date of manufacture
2005 – 2008Internal designation
Vectra C
Technical data
Sedan
| 1.6 Twinport | 1.8 | 1.8 | 2.2 Direct | 2.2 Direct | 2.0 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1796 | 1796 | 2198 | 2198 | 1998 |
| Maximum output / speed [kW/min-1] | 77/6000 | 103/6300 | 103/6300 | 114/5600 | 114/5600 | 129/5500 |
| Maximum torque [Nm/min-1] | 150/3900 | 175/3800 | 175/3800 | 220/3800 | 220/3800 | 265/2500-3800 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 | 86,0 x 94,6 | 86,0 x 94,6 | 86,0 x 86,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 5 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 194 | 210 | 207 | 218 | 210 | 230 |
| Acceleration 0–100 km/h [s] | 12.6 | 10.7 | 12.5 | 9.4 | 10.5 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1 | 9.9 | 9.7 | 10.3 | 11.3 | 12.5 |
| Out of town [l] | 5.5 | 5.6 | 5.4 | 5.9 | 6.1 | 6.3 |
| Combined [l] | 6.8 | 7.2 | 7.0 | 7.5 | 8.0 | 8.6 |
| CO2 emissions [g/km] | 163 | 173 | 168 | 180 | 192 | 206 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Overall weight [kg] | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 940/965 | 940/965 | 940/965 | 940/965 | 940/965 | 940/965 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Boot length with rear seats folded [mm] | 1774 | 1774 | 1774 | 1774 | 1774 | 1774 |
| Boot width between wheels/max [mm] | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 |
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | -/500 | -/500 | -/500 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 |
| Overall length [mm] | 4611 | 4611 | 4611 | 4611 | 4611 | 4611 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.8 V6 Turbo | 2.8 V6 Turbo | OPC | OPC | 1.9 CDTI | 1.9 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/8 | 4/8 |
| Engine displacement [cm³] | 2792 | 2792 | 2792 | 2792 | 1910 | 1910 |
| Maximum output / speed [kW/min-1] | 184/5500 | 184/5500 | 206/5500 | 206/5500 | 74/3500 | 88/3500-4000 |
| Maximum torque [Nm/min-1] | 320/1800-4500 | 320/1800-4500 | 355/1800-4500 | 355/1800-4500 | 260/1700-2500 | 280/2000-2750 |
| Bore and stroke [mm x mm] | 89,0 x 74,8 | 89,0 x 74,8 | 89,0 x 74,8 | 89,0 x 74,8 | 82,0 x 90,4 | 82,0 x 90,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 186 | 200 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.7 | 6.3 | 6.7 | 13.3 | 11.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 15.4 | 17.1 | 15.5 | 17.2 | 7.4 | 7.4 |
| Out of town [l] | 7.3 | 7.3 | 7.4 | 7.4 | 4.7 | 4.7 |
| Combined [l] | 10.3 | 10.9 | 10.4 | 11.0 | 5.7 | 5.7 |
| CO2 emissions [g/km] | 247 | 262 | 254 | 265 | 154 | 154 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Overall weight [kg] | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 940/965 | 940/965 | 940/965 | 940/965 | 940/965 | 940/965 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Boot length with rear seats folded [mm] | 1774 | 1774 | 1774 | 1774 | 1774 | 1774 |
| Boot width between wheels/max [mm] | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 |
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | -/500 | -/500 | -/500 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 235/40 R18 | 235/40 R18 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 235/40 R18 | 235/40 R18 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 |
| Overall length [mm] | 4611 | 4611 | 4611 | 4611 | 4611 | 4611 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 CDTI | 1.9 CDTI | 3.0 V6 CDTI | 3.0 V6 CDTI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 1910 | 1910 | 2958 | 2958 | ||
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 135/4000 | 135/4000 | ||
| Maximum torque [Nm/min-1] | 320/2000-2750 | 320/2000-2750 | 400/1900-2700 | 400/1900-2700 | ||
| Bore and stroke [mm x mm] | 82,0 x 90,4 | 82,0 x 90,4 | 87,5 x 80,0 | 87,5 x 80,0 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 217 | 210 | 230 | 226 | ||
| Acceleration 0–100 km/h [s] | 9.8 | 10.0 | 8.9 | 9.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.4 | 9.4 | 9.8 | 10.2 | ||
| Out of town [l] | 4.7 | 5.3 | 5.2 | 5.3 | ||
| Combined [l] | 5.7 | 6.8 | 6.9 | 7.1 | ||
| CO2 emissions [g/km] | 154 | 184 | 186 | 192 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1395 | 1395 | 1395 | 1395 | ||
| Overall weight [kg] | 1870 | 1870 | 1870 | 1870 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | 940/965 | 940/965 | 940/965 | 940/965 | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 500 | 500 | 500 | 500 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | ||
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | ||
| Boot length with rear seats folded [mm] | 1774 | 1774 | 1774 | 1774 | ||
| Boot width between wheels/max [mm] | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | ||
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | -/500 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 700 | 700 | 700 | 700 | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | - | - | - | - | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | ||
| Overall length [mm] | 4611 | 4611 | 4611 | 4611 | ||
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | ||
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | ||
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | ||
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | ||
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Liftback
| 1.6 Twinport | 1.8 | 1.8 | 2.2 Direct | 2.2 Direct | 2.0 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1796 | 1796 | 2198 | 2198 | 1998 |
| Maximum output / speed [kW/min-1] | 77/6000 | 103/6300 | 103/6300 | 114/5600 | 114/5600 | 129/5500 |
| Maximum torque [Nm/min-1] | 150/3900 | 175/3800 | 175/3800 | 220/3800 | 220/3800 | 265/2500-3800 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 | 86,0 x 94,6 | 86,0 x 94,6 | 86,0 x 86,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 5 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 194 | 210 | 207 | 218 | 210 | 230 |
| Acceleration 0–100 km/h [s] | 12.6 | 10.7 | 12.5 | 9.4 | 10.5 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1 | 9.9 | 9.7 | 10.3 | 11.3 | 12.5 |
| Out of town [l] | 5.5 | 5.6 | 5.4 | 5.9 | 6.1 | 6.3 |
| Combined [l] | 6.8 | 7.2 | 7.0 | 7.5 | 8.0 | 8.6 |
| CO2 emissions [g/km] | 163 | 173 | 168 | 180 | 192 | 206 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1393 | 1393 | 1393 | 1393 | 1393 | 1393 |
| Overall weight [kg] | 1885 | 1885 | 1885 | 1885 | 1885 | 1885 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 940/985 | 940/985 | 940/985 | 940/985 | 940/985 | 940/985 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1050/1360 | 1050/1360 | 1050/1360 | 1050/1360 | 1050/1360 | 1050/1360 |
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Boot length with rear seats folded [mm] | 1774 | 1774 | 1774 | 1774 | 1774 | 1774 |
| Boot width between wheels/max [mm] | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 |
| Boot height to headliner/ceiling [mm] | -/792 | -/792 | -/792 | -/792 | -/792 | -/792 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 |
| Overall length [mm] | 4611 | 4611 | 4611 | 4611 | 4611 | 4611 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.8 V6 Turbo | 2.8 V6 Turbo | OPC | OPC | 1.9 CDTI | 1.9 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/8 | 4/8 |
| Engine displacement [cm³] | 2792 | 2792 | 2792 | 2792 | 1910 | 1910 |
| Maximum output / speed [kW/min-1] | 184/5500 | 184/5500 | 206/5500 | 206/5500 | 74/3500 | 88/3500-4000 |
| Maximum torque [Nm/min-1] | 320/1800-4500 | 320/1800-4500 | 355/1800-4500 | 355/1800-4500 | 260/1700-2500 | 280/2000-2750 |
| Bore and stroke [mm x mm] | 89,0 x 74,8 | 89,0 x 74,8 | 89,0 x 74,8 | 89,0 x 74,8 | 82,0 x 90,4 | 82,0 x 90,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 186 | 200 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.7 | 6.3 | 6.7 | 13.3 | 11.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 15.4 | 17.1 | 15.5 | 17.2 | 7.4 | 7.4 |
| Out of town [l] | 7.3 | 7.3 | 7.4 | 7.4 | 4.7 | 4.7 |
| Combined [l] | 10.3 | 10.9 | 10.4 | 11.0 | 5.7 | 5.7 |
| CO2 emissions [g/km] | 247 | 262 | 254 | 265 | 154 | 154 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1393 | 1393 | 1393 | 1393 | 1393 | 1393 |
| Overall weight [kg] | 1885 | 1885 | 1885 | 1885 | 1885 | 1885 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 940/985 | 940/985 | 940/985 | 940/985 | 940/985 | 940/985 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1050/1360 | 1050/1360 | 1050/1360 | 1050/1360 | 1050/1360 | 1050/1360 |
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Boot length with rear seats folded [mm] | 1774 | 1774 | 1774 | 1774 | 1774 | 1774 |
| Boot width between wheels/max [mm] | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 |
| Boot height to headliner/ceiling [mm] | -/792 | -/792 | -/792 | -/792 | -/792 | -/792 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 235/40 R18 | 235/40 R18 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 235/40 R18 | 235/40 R18 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 |
| Overall length [mm] | 4611 | 4611 | 4642 | 4642 | 4611 | 4611 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1460 | 1460 | 1449 | 1449 | 1460 | 1460 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 CDTI | 1.9 CDTI | 3.0 V6 CDTI | 3.0 V6 CDTI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 1910 | 1910 | 2958 | 2958 | ||
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 135/4000 | 135/4000 | ||
| Maximum torque [Nm/min-1] | 320/2000-2750 | 320/2000-2750 | 400/1900-2700 | 400/1900-2700 | ||
| Bore and stroke [mm x mm] | 82,0 x 90,4 | 82,0 x 90,4 | 87,5 x 80,0 | 87,5 x 80,0 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 217 | 210 | 230 | 226 | ||
| Acceleration 0–100 km/h [s] | 9.8 | 10.0 | 8.9 | 9.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.4 | 9.4 | 9.8 | 10.2 | ||
| Out of town [l] | 4.7 | 5.3 | 5.2 | 5.3 | ||
| Combined [l] | 5.7 | 6.8 | 6.9 | 7.1 | ||
| CO2 emissions [g/km] | 154 | 184 | 186 | 192 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1393 | 1393 | 1393 | 1393 | ||
| Overall weight [kg] | 1885 | 1885 | 1885 | 1885 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | 940/985 | 940/985 | 940/985 | 940/985 | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 500 | 500 | 500 | 500 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1050/1360 | 1050/1360 | 1050/1360 | 1050/1360 | ||
| Boot length [mm] | 1030 | 1030 | 1030 | 1030 | ||
| Boot length with rear seats folded [mm] | 1774 | 1774 | 1774 | 1774 | ||
| Boot width between wheels/max [mm] | 1016/1096 | 1016/1096 | 1016/1096 | 1016/1096 | ||
| Boot height to headliner/ceiling [mm] | -/792 | -/792 | -/792 | -/792 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 700 | 700 | 700 | 700 | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | - | - | - | - | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | 10.96/11.5 | ||
| Overall length [mm] | 4611 | 4611 | 4611 | 4611 | ||
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | ||
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | ||
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | ||
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | ||
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Estate (Caravan)
| 1.6 Twinport | 1.8 | 1.8 | 2.2 Direct | 2.2 Direct | 2.0 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1796 | 1796 | 2198 | 2198 | 1998 |
| Maximum output / speed [kW/min-1] | 77/6000 | 103/6300 | 103/6300 | 114/5600 | 114/5600 | 129/5500 |
| Maximum torque [Nm/min-1] | 150/3900 | 175/3800 | 175/3800 | 220/3800 | 220/3800 | 265/2500-3800 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 | 86,0 x 94,6 | 86,0 x 94,6 | 86,0 x 86,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 5 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 190 | 209 | 207 | 210 | 208 | 224 |
| Acceleration 0–100 km/h [s] | 13.7 | 11.2 | 13.0 | 9.6 | 10.8 | 9.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 10.4 | 10.0 | 10.6 | 11.5 | 12.7 |
| Out of town [l] | 5.8 | 6.1 | 5.7 | 6.2 | 6.3 | 6.5 |
| Combined [l] | 7.1 | 7.7 | 7.3 | 7.8 | 8.2 | 8.8 |
| CO2 emissions [g/km] | 175 | 185 | 175 | 187 | 197 | 211 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Overall weight [kg] | 2030 | 2030 | 2030 | 2030 | 2030 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 950/1100 | 950/1100 | 950/1100 | 950/1100 | 950/1100 | 950/1100 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1070/1850 | 1070/1850 | 1070/1850 | 1070/1850 | 1070/1850 | 1070/1850 |
| Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
| Boot length with rear seats folded [mm] | 2046 | 2046 | 2046 | 2046 | 2046 | 2046 |
| Boot width between wheels/max [mm] | 1060/1079 | 1060/1079 | 1060/1079 | 1060/1079 | 1060/1079 | 1060/1079 |
| Boot height to headliner/ceiling [mm] | -/841 | -/841 | -/841 | -/841 | -/841 | -/841 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 608 | 608 | 608 | 608 | 608 | 608 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 |
| Overall length [mm] | 4839 | 4839 | 4839 | 4839 | 4839 | 4839 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2830 | 2830 | 2830 | 2830 | 2830 | 2830 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.8 V6 Turbo | 2.8 V6 Turbo | OPC | OPC | 1.9 CDTI | 1.9 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 4/8 | 4/8 |
| Engine displacement [cm³] | 2792 | 2792 | 2792 | 2792 | 1910 | 1910 |
| Maximum output / speed [kW/min-1] | 184/5500 | 184/5500 | 206/5500 | 206/5500 | 74/3500 | 88/3500-4000 |
| Maximum torque [Nm/min-1] | 320/1800-4500 | 320/1800-4500 | 355/1800-4500 | 355/1800-4500 | 260/1700-2500 | 280/2000-2750 |
| Bore and stroke [mm x mm] | 89,0 x 74,8 | 89,0 x 74,8 | 89,0 x 74,8 | 89,0 x 74,8 | 82,0 x 90,4 | 82,0 x 90,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 245 | 245 | 250 | 250 | 182 | 195 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.9 | 6.5 | 6.9 | 13.9 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 15.5 | 17.4 | 15.6 | 17.5 | 7.5 | 7.5 |
| Out of town [l] | 7.4 | 7.6 | 7.5 | 7.7 | 4.8 | 4.8 |
| Combined [l] | 10.4 | 11.2 | 10.5 | 11.3 | 5.8 | 5.8 |
| CO2 emissions [g/km] | 250 | 269 | 269 | 271 | 157 | 157 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Overall weight [kg] | 2030 | 2030 | 2030 | 2030 | 2030 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 950/1100 | 950/1100 | 950/1100 | 950/1100 | 950/1100 | 950/1100 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1070/1850 | 1070/1850 | 1070/1850 | 1070/1850 | 1070/1850 | 1070/1850 |
| Boot length [mm] | 1175 | 1175 | 1175 | 1175 | 1175 | 1175 |
| Boot length with rear seats folded [mm] | 2046 | 2046 | 2046 | 2046 | 2046 | 2046 |
| Boot width between wheels/max [mm] | 1060/1079 | 1060/1079 | 1060/1079 | 1060/1079 | 1060/1079 | 1060/1079 |
| Boot height to headliner/ceiling [mm] | -/841 | -/841 | -/841 | -/841 | -/841 | -/841 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 608 | 608 | 608 | 608 | 608 | 608 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 235/40 R18 | 235/40 R18 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 235/40 R18 | 235/40 R18 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 |
| Overall length [mm] | 4839 | 4839 | 4870 | 4870 | 4839 | 4839 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1500 | 1500 | 1487 | 1487 | 1500 | 1500 |
| Wheelbase [mm] | 2830 | 2830 | 2830 | 2830 | 2830 | 2830 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 CDTI | 1.9 CDTI | 3.0 V6 CDTI | 3.0 V6 CDTI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 1910 | 1910 | 2958 | 2958 | ||
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 135/4000 | 135/4000 | ||
| Maximum torque [Nm/min-1] | 320/2000-2750 | 320/2000-2750 | 400/1900-2700 | 400/1900-2700 | ||
| Bore and stroke [mm x mm] | 82,0 x 90,4 | 82,0 x 90,4 | 87,5 x 80,0 | 87,5 x 80,0 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 210 | 208 | 225 | 221 | ||
| Acceleration 0–100 km/h [s] | 10.3 | 10.5 | 9.1 | 9.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.5 | 9.6 | 9.8 | 10.3 | ||
| Out of town [l] | 4.8 | 5.5 | 5.2 | 5.4 | ||
| Combined [l] | 5.8 | 7.0 | 6.9 | 7.2 | ||
| CO2 emissions [g/km] | 157 | 189 | 186 | 194 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1475 | 1475 | 1475 | 1475 | ||
| Overall weight [kg] | 2030 | 2030 | 2030 | 2030 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | 950/1100 | 950/1100 | 950/1100 | 950/1100 | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 530 | 530 | 530 | 530 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1070/1850 | 1070/1850 | 1070/1850 | 1070/1850 | ||
| Boot length [mm] | 1175 | 1175 | 1175 | 1175 | ||
| Boot length with rear seats folded [mm] | 2046 | 2046 | 2046 | 2046 | ||
| Boot width between wheels/max [mm] | 1060/1079 | 1060/1079 | 1060/1079 | 1060/1079 | ||
| Boot height to headliner/ceiling [mm] | -/841 | -/841 | -/841 | -/841 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 608 | 608 | 608 | 608 | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | - | - | - | - | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | 11.21/11.95 | ||
| Overall length [mm] | 4839 | 4839 | 4839 | 4839 | ||
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | ||
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | ||
| Wheelbase [mm] | 2830 | 2830 | 27830 | 27830 | ||
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | ||
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
