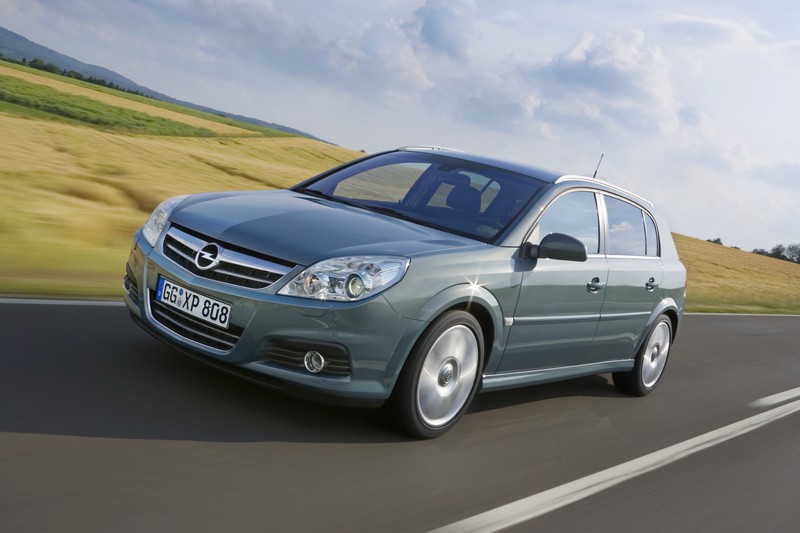

Opel Signum
Date of manufacture
2005 – 2008 (Five-door hatchback)
Platform
Epsilon platform
Manufacturing locations
Rüsselsheim am Main, Germany
Designer
-
Tags
D-segment
German cars
The Opel Signum is a five-door hatchback that was produced from 2005. The car was built on the Epsilon platform and offers a wide range of petrol and diesel engines. The most powerful variant, the 2.8 V6 Turbo, produces 184 kW and has the best acceleration from 0-100 km/h in 7.6 seconds. The top speed of this model is 250 km/h. The most economical model is the 1.9 CDTI with a combined fuel consumption of 5.9 l/100 km and CO2 emissions of 159 g/km. The luggage compartment can offer a volume of 365-550 l.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2005 – 2008Internal designation
- Technical data
Five-door hatchback
| 1.8 | 1.8 | 2.2 Direct | 2.2 Direct | 2.0 Turbo | 2.8 V6 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1796 | 1796 | 2198 | 2198 | 1998 | 2792 |
| Maximum output / speed [kW/min-1] | 103/6300 | 103/6300 | 114/5600 | 114/5600 | 129/5500 | 184/5500 |
| Maximum torque [Nm/min-1] | 175/3800 | 175/3800 | 220/3800 | 220/3800 | 265/2500-3800 | 350/1800-4500 |
| Bore and stroke [mm x mm] | 80,5 x 88,2 | 80,5 x 88,2 | 86,0 x 94,6 | 86,0 x 94,6 | 86,0 x 86,0 | 89,0 x 74,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 6 gear manual | 5 gear automatic | 5 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 207 | 207 | 210 | 206 | 222 | 250 |
| Acceleration 0–100 km/h [s] | 11.3 | 13.1 | 9.8 | 10.9 | 9.4 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.4 | 10.0 | 10.9 | 11.6 | 12.8 | 15.7 |
| Out of town [l] | 6.1 | 5.7 | 6.5 | 6.4 | 6.6 | 7.6 |
| Combined [l] | 7.7 | 7.3 | 8.1 | 8.3 | 8.9 | 10.6 |
| CO2 emissions [g/km] | 185 | 175 | 194 | 199 | 214 | 254 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Overall weight [kg] | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 365-550 | 365-550 | 365-550 | 365-550 | 365-550 | 365-550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 875/1410 | 875/1410 | 875/1410 | 875/1410 | 875/1410 | 875/1410 |
| Boot length [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Boot length with rear seats folded [mm] | 1820 | 1820 | 1820 | 1820 | 1820 | 1820 |
| Boot width between wheels/max [mm] | 978/1054 | 978/1054 | 978/1054 | 978/1054 | 978/1054 | 978/1054 |
| Boot height to headliner/ceiling [mm] | -/761 | -/761 | -/761 | -/761 | -/761 | -/761 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 599 | 599 | 599 | 599 | 599 | 599 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 |
| Overall length [mm] | 4651 | 4651 | 4651 | 4651 | 4651 | 4651 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1466 | 1466 | 1466 | 1466 | 1466 | 1466 |
| Wheelbase [mm] | 2830 | 2830 | 2830 | 2830 | 2830 | 2830 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.8 V6 Turbo | 1.9 CDTI | 1.9 CDTI | 1.9 CDTI | 3.0 V6 CDTI | 3.0 V6 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/8 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2792 | 1910 | 1910 | 1910 | 2958 | 2958 |
| Maximum output / speed [kW/min-1] | 184/5500 | 88/3500-4000 | 110/4000 | 110/4000 | 135/4000 | 135/4000 |
| Maximum torque [Nm/min-1] | 350/1800-4500 | 280/2000-2750 | 320/2000-2750 | 320/2000-2750 | 400/1900-2700 | 400/1900-2700 |
| Bore and stroke [mm x mm] | 89,0 x 74,8 | 82,0 x 90,4 | 82,0 x 90,4 | 82,0 x 90,4 | 87,5 x 80,0 | 87,5 x 80,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 250 | 193 | 210 | 205 | 224 | 219 |
| Acceleration 0–100 km/h [s] | 8.0 | 12.0 | 10.4 | 10.6 | 9.2 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 17.4 | 7.6 | 7.6 | 9.6 | 9.9 | 10.3 |
| Out of town [l] | 7.6 | 4.9 | 4.9 | 5.5 | 5.3 | 5.4 |
| Combined [l] | 11.2 | 5.9 | 5.9 | 7.0 | 7.0 | 7.2 |
| CO2 emissions [g/km] | 269 | 159 | 159 | 189 | 189 | 194 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Overall weight [kg] | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 365-550 | 365-550 | 365-550 | 365-550 | 365-550 | 365-550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 875/1410 | 875/1410 | 875/1410 | 875/1410 | 875/1410 | 875/1410 |
| Boot length [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Boot length with rear seats folded [mm] | 1820 | 1820 | 1820 | 1820 | 1820 | 1820 |
| Boot width between wheels/max [mm] | 978/1054 | 978/1054 | 978/1054 | 978/1054 | 978/1054 | 978/1054 |
| Boot height to headliner/ceiling [mm] | -/761 | -/761 | -/761 | -/761 | -/761 | -/761 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 599 | 599 | 599 | 599 | 599 | 599 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 | 11.38/11.92 |
| Overall length [mm] | 4651 | 4651 | 4651 | 4651 | 4651 | 4651 |
| Overall width without/including mirrors [mm] | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 | 1798/2036 |
| Overall height [mm] | 1466 | 1466 | 1466 | 1466 | 1466 | 1466 |
| Wheelbase [mm] | 2830 | 2830 | 2830 | 2830 | 2830 | 2830 |
| Front wheel track [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
