Opel Mokka
Date of manufacture
2012 – 2016 (SUV)
Platform
GM Gamma II
Manufacturing locations
Incheon, South Korea
Zaragoza, Spain
Shanghai, People's Republic of China
Kaliningrad, Russia
Designer
Carsten Aengenheyster
Tags
Small SUV
German cars
The Opel Mokka is an SUV that has been manufactured since 2012. The vehicle is built on the GM Gamma II platform and is available in more than four countries - South Korea, Spain, China and Russia. It offers engine options including petrol and diesel units with a maximum power of 103 kW (1.4 Turbo). The highest speed of 196 km/h is achieved by the 1.4 Turbo LPG model, the best acceleration from 0-100 km/h in 9.4 seconds is provided by the 1.7 CDTI model and the lowest fuel consumption of 4.1 l/100 km is offered by the 1.6 CDTI version with CO2 emissions of 106 g/km. The boot of the car has a capacity of 356 l. In terms of safety, the Opel Mokka received a 5 out of 5 rating from EURONCAP as early as 2012.
Car body style
Technical data
SUV
| 1.6 | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo LPG | 1.4 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1364 | 1364 | 1364 | 1364 | 1364 |
| Maximum output / speed [kW/min-1] | 85/6000 | 103/4900 | 103/4900 | 103/4900 | 103/4900 | 103/4900 |
| Maximum torque [Nm/min-1] | 155/4000 | 200/1850-4900 | 200/1850-4900 | 200/1850-4900 | 200/1850-4900 | 200/1850-4900 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 |
| Compression ratio | 10,8:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 170 | 196 | 196 | 191 | 196 | 186 |
| Acceleration 0–100 km/h [s] | 12.5 | 9.8 | 9.9 | 10.7 | 10.2 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4-8.5 | 8.0 | 7.6 | 8.2-8.7 | 7.6-7.9 [9.9 LPG] | 8.0 |
| Out of town [l] | 5.4-5.5 | 5.2 | 5.1 | 5.1-5.7 | 5.1-5.2 [6.3 LPG] | 5.5 |
| Combined [l] | 6.5-6.6 | 6.3 | 6.0 | 6.2-6.8 | 6.1 [7.6 LPG] | 6.4 |
| CO2 emissions [g/km] | 153 | 145 | 139 | 144-158 | 142 [124 LPG] | 149 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1319 | 1319 | 1334 | 1375 | 1370 |
| Overall weight [kg] | 1789 | 1828 | 1828 | 1843 | 1842 | 1879 |
| Maximum trailer weight unbraked/braked [kg] | 500/1200 | 500/1200 | 500/1200 | 500/1200 | 500/1200 | 500/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 356 | 356 | 356 | 356 | 356 | 356 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 785/1372 | 785/1372 | 785/1372 | 785/1372 | 785/1372 | 785/1372 |
| Boot length [mm] | 729 | 729 | 729 | 729 | 729 | 729 |
| Boot length with rear seats folded [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Boot width between wheels/max [mm] | 915/1006 | 915/1006 | 915/1006 | 915/1006 | 915/1006 | 915/1006 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 698 | 698 | 698 | 698 | 698 | 698 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Boot opening width min/max [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 [34 LPG] | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/70 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 205/70 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1777/2038 | 1777/2038 | 1777/2038 | 1777/2038 | 1777/2038 | 1777/2038 |
| Overall height [mm] | 1658 | 1658 | 1658 | 1658 | 1658 | 1658 |
| Wheelbase [mm] | 2555 | 2555 | 2555 | 2555 | 2555 | 2555 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 780 | 780 | 780 | 780 | 780 | 780 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13 | 13 | 13 | 13 | 13 | 13 |
| Approach angle rear [°] | 24 | 24 | 24 | 24 | 24 | 24 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI | 1.7 CDTI | 1.7 CDTI | 1.7 CDTI | 1.6 CDTI | 1.6 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1686 | 1686 | 1686 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 81/4000 | 96/4000 | 96/4000 | 96/4000 | 100/3500-4000 | 100/3500-4000 |
| Maximum torque [Nm/min-1] | 300/2000-2250 | 300/2000-2500 | 300/2000-2500 | 300/2000-2500 | 320/2000-2500 | 320/2000-2500 |
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 79,0 x 86,0 | 79,0 x 86,0 | 79,0 x 86,0 | 79,7 x 80,1 | 79,7 x 80,1 |
| Compression ratio | 16,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 178 | 190 | 190 | 185 | 190 | 188 |
| Acceleration 0–100 km/h [s] | 12.5 | 9.6 | 10.5 | 9.4 | 9.9 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.6 | 5.4 | 6.4 | 5.6 | 4.6 | 5.9 |
| Out of town [l] | 3.8 | 4.0 | 4.6 | 4.5 | 3.8 | 4.3 |
| Combined [l] | 4.1 | 4.5 | 5.3 | 4.9 | 4.1 | 4.9 |
| CO2 emissions [g/km] | 106 | 120 | 139 | 129 | 106 | 129 |
| Emission standard | EU6 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1374 | 1374 | 1387 | 1429 | 1374 | 1387 |
| Overall weight [kg] | 1808 | 1883 | 1896 | 1938 | 1883 | 1896 |
| Maximum trailer weight unbraked/braked [kg] | 500/1500 | 500/1200 | 500/1200 | 500/1200 | 500/1500 | 500/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 356 | 356 | 356 | 356 | 356 | 356 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 785/1372 | 785/1372 | 785/1372 | 785/1372 | 785/1372 | 785/1372 |
| Boot length [mm] | 729 | 729 | 729 | 729 | 729 | 729 |
| Boot length with rear seats folded [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Boot width between wheels/max [mm] | 915/1006 | 915/1006 | 915/1006 | 915/1006 | 915/1006 | 915/1006 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 698 | 698 | 698 | 698 | 698 | 698 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 757 | 757 | 757 | 757 | 757 | 757 |
| Boot opening width min/max [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Wheel size rear | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1777/2038 | 1777/2038 | 1777/2038 | 1777/2038 | 1777/2038 | 1777/2038 |
| Overall height [mm] | 1658 | 1658 | 1658 | 1658 | 1658 | 1658 |
| Wheelbase [mm] | 2555 | 2555 | 2555 | 2555 | 2555 | 2555 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 780 | 780 | 780 | 780 | 780 | 780 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13 | 13 | 13 | 13 | 13 | 13 |
| Approach angle rear [°] | 24 | 24 | 24 | 24 | 24 | 24 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1598 | |||||
| Maximum output / speed [kW/min-1] | 100/3500-4000 | |||||
| Maximum torque [Nm/min-1] | 320/2000-2500 | |||||
| Bore and stroke [mm x mm] | 79,7 x 80,1 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 187 | |||||
| Acceleration 0–100 km/h [s] | 10.3 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5.0 | |||||
| Out of town [l] | 4.2 | |||||
| Combined [l] | 4.5 | |||||
| CO2 emissions [g/km] | 119 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1429 | |||||
| Overall weight [kg] | 1938 | |||||
| Maximum trailer weight unbraked/braked [kg] | 500/1500 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 356 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 785/1372 | |||||
| Boot length [mm] | 729 | |||||
| Boot length with rear seats folded [mm] | 1428 | |||||
| Boot width between wheels/max [mm] | 915/1006 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 698 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 757 | |||||
| Boot opening width min/max [mm] | 914 | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 52 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 215/60 R17 | |||||
| Tyre dimensions rear | 215/60 R17 | |||||
| Wheel size front | 6.5J x 17 | |||||
| Wheel size rear | 6.5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.9/- | |||||
| Overall length [mm] | 4278 | |||||
| Overall width without/including mirrors [mm] | 1777/2038 | |||||
| Overall height [mm] | 1658 | |||||
| Wheelbase [mm] | 2555 | |||||
| Front wheel track [mm] | 1540 | |||||
| Rear wheel track [mm] | 1540 | |||||
| Forward overhang [mm] | 943 | |||||
| Rear overhang [mm] | 780 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 13 | |||||
| Approach angle rear [°] | 24 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

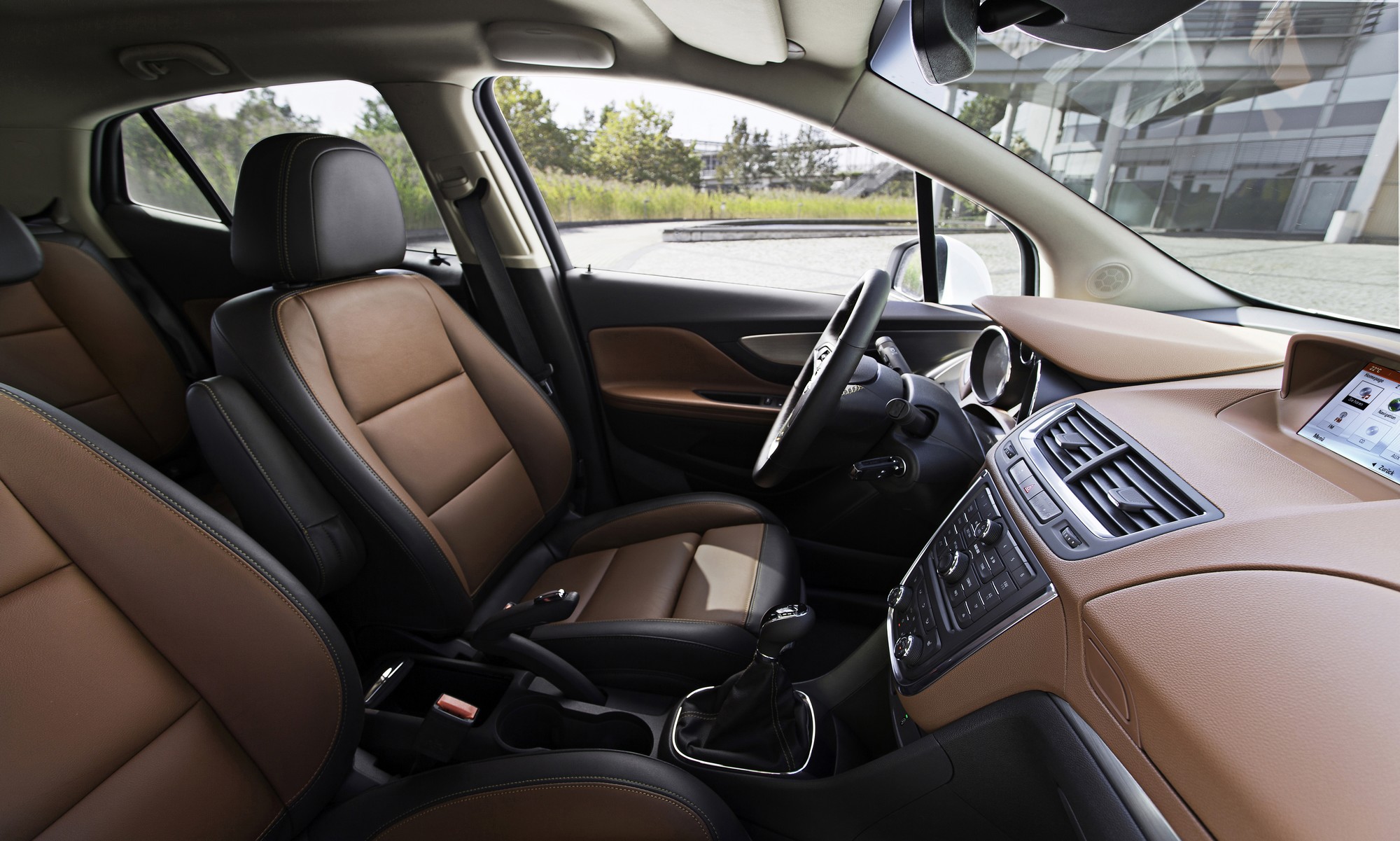

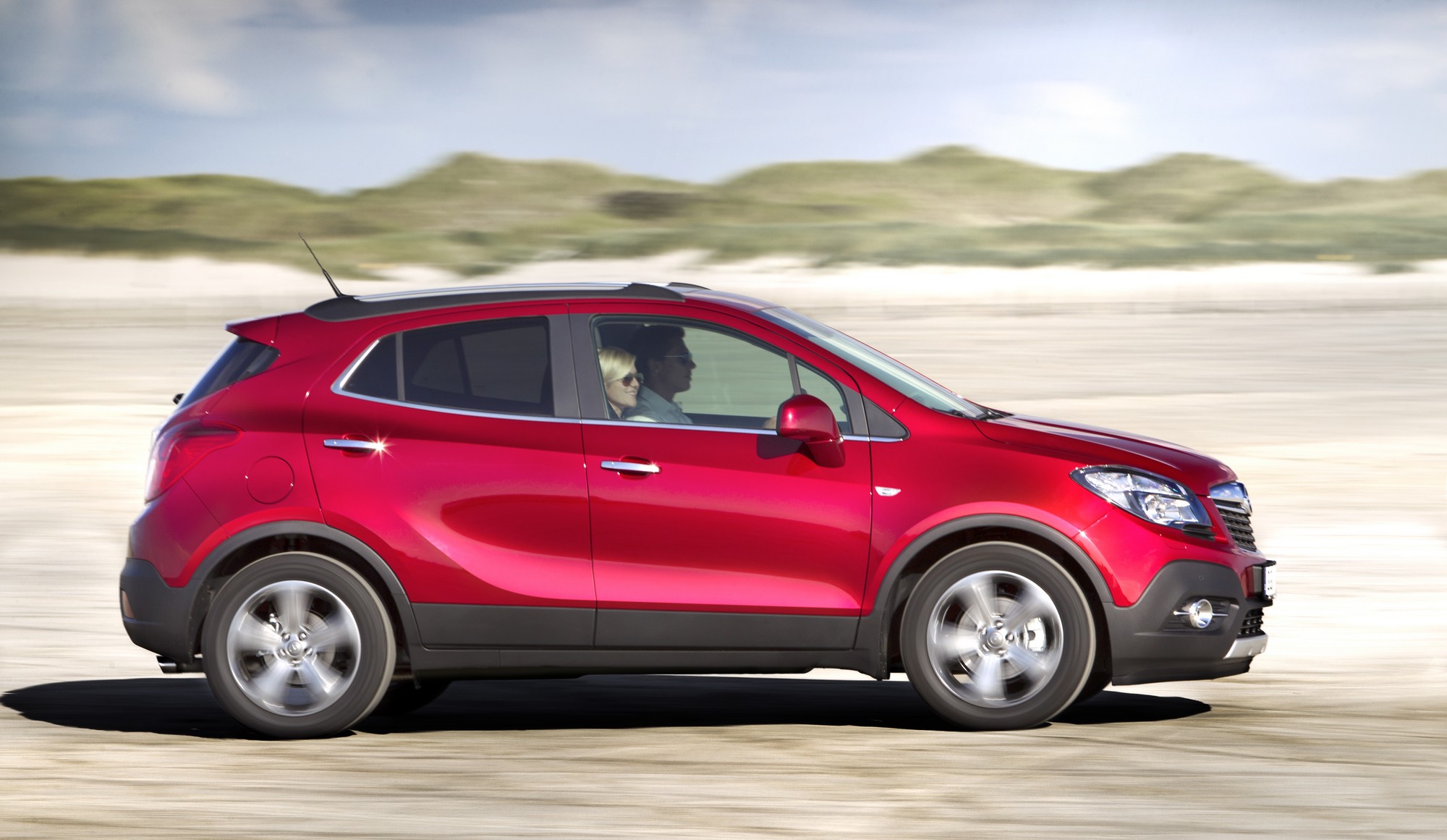

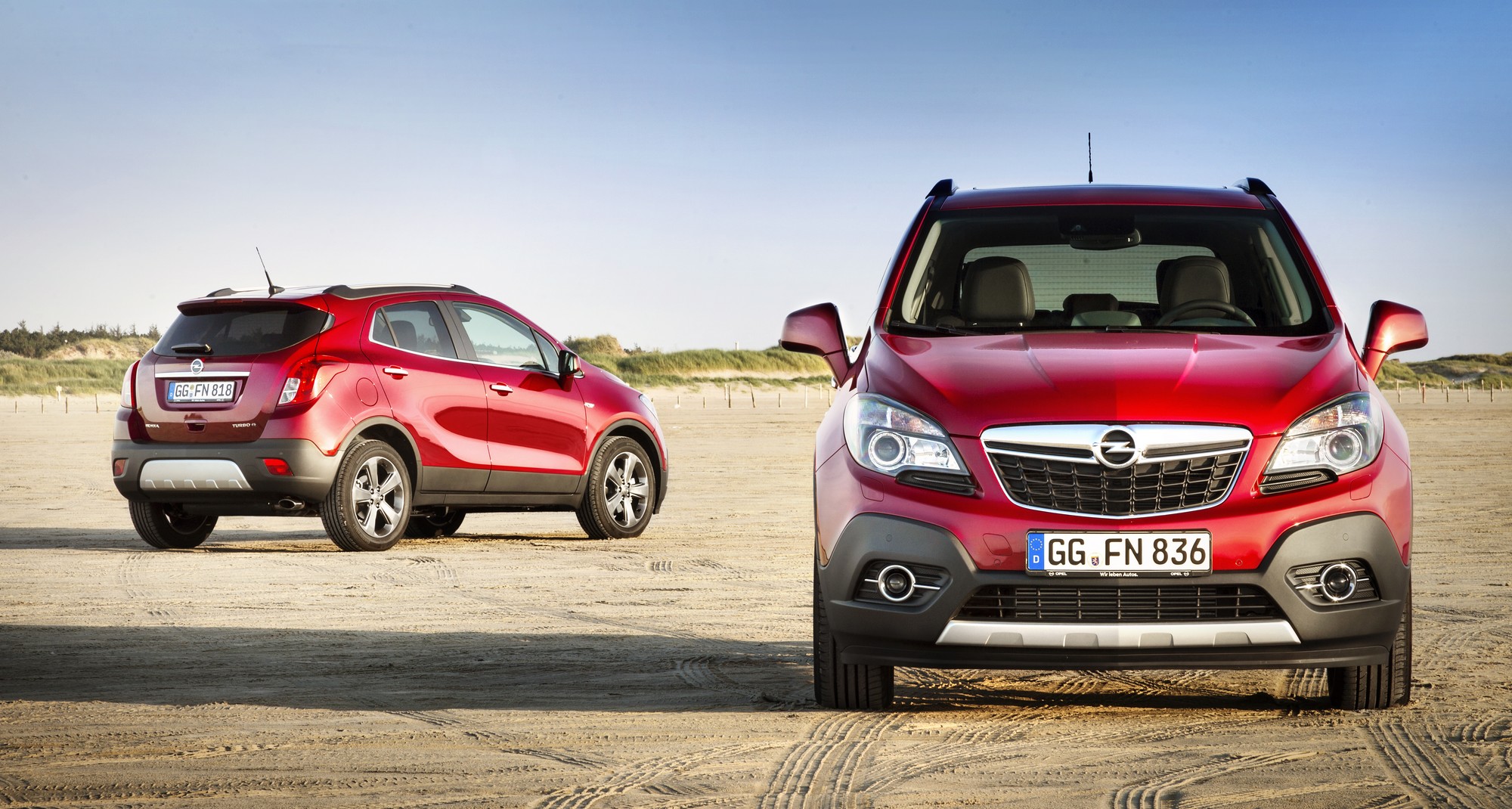

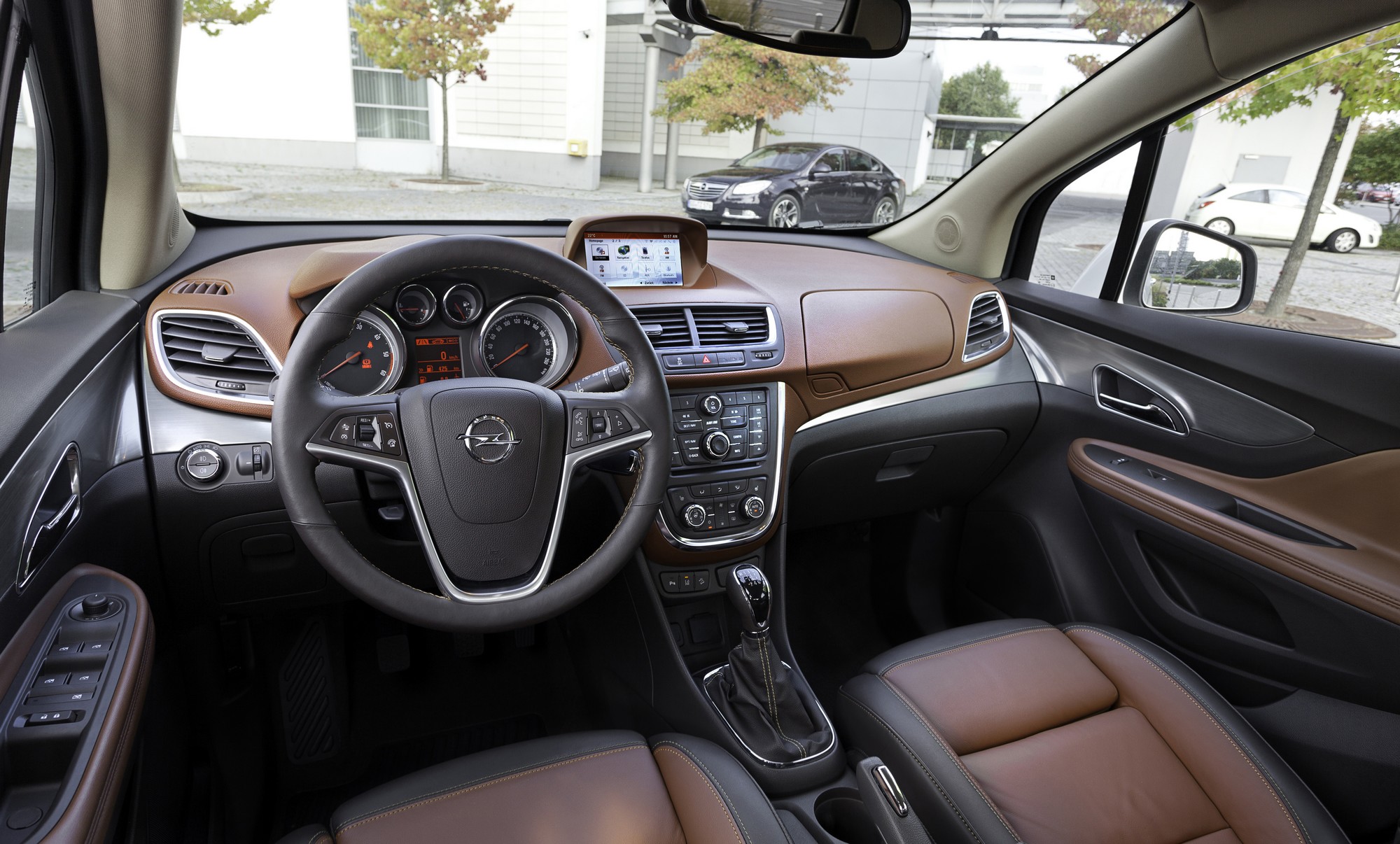

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
