Opel Meriva
Date of manufacture
2010 – 2013 (MPV)
Platform
SCCS platform
Manufacturing locations
Zaragoza, Spain
Designer
Niels Loeb
Tags
Small MPV
German cars

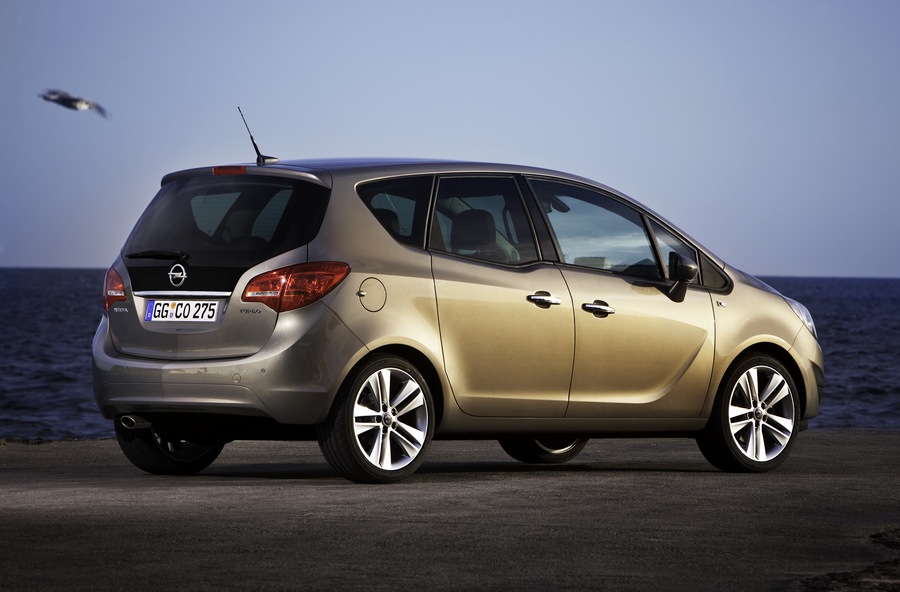

The Opel Meriva is an MPV that has been produced since 2010. The vehicle is built on the SCCS platform and its production takes place in Spain. It offers both petrol and diesel engines, the most powerful being the 1.4 Turbo with 103 kW of power and a top speed of 196 km/h. The best acceleration from 0-100 km/h is achieved by the 1.7 CDTI model in 9.9 seconds. The most fuel-efficient version, the 1.3 CDTI EcoFlex, has a consumption of 4.1 l/100 km and emissions of 109 g/km. The trunk can hold 400 liters of cargo and the vehicle's safety was rated by EURONCAP in 2010 at 5 out of 5 possible points.
Car body style
MPV
Date of manufacture
2010 – 2013Internal designation
Meriva B
Technical data
MPV
| 1.4 | 1.4 ecoFLEX | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo LPG | 1.4 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1398 | 1398 | 1364 | 1364 | 1364 | 1364 |
| Maximum output / speed [kW/min-1] | 74/6000 | 74/6000 | 88/4800-6000 | 88/4800-6000 | 88/4800-6000 | 88/4800-6000 |
| Maximum torque [Nm/min-1] | 130/4000 | 130/4000 | 175/1750-4800 | 175/1750-4800 | 175/1750-4800 | 175/1750-4800 |
| Bore and stroke [mm x mm] | 73,4 x 82,6 | 73,4 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 177 | 177 | 188 | 188 | 188 [187 LPG] | 188 |
| Acceleration 0–100 km/h [s] | 13.9 | 13.9 | 11.5 | 11.5 | 11.5 [11.8 LPG] | 11.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6-7.9 | 6.9 | 7.8-8.0 | 7.1 | 8.3 [10.1 LPG] | 8.4 |
| Out of town [l] | 5.0-6.1 | 4.9 | 4.8-5.0 | 4.8 | 5.0 [6.2 LPG] | 5.2 |
| Combined [l] | 6.0-6.1 | 5.6 | 5.9-6.1 | 5.6 | 6.2 [7.6 LPG] | 6.3 |
| CO2 emissions [g/km] | 140-144 | 132 | 139-143 | 132 | 146 [124 LPG] | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1376 | 1376 | 1408 | 1408 | - | 1408 |
| Overall weight [kg] | 1905 | 1905 | 1930 | 1930 | - | 1930 |
| Maximum trailer weight unbraked/braked [kg] | 670/750 | 670/750 | 680/1050 | 680/1050 | - | 680/1050 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 60/- |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Boot length with rear seats folded [mm] | 1642 | 1642 | 1642 | 1642 | 1642 | 1642 |
| Boot width between wheels/max [mm] | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | - | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 15 | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 15 | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 |
| Overall length [mm] | 4288 | 4288 | 4288 | 4288 | 4288 | 4288 |
| Overall width without/including mirrors [mm] | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 |
| Overall height [mm] | 1615 | 1615 | 1615 | 1615 | 1615 | 1615 |
| Wheelbase [mm] | 2644 | 2644 | 2644 | 2644 | 2644 | 2644 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.3 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1364 | 1364 | 1364 | 1248 |
| Maximum output / speed [kW/min-1] | 88/4800-6000 | 88/4800-6000 | 103/4900-6000 | 103/4900-6000 | 103/4900-6000 | 55/4000 |
| Maximum torque [Nm/min-1] | 175/1750-4800 | 175/1750-4800 | 200/1850-4900 | 200/1850-4900 | 200/1850-4900 | 180/1750-2500 |
| Bore and stroke [mm x mm] | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 69,6 x 82,0 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 188 | 185 | 196 | 196 | 193 | 160 |
| Acceleration 0–100 km/h [s] | 11.5 | 11.9 | 10.3 | 10.3 | 11.1 | 16.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 9.6 | 8.4-8.8 | 7.9 | 9.6 | 5.6-5.9 |
| Out of town [l] | 5.1 | 5.8 | 5.2-5.4 | 5.1 | 5.8 | 4.2-4.3 |
| Combined [l] | 6.1 | 7.2 | 6.3-6.7 | 6.1 | 7.2 | 4.7-4.9 |
| CO2 emissions [g/km] | 144 | 169 | 149-156 | 144 | 169 | 124-129 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1408 | 1486 | 1408 | 1408 | 1486 | 1408 |
| Overall weight [kg] | 1930 | 1995 | 1965 | 1965 | 1995 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | 680/1050 | 720/1300 | 680/1200 | 680/1200 | 720/1300 | 710/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 60/- |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Boot length with rear seats folded [mm] | 1642 | 1642 | 1642 | 1642 | 1642 | 1642 |
| Boot width between wheels/max [mm] | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Tyre dimensions rear | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 15 |
| Wheel size rear | 6.5J x 16 | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 |
| Overall length [mm] | 4288 | 4288 | 4288 | 4288 | 4288 | 4288 |
| Overall width without/including mirrors [mm] | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 |
| Overall height [mm] | 1615 | 1615 | 1615 | 1615 | 1615 | 1615 |
| Wheelbase [mm] | 2644 | 2644 | 2644 | 2644 | 2644 | 2644 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 CDTI EcoFlex | 1.3 CDTI EcoFlex | 1.7 CDTI | 1.7 CDTI | 1.7 CDTI | 1.7 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1248 | 1248 | 1686 | 1686 | 1686 | 1686 |
| Maximum output / speed [kW/min-1] | 70/4000 | 70/4000 | 74/4000 | 81/4000 | 81/4000 | 81/4000 |
| Maximum torque [Nm/min-1] | 180/1750-3500 | 180/1750-3500 | 260/1700-2550 | 280/1750-2500 | 280/1750-2500 | 280/1750-2500 |
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 69,6 x 82,0 | 79,0 x 86,0 | 79,0 x 86,0 | 79,0 x 86,0 | 79,0 x 86,0 |
| Compression ratio | 16,8:1 | 16,8:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 168 | 168 | 172 | 182 | 182 | 178 |
| Acceleration 0–100 km/h [s] | 13.8 | 13.8 | 13.9 | 11.8 | 11.8 | 12.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 4.8 | 7.9-8.6 | 6.5 | 5.6 | 7.9 |
| Out of town [l] | 3.9 | 3.7 | 5.0-5.1 | 4.5 | 4.1 | 5.0 |
| Combined [l] | 4.5 | 4.1 | 6.1-6.4 | 5.3 | 4.7 | 6.1 |
| CO2 emissions [g/km] | 119 | 109 | 160-168 | 139 | 124 | 160 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1408 | 1408 | - | 1518 | 1518 | 1518 |
| Overall weight [kg] | 1800 | 1800 | - | 2040 | 2040 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | 740/1100 | 740/1100 | 740/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 60/- |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Boot length with rear seats folded [mm] | 1642 | 1642 | 1642 | 1642 | 1642 | 1642 |
| Boot width between wheels/max [mm] | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 |
| Overall length [mm] | 4288 | 4288 | 4288 | 4288 | 4288 | 4288 |
| Overall width without/including mirrors [mm] | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 |
| Overall height [mm] | 1615 | 1615 | 1615 | 1615 | 1615 | 1615 |
| Wheelbase [mm] | 2644 | 2644 | 2644 | 2644 | 2644 | 2644 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CDTI | 1.7 CDTI | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1686 | 1686 | ||||
| Maximum output / speed [kW/min-1] | 96/4000 | 96/4000 | ||||
| Maximum torque [Nm/min-1] | 300/2000-2500 | 300/2000-2500 | ||||
| Bore and stroke [mm x mm] | 79,0 x 86,0 | 79,0 x 86,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 196 | 196 | ||||
| Acceleration 0–100 km/h [s] | 9.9 | 9.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.4-6.5 | 5.6-5.7 | ||||
| Out of town [l] | 4.5 | 4.1-4.4 | ||||
| Combined [l] | 5.2-5.3 | 4.7-4.9 | ||||
| CO2 emissions [g/km] | 138-139 | 124-129 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1518 | 1518 | ||||
| Overall weight [kg] | 2040 | 2040 | ||||
| Maximum trailer weight unbraked/braked [kg] | 740/1200 | 740/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 60/- | 60/- | ||||
| Boot volume [l] | 400 | 400 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | ||||
| Boot length [mm] | 815 | 815 | ||||
| Boot length with rear seats folded [mm] | 1642 | 1642 | ||||
| Boot width between wheels/max [mm] | -/1038 | -/1038 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 54 | 54 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | torsion bar | torsion bar | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | ||||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.06/11.48 | 11.06/11.48 | ||||
| Overall length [mm] | 4288 | 4288 | ||||
| Overall width without/including mirrors [mm] | 1812/1994 | 1812/1994 | ||||
| Overall height [mm] | 1615 | 1615 | ||||
| Wheelbase [mm] | 2644 | 2644 | ||||
| Front wheel track [mm] | 1488 | 1488 | ||||
| Rear wheel track [mm] | 1509 | 1509 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
