Basic information Technical Specifications Gallery

Opel Insignia

Insignia G09 2008

Date of manufacture

2008 – 2013 (Sedan)

2008 – 2013 (Liftback)

2009 – 2013 (Estate)

Platform

GM Epsilon II

Manufacturing locations

Rüsselsheim am Main, Germany

Kaliningrad, Russia

Shanghai, People's Republic of China

Designer

Mark Adams

Malcolm Ward

Tags

D-segment

German cars

The Opel Insignia is available in three variants - sedan, liftback and estate. The car was first manufactured in 2008 and is produced in Germany, Russia and China. The model is based on the GM Epsilon II platform and offers a wide range of petrol and diesel engines. The most powerful model is the OPC 2.8 V6 Turbo ECOTEC with 239 kW, which reaches a top speed of 250 km/h and accelerates from 0-100 km/h in 6.0 seconds. The most economical version, the 2.0 CDTI ECOTEC EcoFlex, consumes 4.3 l/100 km with CO2 emissions of 115 g/km. The sedan model has a boot capacity of 500 l, the liftback 530 l and the estate 540 l. The Opel Insignia underwent EURONCAP safety tests in 2009 and received a rating of 5 out of 5.

Car body style

Sedan

Date of manufacture

2008 – 2013

Internal designation

G09

Engine size

Petrol

1.4 Turbo ECOTEC

1.6 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.8 V6 Turbo ECOTEC

2.8 V6 Turbo ECOTEC

OPC 2.8 V6 Turbo ECOTEC

OPC 2.8 V6 Turbo ECOTEC

Diesel

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC EcoFlex

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC EcoFlex

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

Liftback

Date of manufacture

2008 – 2013

Internal designation

G09

Engine size

Petrol

1.4 Turbo ECOTEC

1.6 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.8 V6 Turbo ECOTEC

2.8 V6 Turbo ECOTEC

OPC 2.8 V6 Turbo ECOTEC

OPC 2.8 V6 Turbo ECOTEC

Diesel

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC EcoFlex

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC EcoFlex

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

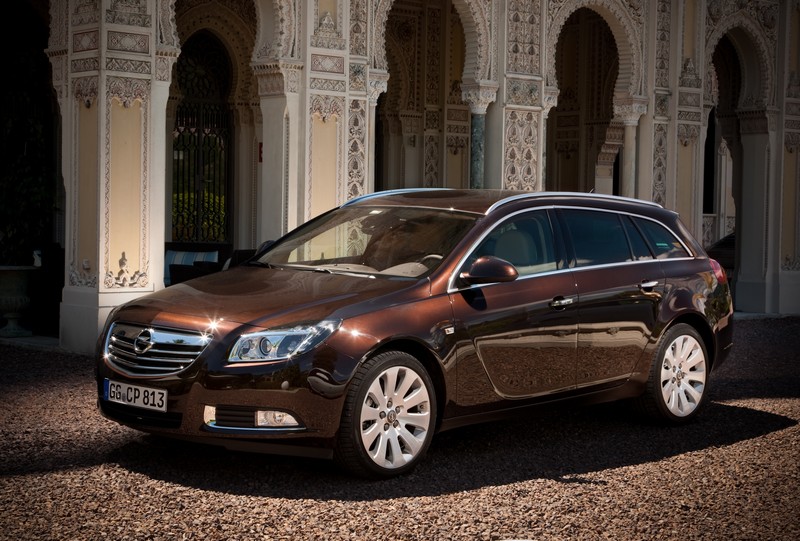

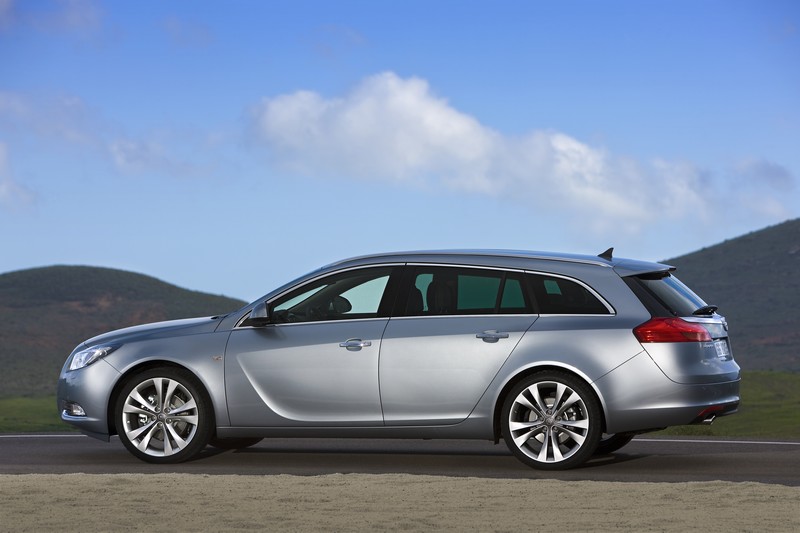

Estate (Sports Tourer)

Date of manufacture

2009 – 2013

Internal designation

G09

Engine size

Petrol

1.4 Turbo ECOTEC

1.6 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.0 Turbo ECOTEC

2.8 V6 Turbo ECOTEC

2.8 V6 Turbo ECOTEC

OPC 2.8 V6 Turbo ECOTEC

OPC 2.8 V6 Turbo ECOTEC

Diesel

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC EcoFlex

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC EcoFlex

2.0 CDTI ECOTEC

2.0 CDTI ECOTEC

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

2.0 CDTI BiTurbo

Euro NCAP

Pre-2009 Rating

Technical data

Sedan

	1.6 ECOTEC	1.8 ECOTEC	1.4 Turbo ECOTEC	1.6 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1796	1364	1598	1998	1998
Maximum output / speed [kW/min-1]	85/6000	103/6300	103/4900-6000	132/5500	162/5300	162/5300
Maximum torque [Nm/min-1]	155/4000	175/3800	200/1850-4900	230/2200-5500	350/2000-4000	350/2000-4000
Bore and stroke [mm x mm]	79,0 x 81,5	80,5 x 88,5	72,5 x 82,6	79,0 x 81,5	86,0 x 86,0	86,0 x 86,0
Compression ratio	10,8:1	10,5:1	9,5:1	8,8:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves DCVCP	variable valve timing	turbo-supercharged variable timing of intake and exhaust valves DCVCP start&stop system	turbo-supercharged	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	-	-	-	-	-	-

Top speed [km/h]	192	207	205	225	242	242
Acceleration 0–100 km/h [s]	12.9	11.4	10.9	8.9	7.6	7.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.3	10.1-10.7	7.0	9.7-10.7	11.6-12.7	10.9
Out of town [l]	5.9	5.5-6.0	4.6	5.4-6.0	6.0-6.5	5.7
Combined [l]	7.5	7.2-7.7	5.5	7.0-7.7	8.1-8.8	7.6
CO2 emissions [g/km]	177	169-182	129	164-181	189-207	179

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2020	2020	2020	2020	2020	2020
Maximum trailer weight unbraked/braked [kg]	-	-	750/1250	750/1700	750/1700	750/1700
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1010	-/1010	-/1010	-/1010	-/1010	-/1010
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17	225/55 R17
Tyre dimensions rear	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17	225/55 R17
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1998	1998	1998	1998
Maximum output / speed [kW/min-1]	162/5300	162/5300	162/5300	184/5300	184/5300	184/5300
Maximum torque [Nm/min-1]	350/2000-4000	350/2000-4000	350/2000-4000	400/2400-3600	400/2400-3600	400/2400-3600
Bore and stroke [mm x mm]	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0
Compression ratio	9,3:1	9,3:1	9,3:1	9,3:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves

Drive axle	Front	4x4	4x4	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	automatic gearbox	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	all-wheel drive AWD	all-wheel drive AWD	all-wheel drive AWD

Top speed [km/h]	240	240	239	250	250	243
Acceleration 0–100 km/h [s]	7.8	7.7	7.9	7.5	7.5	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	13.0-14.2	13.1	14.4	12.1	11.5	13.3
Out of town [l]	6.2-6.9	6.9	7.1	6.4	6.4	6.7
Combined [l]	8.7-9.6	9.2	9.8	8.5	8.3	9.1
CO2 emissions [g/km]	204-225	215	229	199	194	214

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2020	2020	2020	2020	2020	2020
Maximum trailer weight unbraked/braked [kg]	750/1700	-	-	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1010	-/1010	-/1010	-/1010	-/1010	-/1010
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17
Tyre dimensions rear	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.8 V6 Turbo ECOTEC	2.8 V6 Turbo ECOTEC	OPC 2.8 V6 Turbo ECOTEC	OPC 2.8 V6 Turbo ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24	4/16	4/16
Engine displacement [cm³]	2792	2792	2792	2792	1956	1956
Maximum output / speed [kW/min-1]	191/5500	191/5500	239/5250	239/5250	81/4000	81/4000
Maximum torque [Nm/min-1]	350/1900-4500	350/1900-4500	435/5250	435/5250	260/1750-2500	260/1750-2500
Bore and stroke [mm x mm]	89,0 x 74,8	89,0 x 74,8	89,0 x 74,8	89,0 x 74,8	83,0 x 90,4	83,0 x 90,4
Compression ratio	9,5:1	9,5:1	9,5:1	9,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system

Drive axle	4x4	4x4	4x4	4x4	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	-	-

Top speed [km/h]	250	250	250	250	190	190
Acceleration 0–100 km/h [s]	6.9	7.1	6.0	6.3	12.1	12.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	16.2-16.9	16.6-17.6	15.8-16.6	16.1	6.0-7.7	5.1
Out of town [l]	7.8-8.0	7.7-8.1	8.4	-	3.9-4.7	3.8
Combined [l]	10.9-11.2	11.0-11.6	10.6-11.4	10.7	4.7-5.8	4.3
CO2 emissions [g/km]	256-263	258-272	249-268	251	124-154	114

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1810	1810	1503	1503
Overall weight [kg]	2020	2020	2315	2315	2020	2020
Maximum trailer weight unbraked/braked [kg]	750/1800-2000	750/1800-2000	-	-	750/1600	750/1600
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1190/1140	1190/1140	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1010	-/1010	-/1010	-/1010	-/1010	-/1010
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson with separate HiPerStrut weighbridge	MacPherson with separate HiPerStrut weighbridge	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	245/45 R18	245/45 R18	245/40 R19	245/40 R19	215/60 R16	215/60 R16
Tyre dimensions rear	245/45 R18	245/45 R18	245/40 R19	245/40 R19	215/60 R16	215/60 R16
Wheel size front	8.0J x 18	8.0J x 18	8.5J x 19	-	6.5J x 16	6.5J x 16
Wheel size rear	8.0J x 18	8.0J x 18	8.5J x 19	-	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	11.3/11.7	11.3/11.7	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC EcoFlex	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1956	1956	1956	1956	1956	1956
Maximum output / speed [kW/min-1]	96/4000	96/4000	96/4000	96/4000	118/4000	118/4000
Maximum torque [Nm/min-1]	300/1750-2500	300/1750-2500	300/1750-2500	300/1750-2500	350/1750-2500	350/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	-	-	automatic gearbox	-	automatic gearbox

Top speed [km/h]	205	205	207	204	218	215
Acceleration 0–100 km/h [s]	11.1	11.1	11.1	11.2	9.5	9.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.0-7.7	5.3	6.8	7.5-9.2	6.4-7.7	7.9-9.2
Out of town [l]	3.9-4.7	3.9	4.2	4.5-5.2	4.3-4.7	4.3-5.2
Combined [l]	4.7-5.8	4.4	5.2	5.6-6.7	5.1-5.8	5.7-6.7
CO2 emissions [g/km]	124-154	116	136	147-177	134-154	149-177

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2020	2020	2020	2020	2020	2020
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1600	-	750/1600	750/1600	750/1600
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1010	-/1010	-/1010	-/1010	-/1010	-/1010
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/60 R16	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17
Tyre dimensions rear	215/60 R16	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI ECOTEC EcoFlex	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI BiTurbo	2.0 CDTI BiTurbo	2.0 CDTI BiTurbo
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1956	1956	1956	1956	1956	1956
Maximum output / speed [kW/min-1]	118/4000	118/4000	118/4000	143/4000	143/4000	143/4000
Maximum torque [Nm/min-1]	350/1750-2500	350/1750-2500	350/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter start&stop system

Drive axle	Front	4x4	4x4	Front	Front	4x4
Gearbox	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	-	automatic gearbox	all-wheel drive AWD

Top speed [km/h]	221	215	215	230	229	228
Acceleration 0–100 km/h [s]	9.5	10.2	10.2	8.7	8.8	8.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.4	7.0	8.7	6.1	7.9	6.6
Out of town [l]	3.7	4.7	5.0	4.2	4.7	4.8
Combined [l]	4.3	5.6	6.4	4.9	5.9	5.4
CO2 emissions [g/km]	115	147	169	129	155	144

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2020	2020	2020	2020	2020	2020
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1800	750/1800	750/1700	750/1700	750/1800
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1010	-/1010	-/1010	-/1010	-/1010	-/1010
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R17	225/55 R17	225/55 R17	245/45 R18	245/45 R18	245/45 R18
Tyre dimensions rear	225/55 R17	225/55 R17	225/55 R17	245/45 R18	245/45 R18	245/45 R18
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	8.0J x 18	8.0J x 18	8.0J x 18
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	8.0J x 18	8.0J x 18	8.0J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI BiTurbo
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1956
Maximum output / speed [kW/min-1]	143/4000
Maximum torque [Nm/min-1]	400/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4
Compression ratio	16,5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter

Drive axle	4x4
Gearbox	6 gear automatic
Drive specifications	all-wheel drive AWD

Top speed [km/h]	225
Acceleration 0–100 km/h [s]	9.0
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	8.4
Out of town [l]	5.2
Combined [l]	6.4
CO2 emissions [g/km]	169

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1503
Overall weight [kg]	2020
Maximum trailer weight unbraked/braked [kg]	750/1800
Maximum front/rear axle load [kg]	1005/1050
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	100/-

Boot volume [l]	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1010
Boot length [mm]	1003
Boot length with rear seats folded [mm]	1895
Boot width between wheels/max [mm]	1017/1027
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	4
Number of seats	5
Fuel tank volume [l]	70
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	multilink
Tyre dimensions front	245/45 R18
Tyre dimensions rear	245/45 R18
Wheel size front	8.0J x 18
Wheel size rear	8.0J x 18
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.9/11.4

Overall length [mm]	4830
Overall width without/including mirrors [mm]	1856/2084
Overall height [mm]	1498
Wheelbase [mm]	2737
Front wheel track [mm]	1585
Rear wheel track [mm]	1587
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Liftback

	1.6 ECOTEC	1.8 ECOTEC	1.4 Turbo ECOTEC	1.6 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1796	1364	1598	1998	1998
Maximum output / speed [kW/min-1]	85/6000	103/6300	103/4900-6000	132/5500	162/5300	162/5300
Maximum torque [Nm/min-1]	155/4000	175/3800	200/1850-4900	230/2200-5500	350/2000-4000	350/2000-4000
Bore and stroke [mm x mm]	79,0 x 81,5	80,5 x 88,5	72,5 x 82,6	79,0 x 81,5	86,0 x 86,0	86,0 x 86,0
Compression ratio	10,8:1	10,5:1	9,5:1	8,8:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves DCVCP	variable valve timing	turbo-supercharged variable timing of intake and exhaust valves DCVCP start&stop system	turbo-supercharged	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	-	-	-	-	-	-

Top speed [km/h]	192	207	205	225	242	242
Acceleration 0–100 km/h [s]	12.9	11.4	10.9	8.9	7.6	7.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.3	10.1-10.7	7.0	9.7-10.7	11.6-12.7	10.9
Out of town [l]	5.9	5.5-6.0	4.6	5.4-6.0	6.0-6.5	5.7
Combined [l]	7.5	7.2-7.7	5.5	7.0-7.7	8.1-8.8	7.6
CO2 emissions [g/km]	177	169-182	129	164-181	189-207	179

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2035	2035	2035	2035	2035	2035
Maximum trailer weight unbraked/braked [kg]	-	-	750/1250	750/1700	750/1700	750/1700
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	530	530	530	530	530	530
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1465	-/1465	-/1465	-/1465	-/1465	-/1465
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17	225/55 R17
Tyre dimensions rear	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17	225/55 R17
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1998	1998	1998	1998
Maximum output / speed [kW/min-1]	162/5300	162/5300	162/5300	184/5300	184/5300	184/5300
Maximum torque [Nm/min-1]	350/2000-4000	350/2000-4000	350/2000-4000	400/2400-3600	400/2400-3600	400/2400-3600
Bore and stroke [mm x mm]	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0
Compression ratio	9,3:1	9,3:1	9,3:1	9,3:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves

Drive axle	Front	4x4	4x4	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	automatic gearbox	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	all-wheel drive AWD	all-wheel drive AWD	all-wheel drive AWD

Top speed [km/h]	240	240	239	250	250	243
Acceleration 0–100 km/h [s]	7.8	7.7	7.9	7.5	7.5	7.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	13.0-14.2	13.1	14.4	12.1	11.5	13.3
Out of town [l]	6.2-6.9	6.9	7.1	6.4	6.4	6.7
Combined [l]	8.7-9.6	9.2	9.8	8.5	8.3	9.1
CO2 emissions [g/km]	204-225	215	229	199	194	214

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2035	2035	2035	2035	2035	2035
Maximum trailer weight unbraked/braked [kg]	750/1700	-	-	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	530	530	530	530	530	530
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1465	-/1465	-/1465	-/1465	-/1465	-/1465
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17
Tyre dimensions rear	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.8 V6 Turbo ECOTEC	2.8 V6 Turbo ECOTEC	OPC 2.8 V6 Turbo ECOTEC	OPC 2.8 V6 Turbo ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24	4/16	4/16
Engine displacement [cm³]	2792	2792	2792	2792	1956	1956
Maximum output / speed [kW/min-1]	191/5500	191/5500	239/5250	239/5250	81/4000	81/4000
Maximum torque [Nm/min-1]	350/1900-4500	350/1900-4500	435/5250	435/5250	260/1750-2500	260/1750-2500
Bore and stroke [mm x mm]	89,0 x 74,8	89,0 x 74,8	89,0 x 74,8	89,0 x 74,8	83,0 x 90,4	83,0 x 90,4
Compression ratio	9,5:1	9,5:1	9,5:1	9,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system

Drive axle	4x4	4x4	4x4	4x4	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	-	-

Top speed [km/h]	250	250	250	250	190	190
Acceleration 0–100 km/h [s]	6.9	7.1	6.0	6.3	12.1	12.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	16.2-16.9	16.6-17.6	15.8-16.6	16.1	6.0-7.7	5.1
Out of town [l]	7.8-8.0	7.7-8.1	8.4	-	3.9-4.7	3.8
Combined [l]	10.9-11.2	11.0-11.6	10.6-11.4	10.7	4.7-5.8	4.3
CO2 emissions [g/km]	256-263	258-272	249-268	251	124-154	114

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1810	1810	1503	1503
Overall weight [kg]	2035	2035	2035	2035	2035	2035
Maximum trailer weight unbraked/braked [kg]	750/1800-2000	750/1800-2000	-	-	750/1600	750/1600
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1190/1140	1190/1140	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	530	530	530	530	530	530
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1465	-/1465	-/1465	-/1465	-/1465	-/1465
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson with separate HiPerStrut weighbridge	MacPherson with separate HiPerStrut weighbridge	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	245/45 R18	245/45 R18	245/40 R19	245/40 R19	215/60 R16	215/60 R16
Tyre dimensions rear	245/45 R18	245/45 R18	245/40 R19	245/40 R19	215/60 R16	215/60 R16
Wheel size front	8.0J x 18	8.0J x 18	8.5J x 19	-	6.5J x 16	6.5J x 16
Wheel size rear	8.0J x 18	8.0J x 18	8.5J x 19	-	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	11.3/11.7	11.3/11.7	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC EcoFlex	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1956	1956	1956	1956	1956	1956
Maximum output / speed [kW/min-1]	96/4000	96/4000	96/4000	96/4000	118/4000	118/4000
Maximum torque [Nm/min-1]	300/1750-2500	300/1750-2500	300/1750-2500	300/1750-2500	350/1750-2500	350/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	-	-	automatic gearbox	-	automatic gearbox

Top speed [km/h]	205	205	207	204	218	215
Acceleration 0–100 km/h [s]	11.1	11.1	11.1	11.2	9.5	9.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.0-7.7	5.3	6.8	7.5-9.2	6.4-7.7	7.9-9.2
Out of town [l]	3.9-4.7	3.9	4.2	4.5-5.2	4.3-4.7	4.3-5.2
Combined [l]	4.7-5.8	4.4	5.2	5.6-6.7	5.1-5.8	5.7-6.7
CO2 emissions [g/km]	124-154	116	136	147-177	134-154	149-177

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2035	2035	2035	2035	2035	2035
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1600	-	750/1600	750/1600	750/1600
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	530	530	530	530	530	530
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1465	-/1465	-/1465	-/1465	-/1465	-/1465
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/60 R16	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17
Tyre dimensions rear	215/60 R16	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI ECOTEC EcoFlex	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI BiTurbo	2.0 CDTI BiTurbo	2.0 CDTI BiTurbo
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1956	1956	1956	1956	1956	1956
Maximum output / speed [kW/min-1]	118/4000	118/4000	118/4000	143/4000	143/4000	143/4000
Maximum torque [Nm/min-1]	350/1750-2500	350/1750-2500	350/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter start&stop system

Drive axle	Front	4x4	4x4	Front	Front	4x4
Gearbox	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	-	automatic gearbox	all-wheel drive AWD

Top speed [km/h]	221	215	215	230	229	228
Acceleration 0–100 km/h [s]	9.5	10.2	10.2	8.7	8.8	8.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.4	7.0	8.7	6.1	7.9	6.6
Out of town [l]	3.7	4.7	5.0	4.2	4.7	4.8
Combined [l]	4.3	5.6	6.4	4.9	5.9	5.4
CO2 emissions [g/km]	115	147	169	129	155	144

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1503	1503	1503	1503	1503	1503
Overall weight [kg]	2035	2035	2035	2035	2035	2035
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1800	750/1800	750/1700	750/1700	750/1800
Maximum front/rear axle load [kg]	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050	1005/1050
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	530	530	530	530	530	530
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1465	-/1465	-/1465	-/1465	-/1465	-/1465
Boot length [mm]	1003	1003	1003	1003	1003	1003
Boot length with rear seats folded [mm]	1895	1895	1895	1895	1895	1895
Boot width between wheels/max [mm]	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027	1017/1027
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R17	225/55 R17	225/55 R17	245/45 R18	245/45 R18	245/45 R18
Tyre dimensions rear	225/55 R17	225/55 R17	225/55 R17	245/45 R18	245/45 R18	245/45 R18
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	8.0J x 18	8.0J x 18	8.0J x 18
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	8.0J x 18	8.0J x 18	8.0J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4830	4830	4830	4830	4830	4830
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1498	1498	1498	1498	1498	1498
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI BiTurbo
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1956
Maximum output / speed [kW/min-1]	143/4000
Maximum torque [Nm/min-1]	400/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4
Compression ratio	16,5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter

Drive axle	4x4
Gearbox	6 gear automatic
Drive specifications	all-wheel drive AWD

Top speed [km/h]	225
Acceleration 0–100 km/h [s]	9.0
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	8.4
Out of town [l]	5.2
Combined [l]	6.4
CO2 emissions [g/km]	169

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1503
Overall weight [kg]	2035
Maximum trailer weight unbraked/braked [kg]	750/1800
Maximum front/rear axle load [kg]	1005/1050
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	100/-

Boot volume [l]	530
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1465
Boot length [mm]	1003
Boot length with rear seats folded [mm]	1895
Boot width between wheels/max [mm]	1017/1027
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	70
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	multilink
Tyre dimensions front	245/45 R18
Tyre dimensions rear	245/45 R18
Wheel size front	8.0J x 18
Wheel size rear	8.0J x 18
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.9/11.4

Overall length [mm]	4830
Overall width without/including mirrors [mm]	1856/2084
Overall height [mm]	1498
Wheelbase [mm]	2737
Front wheel track [mm]	1585
Rear wheel track [mm]	1587
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Estate (Sports Tourer)

	1.6 ECOTEC	1.8 ECOTEC	1.4 Turbo ECOTEC	1.6 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1796	1364	1598	1998	1998
Maximum output / speed [kW/min-1]	85/6000	103/6300	103/4900-6000	132/5500	162/5300	162/5300
Maximum torque [Nm/min-1]	155/4000	175/3800	200/1850-4900	230/2200-5500	350/2000-4000	350/2000-4000
Bore and stroke [mm x mm]	79,0 x 81,5	80,5 x 88,5	72,5 x 82,6	79,0 x 81,5	86,0 x 86,0	86,0 x 86,0
Compression ratio	10,8:1	10,5:1	9,5:1	8,8:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves DCVCP	variable valve timing	turbo-supercharged variable timing of intake and exhaust valves DCVCP start&stop system	turbo-supercharged	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	-	-	-	-	-	-

Top speed [km/h]	187	202	200	220	236	236
Acceleration 0–100 km/h [s]	13.8	12.2	11.9	9.2	7.9	7.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.5	10.9-11.0	7.9	9.8-10.9	11.9-12.9	11.2
Out of town [l]	5.9-6.1	6.0-6.2	4.9	5.7-6.2	6.1-6.6	5.9
Combined [l]	7.6-7.7	7.8-7.9	5.9	7.2-7.9	8.3-8.9	7.8
CO2 emissions [g/km]	178-182	184-187	139	169-186	194-209	184

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1610	1610	1610	1610	1610	1610
Overall weight [kg]	2165	2165	2165	2165	2165	2165
Maximum trailer weight unbraked/braked [kg]	-	-	750/1200	750/1700	750/1700	750/1700
Maximum front/rear axle load [kg]	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	540	540	540	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530	-/1530	-/1530	-/1530	-/1530	-/1530
Boot length [mm]	1086	1086	1086	1086	1086	1086
Boot length with rear seats folded [mm]	1908	1908	1908	1908	1908	1908
Boot width between wheels/max [mm]	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17	225/55 R17
Tyre dimensions rear	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17	225/55 R17
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4908	4908	4908	4908	4908	4908
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1520	1520	1520	1520	1520	1520
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC	2.0 Turbo ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1998	1998	1998	1998
Maximum output / speed [kW/min-1]	162/5300	162/5300	162/5300	184/5300	184/5300	184/5300
Maximum torque [Nm/min-1]	350/2000-4000	350/2000-4000	350/2000-4000	400/2400-3600	400/2400-3600	400/2400-3600
Bore and stroke [mm x mm]	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0	86,0 x 86,0
Compression ratio	9,3:1	9,3:1	9,3:1	9,3:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves start&stop system	direct injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves

Drive axle	Front	4x4	4x4	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	automatic gearbox	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	all-wheel drive AWD	all-wheel drive AWD	all-wheel drive AWD

Top speed [km/h]	234	234	232	242	242	233
Acceleration 0–100 km/h [s]	8.1	8.0	8.2	7.8	7.8	8.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	13.2-14.3	13.2	14.5	12.3	11.9	13.6
Out of town [l]	6.4-7.0	7.0	7.2	6.6	6.7	6.9
Combined [l]	8.9-9.7	9.3	9.9	8.7	8.6	9.3
CO2 emissions [g/km]	209-228	219	233	204	202	219

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1610	1610	1610	1610	1610	1610
Overall weight [kg]	2165	2165	2165	2165	2165	2165
Maximum trailer weight unbraked/braked [kg]	750/1700	-	-	750/1800	750/1800	750/1800
Maximum front/rear axle load [kg]	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	540	540	540	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530	-/1530	-/1530	-/1530	-/1530	-/1530
Boot length [mm]	1086	1086	1086	1086	1086	1086
Boot length with rear seats folded [mm]	1908	1908	1908	1908	1908	1908
Boot width between wheels/max [mm]	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17
Tyre dimensions rear	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17	225/55 R17
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4908	4908	4908	4908	4908	4908
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1520	1520	1520	1520	1520	1520
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.8 V6 Turbo ECOTEC	2.8 V6 Turbo ECOTEC	OPC 2.8 V6 Turbo ECOTEC	OPC 2.8 V6 Turbo ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	6/24	4/16	4/16
Engine displacement [cm³]	2792	2792	2792	2792	1956	1956
Maximum output / speed [kW/min-1]	191/5500	191/5500	239/5250	239/5250	81/4000	81/4000
Maximum torque [Nm/min-1]	350/1900-4500	350/1900-4500	435/5250	435/5250	260/1750-2500	260/1750-2500
Bore and stroke [mm x mm]	89,0 x 74,8	89,0 x 74,8	89,0 x 74,8	89,0 x 74,8	83,0 x 90,4	83,0 x 90,4
Compression ratio	9,5:1	9,5:1	9,5:1	9,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system

Drive axle	4x4	4x4	4x4	4x4	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	-	-

Top speed [km/h]	250	248	250	250	185	185
Acceleration 0–100 km/h [s]	7.2	7.3	6.3	6.6	12.6	12.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	16.7-17.1	17.1-17.8	16.0-17.0	16.7	6.2-7.9	5.3
Out of town [l]	8.0-8.1	7.9-8.3	7.9-8.6	7.8	4.1-4.9	4.0
Combined [l]	11.2-11.4	11.3-11.8	10.9-11.7	11.0	4.9-6.0	4.5
CO2 emissions [g/km]	263-268	265-277	255-274	259	129-157	119

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1610	1610	1930	1930	1610	1610
Overall weight [kg]	2165	2165	2465	2465	2165	2165
Maximum trailer weight unbraked/braked [kg]	750/1700-2000	750/1700-2000	-	-	750/1600	750/1600
Maximum front/rear axle load [kg]	1015/1180	1015/1180	1215/1270	1215/1270	1015/1180	1015/1180
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	540	540	540	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530	-/1530	-/1530	-/1530	-/1530	-/1530
Boot length [mm]	1086	1086	1086	1086	1086	1086
Boot length with rear seats folded [mm]	1908	1908	1908	1908	1908	1908
Boot width between wheels/max [mm]	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson with separate HiPerStrut weighbridge	MacPherson with separate HiPerStrut weighbridge	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	245/45 R18	245/45 R18	245/40 R19	245/40 R19	215/60 R16	215/60 R16
Tyre dimensions rear	245/45 R18	245/45 R18	245/40 R19	245/40 R19	215/60 R16	215/60 R16
Wheel size front	8.0J x 18	8.0J x 18	8.5J x 19	-	6.5J x 16	6.5J x 16
Wheel size rear	8.0J x 18	8.0J x 18	8.5J x 19	-	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	11.3/11.7	11.3/11.7	10.9/11.4	10.9/11.4

Overall length [mm]	4908	4908	4908	4908	4908	4908
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1520	1520	1520	1520	1520	1520
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC EcoFlex	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1956	1956	1956	1956	1956	1956
Maximum output / speed [kW/min-1]	96/4000	96/4000	96/4000	96/4000	118/4000	118/4000
Maximum torque [Nm/min-1]	300/1750-2500	300/1750-2500	300/1750-2500	300/1750-2500	350/1750-2500	350/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	-	-	automatic gearbox	-	automatic gearbox

Top speed [km/h]	200	200	203	198	212	210
Acceleration 0–100 km/h [s]	11.6	11.6	11.6	11.7	9.9	10.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.2-7.9	5.3	6.9	7.5-9.5	7.1-7.9	8.3-9.5
Out of town [l]	4.1-4.9	4.0	4.3	4.6-5.4	4.8-4.9	5.0-5.4
Combined [l]	4.9-6.0	4.5	5.3	5.6-6.9	5.6-6.0	6.2-6.9
CO2 emissions [g/km]	129-157	119	139	149-183	149-157	164-183

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1610	1610	1610	1610	1610	1610
Overall weight [kg]	2165	2165	2165	2165	2165	2165
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1600	-	750/1600	750/1600	750/1600
Maximum front/rear axle load [kg]	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	540	540	540	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530	-/1530	-/1530	-/1530	-/1530	-/1530
Boot length [mm]	1086	1086	1086	1086	1086	1086
Boot length with rear seats folded [mm]	1908	1908	1908	1908	1908	1908
Boot width between wheels/max [mm]	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/60 R16	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17
Tyre dimensions rear	215/60 R16	215/60 R16	215/60 R16	215/60 R16	225/55 R17	225/55 R17
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.0J x 17	7.0J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4908	4908	4908	4908	4908	4908
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1520	1520	1520	1520	1520	1520
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI ECOTEC EcoFlex	2.0 CDTI ECOTEC	2.0 CDTI ECOTEC	2.0 CDTI BiTurbo	2.0 CDTI BiTurbo	2.0 CDTI BiTurbo
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1956	1956	1956	1956	1956	1956
Maximum output / speed [kW/min-1]	118/4000	118/4000	118/4000	143/4000	143/4000	143/4000
Maximum torque [Nm/min-1]	350/1750-2500	350/1750-2500	350/1750-2500	400/1750-2500	400/1750-2500	400/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4	83,0 x 90,4
Compression ratio	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1	16,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter start&stop system	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter start&stop system

Drive axle	Front	4x4	4x4	Front	Front	4x4
Gearbox	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	-	all-wheel drive AWD	all-wheel drive AWD automatic gearbox	-	automatic gearbox	all-wheel drive AWD

Top speed [km/h]	215	210	208	225	224	223
Acceleration 0–100 km/h [s]	9.9	10.6	10.8	8.9	9.0	9.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.6	6.9	8.8	6.4	8.0	6.9
Out of town [l]	3.9	4.9	5.3	4.3	4.8	4.9
Combined [l]	4.5	5.6	6.6	5.1	6.0	5.6
CO2 emissions [g/km]	119	149	175	134	158	149

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1610	1610	1610	1610	1610	1610
Overall weight [kg]	2165	2165	2165	2165	2165	2165
Maximum trailer weight unbraked/braked [kg]	750/1600	750/1800-2000	750/1700-1800	750/1700	750/1700	750/1800-2000
Maximum front/rear axle load [kg]	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180	1015/1180
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	540	540	540	540	540	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530	-/1530	-/1530	-/1530	-/1530	-/1530
Boot length [mm]	1086	1086	1086	1086	1086	1086
Boot length with rear seats folded [mm]	1908	1908	1908	1908	1908	1908
Boot width between wheels/max [mm]	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064	1030/1064
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/55 R17	225/55 R17	225/55 R17	245/45 R18	245/45 R18	245/45 R18
Tyre dimensions rear	225/55 R17	225/55 R17	225/55 R17	245/45 R18	245/45 R18	245/45 R18
Wheel size front	7.0J x 17	7.0J x 17	7.0J x 17	8.0J x 18	8.0J x 18	8.0J x 18
Wheel size rear	7.0J x 17	7.0J x 17	7.0J x 17	8.0J x 18	8.0J x 18	8.0J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4	10.9/11.4

Overall length [mm]	4908	4908	4908	4908	4908	4908
Overall width without/including mirrors [mm]	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084	1856/2084
Overall height [mm]	1520	1520	1520	1520	1520	1520
Wheelbase [mm]	2737	2737	2737	2737	2737	2737
Front wheel track [mm]	1585	1585	1585	1585	1585	1585
Rear wheel track [mm]	1587	1587	1587	1587	1587	1587
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 CDTI BiTurbo
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1956
Maximum output / speed [kW/min-1]	143/4000
Maximum torque [Nm/min-1]	400/1750-2500
Bore and stroke [mm x mm]	83,0 x 90,4
Compression ratio	16,5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail supercharging by a pair of differently sized turbochargers particulate filter

Drive axle	4x4
Gearbox	6 gear automatic
Drive specifications	all-wheel drive AWD

Top speed [km/h]	220
Acceleration 0–100 km/h [s]	9.2
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	8.6
Out of town [l]	5.4
Combined [l]	6.6
CO2 emissions [g/km]	174

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1610
Overall weight [kg]	2165
Maximum trailer weight unbraked/braked [kg]	750/1800
Maximum front/rear axle load [kg]	1015/1180
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	100/-

Boot volume [l]	540
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530
Boot length [mm]	1086
Boot length with rear seats folded [mm]	1908
Boot width between wheels/max [mm]	1030/1064
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	70
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	multilink
Tyre dimensions front	245/45 R18
Tyre dimensions rear	245/45 R18
Wheel size front	8.0J x 18
Wheel size rear	8.0J x 18
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.9/11.4

Overall length [mm]	4908
Overall width without/including mirrors [mm]	1856/2084
Overall height [mm]	1520
Wheelbase [mm]	2737
Front wheel track [mm]	1585
Rear wheel track [mm]	1587
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

Opel Insignia G09 2008 sedan

Opel Insignia G09 2009 sedan

Opel Insignia G09 2010 sedan

Opel Insignia G09 2011 sedan

Opel Insignia G09 2012 sedan

Opel Insignia G09 2008 interior

Opel Insignia Sports Tourer G09 2009 wagon

Opel Insignia Sports Tourer G09 2010 wagon

Opel Insignia Sports Tourer G09 2011 wagon

Opel Insignia Sports Tourer G09 2012 wagon

Opel Insignia Sports Tourer G09 2009 wagon

Opel Insignia Sports Tourer G09 2010 wagon

Opel Insignia Sports Tourer G09 2009 boot

Opel Insignia G09 2010 sedan

Opel Insignia G09 2011 sedan

Opel Insignia Sports Tourer OPC G09 2011 wagon

Opel Insignia Sports Tourer OPC G09 2010 wagon

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
