Opel Crossland X
Date of manufacture
5/2017 – 2020 (SUV)
Platform
PSA PF1 platform
Manufacturing locations
Zaragoza, Spain
Designer
Mark Adams
Tags
Small SUV
German cars

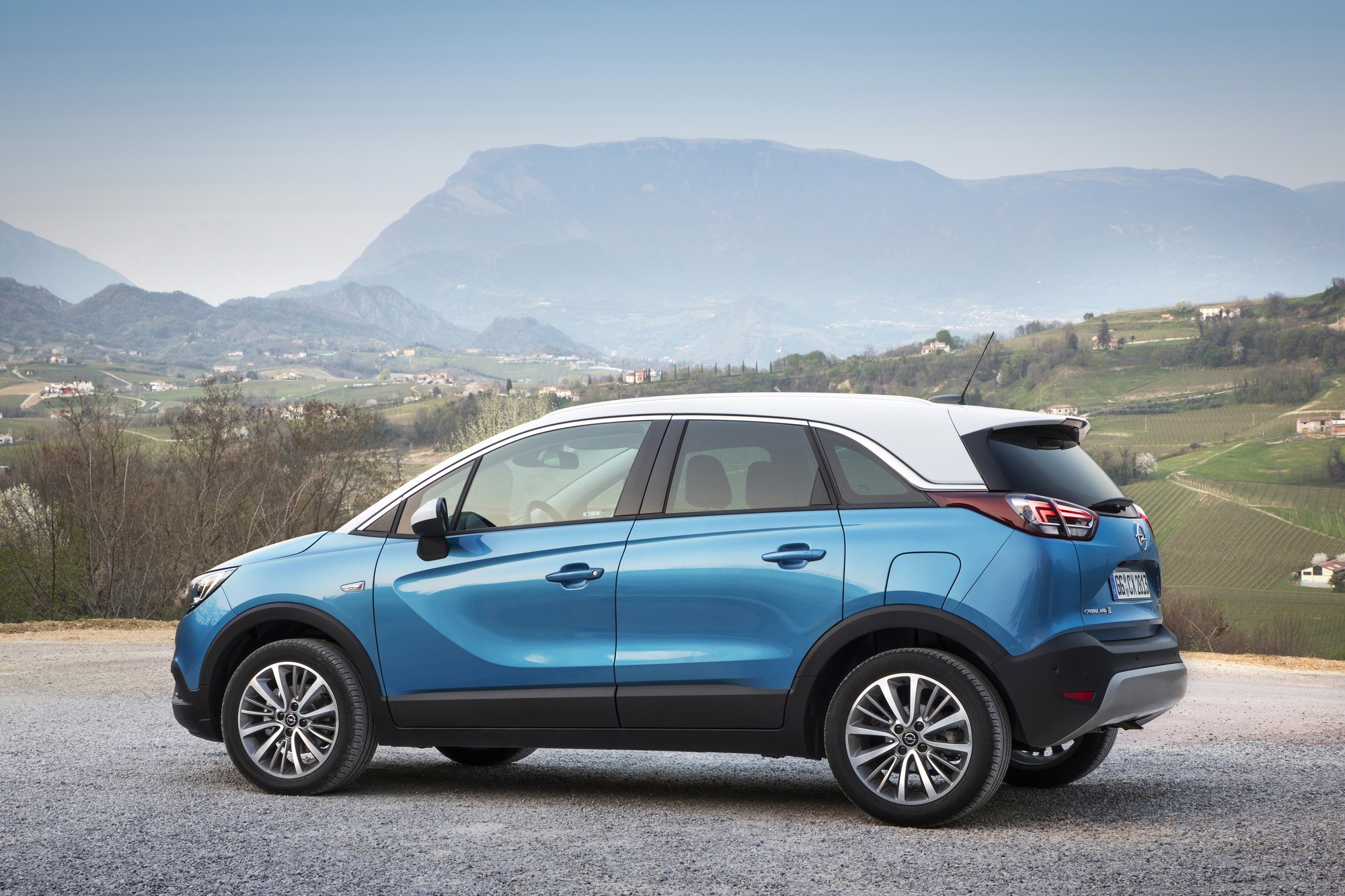

The Opel Crossland X has been available as an SUV since 2017. The vehicle manufactured in Spain is built on the PSA PF1 platform and offers petrol and diesel engines. The most powerful model is the 1.2 TURBO S/S with 96 kW, a top speed of 201 km/h and the best acceleration from 0-100 km/h in 9.1 seconds. The most economical version, the 1.6 CDTI S/S, has a fuel consumption of 3.6 l/100 km and emissions of 93 g/km. The boot capacity is 410-520 l and the model has successfully passed the EURONCAP safety tests with a rating of 5 out of 5.
Car body style
SUV
Date of manufacture
5/2017 – 2020Internal designation
Technical data
SUV
| 1.2 | 1.2 LPG | 1.2 TURBO S/S | 1.2 TURBO S/S | 1.2 TURBO S/S | 1.6 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | - | - | - | from to 2018 |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 4/8 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1199 | 1560 |
| Maximum output / speed [kW/min-1] | 60/5750 | 60/5750 [55/5750 LPG] | 81/5500 | 81/5500 | 96/5500 | 73/3750 |
| Maximum torque [Nm/min-1] | 118/2750 | 118/2750 [115/2800 LPG] | 205/1500 | 205/1500 | 230/1750 | 254/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 88,3 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 17,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 170 | 170 | 187-188 | 187 | 201-206 | 180 |
| Acceleration 0–100 km/h [s] | 14,0-14,5 | 14.0 | 10,6-10,9 | 11.8 | 9,1-9,9 | 11.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 19,5 | - | 10,4 | - | 8,7 | - |
| City [l] | 6,2-6,4 | 6.8 [8.4 LPG] | 5,4-5,6 | 6,3-6,5 | 5,7-6,2 | 4.5 |
| Out of town [l] | 4.4 | 4.5 [6.0 LPG] | 4,2-4,4 | 4,8-5,0 | 4.6 | 3.4 |
| Combined [l] | 5.1 | 5.4 [6.9 LPG] | 4.8 | 5,3-5,6 | 5,0-5,2 | 3.8 |
| CO2 emissions [g/km] | 115-117 | 123 [111 LPG] | 109 | 121-127 | 114-118 | 99 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,0-6,3 | - | 6,6-6,0 | 7,2-6,3 | 6,9-6,3 | - |
| CO2 emissions [g/km] | 158-142 | - | 150-135 | 163-142 | 154-142 | - |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1099 | 1245 | 1170 | 1214 | 1184-1214 | 1214 |
| Overall weight [kg] | 1690 | 1735 | 1770 | 1805 | 1790-1805 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 560/650 | 600/650 | 600/840 | 600/840 | 620/840 | 620/840 |
| Maximum front/rear axle load [kg] | 840/855 | - | 920/860 | 950/880 | 935/860 | - |
| Maximum vertical load on the tow bar [kg] | 65 | - | 65 | 65 | 65 | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 410-520 | 410-520 | 410-520 | 410-520 | 410-520 | 410-520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 810/1255 | 810/1255 | 810/1255 | 810/1255 | 810/1255 | 810/1255 |
| Boot length [mm] | 793 | 793 | 793 | 793 | 793 | 793 |
| Boot length with rear seats folded [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Boot width between wheels/max [mm] | 1000/947 | 1000/947 | 1000/947 | 1000/947 | 1000/947 | 1000/947 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 728 | 728 | 728 | 728 | 728 | 728 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 712 | 712 | 712 | 712 | 712 | 712 |
| Boot opening width min/max [mm] | 950/1002 | 950/1002 | 950/1002 | 950/1002 | 950/1002 | 950/1002 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 [36 LPG] | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | 15 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 195/65 R15 |
| Wheel size front | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 15 |
| Wheel size rear | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/11.2 | 10.7/11.2 | 10.7/11.2 | 10.7/11.2 | 10.7/11.2 | 10.7/11.2 |
| Overall length [mm] | 4212 | 4212 | 4212 | 4212 | 4212 | 4212 |
| Overall width without/including mirrors [mm] | 1765/1976 | 1765/1976 | 1765/1976 | 1765/1976 | 1765/1976 | 1765/1976 |
| Overall height [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Wheelbase [mm] | 2604 | 2604 | 2604 | 2604 | 2604 | 2604 |
| Front wheel track [mm] | 1513 | 1513 | 1513 | 1513 | 1513 | 1513 |
| Rear wheel track [mm] | 1491 | 1491 | 1491 | 1491 | 1491 | 1491 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 153 | 153 | 153 | 153 | 153 | 153 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI S/S | 1.5 CDTI | 1.5 CDTI | 1.6 CDTI S/S | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from 2018 to | from to 2018 | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/8 | ||
| Engine displacement [cm³] | 1560 | 1499 | 1499 | 1560 | ||
| Maximum output / speed [kW/min-1] | 73/3750 | 75/3500 | 88/3750 | 88/3500 | ||
| Maximum torque [Nm/min-1] | 254/1750 | 250/1750 | 300/1750 | 300/1750 | ||
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75.0 x 84,8 | 75.0 x 84,8 | 75,0 x 88,3 | ||
| Compression ratio | 17,0:1 | 16.5:1 | 16.5:1 | 17,0:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | ||
| Drive specifications | - | - | - | - | ||
| Top speed [km/h] | 180 | 178 | 183 | 187 | ||
| Acceleration 0–100 km/h [s] | 12.0 | 11,7 | 11,5 | 9.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | 11,9 | - | - | ||
| City [l] | 4.1 | 4,7 | 4,4 | 4.6 | ||
| Out of town [l] | 3.3 | 3,5 | 3,8 | 3.6 | ||
| Combined [l] | 3.6 | 4,0 | 4,0 | 4.0 | ||
| CO2 emissions [g/km] | 93 | 105 | 105 | 103 | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | - | 5,2-4,5 | 5,5-5,0 | - | ||
| CO2 emissions [g/km] | - | 136-117 | 144-130 | - | ||
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1214 | 1214 | 1286 | 1244 | ||
| Overall weight [kg] | 1820 | 1820 | 1855 | 1840 | ||
| Maximum trailer weight unbraked/braked [kg] | 620/840 | 620/840 | 650/870 | 640/870 | ||
| Maximum front/rear axle load [kg] | - | 945/880 | 980/880 | - | ||
| Maximum vertical load on the tow bar [kg] | - | 65 | 65 | - | ||
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | ||
| Boot volume [l] | 410-520 | 410-520 | 410-520 | 410-520 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 810/1255 | 810/1255 | 810/1255 | 810/1255 | ||
| Boot length [mm] | 793 | 793 | 793 | 793 | ||
| Boot length with rear seats folded [mm] | 1483 | 1483 | 1483 | 1483 | ||
| Boot width between wheels/max [mm] | 1000/947 | 1000/947 | 1000/947 | 1000/947 | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 728 | 728 | 728 | 728 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 712 | 712 | 712 | 712 | ||
| Boot opening width min/max [mm] | 950/1002 | 950/1002 | 950/1002 | 950/1002 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | ||
| AdBlue tank volume [l] | 15 | 15 | 15 | 15 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.7/11.2 | 10.7/11.2 | 10.7/11.2 | 10.7/11.2 | ||
| Overall length [mm] | 4212 | 4212 | 4212 | 4212 | ||
| Overall width without/including mirrors [mm] | 1765/1976 | 1765/1976 | 1765/1976 | 1765/1976 | ||
| Overall height [mm] | 1605 | 1605 | 1605 | 1605 | ||
| Wheelbase [mm] | 2604 | 2604 | 2604 | 2604 | ||
| Front wheel track [mm] | 1513 | 1513 | 1513 | 1513 | ||
| Rear wheel track [mm] | 1491 | 1491 | 1491 | 1491 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 153 | 153 | 153 | 153 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
