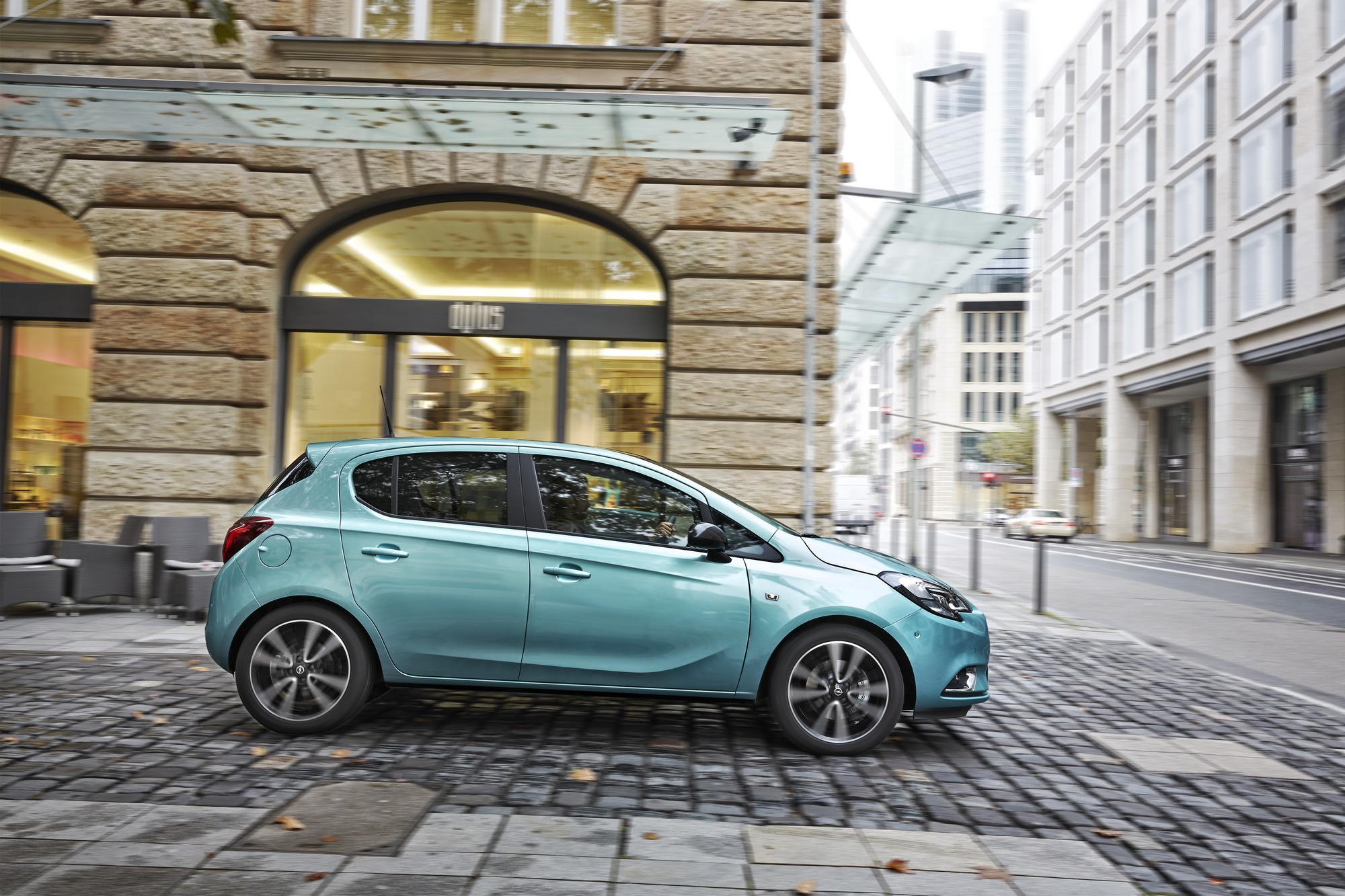

Opel Corsa
Date of manufacture
11/2014 – 2019 (Three-door hatchback)
11/2014 – 2019 (Five-door hatchback)
Platform
SCCS platform
Manufacturing locations
Eisenach, Germany
Zaragoza, Spain
Designer
-
Tags
B-segment
German cars
The Opel Corsa is available in two body styles - three-door hatchback and five-door hatchback. The car has been manufactured since 2014, with Germany and Spain being the countries where this model is produced. The SCCS platform provides a list of power units with the option of choosing between petrol and diesel engines. The most powerful variant 1.6 Turbo OPC offers 152 kW (230 hp) and the best acceleration 0-100 km/h in 6.8 seconds. The most economical engine 1.3 CDTI ecoFLEX has a fuel consumption of 3.1 l/100 km and CO2 emissions of 82 g/km. The trunk volume of the three-door hatchback is 280 l, while the five-door is 285 l. In terms of safety, the EURONCAP Opel Corsa achieved a rating of 4 out of 5 points in 2014.
Car body style
Three-door hatchback
Date of manufacture
11/2014 – 2019Internal designation
Corsa E X15Five-door hatchback
Date of manufacture
11/2014 – 2019Internal designation
Corsa E X15
Technical data
Three-door hatchback
| 1.2 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 LPG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1229 | 1398 | 1398 | 1398 | 1398 | 1398 |
| Maximum output / speed [kW/min-1] | 51/5600 | 66/6000 | 66/6000 | 66/6000 | 66/6000 | 66/6000 |
| Maximum torque [Nm/min-1] | 115/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 [124/4000 LPG] |
| Bore and stroke [mm x mm] | 73,4 x 72,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual | 5 gear robotic manual | 5 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 162 | 175 | 170 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 16.0 | 13.2 | 13.9 | 13.2 | 13.9 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 22,9 | 18,9 | - | 18,9 | - | 20.9 |
| City [l] | 7,4-6,6 | 7,4-6,7 | 8,1-7,7 | 6,9-6,2 | 5.8 | 7.6-7.1 [9.8-9.0 LPG] |
| Out of town [l] | 5,0-4,5 | 4,9-4,2 | 5,7-4,7 | 5,0-4,1 | 4.0 | 5.3-4.6 [6.6-5.7 LPG] |
| Combined [l] | 5,9-5,3 | 5,8-5,1 | 6,5-5,9 | 5,7-4,9 | 4.7 | 6.1-5.6 [7.8-6.9 LPG] |
| CO2 emissions [g/km] | 134-124 | 133-118 | 149-135 | 131-114 | 110 | 140-128 [127-113 LPG] |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,0-6,6 | 6,9-6,5 | 7,7-7,1 | 6,9-6,5 | - | 7.1-6.7 [8.9-8.3 LPG] |
| CO2 emissions [g/km] | 159-149 | 156-147 | 175-159 | 155-146 | - | 161-151 [144-134 LPG] |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1045-1060 | 1066-1081 | 1088-1103 | 1066-1081 | 1066 | 1124 |
| Overall weight [kg] | 1575-1590 | 1585-1600 | 1615-1630 | 1595-1610 | 1605 | 1615 |
| Maximum trailer weight unbraked/braked [kg] | 540/700 | 550/800 | 550/800 | 550/800 | 550/800 | 580/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 280 | 280 | 280 | 280 | 280 | 280 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1090 | -/1090 | -/1090 | -/1090 | -/1090 | -/1090 |
| Boot length [mm] | 705 | 705 | 705 | 705 | 705 | 705 |
| Boot length with rear seats folded [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |

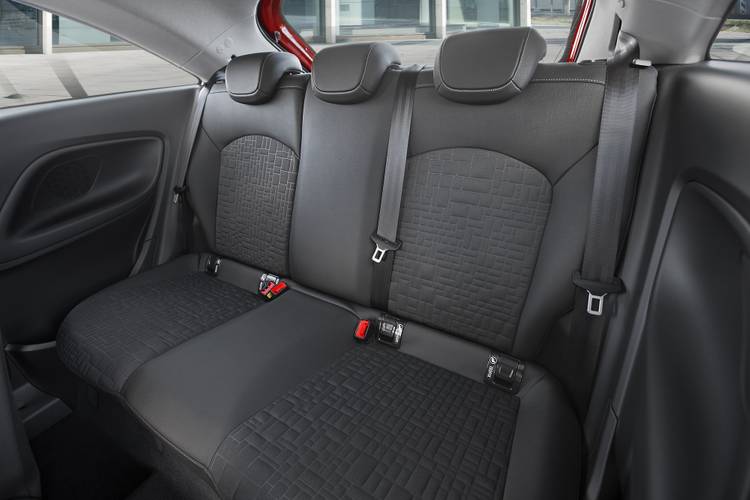

| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 [34 LPG] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 | 185/70 R14 | 195/55 R 16 | 185/65 R15 | 185/70 R14 | 185/70 R14 |
| Tyre dimensions rear | 185/70 R14 | 185/70 R14 | 195/55 R 16 | 185/65 R15 | 185/70 R14 | 185/70 R14 |
| Wheel size front | 5.5J x 14 | 5.5J x 14 | 6.5J x 16 | 6.0J x 15 | 5.5J x 14 | 5.5J x 14 |
| Wheel size rear | 5.5J x 14 | 5.5J x 14 | 6.5J x 16 | 6.0J x 15 | 5.5J x 14 | 5.5J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4021 | 4021 | 4021 | 4021 | 4021 | 4021 |
| Overall width without/including mirrors [mm] | 1736/1944 | 1736/1944 | 1736/1944 | 1736/1944 | 1736/1944 | 1736/1944 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Rear wheel track [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 Turbo ecoFLEX | 1.4 Turbo | 1.0 Turbo | 1.4 Turbo | 1.6 Turbo OPC | 1.3 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | - | from 2015 to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1364 | 999 | 1364 | 1598 | 1248 |
| Maximum output / speed [kW/min-1] | 66/3700-6000 | 74/3500-6000 | 85/5000-6000 | 110/5000 | 152/5800 | 55/3750 |
| Maximum torque [Nm/min-1] | 170/1800-3700 | 200/1850-3500 | 170/1800-4500 | 220/3000-4500 | 245/1900-5800 | 190/1500-2500 |
| Bore and stroke [mm x mm] | 74,0 x 77,4 | 72,5 x 82,6 | 74,0 x 77,4 | 72,5 x 82,6 | 79,0 x 81,5 | 69,6 x 82,0 |
| Compression ratio | 10,5:1 | 9,5:1 | 10,5:1 | 9,5:1 | 8,8:1 | 16,25:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 180 | 185 | 195 | 207 | 230 | 164 |
| Acceleration 0–100 km/h [s] | 11.9 | 11.0 | 10.3 | 8.9 | 6.8 | 14.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 14,0 | 12,3 | - | 9,9 | - | - |
| City [l] | 5,2-5,7 | 7,1-6,4 | 6.1 | 8,0-7,4 | 9.9 | 4.6 |
| Out of town [l] | 4,5-3,7 | 5,0-4,3 | 4.2 | 5,5-4,8 | 6.2 | 3.3 |
| Combined [l] | 4,9-4,2 | 5,8-5,1 | 4.9 | 6,4-5,7 | 7.5 | 3.7 |
| CO2 emissions [g/km] | 113-98 | 132-119 | 112 | 147-132 | 174 | 99 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,1-5,9 | 6,7-6,5 | - | 6,9-6,5 | - | - |
| CO2 emissions [g/km] | 139-133 | 151-146 | - | 155-146 | - | - |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1088-1103 | 1124-1139 | 1088 | 1124-1139 | 1203 | 1124 |
| Overall weight [kg] | 1635-1650 | 1665-1680 | 1635 | 1665-1690 | 1655 | 1665 |
| Maximum trailer weight unbraked/braked [kg] | 560/1200 | 580/1150 | 560/1200 | 580/1200 | - | 580/900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 280 | 280 | 280 | 280 | 280 | 280 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1090 | -/1090 | -/1090 | -/1090 | -/1090 | -/1090 |
| Boot length [mm] | 705 | 705 | 705 | 705 | 705 | 705 |
| Boot length with rear seats folded [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 215/45 R 17 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 215/45 R 17 | 185/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 7.0J x 17 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 7.0J x 17 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | 308 | - |
| Brake dimensions rear | - | - | - | - | 264 | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4021 | 4021 | 4021 | 4021 | 4021 | 4021 |
| Overall width without/including mirrors [mm] | 1736/1944 | 1736/1944 | 1736/1944 | 1736/1944 | 1736/1944 | 1736/1944 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Rear wheel track [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 CDTI ecoFLEX | 1.3 CDTI ecoFLEX | 1.3 CDTI | ||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1248 | 1248 | 1248 | |||
| Maximum output / speed [kW/min-1] | 70/3750 | 70/3750 | 70/3750 | |||
| Maximum torque [Nm/min-1] | 190/1500-2500 | 190/1500-2500 | 210/1500-3000 | |||
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | |||
| Compression ratio | 16,25:1 | 16,25:1 | 16,25:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 5 gear robotic manual | 6 gear manual | |||
| Drive specifications | - |
| - | |||
| Top speed [km/h] | 182 | 182 | 177 | |||
| Acceleration 0–100 km/h [s] | 11.9 | 13.5 | 12.3 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 3.7 | 3.4 | 4.5 | |||
| Out of town [l] | 3.0 | 3.0 | 3.3 | |||
| Combined [l] | 3.2 | 3.1 | 3.7 | |||
| CO2 emissions [g/km] | 85 | 82 | 99 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1124 | 1124 | 1162 | |||
| Overall weight [kg] | 1665 | 1675 | 1685 | |||
| Maximum trailer weight unbraked/braked [kg] | 580/1150 | 580/1150 | 600/1150 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 280 | 280 | 280 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1090 | -/1090 | -/1090 | |||
| Boot length [mm] | 705 | 705 | 705 | |||
| Boot length with rear seats folded [mm] | 1372 | 1372 | 1372 | |||
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 45 | 45 | 45 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/70 R14 | 185/65 R15 | 185/65 R15 | |||
| Tyre dimensions rear | 185/70 R14 | 185/65 R15 | 185/65 R15 | |||
| Wheel size front | 5.5J x 14 | 6.0J x 15 | 6.0J x 15 | |||
| Wheel size rear | 5.5J x 14 | 6.0J x 15 | 6.0J x 15 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | |||
| Overall length [mm] | 4021 | 4021 | 4021 | |||
| Overall width without/including mirrors [mm] | 1736/1944 | 1736/1944 | 1736/1944 | |||
| Overall height [mm] | 1479 | 1479 | 1479 | |||
| Wheelbase [mm] | 2510 | 2510 | 2510 | |||
| Front wheel track [mm] | 1472 | 1472 | 1472 | |||
| Rear wheel track [mm] | 1464 | 1464 | 1464 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Five-door hatchback
| 1.2 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 LPG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1229 | 1398 | 1398 | 1398 | 1398 | 1398 |
| Maximum output / speed [kW/min-1] | 51/5600 | 66/6000 | 66/6000 | 66/6000 | 66/6000 | 66/6000 |
| Maximum torque [Nm/min-1] | 115/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 [124/4000 LPG] |
| Bore and stroke [mm x mm] | 73,4 x 72,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual | 5 gear robotic manual | 5 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 162 | 175 | 170 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 16.0 | 13.2 | 13.9 | 13.2 | 13.9 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 22,9 | 18,9 | - | 18,9 | - | 20.9 |
| City [l] | 7,4-6,6 | 7,4-6,7 | 8,6-7,9 | 6,9-6,2 | 5.8 | 7.5-7.1 [9.8-9.0 LPG] |
| Out of town [l] | 5,0-4,5 | 4,9-4,2 | 6,0-4,8 | 5,0-4,1 | 4.0 | 6.1-4.6 [6.6-5.7 LPG] |
| Combined [l] | 5,8-5,3 | 5,8-5,1 | 6,9-5,9 | 5,7-4,9 | 4.7 | 6.1-5.6 [7.8-6.9 LPG] |
| CO2 emissions [g/km] | 133-124 | 132-118 | 157-137 | 130-114 | 110 | 139-128 [126-113 LPG] |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,1-6,6 | 6,9-6,5 | 7,8-7,1 | 6,9-6,4 | - | 7.6-6.7 [9.0-8.3 LPG] |
| CO2 emissions [g/km] | 160-149 | 156-146 | 162-152 | 155-146 | - | 162-152 [146-135 LPG] |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1088-1135 | 1088-1159 | 1124-1173 | 1088-1159 | 1088 | 1162-1177 |
| Overall weight [kg] | 1605-1620 | 1615-1630 | 1645-1660 | 1615-1630 | 1625 | 1635-1650 |
| Maximum trailer weight unbraked/braked [kg] | 540/700 | 550/800 | 550/800 | 550/800 | 550/800 | 580/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1120 | -/1120 | -/1120 | -/1120 | -/1120 | -/1120 |
| Boot length [mm] | 705 | 705 | 705 | 705 | 705 | 705 |
| Boot length with rear seats folded [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 [34 LPG] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 | 185/70 R14 | 185/65 R15 | 185/65 R15 | 185/70 R14 | 185/70 R14 |
| Tyre dimensions rear | 185/70 R14 | 185/70 R14 | 185/65 R15 | 185/65 R15 | 185/70 R14 | 185/70 R14 |
| Wheel size front | 5.5J x 14 | 5.5J x 14 | 6.0J x 15 | 6.0J x 15 | 5.5J x 14 | 5.5J x 14 |
| Wheel size rear | 5.5J x 14 | 5.5J x 14 | 6.0J x 15 | 6.0J x 15 | 5.5J x 14 | 5.5J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4021 | 4021 | 4021 | 4021 | 4021 | 4021 |
| Overall width without/including mirrors [mm] | 1746/1944 | 1746/1944 | 1746/1944 | 1746/1944 | 1746/1944 | 1746/1944 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Rear wheel track [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 Turbo ecoFLEX | 1.4 Turbo | 1.0 Turbo | 1.4 Turbo | 1.3 CDTI | 1.3 CDTI ecoFLEX | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | - | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1364 | 999 | 1364 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 66/3700-6000 | 74/3500-6000 | 85/5000-6000 | 110/5000 | 55/3750 | 70/3750 |
| Maximum torque [Nm/min-1] | 170/1800-3700 | 200/1850-3500 | 170/1800-4500 | 220/3000-4500 | 190/1500-2500 | 190/1500-2500 |
| Bore and stroke [mm x mm] | 74,0 x 77,4 | 72,5 x 82,6 | 74,0 x 77,4 | 72,5 x 82,6 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | 10,5:1 | 9,5:1 | 10,5:1 | 9,5:1 | 16,25:1 | 16,25:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 180 | 185 | 195 | 207 | 164 | 182 |
| Acceleration 0–100 km/h [s] | 11.9 | 11.0 | 10.3 | 8.9 | 14.8 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 14,0 | 12,3 | - | 9,9 | - | - |
| City [l] | 5,9-5,3 | 7,1-6,4 | 6.2 | 7,9-7,4 | 4.6 | 3.7 |
| Out of town [l] | 4,7-3,7 | 4,9-4,3 | 4.2 | 5,3-4,8 | 3.3 | 3.0 |
| Combined [l] | 5,1-4,3 | 5,8-5,1 | 5.0 | 6,2-5,8 | 3.7 | 3.2 |
| CO2 emissions [g/km] | 118-100 | 132-119 | 115 | 143-133 | 99 | 85 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,2-5,9 | 6,8-6,5 | - | 7,0-6,6 | - | - |
| CO2 emissions [g/km] | 141-134 | 152-147 | - | 157-148 | - | - |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1124-1174 | 1162-1215 | 1124 | 1184-1242 | 1162 | 1150 |
| Overall weight [kg] | 1665-1680 | 1695-1710 | 1665 | 1705-1720 | 1695 | 1695 |
| Maximum trailer weight unbraked/braked [kg] | 560/1200 | 580/1150 | 560/1200 | 580/1200 | 580/900 | 580/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1120 | -/1120 | -/1120 | -/1120 | -/1120 | -/1120 |
| Boot length [mm] | 705 | 705 | 705 | 705 | 705 | 705 |
| Boot length with rear seats folded [mm] | 1372 | 1372 | 1372 | 1372 | 1372 | 1372 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/70 R14 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/70 R14 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 5.5J x 14 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 5.5J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4021 | 4021 | 4021 | 4021 | 4021 | 4021 |
| Overall width without/including mirrors [mm] | 1746/1944 | 1746/1944 | 1746/1944 | 1746/1944 | 1746/1944 | 1746/1944 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Wheelbase [mm] | 2510 | 2510 | 2510 | 2510 | 2510 | 2510 |
| Front wheel track [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Rear wheel track [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 CDTI ecoFLEX | 1.3 CDTI | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1248 | 1248 | ||||
| Maximum output / speed [kW/min-1] | 70/3750 | 70/3750 | ||||
| Maximum torque [Nm/min-1] | 190/1500-2500 | 210/1500-3000 | ||||
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 69,6 x 82,0 | ||||
| Compression ratio | 16,25:1 | 16,25:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear robotic manual | 6 gear manual | ||||
| Drive specifications |
| - | ||||
| Top speed [km/h] | 182 | 177 | ||||
| Acceleration 0–100 km/h [s] | 13.5 | 12.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 3.4 | 4.4 | ||||
| Out of town [l] | 3.0 | 3.4 | ||||
| Combined [l] | 3.1 | 3.7 | ||||
| CO2 emissions [g/km] | 82 | 99 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1150 | 1184 | ||||
| Overall weight [kg] | 1695 | 1705 | ||||
| Maximum trailer weight unbraked/braked [kg] | 580/1150 | 600/1150 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 285 | 285 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1120 | -/1120 | ||||
| Boot length [mm] | 705 | 705 | ||||
| Boot length with rear seats folded [mm] | 1372 | 1372 | ||||
| Boot width between wheels/max [mm] | -/944 | -/944 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 45 | 45 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | ||||
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | ||||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | ||||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | ||||
| Overall length [mm] | 4021 | 4021 | ||||
| Overall width without/including mirrors [mm] | 1746/1944 | 1746/1944 | ||||
| Overall height [mm] | 1481 | 1481 | ||||
| Wheelbase [mm] | 2510 | 2510 | ||||
| Front wheel track [mm] | 1472 | 1472 | ||||
| Rear wheel track [mm] | 1464 | 1464 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
