Opel Astra
Date of manufacture
9/2015 – 2019 (Five-door hatchback)

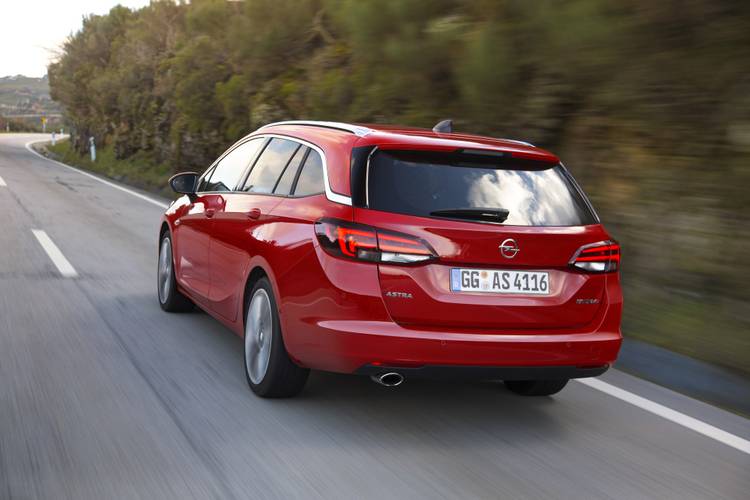

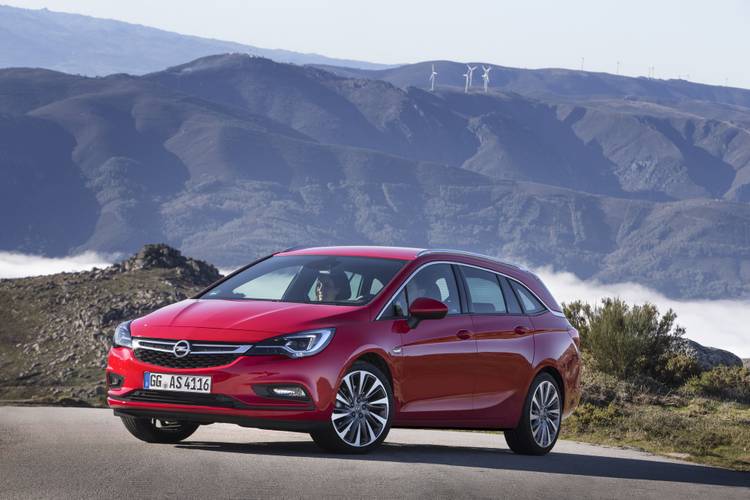

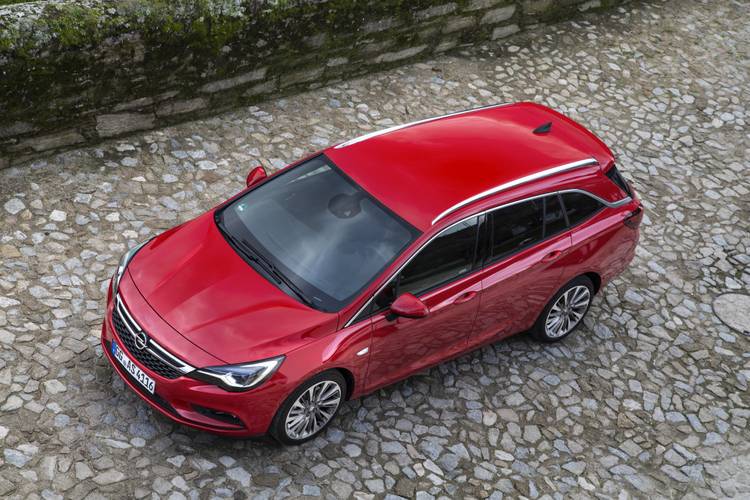

2/2016 – 2019 (Estate)
Platform
D2XX platform
Manufacturing locations
Shanghai, People's Republic of China
Gliwice, Poland
Ellesmere Port, United Kingdom
Designer
Uwe Müller
Tags
C-segment
German cars
The new Opel Astra is manufactured as a five-door hatchback and estate since 2015. This vehicle is produced in China, Poland and the UK. It is built on the D2XX platform and offers a wide range of petrol and diesel engines. The most powerful (147 kW) power unit is the 1.6 Turbo with a top speed of 235 km/h and the best acceleration from 0-100 km/h in 7.0 seconds. The 1.6 CDTI has the lowest combined fuel consumption of 3.6 l/100 km and CO2 emissions of 95 g/km. The five-door hatchback model has a luggage compartment volume of 370 l, and the estate model has 540 l. The 2015 model has passed the EURONCAP safety tests and has been rated 5 out of 5.
Car body style
Five-door hatchback
Date of manufacture
9/2015 – 2019Internal designation
Astra K B16
Technical data
Five-door hatchback
| 1.0 Turbo | 1.4 | 1.0 Turbo | 1.0 Turbo | 1.4 Turbo CNG | 1.4 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | - | from to 2018 | from 2017 to | - |
| Engine type | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1399 | 999 | 999 | 1399 | 1399 |
| Maximum output / speed [kW/min-1] | 66/5500 | 74/6000 | 77/5500 | 77/5500 | 81/5600 | 92/4000-5600 |
| Maximum torque [Nm/min-1] | 170/1800-4250 | 130/4400 | 170/1800-4250 | 170/1800-4250 | 200/2000-3600 | 245/2000-3500 |
| Bore and stroke [mm x mm] | 74,0 x 77,4 | 74,0 x 81,3 | 74,0 x 77,4 | 74,0 x 77,4 | 74,0 x 81,3 | 74,0 x 81,3 |
| Compression ratio | 10,5:1 | 10,6:1 | 10,5:1 | 10,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 188 | 185 | 195-200 | 200 | 195 | 205 |
| Acceleration 0–100 km/h [s] | 12,2 | 13.4 | 11,2-11,6 | 12.7 | 10,9 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 15,1 | - | 14,8 | 14.9 | 13,5 | 9,9 |
| City [l] | 5,9-5,4 | 7.3 | 5,9-5,1 | 5.7-5.0 | 5.4 kg | 7,9-7,1 |
| Out of town [l] | 4,5-4,2 | 4.2 | 4,5-3,8 | 3.7-3.6 | 3.3 kg | 4,9-4,4 |
| Combined [l] | 5,0-4,7 | 5.4 | 5,0-4,3 | 4.4-4.1 | 4.1 kg | 6,0-5,4 |
| CO2 emissions [g/km] | 115-107 | 124 | 115-99 | 102-96 | 113 | 138-124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,2-5,6 | - | 6,2-5,6 | - | 4,7–4,6 kg | 7,0-6,2 |
| CO2 emissions [g/km] | 141-126 | - | 141-126 | - | 129-124 | 159-140 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1198 | 1169 | 1198 | 1198 | 1289 | 1203 |
| Overall weight [kg] | 1780 | 1760 | 1780 | 1790 | 1890 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 610/1220 | 600/900 | 610/1220 | 610/1230 | 660/750 | 620/1550 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 |
| Boot length [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Boot length with rear seats folded [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Boot width between wheels/max [mm] | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 |
| Boot height to headliner/ceiling [mm] | -/841 | -/841 | -/841 | -/841 | -/841 | -/841 |
| Loading edge height [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Boot opening width min/max [mm] | 952/1015 | 952/1015 | 952/1015 | 952/1015 | 952/1015 | 952/1015 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 15 [19 kg] | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.285 | 0.285 | 0.285 | 0.285 | 0.285 | 0.285 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4370 | 4370 | 4370 | 4370 | 4370 | 4370 |
| Overall width without/including mirrors [mm] | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 |
| Overall height [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Wheelbase [mm] | 2662 | 2662 | 2662 | 2662 | 2662 | 2662 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.6 Turbo | 1.6 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1399 | 1399 | 1399 | 1399 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 92/4000-5600 | 110/5000-5600 | 110/5000-5600 | 110/5000-5600 | 147/5500 | 147/5500 |
| Maximum torque [Nm/min-1] | 230/2000-3500 | 245/2000-4000 | 230/2000-4000 | 245/2000-4000 | 280/1650-5000 | 280/1650-5000 |
| Bore and stroke [mm x mm] | 74,0 x 81,3 | 74,0 x 81,3 | 74,0 x 81,3 | 74,0 x 81,3 | 79,0 x 81,5 | 79,0 x 81,5 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 205 | 215 | 215 | 210 | 235 | 235 |
| Acceleration 0–100 km/h [s] | 9.5 | 8.3 | 8.5 | 8,7-9,0 | 7,0-7,8 | 7,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 10,9 | 9,4 | 10,5 | - | 7,1 | - |
| City [l] | 6,9-6,2 | 7,9-7,1 | 6,9-6,2 | 7,4-7,1 | 7,9-8,5 | 8,5-8,3 |
| Out of town [l] | 4,8-4,2 | 4,9-4,4 | 4,8-4,2 | 5,0-4,4 | 5,5-4,9 | 5,5-5,3 |
| Combined [l] | 5,6-4,9 | 6,0-5,4 | 5,6-4,9 | 5,9-5,4 | 6,6-6,0 | 6,6-6,4 |
| CO2 emissions [g/km] | 128-114 | 138-124 | 128-114 | 135-124 | 151-138 | 151-146 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,9-6,0 | 6,8-6,2 | 6,9-6,0 | 7,6-6,6 | 7,2-6,8 | 7,5-7,1 |
| CO2 emissions [g/km] | 157-137 | 154-140 | 156-137/174-150 | 174-150 | 163-154/170-159 | 170-159 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1203 | 1203 | 1203 | 1233 | 1275 | 1303 |
| Overall weight [kg] | 1815 | 1820 | 1815 | 1845 | 1880-1890 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 620/1450-1550 | 620/1550 | 620/1450-1550 | 620/1420 | 650/1700 | 650/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 |
| Boot length [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Boot length with rear seats folded [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Boot width between wheels/max [mm] | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 |
| Boot height to headliner/ceiling [mm] | -/841 | -/841 | -/841 | -/841 | -/841 | -/841 |
| Loading edge height [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Boot opening width min/max [mm] | 952/1015 | 952/1015 | 952/1015 | 952/1015 | 952/1015 | 952/1015 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.285 | 0.285 | 0.285 | 0.285 | 0.285 | 0.285 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar with Watts linkage | torsion bar with Watts linkage |
| Tyre dimensions front | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4370 | 4370 | 4370 | 4370 | 4370 | 4370 |
| Overall width without/including mirrors [mm] | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 |
| Overall height [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Wheelbase [mm] | 2662 | 2662 | 2662 | 2662 | 2662 | 2662 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI | 1.6 CDTI | 1.6 CDTI | 1.6 CDTI ecoFLEX/ECOTEC | 1.6 CDTI | 1.6 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 70/3500 | 81/3500 | 81/3500 | 81/3500 | 100/3500-4000 | 100/3500-4000 |
| Maximum torque [Nm/min-1] | 280/1500-1750 | 300/1750-2000 | 300/1750-2000 | 300/1750-2000 | 320/2000-2250 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 185 | 195 | 195-200 | 200 | 205-213 | 205-208 |
| Acceleration 0–100 km/h [s] | 12.7 | 11.0 | 11,0-11,2 | 10.9-11,1 | 9,4-9,6 | 9,7-10,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | 8,7 | 9.6 | 7,8 | - |
| City [l] | 4.2 | 4.2 | 5,7-3,9 | 5.4-3.8 | 5,5-4,4 | 6,1-5,4 |
| Out of town [l] | 3.3 | 3.3 | 3,9-3,1 | 3.7-3.1 | 4,1-3,4 | 4,2-3,7 |
| Combined [l] | 3.6 | 3.6 | 4,6-3,4 | 4.3-3.3 | 4,6-3,7 | 4,9-4,3 |
| CO2 emissions [g/km] | 95 | 95 | 121-90 | 114-88 | 121-99 | 130-115 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 5,4-4,8 | - | 5,4-4,8 | 5,9-5,4 |
| CO2 emissions [g/km] | - | - | 141-126 | - | 142-127/154-140 | 154-140 |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1270 | 1285 | 1285-1289 | 1270 | 1285-1303 | 1289-1318 |
| Overall weight [kg] | 1860 | 1865 | 1870-1890 | 1850 | 1875-1900 | 1900-1920 |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650-660/1400-1500 | 650/1400-1500 | 650-660/1650 | 650-670/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 | -/1210 |
| Boot length [mm] | 828 | 828 | 828 | 828 | 828 | 828 |
| Boot length with rear seats folded [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Boot width between wheels/max [mm] | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 | 1001/1001 |
| Boot height to headliner/ceiling [mm] | -/841 | -/841 | -/841 | -/841 | -/841 | -/841 |
| Loading edge height [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Boot opening width min/max [mm] | 952/1015 | 952/1015 | 952/1015 | 952/1015 | 952/1015 | 952/1015 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | 12.5 | 12.5 | 12.5 | 12.5 |
| Air resistance [Cd] | 0.285 | 0.285 | 0.285 | 0.285 | 0.285 | 0.285 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4370 | 4370 | 4370 | 4370 | 4370 | 4370 |
| Overall width without/including mirrors [mm] | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 |
| Overall height [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Wheelbase [mm] | 2662 | 2662 | 2662 | 2662 | 2662 | 2662 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI BiTurbo | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1598 | |||||
| Maximum output / speed [kW/min-1] | 118/4000 | |||||
| Maximum torque [Nm/min-1] | 350/1500-2250 | |||||
| Bore and stroke [mm x mm] | 79,7 x 80,1 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 220-225 | |||||
| Acceleration 0–100 km/h [s] | 8,6-9,0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | 7,1 | |||||
| City [l] | 6,5-5,1 | |||||
| Out of town [l] | 4,2-3,5 | |||||
| Combined [l] | 5,0-4,1 | |||||
| CO2 emissions [g/km] | 133-108 | |||||
| Low speed [l] | - | |||||
| Medium speed [l] | - | |||||
| High speed [l] | - | |||||
| Extra high speed [l] | - | |||||
| Combined speed [l] | 5,9-5,2 | |||||
| CO2 emissions [g/km] | 154-136 | |||||
| Emission standard | EU6 - Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1331 | |||||
| Overall weight [kg] | 1910 | |||||
| Maximum trailer weight unbraked/braked [kg] | 680/1700 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 370 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1210 | |||||
| Boot length [mm] | 828 | |||||
| Boot length with rear seats folded [mm] | 1575 | |||||
| Boot width between wheels/max [mm] | 1001/1001 | |||||
| Boot height to headliner/ceiling [mm] | -/841 | |||||
| Loading edge height [mm] | 703 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 600 | |||||
| Boot opening width min/max [mm] | 952/1015 | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 48 | |||||
| AdBlue tank volume [l] | 12.5 | |||||
| Air resistance [Cd] | 0.285 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | torsion bar with Watts linkage | |||||
| Tyre dimensions front | 205/65 R16 | |||||
| Tyre dimensions rear | 205/65 R16 | |||||
| Wheel size front | 7.0J x 16 | |||||
| Wheel size rear | 7.0J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.05/- | |||||
| Overall length [mm] | 4370 | |||||
| Overall width without/including mirrors [mm] | 1809/2042 | |||||
| Overall height [mm] | 1485 | |||||
| Wheelbase [mm] | 2662 | |||||
| Front wheel track [mm] | 1544 | |||||
| Rear wheel track [mm] | 1558 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate (Sports Tourer)
| 1.0 Turbo | 1.4 | 1.0 Turbo | 1.0 Turbo | 1.4 Turbo CNG | 1.4 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | - | from to 2018 | from 2017 to | - |
| Engine type | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1399 | 999 | 999 | 1399 | 1399 |
| Maximum output / speed [kW/min-1] | 66/5500 | 74/6000 | 77/5500 | 77/5500 | 81/5600 | 92/4000-5600 |
| Maximum torque [Nm/min-1] | 170/1800-4250 | 130/4400 | 170/1800-4250 | 170/1800-4250 | 200/2000-3600 | 245/2000-3500 |
| Bore and stroke [mm x mm] | 74,0 x 77,4 | 74,0 x 81,3 | 74,0 x 77,4 | 74,0 x 77,4 | 74,0 x 81,3 | 74,0 x 81,3 |
| Compression ratio | 10,5:1 | 10,6:1 | 10,5:1 | 10,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 187 | 185 | 195 | 200 | 195 | 205 |
| Acceleration 0–100 km/h [s] | 12,5 | 13.9 | 11,7-11,8 | 12.9 | 12,3 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 15,7 | - | 15,1 | - | 14,2 | 10,5 |
| City [l] | 5,9-5,4 | 7.5 | 5,9-5,2 | 5.1 | 5.6 kg | 8,0-7,2 |
| Out of town [l] | 4,5-4,2 | 4.3 | 4,5-3,9 | 3.7 | 3.5 kg | 5,0-4,5 |
| Combined [l] | 5,0-4,6 | 5.5 | 5,0-4,3 | 4.2 | 4.3 kg | 6,1-5,5 |
| CO2 emissions [g/km] | 114-107 | 127 | 114-100 | 97 | 116 | 141-127 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,3-5,6 | - | 6,3-5,6 | - | 4,8-4,6 kg | 7,1-6,2 |
| CO2 emissions [g/km] | 143-127 | - | 143-127 | - | 132-126 | 161-141 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1213 | 1198 | 1213 | 1213 | 1350 | 1247 |
| Overall weight [kg] | 1860 | 1830 | 1850-1860 | 1855 | 1930 | 1890 |
| Maximum trailer weight unbraked/braked [kg] | 620/1150 | 610/800 | 620/1150 | 620/1150 | 700/750 | 640/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1630 | -/1630 | -/1630 | -/1630 | -/1630 | -/1630 |
| Boot length [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Boot length with rear seats folded [mm] | 1872 | 1872 | 1872 | 1872 | 1872 | 1872 |
| Boot width between wheels/max [mm] | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 |
| Boot height to headliner/ceiling [mm] | -/822 | -/822 | -/822 | -/822 | -/822 | -/822 |
| Loading edge height [mm] | 619 | 619 | 619 | 619 | 619 | 619 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 747 | 747 | 747 | 747 | 747 | 747 |
| Boot opening width min/max [mm] | 917/1032 | 917/1032 | 917/1032 | 917/1032 | 917/1032 | 917/1032 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 15 [19 kg] | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.272 | 0.272 | 0.272 | 0.272 | 0.272 | 0.272 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
| Overall width without/including mirrors [mm] | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 |
| Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Wheelbase [mm] | 2662 | 2662 | 2662 | 2662 | 2662 | 2662 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.6 Turbo | 1.6 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1399 | 1399 | 1399 | 1399 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 92/4000-5600 | 110/5000-5600 | 110/5000-5600 | 110/5000-5600 | 147/5500 | 147/5500 |
| Maximum torque [Nm/min-1] | 230/2000-3500 | 245/2000-4000 | 230/2000-4000 | 245/2000-4000 | 280/1650-5000 | 280/1650-5000 |
| Bore and stroke [mm x mm] | 74,0 x 81,3 | 74,0 x 81,3 | 74,0 x 81,3 | 74,0 x 81,3 | 79,0 x 81,5 | 79,0 x 81,5 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 205 | 215 | 215 | 210 | 235 | 235 |
| Acceleration 0–100 km/h [s] | 9.9 | 8.7 | 8.9 | 9,1-9,4 | 7,7-7,9 | 7,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 11,5 | 9,9 | 11 | - | 7,3 | - |
| City [l] | 7,1-6,2 | 8,0-7,2 | 7,1-6,2 | 7,4-7,0 | 8,0-8,5 | 8,7-8,5 |
| Out of town [l] | 4,9-4,2 | 5,0-4,5 | 4,9-4,2 | 4,9-4,4 | 5,5-4,9 | 5,6-5,4 |
| Combined [l] | 5,7-4,9 | 6,1-5,5 | 5,7-4,9 | 5,8-5,4 | 6,6-6,0 | 6,7-6,5 |
| CO2 emissions [g/km] | 131-114 | 141-127 | 131-114 | 135-124 | 151-139 | 154-149 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,0-6,1 | 6,8-6,2 | 6,9-6,1 | 7,7-6,6 | 7,3-6,8 | 7,6-7,1 |
| CO2 emissions [g/km] | 158-138 | 155-141 | 157-138/175-151 | 175-151 | 165-154/171-160 | 171-160 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1247 | 1247 | 1247 | 1275 | 1318 | 1350 |
| Overall weight [kg] | 1885 | 1890 | 1885 | 1915 | 1960 | 1980 |
| Maximum trailer weight unbraked/braked [kg] | 640/1403 | 640/1500 | 640/1403 | 640/1420 | 680/1650 | 680/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1630 | -/1630 | -/1630 | -/1630 | -/1630 | -/1630 |
| Boot length [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Boot length with rear seats folded [mm] | 1872 | 1872 | 1872 | 1872 | 1872 | 1872 |
| Boot width between wheels/max [mm] | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 |
| Boot height to headliner/ceiling [mm] | -/822 | -/822 | -/822 | -/822 | -/822 | -/822 |
| Loading edge height [mm] | 619 | 619 | 619 | 619 | 619 | 619 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 747 | 747 | 747 | 747 | 747 | 747 |
| Boot opening width min/max [mm] | 917/1032 | 917/1032 | 917/1032 | 917/1032 | 917/1032 | 917/1032 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.272 | 0.272 | 0.272 | 0.272 | 0.272 | 0.272 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar with Watts linkage | torsion bar with Watts linkage |
| Tyre dimensions front | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
| Overall width without/including mirrors [mm] | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 |
| Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Wheelbase [mm] | 2662 | 2662 | 2662 | 2662 | 2662 | 2662 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI | 1.6 CDTI | 1.6 CDTI | 1.6 CDTI ecoFLEX/ECOTEC | 1.6 CDTI | 1.6 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 70/3500 | 81/3500 | 81/3500 | 81/3500 | 100/3500-4000 | 100/3500-4000 |
| Maximum torque [Nm/min-1] | 280/1500-1750 | 300/1750-2000 | 300/1750-2000 | 300/1750-2000 | 320/2000-2250 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 185 | 195 | 195-200 | 195-200 | 205-212 | 200-207 |
| Acceleration 0–100 km/h [s] | 12.9 | 11.4 | 11,4-11,5 | 11,3-11,4 | 9,6-10,1 | 10,1-10,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | 9,0 | 10,0 | 8,1 | - |
| City [l] | 4.2 | 4.2 | 5,9-4,0 | 5,7-3,8 | 5,7-4,5 | 6,3-5,7 |
| Out of town [l] | 3.3 | 3.3 | 4,1-3,2 | 3,9-3,1 | 4,2-3,4 | 4,4-3,8 |
| Combined [l] | 3.6 | 3.6 | 4,7-3,5 | 4,5-3,4 | 4,7-3,8 | 5,1-4,5 |
| CO2 emissions [g/km] | 95 | 96 | 125-92 | 120-89 | 125-101 | 134-119 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 5,5-4,9 | 5,4-4,8 | 5,5-4,9 | 6,0-5,4 |
| CO2 emissions [g/km] | - | - | 143-127 | 142-125 | 143-128/156-142 | 156-142 |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1313 | 1328 | 1328-1335 | 1328 | 1328-1350 | 1350-1381 |
| Overall weight [kg] | 1925 | 1940 | 1930-1940 | 1930 | 1950-1980 | 1975-2000 |
| Maximum trailer weight unbraked/braked [kg] | 670/1500 | 680/1500 | 680/1400-1500 | 670/1400 | 680/1500 | 680/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1630 | -/1630 | -/1630 | -/1630 | -/1630 | -/1630 |
| Boot length [mm] | 1065 | 1065 | 1065 | 1065 | 1065 | 1065 |
| Boot length with rear seats folded [mm] | 1872 | 1872 | 1872 | 1872 | 1872 | 1872 |
| Boot width between wheels/max [mm] | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 | 1028/1050 |
| Boot height to headliner/ceiling [mm] | -/822 | -/822 | -/822 | -/822 | -/822 | -/822 |
| Loading edge height [mm] | 619 | 619 | 619 | 619 | 619 | 619 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 747 | 747 | 747 | 747 | 747 | 747 |
| Boot opening width min/max [mm] | 917/1032 | 917/1032 | 917/1032 | 917/1032 | 917/1032 | 917/1032 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | 13.5 | 13.5 | 13.5 | 13.5 |
| Air resistance [Cd] | 0.272 | 0.272 | 0.272 | 0.272 | 0.272 | 0.272 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- | 11.05/- |
| Overall length [mm] | 4702 | 4702 | 4702 | 4702 | 4702 | 4702 |
| Overall width without/including mirrors [mm] | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 | 1809/2042 |
| Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Wheelbase [mm] | 2662 | 2662 | 2662 | 2662 | 2662 | 2662 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI BiTurbo | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1598 | |||||
| Maximum output / speed [kW/min-1] | 118/4000 | |||||
| Maximum torque [Nm/min-1] | 350/1500-2250 | |||||
| Bore and stroke [mm x mm] | 79,7 x 80,1 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 220-222 | |||||
| Acceleration 0–100 km/h [s] | 8,9-9,2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | 7,1 | |||||
| City [l] | 6,7-5,1 | |||||
| Out of town [l] | 4,3-3,6 | |||||
| Combined [l] | 5,2-4,1 | |||||
| CO2 emissions [g/km] | 137-109 | |||||
| Low speed [l] | - | |||||
| Medium speed [l] | - | |||||
| High speed [l] | - | |||||
| Extra high speed [l] | - | |||||
| Combined speed [l] | 6,0-5,3 | |||||
| CO2 emissions [g/km] | 156-138 | |||||
| Emission standard | EU6 - Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1360 | |||||
| Overall weight [kg] | 1985 | |||||
| Maximum trailer weight unbraked/braked [kg] | 700/1700 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 540 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1630 | |||||
| Boot length [mm] | 1065 | |||||
| Boot length with rear seats folded [mm] | 1872 | |||||
| Boot width between wheels/max [mm] | 1028/1050 | |||||
| Boot height to headliner/ceiling [mm] | -/822 | |||||
| Loading edge height [mm] | 619 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 747 | |||||
| Boot opening width min/max [mm] | 917/1032 | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 48 | |||||
| AdBlue tank volume [l] | 13.5 | |||||
| Air resistance [Cd] | 0.272 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | torsion bar with Watts linkage | |||||
| Tyre dimensions front | 205/65 R16 | |||||
| Tyre dimensions rear | 205/65 R16 | |||||
| Wheel size front | 7.0J x 16 | |||||
| Wheel size rear | 7.0J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.05/- | |||||
| Overall length [mm] | 4702 | |||||
| Overall width without/including mirrors [mm] | 1809/2042 | |||||
| Overall height [mm] | 1510 | |||||
| Wheelbase [mm] | 2662 | |||||
| Front wheel track [mm] | 1544 | |||||
| Rear wheel track [mm] | 1558 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
