Opel Astra
![Astra Astra J P10 2009](/media/opel/13/en/thumbs-250/opel-astra-j-p10-2009.jpg)
Date of manufacture
2011 – 2016 (Three-door hatchback)
11/2009 – 2012 (Five-door hatchback)
2010 – 2012 (Estate)
Platform
Delta II platform
Manufacturing locations
Rüsselsheim am Main, Germany
Gliwice, Poland
Ellesmere Port, United Kingdom
Designer
Uwe Müller
Tags
C-segment
German cars
The Opel Astra has been manufactured since 2009 in three versions: three-door hatchback, five-door hatchback and estate. It is based on the Delta II platform and offers both petrol and diesel engines. The most powerful engine is the 2.0 Turbo OPC with 206 kW, reaching a top speed of 250 km/h and accelerating from 0-100 km/h in 6.0 seconds. The most economical engine is the 1.3 CDTI ecoFLEX with a fuel consumption of 3.9 l/100 km and emissions of 104 g/km. The five-door hatchback has a luggage capacity of 370 l, the three-door 380 l and the estate 500 l. In 2009, the Opel Astra passed the EURONCAP safety tests with a rating of 5 out of 5.
Car body style

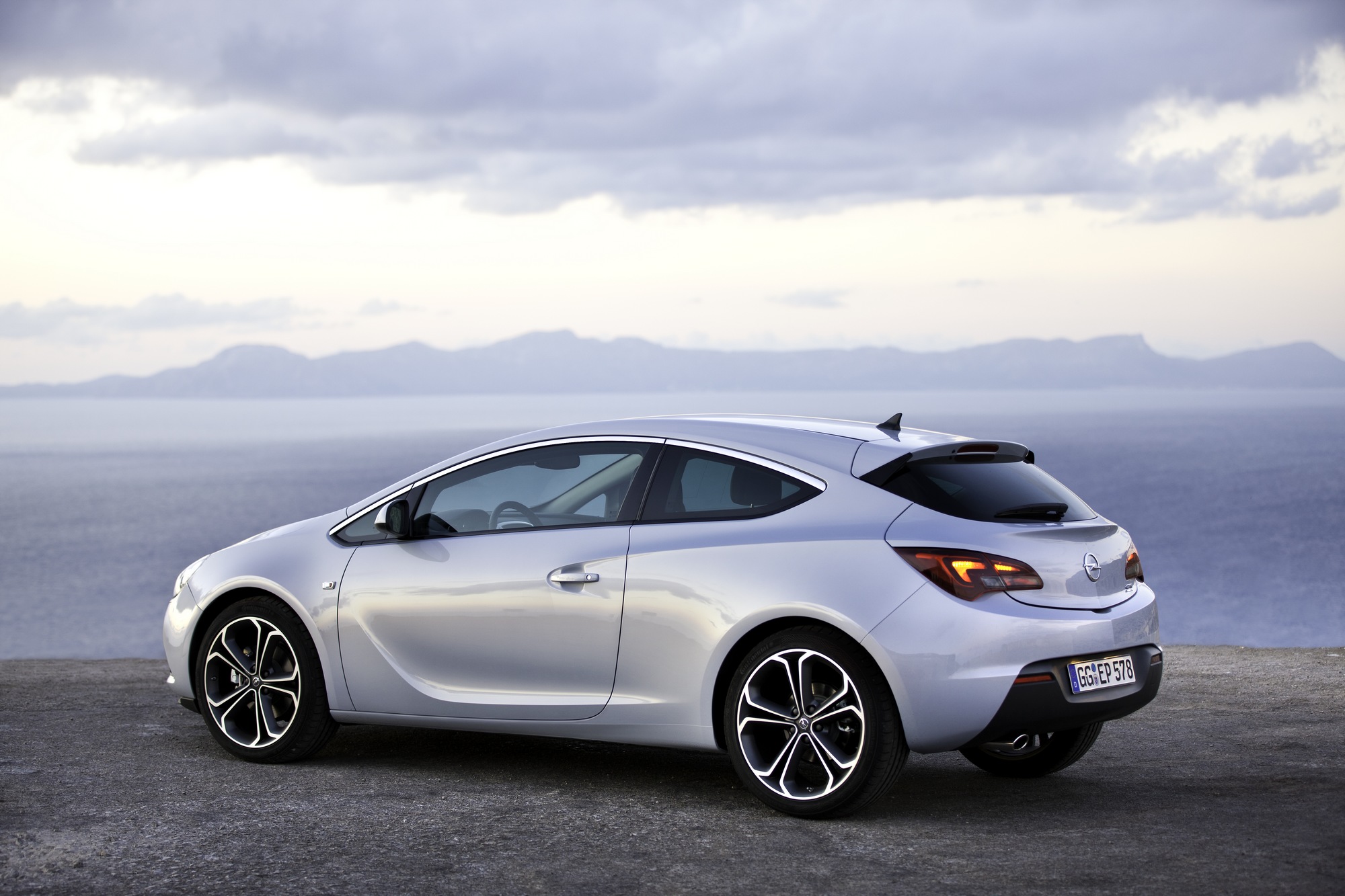

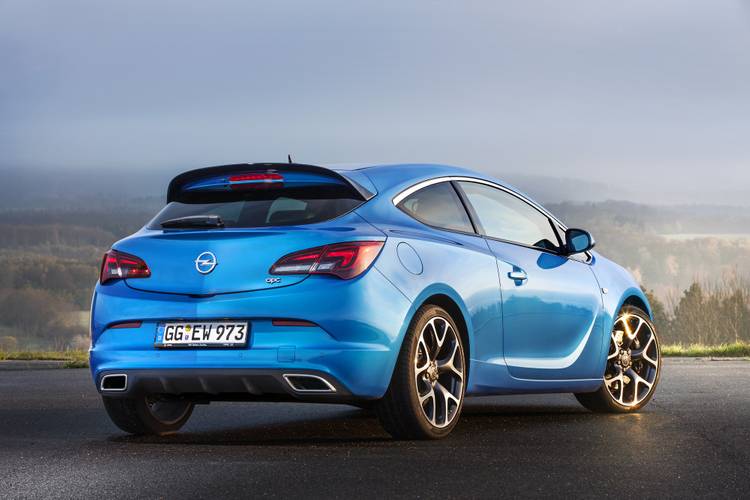

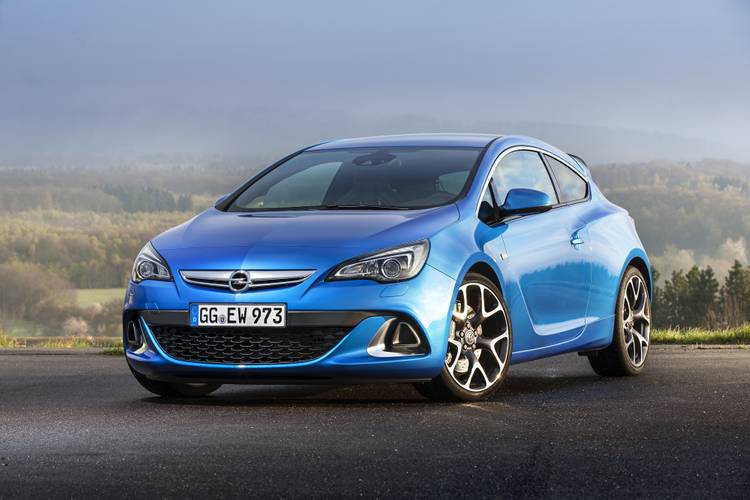

Three-door hatchback (GTC)
Date of manufacture
2011 – 2016Internal designation
Astra J P10Engine size
Petrol

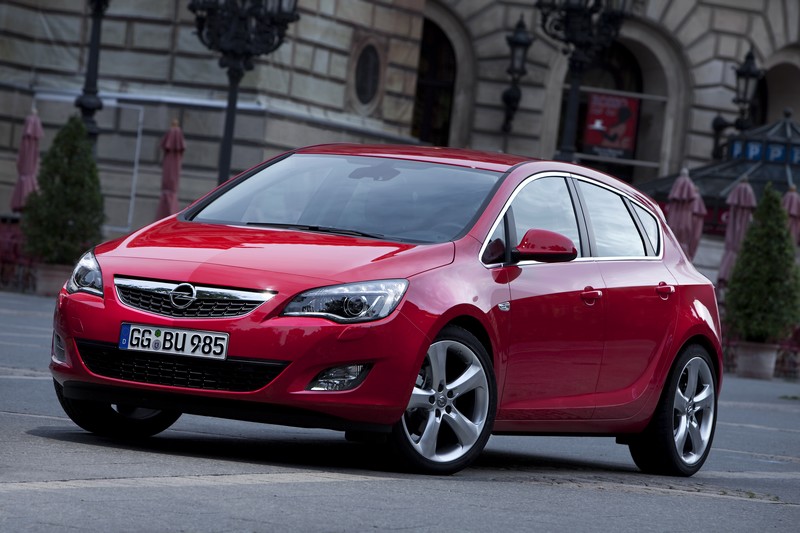

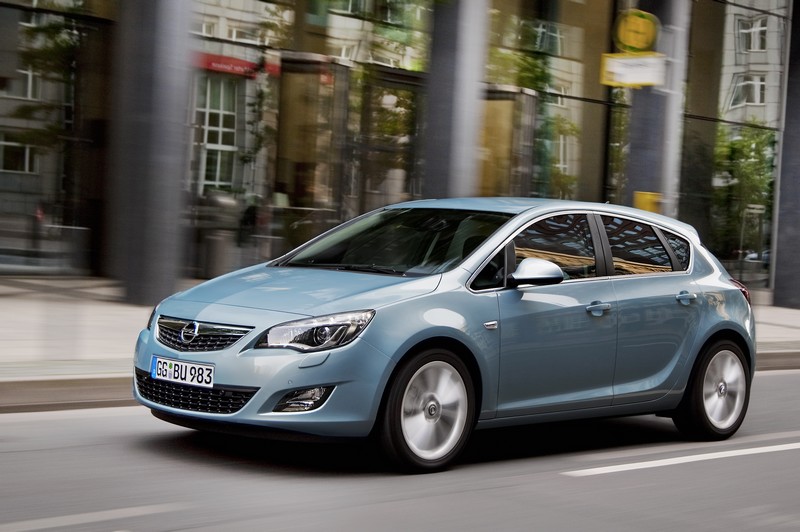

Five-door hatchback
Date of manufacture
11/2009 – 2012Internal designation
Astra J P10Estate (Sports Tourer)
Date of manufacture
2010 – 2012Internal designation
Astra J P10Technical data
Three-door hatchback (GTC)
1.4 ECOTEC GTC | 1.4 Turbo ECOTEC GTC | 1.8 ECOTEC GTC | 1.4 Turbo ECOTEC GTC | 1.4 Turbo ECOTEC GTC | 1.4 Turbo ECOTEC GTC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Petrol | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1398 | 1364 | 1796 | 1364 | 1364 | 1364 |
Maximum output / speed [kW/min-1] | 74/6000 | 88/4200-6000 | 103/6300 | 103/4900 | 103/4900 | 103/4900 |
Maximum torque [Nm/min-1] | 130/4000 | 200/1850-4200 | 175/3800 | 200/1850-4900 | 200/1850-4900 | 200/1850-4900 |
Bore and stroke [mm x mm] | 73,4 x 82,6 | 72,5 x 82,6 | 80,5 x 88,2 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 |
Compression ratio | 10,5:1 | 9,5:1 | - | 9,5:1 | 9,5:1 | 9,5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
Drive specifications | - | - | - | - | - |
|
Top speed [km/h] | 178 | 192 | 200 | 201 | 201 | 200 |
Acceleration 0–100 km/h [s] | 14.5 | 10.9 | 10.7 | 9.0 | 9.9 | 9.9-10.3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.2-7.7 | 7.6-7.7 | 8.9-9.0 | 8.1 | 7.6 | 8.6-9.1 |
Out of town [l] | 4.9-5.2 | 4.9 | 5.5 | 5.2 | 4.9 | 5.4-5.5 |
Combined [l] | 5.9 | 5.9 | 6.8 | 6.2 | 5.9 | 6.6-6.8 |
CO2 emissions [g/km] | 139 | 139 | 159 | 146 | 139 | 154-159 |
Emission standard | EU5 | EU5-EU6 | EU5 | EU5 | EU5-EU6 | EU5-EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1408 | 1437 | 1437 | 1437 | 1393-1570 | 1393-1570 |
Overall weight [kg] | 1840 | 1950 | 1920 | 1940 | 2005 | 2005 |
Maximum trailer weight unbraked/braked [kg] | 680/850 | 700/1350 | 700/1100 | 700/1350 | 700/1350 | 700/1350 |
Maximum front/rear axle load [kg] | 1110/930 | 1110/930 | 1110/930 | 1110/930 | 1110/930 | 1110/930 |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 765/1165 | 765/1165 | 765/1165 | 765/1165 | 765/1165 | 765/1165 |
Boot length [mm] | 855 | 855 | 855 | 855 | 855 | 855 |
Boot length with rear seats folded [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1617 |
Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | 980/- |
Boot height to headliner/ceiling [mm] | -/793 | -/793 | -/793 | -/793 | -/793 | -/793 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 |
Wheel size rear | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
Overall length [mm] | 4466 | 4466 | 4466 | 4466 | 4466 | 4466 |
Overall width without/including mirrors [mm] | 1840/2020 | 1840/2020 | 1840/2020 | 1840/2020 | 1840/2020 | 1840/2020 |
Overall height [mm] | 1489 | 1489 | 1489 | 1489 | 1489 | 1489 |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
Forward overhang [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
Rear overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
1.6 Turbo GTC | 1.6 Turbo GTC | 1.6 Turbo ECOTEC GTC | 1.6 Turbo GTC | 2.0 Turbo OPC | 1.7 CDTI ECOTEC GTC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1998 | 1686 |
Maximum output / speed [kW/min-1] | 125/6000 | 125/6000 | 132/5500 | 147/5500 | 206/5300 | 81/3800 |
Maximum torque [Nm/min-1] | 260/1650-3200 | 260/1650-3200 | 230/2200-5400 | 280/1650-3500 | 400/2400-4800 | 280/1750-2500 |
Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 79,0 x 81,5 | 79,0 x 81,5 | 86,0 x 86,0 | 79,0 x 86,0 |
Compression ratio | 10,5:1 | 10,5:1 | 8,8:1 | 10,5:1 | 9,5:1 | 16,5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
Drive specifications | - |
| - | - | - | - |
Top speed [km/h] | 219 | 210 | 220 | 230 | 250 | 182 |
Acceleration 0–100 km/h [s] | 8.6 | 9.2 | 8.3 | 7.9 | 6.0 | 11.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.8 | 8.8 | 9.3 | 8.4 | 10.8 | 5.3-5.4 |
Out of town [l] | 5.1 | 5.5 | 5.9 | 5.5 | 6.5 | 4.0-4.1 |
Combined [l] | 6.1 | 6.7 | 7.2 | 6.6 | 8.1 | 4.5-4.6 |
CO2 emissions [g/km] | 143 | 158 | 168 | 154 | 189 | 119-121 |
Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5-EU6 | EU5-EU6 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1503 | 1503 | 1471 | 1503 | 1550 | 1503 |
Overall weight [kg] | 1990 | 2000 | 1970 | 1990 | 2040 | 2020 |
Maximum trailer weight unbraked/braked [kg] | 730/1500 | 730/1500 | 720/1450 | 730/1500 | - | 730/1200 |
Maximum front/rear axle load [kg] | 1110/930 | 1110/930 | 1110/930 | 1110/930 | - | 1110/930 |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 765/1165 | 765/1165 | 765/1165 | 765/1165 | -/1165 | 765/1165 |
Boot length [mm] | 855 | 855 | 855 | 855 | 855 | 855 |
Boot length with rear seats folded [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1617 |
Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | -/980 | 980/- |
Boot height to headliner/ceiling [mm] | -/793 | -/793 | -/793 | -/793 | - | -/793 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/40 R19 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/40 R19 | 225/55 R17 |
Wheel size front | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 8.0 x 19 | 7.0 x 17 |
Wheel size rear | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 8.0 x 19 | 7.0 x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
Overall length [mm] | 4466 | 4466 | 4466 | 4466 | 4466 | 4466 |
Overall width without/including mirrors [mm] | 1840/2020 | 1840/2020 | 1840/2020 | 1840/2020 | 1840/- | 1840/2020 |
Overall height [mm] | 1489 | 1489 | 1489 | 1489 | 1489 | 1489 |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
Forward overhang [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
Rear overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
1.7 CDTI ECOTEC GTC | 1.6 CDTI GTC | 1.7 CDTI ECOTEC GTC | 1.7 CDTI ECOTEC GTC | 1.6 CDTI GTC | 2.0 CDTI ECOTEC GTC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1686 | 1598 | 1686 | 1686 | 1598 | 1956 |
Maximum output / speed [kW/min-1] | 81/3800 | 81/3500 | 96/4000 | 96/4000 | 100/3500-4000 | 121/4000 |
Maximum torque [Nm/min-1] | 280/1750-2500 | 300/1750-2000 | 300/2000-2500 | 300/2000-2500 | 320/2000 | 350/1750-2500 |
Bore and stroke [mm x mm] | 79,0 x 86,0 | 79,7 x 80,1 | 79,0 x 86,0 | 79,0 x 86,0 | 79,7 x 80,1 | 83,0 x 90,4 |
Compression ratio | 16,5:1 | 16,0:1 | 16,5:1 | 16,5:1 | 16,0:1 | 16,5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
Drive specifications | - | - | - | - | - | - |
Top speed [km/h] | 182 | 182 | 196 | 196 | 182 | 210 |
Acceleration 0–100 km/h [s] | 11.9 | 12.1 | 10.8 | 10.8 | 10.2 | 8.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 4.8 | 4.6 | 5.3-5.4 | 4.8 | 4.9 | 5.6-5.7 |
Out of town [l] | 4.0 | 3.7 | 4.0-4.1 | 4.0 | 3.8 | 4.2-4.3 |
Combined [l] | 4.3 | 4.0 | 4.5-4.6 | 4.3 | 4.2 | 4.7-4.8 |
CO2 emissions [g/km] | 114 | 107 | 119-121 | 114 | 111 | 124-127 |
Emission standard | EU5 | EU6 | EU5 | EU5 | EU6 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1503 | 1518 | 1503 | 1503 | 1518 | 1550 |
Overall weight [kg] | 2020 | 2005 | 2020 | 2020 | 2010 | 2040 |
Maximum trailer weight unbraked/braked [kg] | 730/1200 | 730/1500 | 730/1200 | 730/1200 | 730/1500 | 750/1500 |
Maximum front/rear axle load [kg] | 1110/930 | 1110/930 | 1110/930 | 1110/930 | 1110/930 | 1110/930 |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 765/1165 | 765/1165 | 765/1165 | 765/1165 | 765/1165 | 765/1165 |
Boot length [mm] | 855 | 855 | 855 | 855 | 855 | 855 |
Boot length with rear seats folded [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1617 |
Boot width between wheels/max [mm] | 980/- | 980/- | 980/- | 980/- | 980/- | 980/- |
Boot height to headliner/ceiling [mm] | -/793 | -/793 | -/793 | -/793 | -/793 | -/793 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
Wheel size front | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 |
Wheel size rear | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 | 7.0 x 17 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
Overall length [mm] | 4466 | 4466 | 4466 | 4466 | 4466 | 4466 |
Overall width without/including mirrors [mm] | 1840/2020 | 1840/2020 | 1840/2020 | 1840/2020 | 1840/2020 | 1840/2020 |
Overall height [mm] | 1489 | 1489 | 1489 | 1489 | 1489 | 1489 |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
Forward overhang [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
Rear overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
2.0 CDTI ECOTEC GTC | 2.0 CDTI BiTurbo GTC | |||||
---|---|---|---|---|---|---|
Date of sale | - | - | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/16 | 4/16 | ||||
Engine displacement [cm³] | 1956 | 1956 | ||||
Maximum output / speed [kW/min-1] | 121/4000 | 143/4000 | ||||
Maximum torque [Nm/min-1] | 350/1750-2500 | 400/1750-2500 | ||||
Bore and stroke [mm x mm] | 83,0 x 90,4 | 83,0 x 90,4 | ||||
Compression ratio | 16,5:1 | 16,5:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Front | Front | ||||
Gearbox | 6 gear automatic | 6 gear manual | ||||
Drive specifications |
| - | ||||
Top speed [km/h] | 207 | 225 | ||||
Acceleration 0–100 km/h [s] | 9.2 | 8.3 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 7.6 | 6.0 | ||||
Out of town [l] | 4.5 | 4.2 | ||||
Combined [l] | 5.6 | 4.9 | ||||
CO2 emissions [g/km] | 149 | 129 | ||||
Emission standard | EU5 | EU5 | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1571 | 1571 | ||||
Overall weight [kg] | 2060 | 2080 | ||||
Maximum trailer weight unbraked/braked [kg] | 750/1450 | 750/1500 | ||||
Maximum front/rear axle load [kg] | 1110/930 | 1110/930 | ||||
Maximum vertical load on the tow bar [kg] | - | - | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 380 | 380 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 765/1165 | 765/1165 | ||||
Boot length [mm] | 855 | 855 | ||||
Boot length with rear seats folded [mm] | 1617 | 1617 | ||||
Boot width between wheels/max [mm] | 980/- | 980/- | ||||
Boot height to headliner/ceiling [mm] | -/793 | -/793 | ||||
Loading edge height [mm] | - | - | ||||
Height of the open boot door [mm] | - | - | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 3 | 3 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 56 | 56 | ||||
AdBlue tank volume [l] | - | - | ||||
Air resistance [Cd] | - | - | ||||
Front suspension | MacPherson with separate HiPerStrut weighbridge | MacPherson with separate HiPerStrut weighbridge | ||||
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | ||||
Tyre dimensions front | 225/55 R17 | 225/55 R17 | ||||
Tyre dimensions rear | 225/55 R17 | 225/55 R17 | ||||
Wheel size front | 7.0 x 17 | 7.0 x 17 | ||||
Wheel size rear | 7.0 x 17 | 7.0 x 17 | ||||
Brake dimensions front | - | - | ||||
Brake dimensions rear | - | - | ||||
Steering | - | - | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | ||||
Overall length [mm] | 4466 | 4466 | ||||
Overall width without/including mirrors [mm] | 1840/2020 | 1840/2020 | ||||
Overall height [mm] | 1489 | 1489 | ||||
Wheelbase [mm] | 2685 | 2685 | ||||
Front wheel track [mm] | 1587 | 1587 | ||||
Rear wheel track [mm] | 1587 | 1587 | ||||
Forward overhang [mm] | 968 | 968 | ||||
Rear overhang [mm] | 803 | 803 | ||||
Clearance [mm] | - | - | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | - | - | ||||
Approach angle rear [°] | - | - | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | - | - | ||||
Headroom rear [mm] | - | - | ||||
Front elbow/shoulder width [mm] | - | - | ||||
Rear elbow/shoulder width [mm] | - | - | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Five-door hatchback
1.4 ECOTEC | 1.6 ECOTEC | 1.6 ECOTEC | 1.4 Turbo ECOTEC | 1.4 Turbo ECOTEC | 1.4 Turbo ECOTEC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1398 | 1598 | 1598 | 1364 | 1364 | 1364 |
Maximum output / speed [kW/min-1] | 74/6000 | 85/6000 | 85/6000 | 88/4200-6000 | 103/4900 | 103/4900 |
Maximum torque [Nm/min-1] | 130/4000 | 155/4000 | 155/4000 | 200/1850-4200 | 200/1850-4900 | 200/1850-4900 |
Bore and stroke [mm x mm] | 73,4 x 82,6 | 79,0 x 81,5 | 79,0 x 81,5 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 |
Compression ratio | 10,5:1 | 10,8:1 | 10,8:1 | 9,5:1 | 9,5:1 | 9,5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
Drive specifications | - | - |
| - | - |
|
Top speed [km/h] | 178 | 188 | 182 | 192 | 202 | 200 |
Acceleration 0–100 km/h [s] | 13.9 | 11.7 | 13.3 | 11.0 | 9.9 | 10.2 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.1 | 8.3-8.4 | 9.8-9.9 | 7.9-8.0 | 7.8-8.0 | 9.0-9.1 |
Out of town [l] | 4.6 | 5.1-5.2 | 5.6-5.7 | 4.7 | 4.7 | 5.3-5.4 |
Combined [l] | 5.5 | 6.3-6.4 | 7.1-7.2 | 5.9 | 5.9 | 6.7-6.8 |
CO2 emissions [g/km] | 129 | 147-149 | 167-169 | 138-139 | 138-139 | 157-159 |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 |
Overall weight [kg] | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 |
Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
Maximum front/rear axle load [kg] | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 795/1235 | 795/1235 | 795/1235 | 795/1235 | 795/1235 | 795/1235 |
Boot length [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
Boot length with rear seats folded [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
Boot width between wheels/max [mm] | 904/1027 | 904/1027 | 904/1027 | 904/1027 | 904/1027 | 904/1027 |
Boot height to headliner/ceiling [mm] | -/729 | -/729 | -/729 | -/729 | -/729 | -/729 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | 4419 |
Overall width without/including mirrors [mm] | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 |
Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
Forward overhang [mm] | - | - | - | - | - | - |
Rear overhang [mm] | - | - | - | - | - | - |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
1.6 Turbo ECOTEC | 1.6 Turbo ECOTEC | 1.3 CDTI ecoFLEX | 1.3 CDTI ecoFLEX | 1.7 CDTI ECOTEC | 1.7 CDTI ECOTEC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1598 | 1598 | 1248 | 1248 | 1686 | 1686 |
Maximum output / speed [kW/min-1] | 132/5500 | 132/5500 | 70/4000 | 70/4000 | 81/3800 | 92/4000 |
Maximum torque [Nm/min-1] | 230/2200-5400 | 230/2200-5400 | 190/1750 | 190/1750 | 260/1800 | 280/2000-2700 |
Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 69,6 x 82,0 | 69,6 x 82,0 | 79,0 x 86,0 | 79,0 x 86,0 |
Compression ratio | 8,8:1 | 8,8:1 | 16,8:1 | 16,8:1 | 18,0:1 | 18,0:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
Drive specifications | - |
| - | - | - | - |
Top speed [km/h] | 221 | 211 | 175 | 175 | 181 | 195 |
Acceleration 0–100 km/h [s] | 8.5 | 9.0 | 14.5 | 14.5 | 12.6 | 11.5 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.8-8.9 | 9.9 | 4.9 | 4.7 | 5.5-5.7 | 5.5-5.7 |
Out of town [l] | 5.6 | 5.6-5.7 | 3.7 | 3.5 | 3.9-4.1 | 3.9-4.1 |
Combined [l] | 6.8 | 7.2-7.3 | 4.1 | 3.9 | 4.5-4.7 | 4.5-4.7 |
CO2 emissions [g/km] | 159-160 | 169-170 | 109 | 104 | 119-124 | 119-124 |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 |
Overall weight [kg] | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 |
Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
Maximum front/rear axle load [kg] | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 370 | 370 | 370 | 370 | 370 | 370 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 795/1235 | 795/1235 | 795/1235 | 795/1235 | 795/1235 | 795/1235 |
Boot length [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
Boot length with rear seats folded [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
Boot width between wheels/max [mm] | 904/1027 | 904/1027 | 904/1027 | 904/1027 | 904/1027 | 904/1027 |
Boot height to headliner/ceiling [mm] | -/729 | -/729 | -/729 | -/729 | -/729 | -/729 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
Tyre dimensions front | 215/60 R16 | 215/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/60 R16 |
Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/60 R16 |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | 4419 |
Overall width without/including mirrors [mm] | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 |
Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
Forward overhang [mm] | - | - | - | - | - | - |
Rear overhang [mm] | - | - | - | - | - | - |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | ||
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
Engine displacement [cm³] | 1956 | 1956 | 1956 | 1956 | 1956 | |
Maximum output / speed [kW/min-1] | 118/4000 | 118/4000 | 121/4000 | 121/4000 | 121/4000 | |
Maximum torque [Nm/min-1] | 350/1750 | 350/1750 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | |
Bore and stroke [mm x mm] | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | |
Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
Oil volume [l] | - | - | - | - | - | |
Coolant volume [l] | - | - | - | - | - | |
Technical specifications |
|
|
|
|
| |
Drive axle | Front | Front | Front | Front | Front | |
Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | |
Drive specifications | - |
| - | - |
| |
Top speed [km/h] | 215 | 209 | 215 | 215 | 209 | |
Acceleration 0–100 km/h [s] | 9.0 | 9.2 | 9.0 | 9.0 | 9.2 | |
Acceleration 0–80 km/h [s] | - | - | - | - | - | |
Acceleration 80–120 km/h [s] | - | - | - | - | - | |
City [l] | 6.2 | 7.9 | 6.2-6.3 | 6.0 | 7.9 | |
Out of town [l] | 3.9 | 4.6 | 4.1 | 3.9 | 4.6-4.7 | |
Combined [l] | 4.8 | 5.8 | 4.9 | 4.7 | 5.8-5.9 | |
CO2 emissions [g/km] | 126 | 154 | 129-130 | 123 | 154-155 | |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
Standard for fuel consumption measurement | - | - | - | - | - | |
Energy class | - | - | - | - | - | |
Stationary vehicle noise [dB] | - | - | - | - | - | |
Driving noise [dB] | - | - | - | - | - | |
Standby weight [kg] | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 | 1373-1590 | |
Overall weight [kg] | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 | 1870-2065 | |
Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
Maximum front/rear axle load [kg] | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 | 960-1155/920 | |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
Boot volume [l] | 370 | 370 | 370 | 370 | 370 | |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 795/1235 | 795/1235 | 795/1235 | 795/1235 | 795/1235 | |
Boot length [mm] | 857 | 857 | 857 | 857 | 857 | |
Boot length with rear seats folded [mm] | 1580 | 1580 | 1580 | 1580 | 1580 | |
Boot width between wheels/max [mm] | 904/1027 | 904/1027 | 904/1027 | 904/1027 | 904/1027 | |
Boot height to headliner/ceiling [mm] | -/729 | -/729 | -/729 | -/729 | -/729 | |
Loading edge height [mm] | - | - | - | - | - | |
Height of the open boot door [mm] | - | - | - | - | - | |
Boot opening height [mm] | - | - | - | - | - | |
Boot opening width min/max [mm] | - | - | - | - | - | |
Number of doors | 5 | 5 | 5 | 5 | 5 | |
Number of seats | 5 | 5 | 5 | 5 | 5 | |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | |
AdBlue tank volume [l] | - | - | - | - | - | |
Air resistance [Cd] | - | - | - | - | - | |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | |
Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | |
Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
Brake dimensions front | - | - | - | - | - | |
Brake dimensions rear | - | - | - | - | - | |
Steering | - | - | - | - | - | |
Number of steering wheel turns | - | - | - | - | - | |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | |
Overall length [mm] | 4419 | 4419 | 4419 | 4419 | 4419 | |
Overall width without/including mirrors [mm] | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | |
Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | |
Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | |
Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | |
Forward overhang [mm] | - | - | - | - | - | |
Rear overhang [mm] | - | - | - | - | - | |
Clearance [mm] | - | - | - | - | - | |
Wading depth [mm] | - | - | - | - | - | |
Approach angle front [°] | - | - | - | - | - | |
Approach angle rear [°] | - | - | - | - | - | |
Transition angle [°] | - | - | - | - | - | |
Climbing rate [°] | - | - | - | - | - | |
Maximum side tilt [°] | - | - | - | - | - | |
Headroom front [mm] | - | - | - | - | - | |
Headroom rear [mm] | - | - | - | - | - | |
Front elbow/shoulder width [mm] | - | - | - | - | - | |
Rear elbow/shoulder width [mm] | - | - | - | - | - | |
Legroom front knees/total [mm] | - | - | - | - | - | |
Legroom rear knees/total [mm] | - | - | - | - | - |
Estate (Sports Tourer)
1.4 ECOTEC | 1.6 ECOTEC | 1.6 ECOTEC | 1.4 Turbo ECOTEC | 1.4 Turbo ECOTEC | 1.4 Turbo ECOTEC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1398 | 1598 | 1598 | 1364 | 1364 | 1364 |
Maximum output / speed [kW/min-1] | 74/6000 | 85/6000 | 85/6000 | 88/4200-6000 | 103/4900 | 103/4900 |
Maximum torque [Nm/min-1] | 130/4000 | 155/4000 | 155/4000 | 200/1850-4200 | 200/1850-4900 | 200/1850-4900 |
Bore and stroke [mm x mm] | 73,4 x 82,6 | 79,0 x 81,5 | 79,0 x 81,5 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 |
Compression ratio | 10,5:1 | 10,8:1 | 10,8:1 | 9,5:1 | 9,5:1 | 9,5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
Drive specifications | - | - |
| - | - |
|
Top speed [km/h] | 175 | 185 | 180 | 190 | 200 | 198 |
Acceleration 0–100 km/h [s] | 14.5 | 12.3 | 13.9 | 11.2 | 10.5 | 10.8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.6 | 8.6-8.7 | 10.1-10.3 | 8.4-8.5 | 8.4-8.5 | 9.1-9.3 |
Out of town [l] | 4.9 | 4.9-5.1 | 5.5-5.8 | 4.9-5.1 | 4.9-5.1 | 5.4-5.7 |
Combined [l] | 5.9 | 6.1-6.4 | 7.2-7.5 | 6.1-6.4 | 6.1-6.4 | 6.8-7.0 |
CO2 emissions [g/km] | 139 | 144-149 | 169-175 | 144-149 | 144-149 | 159-165 |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 |
Overall weight [kg] | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 |
Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
Maximum front/rear axle load [kg] | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 |
Boot length [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | 1835 | 1835 |
Boot width between wheels/max [mm] | 1028/- | 1028/- | 1028/- | 1028/- | 1028/- | 1028/- |
Boot height to headliner/ceiling [mm] | -/640 | -/640 | -/640 | -/640 | -/640 | -/640 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
Overall length [mm] | 4698 | 4698 | 4698 | 4698 | 4698 | 4698 |
Overall width without/including mirrors [mm] | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 |
Overall height [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
Forward overhang [mm] | - | - | - | - | - | - |
Rear overhang [mm] | - | - | - | - | - | - |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
1.6 Turbo ECOTEC | 1.6 Turbo ECOTEC | 1.3 CDTI ecoFLEX | 1.3 CDTI ecoFLEX | 1.7 CDTI ECOTEC | 1.7 CDTI ECOTEC | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1598 | 1598 | 1248 | 1248 | 1686 | 1686 |
Maximum output / speed [kW/min-1] | 132/5500 | 132/5500 | 70/4000 | 70/4000 | 81/3800 | 92/4000 |
Maximum torque [Nm/min-1] | 230/2200-5400 | 230/2200-5400 | 190/1750 | 190/1750 | 260/1800 | 280/2000-2700 |
Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 69,6 x 82,0 | 69,6 x 82,0 | 79,0 x 86,0 | 79,0 x 86,0 |
Compression ratio | 8,8:1 | 8,8:1 | 16,8:1 | 16,8:1 | 18,0:1 | 18,0:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
Drive specifications | - |
| - | - | - | - |
Top speed [km/h] | 220 | 210 | 174 | 174 | 180 | 192 |
Acceleration 0–100 km/h [s] | 8.8 | 9.5 | 14.6 | 14.6 | 13.0 | 11.7 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 9.0-9.1 | 10.1-10.2 | - | 4.9 | 5.5-5.6 | 5.5-5.6 |
Out of town [l] | 5.5-5.6 | 5.8-6.0 | - | 3.7 | 3.9-4.0 | 3.9-4.0 |
Combined [l] | 6.8-6.9 | 7.4-7.5 | - | 4.1 | 4.5-4.6 | 4.5-4.6 |
CO2 emissions [g/km] | 159-161 | 174-177 | - | 109 | 119-121 | 119-121 |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 |
Overall weight [kg] | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 |
Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
Maximum front/rear axle load [kg] | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 500 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 |
Boot length [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | 1835 | 1835 |
Boot width between wheels/max [mm] | 1028/- | 1028/- | 1028/- | 1028/- | 1028/- | 1028/- |
Boot height to headliner/ceiling [mm] | -/640 | -/640 | -/640 | -/640 | -/640 | -/640 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
Tyre dimensions front | 215/60 R16 | 215/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/60 R16 |
Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/60 R16 |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 |
Overall length [mm] | 4698 | 4698 | 4698 | 4698 | 4698 | 4698 |
Overall width without/including mirrors [mm] | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 |
Overall height [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
Forward overhang [mm] | - | - | - | - | - | - |
Rear overhang [mm] | - | - | - | - | - | - |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | 2.0 CDTI ECOTEC | ||
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | |
Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
Engine displacement [cm³] | 1956 | 1956 | 1956 | 1956 | 1956 | |
Maximum output / speed [kW/min-1] | 118/4000 | 118/4000 | 121/4000 | 121/4000 | 121/4000 | |
Maximum torque [Nm/min-1] | 350/1750 | 350/1750 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | |
Bore and stroke [mm x mm] | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | |
Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
Oil volume [l] | - | - | - | - | - | |
Coolant volume [l] | - | - | - | - | - | |
Technical specifications |
|
|
|
|
| |
Drive axle | Front | Front | Front | Front | Front | |
Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | |
Drive specifications | - |
| - | - |
| |
Top speed [km/h] | 212 | 207 | 212 | 212 | 207 | |
Acceleration 0–100 km/h [s] | 9.5 | 9.8 | 9.5 | 9.5 | 9.8 | |
Acceleration 0–80 km/h [s] | - | - | - | - | - | |
Acceleration 80–120 km/h [s] | - | - | - | - | - | |
City [l] | 6.5 | 7.9 | 6.5 | 6.0-6.1 | 7.9-8.0 | |
Out of town [l] | 4.2 | 4.7 | 4.2-4.4 | 4.2 | 4.7-4.8 | |
Combined [l] | 5.1 | 5.9 | 5.1 | 4.8-4.9 | 5.9-6.0 | |
CO2 emissions [g/km] | 134 | 156 | 134-136 | 128-129 | 156-158 | |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
Standard for fuel consumption measurement | - | - | - | - | - | |
Energy class | - | - | - | - | - | |
Stationary vehicle noise [dB] | - | - | - | - | - | |
Driving noise [dB] | - | - | - | - | - | |
Standby weight [kg] | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 | 1393-1613 | |
Overall weight [kg] | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 | 1960-2155 | |
Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
Maximum front/rear axle load [kg] | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | 980-1175/1020 | |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
Boot volume [l] | 500 | 500 | 500 | 500 | 500 | |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 | 1000/1550 | |
Boot length [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | |
Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | 1835 | |
Boot width between wheels/max [mm] | 1028/- | 1028/- | 1028/- | 1028/- | 1028/- | |
Boot height to headliner/ceiling [mm] | -/640 | -/640 | -/640 | -/640 | -/640 | |
Loading edge height [mm] | - | - | - | - | - | |
Height of the open boot door [mm] | - | - | - | - | - | |
Boot opening height [mm] | - | - | - | - | - | |
Boot opening width min/max [mm] | - | - | - | - | - | |
Number of doors | 5 | 5 | 5 | 5 | 5 | |
Number of seats | 5 | 5 | 5 | 5 | 5 | |
Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | |
AdBlue tank volume [l] | - | - | - | - | - | |
Air resistance [Cd] | - | - | - | - | - | |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | |
Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | |
Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
Brake dimensions front | - | - | - | - | - | |
Brake dimensions rear | - | - | - | - | - | |
Steering | - | - | - | - | - | |
Number of steering wheel turns | - | - | - | - | - | |
Turning diameter track/circumference [m] | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | 10.9/11.4 | |
Overall length [mm] | 4698 | 4698 | 4698 | 4698 | 4698 | |
Overall width without/including mirrors [mm] | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | 1814/2013 | |
Overall height [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | |
Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | |
Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | |
Rear wheel track [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | |
Forward overhang [mm] | - | - | - | - | - | |
Rear overhang [mm] | - | - | - | - | - | |
Clearance [mm] | - | - | - | - | - | |
Wading depth [mm] | - | - | - | - | - | |
Approach angle front [°] | - | - | - | - | - | |
Approach angle rear [°] | - | - | - | - | - | |
Transition angle [°] | - | - | - | - | - | |
Climbing rate [°] | - | - | - | - | - | |
Maximum side tilt [°] | - | - | - | - | - | |
Headroom front [mm] | - | - | - | - | - | |
Headroom rear [mm] | - | - | - | - | - | |
Front elbow/shoulder width [mm] | - | - | - | - | - | |
Rear elbow/shoulder width [mm] | - | - | - | - | - | |
Legroom front knees/total [mm] | - | - | - | - | - | |
Legroom rear knees/total [mm] | - | - | - | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
