Opel Astra
Date of manufacture
2007 – 2009 (Three-door hatchback)
2007 – 2009 (Five-door hatchback)
8/2007 – 2009 (Sedan)
2007 – 2009 (Estate)

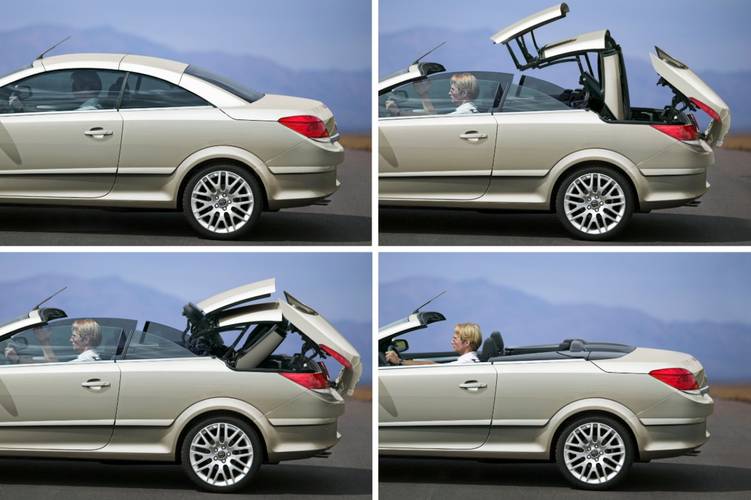

2007 – 2009 (Convertible)
Platform
GM T platform
Manufacturing locations
Antwerp, Belgium
Bochum, Germany
Gliwice, Poland
Kaliningrad, Russia
Saint Petersburg, Russia
Designer
Friedhelm Engler
Tags
C-segment
German cars
The Astra model is available as a three-door hatchback, five-door hatchback, sedan, estate and convertible. The car was first manufactured in 2007 and is produced in countries such as Belgium, Germany, Poland, Russia and Spain. The car is built on the GM T platform. It offers petrol and diesel engines with a maximum power of 177 kW in the OPC version. The maximum speed reaches up to 244 km/h. The most economical 1.3 CDTI variant has a combined consumption of 4.9 l/100 km and CO2 emissions of 130 g/km. The volume of the luggage compartment varies depending on the type of body - three-door hatchback 340 l, five-door hatchback 375 l, sedan 490 l and estate 490 l (convertible 205 l). EuroNCAP tests have confirmed the safety of the car rated 5 out of 5 points.
Car body style
Three-door hatchback (GTC)
after upgrade (facelift)
Date of manufacture
2007 – 2009Internal designation
Astra H A04Five-door hatchback
after upgrade (facelift)
Date of manufacture
2007 – 2009Internal designation
Astra H A04Sedan
after upgrade (facelift)
Date of manufacture
8/2007 – 2009Internal designation
Astra H A04Estate (Caravan)
after upgrade (facelift)
Date of manufacture
2007 – 2009Internal designation
Astra H A04
Technical data
Three-door hatchback (GTC)
| 1.4 Twinport | 1.4 Twinport | 1.6 | 1.6 | 1.8 VVA | 1.8 VVA | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1598 | 1598 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 66/5600 | 66/5600 | 85/6000 | 85/6000 | 103/6300 | 103/6300 |
| Maximum torque [Nm/min-1] | 125/4000 | 125/4000 | 155/4000 | 155/4000 | 175/3800 | 175/3800 |
| Bore and stroke [mm x mm] | 73,4 x 80,6 | 73,4 x 80,6 | 79,0 x 81,5 | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 4 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 180 | 178 | 193 | 194 | 210 | 190 |
| Acceleration 0–100 km/h [s] | 13.6 | 15.1 | 11.6 | 12.6 | 10.1 | 11.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 7.7 | 8.7 | 8.5 | 9.7 | 10.4 |
| Out of town [l] | 5.0 | 4.9 | 5.2 | 5.1 | 5.6 | 6.1 |
| Combined [l] | 6.1 | 5.9 | 6.5 | 6.3 | 7.1 | 7.7 |
| CO2 emissions [g/km] | 146 | 141 | 155 | 151 | 169 | 184 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1220-1538 | 1220-1538 | 1220-1538 | 1220-1538 | 1220-1538 | 1220-1538 |
| Overall weight [kg] | 1695-1895 | 1695-1895 | 1695-1895 | 1695-1895 | 1695-1895 | 1695-1895 |
| Maximum trailer weight unbraked/braked [kg] | 605/1000 | 605/1000 | 635/1200 | 635/1200 | 630/1300 | 630/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 690/1070 | 690/1070 | 690/1070 | 690/1070 | 690/1070 | 690/1070 |
| Boot length [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Boot length with rear seats folded [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Boot width between wheels/max [mm] | 944/1092 | 944/1092 | 944/1092 | 944/1092 | 944/1092 | 944/1092 |
| Boot height to headliner/ceiling [mm] | -/772 | -/772 | -/772 | -/772 | -/772 | -/772 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/55 R16 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 |
| Overall length [mm] | 4290 | 4290 | 4290 | 4290 | 4290 | 4290 |
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Wheelbase [mm] | 2614 | 2614 | 2614 | 2614 | 2614 | 2614 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

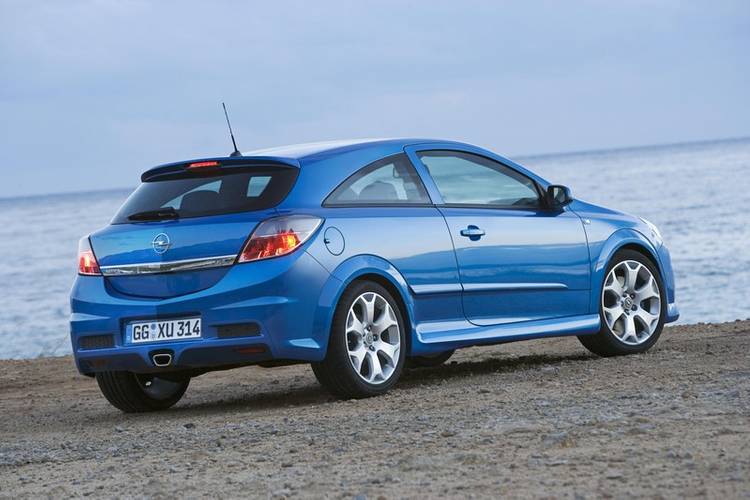

| 1.6 Turbo | 2.0 Turbo | OPC | 1.3 CDTI | 1.3 CDTI | 1.7 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1998 | 1998 | 1248 | 1248 | 1686 |
| Maximum output / speed [kW/min-1] | 132/5500 | 147/5400 | 177/5600 | 66/4000 | 66/4000 | 74/4400 |
| Maximum torque [Nm/min-1] | 230/1980-5500 | 262/4200 | 320/2400 | 200/1750-2500 | 200/1750-2500 | 240/2300 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 86,0 x 86,0 | 86,0 x 86,0 | 69,6 x 82,0 | 69,6 x 82,0 | 79,0 x 86,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear robotic manual | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 223 | 234 | 244 | 174 | 171 | 182 |
| Acceleration 0–100 km/h [s] | 8.2 | 7.8 | 6.4 | 13.6 | 15.1 | 12.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.3 | 13.0 | 13.0 | 6.3 | 6.4 | 6.4 |
| Out of town [l] | 6.2 | 7.0 | 7.0 | 4.1 | 4.2 | 4.2 |
| Combined [l] | 7.7 | 9.2 | 9.2 | 4.9 | 5.0 | 5.0 |
| CO2 emissions [g/km] | 185 | 223 | 221 | 130 | 133 | 135 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1220-1538 | 1220-1538 | 1393-1417 | 1220-1538 | 1220-1538 | 1220-1538 |
| Overall weight [kg] | 1695-1895 | 1695-1895 | 1840 | 1695-1895 | 1695-1895 | 1695-1895 |
| Maximum trailer weight unbraked/braked [kg] | 675/1500 | 680/1500 | - | 650/1300 | 650/1300 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 690/1070 | 690/1070 | 690/1070 | 690/1070 | 690/1070 | 690/1070 |
| Boot length [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Boot length with rear seats folded [mm] | 1522 | 1522 | 1522 | 1522 | 1522 | 1522 |
| Boot width between wheels/max [mm] | 944/1092 | 944/1092 | 944/1092 | 944/1092 | 944/1092 | 944/1092 |
| Boot height to headliner/ceiling [mm] | -/772 | -/772 | -/772 | -/772 | -/772 | -/772 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/40 R18 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/40 R18 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 |
| Overall length [mm] | 4290 | 4290 | 4290 | 4290 | 4290 | 4290 |
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 |
| Overall height [mm] | 1435 | 1435 | 1405 | 1435 | 1435 | 1435 |
| Wheelbase [mm] | 2614 | 2614 | 2614 | 2614 | 2614 | 2614 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CDTI | 1.9 CDTI | 1.7 CDTI | 1.9 CDTI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/8 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1686 | 1910 | 1686 | 1910 | ||
| Maximum output / speed [kW/min-1] | 81/3800 | 88/3500 | 92/4000 | 110/4000 | ||
| Maximum torque [Nm/min-1] | 260/2300 | 280/2000-2750 | 280/2300 | 320/2000-2750 | ||
| Bore and stroke [mm x mm] | 79,0 x 86,0 | 82,0 x 90,4 | 79,0 x 86,0 | 82,0 x 90,4 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | ||
| Drive specifications | - | - | - | - | ||
| Top speed [km/h] | 187 | 196 | 197 | 210 | ||
| Acceleration 0–100 km/h [s] | 11.6 | 10.4 | 10.4 | 8.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6.5 | 7.2 | 6.8 | 7.2 | ||
| Out of town [l] | 4.4 | 4.7 | 4.6 | 4.7 | ||
| Combined [l] | 5.2 | 5.6 | 5.4 | 5.6 | ||
| CO2 emissions [g/km] | 140 | 149 | 143 | 149 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1220-1538 | 1220-1538 | 1220-1538 | 1220-1538 | ||
| Overall weight [kg] | 1695-1895 | 1695-1895 | 1695-1895 | 1695-1895 | ||
| Maximum trailer weight unbraked/braked [kg] | 680/1400 | 680/1500 | 680/1400 | 690/1500 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 340 | 340 | 340 | 340 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 690/1070 | 690/1070 | 690/1070 | 690/1070 | ||
| Boot length [mm] | 819 | 819 | 819 | 819 | ||
| Boot length with rear seats folded [mm] | 1522 | 1522 | 1522 | 1522 | ||
| Boot width between wheels/max [mm] | 944/1092 | 944/1092 | 944/1092 | 944/1092 | ||
| Boot height to headliner/ceiling [mm] | -/772 | -/772 | -/772 | -/772 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 3 | 3 | 3 | 3 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | - | - | - | - | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/50 R16 | ||
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/50 R16 | ||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | ||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | ||
| Overall length [mm] | 4290 | 4290 | 4290 | 4290 | ||
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | ||
| Overall height [mm] | 1435 | 1435 | 1435 | 1435 | ||
| Wheelbase [mm] | 2614 | 2614 | 2614 | 2614 | ||
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | ||
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Five-door hatchback
| 1.4 Twinport | 1.4 Twinport | 1.6 | 1.6 | 1.8 VVA | 1.8 VVA | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1598 | 1598 | 1796 | 1796 |
| Maximum output / speed [kW/min-1] | 66/5600 | 66/5600 | 85/6000 | 85/6000 | 103/6300 | 103/6300 |
| Maximum torque [Nm/min-1] | 125/4000 | 125/4000 | 155/4000 | 155/4000 | 175/3800 | 175/3800 |
| Bore and stroke [mm x mm] | 73,4 x 80,6 | 73,4 x 80,6 | 79,0 x 81,5 | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 4 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 178 | 176 | 191 | 192 | 208 | 188 |
| Acceleration 0–100 km/h [s] | 13.7 | 15.2 | 11.7 | 12.7 | 10.2 | 11.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 7.7 | 8.7 | 8.5 | 9.7 | 10.5 |
| Out of town [l] | 5.0 | 4.9 | 5.2 | 5.1 | 5.6 | 6.2 |
| Combined [l] | 6.1 | 5.9 | 6.5 | 6.3 | 7.3 | 7.8 |
| CO2 emissions [g/km] | 146 | 141 | 155 | 151 | 175 | 187 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1240-1585 | 1240-1585 | 1240-1585 | 1240-1585 | 1240-1585 | 1240-1585 |
| Overall weight [kg] | 1715-1915 | 1715-1915 | 1715-1915 | 1715-1915 | 1715-1915 | 1715-1915 |
| Maximum trailer weight unbraked/braked [kg] | 615/1000 | 615/1000 | 635/1200 | 635/1200 | 630/1300 | 630/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 375 | 375 | 375 | 375 | 375 | 375 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 805/1295 | 805/1295 | 805/1295 | 805/1295 | 805/1295 | 805/1295 |
| Boot length [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Boot length with rear seats folded [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Boot width between wheels/max [mm] | 944/1093 | 944/1093 | 944/1093 | 944/1093 | 944/1093 | 944/1093 |
| Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | -/820 | -/820 | -/820 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/55 R16 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 |
| Overall length [mm] | 4249 | 4249 | 4249 | 4249 | 4249 | 4249 |
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 |
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Wheelbase [mm] | 2614 | 2614 | 2614 | 2614 | 2614 | 2614 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 Turbo | 2.0 Turbo | 1.3 CDTI | 1.3 CDTI | 1.7 CDTI | 1.7 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1998 | 1248 | 1248 | 1686 | 1686 |
| Maximum output / speed [kW/min-1] | 132/5500 | 147/5400 | 66/4000 | 66/4000 | 74/4400 | 81/3800 |
| Maximum torque [Nm/min-1] | 230/1980-5500 | 262/4200 | 200/1750-2500 | 200/1750-2500 | 240/2300 | 260/2300 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 86,0 x 86,0 | 69,6 x 82,0 | 69,6 x 82,0 | 79,0 x 86,0 | 79,0 x 86,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear robotic manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 221 | 230 | 172 | 171 | 180 | 185 |
| Acceleration 0–100 km/h [s] | 8.3 | 8.2 | 13.7 | 15.1 | 12.5 | 12.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.3 | 13.1 | 6.3 | 6.4 | 6.4 | 6.6 |
| Out of town [l] | 6.2 | 7.1 | 4.1 | 4.2 | 4.2 | 4.5 |
| Combined [l] | 7.7 | 9.3 | 4.9 | 5.0 | 5.0 | 5.3 |
| CO2 emissions [g/km] | 185 | 223 | 130 | 133 | 135 | 143 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1240-1585 | 1240-1585 | 1240-1585 | 1240-1585 | 1240-1585 | 1240-1585 |
| Overall weight [kg] | 1715-1915 | 1715-1915 | 1715-1915 | 1715-1915 | 1715-1915 | 1715-1915 |
| Maximum trailer weight unbraked/braked [kg] | 675/1500 | 690/1500 | 650/1300 | 650/1300 | - | 680/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 375 | 375 | 375 | 375 | 375 | 375 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 805/1295 | 805/1295 | 805/1295 | 805/1295 | 805/1295 | 805/1295 |
| Boot length [mm] | 819 | 819 | 819 | 819 | 819 | 819 |
| Boot length with rear seats folded [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Boot width between wheels/max [mm] | 944/1093 | 944/1093 | 944/1093 | 944/1093 | 944/1093 | 944/1093 |
| Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | -/820 | -/820 | -/820 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 |
| Overall length [mm] | 4249 | 4249 | 4249 | 4249 | 4249 | 4249 |
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 |
| Overall height [mm] | 1460 | 1460 | 1460 | 1460 | 1460 | 1460 |
| Wheelbase [mm] | 2614 | 2614 | 2614 | 2614 | 2614 | 2614 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 CDTI | 1.7 CDTI | 1.9 CDTI | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1910 | 1686 | 1910 | |||
| Maximum output / speed [kW/min-1] | 88/3500 | 92/4000 | 110/4000 | |||
| Maximum torque [Nm/min-1] | 280/2000-2750 | 280/2300 | 320/2000-2750 | |||
| Bore and stroke [mm x mm] | 82,0 x 90,4 | 79,0 x 86,0 | 82,0 x 90,4 | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 194 | 195 | 208 | |||
| Acceleration 0–100 km/h [s] | 10.5 | 10.5 | 8.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.2 | 6.8 | 7.2 | |||
| Out of town [l] | 4.7 | 4.6 | 4.7 | |||
| Combined [l] | 5.6 | 5.4 | 5.6 | |||
| CO2 emissions [g/km] | 149 | 143 | 149 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1240-1585 | 1240-1585 | 1240-1585 | |||
| Overall weight [kg] | 1715-1915 | 1715-1915 | 1715-1915 | |||
| Maximum trailer weight unbraked/braked [kg] | 680/1500 | 680/1400 | 690/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 375 | 375 | 375 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 805/1295 | 805/1295 | 805/1295 | |||
| Boot length [mm] | 819 | 819 | 819 | |||
| Boot length with rear seats folded [mm] | 1530 | 1530 | 1530 | |||
| Boot width between wheels/max [mm] | 944/1093 | 944/1093 | 944/1093 | |||
| Boot height to headliner/ceiling [mm] | -/820 | -/820 | -/820 | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | - | - | - | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 205/50 R16 | |||
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 205/50 R16 | |||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | |||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.8/11.2 | 10.8/11.2 | 10.8/11.2 | |||
| Overall length [mm] | 4249 | 4249 | 4249 | |||
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | |||
| Overall height [mm] | 1460 | 1460 | 1460 | |||
| Wheelbase [mm] | 2614 | 2614 | 2614 | |||
| Front wheel track [mm] | 1488 | 1488 | 1488 | |||
| Rear wheel track [mm] | 1488 | 1488 | 1488 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Sedan
| 1.6 | 1.6 | 1.8 VVA | 1.8 VVA | 1.3 CDTI | 1.3 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1796 | 1796 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 85/6000 | 85/6000 | 103/6300 | 103/6300 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 155/4000 | 155/4000 | 175/3800 | 175/3800 | 200/1750-2500 | 200/1750-2500 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear robotic manual |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 191 | 192 | 207 | 188 | 172 | 172 |
| Acceleration 0–100 km/h [s] | 11.7 | 12.7 | 10.2 | 11.4 | 13.7 | 15.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | 8.6 | 9.7-10.0 | 10.5 | 6.3 | 6.4 |
| Out of town [l] | 5.3 | 5.1 | 5.6-5.9 | 6.2 | 4.1 | 4.2 |
| Combined [l] | 6.6 | 6.4 | 7.1-7.4 | 7.8 | 4.9 | 5.0 |
| CO2 emissions [g/km] | 158 | 154 | 169-178 | 187 | 130 | 133 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1306-1520 | 1306-1520 | 1306-1520 | 1306-1520 | 1306-1520 | 1306-1520 |
| Overall weight [kg] | 1730-1830 | 1730-1830 | 1730-1830 | 1730-1830 | 1730-1830 | 1730-1830 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 870/- | 870/- | 870/- | 870/- | 870/- | 870/- |
| Boot length [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Boot length with rear seats folded [mm] | 1668 | 1668 | 1668 | 1668 | 1668 | 1668 |
| Boot width between wheels/max [mm] | 1027/1092 | 1027/1092 | 1027/1092 | 1027/1092 | 1027/1092 | 1027/1092 |
| Boot height to headliner/ceiling [mm] | -/772 | -/772 | -/772 | -/772 | -/772 | -/772 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/11.47 | 11.0/11.47 | 11.0/11.47 | 11.0/11.47 | 11.0/11.47 | 11.0/11.47 |
| Overall length [mm] | 4587 | 4587 | 4587 | 4587 | 4587 | 4587 |
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | 2703 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CDTI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1686 | |||||
| Maximum output / speed [kW/min-1] | 74/4400 | |||||
| Maximum torque [Nm/min-1] | 240/2300 | |||||
| Bore and stroke [mm x mm] | 79,0 x 86,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 5 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 180 | |||||
| Acceleration 0–100 km/h [s] | 12.3 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.4 | |||||
| Out of town [l] | 4.2 | |||||
| Combined [l] | 5.0 | |||||
| CO2 emissions [g/km] | 135 | |||||
| Emission standard | EU4 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1306-1520 | |||||
| Overall weight [kg] | 1730-1830 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 490 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 870/- | |||||
| Boot length [mm] | 905 | |||||
| Boot length with rear seats folded [mm] | 1668 | |||||
| Boot width between wheels/max [mm] | 1027/1092 | |||||
| Boot height to headliner/ceiling [mm] | -/772 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | - | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 195/60 R15 | |||||
| Tyre dimensions rear | 195/60 R15 | |||||
| Wheel size front | 6.0J x 15 | |||||
| Wheel size rear | 6.0J x 15 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.0/11.47 | |||||
| Overall length [mm] | 4587 | |||||
| Overall width without/including mirrors [mm] | 1753/2033 | |||||
| Overall height [mm] | 1447 | |||||
| Wheelbase [mm] | 2703 | |||||
| Front wheel track [mm] | 1488 | |||||
| Rear wheel track [mm] | 1488 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate (Caravan)
| 1.4 Twinport | 1.6 | 1.6 | 1.8 VVA | 1.8 VVA | 1.6 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1598 | 1598 | 1796 | 1796 | 1598 |
| Maximum output / speed [kW/min-1] | 66/5600 | 85/6000 | 85/6000 | 103/6300 | 103/6300 | 132/5500 |
| Maximum torque [Nm/min-1] | 125/4000 | 155/4000 | 155/4000 | 175/3800 | 175/3800 | 230/1980-5500 |
| Bore and stroke [mm x mm] | 73,4 x 80,6 | 79,0 x 81,5 | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 | 79,0 x 81,5 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 178 | 191 | 192 | 207 | 188 | 221. |
| Acceleration 0–100 km/h [s] | 14.1 | 12.0 | 13.0 | 10.5 | 11.7 | 8.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 8.8 | 8.6 | 9.8 | 10.5 | 10.3 |
| Out of town [l] | 5.0 | 5.3 | 5.1 | 5.7 | 6.2 | 6.2 |
| Combined [l] | 6.1 | 6.6 | 6.4 | 7.2 | 7.8 | 7.7 |
| CO2 emissions [g/km] | 146 | 158 | 153 | 172 | 183 | 185 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1278-1653 | 1278-1653 | 1278-1653 | 1278-1653 | 1278-1653 | 1278-1653 |
| Overall weight [kg] | 1810-2005 | 1810-2005 | 1810-2005 | 1810-2005 | 1810-2005 | 1810-2005 |
| Maximum trailer weight unbraked/braked [kg] | 640/900 | 660/1100 | 660/1100 | 660/1300 | 660/1300 | 690/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 900/1590 | 900/1590 | 900/1590 | 900/1590 | 900/1590 | 900/1590 |
| Boot length [mm] | 1085 | 1085 | 1085 | 1085 | 1085 | 1085 |
| Boot length with rear seats folded [mm] | 1807 | 1807 | 1807 | 1807 | 1807 | 1807 |
| Boot width between wheels/max [mm] | 1088/1088 | 1088/1088 | 1088/1088 | 1088/1088 | 1088/1088 | 1088/1088 |
| Boot height to headliner/ceiling [mm] | -/862 | -/862 | -/862 | -/862 | -/862 | -/862 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 |
| Overall length [mm] | 4515 | 4515 | 4515 | 4515 | 4515 | 4515 |
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | 2703 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 Turbo | 1.3 CDTI | 1.7 CDTI | 1.7 CDTI | 1.9 CDTI | 1.7 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1998 | 1248 | 1686 | 1686 | 1910 | 1686 |
| Maximum output / speed [kW/min-1] | 147/5400 | 66/4000 | 74/4400 | 81/3800 | 88/3500 | 92/4000 |
| Maximum torque [Nm/min-1] | 262/4200 | 200/1750-2500 | 240/2300 | 260/2300 | 280/2000-2750 | 280/2300 |
| Bore and stroke [mm x mm] | 86,0 x 86,0 | 69,6 x 82,0 | 79,0 x 86,0 | 79,0 x 86,0 | 82,0 x 90,4 | 79,0 x 86,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 230 | 172 | 180 | 185 | 193 | 195 |
| Acceleration 0–100 km/h [s] | 8.4 | 14.1 | 12.5 | 12.0 | 10.7. | 10.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.2 | 6.3 | 6.4 | 6.6 | 7.3 | 7.0 |
| Out of town [l] | 7.2 | 4.1 | 4.2 | 4.5 | 4.8 | 4.8 |
| Combined [l] | 9.4 | 4.9 | 5.0 | 5.3 | 5.8 | 5.6 |
| CO2 emissions [g/km] | 226 | 130 | 135 | 143 | 151 | 149 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1278-1653 | 1278-1653 | 1278-1653 | 1278-1653 | 1278-1653 | 1278-1653 |
| Overall weight [kg] | 1810-2005 | 1810-2005 | 1810-2005 | 1810-2005 | 1810-2005 | 1810-2005 |
| Maximum trailer weight unbraked/braked [kg] | 710/1400 | 690/1300 | - | 670/1400 | 715/1400 | 700/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 900/1590 | 900/1590 | 900/1590 | 900/1590 | 900/1590 | 900/1590 |
| Boot length [mm] | 1085 | 1085 | 1085 | 1085 | 1085 | 1085 |
| Boot length with rear seats folded [mm] | 1807 | 1807 | 1807 | 1807 | 1807 | 1807 |
| Boot width between wheels/max [mm] | 1088/1088 | 1088/1088 | 1088/1088 | 1088/1088 | 1088/1088 | 1088/1088 |
| Boot height to headliner/ceiling [mm] | -/862 | -/862 | -/862 | -/862 | -/862 | -/862 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/50 R16 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 205/50 R16 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 | 11.1/11.5 |
| Overall length [mm] | 4515 | 4515 | 4515 | 4515 | 4515 | 4515 |
| Overall width without/including mirrors [mm] | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 | 1753/2033 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | 2703 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 CDTI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1910 | |||||
| Maximum output / speed [kW/min-1] | 110/4000 | |||||
| Maximum torque [Nm/min-1] | 320/2000-2750 | |||||
| Bore and stroke [mm x mm] | 82,0 x 90,4 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 207 | |||||
| Acceleration 0–100 km/h [s] | 9.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.3 | |||||
| Out of town [l] | 4.8 | |||||
| Combined [l] | 5.7 | |||||
| CO2 emissions [g/km] | 151 | |||||
| Emission standard | EU4 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1278-1653 | |||||
| Overall weight [kg] | 1810-2005 | |||||
| Maximum trailer weight unbraked/braked [kg] | 720/1400 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 490 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 900/1590 | |||||
| Boot length [mm] | 1085 | |||||
| Boot length with rear seats folded [mm] | 1807 | |||||
| Boot width between wheels/max [mm] | 1088/1088 | |||||
| Boot height to headliner/ceiling [mm] | -/862 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | - | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 205/50 R16 | |||||
| Tyre dimensions rear | 205/50 R16 | |||||
| Wheel size front | 6.5J x 16 | |||||
| Wheel size rear | 6.5J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.1/11.5 | |||||
| Overall length [mm] | 4515 | |||||
| Overall width without/including mirrors [mm] | 1753/2033 | |||||
| Overall height [mm] | 1500 | |||||
| Wheelbase [mm] | 2703 | |||||
| Front wheel track [mm] | 1488 | |||||
| Rear wheel track [mm] | 1488 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Convertible
| 1.6 | 1.8 VVA | 1.8 VVA | 1.6 Turbo | 2.0 Turbo | 1.9 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1796 | 1796 | 1598 | 1998 | 1910 |
| Maximum output / speed [kW/min-1] | 85/6000 | 103/6300 | 103/6300 | 132/5500 | 147/5400 | 110/4000 |
| Maximum torque [Nm/min-1] | 155/4000 | 175/3800 | 175/3800 | 230/1980-5500 | 262/4200 | 320/2000-2750 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 80,5 x 88,2 | 80,5 x 88,2 | 79,0 x 81,5 | 86,0 x 86,0 | 82,0 x 90,4 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 192 | 209 | 189 | 228 | 237 | 213 |
| Acceleration 0–100 km/h [s] | 13.3 | 11.4 | 12.7 | 9.2 | 8.9 | 10.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 | 10.0 | 10.7 | 10.5 | 13.3 | 7.6 |
| Out of town [l] | 5.5 | 5.9 | 6.4 | 6.4 | 7.3 | 5.1 |
| Combined [l] | 6.8 | 7.4 | 8.0 | 7.9 | 9.5 | 6.0 |
| CO2 emissions [g/km] | 163 | 177 | 191 | 190 | 228 | 159 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495-1731 | 1495-1731 | 1495-1731 | 1495-1731 | 1495-1731 | 1495-1731 |
| Overall weight [kg] | 1845-1990 | 1845-1990 | 1845-1990 | 1845-1990 | 1845-1990 | 1845-1990 |
| Maximum trailer weight unbraked/braked [kg] | 745/1050 | 750/1200 | 750/1200 | 750/1200 | 750/1200 | 750/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 205 | 205 | 205 | 205 | 205 | 205 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/440 | -/440 | -/440 | -/440 | -/440 | -/440 |
| Boot length [mm] | 805 | 805 | 805 | 805 | 805 | 805 |
| Boot length with rear seats folded [mm] | 1701 | 1701 | 1701 | 1701 | 1701 | 1701 |
| Boot width between wheels/max [mm] | -/734 | -/734 | -/734 | -/734 | -/734 | -/734 |
| Boot height to headliner/ceiling [mm] | -/655 | -/655 | -/655 | -/655 | -/655 | -/655 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.75/11.20 | 10.75/11.20 | 10.75/11.20 | 10.75/11.20 | 10.75/11.20 | 10.75/11.20 |
| Overall length [mm] | 4476 | 4476 | 4476 | 4476 | 4476 | 4476 |
| Overall width without/including mirrors [mm] | 1759/- | 1759/- | 1759/- | 1759/- | 1759/- | 1759/- |
| Overall height [mm] | 1411 | 1411 | 1411 | 1411 | 1411 | 1411 |
| Wheelbase [mm] | 2614 | 2614 | 2614 | 2614 | 2614 | 2614 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
