	2.0	2.5	2.5	2.0 dCi	2.0 dCi	2.0 dCi
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1997	2488	2488	1995	1995	1995
Maximum output / speed [kW/min-1]	104/6000	124/6000	124/6000	110/4000	110/4000	127/3750
Maximum torque [Nm/min-1]	196/4800	233/4400	233/4400	320/2000	320/2000	360/2000
Bore and stroke [mm x mm]	84,0 x 90,1	89,0 x 100,0	89,0 x 100,0	84,0 x 90,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	10,2:1	9,6:1	9,6:1	15,6:1	15,6:1	15,6:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVTC	variable valve timing CVTC	variable valve timing CVTC	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter

Drive axle	4x4	4x4	4x4	4x4	4x4	4x4
Gearbox	6 gear manual	6 gear manual	1 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	all-wheel drive All mode 4x4‐i	all-wheel drive All mode 4x4‐i	all-wheel drive All mode 4x4‐i automatic gearbox with one variable ratio CVT s jedním proměnným převodem	all-wheel drive All mode 4x4‐i	all-wheel drive All mode 4x4‐i automatic gearbox	all-wheel drive All mode 4x4‐i

Top speed [km/h]	184	194	185	188	181	200
Acceleration 0–100 km/h [s]	11.1	9.8	10.3	11.2	12.5	10.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.1	13.0	12.0	8.7	10.5	9.3
Out of town [l]	7.3	7.7	7.7	6.2	6.7	6.3
Combined [l]	8.7	9.6	9.3	7.1	8.1	7.4
CO2 emissions [g/km]	208	230	185	190	216	198

Emission standard	EU4	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1482-1561	1544-1599	1565-1623	1625-1711	1637-1737	1651-1705
Overall weight [kg]	2050	2050	2050	2170	2170	2170
Maximum trailer weight unbraked/braked [kg]	750/1500	750/200	750/1350	750/2000	750/1350	750/2200
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	100	75	100	75	100
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	479	479	479	479	479	479
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1773	-/1773	-/1773	-/1773	-/1773	-/1773
Boot length [mm]	1088	1088	1088	1088	1088	1088
Boot length with rear seats folded [mm]	1742	1742	1742	1742	1742	1742
Boot width between wheels/max [mm]	-/1100	-/1100	-/1100	-/1100	-/1100	-/1100
Boot height to headliner/ceiling [mm]	-/884	-/884	-/884	-/884	-/884	-/884
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	65	65	65	65	65	65
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	215/65 R16	215/60 R17	215/60 R17	215/65 R16	215/60 R17	215/60 R17
Tyre dimensions rear	215/65 R16	215/60 R17	215/60 R17	215/65 R16	215/60 R17	215/60 R17
Wheel size front	6.5J x 16	6.5J x 17	6.5J x 17	6.5J x 16	6.5J x 17	6.5J x 17
Wheel size rear	6.5J x 16	6.5J x 17	6.5J x 17	6.5J x 16	6.5J x 17	6.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-

Overall length [mm]	4630	4630	4630	4630	4630	4630
Overall width without/including mirrors [mm]	1785/-	1785/-	1785/-	1785/-	1785/-	1785/-
Overall height [mm]	1680	1680	1680	1680	1680	1680
Wheelbase [mm]	2630	2630	2630	2630	2630	2630
Front wheel track [mm]	1530	1530	1530	1530	1530	1530
Rear wheel track [mm]	1535	1535	1535	1535	1535	1535
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	200	200	200	200	200	200
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	29	29	29	29	29	29
Approach angle rear [°]	23	23	23	23	23	23
Transition angle [°]	20	20	20	20	20	20
Climbing rate [°]	30	30	30	30	30	30
Maximum side tilt [°]	49	49	49	49	49	49

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Gallery

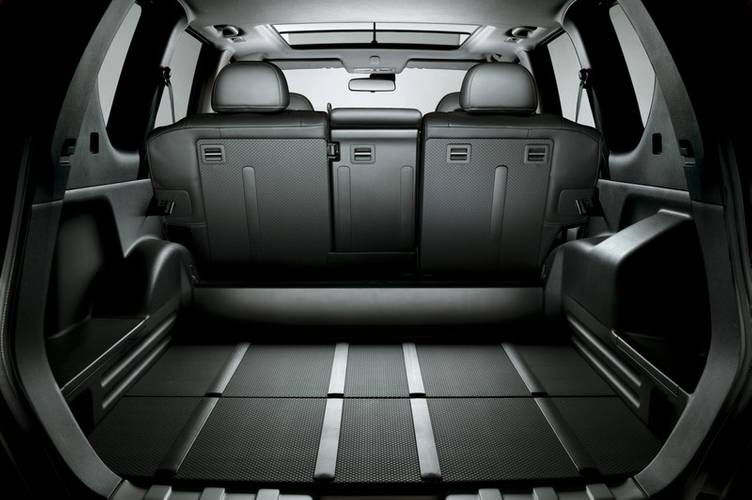

Nissan X-Trail T31 2009 rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
