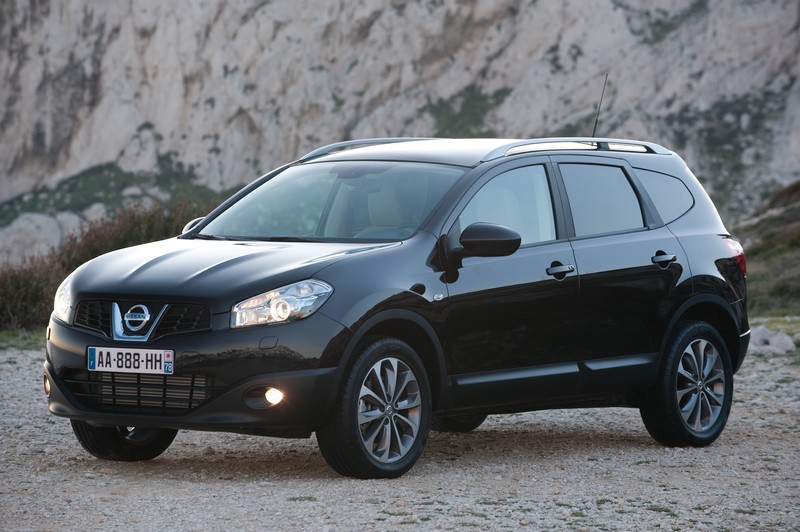

Nissan Qashqai
Date of manufacture
1/2010 – 2013 (SUV)
Platform
Nissan C
Manufacturing locations
Sunderland, United Kingdom
Kanda, Japan
Saint Petersburg, Russia
Designer
-
Tags
Compact SUV
Japanese cars
The Nissan Qashqai is a very popular SUV that has been produced since 2010. The vehicle is built on the Nissan C platform and offers both petrol and diesel engines. The highest power (110 kW) is provided by the 2.0 dCi Qashqai+2 engine, while the fastest model is the 2.0 with a maximum speed of 195 km/h. The best acceleration 0-100 km/h is achieved by the 2.0 dCi in 9.5 seconds and the lowest fuel consumption of 4.5 l/100 km is provided by the 1.6 dCi S&S with emissions of 119 g/km. The boot size is 410 l and the car earned a 5 out of 5 rating in the EURONCAP safety tests. The vehicle is manufactured in the United Kingdom, Japan and Russia.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
1/2010 – 2013Internal designation
J10 & NJ10Engine size
Diesel
Technical data
SUV
| 1.6 | 1.6 Qashqai+2 | 1.6 | 1.6 S&S | 1.6 Qashqai+2 | 1.6 Qashqai+2 S&S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 84/6000 | 84/6000 | 86/6000 | 86/6000 | 86/6000 | 86/6000 |
| Maximum torque [Nm/min-1] | 156/4400 | 156/4400 | 158/4400 | 158/4400 | 158/4400 | 158/4400 |
| Bore and stroke [mm x mm] | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 |
| Compression ratio | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 178 | 177 | 181 | 181 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 11.6 | 12.9 | 11.9 | 11.9 | 12.9 | 12.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 8.6 | 7.9 | 7.5 | 8.3 | 7.9 |
| Out of town [l] | 5.6 | 5.8 | 5.2 | 5.0 | 5.6 | 5.6 |
| Combined [l] | 6.6 | 6.8 | 6.2 | 5.9 | 6.6 | 6.4 |
| CO2 emissions [g/km] | 155 | 159 | 144 | 139 | 154 | 149 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1297-1392 | 1404-1508 | 1297-1392 | 1312-1407 | 1404-1508 | 1419-1523 |
| Overall weight [kg] | 1830 | 2072 | 1830 | 1830 | 2072 | 2072 |
| Maximum trailer weight unbraked/braked [kg] | 685/1200 | 735/1200 | 685/1200 | 685/1200 | 735/1200 | 735/1200 |
| Maximum front/rear axle load [kg] | 1150/1000 | 1175/1215 | 1150/1000 | 1150/1000 | 1175/1215 | 1175/1215 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 410 | 130 | 410 | 410 | 130 | 130 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1513 | -/1520 | -/1513 | -/1513 | -/1520 | -/1520 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 5 | 7 | 7 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Wheel size front | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Wheel size rear | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 11.0/- | 10.6/- | 10.6/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4330 | 4541 | 4330 | 4330 | 4541 | 4541 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1615 | 1645 | 1615 | 1615 | 1645 | 1645 |
| Wheelbase [mm] | 2630 | 2765 | 2630 | 2630 | 2765 | 2765 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 188 | 193 | 188 | 188 | 193 | 193 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 | 2.0 Qashqai+2 | 2.0 | 2.0 | 2.0 Qashqai+2 | 2.0 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 104/6000 | 104/6000 | 104/6000 | 104/6000 | 104/6000 | 104/6000 |
| Maximum torque [Nm/min-1] | 196/4800 | 196/4800 | 196/4800 | 196/4800 | 196/4800 | 196/4800 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 6 gear manual | 1 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 195 | 193 | 183 | 193 | 191 | 181 |
| Acceleration 0–100 km/h [s] | 10.1 | 10.5 | 10.7 | 10.6 | 10.9 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.3-10.4 | 10.4-10.7 | 9.9-10.1 | 10.6-10.8 | 11.0-11.1 | 10.3-10.6 |
| Out of town [l] | 6.2-6.3 | 6.5 | 6.1-6.2 | 6.6-6.7 | 6.8-6.9 | 6.5 |
| Combined [l] | 7.7-7.8 | 7.9-8.0 | 7.5-7.6 | 8.1-8.2 | 8.3-8.4 | 7.9-8.0 |
| CO2 emissions [g/km] | 177-184 | 183-189 | 172-179 | 187-194 | 193-199 | 182-189 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1356 -1437 | 1476 -1543 | 1378-1459 | 1415-1509 | 1529-1623 | 1454-1535 |
| Overall weight [kg] | 1960 | 2108 | 1960 | 1960 | 2189 | 1960 |
| Maximum trailer weight unbraked/braked [kg] | 685/1400 | 750/1400 | 685/1200 | 740/1400 | 750/1400 | 740/1200 |
| Maximum front/rear axle load [kg] | 1150/1000 | 1175/1215 | 1150/1000 | 1150/1000 | 1230/1260 | 1150/1000 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 410 | 130 | 410 | 410 | 130 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1513 | -/1520 | -/1513 | -/1513 | -/1520 | -/1513 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 5 | 7 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/65 R16 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/65 R16 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 |
| Wheel size rear | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 11.0/- | 10.6/- | 10.6/- | 11.0/- | 10.6/- |
| Overall length [mm] | 4330 | 4541 | 4330 | 4330 | 4541 | 4330 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1615 | 1645 | 1615 | 1615 | 1645 | 1615 |
| Wheelbase [mm] | 2630 | 2765 | 2630 | 2630 | 2765 | 2630 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 188 | 193 | 188 | 188 | 193 | 188 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 Qashqai+2 | 1.5 dCi | 1.5 dCi Qashqai+2 | 1.5 dCi | 1.5 dCi Qashqai+2 | 1.6 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1997 | 1461 | 1461 | 1461 | 1461 | 1598 |
| Maximum output / speed [kW/min-1] | 104/6000 | 78/4000 | 78/4000 | 81/4000 | 81/4000 | 96/4000 |
| Maximum torque [Nm/min-1] | 196/4800 | 240/2000 | 240/2000 | 240/1750 | 240/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 |
| Compression ratio | 10,2:1 | 15,3:1 | 15,3:1 | 15,3:1 | 15,3:1 | 15,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 1 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - | - | - | - | - |
| Top speed [km/h] | 180 | 177 | 174 | 177 | 174 | 190 |
| Acceleration 0–100 km/h [s] | 11.7 | 12.2 | 13.0 | 12.4 | 13.2 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5-10.7 | 5.9 | 6.0 | 5.8 | 5.8 | 6.3 |
| Out of town [l] | 6.7-6.8 | 4.7 | 4.6 | 4.4 | 4.6 | 4.1 |
| Combined [l] | 8.1-8.2 | 5.1 | 5.2 | 4.9 | 5.0 | 4.9 |
| CO2 emissions [g/km] | 187-194 | 135 | 138 | 129 | 132 | 129 |
| Emission standard | EU4-EU5 | EU4 | EU4 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1583-1650 | 1407-1471 | 1511-1604 | 1418-1482 | 1511-1604 | 1498-1566 |
| Overall weight [kg] | 2215 | 1930 | 2170 | 1930 | 2170 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 740/1200 | 750/1200 | 740/1200 | 750/1200 | 750/1400 |
| Maximum front/rear axle load [kg] | 1230/1260 | 1150/1000 | 1175/1215 | 1150/1000 | 1175/1215 | 1150/1000 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 130 | 410 | 130 | 410 | 130 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1520 | -/1513 | -/1520 | -/1513 | -/1520 | -/1513 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 5 | 7 | 5 | 7 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R17 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/60 R17 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Wheel size front | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Wheel size rear | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 10.6/- | 11.0/- | 10.6/- | 11.0/- | 10.6/- |
| Overall length [mm] | 4541 | 4330 | 4541 | 4330 | 4541 | 4330 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1645 | 1615 | 1645 | 1615 | 1645 | 1615 |
| Wheelbase [mm] | 2765 | 2630 | 2765 | 2630 | 2765 | 2630 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 193 | 188 | 193 | 188 | 193 | 188 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 dCi S&S | 1.6 dCi Qashqai+2 | 1.6 dCi Qashqai+2 S&S | 1.6 dCi | 1.6 dCi S&S | 1.6 dCi Qashqai+2 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 96/4000 | 96/4000 | 96/4000 | 96/4000 | 96/4000 | 96/4000 |
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | 320/1750 | 320/1750 | 320/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 80,0 x 79,5 | 80,0 x 79,5 | 80,0 x 79,5 | 80,0 x 79,5 | 80,0 x 79,5 | 80,0 x 79,5 |
| Compression ratio | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 190 | 189 | 189 | 190 | 190 | 189 |
| Acceleration 0–100 km/h [s] | 10.3 | 10.9 | 10.9 | 10.9 | 10.9 | 11.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.5 | 6.5 | 5.6 | 7.1 | 6.1 | 7.3 |
| Out of town [l] | 3.9 | 4.3 | 4.1 | 4.6 | 4.6 | 4.8 |
| Combined [l] | 4.5 | 5.1 | 4.7 | 5.5 | 5.1 | 5.7 |
| CO2 emissions [g/km] | 119 | 133 | 123 | 145 | 135 | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1498-1566 | 1626-1685 | 1626-1685 | 1562-1630 | 1562-1630 | 1690-1749 |
| Overall weight [kg] | 2085 | 2255 | 2255 | 2100 | 2100 | 2320 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1400 | 750/1400 | 750/1400 | 750/1400 | 750/1400 |
| Maximum front/rear axle load [kg] | 1150/1000 | 1175/1215 | 1175/1215 | 1150/1000 | 1150/1000 | 1230/1260 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 410 | 130 | 130 | 410 | 410 | 130 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1513 | -/1520 | -/1520 | -/1513 | -/1513 | -/1520 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 7 | 5 | 5 | 7 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Wheel size front | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Wheel size rear | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 11.0/- | 11.0/- | 10.6/- | 10.6/- | 11.0/- |
| Overall length [mm] | 4330 | 4541 | 4541 | 4330 | 4330 | 4541 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1615 | 1645 | 1645 | 1615 | 1615 | 1645 |
| Wheelbase [mm] | 2630 | 2765 | 2765 | 2630 | 2630 | 2765 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 188 | 193 | 193 | 188 | 188 | 193 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 dCi Qashqai+2 S&S | 2.0 dCi | 2.0 dCi Qashqai+2 | 2.0 dCi | 2.0 dCi Qashqai+2 | 2.0 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 96/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 320/1750 | 320/2000 | 320/2000 | 320/2000 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 80,0 x 79,5 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 15,4:1 | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - | - |
|
|
|
| Top speed [km/h] | 189 | 194 | 193 | 193 | 192 | 188 |
| Acceleration 0–100 km/h [s] | 11.6 | 9.5 | 10.1 | 9.9 | 10.5 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.2 | 7.5-8.2 | 7.7-8.3 | 7.5-8.5 | 7.7-8.8 | 9.1-9.4 |
| Out of town [l] | 4.7 | 5.0-5.4 | 5.1-5.5 | 5.2-5.7 | 5.3-5.7 | 5.8-6.0 |
| Combined [l] | 5.3 | 5.9-6.4 | 6.0-6.5 | 6.0-6.7 | 6.2-6.8 | 7.0-7.2 |
| CO2 emissions [g/km] | 139 | 155-167 | 159-169 | 159-177 | 163-179 | 184-191 |
| Emission standard | EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1690-1749 | 1503 -1573 | 1631-1666 | 1568-1639 | 1696-1755 | 1604-1674 |
| Overall weight [kg] | 2320 | 2085 | 2255 | 2085 | 2320 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1400 | 750/1400 | 750/1400 | 750/1400 | 750/1350 |
| Maximum front/rear axle load [kg] | 1230/1260 | 1150/1000 | 1175/1215 | 1150/1000 | 1230/1260 | 1150/1000 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 130 | 410 | 130 | 410 | 130 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1520 | -/1513 | -/1520 | -/1513 | -/1520 | -/1513 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 5 | 7 | 5 | 7 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/65 R16 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/65 R16 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 |
| Wheel size rear | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 10.6/- | 11.0/- | 10.6/- | 11.0/- | 10.6/- |
| Overall length [mm] | 4541 | 4330 | 4541 | 4330 | 4541 | 4330 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1645 | 1615 | 1645 | 1615 | 1645 | 1615 |
| Wheelbase [mm] | 2765 | 2630 | 2765 | 2630 | 2765 | 2630 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 193 | 188 | 193 | 188 | 193 | 188 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 dCi Qashqai+2 | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1995 | |||||
| Maximum output / speed [kW/min-1] | 110/4000 | |||||
| Maximum torque [Nm/min-1] | 320/2000 | |||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | |||||
| Compression ratio | 15,6:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 186 | |||||
| Acceleration 0–100 km/h [s] | 11.6 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 9.3-9.9 | |||||
| Out of town [l] | 5.9-6.3 | |||||
| Combined [l] | 7.1-7.6 | |||||
| CO2 emissions [g/km] | 188-199 | |||||
| Emission standard | EU4-EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1732-1791 | |||||
| Overall weight [kg] | 2356 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1350 | |||||
| Maximum front/rear axle load [kg] | 1230/1260 | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 130 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1520 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 7 | |||||
| Fuel tank volume [l] | 65 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 215/60 R17 | |||||
| Tyre dimensions rear | 215/60 R17 | |||||
| Wheel size front | 6.5JJ x 17 | |||||
| Wheel size rear | 6.5JJ x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electric power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.0/- | |||||
| Overall length [mm] | 4541 | |||||
| Overall width without/including mirrors [mm] | 1780/- | |||||
| Overall height [mm] | 1645 | |||||
| Wheelbase [mm] | 2765 | |||||
| Front wheel track [mm] | 1540 | |||||
| Rear wheel track [mm] | 1550 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 193 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

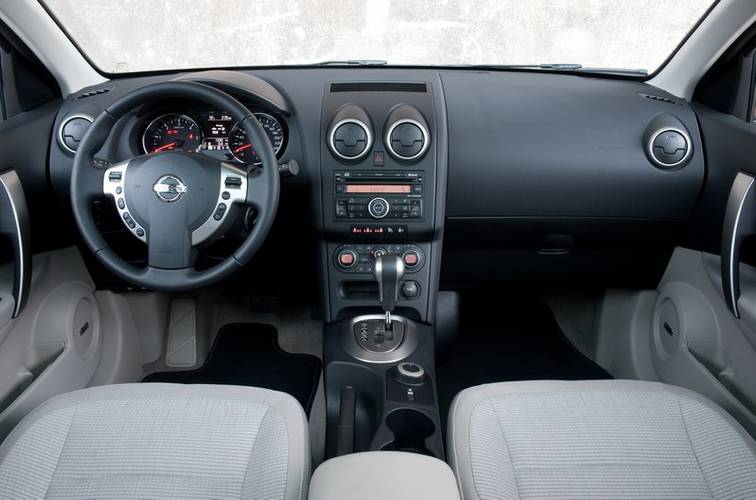

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
