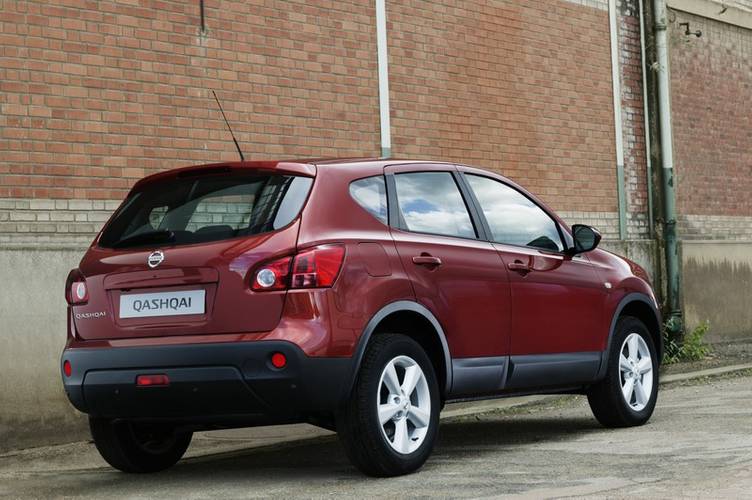

Nissan Qashqai
Date of manufacture
12/2006 – 1/2010 (SUV)
Platform
Nissan C
Manufacturing locations
Sunderland, United Kingdom
Kanda, Japan
Saint Petersburg, Russia
Designer
-
Tags
Compact SUV
Japanese cars
The Nissan Qashqai has been available as an SUV since 2006. The vehicle is manufactured in the United Kingdom, Japan and Russia on the Nissan C platform. Users can choose between petrol and diesel engines. The highest performance is achieved by the 2.0 dCi Qashqai+2 (110 kW) with a top speed of 192 km/h and the best acceleration from 0-100 km/h in 10.1 seconds. The most economical engine is the 1.5 dCi with a combined fuel consumption of 5.2 l/100 km and CO2 emissions of 139 g/km. The boot has a capacity of 410 l and the Qashqai model received a rating of 5 out of 5 in EURONCAP safety tests.
Car body style
SUV
Date of manufacture
12/2006 – 1/2010Internal designation
J10 & NJ10
Technical data
SUV
| 1.6 | 1.6 Qashqai+2 | 2.0 | 2.0 Qashqai+2 | 2.0 | 2.0 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2008 to | - | from 2008 to | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 84/6000 | 84/6000 | 104/6000 | 104/6000 | 104/6000 | 104/6000 |
| Maximum torque [Nm/min-1] | 156/4400 | 156/4400 | 196/4800 | 196/4800 | 196/4800 | 196/4800 |
| Bore and stroke [mm x mm] | 78,0 x 83,6 | 78,0 x 83,6 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 10,7:1 | 10,7:1 | 10,2:1 | 10,2:1 | 10,2:1 | 10,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 175 | 174 | 192 | 190 | 180 | 190 |
| Acceleration 0–100 km/h [s] | 12.0 | 12.9 | 10.1 | 10.5 | 10.7 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 8.9 | 10.7-10.8 | 11.1 | 10.4 | 11.0 |
| Out of town [l] | 5.7 | 5.9 | 6.6-6.8 | 6.7 | 6.4-6.5 | 6.9-7.0 |
| Combined [l] | 6.7 | 7.0 | 8.1-8.2 | 8.4 | 7.9-8.0 | 8.4 |
| CO2 emissions [g/km] | 162 | 165 | 192-199 | 197 | 189-192 | 199-204 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1297 | 1404 | 1356 | 1476 | 1378 | 1415 |
| Overall weight [kg] | 1830 | 2072 | 1960 | 2108 | 1960 | 1960 |
| Maximum trailer weight unbraked/braked [kg] | 685/1200 | 735/1200 | 685/1400 | 750/1400 | 685/1200 | 740/1400 |
| Maximum front/rear axle load [kg] | 1150/1100 | 1175/1215 | 1150/1100 | 1175/1215 | 1150/1100 | 1150/1100 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 410 | 130 | 410 | 130 | 410 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1513 | -/1520 | -/1513 | -/1520 | -/1513 | -/1513 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/65 R16 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/65 R16 |
| Wheel size front | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 16 |
| Wheel size rear | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 11.0/- | 10.6/- | 11.0/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4315 | 4525 | 4315 | 4525 | 4315 | 4315 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1615 | 1645 | 1615 | 1645 | 1615 | 1615 |
| Wheelbase [mm] | 2630 | 2765 | 2630 | 2765 | 2630 | 2630 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 Qashqai+2 | 2.0 | 2.0 Qashqai+2 | 1.5 dCi | 1.5 dCi Qashqai+2 | 2.0 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | from 2008 to | - | from 2008 to | - | from 2008 to | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1461 | 1461 | 1995 |
| Maximum output / speed [kW/min-1] | 104/6000 | 104/6000 | 104/6000 | 78/4000 | 78/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 196/4800 | 196/4800 | 196/4800 | 240/2000 | 240/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 76,0 x 80,5 | 76,0 x 80,5 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,2:1 | 15,3:1 | 15,3:1 | 15,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 6 gear manual | 1 gear automatic | 1 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
| - | - | - |
| Top speed [km/h] | 188 | 178 | 177 | 174 | 170 | 191 |
| Acceleration 0–100 km/h [s] | 10.9 | 11.3 | 11.7 | 12.2 | 13.3 | 10.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.4 | 10.7-10.8 | 10.9 | 6.0-6.2 | 6.8 | 8.6 |
| Out of town [l] | 7.0 | 6.9 | 7.0 | 4.8-5.0 | 5.0 | 5.5 |
| Combined [l] | 8.6 | 8.3 | 8.5 | 5.2-5.4 | 5.7 | 6.6 |
| CO2 emissions [g/km] | 205 | 198-201 | 199 | 139-145 | 149 | 174 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1529 | 1454 | 1583 | 1407 | 1511 | 1503 |
| Overall weight [kg] | 2189 | 1960 | 2215 | 1930 | 2170 | 2085 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 740/1200 | 750/1200 | 740/1200 | 750/1200 | 740/1400 |
| Maximum front/rear axle load [kg] | 1175/1215 | 1150/1100 | 1175/1215 | 1150/1100 | 1175/1215 | 1150/1100 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 130 | 410 | 130 | 410 | 130 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1520 | -/1513 | -/1520 | -/1513 | -/1520 | -/1513 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 5 | 7 | 5 | 7 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Wheel size front | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Wheel size rear | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 16 | 6.5JJ x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 10.6/- | 11.0/- | 10.6/- | 11.0/- | 10.6/- |
| Overall length [mm] | 4525 | 4315 | 4525 | 4315 | 4525 | 4315 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1645 | 1615 | 1645 | 1615 | 1645 | 1615 |
| Wheelbase [mm] | 2765 | 2630 | 2765 | 2630 | 2765 | 2630 |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 dCi Qashqai+2 | 2.0 dCi | 2.0 dCi Qashqai+2 | 2.0 dCi | 2.0 dCi Qashqai+2 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2008 to | - | from 2008 to | - | from 2008 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 110/4000 | |
| Maximum torque [Nm/min-1] | 320/2000 | 320/2000 | 320/2000 | 320/2000 | 320/2000 | |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |
| Compression ratio | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | |
| Drive specifications | - |
|
|
|
| |
| Top speed [km/h] | 190 | 190 | 189 | 185 | 183 | |
| Acceleration 0–100 km/h [s] | 10.9 | 10.9 | 11.3 | 12.0 | 12.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 8.5 | 8.7 | 8.9 | 10.1 | 10.0 | |
| Out of town [l] | 5.6 | 5.9 | 5.9 | 6.5 | 6.6 | |
| Combined [l] | 6.7 | 6.9 | 7.0 | 7.8 | 7.9 | |
| CO2 emissions [g/km] | 177 | 184 | 188 | 208 | 209 | |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1631 | 1568 | 1696 | 1604 | 1732 | |
| Overall weight [kg] | 2255 | 2085 | 2320 | 2085 | 2356 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 740/1400 | 750/1400 | 740/1350 | 750/1350 | |
| Maximum front/rear axle load [kg] | 1175/1215 | 1150/1100 | 1175/1215 | 1150/1100 | 1175/1215 | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 130 | 410 | 130 | 410 | 130 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1520 | -/1513 | -/1520 | -/1513 | -/1520 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 7 | 5 | 7 | 5 | 7 | |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 215/60 R17 | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | |
| Tyre dimensions rear | 215/60 R17 | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/60 R17 | |
| Wheel size front | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 17 | |
| Wheel size rear | 6.5JJ x 17 | 6.5JJ x 16 | 6.5JJ x 17 | 6.5JJ x 17 | 6.5JJ x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.0/- | 10.6/- | 11.0/- | 10.6/- | 11.0/- | |
| Overall length [mm] | 4525 | 4315 | 4525 | 4315 | 4525 | |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | |
| Overall height [mm] | 1645 | 1615 | 1645 | 1615 | 1645 | |
| Wheelbase [mm] | 2765 | 2630 | 2765 | 2630 | 2765 | |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

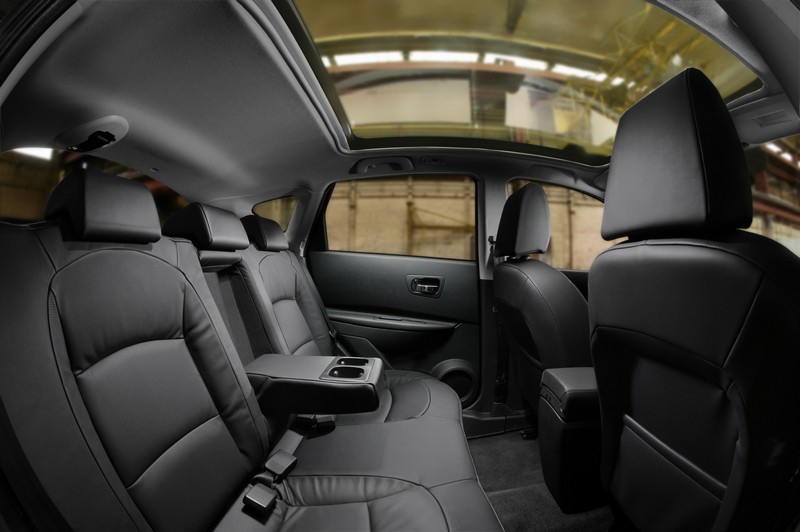

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
