Nissan Leaf
Date of manufacture
12/2017 – to this day (Five-door hatchback)
Platform
-
Manufacturing locations
Yokosuka, Japan
Smyrna, USA
Sunderland, United Kingdom
Designer
-
Tags
C-segment
Electric car
Japanese cars

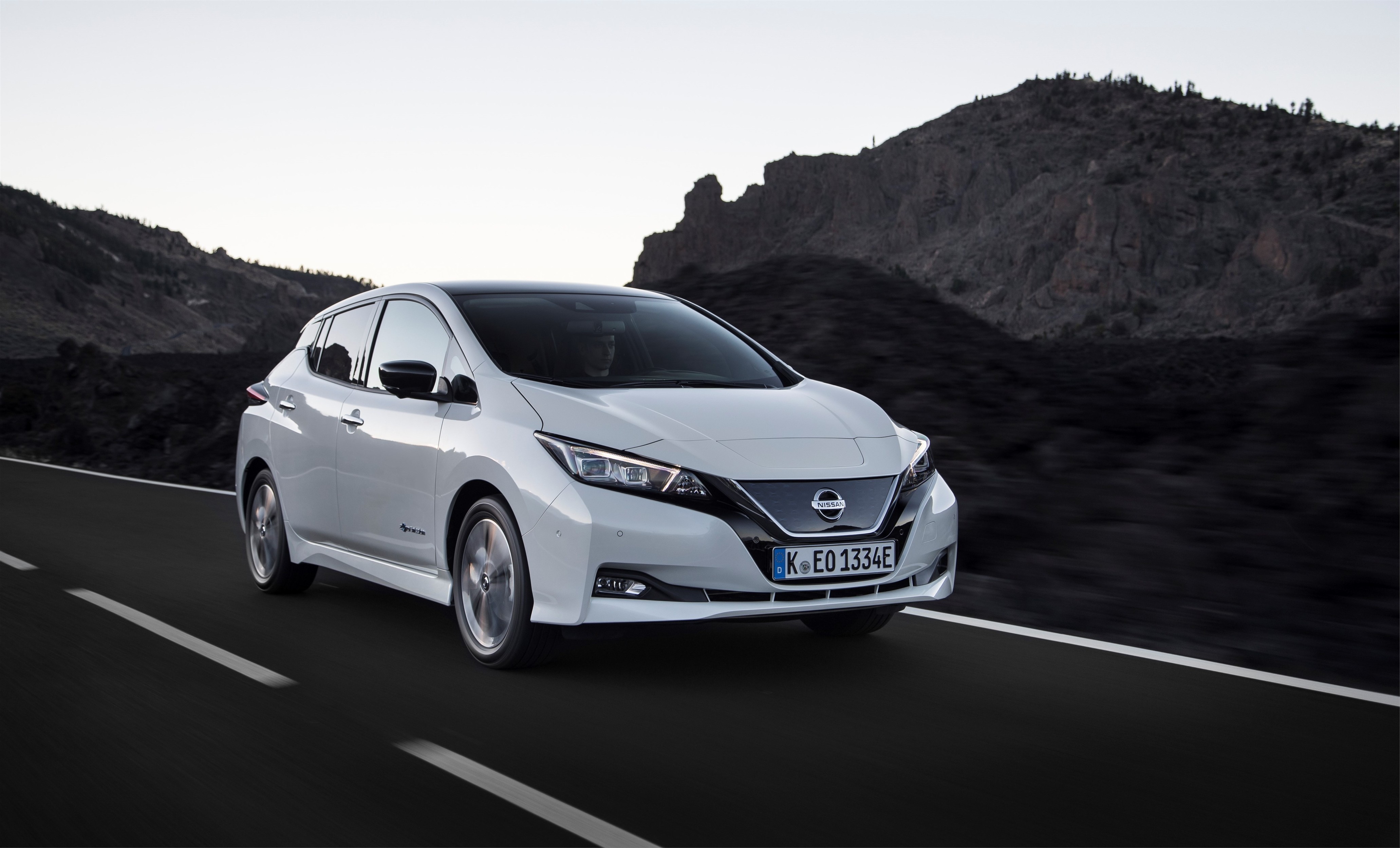

The new Nissan Leaf is available in a five-door hatchback variant. The vehicle was released to the market in 2017 and is sourced from countries such as Japan, the USA or the United Kingdom. It is powered by electric motors and offers different power levels depending on the model. The most powerful 62 kWh version has 160 kW and reaches a maximum speed of 144 km/h. The best acceleration 0-100 km/h in 6.9 seconds can also be achieved with this model. The 40 kWh version boasts the lowest consumption of 17.1 kWh/100 km. The trunk has a capacity of 400 l. The model successfully passed the EURONCAP safety tests in 2018 and received a rating of 5 out of 5.
Car body style
Technical data
Five-door hatchback
| 40 kWh | 62 kWh | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Electric | Electric | ||||
| Number of cylinders/valves | - | - | ||||
| Engine displacement [cm³] | - | - | ||||
| Maximum output / speed [kW/min-1] | 110/3283-9795 | 160/4600-5800 | ||||
| Maximum torque [Nm/min-1] | 320/3283 | 340/4000 | ||||
| Bore and stroke [mm x mm] | - | - | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 1 gear manual | 1 gear manual | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 144 | 144 | ||||
| Acceleration 0–100 km/h [s] | 7.9 | 6.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | - | - | ||||
| Out of town [l] | - | - | ||||
| Combined [l] | - | - | ||||
| CO2 emissions [g/km] | - | - | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 17.1-16.6 kWh | 18.5 kWh | ||||
| CO2 emissions [g/km] | - | - | ||||
| Emission standard | - | - | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 350 | 350 | ||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 40 kWh | Lithium-Ionen-Akkumulator, 62 kWh | ||||
| Range with fully charged battery [km] | 285 | 385 | ||||
| Charging time |
|
| ||||
| Number of modules/cells | 192/- | 288/- | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 1543-1600 | 1756-1811 | ||||
| Overall weight [kg] | 1995 | 2140 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | 1035/1000 | 1095/1090 | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 35/- | 35/- | ||||
| Boot volume [l] | 400 | 400 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1176 | -/1176 | ||||
| Boot length [mm] | 790 | 790 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 1103 | 1103 | ||||
| Boot opening width min/max [mm] | 725/- | 725/- | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | - | - | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.28 | 0.28 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/55 R16 | 215/50 R17 | ||||
| Tyre dimensions rear | 205/55 R16 | 215/50 R17 | ||||
| Wheel size front | 6.5JJ x 16 | 6.5J x 17 | ||||
| Wheel size rear | 6.5JJ x 16 | 6.5J x 17 | ||||
| Brake dimensions front | 283 x 28 | 283 x 28 | ||||
| Brake dimensions rear | 292 x 16 | 292 x 16 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/11.0 | 11.0/- | ||||
| Overall length [mm] | 4490 | 4490 | ||||
| Overall width without/including mirrors [mm] | 1788/2030 | 1788/2030 | ||||
| Overall height [mm] | 1530 | 1540 | ||||
| Wheelbase [mm] | 2700 | 2700 | ||||
| Front wheel track [mm] | 1005 | 1005 | ||||
| Rear wheel track [mm] | 785 | 785 | ||||
| Forward overhang [mm] | 1540 | 1540 | ||||
| Rear overhang [mm] | 1555 | 1555 | ||||
| Clearance [mm] | 155 | 135 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 15.0 | 15.0 | ||||
| Approach angle rear [°] | 24.0 | 24.0 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - | ||||
| Rating | - |   | ||||
| Clean Air Index | - | 10.0/10 | ||||
| Energy Efficiency Index | - | 9.9/10 | ||||
| GHG index | - | 10.0/10 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
