Nissan Juke

Date of manufacture

10/2019 – to this day (Small SUV)

Platform

Renault-Nissan CMF-B

Manufacturing locations

Sunderland, United Kingdom

Designer

Car body style

Small SUV

Date of manufacture

10/2019 – to this day

Internal designation

F16

Engine size

1.0 DIG-T

Euro NCAP

Technical data

Small SUV

	1.0 DIG-T	1.0 DIG-T
Date of sale	-	-
Engine type	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12
Engine displacement [cm³]	999	999
Maximum output / speed [kW/min-1]	84/5000	84/5000
Maximum torque [Nm/min-1]	200/3000	200/3000
Bore and stroke [mm x mm]	72.2 x 81.3	72.2 x 81.3
Compression ratio	10.5:1	10.5:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged start&stop system

Drive axle	Front	Front
Gearbox	6 gear manual	7 gear automatic
Drive specifications	-	seven-speed dual-clutch automatic gearbox DCT

Top speed [km/h]	180	180
Acceleration 0–100 km/h [s]	10.7	11.8
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	5.8	5.7
Out of town [l]	4.4	4.6
Combined [l]	5.0	5.0
CO2 emissions [g/km]	113	114

Low speed [l]	7.1-6.8	7.8-7.4
Medium speed [l]	5.8-5.5	5.9-5.6
High speed [l]	5.4-5.1	5.5-5.1
Extra high speed [l]	7.0-6.5	7.1-6.6
Combined speed [l]	6.3-5.9	6.4-6.0
CO2 emissions [g/km]	140-134	143-138

Emission standard	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1262-1320	1286-1343
Overall weight [kg]	1700	1725
Maximum trailer weight unbraked/braked [kg]	631/1250	643/1250
Maximum front/rear axle load [kg]	950/860	950/860
Maximum vertical load on the tow bar [kg]	75/-	75/-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	422	422
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	1477	1477
Boot width between wheels/max [mm]	-/1249	-/1249
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5	5
Fuel tank volume [l]	46	46
AdBlue tank volume [l]	-	-
Air resistance [Cd]	-	-
Front suspension	MacPherson	MacPherson
Rear suspension	rigid with trailing arms and torsion bar	rigid with trailing arms and torsion bar
Tyre dimensions front	215/65 R16	215/65 R16
Tyre dimensions rear	215/65 R16	215/65 R16
Wheel size front	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.57/-	10.57/-

Overall length [mm]	4210	4210
Overall width without/including mirrors [mm]	1800/1983	1800/1983
Overall height [mm]	1595	1595
Wheelbase [mm]	2636	2636
Front wheel track [mm]	-	-
Rear wheel track [mm]	-	-
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

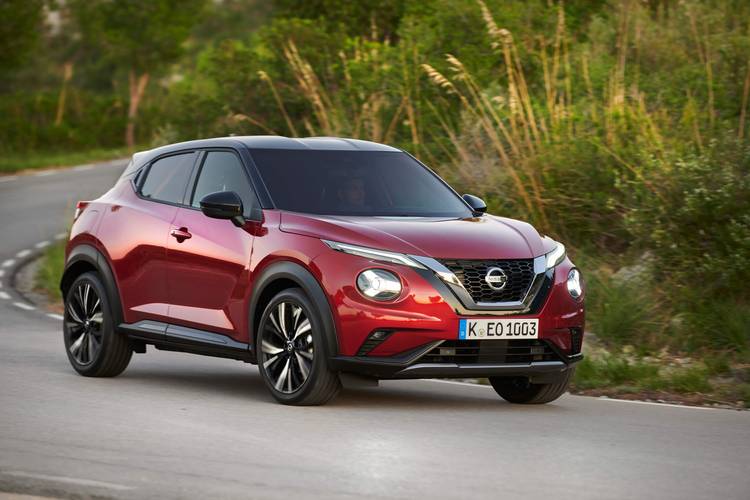

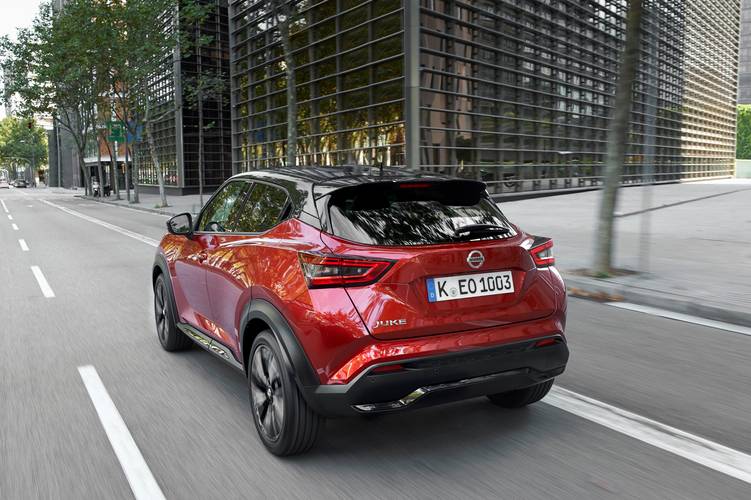

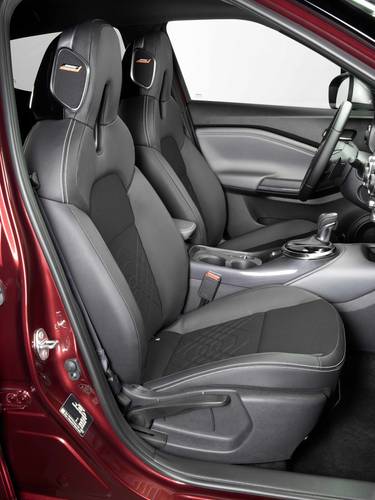

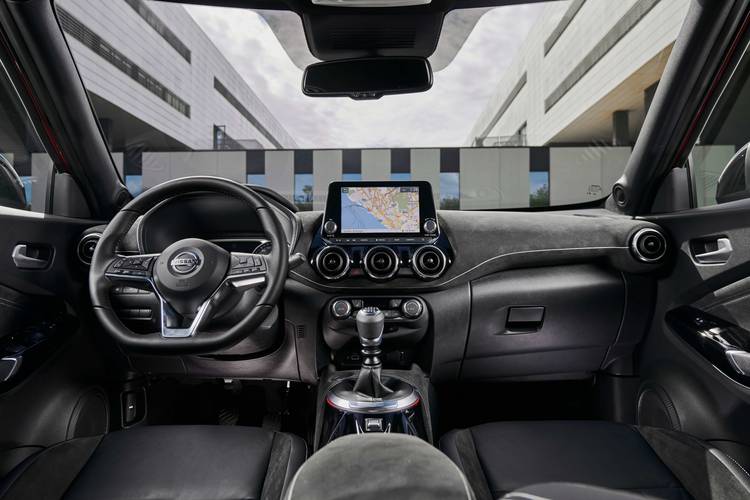

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
