Nissan Juke

Date of manufacture

8/2010 – 6/2014 (SUV)

Platform

Nissan B platform

Manufacturing locations

Sunderland, United Kingdom

Yokosuka, Japan

Designer

Car body style

SUV

Date of manufacture

8/2010 – 6/2014

Internal designation

F15

Engine size

Petrol

Diesel

Euro NCAP

Technical data

SUV

	1.6	1.6	1.6 S&S	1.6	1.6 DIG-T	1.6 DIG-T
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	1598	1618	1618
Maximum output / speed [kW/min-1]	69/5400	86/6000	86/6000	86/6000	140/5600	140/5600
Maximum torque [Nm/min-1]	140/3200-4400	158/4000	158/4000	158/4000	240/2000-5200	240/2000-5200
Bore and stroke [mm x mm]	78,0 x 83,6	78,0 x 83,6	78,0 x 83,6	78,0 x 83,6	79,7 x 81,1	79,7 x 81,1
Compression ratio	10,7:1	10,7:1	10,7:1	10,7:1	9,5:1	9,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVTC	variable valve timing CVTC	variable valve timing CVTC start&stop system	variable valve timing CVTC	direct injection turbo-supercharged variable timing of intake and exhaust valves CVTC	direct injection turbo-supercharged variable timing of intake and exhaust valves CVTC

Drive axle	Front	Front	Front	Front	Front	4x4
Gearbox	5 gear manual	5 gear manual	5 gear manual	1 gear automatic	6 gear manual	1 gear automatic
Drive specifications	-	-	-	automatic gearbox XTRONIC CVT with one variable ratio	-	connectable all-wheel drive ALL MODE 4x4 automatic gearbox XTRONIC CVT with one variable ratio

Top speed [km/h]	168	178	178	170	215	200
Acceleration 0–100 km/h [s]	12.0	11.0	11.0	11.5	8.0	8.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.6	7.7-8.1	7.2	8.3	9.1	9.8-10.2
Out of town [l]	5.0	5.1-5.3	5.1	5.2	5.6	6.0
Combined [l]	6.0	6.0-6.3	5.8	6.3	6.9	7.4-7.6
CO2 emissions [g/km]	138	139-147	136	145	159	169-175

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1162-1190	1172-1236	1172-1236	1213-1254	1286-1315	1425-1441
Overall weight [kg]	1605	1645	1645	1675	1735	1860
Maximum trailer weight unbraked/braked [kg]	598/1200	608/1250	608/1250	609/1250	663/1200	728/1150
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

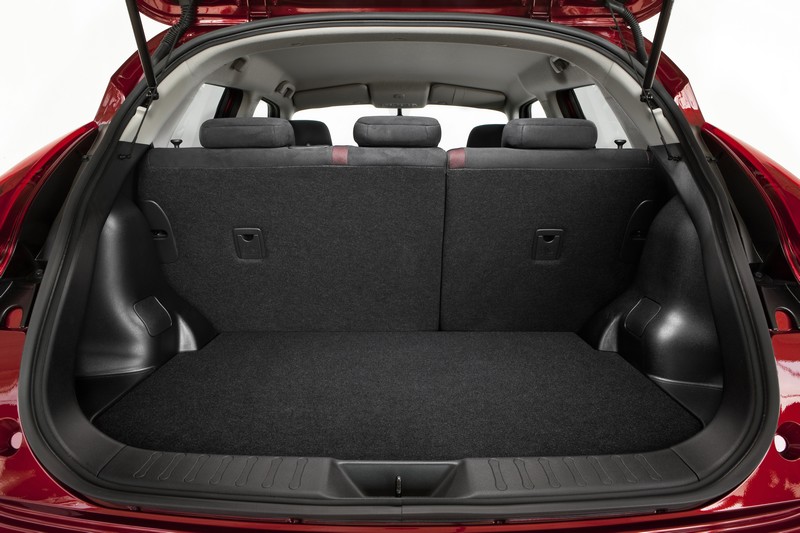

Boot volume [l]	251	251	251	251	251	207
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/830	-/830	-/830	-/830	-/830	-/786
Boot length [mm]	675	675	675	675	675	675
Boot length with rear seats folded [mm]	1470	1470	1470	1470	1470	1470
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/681	-/681	-/681	-/681	-/681	-/681
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	46	46	46	46	46	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.35	0.35	0.35	0.35	0.35	0.35
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar
Tyre dimensions front	205/60 R16	205/60 R16	205/60 R16	215/55 R17	215/55 R17	215/55 R17
Tyre dimensions rear	205/60 R16	205/60 R16	205/60 R16	215/55 R17	215/55 R17	215/55 R17
Wheel size front	6.5JJ x 16	6.5JJ x 16	6.5JJ x 16	7.0JJ x 17	7.0JJ x 17	7.0JJ x 17
Wheel size rear	6.5JJ x 16	6.5JJ x 16	6.5JJ x 16	7.0JJ x 17	7.0JJ x 17	7.0JJ x 17
Brake dimensions front	280 x 24	280 x 24	280 x 24	280 x 24	296 x 26	296 x 26
Brake dimensions rear	-	292 x 9	292 x 9	292 x 9	292 x 9	292 x 9
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.7/-	10.7/-	10.7/-	10.7/-	10.7/-	10.7/-

Overall length [mm]	4135	4135	4135	4135	4135	4135
Overall width without/including mirrors [mm]	1765/-	1765/-	1765/-	1765/-	1765/-	1765/-
Overall height [mm]	1565	1565	1565	1565	1565	1565
Wheelbase [mm]	2530	2530	2530	2530	2530	2530
Front wheel track [mm]	1540	1539	1539	1525	1525	1525
Rear wheel track [mm]	1525	1537	1537	1523	1523	1505
Forward overhang [mm]	855	855	855	855	855	855
Rear overhang [mm]	750	750	750	750	750	750
Clearance [mm]	180	180	180	180	180	170
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	26	26	26	26	26	26
Approach angle rear [°]	31	31	31	31	31	31
Transition angle [°]	22.5	22.5	22.5	22.5	22.5	23
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

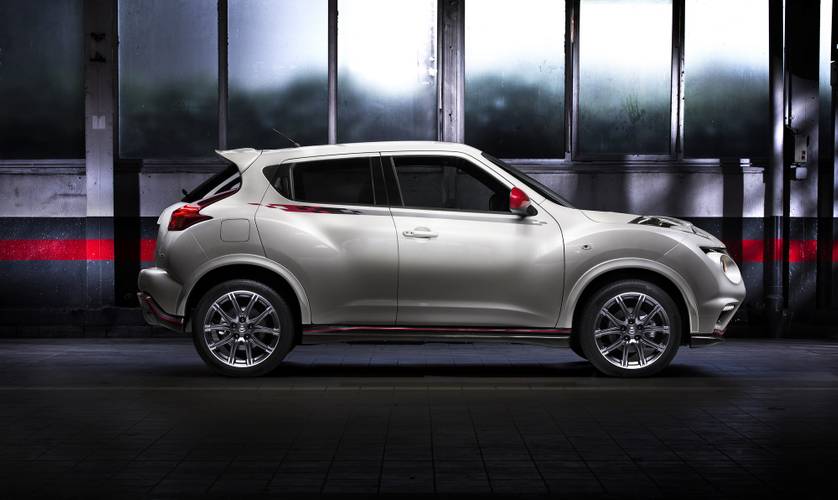

	1.6 DIG-T NISMO	1.6 DIG-T NISMO	1.5 dCi	1.5 dCi
Date of sale	from 2013 to	from 2013 to	-	-
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/8	4/8
Engine displacement [cm³]	1618	1618	1461	1461
Maximum output / speed [kW/min-1]	147/6000	147/6000	81/4000	81/4000
Maximum torque [Nm/min-1]	250/2400-4800	250/2400-4800	240/1750	240/1750
Bore and stroke [mm x mm]	79,7 x 81,1	79,7 x 81,1	76,0 x 80,5	76,0 x 80,5
Compression ratio	9,5:1	9,5:1	15,5:1	15,5:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves CVTC	direct injection turbo-supercharged variable timing of intake and exhaust valves CVTC	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter start&stop system

Drive axle	Front	4x4	Front	Front
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	-	connectable all-wheel drive ALL MODE 4x4 automatic gearbox XTRONIC CVT with one variable ratio (6 of virtual gears)	-	-

Top speed [km/h]	215	200	175	175
Acceleration 0–100 km/h [s]	7.8	8.2	11.2	11.2
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	9.1	9.8	5.8-6.1	4.6
Out of town [l]	5.6	6.0	4.2-4.5	3.7
Combined [l]	6.9	7.4	4.8-5.1	4.0
CO2 emissions [g/km]	159	169	124-134	104

Emission standard	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1293-1306	1430-1431	1285-1329	1295-1343
Overall weight [kg]	1721	1846	1750	1765
Maximum trailer weight unbraked/braked [kg]	663/1200	728/1150	660/1250	665/1250
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-

Boot volume [l]	251	207	251	251
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/830	-/786	-/830	-/830
Boot length [mm]	675	675	675	675
Boot length with rear seats folded [mm]	1470	1470	1470	1470
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-/681	-/681	-/681	-/681
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	46	50	46	46
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.35	0.35	0.35	0.35
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	multilink	multilink
Tyre dimensions front	225/45 R18	225/45 R18	205/60 R16	205/60 R16
Tyre dimensions rear	225/45 R18	225/45 R18	205/60 R16	205/60 R16
Wheel size front	7.0 x 18	7.0 x 18	6.5JJ x 16	6.5JJ x 16
Wheel size rear	7.0 x 18	7.0 x 18	6.5JJ x 16	6.5JJ x 16
Brake dimensions front	296 x 26	296 x 26	280 x 24	280 x 24
Brake dimensions rear	292 x 9	292 x 9	292 x 9	292 x 9
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.7/-	10.7/-	10.7/-	10.7/-

Overall length [mm]	4165	4165	4135	4135
Overall width without/including mirrors [mm]	1770/-	1770/-	1765/-	1765/-
Overall height [mm]	1565	1565	1565	1565
Wheelbase [mm]	2530	2530	2530	2530
Front wheel track [mm]	1525	1525	1539	1539
Rear wheel track [mm]	1525	1505	1537	1537
Forward overhang [mm]	855	855	855	855
Rear overhang [mm]	750	750	750	750
Clearance [mm]	180	170	180	180
Wading depth [mm]	-	-	-	-
Approach angle front [°]	26	26	26	26
Approach angle rear [°]	31	31	31	31
Transition angle [°]	22.5	23	22.5	22.5
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
