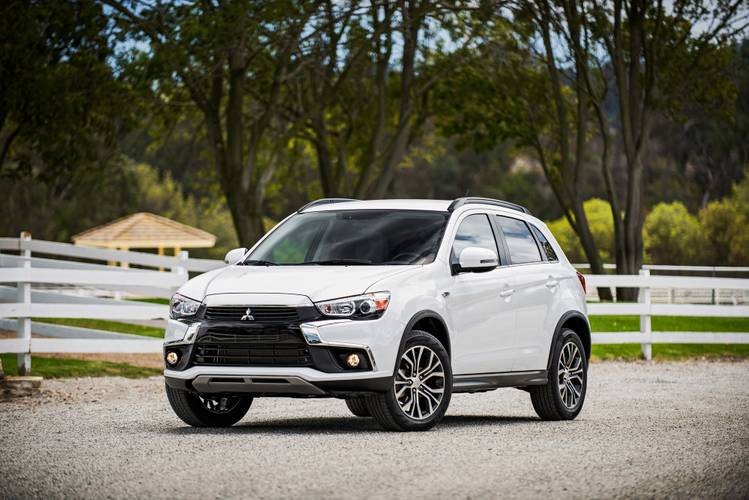

Mitsubishi ASX

Date of manufacture

2017 – 2019 (SUV)

Platform

Mitsubishi GS platform

Manufacturing locations

Okazaki, Japan

Kurashiki, Japan

Catalão, Brazil

Changsha, People's Republic of China

Designer

Norihiko Yoshihime

Car body style

SUV

after upgrade (facelift) (II.)

Date of manufacture

2017 – 2019

Internal designation

Engine size

Petrol

1.6 MIVEC

Diesel

1.6 DI-D

2.2 DI-D

Euro NCAP

Test year 2011

pre-facelift version (2011)

Technical data

SUV

	1.6 MIVEC	1.6 MIVEC	1.6 DI-D	2.2 DI-D
Date of sale	-	-	-	from to 2018
Engine type	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/8	4/16
Engine displacement [cm³]	1590	1590	1560	2268
Maximum output / speed [kW/min-1]	86/6000	86/6000	84/3600	110/3500
Maximum torque [Nm/min-1]	154/4000	154/4000	270/1750	360/1500-2750
Bore and stroke [mm x mm]	75,0 x 90,0	75,0 x 90,0	75,0 x 88,3	86,0 x 97,6
Compression ratio	11,0:1	11,0:1	16,0:1	14,9:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	variable timing of intake valves MIVEC	variable timing of intake valves MIVEC start&stop system AS&G	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system AS&G	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	4x4	4x4
Gearbox	5 gear manual	5 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	-	all-wheel drive All‐Wheel Control (modes 2WD, 4WD, LOCK)	all-wheel drive All‐Wheel Control (modes 2WD, 4WD, LOCK) automatic gearbox

Top speed [km/h]	183	183	180	190
Acceleration 0–100 km/h [s]	11.5-12.2	11.5-12.2	11.5	10.8
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	7.9-7.4	7.8-6.9	5.6	7.1
Out of town [l]	5.4-5.0	6.0-4.9	4.7	5.0
Combined [l]	6.3-5.8	6.7-5.7	5.0	5.8
CO2 emissions [g/km]	153-135	152-131	132	152

Low speed [l]	8.8	8.8-8.3	-	-
Medium speed [l]	6.3	6.7-6.1	-	-
High speed [l]	5.8	6.4-5.8	-	-
Extra high speed [l]	7.1	7.9-7.2	-	-
Combined speed [l]	6.8	7.3-6.7	-	-
CO2 emissions [g/km]	153	165-151	-	-

Emission standard	EU6 - Euro 6d-TEMP	EU6 - Euro 6d-TEMP	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1335	1335	1495	1615
Overall weight [kg]	1870	1870	1980	2060
Maximum trailer weight unbraked/braked [kg]	665/1200	665/1200	745/1400	745/1400
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	60	60	70	-
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-

Boot volume [l]	419-442	419-442	419-442	419-442
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1219	-/1219	-/1219	-/1219
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	1510	1510	1510	1510
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	63	63	60	60
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs
Rear suspension	multilink, coil springs, stabiliser bar	multilink, coil springs, stabiliser bar	multilink, coil springs, stabiliser bar	multilink, coil springs, stabiliser bar
Tyre dimensions front	215/65 R16 100H	215/65 R16 100H	215/65 R16 100H	225/55 R18 98V
Tyre dimensions rear	215/65 R16 100H	215/65 R16 100H	215/65 R16 100H	225/55 R18 98V
Wheel size front	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	7.0J x 18 ET38
Wheel size rear	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	7.0J x 18 ET38
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4365	4365	4365	4365
Overall width without/including mirrors [mm]	1770/2080 or 1770	1770/2080 or 1770	1770/2080 or 1770	1770/2080 or 1770
Overall height [mm]	1640	1640	1640	1640
Wheelbase [mm]	2670	2670	2670	2670
Front wheel track [mm]	1525	1525	1525	1545
Rear wheel track [mm]	1530	1530	1530	1545
Forward overhang [mm]	930	930	930	930
Rear overhang [mm]	765	765	765	765
Clearance [mm]	190	190	180	180
Wading depth [mm]	400	400	400	400
Approach angle front [°]	20.2	20.2	20.2	20.2
Approach angle rear [°]	32	32	32	32
Transition angle [°]	19	19	19	19
Climbing rate [°]	14	14	18.4	18.4
Maximum side tilt [°]	49	49	49	49

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

Mitsubishi ASX GA facelift 2017 interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
