Mini One & Cooper Cabrio
Date of manufacture
2010 – 2015 (Convertible)
Platform
-
Manufacturing locations
Oxford, United Kingdom
Designer
-
Tags
A-segment
The Mini One & Cooper Cabrio is a modern cabriolet first produced in 2010 in the United Kingdom. It offers a wide range of petrol and diesel engines with the highest power of 155 kW in the John Cooper Works model. The highest speed reaches 235 km/h and the best acceleration 0-100 km/h in 6.9 seconds also belongs to this model. The most economical variant is the Cooper D with a consumption of 4 l/100 km and emissions of 105 g/km. The trunk volume is 125-170 l.
Technical data
Convertible
| One | One | Cooper | Cooper | Cooper S | Cooper S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 72/6000 | 72/6000 | 90/6000 | 90/6000 | 135/5500 | 135/5500 |
| Maximum torque [Nm/min-1] | 153/3000 | 153/3000 | 160/4250 | 160/4250 | 240/1600-5000 | 240/1600-5000 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Coolant volume [l] | 5.2 | 5.2 | 5.2 | 5.2 | 5.5 | 5.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 181 | 174 | 198 | 191 | 225 | 220 |
| Acceleration 0–100 km/h [s] | 11.3 | 13.1 | 9.8 | 11.1 | 7.3 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 17.1 (5th gear) | - | 13.3 (5th gear) | - | 7.5 (5th gear) | - |
| City [l] | 7.6 | 8.9 | 7.2 | 8.9 | 7.5 | 9.1 |
| Out of town [l] | 4.6 | 5.3 | 4.9 | 5.3 | 5.1 | 5.1 |
| Combined [l] | 5.7 | 6.6 | 5.7 | 6.6 | 6.0 | 6.6 |
| CO2 emissions [g/km] | 133 | 154 | 133 | 154 | 139 | 153 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1235 | 1275 | 1240 | 1280 | 1305 | 1330 |
| Overall weight [kg] | 1590 | 1630 | 1595 | 1635 | 1660 | 1685 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 840/775 | 880/775 | 845/775 | 880/780 | 885/795 | 905/795 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 125-175 | 125-175 | 125-175 | 125-175 | 125-170 | 125-170 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/660 | -/660 | -/660 | -/660 | -/660 | -/660 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 40 | 40 | 40 | 40 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.37 | 0.37 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V |
| Tyre dimensions rear | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 280 x 22 | 280 x 22 | 280 x 22 | 280 x 22 | 294 x 22 | 294 x 22 |
| Brake dimensions rear | 259 x 10 | 259 x 10 | 259 x 10 | 259 x 10 | 259 x 10 | 259 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 3723 | 3723 | 3723 | 3723 | 3729 | 3729 |
| Overall width without/including mirrors [mm] | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- |
| Overall height [mm] | 1414 | 1414 | 1414 | 1414 | 1414 | 1414 |
| Wheelbase [mm] | 2467 | 2467 | 2467 | 2467 | 2467 | 2467 |
| Front wheel track [mm] | 1459 | 1459 | 1459 | 1459 | 1453 | 1453 |
| Rear wheel track [mm] | 1467 | 1467 | 1467 | 1467 | 1461 | 1461 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 139 | 139 | 139 | 139 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| John Cooper Works | John Cooper Works | Cooper D | Cooper D | Cooper SD | Cooper SD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 155/6000 | 155/6000 | 82/4000 | 82/4000 | 105/4000 | 105/4000 |
| Maximum torque [Nm/min-1] | 260/1850-5600 | 260/1850-5600 | 270/1750-2250 | 270/1750-2250 | 305/1750-2700 | 305/1750-2700 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 78,0 x 83,6 | 78,0 x 83,6 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 4.2 | 4.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Coolant volume [l] | 7.5 | 7.5 | 5.2 | 5.2 | 5.4 | 5.4 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 235 | 233 | 194 | 190 | 210 | 203 |
| Acceleration 0–100 km/h [s] | 6.9 | 7.1 | 10.3 | 10.7 | 8.7 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 6.8 (5th gear) | - | 9.9 (5th gear) | - | - | - |
| City [l] | 9.6 | 10.4 | 4.5 | 7.0 | 5.3 | 7.1 |
| Out of town [l] | 5.9 | 5.5 | 3.7 | 4.3 | 4.0 | 4.4 |
| Combined [l] | 7.3 | 7.3 | 4.0 | 5.3 | 4.5 | 5.4 |
| CO2 emissions [g/km] | 169 | 169 | 105 | 140 | 118 | 143 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1315 | 1340 | 1275 | 1300 | 1325 | 1340 |
| Overall weight [kg] | 1670 | 1695 | 1630 | 1655 | 1680 | 1695 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 885/800 | 910/800 | 875/770 | 905/770 | 905/790 | 925/790 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 125-170 | 125-170 | 125-170 | 125-170 | 125-170 | 125-170 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/660 | -/660 | -/660 | -/660 | -/660 | -/660 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 50 | 50 | 40 | 40 | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.37 | 0.37 | 0.35 | 0.35 | 0.37 | 0.37 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/45 R17 84W | 205/45 R17 84W | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V |
| Tyre dimensions rear | 205/45 R17 84W | 205/45 R17 84W | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 316 x 22 | 316 x 22 | 280 x 22 | 280 x 22 | 280 x 22 | 280 x 22 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 259 x 10 | 259 x 10 | 259 x 10 | 259 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 3758 | 3758 | 3723 | 3723 | 3729 | 3729 |
| Overall width without/including mirrors [mm] | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- |
| Overall height [mm] | 1414 | 1414 | 1414 | 1414 | 1414 | 1414 |
| Wheelbase [mm] | 2467 | 2467 | 2467 | 2467 | 2467 | 2467 |
| Front wheel track [mm] | 1453 | 1453 | 1459 | 1459 | 1459 | 1459 |
| Rear wheel track [mm] | 1461 | 1461 | 1467 | 1467 | 1467 | 1467 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 130 | 130 | 139 | 139 | 139 | 139 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

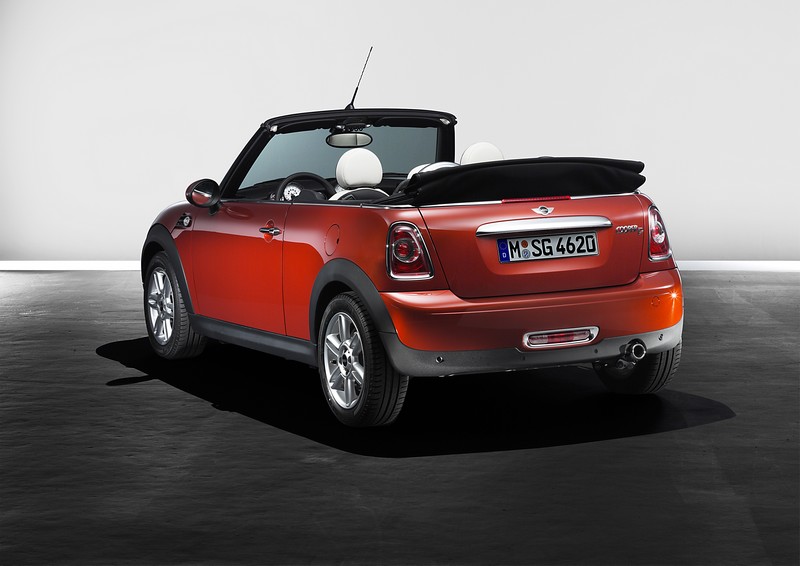

Gallery
