Mini Countryman
Date of manufacture
2020 – to this day (Small SUV)
Platform
BMW UKL2
Manufacturing locations
Born, Netherlands
Designer
-
Tags
Small SUV

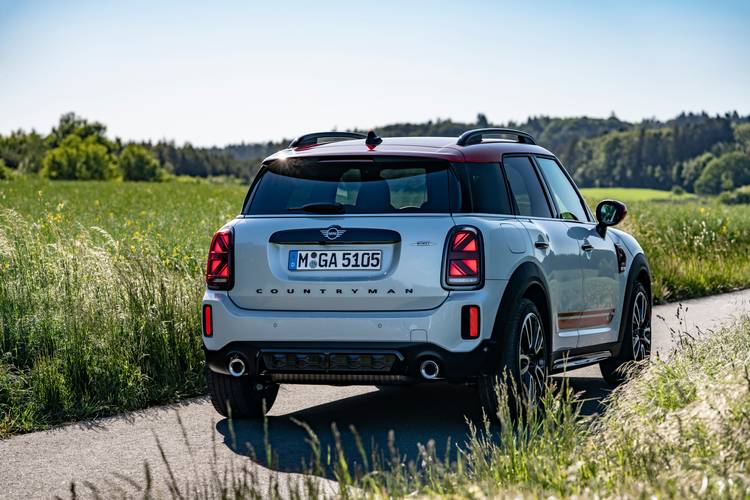

The new Mini Countryman, a small SUV produced since 2020 in the Netherlands, offers a wide range of power units - petrol, diesel and hybrid engines. The most powerful John Cooper Works Countryman ALL4 model reaches a maximum speed of 250 km/h and the best acceleration 0-100 km/h in 5.1 seconds. The most economical is the Cooper S E Countryman ALL4 with a consumption of 2.1 l/100 km and emissions of 47 g/km. The luggage compartment has a volume of 405 l. In the field of safety, EURONCAP awarded the car a rating of 5 out of 5 in 2017.
Car body style
Small SUV
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
F60Engine size
PetrolPetrol + Electric
Technical data
Small SUV
| One Countryman | One Countryman | Cooper Countryman | Cooper Countryman | Cooper Countryman ALL4 | Cooper S Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 9/2018 to | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1499 | 1998 |
| Maximum output / speed [kW/min-1] | 75/3900-6500 | 75/3900-6500 | 100/4500-6500 | 100/4500-6500 | 100/4500-6500 | 131/5000-6000 |
| Maximum torque [Nm/min-1] | 190/1380-3600 | 190/1380-3600 | 220/1480-4100 | 220/1480-4100 | 220/1480-4100 | 280/1350-4600 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 185 | 185 | 205 | 205 | 202 | 225 |
| Acceleration 0–100 km/h [s] | 12,0 | 12,0 | 9.7 | 9.7 | 10.1 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,3-7,1 | 6,6-6,2 | 7,5-7,0 | 6,7-6,4 | 7,2-7,0 | 8,5-8,2 |
| Out of town [l] | 5,4-5,1 | 5,2-5,0 | 5,0-4,9 | 5,0-4,6 | 5,5-5,2 | 5,3-5,2 |
| Combined [l] | 6,1-5,9 | 6,9-6,2 | 5,9-5,6 | 5,6-5,3 | 6,1-5,9 | 6,5-6,3 |
| CO2 emissions [g/km] | 140-134 | 131-124 | 135-129 | 129-120 | 140-134 | 148-144 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.8-6.1 | 6.9-6.1 | 6.9-6.2 | 7.0-6.3 | 7,6-6,9 | 7.2-6.6 |
| CO2 emissions [g/km] | 150-140 | 151-141 | 157-142 | 158-143 | 172-157 | 163-150 |
| Emission standard | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1465 | 1495 | 1480 | 1505 | - | 1540 |
| Overall weight [kg] | 1960 | 1985 | 1965 | 1990 | - | 2020 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 750/1500 | 750/1500 | 750/1500 | 750/1800 |
| Maximum front/rear axle load [kg] | 1015/990 | 1045/985 | 1025/990 | 1050/985 | - | 1065/1000 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W |
| Tyre dimensions rear | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4297 | 4297 | 4297 | 4297 | 4297 | 4297 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1563 |
| Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1565 |
| Forward overhang [mm] | 834 | 834 | 834 | 834 | 834 | 834 |
| Rear overhang [mm] | 793 | 793 | 793 | 793 | 793 | 793 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S Countryman | Cooper S Countryman ALL4 | John Cooper Works Countryman ALL4 | Cooper S E Countryman ALL4 | One D Countryman | One D Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1499 | 1496 | 1496 |
| Maximum output / speed [kW/min-1] | 131/5000-6000 | 131/5000-6000 | 225/5000-6250 | 92/5000-5500 70 el. 162 total | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 280/1350-4600 | 280/1350-4600 | 450/1800-4500 | 220/1500-3800 162 el. 385 total | 270/1750-2250 | 270/1750-2250 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.25 | 5.25 | - | 4.25 | 4.8 | 4.8 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 225 | 222 | 250 | 196 [135 el.] | 192 | 192 |
| Acceleration 0–100 km/h [s] | 7.4 | 7.3 | 5,1 | 6.8 | 11,2 | 11,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,2 | 7,8-7,7 | 8,3-7,8 | - | 5,1-4,8 | 4,7-4,4 |
| Out of town [l] | 5,2-4,8 | 5,8-5,3 | 6,3-5,9 | - | 4,0-3,7 | 4,0-3,9 |
| Combined [l] | 6,0-5,7 | 6,5-6,2 | 7,0-6,6 | 2.0-1.7 [14,0-13.1 kWh] | 4,4-4,1 | 4,3-4,0 |
| CO2 emissions [g/km] | 136-130 | 142-149 | 161-152 | 45-40 | 116-107 | 112-106 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.9-6.4 | 7.5-6.9 | 8,2-7,6 | 2.1-1.7 [15.9-14.7 kWh] | 5,5-4,9 | 5,5-4,9 |
| CO2 emissions [g/km] | 157-145 | 170-157 | 188-173 | 47-39 | 144-128 | 143-128 |
| Emission standard | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-ion, 10,0 kWh (8.82 net) | - | - |
| Range with fully charged battery [km] | - | - | - | 55-61 | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1555 | 1790 | 1680 | 1790 | - | - |
| Overall weight [kg] | 2040 | 2270 | 2175 | 2270 | - | - |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | - | - | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1080/1000 | 1110/1050 | 1135/1065 | 1115/ 1205 | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | - | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75 /- | 75/- | 75/- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 450 | 450 | 450 | 405 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1275 | -/1390 | -/1390 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 36 | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.32 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/55 R17 97W | 225/50 R18 99 W XL | 225/55 R17 97W | 205/65 R16 95W | 205/65 R16 95W |
| Tyre dimensions rear | 225/55 R17 97W | 225/55 R17 97W | 225/50 R18 99 W XL | 225/55 R17 97W | 205/65 R16 95W | 205/65 R16 95W |
| Wheel size front | 7.5J x 17 | 7,5J x 17 | 7,5 J x 18 | 7.5J x 17 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7.5J x 17 | 7,5J x 17 | 7,5 J x 18 | 7.5J x 17 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4297 | 4297 | 4297 | 4297 | 4297 | 4297 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1557 | 1557 | 1559 | 1559 | 1557 | 1557 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1585 | 1585 |
| Rear wheel track [mm] | 1565 | 1565 | 1565 | 1565 | 1587 | 1587 |
| Forward overhang [mm] | 834 | 834 | 834 | 834 | 834 | 834 |
| Rear overhang [mm] | 793 | 793 | 793 | 793 | 793 | 793 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper D Countryman | Cooper D Countryman | Cooper D Countryman ALL4 | Cooper SD Countryman | Cooper SD Countryman ALL4 | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 110/4000 | 140/4000 | 140/4000 | |
| Maximum torque [Nm/min-1] | 330-350/1750-2500 | 330-350/1750-2500 | 330-350/1750-2500 | 400/1500-2750 | 400/1500-2750 | |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | |
| Oil volume [l] | 5.0-5.5 | 5.0-5.5 | 5.0-5.5 | 5.5 | 5.5 | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | 4x4 | Front | 4x4 | |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
| - |
|
|
| |
| Top speed [km/h] | 214 | 213 | 211 | 226 | 224 | |
| Acceleration 0–100 km/h [s] | 9,1 | 9,1 | 9,0 | 7,9 | 7,6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | 9.3 (5th gear) | - | - | - | - | |
| City [l] | 5,0-4,8 | 4,9-4,8 | 5,2-5,1 | 4,7-4,5 | 5,3-5,0 | |
| Out of town [l] | 4,0-3,8 | 4,2-3,9 | 4,6-4,3 | 4,3-4,1 | 4,6-4,4 | |
| Combined [l] | 4,4-4,2 | 4,4-4,2 | 4,8-4,6 | 4,5-4,2 | 4,8-4,6 | |
| CO2 emissions [g/km] | 116-110 | 117-111 | 127-121 | 117-111 | 127-121 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 5,5-4,9 | 5,7-5,1 | 5,9-5,4 | 5,6-5,2 | 6,0-5,5 | |
| CO2 emissions [g/km] | 143-128 | 149-135 | 156-141 | 148-135 | 157-144 | |
| Emission standard | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | EU6d-TEMP - EU6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1475 | 1510 | - | - | - | |
| Overall weight [kg] | 2050 | 2085 | - | - | - | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | 750/1800 | 750/1800 | |
| Maximum front/rear axle load [kg] | 1075/1025 | 1110/1025 | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | 51 [61 subject to a surcharge] | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.31 | 0.31 | 0.32 | 0.32 | 0.33 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W | 225/55 R17 97W | |
| Tyre dimensions rear | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W | 225/55 R17 97W | |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | |
| Overall length [mm] | 4297 | 4297 | 4297 | 4297 | 4297 | |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | |
| Front wheel track [mm] | 1585 | 1585 | 1585 | 1563 | 1563 | |
| Rear wheel track [mm] | 1587 | 1587 | 1587 | 1565 | 1565 | |
| Forward overhang [mm] | 834 | 834 | 834 | 834 | 834 | |
| Rear overhang [mm] | 793 | 793 | 793 | 793 | 793 | |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
