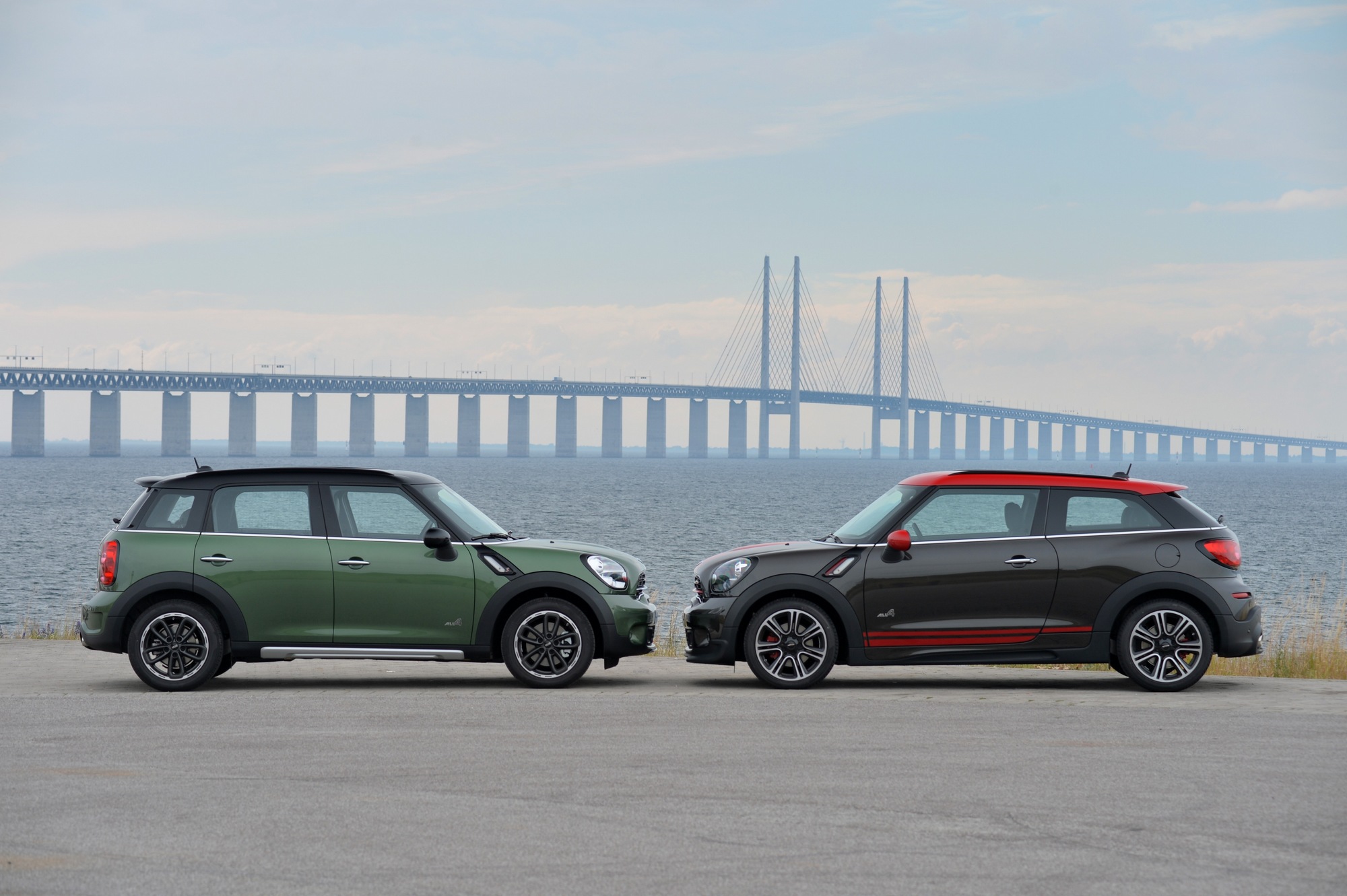

Mini Countryman
Date of manufacture
2014 – 2016 (SUV)
Platform
-
Manufacturing locations
Graz, Austria
Designer
-
Tags
Small SUV
The Mini Countryman is an SUV produced since 2014 with Austria as the state of production. The engine range includes petrol and diesel engines, the most powerful model being the John Cooper Works Countryman with 160 kW. This model has a top speed of 228 km/h and the best acceleration from 0-100 km/h in 6.9 seconds. The most economical model is the Cooper D Countryman with a fuel consumption of 4.2 l/100 km and emissions of 111 g/km. The vehicle's trunk volume is 350 l. The model has successfully passed EURONCAP safety tests and has been rated 5 out of 5.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2014 – 2016Internal designation
R60 Engine size
Petrol
Technical data
SUV
| One Countryman | One Countryman | Cooper Countryman | Cooper Countryman | Cooper Countryman ALL4 | Cooper Countryman ALL4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 72/6000 | 72/6000 | 90/6000 | 90/6000 | 90/6000 | 90/6000 |
| Maximum torque [Nm/min-1] | 153/3000 | 153/3000 | 160/4250 | 160/4250 | 160/4250 | 160/4250 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Coolant volume [l] | 5.5 | 6.0 | 5.5 | 6.0 | 7.5 | 7.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 175 | 170 | 191 | 184 | 186 | 184 |
| Acceleration 0–100 km/h [s] | 11.9 | 13.9 | 10.4 | 11.6 | 11.5 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 17.6 (5th gear) | - | 14.7 (5th gear) | - | 14.6 (5th gear) | - |
| City [l] | 7.1 | 9.0 | 7.3 | 9.0 | 8.2 | 9.4 |
| Out of town [l] | 5.0 | 5.6 | 5.1 | 5.6 | 5.8 | 5.7 |
| Combined [l] | 5.7 | 6.9 | 5.9 | 6.9 | 6.7 | 7.0 |
| CO2 emissions [g/km] | 134 | 159 | 137 | 159 | 156 | 164 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1340 | 1370 | 1340 | 1370 | 1425 | 1470 |
| Overall weight [kg] | 1775 | 1805 | 1775 | 1805 | 1860 | 1905 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | 500/1000 | - | 500/1000 |
| Maximum front/rear axle load [kg] | 935/880 | 965/880 | 930/880 | 960/880 | 960/930 | 1005/930 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |

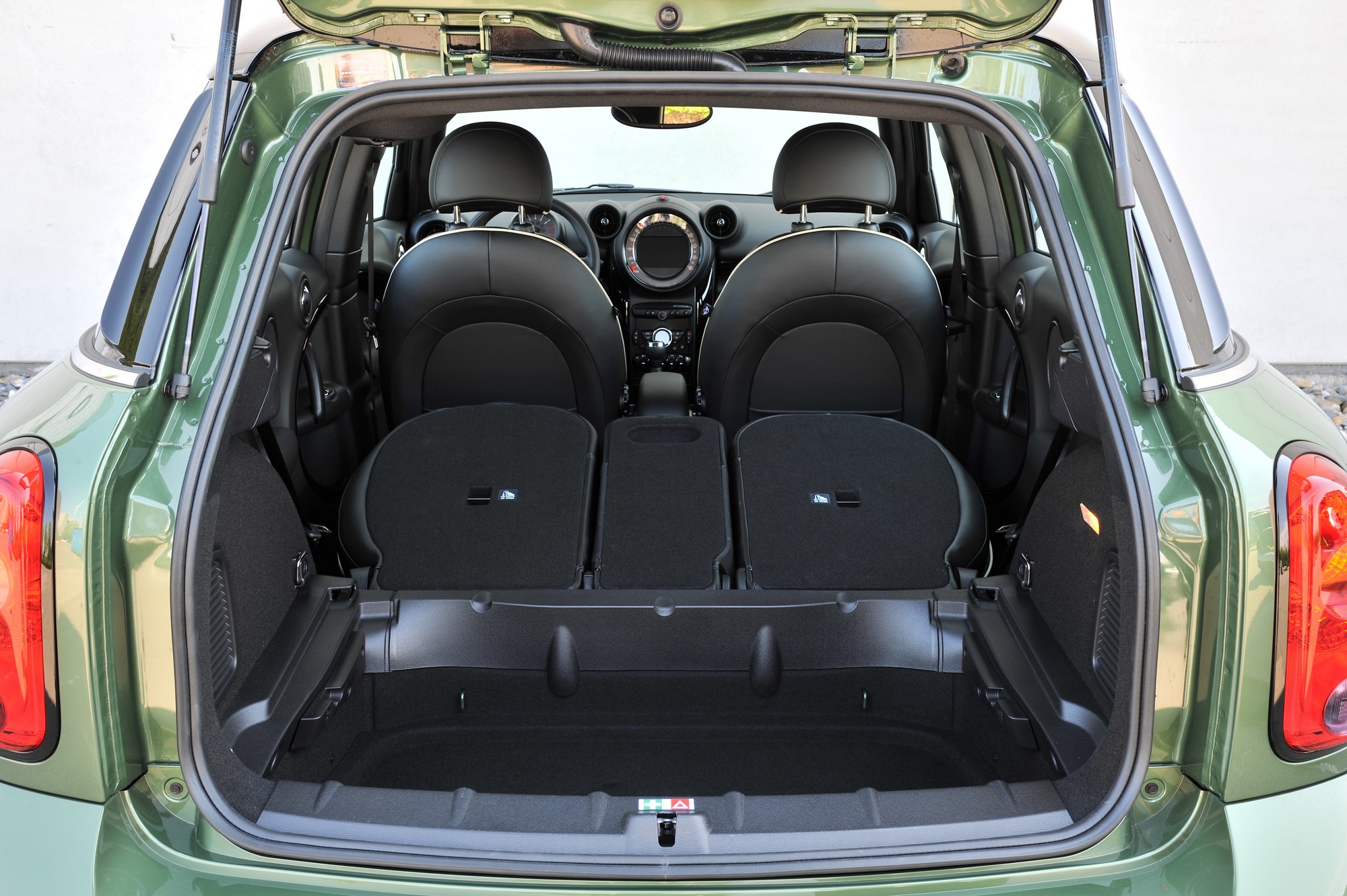

| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4097 | 4097 | 4097 | 4097 | 4110 | 4110 |
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- |
| Overall height [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Wheelbase [mm] | 2595 | 2595 | 2595 | 2595 | 2595 | 2595 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1537 | 1537 |
| Rear wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1564 | 1564 |
| Forward overhang [mm] | 764 | 764 | 764 | 764 | 770 | 770 |
| Rear overhang [mm] | 738 | 738 | 738 | 738 | 745 | 745 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 149 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S Countryman | Cooper S Countryman | Cooper S Countryman ALL4 | Cooper S Countryman ALL4 | John Cooper Works Countryman | John Cooper Works Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 140/5500 | 140/5500 | 135/5500 | 135/5500 | 160/6000 | 160/6000 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 240/1600-5000 | 240/1600-5000 | 280/1900-5000 | 280/1900-5000 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Coolant volume [l] | 5.5 | 6.0 | 5.5 | 6.0 | 6.0 | 6.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 218 | 214 | 215 | 213 | 228 | 225 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.8 | 7.7 | 8.1 | 6.9 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 8.4 (5th gear) | - | 9.2 (5th gear) | - | 7.7 (5th gear) | - |
| City [l] | 7.5 | 9.2 | 8.0 | 9.5 | 9.1 | 10.4 |
| Out of town [l] | 5.1 | 5.4 | 5.5 | 5.7 | 6.0 | 5.9 |
| Combined [l] | 6.0 | 6.8 | 6.4 | 7.1 | 7.1 | 7.5 |
| CO2 emissions [g/km] | 139 | 157 | 148 | 165 | 165 | 175 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1385 | 1410 | 1465 | 1490 | 1480 | 1505 |
| Overall weight [kg] | 1820 | 1845 | 1900 | 1925 | 1915 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 500/750 | 500/1000 | 500/750 | 500/1000 | - | - |
| Maximum front/rear axle load [kg] | 970/880 | 995/880 | 1000/930 | 1025/930 | 1000/940 | 1025/940 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 225/45 R18 91W | 225/45 R18 91W |
| Tyre dimensions rear | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 225/45 R18 91W | 225/45 R18 91W |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 7.5J x 18 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 7.5J x 18 |
| Brake dimensions front | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 296 x 10 | 296 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4109 | 4109 | 4109 | 4109 | 4133 | 4133 |
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- |
| Overall height [mm] | 1561 | 1561 | 1561 | 1561 | 1549 | 1549 |
| Wheelbase [mm] | 2595 | 2595 | 2595 | 2595 | 2596 | 2596 |
| Front wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1527 | 1527 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1554 | 1554 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 128 | 128 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| One D Countryman | Cooper D Countryman | Cooper D Countryman | Cooper D Countryman ALL4 | Cooper D Countryman ALL4 | Cooper SD Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1995 |
| Maximum output / speed [kW/min-1] | 66/4000 | 82/4000 | 82/4000 | 82/4000 | 82/4000 | 105/4000 |
| Maximum torque [Nm/min-1] | 215/1750-2500 | 270/1750-2250 | 270/1750-2250 | 270/1750-2250 | 270/1750-2250 | 305/1750-2700 |
| Bore and stroke [mm x mm] | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Coolant volume [l] | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 6.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
|
|
| - |
| Top speed [km/h] | 171 | 186 | 181 | 181 | 176 | 200 |
| Acceleration 0–100 km/h [s] | 12.9 | 10.9 | 11.3 | 11.6 | 11.9 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 15.9 (5th gear) | 11.5 (5th gear) | - | 12.5 (5th gear) | - | 9.7 (5th gear) |
| City [l] | 4.7 | 4.7 | 7.2 | 5.2 | 7.5 | 5.1 |
| Out of town [l] | 3.9 | 3.9 | 4.8 | 4.4 | 5.0 | 4.2 |
| Combined [l] | 4.2 | 4.2 | 5.6 | 4.7 | 5.9 | 4.5 |
| CO2 emissions [g/km] | 111 | 111 | 148 | 123 | 155 | 119 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1385 | 1385 | 1410 | 1465 | 1490 | 1395 |
| Overall weight [kg] | 1820 | 1820 | 1845 | 1900 | 1925 | 1830 |
| Maximum trailer weight unbraked/braked [kg] | - | 500/800 | 500/1200 | 500/800 | 500/1200 | 500/800 |
| Maximum front/rear axle load [kg] | 995/850 | 985 / 880 | 1005 / 880 | 1010/930 | 1030/930 | 995/880 |
| Maximum vertical load on the tow bar [kg] | - | 985/880 | 1005/880 | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Brake dimensions front | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 307 x 24 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4097 | 4097 | 4097 | 4110 | 4110 | 4109 |
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- |
| Overall height [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Wheelbase [mm] | 2595 | 2595 | 2595 | 2595 | 2595 | 2595 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1529 |
| Rear wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1556 |
| Forward overhang [mm] | 764 | 764 | 764 | 770 | 770 | - |
| Rear overhang [mm] | 738 | 738 | 738 | 745 | 745 | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper SD Countryman | Cooper SD Countryman | Cooper SD Countryman | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 105/4000 | 105/4000 | 105/4000 | |||
| Maximum torque [Nm/min-1] | 305/1750-2700 | 305/1750-2700 | 305/1750-2700 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | 5.2 | 5.2 | 5.2 | |||
| Coolant volume [l] | 6.5 | 6.0 | 6.5 | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | 4x4 | |||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 197 | 197 | 195 | |||
| Acceleration 0–100 km/h [s] | 9.4 | 9.3 | 9.4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | 10.3 (5th gear) | - | |||
| City [l] | 7.2 | 5.4 | 7.5 | |||
| Out of town [l] | 4.8 | 4.5 | 5.0 | |||
| Combined [l] | 5.7 | 4.8 | 5.9 | |||
| CO2 emissions [g/km] | 149 | 126 | 156 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1425 | 1480 | 1505 | |||
| Overall weight [kg] | 1860 | 1915 | 1940 | |||
| Maximum trailer weight unbraked/braked [kg] | 500/1200 | 500/800 | 500/1200 | |||
| Maximum front/rear axle load [kg] | 1025/880 | 1020/930 | 1040/930 | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 350 | 350 | 350 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 47 | 47 | 47 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/55 R17 91V | 205/55 R17 91V | 205/55 R17 91V | |||
| Tyre dimensions rear | 205/55 R17 91V | 205/55 R17 91V | 205/55 R17 91V | |||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Brake dimensions front | 307 x 24 | 307 x 24 | 307 x 24 | |||
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | |||
| Overall length [mm] | 4109 | 4109 | 4109 | |||
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | |||
| Overall height [mm] | 1561 | 1561 | 1561 | |||
| Wheelbase [mm] | 2595 | 2595 | 2595 | |||
| Front wheel track [mm] | 1529 | 1529 | 1529 | |||
| Rear wheel track [mm] | 1556 | 1556 | 1556 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 150 | 150 | 150 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1013 | 1013 | 1013 | |||
| Headroom rear [mm] | 953 | 953 | 953 | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
