Mini Countryman
Date of manufacture
8/2010 – 2014 (SUV)
Platform
-
Manufacturing locations
Graz, Austria
Designer
-
Tags
Small SUV

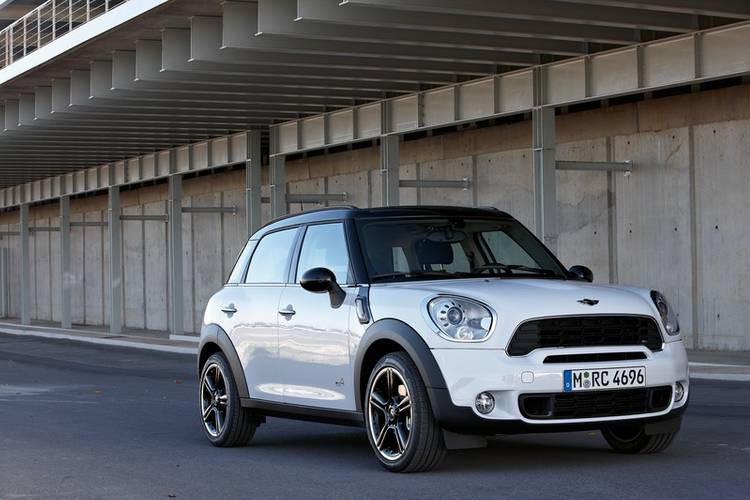

The Mini Countryman, an SUV produced since 2010, is available in an SUV body style. The vehicle is manufactured in Austria and offers a wide range of petrol and diesel engines. The most powerful model is the John Cooper Works Countryman with a maximum output of 160 kW, which reaches a top speed of 225 km/h and the best acceleration from 0-100 km/h in 7.0 seconds. The most economical model, the Cooper D Countryman, has a combined fuel consumption of 4.4 l/100 km and CO2 emissions of 115 g/km. The luggage compartment has a capacity of 350 l. The Mini Countryman has successfully passed EURONCAP safety tests and has been rated 5 out of 5.
Car body style
SUV
Date of manufacture
8/2010 – 2014Internal designation
R60Engine size
Petrol
Technical data
SUV
| One Countryman | One Countryman | Cooper Countryman | Cooper Countryman | Cooper Countryman ALL4 | Cooper Countryman ALL4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 72/6000 | 72/6000 | 90/6000 | 90/6000 | 90/6000 | 90/6000 |
| Maximum torque [Nm/min-1] | 153/3000 | 153/3000 | 160/4250 | 160/4250 | 160/4250 | 160/4250 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Coolant volume [l] | 5.5 | 6.0 | 5.5 | 6.0 | 7.5 | 7.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 173 | 168 | 190 | 182 | 184 | 182 |
| Acceleration 0–100 km/h [s] | 11.9 | 13.9 | 10.5 | 11.6 | 11.9 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 9.3 | 7.4 | 9.3 | 8.4 | 10.0 |
| Out of town [l] | 5.2 | 6.0 | 5.2 | 6.0 | 6.0 | 6.1 |
| Combined [l] | 6.0 | 7.2 | 6.0 | 7.2 | 6.9 | 7.5 |
| CO2 emissions [g/km] | 139 | 168 | 139 | 168 | 160 | 175 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1340 | 1370 | 1340 | 1370 | 1415 | 1460 |
| Overall weight [kg] | 1735 | 1765 | 1735 | 1765 | 1850 | 1895 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 935 / 855 | 965 / 855 | 930 / 855 | 960 / 855 | 960/930 | 1005/930 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

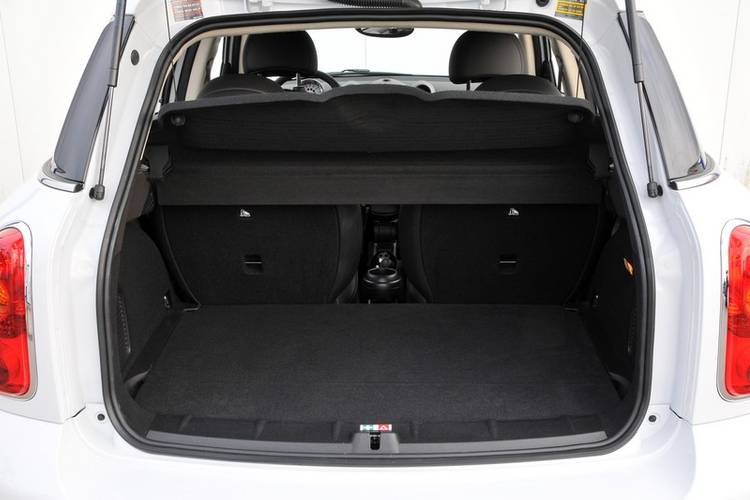

| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4097 | 4097 | 4097 | 4097 | 4097 | 4097 |
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- |
| Overall height [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Wheelbase [mm] | 2595 | 2595 | 2595 | 2595 | 2595 | 2595 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1537 | 1537 |
| Rear wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1564 | 1564 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S Countryman | Cooper S Countryman | Cooper S Countryman ALL4 | Cooper S Countryman ALL4 | John Cooper Works Countryman | John Cooper Works Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2012 to | from 2012 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 135/5500 | 135/5500 | 160/6000 | 160/6000 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 240/1600-5000 | 240/1600-5000 | 280/1900-5000 | 280/1900-5000 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Coolant volume [l] | 5.5 | 6.0 | 5.5 | 6.0 | 6.0 | 6.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 215 | 210 | 210 | 205 | 225 | 223 |
| Acceleration 0–100 km/h [s] | 7.6 | 7.9 | 7.9 | 8.3 | 7.0 | 7.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 9.5 | 8.2 | 10.3 | 9.4 | 10.7 |
| Out of town [l] | 5.4 | 5.7 | 5.8 | 6.2 | 6.2 | 6.3 |
| Combined [l] | 6.1 | 7.9 | 6.7 | 7.7 | 7.4 | 7.9 |
| CO2 emissions [g/km] | 143 | 166 | 157 | 180 | 172 | 184 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1385 | 1410 | 1455 | 1480 | 1480 | 1505 |
| Overall weight [kg] | 1780 | 1805 | 1840 | 1865 | 1915 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 960 / 855 | 980 / 855 | 980 / 895 | 1000/895 | 990/940 | 1015/940 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 225/45 R18 91V | 225/45 R18 91V |
| Tyre dimensions rear | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 225/45 R18 91V | 225/45 R18 91V |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 7.5J x 18 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 7.5J x 18 |
| Brake dimensions front | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 296 x 10 | 296 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4110 | 4110 | 4110 | 4110 | 4133 | 4133 |
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- |
| Overall height [mm] | 1561 | 1561 | 1561 | 1561 | 1549 | 1549 |
| Wheelbase [mm] | 2595 | 2595 | 2595 | 2595 | 2596 | 2596 |
| Front wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1527 | 1527 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1554 | 1554 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 149 | 149 | 149 | 149 | 137 | 137 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| One D Countryman | Cooper D Countryman | Cooper D Countryman | Cooper D Countryman ALL4 | Cooper D Countryman ALL4 | Cooper SD Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1995 |
| Maximum output / speed [kW/min-1] | 66/4000 | 82/4000 | 82/4000 | 82/4000 | 82/4000 | 105/4000 |
| Maximum torque [Nm/min-1] | 215/1750-2500 | 270/1750-2250 | 270/1750-2250 | 270/1750-2250 | 270/1750-2250 | 305/1750-2700 |
| Bore and stroke [mm x mm] | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 78,0 x 83,6 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Coolant volume [l] | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.2 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
|
|
| - |
| Top speed [km/h] | 170 | 185 | 180 | 180 | 175 | 198 |
| Acceleration 0–100 km/h [s] | 12.9 | 10.9 | 11.3 | 11.6 | 11.8 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.7 | 4.7 | 7.2 | 5.3 | 7.6 | 5.2 |
| Out of town [l] | 4.2 | 4.2 | 4.7 | 4.7 | 5.0 | 4.3 |
| Combined [l] | 4.4 | 4.4 | 5.6 | 4.9 | 6.0 | 4.6 |
| CO2 emissions [g/km] | 115 | 115 | 149 | 129 | 158 | 122 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1385 | 1385 | 1410 | 1455 | 1480 | 1395 |
| Overall weight [kg] | 1780 | 1780 | 1805 | 1850 | 1875 | 1790 |
| Maximum trailer weight unbraked/braked [kg] | - | 500/750 | 500/1200 | 500/750 | 500/1200 | 500/800 |
| Maximum front/rear axle load [kg] | 995/850 | 985 / 850 | 1005/850 | 1010/890 | 1030/890 | 995/855 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 350 | 350 | 350 | 350 | 350 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V RSC |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V RSC |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Brake dimensions front | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4097 | 4097 | 4097 | 4097 | 4097 | 4110 |
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- | 1789/- |
| Overall height [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Wheelbase [mm] | 2595 | 2595 | 2595 | 2595 | 2595 | 2595 |
| Front wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1525 |
| Rear wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper SD Countryman | Cooper SD Countryman ALL4 | Cooper SD Countryman ALL4 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 105/4000 | 105/4000 | 105/4000 | |||
| Maximum torque [Nm/min-1] | 305/1750-2700 | 305/1750-2700 | 305/1750-2700 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | 5.2 | 5.2 | 5.2 | |||
| Coolant volume [l] | 5.2 | 5.2 | 5.2 | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | 4x4 | |||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 195 | 195 | 193 | |||
| Acceleration 0–100 km/h [s] | 9.5 | 9.4 | 9.5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.3 | 5.3 | 7.7 | |||
| Out of town [l] | 4.8 | 4.7 | 5.1 | |||
| Combined [l] | 5.7 | 4.9 | 6.1 | |||
| CO2 emissions [g/km] | 150 | 130 | 160 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1420 | 1470 | 1495 | |||
| Overall weight [kg] | 1815 | 1855 | 1880 | |||
| Maximum trailer weight unbraked/braked [kg] | 500/1200 | 500/800 | 500/1200 | |||
| Maximum front/rear axle load [kg] | 1015/855 | 1015/900 | 1035/900 | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 350 | 350 | 350 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 4-5 | 4-5 | 4-5 | |||
| Fuel tank volume [l] | 47 | 47 | 47 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | |||
| Tyre dimensions rear | 205/55 R17 91V RSC | 205/55 R17 91V RSC | 205/55 R17 91V RSC | |||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |||
| Brake dimensions front | 294 x 22 | 294 x 22 | 294 x 22 | |||
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | |||
| Overall length [mm] | 4110 | 4110 | 4110 | |||
| Overall width without/including mirrors [mm] | 1789/- | 1789/- | 1789/- | |||
| Overall height [mm] | 1561 | 1561 | 1561 | |||
| Wheelbase [mm] | 2595 | 2595 | 2595 | |||
| Front wheel track [mm] | 1525 | 1525 | 1525 | |||
| Rear wheel track [mm] | 1551 | 1551 | 1551 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 149 | 149 | 149 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1013 | 1013 | 1013 | |||
| Headroom rear [mm] | 953 | 953 | 953 | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

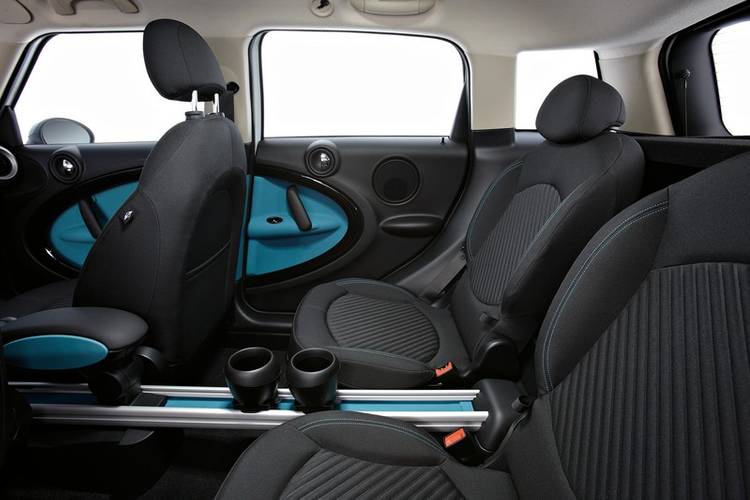

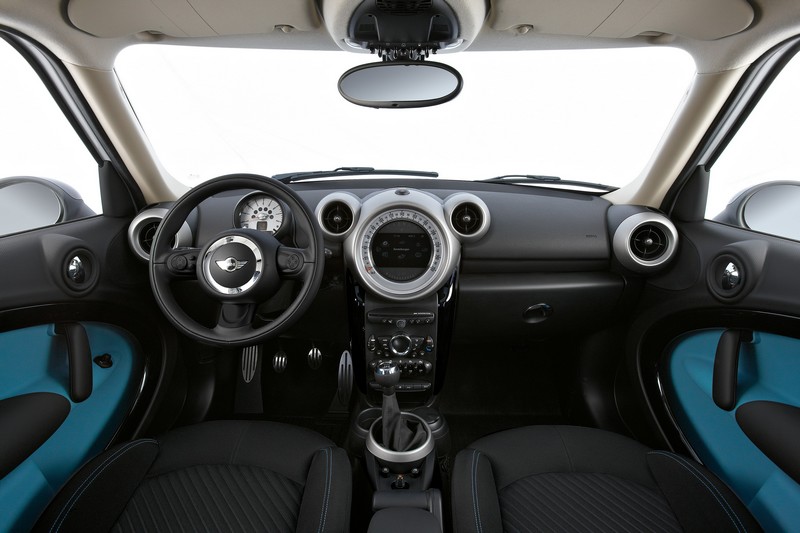

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
