Mercedes-Benz X

Date of manufacture

11/2017 – 5/2020 (Pick-up)

Platform

Nissan F-Alpha

Manufacturing locations

Barcelona, Spain

Designer

Car body style

Pick-up

Date of manufacture

11/2017 – 5/2020

Internal designation

W470

Engine size

Euro NCAP

Technical data

Pick-up

	X 220d	X 220d 4MATIC	X 250d	X 250d	X 250d 4MATIC	X 350d 4MATIC
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	6/24
Engine displacement [cm³]	2298	2298	2298	2298	2298	2987
Maximum output / speed [kW/min-1]	120/3750	120/3750	140/3750	140/3750	140/3750	190/3600
Maximum torque [Nm/min-1]	403/1500-2500	403/1500-2500	450/1500-2500	450/1500-2500	450/1500-2500	550/1400-3200
Bore and stroke [mm x mm]	85.0 x 101.3	85.0 x 101.3	85.0 x 101.3	85.0 x 101.3	85.0 x 101.3	83,0 x 92,0
Compression ratio	15,4:1	15,4:1	15,4:1	15,4:1	15,4:1	15,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail supercharging by twin turbochargers SCR catalytic converter with AdBlue additive injection particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers SCR catalytic converter with AdBlue additive injection particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers SCR catalytic converter with AdBlue additive injection particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers SCR catalytic converter with AdBlue additive injection particulate filter start&stop system	direct injection Common Rail supercharging by twin turbochargers SCR catalytic converter with AdBlue additive injection particulate filter start&stop system	direct injection Common Rail turbo-supercharged SCR catalytic converter with AdBlue additive injection particulate filter start&stop system

Drive axle	Rear	4x4	Rear	Rear	4x4	4x4
Gearbox	6 gear manual	6 gear manual	6 gear manual	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	-	permanent all-wheel drive 4MATIC	-	seven-speed automatic gearbox	permanent all-wheel drive 4MATIC seven-speed automatic gearbox	permanent all-wheel drive 4MATIC automatic gearbox 7G‐TRONIC PLUS

Top speed [km/h]	172	170	184	179	176	205
Acceleration 0–100 km/h [s]	12.5	12.9	10.9	11.4	11.8	7.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.7	8.1	7.9	9.6	9.6	10.3-10.0
Out of town [l]	7.2	7.3	6.9	6.7	6.9	8.3-8.1
Combined [l]	7.4	7.6	7.3	7.7	7.9	9.0-8.8
CO2 emissions [g/km]	195	200	192	203	207	236-230

Emission standard	Euro 6	Euro 6	Euro 6	Euro 6	Euro 6	Euro 6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	2133	2213	2161	2169	2234	2249-2389
Overall weight [kg]	3200	3250	3200	3200	3250	3250
Maximum trailer weight unbraked/braked [kg]	750/3200	750/3500	750/3200	750/3200	750/3500	750/3500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	-	-	-	-	-	-
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	1587	1587	1587	1587	1587	1587
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	1215/1560	1215/1560	1215/1560	1215/1560	1215/1560	1215/1560
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	854	854	854	854	854	854
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-/1357	-/1357	-/1357	-/1357	-/1357	-/1357

Number of doors	4	4	4	4	4	4
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	73	73	73	73	73	73
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	255/65 R17	255/65 R17	255/65 R17	255/65 R17	255/65 R17	255/65 R17
Tyre dimensions rear	255/65 R17	255/65 R17	255/65 R17	255/65 R17	255/65 R17	255/65 R17
Wheel size front	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50
Wheel size rear	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50	7.5 J x 17 ET50
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	13.4/-	13.4/-	13.4/-	13.4/-	13.4/-	13.4/-

Overall length [mm]	5340	5340	5340	5340	5340	5340
Overall width without/including mirrors [mm]	1920/2113	1920/2113	1920/2113	1920/2113	1920/2113	1920/2113
Overall height [mm]	1819	1819	1819	1819	1819	1819
Wheelbase [mm]	3150	3150	3150	3150	3150	3150
Front wheel track [mm]	1632	1632	1632	1632	1632	1632
Rear wheel track [mm]	1625	1625	1625	1625	1625	1625
Forward overhang [mm]	888	888	888	888	888	888
Rear overhang [mm]	1302	1302	1302	1302	1302	1302
Clearance [mm]	202 [222 subject to a surcharge]	202 [222 subject to a surcharge]	202 [222 subject to a surcharge]	202 [222 subject to a surcharge]	202 [222 subject to a surcharge]	202 [222 subject to a surcharge]
Wading depth [mm]	600	600	600	600	600	600
Approach angle front [°]	29.0 [30.0 subject to a surcharge]	29.0 [30.0 subject to a surcharge]	29.0 [30.0 subject to a surcharge]	29.0 [30.0 subject to a surcharge]	29.0 [30.0 subject to a surcharge]	29.0 [30.0 subject to a surcharge]
Approach angle rear [°]	24.0 [25.0 subject to a surcharge]	24.0 [25.0 subject to a surcharge]	24.0 [25.0 subject to a surcharge]	24.0 [25.0 subject to a surcharge]	24.0 [25.0 subject to a surcharge]	24.0 [25.0 subject to a surcharge]
Transition angle [°]	20.4 [22.0 subject to a surcharge]	20.4 [22.0 subject to a surcharge]	20.4 [22.0 subject to a surcharge]	20.4 [22.0 subject to a surcharge]	20.4 [22.0 subject to a surcharge]	20.4 [22.0 subject to a surcharge]
Climbing rate [°]	100	100	100	100	100	100
Maximum side tilt [°]	49.8	49.8	49.8	49.8	49.8	49.8

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

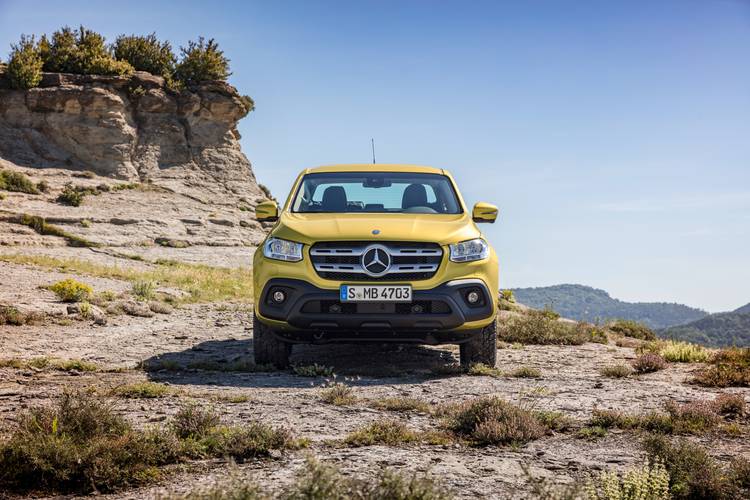

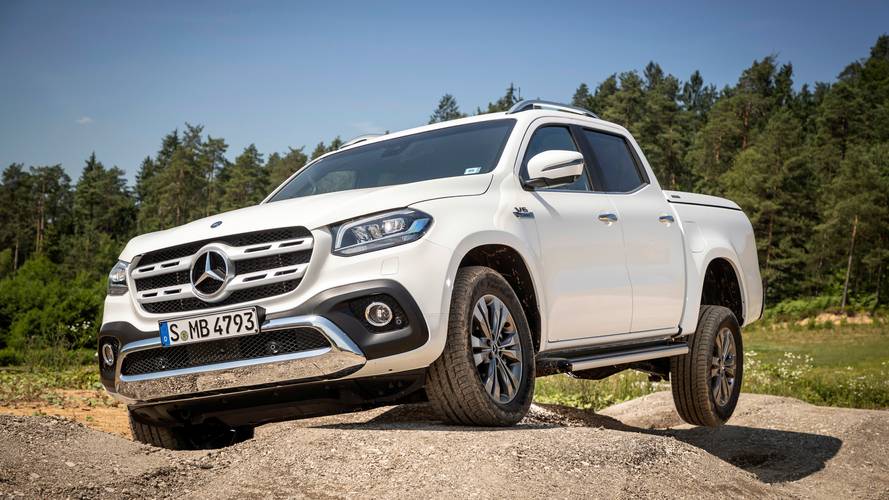

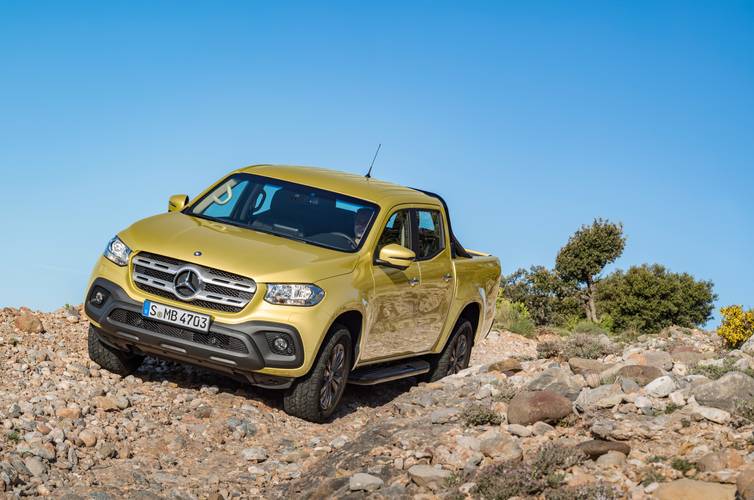

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
