Mercedes-Benz SLK

Date of manufacture

2008 – 2010 (Roadster)

Platform

Manufacturing locations

Bremen, Germany

Designer

Steve Mattin

Car body style

Roadster

after upgrade (facelift)

Date of manufacture

2008 – 2010

Internal designation

R171

Engine size

Technical data

Roadster

	SLK 200 Kompressor	SLK 200 Kompressor	SLK 280 / 300	SLK 280 / 300	SLK 350	SLK 350
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	6/24	6/24	6/24	6/24
Engine displacement [cm³]	1796	1796	2996	2996	3498	3498
Maximum output / speed [kW/min-1]	135/5500	135/5500	170/6000	170/6000	224/6500	224/6500
Maximum torque [Nm/min-1]	250/2800-5000	250/2800-5000	300/2500-5000	300/2500-5000	360/4900	360/4900
Bore and stroke [mm x mm]	82,0 x 85,0	82,0 x 85,0	88,0 x 82,1	88,0 x 82,1	92,9 x 86,0	92,9 x 86,0
Compression ratio	9,3:1	9,3:1	11,3:1	11,3:1	10,7:1	10,7:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	supercharging by mechanical compressor variable valve timing	supercharging by mechanical compressor variable valve timing	variable valve timing	variable valve timing	variable valve timing	variable valve timing

Drive axle	Rear	Rear	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	5 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	-	automatic gearbox	-	automatic gearbox 7G‐TRONIC	-	automatic gearbox 7G‐TRONIC

Top speed [km/h]	236	232	250	250	250	250
Acceleration 0–100 km/h [s]	7.6	7.9	6.3	6.2	5.4	5.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.0-11.2	11.5-11.8	13.9-14.1	12.3-12.4	14.5	12.6
Out of town [l]	5.7-6.0	5.9-6.2	6.9-7.0	6.8-6.9	7.0	6.9
Combined [l]	7.7-7.9	8.0-8.2	9.5-9.7	8.9-9.0	9.7	9.0
CO2 emissions [g/km]	182-188	190-196	220-225	207-209	227	209

Emission standard	EU4-EU5	EU4-EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1390	1415	1455	1475	1485	1505
Overall weight [kg]	1705	1705	1770	1770	1800	1800
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	50/-	50/-	50/-	50/-	50/-	50/-

Boot volume [l]	208-300	208-300	208-300	208-300	208-300	208-300
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	2	2	2	2	2	2
Fuel tank volume [l]	70	70	70	70	70	70
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.32	0.32	0.33	0.33	0.34	0.34
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	205/55 R16	205/55 R16	205/55 R16	225/45 R17	225/45 R17
Tyre dimensions rear	205/55 R16	205/55 R16	225/50 R 16	225/50 R 16	245/40 R 17	245/40 R 17
Wheel size front	7.0J x 16 ET34	7.0J x 16 ET34	7.0J x 16 ET34	7.0J x 16 ET34	7.5J x 17 ET36	7.5J x 17 ET36
Wheel size rear	7.0J x 16 ET34	7.0J x 16 ET34	8.0J x 16 ET30	8.0J x 16 ET30	8.5J x 17 ET30	8.5J x 17 ET30
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.51/-	10.51/-	10.51/-	10.51/-	10.51/-	10.51/-

Overall length [mm]	4103	4103	4103	4103	4103	4103
Overall width without/including mirrors [mm]	1777/2012	1777/2012	1777/2012	1777/2012	1777/2012	1777/2012
Overall height [mm]	1296	1296	1296	1296	1296	1296
Wheelbase [mm]	2430	2430	2430	2430	2430	2430
Front wheel track [mm]	1530	1530	1530	1530	1530	1530
Rear wheel track [mm]	1541	1541	1541	1541	1541	1541
Forward overhang [mm]	841	841	841	841	841	841
Rear overhang [mm]	832	832	832	832	832	832
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	965	965	965	965	965	965
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	1326/1387	1326/1387	1326/1387	1326/1387	1326/1387	1326/1387
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	SLK 55 AMG
Date of sale	-
Engine type	Petrol
Number of cylinders/valves	8/24
Engine displacement [cm³]	5439
Maximum output / speed [kW/min-1]	265/5750
Maximum torque [Nm/min-1]	510/4000
Bore and stroke [mm x mm]	-
Compression ratio	11,0:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	-

Drive axle	Rear
Gearbox	7 gear automatic
Drive specifications	automatic gearbox AMG SPEEDSHIFT 7G‐TRONIC

Top speed [km/h]	250
Acceleration 0–100 km/h [s]	4.9
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	17.7
Out of town [l]	8.8
Combined [l]	12.0
CO2 emissions [g/km]	288

Emission standard	EU4
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1575
Overall weight [kg]	1850
Maximum trailer weight unbraked/braked [kg]	-
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	50/-

Boot volume [l]	208-300
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	2
Number of seats	2
Fuel tank volume [l]	70
AdBlue tank volume [l]	-
Air resistance [Cd]	0.33
Front suspension	MacPherson
Rear suspension	multilink
Tyre dimensions front	225/40 R18
Tyre dimensions rear	245/35 R18
Wheel size front	7.5J x 18 ET37
Wheel size rear	8.5J x 18 ET30
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.51/-

Overall length [mm]	4103
Overall width without/including mirrors [mm]	1777/2012
Overall height [mm]	1296
Wheelbase [mm]	2430
Front wheel track [mm]	1530
Rear wheel track [mm]	1541
Forward overhang [mm]	841
Rear overhang [mm]	832
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	965
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	1326/1387
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

Mercedes-Benz SLK 55 AMG R171 facelift 2010 convertible

Mercedes-Benz SLK R171 facelift 2008 interior

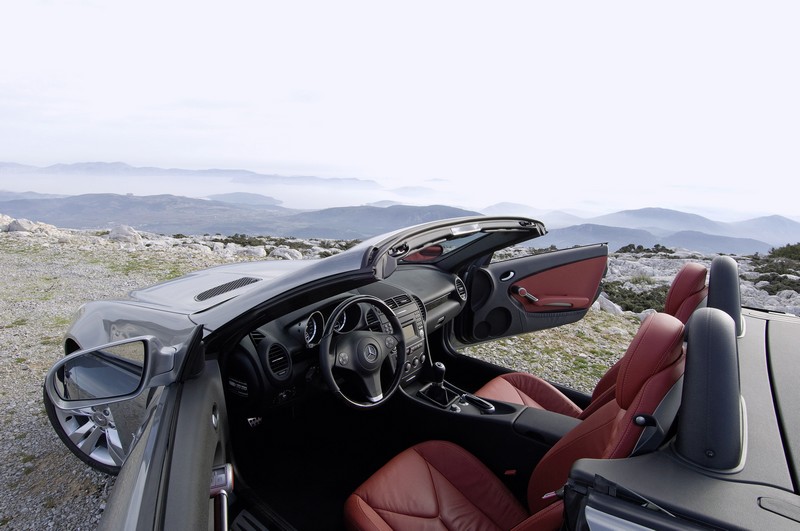

Mercedes-Benz SLK R171 facelift 2009 interior

Mercedes-Benz SLK 55 AMG R171 facelift 2008 interior

Mercedes-Benz SLK 55 AMG R171 facelift 2009 interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
