Mercedes-Benz S
Date of manufacture
6/2013 – 2017 (Sedan)
3/2014 – 2017 (Coupé)
12/2015 – 2017 (Convertible)
Platform
-
Manufacturing locations
Sindelfingen, Germany
Pune, India
Samut Prakan, Thailand
Designer
Robert Lešnik
Il-hun Yoon
Tags
F-segment
German cars
The Mercedes-Benz S is an elegant and powerful range of vehicles available in three different body styles - sedan, coupe and cabriolet. Manufactured since 2013 in countries such as Germany, India and Thailand, they also offer hybrid or plug-in hybrid versions. The engine range includes petrol and diesel power units with the highest power of 463 kW in the S 65 AMG model, which is also the fastest model with a top speed of 250 km/h. The best acceleration 0-100 km/h in 3.9 seconds is offered by the S 63 AMG 4MATIC model and the lowest consumption of 2.8 l/100 km by the S 500 e Long with CO2 emissions at 65 g/km. The luggage compartment has a capacity of 510 liters in the sedan, 400 liters in the coupe and 250-350 liters in the cabriolet.
Car body style

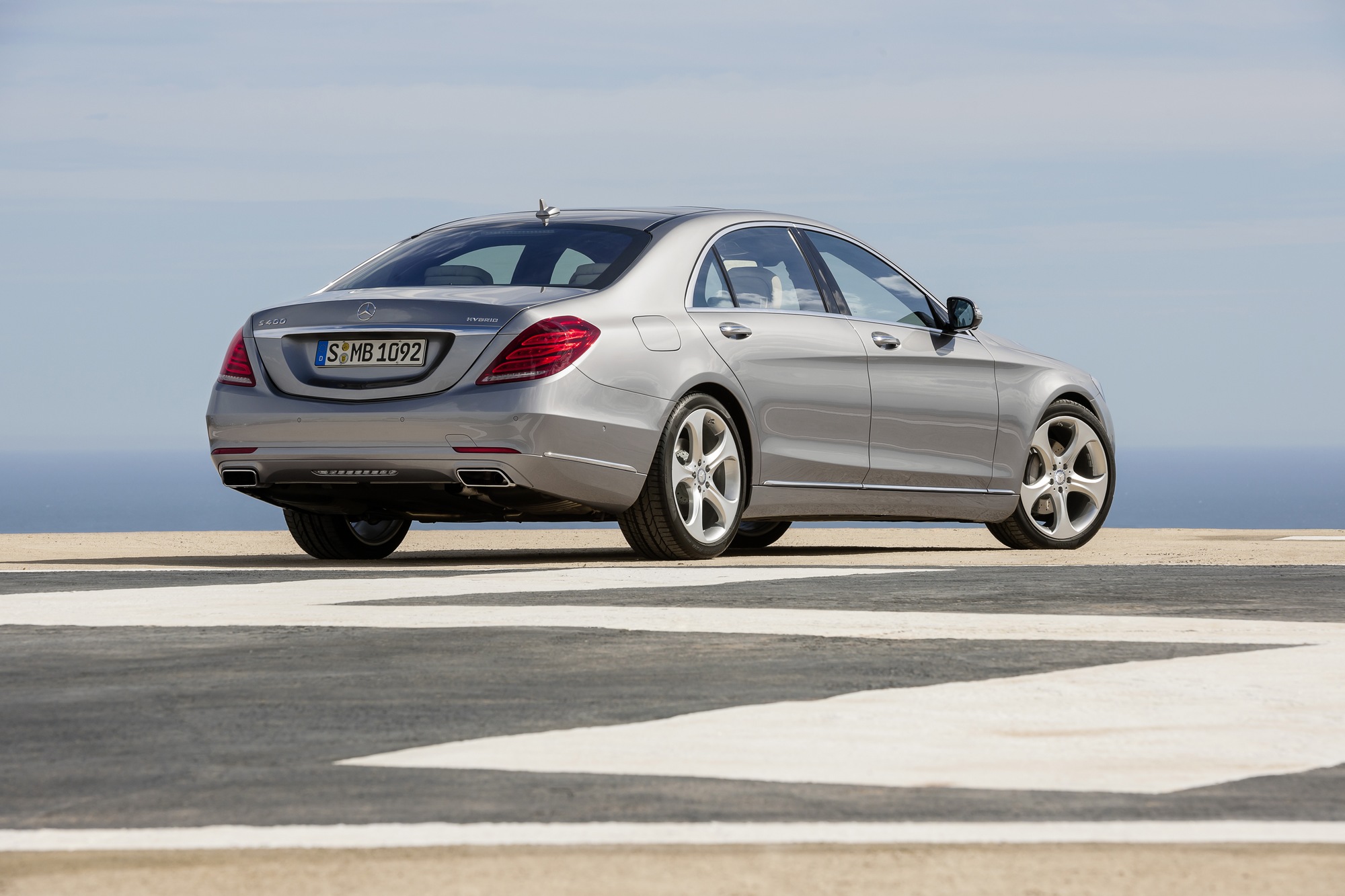

Sedan
Date of manufacture
6/2013 – 2017Internal designation
V222Engine size
Petrol
Diesel

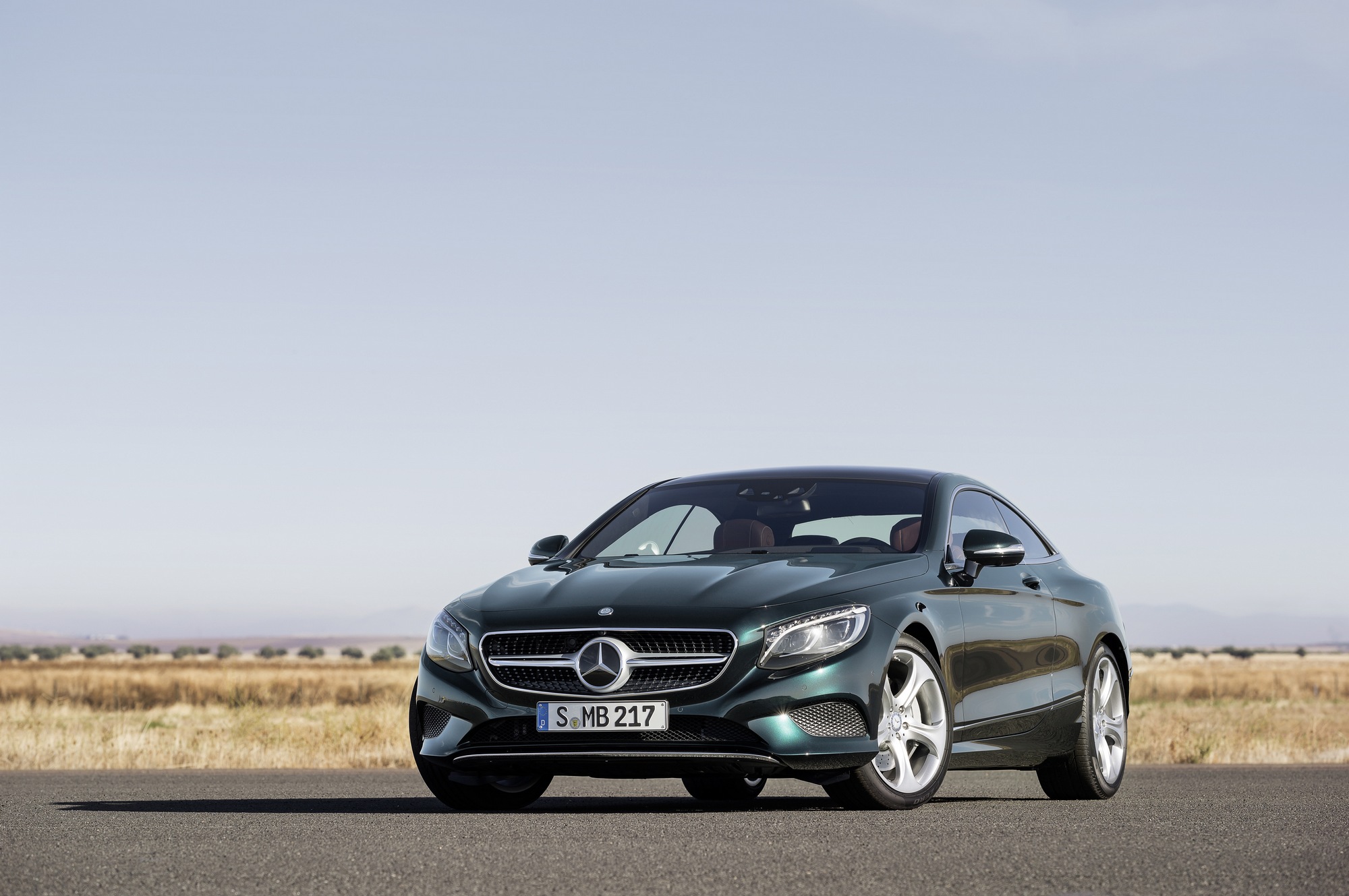

Coupé
Date of manufacture
3/2014 – 2017Internal designation

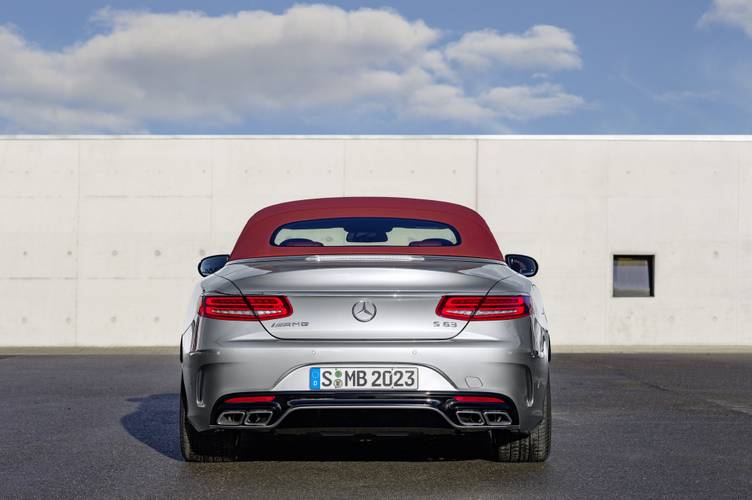

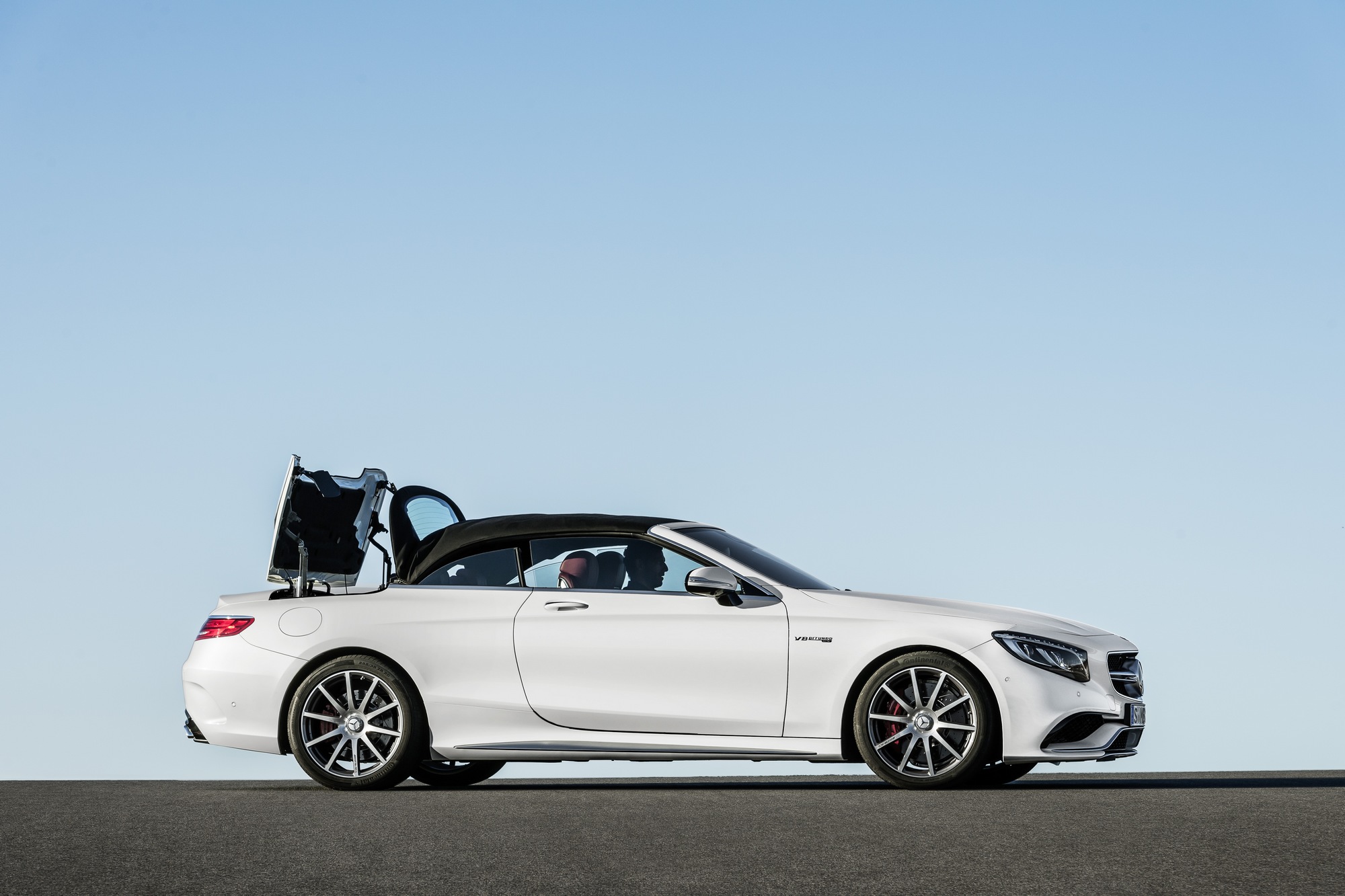

C217Convertible
Date of manufacture
12/2015 – 2017Internal designation
A217Engine size
Technical data
Sedan
| S 400h | S 400h Long | S 400 4MATIC | S 400 4MATIC Long | S 500 e Long | S 500 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 |
| Engine displacement [cm³] | 3498 | 3498 | 2996 | 2996 | 2996 | 4663 |
| Maximum output / speed [kW/min-1] | 225/6500 combustion 20/1800 el. | 225/6500 combustion 20/1800 el. | 245/5250-6000 | 245/5250-6000 | 245/5250-6000 combustion 85/3500 el. 325/5250-5500 total | 335/5250-5500 |
| Maximum torque [Nm/min-1] | 370/3500-5250 combustion 250 el. | 370/3500-5250 combustion 250 el. | 480/1600-4000 | 480/1600-4000 | 480/1600-4000 combustion 340/0-2000 el. 650/1000-4750 total | 700/1800-4000 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,6 x 86,0 | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 | 92,6 x 86,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.8 | 6.8 | 6.1 | 6.1 | 5.2 | 4.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3-7.5 | 6.3-7.5 | 11.4-11.9 | 11.4-11.9 | - | 12.1-12.8 |
| Out of town [l] | 5.8-6.6 | 5.8-6.6 | 6.7-7.2 | 6.7-7.2 | - | 6.4-7.1 |
| Combined [l] | 6.0-7.0 | 6.0-7.0 | 8.4-8.9 | 8.4-8.9 | 2.8 [13.5 kWh] | 8.6-9.1 |
| CO2 emissions [g/km] | 139-161 | 139-161 | 196-208 | 196-208 | 65 | 199-213 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - kWh | Lithium-Ionen-Akkumulator, - kWh | - | - | Lithium-Ionen-Akkumulator, 8.7 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 33 | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1925 | 1945 | 1995 | 2015 | 2215 | 1995 |
| Overall weight [kg] | 2595 | 2630 | 2640 | 2670 | 2825 | 2695 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 750/2100 | 750/2100 | - | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 510 | 510 | 530 | 530 | 395 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4-5 | 5 | 4-5 | 4-5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.27 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/55 R17 | 245/55 R17 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 |
| Tyre dimensions rear | 245/55 R17 | 245/55 R17 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 |
| Wheel size front | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 |
| Wheel size rear | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.90/- | 12.30/- | 11.90/- | 12.30/- | 12.30/- | 11.90/- |
| Overall length [mm] | 5116 | 5246 | 5116 | 5246 | 5246 | 5116 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1496 | 1494 | 1496 | 1494 | 1494 | 1496 |
| Wheelbase [mm] | 3035 | 3165 | 3035 | 3165 | 3165 | 3035 |
| Front wheel track [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Rear wheel track [mm] | 1637 | 1637 | 1637 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1193 | 1193 | 1193 | 1193 | 1193 | 1193 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 500 Long | S 500 4MATIC | S 500 4MATIC Long | S 500 | S 500 Long | Mercedes-Maybach S 500 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 4663 | 4663 | 4663 | 4663 | 4663 | 4663 |
| Maximum output / speed [kW/min-1] | 335/5250-5500 | 335/5250-5500 | 335/5250-5500 | 335/5250-5500 | 335/5250-5500 | 335/5250-5500 |
| Maximum torque [Nm/min-1] | 700/1800-4000 | 700/1800-4000 | 700/1800-4000 | 700/1800-4000 | 700/1800-4000 | 700/1800-4000 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 5.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.1-12.8 | 12.8-13.3 | 12.8-13.3 | 11.4-11.8 | 11.4-11.8 | 11.9 |
| Out of town [l] | 6.4-7.1 | 6.9-7.5 | 6.9-7.5 | 6.4-7.1 | 6.4-7.1 | 7.0 |
| Combined [l] | 8.6-9.1 | 9.1-9.6 | 9.1-9.6 | 8.2-8.9 | 8.2-8.9 | 8.9 |
| CO2 emissions [g/km] | 199-213 | 211-225 | 211-225 | 192-206 | 192-206 | 207 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2015 | 2050 | 2070 | 1995 | 2015 | 2220 |
| Overall weight [kg] | 2730 | 2715 | 2750 | 2695 | 2730 | 2795 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | - |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 500 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 5 | 4-5 | 5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 |
| Tyre dimensions rear | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 |
| Wheel size front | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 |
| Wheel size rear | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.30/- | 11.90/- | 12.30/- | 11.90/- | 12.30/- | 12.90/- |
| Overall length [mm] | 5246 | 5116 | 5246 | 5116 | 5246 | 5453 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1494 | 1496 | 1494 | 1496 | 1494 | 1498 |
| Wheelbase [mm] | 3165 | 3035 | 3165 | 3035 | 3165 | 3365 |
| Front wheel track [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1634 |
| Rear wheel track [mm] | 1637 | 1637 | 1637 | 1637 | 1637 | 1632 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1193 | 1193 | 1193 | 1193 | 1193 | 1200 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1075 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 963 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 500 4MATIC | S 500 4MATIC Long | Mercedes-Maybach S 500 4MATIC | S 600 Long | Mercedes-Maybach S 600 | S 63 AMG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 12/36 | 12/36 | 8/32 |
| Engine displacement [cm³] | 4663 | 4663 | 4663 | 5980 | 5980 | 5461 |
| Maximum output / speed [kW/min-1] | 335/5250-5500 | 335/5250-5500 | 335/5250-5500 | 390/4900-5300 | 390/4900-5300 | 430/5500 |
| Maximum torque [Nm/min-1] | 700/1800-4000 | 700/1800-4000 | 700/1800-4000 | 830/4000 | 830/4000 | 900/2250-3750 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 82,6 x 93,0 | 82,6 x 93,0 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 9,0:1 | 9,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 4.8 | 4.8 | 5.0 | 4.6 | 5.0 | 4.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8-12.3 | 11.8-12.3 | 12.4 | 16.7 | 16.9 | 13.8 |
| Out of town [l] | 6.8-7.6 | 6.8-7.6 | 7.5 | 8.6 | 8.7 | 7.9 |
| Combined [l] | 8.7-9.3 | 8.7-9.3 | 9.4 | 11.5 | 11.7 | 10.1 |
| CO2 emissions [g/km] | 202-216 | 202-216 | 219 | 268 | 274 | 237 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2050 | 2070 | 2275 | 2185 | 2335 | 2045 |
| Overall weight [kg] | 2715 | 2750 | 2795 | 2740 | 2815 | 2700 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | - | 100/- | - | 100/- |
| Boot volume [l] | 530 | 530 | 500 | 500 | 500 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4-5 | 4-5 | 4-5 | 4-5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.28 | 0.28 | 0.28 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/45 R19 | 245/45 R19 | 255/45 ZR19 |
| Tyre dimensions rear | 245/50 R18 | 245/50 R18 | 245/50 R18 | 275/40 R19 | 275/40 R19 | 285/40 ZR19 |
| Wheel size front | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.5J x 19 ET39 | 8.5J x 19 ET39 | 8.5J x 19 ET39 |
| Wheel size rear | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 9.5J x 19 ET39 | 9.5J x 19 ET39 | 9.5J x 19 ET39 |
| Brake dimensions front | - | - | - | - | - | 390 x 36 |
| Brake dimensions rear | - | - | - | - | - | 360 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.90/- | 12.30/- | 12.90/- | 12.30/- | 12.90/- | 11.94/- |
| Overall length [mm] | 5116 | 5246 | 5453 | 5246 | 5453 | 5157 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1915/2130 |
| Overall height [mm] | 1496 | 1494 | 1498 | 1494 | 1498 | 1501 |
| Wheelbase [mm] | 3035 | 3165 | 3365 | 3165 | 3365 | 3035 |
| Front wheel track [mm] | 1624 | 1624 | 1634 | 1624 | 1634 | 1630 |
| Rear wheel track [mm] | 1637 | 1637 | 1632 | 1637 | 1632 | 1644 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | - |
| Rear overhang [mm] | 1193 | 1193 | 1200 | 1193 | 1200 | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1075 | 1069 | 1075 | 1069 |
| Headroom rear [mm] | 995 | 995 | 963 | 995 | 963 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 63 AMG 4MATIC Long | S 65 AMG Long | S 300h | S 300h Long | S 350d | S 350d Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 12/36 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 5461 | 5980 | 2143 | 2143 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 430/5500 | 463/4800-5400 | 150/4200 combustion 20/1800 el. | 150/4200 combustion 20/1800 el. | 190/3600 | 190/3600 |
| Maximum torque [Nm/min-1] | 900/2250-3750 | 1000/2300-4300 | 500/1600-1800 combustion 250 el. | 500/1600-1800 combustion 250 el. | 620/1600-2400 | 620/1600-2400 |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 82,6 x 93,0 | 83,9 x 99,0 | 83,9 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,0:1 | 9,0:1 | 16,2:1 | 16,2:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 240 | 240 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 4.0 | 4.3 | 7.6 | 7.6 | 6.8 | 6.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.1 | 17.1 | 4.2-5.0 | 4.2-5.0 | 7.0-7.3 | 7.1-7.4 |
| Out of town [l] | 8.1 | 8.6 | 4.2-4.7 | 4.2-4.7 | 4.7-5.1 | 4.8-5.2 |
| Combined [l] | 10.3 | 11.9 | 4.3-4.8 | 4.3-4.8 | 5.5-5.9 | 5.6-6.0 |
| CO2 emissions [g/km] | 242 | 279 | 110-126 | 110-126 | 146-155 | 148-158 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 0.8 kWh | Lithium-Ionen-Akkumulator, 0.8 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2070 | 2250 | 2015 | 2035 | 1955 | 1975 |
| Overall weight [kg] | 2725 | 2750 | 2715 | 2750 | 2655 | 2690 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 510 | 470 | 490 | 490 | 510 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 4-5 | 5 | 4-5 | 5 | 4-5 |
| Fuel tank volume [l] | 70 | 80 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.23 | 0.23 | 0.24 | 0.24 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/45 ZR19 | 255/40 ZR20 | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 |
| Tyre dimensions rear | 285/40 ZR19 | 285/35 ZR20 | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 |
| Wheel size front | 8.5J x 19 ET39 | 8.5J x 20 ET39 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 |
| Wheel size rear | 9.5J x 19 ET39 | 9.5J x 20 ET39 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 |
| Brake dimensions front | 390 x 36 | - | - | - | - | - |
| Brake dimensions rear | 360 x 26 | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.34/- | 12.34/- | 11.90/- | 12.30/- | 11.90/- | 12.30/- |
| Overall length [mm] | 5287 | 5287 | 5116 | 5246 | 5116 | 5246 |
| Overall width without/including mirrors [mm] | 1915/2130 | 1915/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1499 | 1499 | 1496 | 1494 | 1496 | 1494 |
| Wheelbase [mm] | 3165 | 3165 | 3035 | 3165 | 3035 | 3165 |
| Front wheel track [mm] | 1630 | 1630 | 1624 | 1624 | 1624 | 1624 |
| Rear wheel track [mm] | 1644 | 1644 | 1637 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | - | - | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | - | - | 1193 | 1193 | 1193 | 1193 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 350d 4MATIC | S 350d 4MATIC Long | S 350d | S 350d Long | S 350d 4MATIC | S 350d 4MATIC Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2987 | 2987 | 2987 | 2987 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 185/3600 | 185/3600 | 190/3400 | 190/3400 | 190/3400 | 190/3400 |
| Maximum torque [Nm/min-1] | 620/1600-2400 | 620/1600-2400 | 620/1600 | 620/1600 | 620/1600 | 620/1600 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.8 | 6.8 | 6.5 | 6.5 | 6.5 | 6.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4-7.7 | 7.4-7.7 | 6.4-6.9 | 6.7-7.0 | 6.8-7.4 | 6.8-7.4 |
| Out of town [l] | 5.1-5.6 | 5.1-5.6 | 4.6-5.4 | 4.9-5.5 | 5.1-5.8 | 5.1-5.8 |
| Combined [l] | 5.9-6.4 | 5.9-6.4 | 5.3-5.9 | 5.4-6.0 | 5.7-6.4 | 5.7-6.4 |
| CO2 emissions [g/km] | 156-168 | 156-168 | 139-155 | 141-157 | 149-169 | 149-169 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2025 | 2045 | 1955 | 1975 | 2025 | 2045 |
| Overall weight [kg] | 2715 | 2750 | 2655 | 2690 | 2715 | 2750 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 510 | 510 | 510 | 510 | 510 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4-5 | 5 | 4-5 | 5 | 4-5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.24 | 0.24 | 0.26 | 0.26 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 |
| Tyre dimensions rear | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 | 245/55 R17 |
| Wheel size front | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 |
| Wheel size rear | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.90/- | 12.30/- | 11.90/- | 12.30/- | 11.90/- | 12.30/- |
| Overall length [mm] | 5116 | 5246 | 5116 | 5246 | 5116 | 5246 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1496 | 1494 | 1496 | 1494 | 1496 | 1494 |
| Wheelbase [mm] | 3035 | 3165 | 3035 | 3165 | 3035 | 3165 |
| Front wheel track [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Rear wheel track [mm] | 1637 | 1637 | 1637 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1193 | 1193 | 1193 | 1193 | 1193 | 1193 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 | 1499/1560 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Coupé
| S 400 4MATIC | S 500 | S 500 4MATIC | S 500 4MATIC | S 63 AMG | S 63 AMG 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2996 | 4663 | 4663 | 4663 | 5461 | 5461 |
| Maximum output / speed [kW/min-1] | 270/5500-6000 | 335/5250-5500 | 335/5250-5500 | 335/5250-5500 | 430/5500 | 430/5500 |
| Maximum torque [Nm/min-1] | 500/1800-4500 | 700/1800-4000 | 700/1800-4000 | 700/1800-4000 | 900/2250-3750 | 900/2250-3750 |
| Bore and stroke [mm x mm] | 88,0 x 82,1 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 98,0 x 90,5 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | 4x4 | 4x4 | Rear | 4x4 |
| Gearbox | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.6 | 4.6 | 4.6 | 4.6 | 4.2 | 3.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.4-1.7 | 11.5-11.7 | 12.5-13.1 | 12.2-12.4 | 14.0 | 14.2 |
| Out of town [l] | 6.6-6.2 | 6.4-7.0 | 7.1-7.5 | 7.1-7.6 | 7.8 | 8.0 |
| Combined [l] | 8.3-8.9 | 8.3-8.8 | 9.4-9.9 | 8.8-9.4 | 10.1 | 10.3 |
| CO2 emissions [g/km] | 193-208 | 193-204 | 219-232 | 206-219 | 237 | 242 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2035 | 2030 | 2090 | 2090 | 2070 | 2070 |
| Overall weight [kg] | 2540 | 2585 | 2595 | 2595 | 2535 | 2545 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.3 | 0.3 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 255/45 ZR19 | 255/45 ZR19 |
| Tyre dimensions rear | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 285/40 ZR19 | 285/40 ZR19 |
| Wheel size front | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.5J x 19 ET39 | 8.5J x 19 ET39 |
| Wheel size rear | 8.5J x 18 ET 35.3 | 8.5J x 18 ET 35.3 | 8.5J x 18 ET 35.3 | 8.5J x 18 ET 35.3 | 9.5J x 19 ET39 | 9.5J x 19 ET39 |
| Brake dimensions front | - | - | - | - | 390 x 36 | 390 x 36 |
| Brake dimensions rear | - | - | - | - | 360 x 26 | 360 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.60/- | 11.60/- | 11.60/- | 11.60/- | 11.60/- | 11.60/- |
| Overall length [mm] | 5027 | 5027 | 5027 | 5027 | 5044 | 5044 |
| Overall width without/including mirrors [mm] | 1899/2108 | 1899/2108 | 1899/2108 | 1899/2108 | 1913/2108 | 1913/2108 |
| Overall height [mm] | 1411 | 1411 | 1411 | 1411 | 1422 | 1422 |
| Wheelbase [mm] | 2945 | 2945 | 2945 | 2945 | 2945 | 2945 |
| Front wheel track [mm] | 1625 | 1625 | 1625 | 1625 | 1631 | 1644 |
| Rear wheel track [mm] | 1649 | 1649 | 1649 | 1649 | 1645 | 1645 |
| Forward overhang [mm] | 954 | 954 | 954 | 954 | - | - |
| Rear overhang [mm] | 1128 | 1128 | 1128 | 1128 | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 933 | 933 | 933 | 933 | 933 | 933 |
| Front elbow/shoulder width [mm] | 1449/1540 | 1449/1540 | 1449/1540 | 1449/1540 | 1449/1540 | 1449/1540 |
| Rear elbow/shoulder width [mm] | 1305/1374 | 1305/1374 | 1305/1374 | 1305/1374 | 1305/1374 | 1305/1374 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 65 AMG | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Ignition supercharged | |||||
| Number of cylinders/valves | 12/36 | |||||
| Engine displacement [cm³] | 5980 | |||||
| Maximum output / speed [kW/min-1] | 463/4800-5400 | |||||
| Maximum torque [Nm/min-1] | 1000/2300-4300 | |||||
| Bore and stroke [mm x mm] | 82,6 x 93,0 | |||||
| Compression ratio | 9,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 4.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 17.1 | |||||
| Out of town [l] | 8.6 | |||||
| Combined [l] | 11.9 | |||||
| CO2 emissions [g/km] | 279 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 2185 | |||||
| Overall weight [kg] | 2585 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 400 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 2 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 80 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.28 | |||||
| Front suspension | four-link | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 255/40 ZR20 | |||||
| Tyre dimensions rear | 285/35 ZR20 | |||||
| Wheel size front | 8.5J x 20 ET39 | |||||
| Wheel size rear | 9.5J x 20 ET39 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.60/- | |||||
| Overall length [mm] | 5044 | |||||
| Overall width without/including mirrors [mm] | 1913/2108 | |||||
| Overall height [mm] | 1422 | |||||
| Wheelbase [mm] | 2945 | |||||
| Front wheel track [mm] | 1631 | |||||
| Rear wheel track [mm] | 1645 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1015 | |||||
| Headroom rear [mm] | 933 | |||||
| Front elbow/shoulder width [mm] | 1449/1540 | |||||
| Rear elbow/shoulder width [mm] | 1305/1374 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Convertible
| S 500 | S 63 AMG 4MATIC | S 65 AMG | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | |||
| Number of cylinders/valves | 8/32 | 8/32 | 12/36 | |||
| Engine displacement [cm³] | 4663 | 5461 | 5980 | |||
| Maximum output / speed [kW/min-1] | 335/5250-5500 | 430/5500 | 463/4800-5400 | |||
| Maximum torque [Nm/min-1] | 700/1800-4000 | 900/2250-3750 | 1000/2300-4300 | |||
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 98,0 x 90,5 | 82,6 x 93,0 | |||
| Compression ratio | 10,5:1 | 10,0:1 | 9,0:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | 4x4 | Rear | |||
| Gearbox | 9 gear automatic | 7 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 4.6 | 3.9 | 4.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 11.8-12.2 | 14.3 | 17.1 | |||
| Out of town [l] | 6.8-7.5 | 8.2 | 8.9 | |||
| Combined [l] | 8.5-9.1 | 10.4 | 12.0 | |||
| CO2 emissions [g/km] | 199-212 | 244 | 272 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 2115 | 2185 | 2255 | |||
| Overall weight [kg] | 2590 | 2635 | 2625 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 250-350 | 250-350 | 250-350 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 80 | 80 | 80 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.29 | 0.32 | 0.32 | |||
| Front suspension | four-link | four-link | four-link | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 245/50 R18 | 255/45 ZR19 | 255/40 ZR20 | |||
| Tyre dimensions rear | 245/50 R18 | 285/40 ZR19 | 285/35 ZR20 | |||
| Wheel size front | 8.0J x 18 ET41 | 8.5J x 19 ET39 | 8.5J x 20 ET39 | |||
| Wheel size rear | 8.5J x 18 ET 35.3 | 9.5J x 19 ET39 | 9.5J x 20 ET39 | |||
| Brake dimensions front | - | 390 x 36 | - | |||
| Brake dimensions rear | - | 360 x 26 | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.60/- | 11.60/- | 11.60/- | |||
| Overall length [mm] | 5027 | 5044 | 5044 | |||
| Overall width without/including mirrors [mm] | 1899/2108 | 1913/2108 | 1910/2108 | |||
| Overall height [mm] | 1417 | 1428 | 1428 | |||
| Wheelbase [mm] | 2945 | 2945 | 2945 | |||
| Front wheel track [mm] | 1625 | 1644 | 1631 | |||
| Rear wheel track [mm] | 1649 | 1645 | 1645 | |||
| Forward overhang [mm] | 954 | - | - | |||
| Rear overhang [mm] | 1128 | - | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 958 | 958 | 958 | |||
| Headroom rear [mm] | 955 | 955 | 955 | |||
| Front elbow/shoulder width [mm] | 1449/1540 | 1449/1540 | 1449/1540 | |||
| Rear elbow/shoulder width [mm] | 1258/1349 | 1258/1349 | 1258/1349 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
