Mercedes-Benz S
Date of manufacture
8/2005 – 2009 (Sedan)
Platform
-
Manufacturing locations
Sindelfingen, Germany
Toluca, Mexico
Designer
Gorden Wagener
Tags
F-segment
German cars

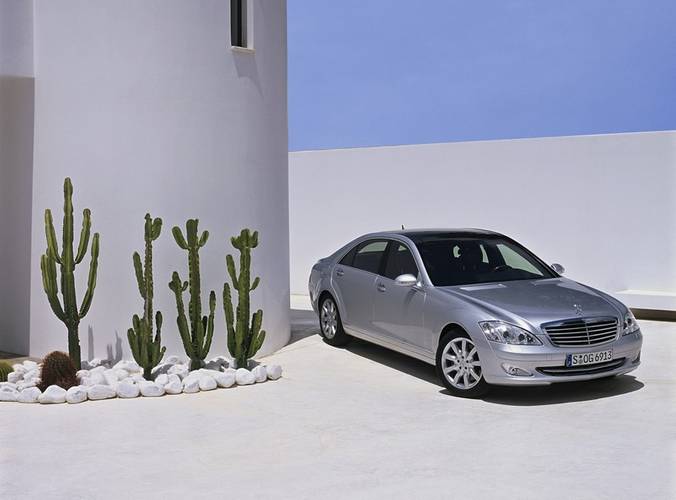

The Mercedes-Benz S is a sedan that has been produced since 2005 in both Germany and Mexico. The engine range includes petrol and diesel engines with the highest power output of 450 kW in the S 65 AMG Long. It also has the best acceleration from 0-100 km/h in 4.4 seconds and a top speed of 250 km/h. The most economical version is the S 320 CDI with fuel consumption of 8.3 l/100 km and emissions of 220 g/km. The boot has a capacity of 560 l.
Car body style
Sedan
Date of manufacture
8/2005 – 2009Internal designation
W221Technical data
Sedan
| S 350 | S 350 4MATIC | S 350 Long | S 350 Long 4MATIC | S 450 | S 450 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 3498 | 3498 | 3498 | 3498 | 4663 | 4663 |
| Maximum output / speed [kW/min-1] | 200/6000 | 200/6000 | 200/6000 | 200/6000 | 250/6000 | 250/6000 |
| Maximum torque [Nm/min-1] | 350/2400-5000 | 350/2400-5000 | 350/2400-5000 | 350/2400-5000 | 460/2700-5000 | 460/2700-5000 |
| Bore and stroke [mm x mm] | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 |
| Compression ratio | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.3 | 7.3 | 7.3 | 5.9 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.5-14.7 | 15.0-15.2 | 14.5-14.7 | 15.1-15.3 | 16.5-16.7 | 16.9-17.1 |
| Out of town [l] | 7.7-7.9 | 8.2-8.4 | 7.7-7.9 | 8.3-8.5 | 8.1-8.3 | 8.5-8.7 |
| Combined [l] | 10.1-10.3 | 10.6-10.8 | 10.1-10.3 | 10.7-10.9 | 11.2-11.4 | 11.6-11.8 |
| CO2 emissions [g/km] | 242-247 | 245-259 | 242-247 | 256-261 | 267-272 | 277-282 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1880 | 1950 | 1925 | 1995 | 1940 | 2010 |
| Overall weight [kg] | 2475 | 2550 | 2505 | 2580 | 2545 | 2620 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 4-5 | 4-5 | 5 | 5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | 90 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.27 | 0.28 | 0.27 | 0.28 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 |
| Wheel size rear | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8 | 11.8 | 12.2 | 12.2 | 11.8 | 12.2 |
| Overall length [mm] | 5079 | 5079 | 5209 | 5209 | 5079 | 5079 |
| Overall width without/including mirrors [mm] | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 3035 | 3035 | 3165 | 3165 | 3035 | 3035 |
| Front wheel track [mm] | 1604 | 1604 | 1604 | 1604 | 1604 | 1604 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1004 | 1004 | 961 | 961 | 1004 | 1004 |
| Headroom rear [mm] | 983 | 983 | 977 | 977 | 983 | 983 |
| Front elbow/shoulder width [mm] | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 |
| Rear elbow/shoulder width [mm] | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 450 Long | S 450 Long 4MATIC | S 500 | S 500 4MATIC | S 500 Long | S 500 Long 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 4663 | 4663 | 5461 | 5461 | 5461 | 5461 |
| Maximum output / speed [kW/min-1] | 250/6000 | 250/6000 | 285/6000 | 285/6000 | 285/6000 | 285/6000 |
| Maximum torque [Nm/min-1] | 460/2700-5000 | 460/2700-5000 | 530/2800-4800 | 530/2800-4800 | 530/2800-4800 | 530/2800-4800 |
| Bore and stroke [mm x mm] | 92,9 x 86,0 | 92,9 x 86,0 | 98,0 x 90,5 | 98,0 x 90,5 | 98,0 x 90,5 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.9 | 5.9 | 5.4 | 5.4 | 5.4 | 5.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 16.6-16.8 | 17.0-17.2 | 17.4-17.6 | 18.0-18.2 | 17.5-17.7 | 18.1-18.3 |
| Out of town [l] | 8.2-8.4 | 8.6-8.8 | 8.5-8.7 | 8.8-9.0 | 8.6-8.8 | 8.9-9.1 |
| Combined [l] | 11.3-11.5 | 11.7-11.9 | 11.7-11.9 | 12.1-12.3 | 11.8-12.0 | 12.2-12.4 |
| CO2 emissions [g/km] | 269-274 | 279-284 | 279-283 | 289-294 | 281-286 | 291-296 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1985 | 2055 | 1940 | 2010 | 1985 | 2055 |
| Overall weight [kg] | 2565 | 2640 | 2545 | 2620 | 2565 | 2640 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 4-5 | 5 | 5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | 90 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.27 | 0.28 | 0.27 | 0.28 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 |
| Wheel size rear | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 11.8 | 11.8 | 12.2 | 12.2 |
| Overall length [mm] | 5209 | 5209 | 5079 | 5079 | 5209 | 5209 |
| Overall width without/including mirrors [mm] | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 3165 | 3165 | 3035 | 3035 | 3165 | 3165 |
| Front wheel track [mm] | 1604 | 1604 | 1604 | 1604 | 1604 | 1604 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 961 | 961 | 1004 | 1004 | 961 | 961 |
| Headroom rear [mm] | 977 | 977 | 983 | 983 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 |
| Rear elbow/shoulder width [mm] | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 600 Long | S 63 AMG | S 63 AMG Long | S 65 AMG Long | S 320 CDI | S 320 CDI 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 12/36 | 8/32 | 8/32 | 12/36 | 6/24 | 6/24 |
| Engine displacement [cm³] | 5513 | 6208 | 6208 | 5980 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 380/5000 | 368/6800 | 368/6800 | 450/4750-5100 | 173/3600 | 173/3600 |
| Maximum torque [Nm/min-1] | 830/1800-3500 | 630/5200 | 630/5200 | 1000/2000-4000 | 540/1600-2400 | 540/1600-2400 |
| Bore and stroke [mm x mm] | 82,0 x 87,0 | 102,2 x 94,6 | 102,2 x 94,6 | 82,6 x 93,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 9,0:1 | 11,3:1 | 11,3:1 | 9,0:1 | 17,7:1 | 17,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 5 gear automatic | 7 gear automatic | 7 gear automatic | 5 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 245 |
| Acceleration 0–100 km/h [s] | 4.6 | 4.6 | 4.6 | 4.4 | 7.8 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 21.7 | 23.2 | 23.2 | 23.1 | 11.6-11.8 | 12.0-12.2 |
| Out of town [l] | 10.0 | 10.2 | 10.2 | 10.0 | 6.4-6.6 | 7.1-7.3 |
| Combined [l] | 14.3 | 14.9 | 14.9 | 14.8 | 8.3-8.5 | 8.7-8.9 |
| CO2 emissions [g/km] | 340 | 355 | 355 | 355 | 220-225 | 227-231 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2210 | 2070 | 2115 | 2270 | 1955 | 2025 |
| Overall weight [kg] | 2690 | 2595 | 2615 | 2705 | 2550 | 2625 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | - | - | - | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 5 | 4-5 | 4-5 | 5 | 5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | 90 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.3 | 0.3 | 0.3 | 0.27 | 0.28 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/45 R18 | 255/45 R19 | 255/45 R19 | 255/45 R19 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 275/45 R18 | 275/45 R19 | 275/45 R19 | 275/45 R19 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 8.5J x 18 ET 43 | 8.5J x 19 ET 43 | 8.5J x 19 ET 43 | 8.5J x 19 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 |
| Wheel size rear | 9.5J x 18 ET 43 | 9.5J x 19 ET 43 | 9.5J x 19 ET 43 | 9.5J x 19 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2 | 11.8 | 12.2 | 12.2 | 11.8 | 11.8 |
| Overall length [mm] | 5209 | 5079 | 5209 | 5209 | 5079 | 5079 |
| Overall width without/including mirrors [mm] | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 3165 | 3035 | 3165 | 3165 | 3035 | 3035 |
| Front wheel track [mm] | 1604 | 1604 | 1604 | 1604 | 1604 | 1604 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 961 | 1004 | 961 | 961 | 1004 | 1004 |
| Headroom rear [mm] | 977 | 983 | 977 | 977 | 983 | 983 |
| Front elbow/shoulder width [mm] | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 |
| Rear elbow/shoulder width [mm] | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 320 CDI Long | S 320 CDI Long 4MATIC | S 420 CDI | S 420 CDI Long | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | ||
| Engine displacement [cm³] | 2987 | 2987 | 3996 | 3996 | ||
| Maximum output / speed [kW/min-1] | 173/3600 | 173/3600 | 235/3600 | 235/3600 | ||
| Maximum torque [Nm/min-1] | 540/1600-2400 | 540/1600-2400 | 730/2200 | 730/2200 | ||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 86,0 x 86,0 | 86,0 x 86,0 | ||
| Compression ratio | 17,7:1 | 17,7:1 | 16,7:1 | 16,7:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | 4x4 | Rear | Rear | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 250 | 245 | 250 | 250 | ||
| Acceleration 0–100 km/h [s] | 7.8 | 7.8 | 6.6 | 6.6 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 11.7-11.9 | 12.0-12.2 | 13.0-13.2 | 13.0-13.2 | ||
| Out of town [l] | 6.5-6.7 | 7.1-7.3 | 7.2-7.4 | 7.2-7.4 | ||
| Combined [l] | 8.4-8.6 | 8.7-8.9 | 9.4-9.6 | 9.4-9.6 | ||
| CO2 emissions [g/km] | 223-228 | 227-231 | 247-252 | 247-252 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 2000 | 2070 | 2090 | 2140 | ||
| Overall weight [kg] | 2580 | 2655 | 2640 | 2660 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 560 | 560 | 560 | 560 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 4-5 | 4-5 | 5 | 4-5 | ||
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | ||
| Front suspension | four-link | four-link | four-link | four-link | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | ||
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | ||
| Wheel size front | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | ||
| Wheel size rear | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 12.2 | 12.2 | 11.8 | 12.2 | ||
| Overall length [mm] | 5209 | 5209 | 5079 | 5209 | ||
| Overall width without/including mirrors [mm] | 1872/2115 | 1872/2115 | 1872/2115 | 1872/2115 | ||
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | ||
| Wheelbase [mm] | 3165 | 3165 | 3035 | 3165 | ||
| Front wheel track [mm] | 1604 | 1604 | 1604 | 1604 | ||
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | ||
| Forward overhang [mm] | 871 | 871 | 871 | 871 | ||
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 961 | 961 | 1004 | 961 | ||
| Headroom rear [mm] | 977 | 977 | 983 | 977 | ||
| Front elbow/shoulder width [mm] | 1502/1544 | 1502/1544 | 1502/1544 | 1502/1544 | ||
| Rear elbow/shoulder width [mm] | 1490/1547 | 1490/1547 | 1490/1547 | 1490/1547 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

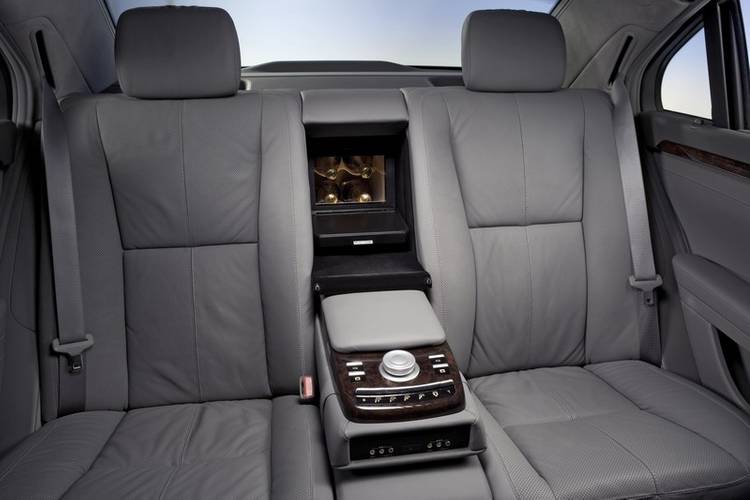

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
