Mercedes-Benz R
Date of manufacture
7/2005 – 2010 (MPV)
Platform
-
Manufacturing locations
Tuscaloosa, Alabama, USA
Designer
-
Tags
Large MPV
German cars
The Mercedes-Benz R has been manufactured since 2005 and can be purchased in an MPV version. Its country of origin is the USA. The engine range includes petrol and diesel engines, the most powerful being the R 500 4MATIC Long with 285 kW. The fastest model, the R 500 4MATIC, has a top speed of 250 km/h and the best acceleration from 0-100 km/h in 6.1 seconds. The most economical variant is the R 300 CDI BlueEFFICIENCY with a combined consumption of 8.2 l/100 km and CO2 emissions of 217 g/km. The luggage compartment offers a capacity of 550 l.
Car body style
MPV
Date of manufacture
7/2005 – 2010Internal designation
W251Engine size
Technical data
MPV
| R 280 / 300 | R 280 / 300 Long | R 350 | R 350 4MATIC | R 350 Long | R 350 4MATIC Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2996 | 2996 | 3498 | 3498 | 3498 | 3498 |
| Maximum output / speed [kW/min-1] | 170/6000 | 170/6000 | 200/6000 | 200/6000 | 200/6000 | 200/6000 |
| Maximum torque [Nm/min-1] | 300/2500-5000 | 300/2500-5000 | 350/2400-5000 | 350/2400-5000 | 350/2400-5000 | 350/2400-5000 |
| Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 |
| Compression ratio | 11,3:1 | 11,3:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 222 | 222 | 234 | 230 | 234 | 230 |
| Acceleration 0–100 km/h [s] | 9.6 | 9.7 | 8.1 | 8.3 | 8.2 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.9-15.5 | 14.9-15.5 | 15.4-15.9 | 15.5-16.1 | 15.4-15.9 | 15.6-16.1 |
| Out of town [l] | 8.6-9.1 | 8.6-9.1 | 8.6-9.0 | 9.0-9.5 | 8.6-9.0 | 9.1-9.5 |
| Combined [l] | 10.9-11.4 | 10.9-11.4 | 11.1-11.5 | 11.4-11.9 | 11.1-11.5 | 11.5-11.9 |
| CO2 emissions [g/km] | 260-267 | 260-267 | 265-270 | 271-279 | 265-270 | 274-279 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2130 | 2175 | 2130 | 2180 | 2175 | 2230 |
| Overall weight [kg] | 2790 | 2810 | 2790 | 2810 | 2840 | 2880 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 550 | 633 | 550 | 550 | 633 | 633 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2001 | -/2436 | -/2001 | -/2001 | -/2436 | -/2436 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1125 | 1293 | 1125 | 1125 | 1293 | 1293 |

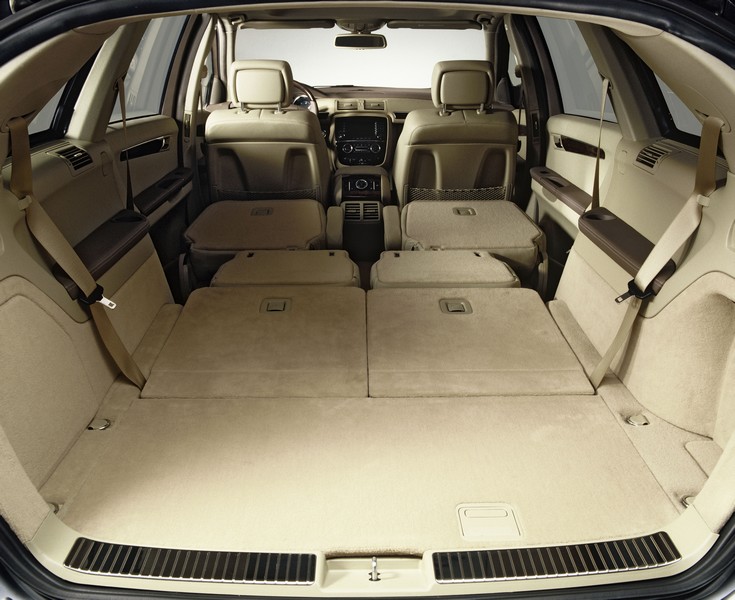

| Boot length with rear seats folded [mm] | 1982 | 2217 | 1982 | 1982 | 2217 | 2217 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/894 | -/896 | -/894 | -/894 | -/896 | -/896 |
| Loading edge height [mm] | 688 | 700 | 688 | 688 | 700 | 700 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 |
| Tyre dimensions rear | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 | 255/55 R 18 |
| Wheel size front | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 |
| Wheel size rear | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 12.4/- | 11.7/- | 11.7/- | 12.4/- | 12.4/- |
| Overall length [mm] | 4938 | 5173 | 4938 | 4938 | 5173 | 5173 |
| Overall width without/including mirrors [mm] | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 |
| Overall height [mm] | 1661 | 1663 | 1661 | 1661 | 1663 | 1663 |
| Wheelbase [mm] | 2980 | 3215 | 2980 | 2980 | 3215 | 3215 |
| Front wheel track [mm] | 1643 | 1643 | 1643 | 1643 | 1643 | 1643 |
| Rear wheel track [mm] | 1636 | 1636 | 1636 | 1636 | 1636 | 1636 |
| Forward overhang [mm] | 933 | 933 | 933 | 933 | 933 | 933 |
| Rear overhang [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 1014 | 1027 | 1014 | 1014 | 1027 | 1027 |
| Front elbow/shoulder width [mm] | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 |
| Rear elbow/shoulder width [mm] | 1512/1557 | 1514/1562 | 1512/1557 | 1512/1557 | 1514/1562 | 1514/1562 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | - | - | - | - | - |
| Third row elbow/shoulder width [mm] | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 |
| R 500 4MATIC | R 500 4MATIC Long | R 280 CDI | R 280 CDI Long | R 280 CDI 4MATIC Long | R 300 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 5461 | 5461 | 2987 | 2987 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 285/6000 | 285/6000 | 140/4000 | 140/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 530/2800-4800 | 530/2800-4800 | 440/1400-2800 | 440/1400-2800 | 440/1400-2800 | 440/1400-2800 |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 98,0 x 90,5 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,7:1 | 10,7:1 | 17,7:1 | 17,7:1 | 17,7:1 | 17,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 210 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 6.1 | 6.3 | 9.7 | 9.8 | 9.8 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 18.2-18.8 | 18.2-18.8 | 11.6-11.8 | 11.6-11.8 | 12.2-12.4 | 10.9-11.4 |
| Out of town [l] | 9.8-10.2 | 9.8-10.2 | 7.5-7.7 | 7.5-7.7 | 7.6-7.8 | 6.7-7.0 |
| Combined [l] | 12.9-13.4 | 12.9-13.4 | 9.0-9.2 | 9.0-9.2 | 9.3-9.5 | 8.2-8.6 |
| CO2 emissions [g/km] | 306-311 | 306-311 | 238-242 | 238-242 | 246-253 | 217-227 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2220 | 2265 | 2195 | 2245 | - | 2185 |
| Overall weight [kg] | 2880 | 2920 | 2840 | 2860 | - | 2840 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 550 | 633 | 550 | 633 | 633 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2001 | -/2436 | -/2001 | -/2436 | -/2436 | -/2001 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1125 | 1293 | 1125 | 1293 | 1293 | 1125 |
| Boot length with rear seats folded [mm] | 1982 | 2217 | 1982 | 2217 | 2217 | 1982 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/894 | -/896 | -/894 | -/896 | -/896 | -/894 |
| Loading edge height [mm] | 688 | 700 | 688 | 700 | 700 | 688 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 255/50 R 19 | 255/50 R 19 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 255/50 R 19 | 255/50 R 19 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 8.0J x 19 ET 67 | 8.0J x 19 ET 67 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 |
| Wheel size rear | 8.0J x 19 ET 67 | 8.0J x 19 ET 67 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 12.4/- | 11.7/- | 12.4/- | 12.4/- | 11.7/- |
| Overall length [mm] | 4938 | 5173 | 4938 | 5173 | 5173 | 4938 |
| Overall width without/including mirrors [mm] | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 |
| Overall height [mm] | 1661 | 1663 | 1661 | 1663 | 1663 | 1661 |
| Wheelbase [mm] | 2980 | 3215 | 2980 | 3215 | 3215 | 2980 |
| Front wheel track [mm] | 1643 | 1643 | 1643 | 1643 | 1643 | 1643 |
| Rear wheel track [mm] | 1636 | 1636 | 1636 | 1636 | 1636 | 1636 |
| Forward overhang [mm] | 933 | 933 | 933 | 933 | 933 | 933 |
| Rear overhang [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 1014 | 1027 | 1014 | 1027 | 1027 | 1014 |
| Front elbow/shoulder width [mm] | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 |
| Rear elbow/shoulder width [mm] | 1512/1557 | 1514/1562 | 1512/1557 | 1514/1562 | 1514/1562 | 1512/1557 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | - | - | - | - | - |
| Third row elbow/shoulder width [mm] | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 |
| R 300 CDI 4MATIC | R 300 CDI Long | R 350 BlueTEC 4MATIC Long | R 320 CDI / 350 CDI 4MATIC | R 320 CDI / 350 CDI 4MATIC Long | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2987 | 2987 | 2987 | 2987 | 2987 | |
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 155/3400 | 165/3800 | 165/3800 | |
| Maximum torque [Nm/min-1] | 440/1400-2800 | 440/1400-2800 | 540/1600-2400 | 510/1600-2800 | 510/1600-2800 | |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | |
| Compression ratio | 17,7:1 | 17,7:1 | 16,5:1 | 17,7:1 | 17,7:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | Rear | 4x4 | 4x4 | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 210 | 210 | 216 | 222 | 222 | |
| Acceleration 0–100 km/h [s] | 9.8 | 9.8 | 8.9 | 8.7 | 8.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 12.2-12.5 | 11.4 | 11.7 | 12.2-12.5 | 12.2-12.5 | |
| Out of town [l] | 7.6-7.8 | 7.0 | 7.0-7.3 | 7.6-7.8 | 7.6-7.8 | |
| Combined [l] | 9.3-9.5 | 8.6 | 8.7-8.9 | 9.3-9.5 | 9.3-9.5 | |
| CO2 emissions [g/km] | 246-253 | 227 | 229-234 | 246-253 | 246-253 | |
| Emission standard | EU4 | EU4 | EU6 | EU4 | EU4 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 2250 | 2245 | 2335 | 2250 | 2295 | |
| Overall weight [kg] | 2880 | 2880 | 2910 | 2880 | 2910 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 550 | 633 | 633 | 550 | 633 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2001 | -/2436 | -/2436 | -/2001 | -/2436 | |
| Boot volume, third row of seats [l] | - | - | - | - | - | |
| Boot volume, third row seats folded [l] | - | - | - | - | - | |
| Boot length [mm] | 1125 | 1293 | 1293 | 1125 | 1293 | |
| Boot length with rear seats folded [mm] | 1982 | 2217 | 1982 | 1982 | 2217 | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | -/894 | -/896 | -/896 | -/894 | -/896 | |
| Loading edge height [mm] | 688 | 700 | 700 | 688 | 700 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 770 | 770 | 770 | 770 | 770 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.32 | 0.32 | - | 0.32 | 0.32 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 255/55 R18 | 255/55 R18 | |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 255/55 R18 | 255/55 R18 | |
| Wheel size front | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | |
| Wheel size rear | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 7.5J x 17 ET 56 | 8.0J x 18 ET 67 | 8.0J x 18 ET 67 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.7/- | 12.4/- | 12.4/- | 11.7/- | 12.4/- | |
| Overall length [mm] | 4938 | 5173 | 5173 | 4938 | 5173 | |
| Overall width without/including mirrors [mm] | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 | 1922/2183 | |
| Overall height [mm] | 1661 | 1663 | 1663 | 1661 | 1663 | |
| Wheelbase [mm] | 2980 | 3215 | 3215 | 2980 | 3215 | |
| Front wheel track [mm] | 1643 | 1643 | 1643 | 1643 | 1643 | |
| Rear wheel track [mm] | 1636 | 1636 | 1636 | 1636 | 1636 | |
| Forward overhang [mm] | 933 | 933 | 933 | 933 | 933 | |
| Rear overhang [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | |
| Headroom rear [mm] | 1014 | 1027 | 1027 | 1014 | 1027 | |
| Front elbow/shoulder width [mm] | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 | 1530/1550 | |
| Rear elbow/shoulder width [mm] | 1512/1557 | 1514/1562 | 1514/1562 | 1512/1557 | 1514/1562 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - | |
| Third row of seats, headroom [mm] | - | - | - | - | - | |
| Third row elbow/shoulder width [mm] | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 | 1340/1342 |

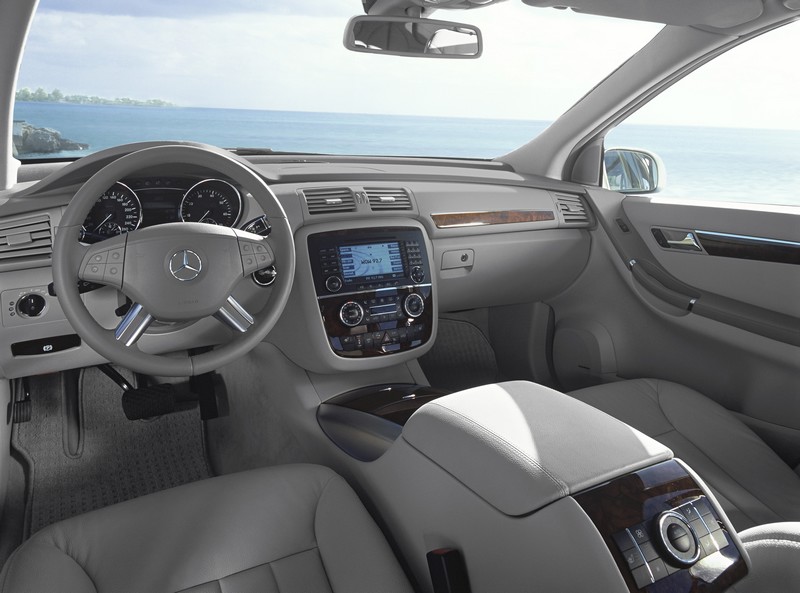

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
