Mercedes-Benz GLE
Date of manufacture
2019 – to this day (Large SUV)
2019 – to this day (Coupé)
Platform
MHA
Manufacturing locations
Tuscaloosa, Alabama, USA
Pune, India
Samut Prakan, Thailand
Designer
-
Tags
Large SUV
German cars
The Mercedes-Benz GLE is a large SUV and coupe that has been produced since 2019. The vehicle is manufactured in the United States, India, and Thailand on the MHA platform. Its engine range includes petrol, diesel, and hybrid powertrains. The highest power output of 2245 kW is achieved by the GLE 350e 4MATIC, the highest speed of 280 km/h is achieved by the GLE 63 S AMG 4MATIC+, and the best acceleration from 0-100 km/h in 3.8 seconds is achieved by the GLE 63 S AMG 4MATIC+. The most fuel-efficient variant is the GLE 300 de 4MATIC with a combined fuel consumption of 1.2 l/100 km and CO2 emissions of 32 g/km. The luggage compartment size for the SUV version is 630 l and for the coupe version 655 l. In EURONCAP safety tests, the vehicle received a rating of 5 out of 5 according to the 2019 methodology.

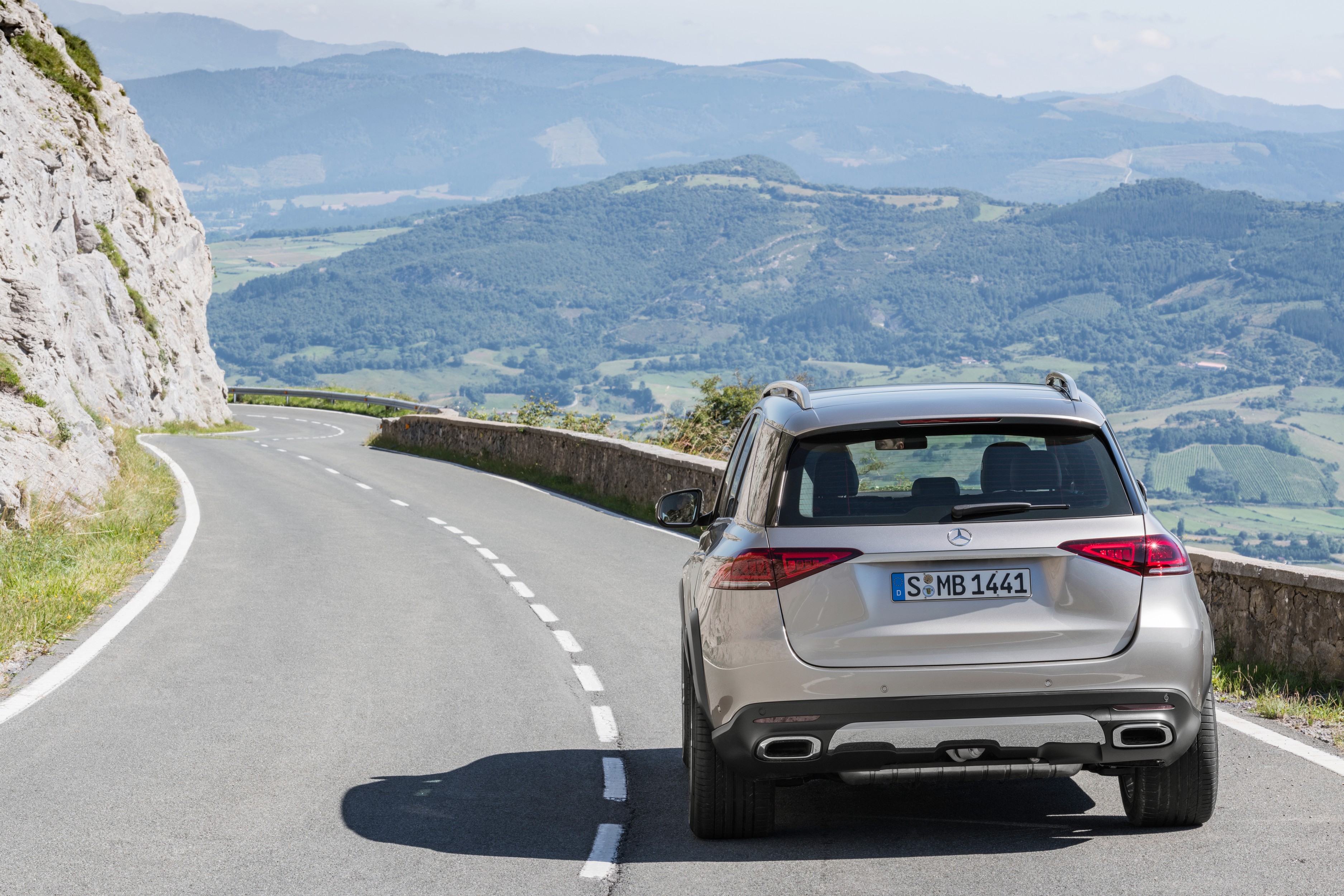

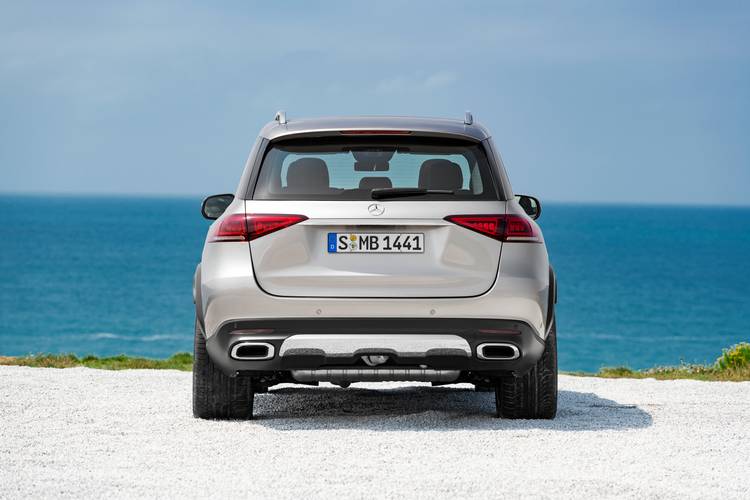

Car body style
Large SUV
Date of manufacture
2019 – to this dayInternal designation
V167Engine size
PetrolPetrol + ElectricDiesel

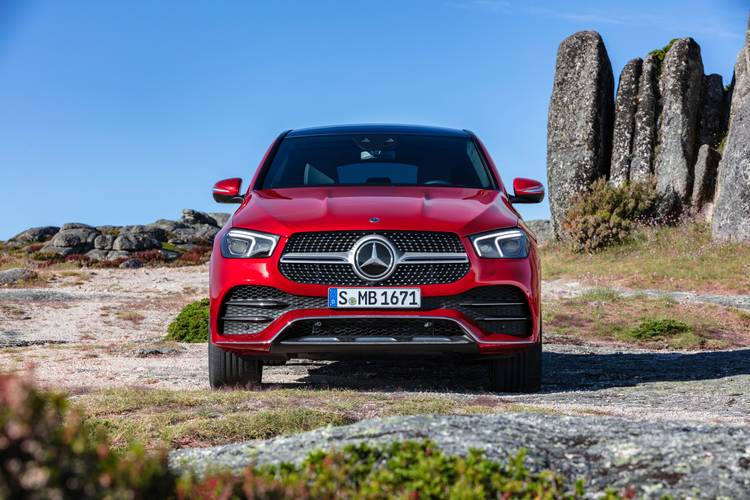

Coupé
Date of manufacture
2019 – to this dayInternal designation
C167Engine size
PetrolPetrol + ElectricDiesel
Diesel + Electric
Technical data
Large SUV
| GLE 450 4MATIC | GLE 580 4MATIC | GLE 53 AMG 4MATIC+ | GLE 63 AMG 4MATIC+ | GLE 63 S AMG 4MATIC+ | GLE 350e 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2021 | - | from 2020 to 2021 | from 2020 to 2021 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 8/32 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 2999 | 3982 | 2999 | 3982 | 3982 | 1991 |
| Maximum output / speed [kW/min-1] | 270/5500-6100 16 el. | 360/5500 16 el. | 320/6100 16 el. | 420/5750-6500 16 el. | 450/5750-6500 16 el. | 155/5500 combustion 100 el. 2245 total |
| Maximum torque [Nm/min-1] | 500/1600-4500 250 el. | 700/2000-4000 250 el. | 520/1800-5800 250 el. | 750/2250-5000 250 el. | 850/2500-4500 250 el. | 350/1200-4000 combustion 440/0-2000 el. 700 total |
| Bore and stroke [mm x mm] | 83.0 x 92.4 | 83,0 x 92,0 | 83.0 x 92.4 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 8.6:1 | 8.6:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 280 | 210 |
| Acceleration 0–100 km/h [s] | 5,7 | 4,9 | 5,3 | 4,0 | 3,8 | 6,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,9-11,4 | 14,9-13,9 | 12,5 | 15,3 | 15,3 | - |
| Out of town [l] | 7,5-6,8 | 8,6-8,2 | 8,0 | 9,2 | 9,3 | - |
| Combined [l] | 9,1-8,5 | 10,9-10,3 | 9,6 | 11,4 | 11,5 | 1,6-1,5 [24.1-22.4 kWh] |
| CO2 emissions [g/km] | 208-195 | 250-236 | 220 | 261 | 262 | 37-34 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | 48 | 48 | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 31.2 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 101-105 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2220 | 2345 | 2305 | 2415 | 2420 | 2605 |
| Overall weight [kg] | 3000 | 3090 | 3050 | 3120 | 3120 | 3210 |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 | 750/2700 | 750/3500 | 750/3500 | 750/3500 | 750/2700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 108 | 108 | 80 | - | - | 108 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | - | - | 100/- |
| Boot volume [l] | 630 | 630 | 630 | 630 | 630 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2055 | -/2055 | -/2055 | -/2055 | -/2055 | -/1915 |
| Boot length [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | 1051 |
| Boot length with rear seats folded [mm] | 1969 | 1969 | 1969 | 1969 | 1969 | 1969 |
| Boot width between wheels/max [mm] | 1106/- | 1106/- | 1106/- | 1106/- | 1106/- | 1106/- |
| Boot height to headliner/ceiling [mm] | -/888 | -/888 | -/888 | -/888 | -/888 | -/888 |
| Loading edge height [mm] | 783 | 783 | 769 | 769 | 769 | 783 |
| Height of the open boot door [mm] | 2217 | 2217 | 2203 | 2203 | 2203 | 2217 |
| Boot opening height [mm] | 804 | 804 | 804 | 804 | 804 | 804 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5/7 | 5/7 | 5/7 | 5 | 5 | 5 |
| Fuel tank volume [l] | 85 | 85 | 85 | 85 | 85 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | - | 0.348 | - | - | 0.35 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/50 R19 W | 275/50 R20 | 275/50 ZR20 113Y XL | 275/50 R20 | 275/45 R21 | 275/55 R19 |
| Tyre dimensions rear | 255/50 R19 W | 275/50 R20 | 275/50 ZR20 113Y XL | 275/50 R20 | 315/40 R21 | 275/55 R19 |
| Wheel size front | 8,0 x 19 ET61 | 8,5 x 20 ET55 | 9,0J x 20 ET57 | 9.5J x 20 ET57 | 10,0J x 21 ET51 | 8,5J x 19 ET55 |
| Wheel size rear | 8,0 x 19 ET61 | 8,5 x 20 ET42 | 9,0J x 20 ET44 | 9.5J x 20 ET45 | 11,0J x 21 ET47 | 8,5J x 19 ET42 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.0/- | 12.0/- | 12.4/- | 12.0/- | 12.0/- | 12.0/- |
| Overall length [mm] | 4924 | 4924 | 4937 | 4954 | 4954 | 4924 |
| Overall width without/including mirrors [mm] | 1947/2157 | 1947/2157 | 2015/2157 | 2018/2157 | 2018/2157 | 1947/2157 |
| Overall height [mm] | 1795 | 1795 | 1782 | 1782 | 1782 | 1795 |
| Wheelbase [mm] | 2995 | 2995 | 2995 | 2995 | 2995 | 2995 |
| Front wheel track [mm] | 1680 | 1680 | 1681 | 1681 | 1681 | 1680 |
| Rear wheel track [mm] | 1727 | 1727 | 1726 | 1724 | 1724 | 1727 |
| Forward overhang [mm] | 925 | 925 | 928 | 945 | 945 | 925 |
| Rear overhang [mm] | 1004 | 1004 | 1014 | 1014 | 1014 | 1004 |
| Clearance [mm] | 185 | 185 | 190 | 191 | 191 | 185 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 25.0 | 25.0 | 21.0 | 18.0 | 18.0 | 25.0 |
| Approach angle rear [°] | 24.0 | 24.0 | 19.9 | 19.8 | 19.8 | 24.0 |
| Transition angle [°] | 16.0 | 16.0 | 16.3 | 16.1 | 16.1 | 16.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1074 | 1074 | 1074 | 1074 | 1074 | 1074 |
| Headroom rear [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Front elbow/shoulder width [mm] | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 |
| Rear elbow/shoulder width [mm] | 1482/1520 | 1482/1520 | 1482/1520 | 1482/1520 | 1482/1520 | 1482/1520 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLE 300d 4MATIC | GLE 300d 4MATIC | GLE 350d 4MATIC | GLE 400d 4MATIC | GLE 300 de 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from 2021 to | from to 2021 | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 | |
| Engine displacement [cm³] | 1950 | 1993 | 2925 | 2925 | 1950 | |
| Maximum output / speed [kW/min-1] | 180/4200 | 200 16 el. | 200/3400-4600 | 243/3600-4000 | 143/3800 combustion 100 el. 235 total | |
| Maximum torque [Nm/min-1] | 500/1600-2400 | 550/1800-2200 200 el. | 600/1200-3200 | 700/1200-3200 | 400/1600-2800 combustion 440/0-2000 el. 700 total | |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 94.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 225 | 230 | 230 | 245 | 210 | |
| Acceleration 0–100 km/h [s] | 7,2 | 6.8 | 6,6 | 5,7 | 6,8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7,3-7,0 | 8.2-7.5 | 9,9-8,7 | 9,7-8,5 | - | |
| Out of town [l] | 5,9-5,5 | 5.2-4.7 | 6,0-5,6 | 6,2-5,6 | - | |
| Combined [l] | 6,4-6,1 | 6.3-5.8 | 7,4-6,7 | 7,6-6,8 | 1,2-1,1 [24.0-22.3 kWh] | |
| CO2 emissions [g/km] | 169-161 | 166-152 | 195-177 | 199-179 | 32-29 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | - | 48 | - | - | - | |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 31.2 kWh | |
| Range with fully charged battery [km] | - | - | - | - | 101-105 | |
| Charging time | - | - | - | - |
| |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 2165 | 2280 | 2235 | 2265 | 2655 | |
| Overall weight [kg] | 2910 | 3000 | 3070 | 3070 | 3260 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2700 | 750/2700 | 750/2700 | 750/2700 | 750/2700 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 108 | 108 | 108 | 108 | 108 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 630 | 630 | 630 | 630 | 490 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2055 | -/2055 | -/2055 | -/2055 | -/1915 | |
| Boot length [mm] | 1051 | 1051 | 1051 | 1051 | 1051 | |
| Boot length with rear seats folded [mm] | 1969 | 1969 | 1969 | 1969 | 1969 | |
| Boot width between wheels/max [mm] | 1106/- | 1106/- | 1106/- | 1106/- | 1106/- | |
| Boot height to headliner/ceiling [mm] | -/888 | -/888 | -/888 | -/888 | -/888 | |
| Loading edge height [mm] | 783 | 783 | 783 | 783 | 783 | |
| Height of the open boot door [mm] | 2217 | 2217 | 2217 | 2217 | 2217 | |
| Boot opening height [mm] | 804 | 804 | 804 | 804 | 804 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5/7 | 5/7 | 5/7 | 5/7 | 5 | |
| Fuel tank volume [l] | 65 | 85 | 65 | 65 | 65 | |
| AdBlue tank volume [l] | 31 | 31 | 31 | 31 | 31 | |
| Air resistance [Cd] | - | - | - | 0.32 | 0.36 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 235/60 R18 V | 235/60 R18 V | 235/60 R18 V | 255/50 R19 W | 275/55 R19 | |
| Tyre dimensions rear | 235/60 R18 V | 235/60 R18 V | 235/60 R18 V | 255/50 R19 W | 275/55 R19 | |
| Wheel size front | 7.5J x 18 ET52 | 7.5J x 18 ET52 | 7.5J x 18 ET52 | 8,0 x 19 ET61 | 8,5J x 19 ET55 | |
| Wheel size rear | 7.5J x 18 ET52 | 7.5J x 18 ET52 | 7.5J x 18 ET52 | 8,0 x 19 ET61 | 8,5J x 19 ET42 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12.0/- | 12.0/- | 12.0/- | 12.0/- | 12.0/- | |
| Overall length [mm] | 4924 | 4924 | 4924 | 4924 | 4924 | |
| Overall width without/including mirrors [mm] | 1947/2157 | 1947/2157 | 1947/2157 | 1947/2157 | 1947/2157 | |
| Overall height [mm] | 1795 | 1795 | 1795 | 1795 | 1795 | |
| Wheelbase [mm] | 2995 | 2995 | 2995 | 2995 | 2995 | |
| Front wheel track [mm] | 1680 | 1680 | 1680 | 1680 | 1680 | |
| Rear wheel track [mm] | 1727 | 1727 | 1727 | 1727 | 1727 | |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | |
| Rear overhang [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | |
| Clearance [mm] | 185 | 185 | 185 | 185 | 185 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | |
| Approach angle rear [°] | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | |
| Transition angle [°] | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1074 | 1074 | 1074 | 1074 | 1074 | |
| Headroom rear [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | |
| Front elbow/shoulder width [mm] | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 | |
| Rear elbow/shoulder width [mm] | 1482/1520 | 1482/1520 | 1482/1520 | 1482/1520 | 1482/1520 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Coupé
| GLE 53 AMG 4MATIC+ | GLE 63 AMG 4MATIC+ | GLE 63 S AMG 4MATIC+ | GLE 350e 4MATIC | GLE 350d 4MATIC | GLE 300d 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2020 to 2021 | from 2020 to 2021 | - | from to 2021 | from 2021 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 4/16 | 6/24 | 4/16 |
| Engine displacement [cm³] | 2999 | 3982 | 3982 | 1991 | 2925 | 1993 |
| Maximum output / speed [kW/min-1] | 320/6100 16 el. | 420/5750-6500 16 el. | 450/5750-6500 16 el. | 155/5500 combustion 100 el. 2245 total | 200/3400-4600 | 200 16 el. |
| Maximum torque [Nm/min-1] | 520/1800-5800 250 el. | 750/2250-5000 250 el. | 850/2500-4500 250 el. | 350/1200-4000 combustion 440/0-2000 el. 700 total | 600/1200-3200 | 550/1800-2200 200 el. |
| Bore and stroke [mm x mm] | 83.0 x 92.4 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.0 | 82.0 x 92.3 | 82.0 x 94.3 |
| Compression ratio | 10.5:1 | 8.6:1 | 8.6:1 | 10.0:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 280 | 210 | 226 | 226 |
| Acceleration 0–100 km/h [s] | 5,3 | 4,0 | 3,8 | 6,9 | 6,6 | 6.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12,5 | 15,2 | 15,2 | - | 9,4-8,5 | 7.9-7.8 |
| Out of town [l] | 7,9 | 9,3 | 9,3 | - | 6,3-5,8 | 5.2-5.1 |
| Combined [l] | 9,6 | 11,5 | 11,5 | 1,6-1,5 [23.7-22.3 kWh] | 7,3-6,9 | 6.2-6.1 |
| CO2 emissions [g/km] | 219 | 262 | 263 | 37-33 | 193-183 | 163-160 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | - | - | 48 |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 31.2 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 101-105 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2332 | 2444 | 2450 | 2627 | 2299 | 2320 |
| Overall weight [kg] | 3057 | 3124 | 3125 | 3192 | 3049 | 2290 |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/2700 | 750/2700 | 750/2700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | - | - | 108 | 108 | 108 |
| Maximum load on roof/carrier [kg] | - | - | - | 75/- | 75/- | 75/- |
| Boot volume [l] | 655 | 655 | 655 | 510 | 655 | 655 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1790 | -/1795 | -/1795 | -/1645 | -/1790 | -/1790 |
| Boot length [mm] | 1137 | 1137 | 1137 | 1137 | 1137 | 1137 |
| Boot length with rear seats folded [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 872 | 872 | 872 | 872 | 872 | 872 |
| Height of the open boot door [mm] | 2307 | 2307 | 2307 | 2307 | 2307 | 2307 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 85 | 85 | 85 | 65 | 65 | 85 |
| AdBlue tank volume [l] | - | - | - | - | 31 | 31 |
| Air resistance [Cd] | 0.338 | - | - | 0.35 | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 275/50 ZR20 113Y XL | 275/50 R20 | 275/45 R21 | 275/55 R19 | 275/55 R19 | 275/55 R19 |
| Tyre dimensions rear | 275/50 ZR20 113Y XL | 275/50 R20 | 315/40 R21 | 275/55 R19 | 275/55 R19 | 275/55 R19 |
| Wheel size front | 9,0J x 20 ET57 | 9.5J x 20 ET57 | 10,0J x 21 ET51 | 8,5J x 19 ET55 | 8,5J x 19 ET55 | 8,5J x 19 ET55 |
| Wheel size rear | 9,0J x 20 ET44 | 9.5J x 20 ET45 | 11,0J x 21 ET47 | 8,5J x 19 ET42 | 8,5J x 19 ET42 | 8,5J x 19 ET42 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.3/- | - | - | 11.8/- | 11.8/- | 11.8/- |
| Overall length [mm] | 4961 | 4939 | 4939 | 4939 | 4939 | 4939 |
| Overall width without/including mirrors [mm] | 2018/2157 | 2010/2157 | 2010/2157 | 2010/2157 | 2010/2157 | 2010/2157 |
| Overall height [mm] | 1720 | 1730 | 1730 | 1730 | 1730 | 1730 |
| Wheelbase [mm] | 2935 | 2935 | 2935 | 2935 | 2935 | 2935 |
| Front wheel track [mm] | 1681 | 1680 | 1680 | 1680 | 1680 | 1680 |
| Rear wheel track [mm] | 1726 | 1726 | 1726 | 1726 | 1726 | 1726 |
| Forward overhang [mm] | - | - | - | 925 | 925 | 925 |
| Rear overhang [mm] | - | - | - | 1079 | 1079 | 1079 |
| Clearance [mm] | - | - | - | 185 | 185 | 185 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | 25.0 | 25.0 | 25.0 |
| Approach angle rear [°] | - | - | - | 24.0 | 24.0 | 24.0 |
| Transition angle [°] | - | - | - | 17.0 | 17.0 | 17.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1022 | 1022 | 1022 | 1022 | 1022 | 1022 |
| Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Front elbow/shoulder width [mm] | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 | 1506/1545 |
| Rear elbow/shoulder width [mm] | 1485/1524 | 1485/1524 | 1485/1524 | 1485/1524 | 1485/1524 | 1485/1524 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLE 400d 4MATIC | GLE 300 de 4MATIC | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged + Electric | ||||
| Number of cylinders/valves | 6/24 | 4/16 | ||||
| Engine displacement [cm³] | 2925 | 1950 | ||||
| Maximum output / speed [kW/min-1] | 243/3600-4000 | 143/3800 combustion 100 el. 235 total | ||||
| Maximum torque [Nm/min-1] | 700/1200-3200 | 400/1600-2800 combustion 440/0-2000 el. 700 total | ||||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | ||||
| Compression ratio | 15.5:1 | 15.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 9 gear automatic | 9 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 240 | 210 | ||||
| Acceleration 0–100 km/h [s] | 5,7 | 6,9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 9,4-8,5 | - | ||||
| Out of town [l] | 6,3-5,9 | - | ||||
| Combined [l] | 7,4-6,9 | 1,2-1,1 [24.0-22.2 kWh] | ||||
| CO2 emissions [g/km] | 195-183 | 32-29 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | - | - | ||||
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 31.2 kWh | ||||
| Range with fully charged battery [km] | - | 101-105 | ||||
| Charging time | - |
| ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 2304 | 2692 | ||||
| Overall weight [kg] | 3049 | 3232 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2700 | 750/2700 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 108 | 108 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 655 | 510 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1790 | -/1645 | ||||
| Boot length [mm] | 1137 | 1137 | ||||
| Boot length with rear seats folded [mm] | 1627 | 1627 | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 872 | 872 | ||||
| Height of the open boot door [mm] | 2307 | 2307 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 65 | 65 | ||||
| AdBlue tank volume [l] | 31 | 31 | ||||
| Air resistance [Cd] | 0.34 | 0.35 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 275/55 R19 | 275/55 R19 | ||||
| Tyre dimensions rear | 275/55 R19 | 275/55 R19 | ||||
| Wheel size front | 8,5J x 19 ET55 | 8,5J x 19 ET55 | ||||
| Wheel size rear | 8,5J x 19 ET42 | 8,5J x 19 ET42 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | ||||
| Overall length [mm] | 4939 | 4939 | ||||
| Overall width without/including mirrors [mm] | 2010/2157 | 2010/2157 | ||||
| Overall height [mm] | 1730 | 1730 | ||||
| Wheelbase [mm] | 2935 | 2935 | ||||
| Front wheel track [mm] | 1680 | 1680 | ||||
| Rear wheel track [mm] | 1726 | 1726 | ||||
| Forward overhang [mm] | 925 | 925 | ||||
| Rear overhang [mm] | 1079 | 1079 | ||||
| Clearance [mm] | 185 | 185 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 25.0 | 25.0 | ||||
| Approach angle rear [°] | 24.0 | 24.0 | ||||
| Transition angle [°] | 17.0 | 17.0 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1022 | 1022 | ||||
| Headroom rear [mm] | 960 | 960 | ||||
| Front elbow/shoulder width [mm] | 1506/1545 | 1506/1545 | ||||
| Rear elbow/shoulder width [mm] | 1485/1524 | 1485/1524 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

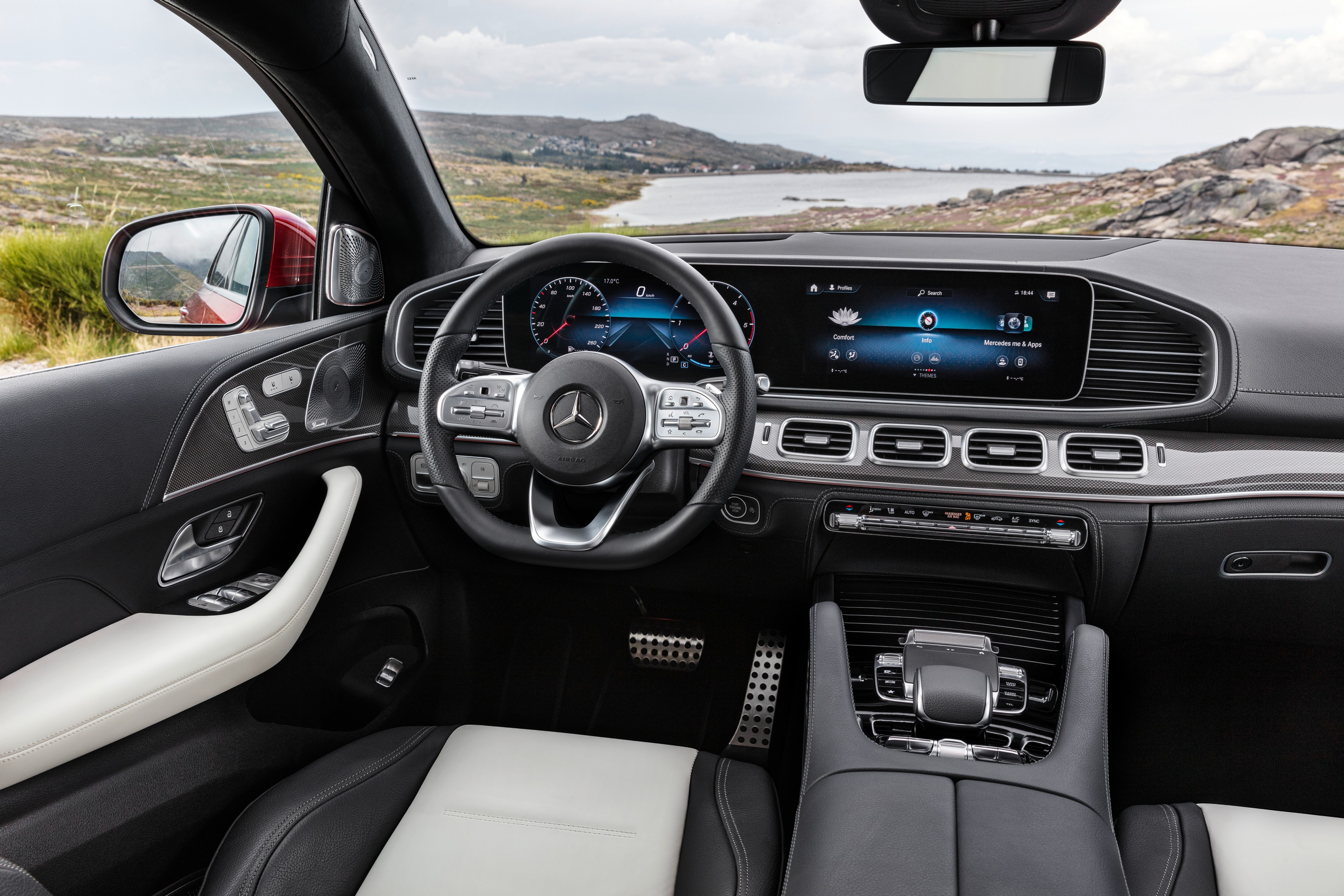

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
