Mercedes-Benz GLE
Date of manufacture
4/2015 – 2019 (Coupé)
2015 – 2019 (SUV)
Platform
-
Manufacturing locations
Tuscaloosa, Alabama, USA
Pune, India
Samut Prakan, Thailand
Designer
Emiel Burki
Tags
Large SUV
German cars

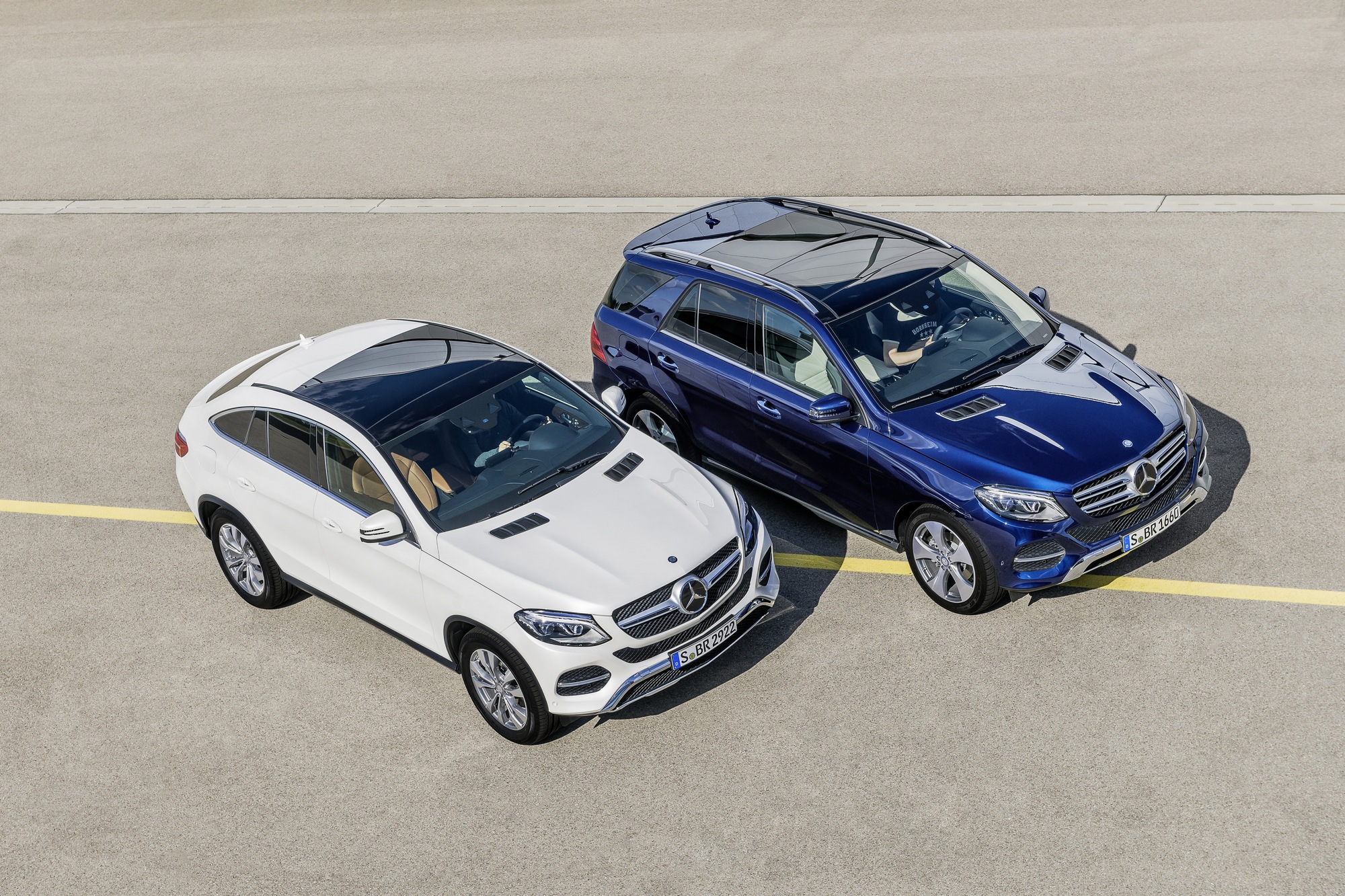

The Mercedes-Benz GLE is a modern vehicle available in both coupe and SUV versions. It was first released in 2015 and can be sourced from countries such as the USA, India and Thailand. It is available as a plug-in hybrid, offering a wide range of engine options from petrol, diesel to hybrid. The highest power output is achieved by the GLE 63 AMG S 4MATIC with 430 kW and a top speed of 250 km/h. The GLE 63 AMG S 4MATIC also has the best acceleration from 0-100 km/h in 4.2 seconds. The GLE 500e has the lowest fuel consumption of 3.3 l/100 km and emissions of 78 g/km. Both models offer a boot capacity of 690 l (SUV) and 650 l (Coupe). In terms of safety, the vehicle earned a 5 out of 5 rating from EURONCAP in 2012.

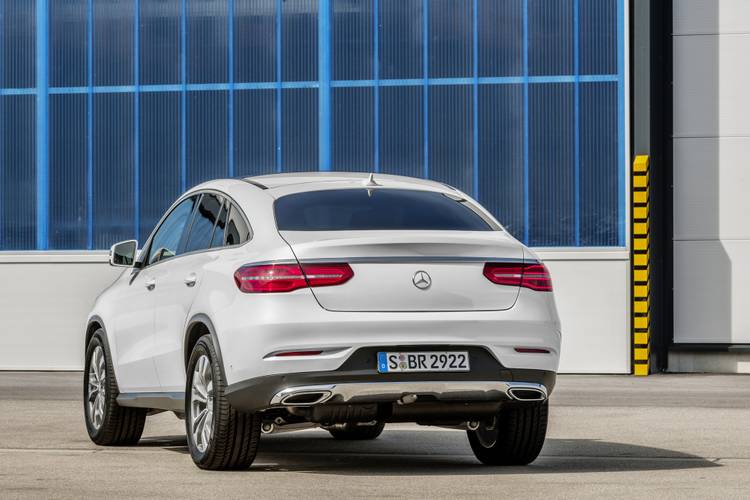

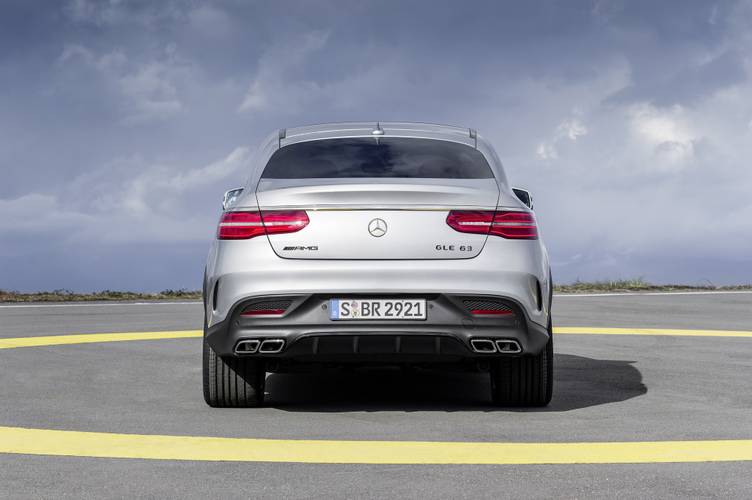

Car body style
Coupé
Date of manufacture
4/2015 – 2019Internal designation
C292SUV
after upgrade (facelift)
Date of manufacture
2015 – 2019Internal designation
W166
Technical data
Coupé
| GLE 400 4MATIC | GLE 450/43 AMG 4MATIC | GLE 43 AMG 4MATIC | GLE 500 4MATIC | GLE 63 AMG 4MATIC | GLE 63 AMG S 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2017 | from 2017 to | from to 2018 | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2996 | 2996 | 2996 | 4663 | 5461 | 5461 |
| Maximum output / speed [kW/min-1] | 245/5250-6000 | 270/5500-6000 | 287 | 335/5250-5500 | 410/5750 | 430/5500 |
| Maximum torque [Nm/min-1] | 480/1600-4000 | 520/2000-4000 | 520/2000-4000 | 700/1800-4000 | 700/1750-5000 | 760/1750-5250 |
| Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 | 92,6 x 86,0 | 98,0 x 90,5 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 247 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.9 | 5.7 | 5.7 | 4.9 | 4.3 | 4.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.7-11.2 | 11.3-11.7 | 12.3-11.9 | 14.2-14.6 | 15.8 | 15.8 |
| Out of town [l] | 7.4-7.6 | 7.7-8.1 | 8.4-8.0 | 8.4-8.8 | 9.7 | 9.7 |
| Combined [l] | 8.7-8.9 | 8.9-9.4 | 9.8-9.4 | 10.5-10.9 | 11.9 | 11.9 |
| CO2 emissions [g/km] | 199-207 | 209-219 | 225-215 | 246-254 | 278 | 278 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2185 | 2220 | 2240 | 2270 | 2350 | 2350 |
| Overall weight [kg] | 2850 | 2880 | 2880 | 2900 | 3050 | 3050 |
| Maximum trailer weight unbraked/braked [kg] | 750/2850 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1720 | -/1720 | -/1720 | -/1720 | -/1720 | -/1720 |
| Boot length [mm] | 1132 | 1132 | 1132 | 1132 | 1132 | 1132 |
| Boot length with rear seats folded [mm] | 1918 | 1918 | 1918 | 1918 | 1918 | 1918 |
| Boot width between wheels/max [mm] | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 |
| Boot height to headliner/ceiling [mm] | -/962 | -/962 | -/962 | -/962 | -/962 | -/962 |
| Loading edge height [mm] | 931 | 931 | 931 | 931 | 931 | 931 |
| Height of the open boot door [mm] | 2296 | 2296 | 2296 | 2296 | 2296 | 2296 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 93 | 93 | 93 | 93 | 93 | 93 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | 0.35 | 0.34 | 0.38 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 275/50 R20 | 275/45 R21 | 275/45 R21 | 275/50 R20 | 285/45 ZR21 | 285/40 ZR22 |
| Tyre dimensions rear | 275/50 R20 | 315/40 R21 | 315/40 R21 | 275/50 R20 | 325/40 ZR21 | 325/35 ZR22 |
| Wheel size front | 8.5J x 20 ET53 | 10.0J x 21 | 10.0J x 21 | 8.5J x 20 ET53 | 10.0J x 21 ET56 | 10.0J x 22 ET56 |
| Wheel size rear | 8.5J x 20 ET53 | 11.0J x 21 | 11.0J x 21 | 8.5J x 20 ET53 | 11.0J x 21 ET42 | 11.5J x 22 ET42 |
| Brake dimensions front | - | - | - | - | 390 x 36 | 390 x 36 |
| Brake dimensions rear | - | - | - | - | 345 x 26 | 345 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- |
| Overall length [mm] | 4900 | 4918 | 4918 | 4900 | 4918 | 4918 |
| Overall width without/including mirrors [mm] | 2003/2129 | 2003/2129 | 2003/2129 | 2003/2129 | 2003/2129 | 2003/2129 |
| Overall height [mm] | 1731 | 1719 | 1719 | 1731 | 1719 | 1720 |
| Wheelbase [mm] | 2915 | 2915 | 2915 | 2915 | 2915 | 2915 |
| Front wheel track [mm] | 1658 | 1657 | 1657 | 1658 | 1657 | 1657 |
| Rear wheel track [mm] | 1725 | 1704 | 1704 | 1725 | 1704 | 1704 |
| Forward overhang [mm] | 897 | 910 | 910 | 897 | 910 | 910 |
| Rear overhang [mm] | 1088 | 1093 | 1093 | 1088 | 1093 | 1093 |
| Clearance [mm] | 206 | - | - | 206 | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 22 | - | - | 22 | - | - |
| Approach angle rear [°] | 24 | - | - | 24 | - | - |
| Transition angle [°] | 17 | - | - | 17 | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Front elbow/shoulder width [mm] | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 |
| Rear elbow/shoulder width [mm] | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLE 350 BlueTEC 4MATIC | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2987 | |||||
| Maximum output / speed [kW/min-1] | 190/3400 | |||||
| Maximum torque [Nm/min-1] | 620/1600 | |||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 9 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 226 | |||||
| Acceleration 0–100 km/h [s] | 7.0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.5-8.0 | |||||
| Out of town [l] | 6.4-6.7 | |||||
| Combined [l] | 6.9-7.2 | |||||
| CO2 emissions [g/km] | 180-189 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 2250 | |||||
| Overall weight [kg] | 2900 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2900 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 650 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1720 | |||||
| Boot length [mm] | 1132 | |||||
| Boot length with rear seats folded [mm] | 1918 | |||||
| Boot width between wheels/max [mm] | -/1034 | |||||
| Boot height to headliner/ceiling [mm] | -/962 | |||||
| Loading edge height [mm] | 931 | |||||
| Height of the open boot door [mm] | 2296 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 93 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.35 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 275/50 R20 | |||||
| Tyre dimensions rear | 275/50 R20 | |||||
| Wheel size front | 8.5J x 20 ET53 | |||||
| Wheel size rear | 8.5J x 20 ET53 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.8/- | |||||
| Overall length [mm] | 4900 | |||||
| Overall width without/including mirrors [mm] | 2003/2129 | |||||
| Overall height [mm] | 1731 | |||||
| Wheelbase [mm] | 2915 | |||||
| Front wheel track [mm] | 1658 | |||||
| Rear wheel track [mm] | 1725 | |||||
| Forward overhang [mm] | 897 | |||||
| Rear overhang [mm] | 1088 | |||||
| Clearance [mm] | 206 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 22 | |||||
| Approach angle rear [°] | 24 | |||||
| Transition angle [°] | 17 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1020 | |||||
| Headroom rear [mm] | 959 | |||||
| Front elbow/shoulder width [mm] | 1485/1540 | |||||
| Rear elbow/shoulder width [mm] | 1482/1525 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

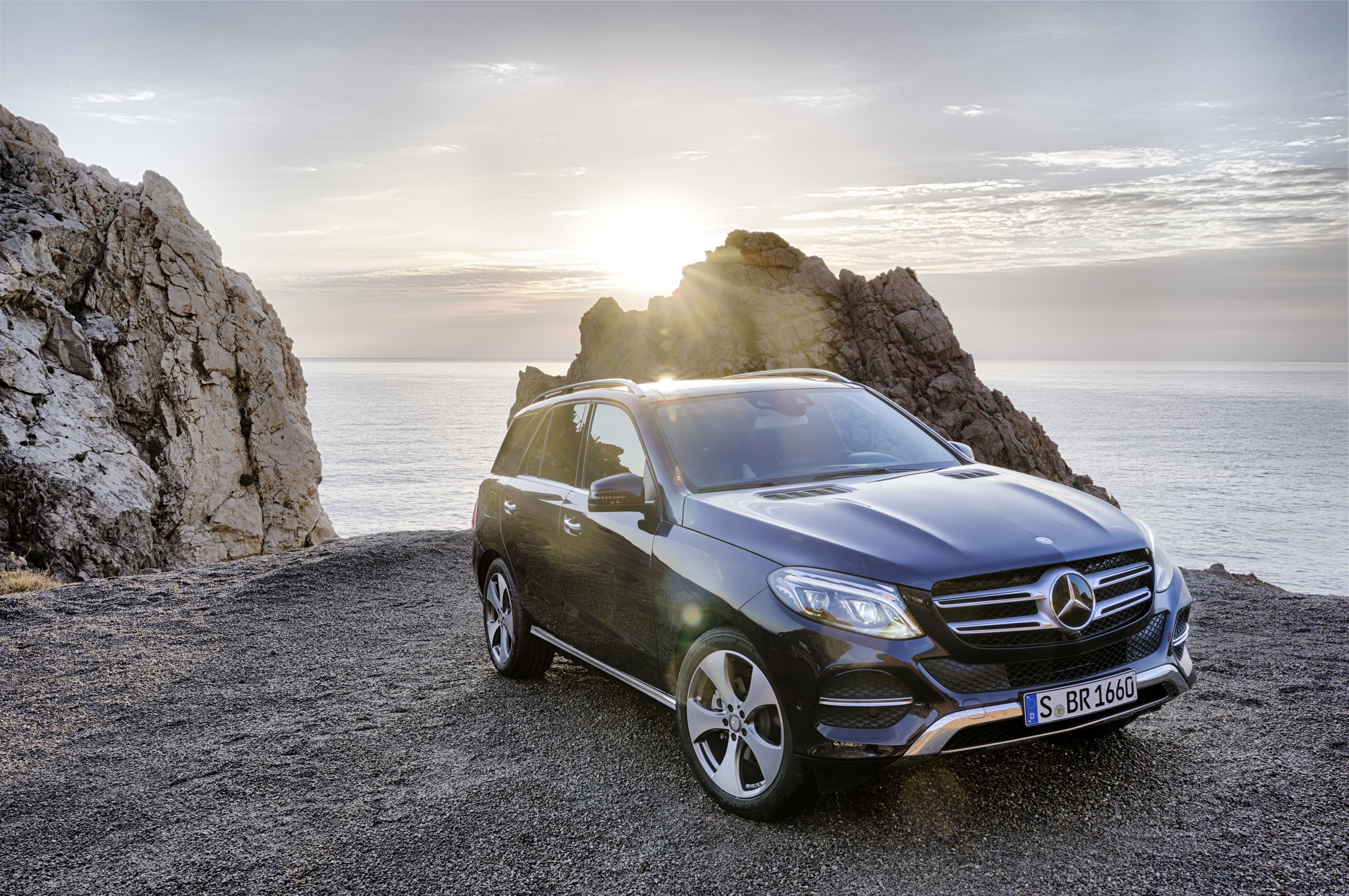

SUV
| GLE 400 4MATIC | GLE 450/43 AMG 4MATIC | GLE 43 AMG 4MATIC | GLE 500 4MATIC | GLE 500 4MATIC | GLE 63 AMG 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2017 | from 2017 to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2996 | 2996 | 2996 | 4663 | 4663 | 5461 |
| Maximum output / speed [kW/min-1] | 245/5250-6000 | 270/5500-6000 | 287 | 320/5250 | 335/5250-5500 | 410/5750 |
| Maximum torque [Nm/min-1] | 480/1600-4000 | 520/2000-4000 | 520/2000-4000 | 700/1800-4000 | 700/1800-4000 | 700/1750-5000 |
| Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 88,0 x 82,1 | 92,6 x 86,0 | 92,6 x 86,0 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 247 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.1 | 5.7 | 5.7 | 5.3 | 5.3 | 4.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.2-11.5 | 10.9 | 11.6 | 14.7-15.2 | 14.0-14.3 | 15.7 |
| Out of town [l] | 7.6-7.8 | 7.2 | 7.4 | 8.9-9.5 | 8.3-8.4 | 9.6 |
| Combined [l] | 8.8-9.2 | 8.6 | 8.9 | 11.0-11.5 | 10.4-10.6 | 11.8 |
| CO2 emissions [g/km] | 209-215 | 199 | 205 | 258-269 | 243-247 | 276 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2130 | 2180 | 2180 | 2235 | 2235 | 2345 |
| Overall weight [kg] | 2900 | 2930 | 2930 | 2950 | 2950 | 3050 |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 690 | 690 | 690 | 690 | 690 | 690 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2010 | -/2010 | -/2010 | -/2010 | -/2010 | -/2010 |
| Boot length [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Boot length with rear seats folded [mm] | 1833 | 1833 | 1833 | 1833 | 1833 | 1833 |
| Boot width between wheels/max [mm] | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 | -/1034 |
| Boot height to headliner/ceiling [mm] | -/902 | -/902 | -/902 | -/902 | -/902 | -/902 |
| Loading edge height [mm] | 761 | 761 | 761 | 761 | 761 | 761 |
| Height of the open boot door [mm] | 2195 | 2195 | 2195 | 2195 | 2195 | 2195 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 93 | 93 | 93 | 93 | 93 | 93 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | - | - | 0.35 | 0.35 | 0.38 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/55 R18 | 265/45 R20 | 265/45 R20 | 255/50 R19 | 255/50 R19 | 265/45 R20 |
| Tyre dimensions rear | 255/55 R18 | 265/45 R20 | 265/45 R20 | 255/50 R19 | 255/50 R19 | 265/45 R20 |
| Wheel size front | 8.0J x 18 ET56 | 9.0J x 20 ET31 | 9.0J x 20 ET31 | 8.0J x 19 ET56 | 8.0J x 19 ET56 | 9.0J x 20 ET41 |
| Wheel size rear | 8.0J x 18 ET56 | 9.0J x 20 ET31 | 9.0J x 20 ET31 | 8.0J x 19 ET56 | 8.0J x 19 ET56 | 9.0J x 20 ET41 |
| Brake dimensions front | - | - | - | - | - | 390 x 36 |
| Brake dimensions rear | - | - | - | - | - | 345 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- |
| Overall length [mm] | 4819 | 4819 | 4819 | 4819 | 4819 | 4852 |
| Overall width without/including mirrors [mm] | 1935/2141 | 1935/2141 | 1935/2141 | 1935/2141 | 1935/2141 | 1971/2141 |
| Overall height [mm] | 1796 | 1796 | 1796 | 1796 | 1796 | 1762 |
| Wheelbase [mm] | 2915 | 2915 | 2915 | 2915 | 2915 | 2915 |
| Front wheel track [mm] | 1642 | 1642 | 1642 | 1662 | 1662 | 1705 |
| Rear wheel track [mm] | 1657 | 1657 | 1657 | 1681 | 1681 | 1725 |
| Forward overhang [mm] | 890 | - | - | 890 | 890 | - |
| Rear overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | - |
| Clearance [mm] | 202 | - | - | 255 | 255 | - |
| Wading depth [mm] | 500 | - | - | 500 | 500 | - |
| Approach angle front [°] | 26 | - | - | 29 | 29 | - |
| Approach angle rear [°] | 26 | - | - | 28 | 28 | - |
| Transition angle [°] | 17 | - | - | 20 | 20 | - |
| Climbing rate [°] | 80 | - | - | 80 | 80 | - |
| Maximum side tilt [°] | 35 | - | - | 35 | 35 | - |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Front elbow/shoulder width [mm] | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 |
| Rear elbow/shoulder width [mm] | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLE 63 AMG S 4MATIC | GLE 500e | GLE 250d | GLE 250d 4MATIC | GLE 350d 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | - | |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 8/32 | 6/24 | 4/16 | 4/16 | 6/24 | |
| Engine displacement [cm³] | 5461 | 2996 | 2143 | 2143 | 2987 | |
| Maximum output / speed [kW/min-1] | 430/5500 | 245/5250-6000 combustion 85/3500 el. 325/5250-5500 total | 150/3800 | 150/3800 | 190/3400 | |
| Maximum torque [Nm/min-1] | 760/1750-5250 | 480/1600-4000 combustion 340/0-2000 el. 650/1000-4750 total | 480/1600-1800 | 500/1600-1800 | 620/1600 | |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 88,0 x 82,1 | 83,9 x 99,0 | 83,9 x 99,0 | 83,0 x 92,0 | |
| Compression ratio | 10,0:1 | 10,5:1 | 16,2:1 | 16,2:1 | 15,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | Rear | 4x4 | 4x4 | |
| Gearbox | 7 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 250 | 250 | 210 | 212 | 225 | |
| Acceleration 0–100 km/h [s] | 4.2 | 5.3 | 8.6 | 8.6 | 7.1 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 15.7 | - | 5.9-6.1 | 6.3-6.6 | 8.8-7.3 | |
| Out of town [l] | 9.6 | - | 5.0-5.3 | 5.3-5.5 | 6.8-6.2 | |
| Combined [l] | 11.8 | 3.3-3.7 [16.7-18.0 kWh] | 5.4-5.6 | 5.7-5.9 | 7.5-6.6 | |
| CO2 emissions [g/km] | 276 | 78-84 | 140-146 | 149-156 | 192-179 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | - | - | - | - | - | |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 8.7 kWh | - | - | - | |
| Range with fully charged battery [km] | - | 30 | - | - | - | |
| Charging time | - |
| - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 2345 | 2465 | 2075 | 2150 | 2175 | |
| Overall weight [kg] | 3050 | 3050 | 2850 | 2950 | 2950 | |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/2000 | 750/2500 | 750/2950 | 750/3500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 690 | 480 | 690 | 690 | 690 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2010 | -/1800 | -/2010 | -/2010 | -/2010 | |
| Boot length [mm] | 1046 | - | 1046 | 1046 | 1046 | |
| Boot length with rear seats folded [mm] | 1833 | - | 1833 | 1833 | 1833 | |
| Boot width between wheels/max [mm] | -/1034 | - | -/1034 | -/1034 | -/1034 | |
| Boot height to headliner/ceiling [mm] | -/902 | - | -/902 | -/902 | -/902 | |
| Loading edge height [mm] | 761 | 761 | 761 | 761 | 761 | |
| Height of the open boot door [mm] | 2195 | 2195 | 2195 | 2195 | 2195 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 93 | 80 | 93 | 93 | 93 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.38 | 0.35 | 0.34 | 0.34 | 0.35 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 295/35 ZR21 | 255/50 R19 | 235/65 R17 | 235/65 R17 | 235/65 R17 | |
| Tyre dimensions rear | 295/35 ZR21 | 255/50 R19 | 235/65 R17 | 235/65 R17 | 235/65 R17 | |
| Wheel size front | 10.0J x 21 ET46 | 8.0J x 19 ET56 | 7.5J x 17 ET53 | 7.5J x 17 ET53 | 7.5J x 17 ET53 | |
| Wheel size rear | 10.0J x 21 ET46 | 8.0J x 19 ET56 | 7.5J x 17 ET53 | 7.5J x 17 ET53 | 7.5J x 17 ET53 | |
| Brake dimensions front | 390 x 36 | - | - | - | - | |
| Brake dimensions rear | 345 x 26 | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- | |
| Overall length [mm] | 4852 | 4819 | 4819 | 4819 | 4819 | |
| Overall width without/including mirrors [mm] | 1971/2141 | 1935/2141 | 1935/2141 | 1935/2141 | 1935/2141 | |
| Overall height [mm] | 1760 | 1796 | 1788 | 1788 | 1796 | |
| Wheelbase [mm] | 2915 | 2915 | 2915 | 2915 | 2915 | |
| Front wheel track [mm] | 1675 | 1662 | 1653 | 1653 | 1653 | |
| Rear wheel track [mm] | 1695 | 1681 | 1667 | 1667 | 1667 | |
| Forward overhang [mm] | - | 890 | - | 890 | 890 | |
| Rear overhang [mm] | - | 1014 | 1014 | 1014 | 1014 | |
| Clearance [mm] | - | 202 | - | 202 | 202 | |
| Wading depth [mm] | - | 500 | - | 500 | 500 | |
| Approach angle front [°] | - | 26 | - | 26 | 26 | |
| Approach angle rear [°] | - | 26 | - | 26 | 26 | |
| Transition angle [°] | - | 17 | - | 17 | 17 | |
| Climbing rate [°] | - | 50 | - | 80 | 80 | |
| Maximum side tilt [°] | - | 35 | - | 35 | 35 | |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | |
| Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | |
| Front elbow/shoulder width [mm] | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 | 1485/1540 | |
| Rear elbow/shoulder width [mm] | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 | 1482/1525 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
