Mercedes-Benz GLC
Date of manufacture
4/2016 – 2019 (Coupé)
6/2015 – 2019 (SUV)
Platform
MRA
Manufacturing locations
Bremen, Germany
Beijing, People's Republic of China
Pune, India
Uusikaupunki, Finland
Samut Prakan, Thailand
Designer
Gorden Wagener
Tags
Compact SUV
German cars
Mercedes-Benz GLC is a two-body style - coupe and SUV, which was released to the market in 2015. This model is built on the MRA platform and offers a wide range of engines from petrol, through diesel to hybrid. The most powerful model is the GLC 63 AMG S 4MATIC +, which produces 375 kW of power and can accelerate from 0 to 100 km / h in 3.8 seconds with a maximum speed of 250 km / h. On the other hand, the GLC 350e 4MATIC has the lowest fuel consumption of 2.7 l / 100 km and emissions of 64 g / km. The luggage compartment for the coupe version is 500 l, while the SUV version is 550 l. The safety of this model was tested by EURONCAP in 2015, where it received a rating of 5 out of 5.
Car body style

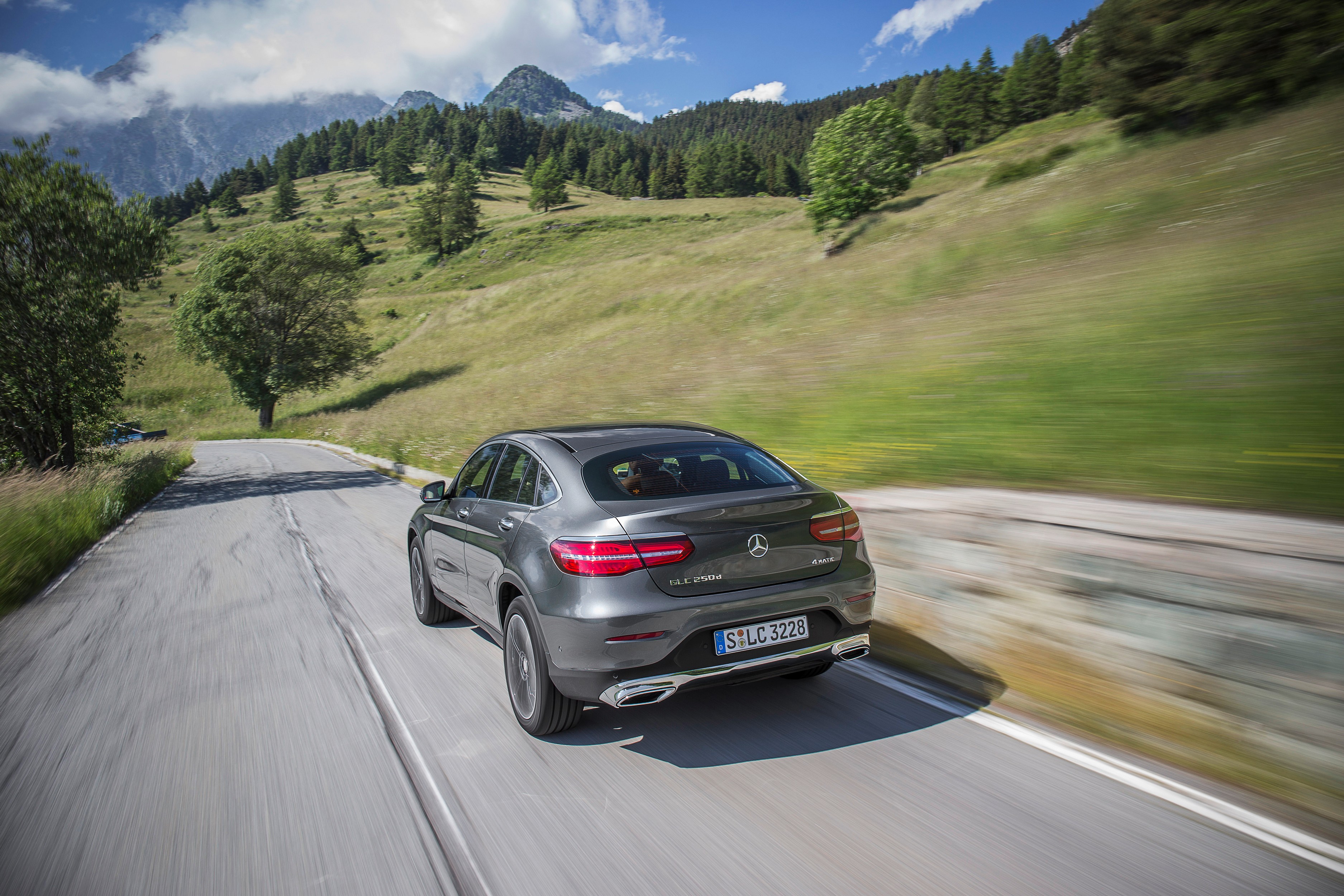

Coupé
Date of manufacture
4/2016 – 2019Internal designation
C253Engine size

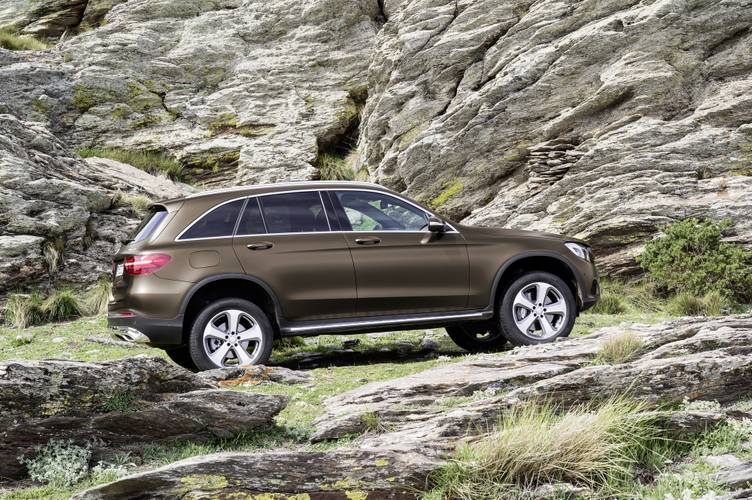

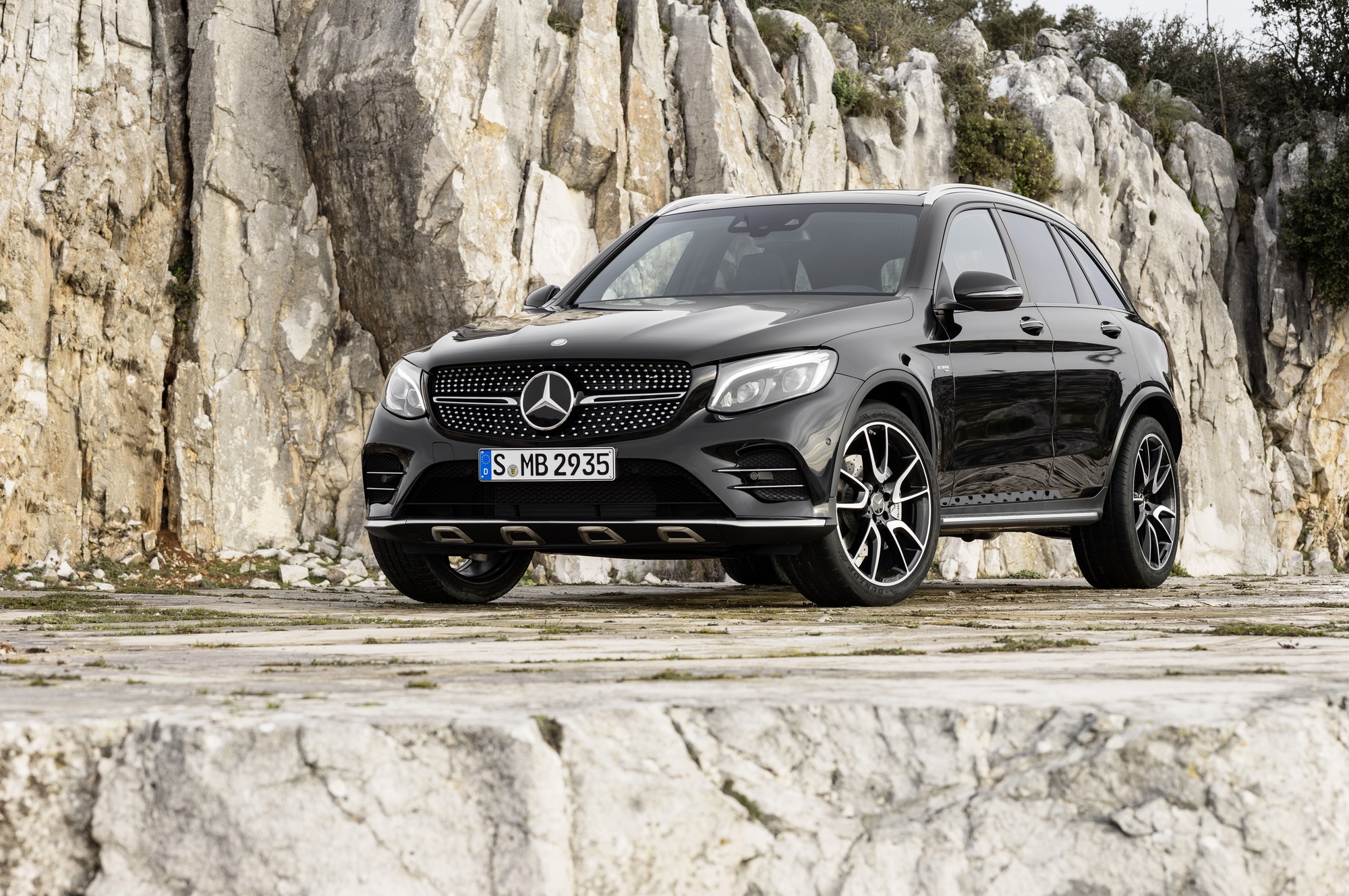

SUV
Date of manufacture
6/2015 – 2019Internal designation
X253Engine size
Technical data
Coupé
| GLC 250 4MATIC | GLC 300 4MATIC | GLC 43 AMG 4MATIC | GLC 63 AMG 4MATIC+ | GLC 63 AMG S 4MATIC+ | GLC 350e 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2017 to | - | from 2017 to | from 2017 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 2996 | 3982 | 3982 | 1991 |
| Maximum output / speed [kW/min-1] | 155/5500 | 180/5500 | 270/5500-6000 | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 85 el. 235 total |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 370/1300-4000 | 520/2000-4200 | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 340/0-2000 el. 560 total |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 9,8:1 | 9,8:1 | 10,7:1 | 10,5:1 | 10,5:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 222 | 236 | 250 | 250 | 250 | 235 |
| Acceleration 0–100 km/h [s] | 7.3 | 6.5 | 4.9 | 4.0 | 3.8 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7-8.4 | 9.4-9.2 | 11.5-10.9 | 14.1-13.9 | 14.1 | - |
| Out of town [l] | 6.5-6.0 | 6.8-6.4 | 7.5-7.0 | 8.7-8.2 | 8.7 | - |
| Combined [l] | 7.3-6.9 | 7.8-7.5 | 8.9-8.4 | 10.7-10.3 | 10.7 | 2.7-2.5 |
| CO2 emissions [g/km] | 170-159 | 177-169 | 203-192 | 244-234 | 244 | 64-59 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 8.7 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 34 |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1785 | 1785 | 1855 | 2010 | 2020 | 2040 |
| Overall weight [kg] | 2430 | 2430 | 2460 | 2590 | 2590 | 2625 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2460 | 750/2200 | 750/2200 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 | -/1250 |
| Boot length [mm] | 997 | 997 | 997 | 997 | 997 | - |
| Boot length with rear seats folded [mm] | 1840 | 1840 | 1840 | 1840 | 1840 | - |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 855 | 855 | 855 | 855 | 855 | - |
| Height of the open boot door [mm] | 2208 | 2208 | 2208 | 2208 | 2208 | - |
| Boot opening height [mm] | 562 | 562 | 562 | 562 | 562 | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/55 R19 | 235/55 R19 | 265/45 R20 | 235/60 R18 |
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 255/50 R19 | 255/50 R19 | 295/40 R20 | 235/60 R18 |
| Wheel size front | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 19 ET38 | 8.0J x 19 ET19 | 9,5J x 20 ET30 | 8J x 18 ET38 |
| Wheel size rear | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 9.0J x 19 ET20 | 9.0J x 19 ET18 | 10J x 20 ET28 | 8J x 18 ET38 |
| Brake dimensions front | - | - | - | 390 x 36 | 390 x 36 | - |
| Brake dimensions rear | - | - | - | 360 x 26 | 360 x 26 | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.80/- | 11.80/- | 11.80/- | 11.80/- | 11.80/- | 11.80/- |
| Overall length [mm] | 4732 | 4732 | 4732 | 4732 | 4732 | 4732 |
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 |
| Overall height [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
| Front wheel track [mm] | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 |
| Rear wheel track [mm] | 1619 | 1619 | 1619 | 1619 | 1619 | 1619 |
| Forward overhang [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Rear overhang [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | 1028 |
| Clearance [mm] | 155 | 155 | 155 | 155 | 155 | 155 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 20.8 | 20.8 | 20.8 | 20.8 | 20.8 | 20.8 |
| Approach angle rear [°] | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 |
| Transition angle [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 |
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLC 220d 4MATIC | GLC 250d 4MATIC | GLC 350d 4MATIC | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | |||
| Engine displacement [cm³] | 2143 | 2143 | 2987 | |||
| Maximum output / speed [kW/min-1] | 125/3200-4800 | 150/3800 | 190/3400 | |||
| Maximum torque [Nm/min-1] | 400/1400-2800 | 500/1600-1800 | 620/1600-2400 | |||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83.0 x 92.0 | |||
| Compression ratio | 16,2:1 | 16,2:1 | 15.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 210 | 222 | 238 | |||
| Acceleration 0–100 km/h [s] | 8.3 | 7.6 | 6.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.2-5.7 | 6.2-5.7 | 8.4-8.2 | |||
| Out of town [l] | 5.0-4.7 | 5.0-4.7 | 5.8-5.5 | |||
| Combined [l] | 5.4-5.0 | 5.4-5.0 | 6.8-6.5 | |||
| CO2 emissions [g/km] | 143-131 | 143-131 | 169-161 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1845 | 1845 | 1915 | |||
| Overall weight [kg] | 2520 | 2520 | 2530 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2200-2500 | 750/2500 | 750/2500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 500 | 500 | 500 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1400 | -/1400 | -/1400 | |||
| Boot length [mm] | 997 | 997 | 997 | |||
| Boot length with rear seats folded [mm] | 1840 | 1840 | 1840 | |||
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 855 | 855 | 855 | |||
| Height of the open boot door [mm] | 2208 | 2208 | 2208 | |||
| Boot opening height [mm] | 562 | 562 | 562 | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 50 | 66 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | four-link | four-link | four-link | |||
| Rear suspension | five-link | five-link | five-link | |||
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/60 R18 | |||
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 235/60 R18 | |||
| Wheel size front | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | |||
| Wheel size rear | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.80/- | 11.80/- | 11.80/- | |||
| Overall length [mm] | 4732 | 4732 | 4732 | |||
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1890/2096 | |||
| Overall height [mm] | 1602 | 1602 | 1602 | |||
| Wheelbase [mm] | 2873 | 2873 | 2873 | |||
| Front wheel track [mm] | 1620 | 1620 | 1620 | |||
| Rear wheel track [mm] | 1619 | 1619 | 1619 | |||
| Forward overhang [mm] | 831 | 831 | 831 | |||
| Rear overhang [mm] | 1028 | 1028 | 1028 | |||
| Clearance [mm] | 155 | 155 | 155 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 20.8 | 20.8 | 20.8 | |||
| Approach angle rear [°] | 18.6 | 18.6 | 18.6 | |||
| Transition angle [°] | 13.4 | 13.4 | 13.4 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1045 | 1045 | 1045 | |||
| Headroom rear [mm] | 972 | 972 | 972 | |||
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | |||
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
SUV
| GLC 250 4MATIC | GLC 300 4MATIC | GLC 43 AMG 4MATIC | GLC 63 AMG 4MATIC+ | GLC 63 AMG S 4MATIC+ | GLC 350e 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2017 to | from 2016 to | from 2017 to | from 2017 to | from 2016 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 2996 | 3982 | 3982 | 1991 |
| Maximum output / speed [kW/min-1] | 155/5500 | 180/5500 | 270/5500-6000 | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 85 el. 235 total |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 370/1300-4000 | 520/2000-4200 | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 340/0-2000 el. 560 total |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 9,8:1 | 9,8:1 | 10,7:1 | 10,5:1 | 10,5:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 222 | 236 | 250 | 250 | 250 | 235 |
| Acceleration 0–100 km/h [s] | 7.3 | 6.5 | 4.9 | 4.0 | 3.8 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1-8.5 | 9.3-8.9 | 11.2-10.8 | 14.1-13.9 | 14.1 | - |
| Out of town [l] | 5.6-6.3 | 6.7-6.2 | 7.3-6.9 | 8.7-8.2 | 8.7 | - |
| Combined [l] | 6.5-7.1 | 7.7-7.2 | 8.7-8.3 | 10.7-10.3 | 10.7 | 2.7-2.5 |
| CO2 emissions [g/km] | 152-166 | 174-163 | 199-189 | 244-234 | 244 | 64-59 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 8.7 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 34 |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1735 | 1735 | 1845 | 2000 | 2010 | 2025 |
| Overall weight [kg] | 2400 | 2400 | 2460 | 2580 | 2580 | 2605 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2460 | 750/2200 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1445 |
| Boot length [mm] | 930 | 930 | 930 | 930 | 930 | - |
| Boot length with rear seats folded [mm] | 1778 | 1778 | 1778 | 1778 | 1778 | - |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | - |
| Boot height to headliner/ceiling [mm] | -/808 | -/808 | -/808 | -/808 | -/808 | - |
| Loading edge height [mm] | 720 | 720 | 720 | 720 | 720 | - |
| Height of the open boot door [mm] | 2125 | 2125 | 2125 | 2125 | 2125 | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.31 | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/55 R19 | 235/55 R19 | 265/45 R20 | 235/60 R18 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 255/50 R19 | 255/50 R19 | 295/40 R20 | 235/60 R18 |
| Wheel size front | 7.5J x 17 ET 36 | 7.5J x 17 ET36 | 8.0J x 19 ET38 | 8.0J x 19 ET19 | 9,5J x 20 ET30 | 8J x 18 ET38 |
| Wheel size rear | 7.5J x 17 ET 36 | 7.5J x 17 ET36 | 9.0J x 19 ET20 | 9.0J x 19 ET18 | 10J x 20 ET28 | 8J x 18 ET38 |
| Brake dimensions front | - | - | - | 390 x 36 | 390 x 36 | - |
| Brake dimensions rear | - | - | - | 360 x 26 | 360 x 26 | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.80/- | 11.80/- | 11.80/- | 11.80/- | 11.80/- | 11.80/- |
| Overall length [mm] | 4656 | 4656 | 4656 | 4656 | 4656 | 4656 |
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 |
| Overall height [mm] | 1639 | 1639 | 1639 | 1639 | 1639 | 1659 |
| Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
| Front wheel track [mm] | 1621 | 1621 | 1621 | 1621 | 1621 | 1614 |
| Rear wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1605 |
| Forward overhang [mm] | 831 | 831 | 831 | 831 | 831 | 831 |
| Rear overhang [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Clearance [mm] | 181 | 181 | 181 | 181 | 181 | 202 |
| Wading depth [mm] | 300 | 300 | 300 | 300 | 300 | 300 |
| Approach angle front [°] | 21.7 | 21.7 | 21.7 | 21.7 | 21.7 | 28.8 |
| Approach angle rear [°] | 23.1 | 23.1 | 23.1 | 23.1 | 23.1 | 25 |
| Transition angle [°] | 16.9 | 16.9 | 16.9 | 16.9 | 16.9 | 18.6 |
| Climbing rate [°] | 70 | 70 | 70 | 70 | 70 | 70 |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Headroom front [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Headroom rear [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 |
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLC 220d 4MATIC | GLC 250d 4MATIC | GLC 350d 4MATIC | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2016 to | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | |||
| Engine displacement [cm³] | 2143 | 2143 | 2987 | |||
| Maximum output / speed [kW/min-1] | 125/3200-4800 | 150/3800 | 190/3400 | |||
| Maximum torque [Nm/min-1] | 400/1400-2800 | 500/1600-1800 | 620/1600-2400 | |||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83.0 x 92.0 | |||
| Compression ratio | 16,2:1 | 16,2:1 | 15.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 210 | 222 | 238 | |||
| Acceleration 0–100 km/h [s] | 8.3 | 7.6 | 6.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.5-6.3 | 5.5-6.3 | 8.4-8.1 | |||
| Out of town [l] | 4.7-5.1 | 4.7-5.1 | 5.8-5.5 | |||
| Combined [l] | 5.0-5.5 | 5.0-5.5 | 6.8-6.4 | |||
| CO2 emissions [g/km] | 129-143 | 129-143 | 169-159 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1845 | 1845 | 1890 | |||
| Overall weight [kg] | 2500 | 2500 | 2500 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 550 | 550 | 550 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | |||
| Boot length [mm] | 930 | 930 | 930 | |||
| Boot length with rear seats folded [mm] | 1778 | 1778 | 1778 | |||
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | |||
| Boot height to headliner/ceiling [mm] | -/808 | -/808 | -/808 | |||
| Loading edge height [mm] | 720 | 720 | 720 | |||
| Height of the open boot door [mm] | 2125 | 2125 | 2125 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 50 | 66 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | |||
| Front suspension | four-link | four-link | four-link | |||
| Rear suspension | five-link | five-link | five-link | |||
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | |||
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | |||
| Wheel size front | 7.5J x 17 ET 36 | 7.5J x 17 ET36 | 7.5J x 17 ET36 | |||
| Wheel size rear | 7.5J x 17 ET 36 | 7.5J x 17 ET36 | 7.5J x 17 ET36 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.80/- | 11.80/- | 11.80/- | |||
| Overall length [mm] | 4656 | 4656 | 4656 | |||
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1890/2096 | |||
| Overall height [mm] | 1639 | 1639 | 1639 | |||
| Wheelbase [mm] | 2873 | 2873 | 2873 | |||
| Front wheel track [mm] | 1621 | 1621 | 1621 | |||
| Rear wheel track [mm] | 1617 | 1617 | 1617 | |||
| Forward overhang [mm] | 831 | 831 | 831 | |||
| Rear overhang [mm] | 952 | 952 | 952 | |||
| Clearance [mm] | 181 | 181 | 181 | |||
| Wading depth [mm] | 300 | 300 | 300 | |||
| Approach angle front [°] | 21.7 | 21.7 | 21.7 | |||
| Approach angle rear [°] | 23.1 | 23.1 | 23.1 | |||
| Transition angle [°] | 16.9 | 16.9 | 16.9 | |||
| Climbing rate [°] | 70 | 70 | 70 | |||
| Maximum side tilt [°] | 35 | 35 | 35 | |||
| Headroom front [mm] | 1064 | 1064 | 1064 | |||
| Headroom rear [mm] | 1005 | 1005 | 1005 | |||
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | |||
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
