Mercedes-Benz GLB
Date of manufacture
7/2019 – to this day (Medium SUV)
Platform
MFA2
Manufacturing locations
Aguascalientes, Mexico
Beijing, People's Republic of China
Designer
-
Tags
Compact SUV
German cars
Mercedes-Benz GLB, a mid-sized SUV produced since 2019, is available in two variants. The model is based on the MFA2 platform and is manufactured in Mexico and China. It offers a wide range of petrol and diesel engines, the most powerful of which is the GLB AMG 35 4MATIC with 225 kW, which reaches a top speed of 250 km/h and 0-100 km/h in 5.3 seconds. The most fuel-efficient version is the GLB 220d with a combined fuel consumption of 6.1 l/100 km and CO2 emissions of 161 g/km. The luggage compartment offers 570 liters. In terms of safety, the EURONCAP model was rated 5 out of 5 in 2019.
Car body style
Medium SUV
Date of manufacture
7/2019 – to this dayInternal designation
X247
Technical data
Medium SUV
| GLB 180 | GLB 200 | GLB 200 4MATIC | GLB 250 | GLB 250 4MATIC | GLB AMG 35 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1332 | 1332 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 100/5500 | 120/5500 | 120/5500 | 165/5500 | 165/5500 | 225/5800-6100 |
| Maximum torque [Nm/min-1] | 200/1460-4000 | 250/1620-400 | 250/1620-400 | 350/1800 | 350/1800-400 | 400/3000-4000 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 |
| Compression ratio | 10.6:1 | 10.6:1 | 10.6:1 | 10.5:1 | 10.5:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 197 | 207 | 202 | 240 | 236 | 250 |
| Acceleration 0–100 km/h [s] | 9,9 | 9,1 | 9,7 | 7,1 | 6,9 | 5,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,6-7,4 | 7,6-7,4 | 8,6-8,3 | 8,7-8,5 | 9,4-9,1 | 10,2-9,9 |
| Out of town [l] | 5,3-4,9 | 5,3-4,9 | 6,3-5,7 | 5,8-5,4 | 6,2-5,7 | 7,0-6,8 |
| Combined [l] | 6,1-5,8 | 6,1-5,8 | 7,1-6,7 | 6,8-6,6 | 7,3-7,0 | 8,2-7,9 |
| CO2 emissions [g/km] | 140-133 | 140-133 | 163-153 | 156-150 | 168-159 | 187-181 |
| Low speed [l] | 9.7-9.3 | 9.8-9.3 | 10.9-10.3 | 11.5-10.9 | 12.1-11.3 | 12.3-11.8 |
| Medium speed [l] | 7.5-6.7 | 7.5-6.7 | 8.2-7.3 | 8.3-7.6 | 8.8-7.8 | 9.3-8.8 |
| High speed [l] | 6.7-5.8 | 6.7-5.8 | 7.2-6.3 | 7.2-6.4 | 7.5-6.6 | 8.2-7.7 |
| Extra high speed [l] | 8.1-7.0 | 8.1-7.0 | 8.5-7.4 | 8.5-7.4 | 8.7-7.6 | 9.3-8.8 |
| Combined speed [l] | 7.7-6.9 | 7.7-6.9 | 8.4-7.4 | 8.4-7.6 | 8.8-7.8 | 9.4-8.8 |
| CO2 emissions [g/km] | 176-156 | 176-156 | 190-169 | 191-173 | 200-177 | 213-201 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1550 | 1555 | 1625 | 1610 | 1670 | 1770 |
| Overall weight [kg] | 2080 | 2085 | 2160 | 2145 | 2205 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/1800 | 750/2000 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 570 | 570 | 570 | 570 | 570 | 570 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1805 | -/1805 | -/1805 | -/1805 | -/1805 | -/1805 |
| Boot length [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Boot length with rear seats folded [mm] | 1736 | 1736 | 1736 | 1736 | 1736 | 1736 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | -/953 | -/953 | -/953 | -/953 | -/953 | -/953 |
| Loading edge height [mm] | 740 | 740 | 740 | 740 | 740 | 740 |
| Height of the open boot door [mm] | 2082 | 2082 | 2082 | 2082 | 2082 | 2082 |
| Boot opening height [mm] | 756 | 756 | 756 | 756 | 756 | 756 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 60 | 52 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.306 | 0.319 | 0.31 | 0.308 | 0.319 | 0.346 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/50 R19 | 235/50 ZR19 99Y |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/50 R19 | 235/50 ZR19 99Y |
| Wheel size front | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 8.0J x 19 ET49 |
| Wheel size rear | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 8.0J x 19 ET49 |
| Brake dimensions front | - | - | - | - | - | 350 x 34 |
| Brake dimensions rear | - | - | - | - | - | 330 x 22 |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 12.51/- |
| Overall length [mm] | 4634 | 4634 | 4634 | 4634 | 4634 | 4650 |
| Overall width without/including mirrors [mm] | 1834/2020 | 1834/2020 | 1834/2020 | 1834/2020 | 1834/2020 | 1850/2024 |
| Overall height [mm] | 1659 | 1659 | 1659 | 1659 | 1659 | 1662 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1596 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1617 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 |
| Approach angle rear [°] | 18.3 | 18.3 | 18.3 | 18.3 | 18.3 | 18.3 |
| Transition angle [°] | 13.9 | 13.9 | 13.9 | 13.9 | 13.9 | 13.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
| Headroom rear [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Front elbow/shoulder width [mm] | 1419/1455 | 1419/1455 | 1419/1455 | 1419/1455 | 1419/1455 | 1419/1455 |
| Rear elbow/shoulder width [mm] | 1394/1441 | 1394/1441 | 1394/1441 | 1394/1441 | 1394/1441 | 1394/1441 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLB 180d | GLB 200d | GLB 200d 4MATIC | GLB 220d | GLB 220d 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | 1950 | |
| Maximum output / speed [kW/min-1] | 85/3400-4400 | 110/3400-4400 | 110/3400-4400 | 140/3800 | 140/3800 | |
| Maximum torque [Nm/min-1] | 280/1300-2600 | 320/1400-3200 | 320/1400-3200 | 400/1600-2600 | 400/1600-2600 | |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | 4x4 | Front | 4x4 | |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 188 | 204 | 201 | 220 | 217 | |
| Acceleration 0–100 km/h [s] | 11,3 | 9,0 | 9,3 | 7,7 | 7,6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5,9-5,6 | 5,9-5,7 | 6,3-5,9 | 5,9-5,7 | 6,2-5,7 | |
| Out of town [l] | 4,5-4,2 | 4,4-4,2 | 4,7-4,4 | 4,6-4,3 | 4,9-4,7 | |
| Combined [l] | 5,0-4,7 | 5,0-4,8 | 5,3-5,0 | 5,1-4,8 | 5,4-5,1 | |
| CO2 emissions [g/km] | 131-125 | 131-125 | 140-132 | 134-128 | 142-135 | |
| Low speed [l] | 7.3-6.9 | 7.3-6.8 | 7.9-7.3 | 7.4-6.9 | 7.9-7.3 | |
| Medium speed [l] | 5.9-5.4 | 6.0-5.5 | 6.3-5.8 | 6.0-5.6 | 6.3-5.8 | |
| High speed [l] | 5.2-4.6 | 5.3-4.7 | 5.5-4.8 | 5.3-4.7 | 5.5-4.9 | |
| Extra high speed [l] | 6.4-5.6 | 6.3-5.6 | 6.5-5.7 | 6.5-5.7 | 6.6-5.8 | |
| Combined speed [l] | 6.1-5.5 | 6.1-5.5 | 6.3-5.7 | 6.1-5.5 | 6.4-5.7 | |
| CO2 emissions [g/km] | 159-143 | 159-143 | 166-148 | 161-145 | 168-150 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1680 | 1680 | 1735 | 1685 | 1735 | |
| Overall weight [kg] | 2195 | 2195 | 2250 | 2195 | 2250 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/2000 | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 570 | 570 | 570 | 570 | 570 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1805 | -/1805 | -/1805 | -/1805 | -/1805 | |
| Boot length [mm] | 930 | 930 | 930 | 930 | 930 | |
| Boot length with rear seats folded [mm] | 1736 | 1736 | 1736 | 1736 | 1736 | |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | |
| Boot height to headliner/ceiling [mm] | -/953 | -/953 | -/953 | -/953 | -/953 | |
| Loading edge height [mm] | 740 | 740 | 740 | 740 | 740 | |
| Height of the open boot door [mm] | 2082 | 2082 | 2082 | 2082 | 2082 | |
| Boot opening height [mm] | 756 | 756 | 756 | 756 | 756 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 52 | 52 | 60 | 52 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.323 | 0.323 | 0.319 | - | 0.319 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | |
| Wheel size front | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | |
| Wheel size rear | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | 6.5J x 17 H2 ET44 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | |
| Overall length [mm] | 4634 | 4634 | 4634 | 4634 | 4634 | |
| Overall width without/including mirrors [mm] | 1834/2020 | 1834/2020 | 1834/2020 | 1834/2020 | 1834/2020 | |
| Overall height [mm] | 1659 | 1659 | 1659 | 1659 | 1659 | |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | |
| Approach angle rear [°] | 18.3 | 18.3 | 18.3 | 18.3 | 18.3 | |
| Transition angle [°] | 13.9 | 13.9 | 13.9 | 13.9 | 13.9 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | |
| Headroom rear [mm] | 999 | 999 | 999 | 999 | 999 | |
| Front elbow/shoulder width [mm] | 1419/1455 | 1419/1455 | 1419/1455 | 1419/1455 | 1419/1455 | |
| Rear elbow/shoulder width [mm] | 1394/1441 | 1394/1441 | 1394/1441 | 1394/1441 | 1394/1441 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

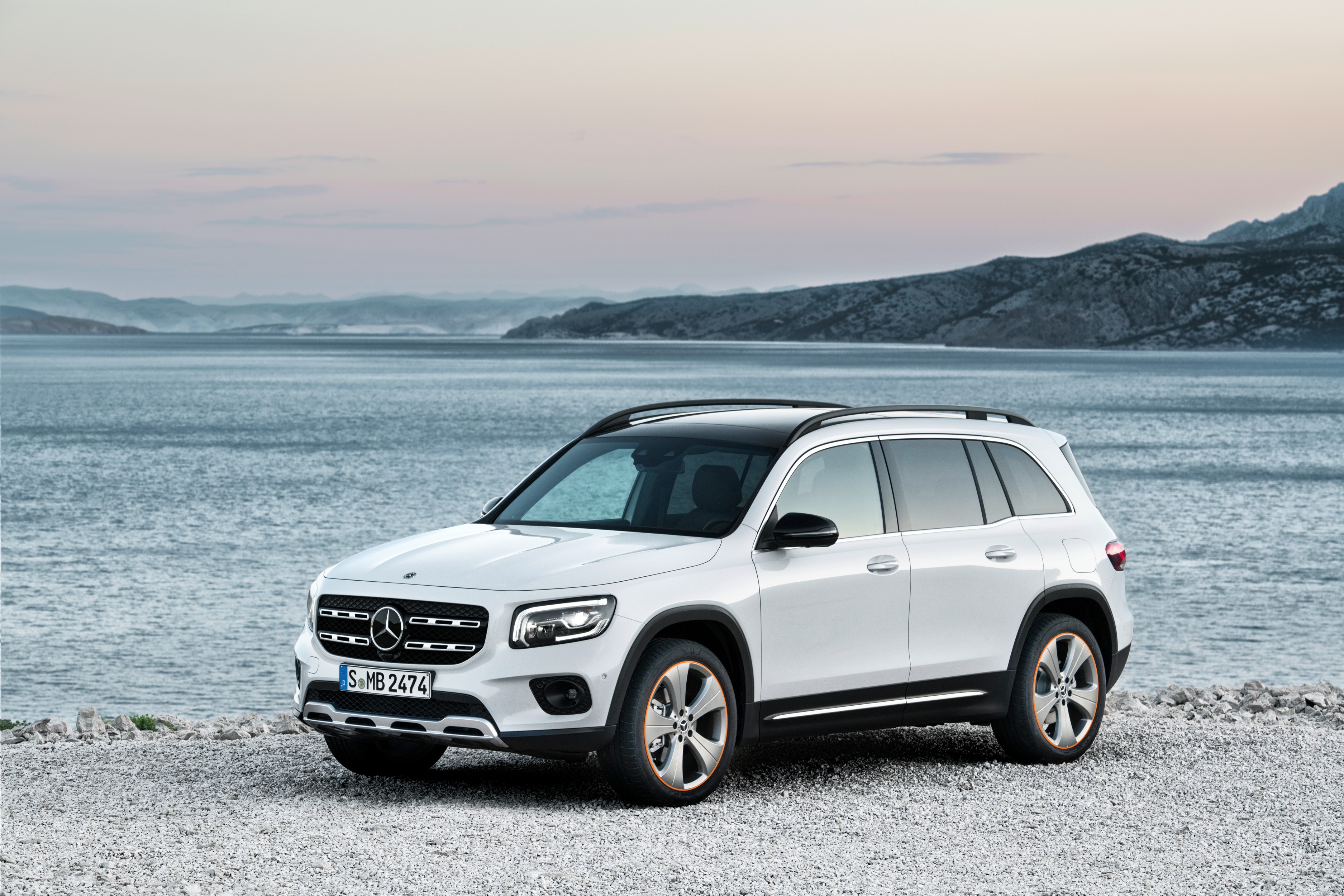

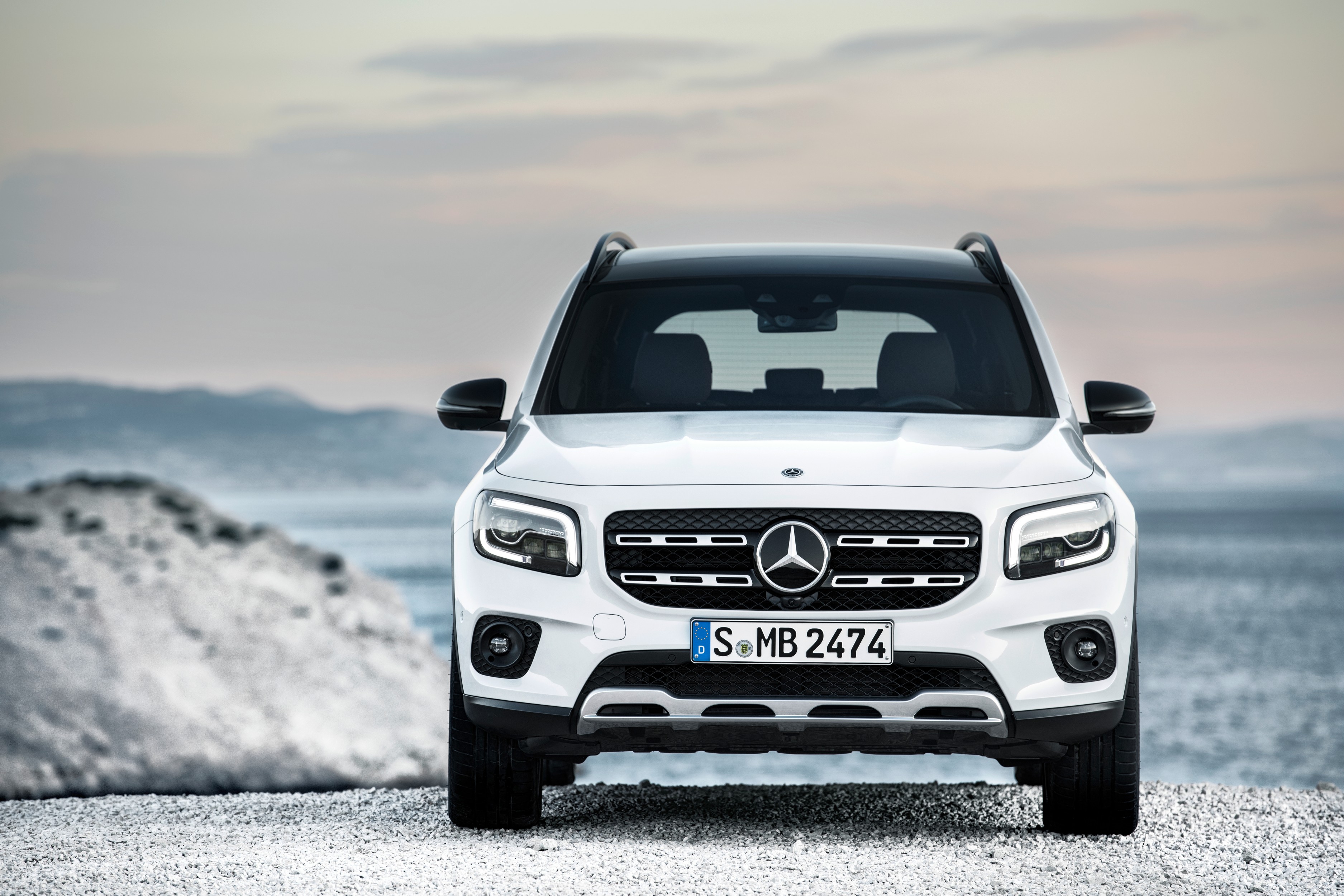

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
