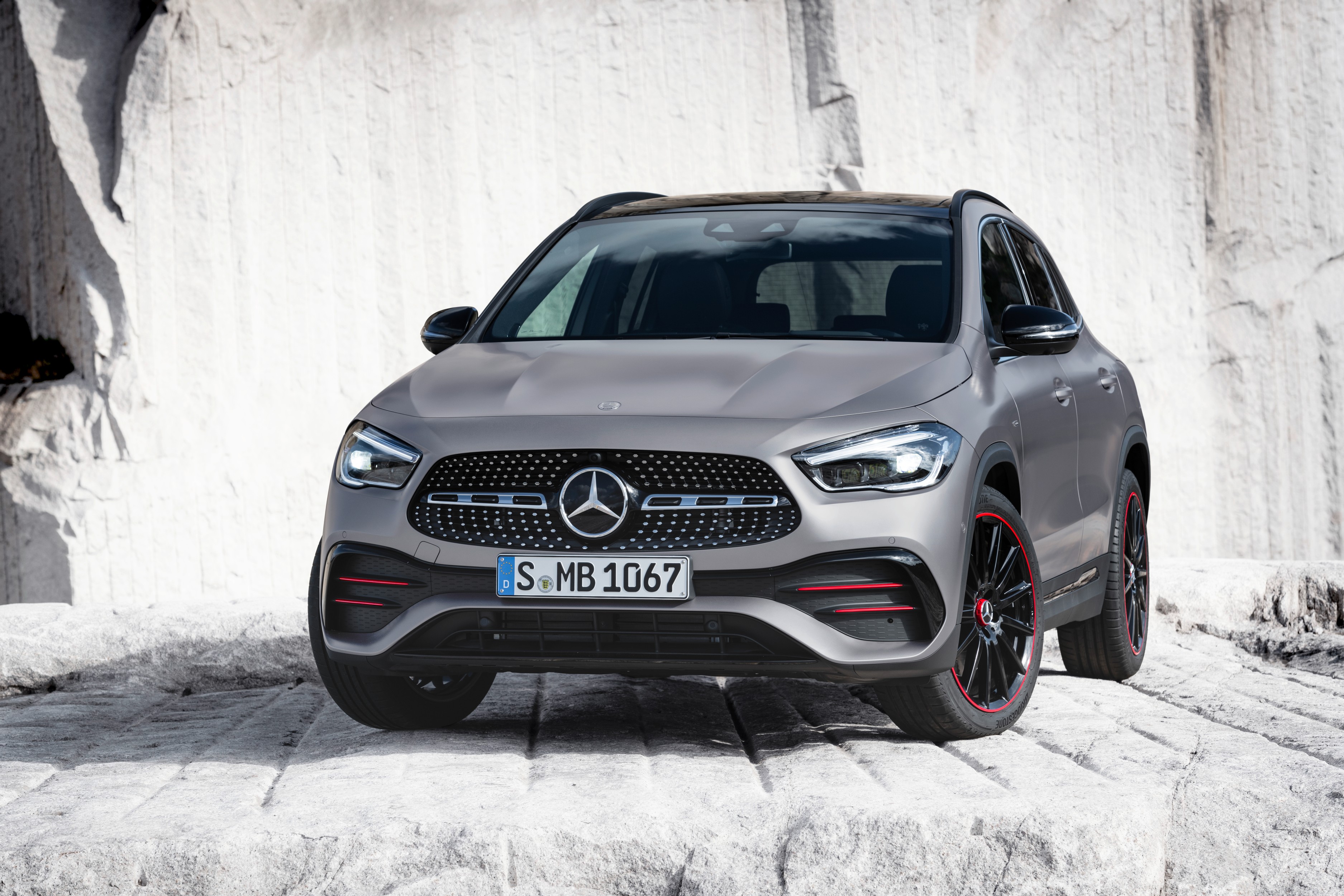

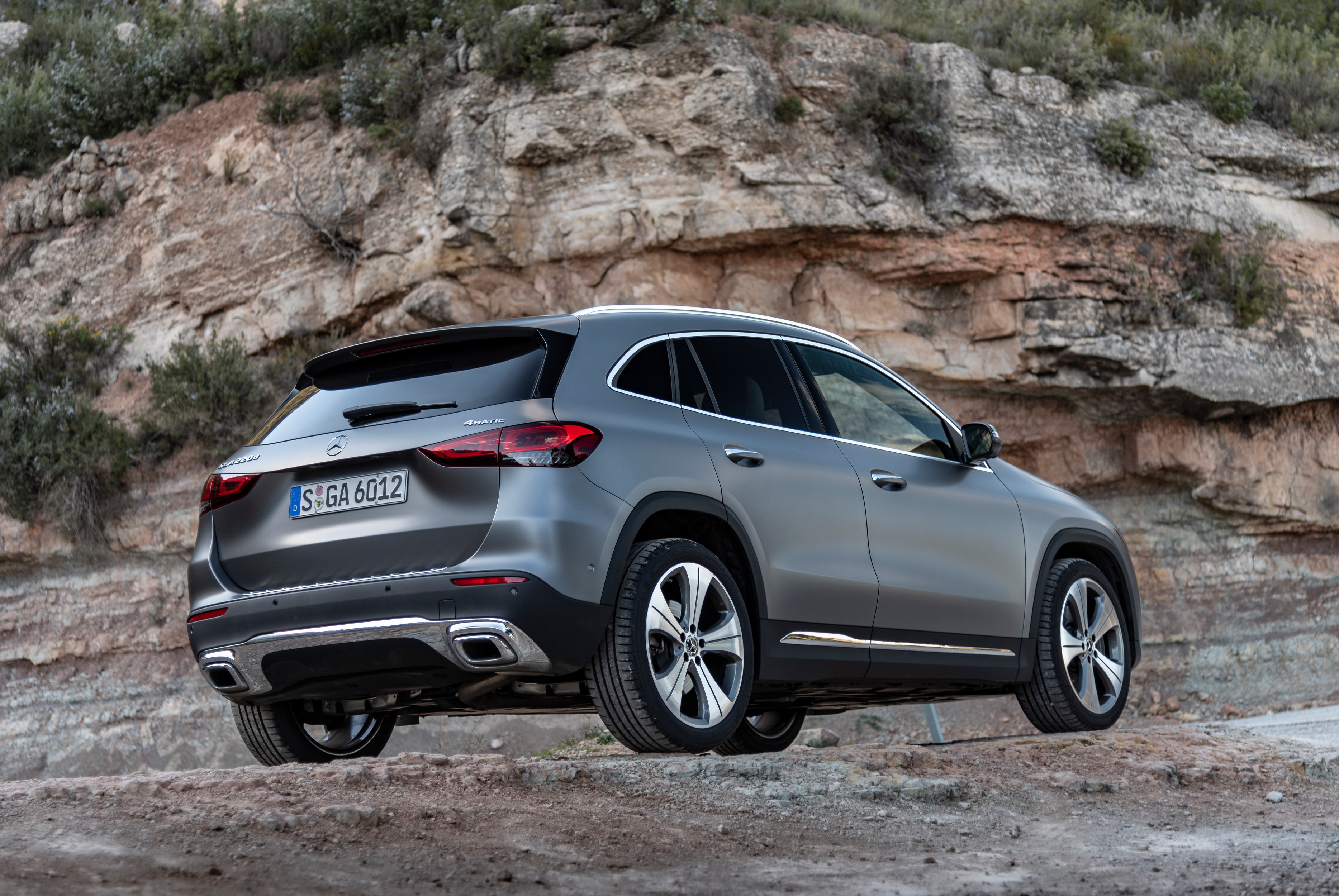

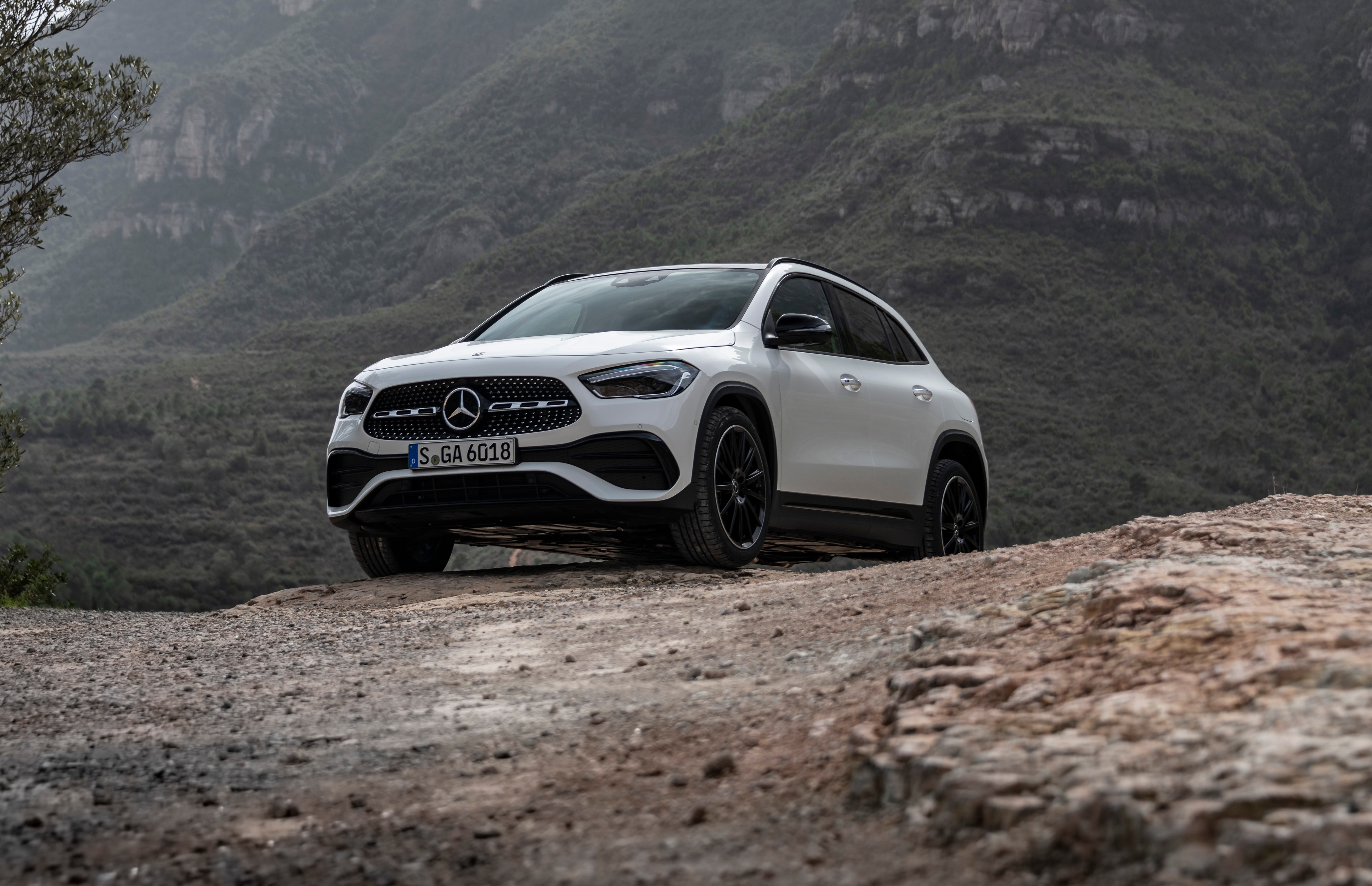

Mercedes-Benz GLA
Date of manufacture
12/2019 – to this day (Medium SUV)
Platform
MFA2
Manufacturing locations
Rastatt, Germany
Beijing, People's Republic of China
Samut Prakan, Thailand
Designer
Gorden Wagener
Tags
Compact SUV
German cars
Mercedes-Benz GLA is a mid-size SUV that has been manufactured since 2019 in three countries: Germany, People's Republic of China and Thailand. The MFA2 platform allows for the production of plug-in hybrid models. The engine range includes petrol, diesel and hybrid engines. The most powerful model is the GLA AMG 45 S 4MATIC+, which produces 310 kW of power and has a top speed of 265 km/h. This model offers the best acceleration from 0-100 km/h in 4.3 seconds. The most economical variant is the GLA 250e with fuel consumption of 1.6 l/100 km and emissions of 37 g/km. The luggage compartment has a capacity of 385 litres.
Car body style
Medium SUV
Date of manufacture
12/2019 – to this dayInternal designation
H247Technical data
Medium SUV
| GLA 180 | GLA 200 | GLA 200 4MATIC | GLA 250 | GLA 250 4MATIC | GLA AMG 35 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1332 | 1332 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 100/5500 | 120/5500 | 120/5500 | 165/5500 | 165/5500 | 225/5800-6100 |
| Maximum torque [Nm/min-1] | 200/1460-4000 | 250/1620-400 | 250/1620-400 | 350/1800 | 350/1800-400 | 400/3000-4000 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 |
| Compression ratio | 10.6:1 | 10.6:1 | 10.6:1 | 10.5:1 | 10.5:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 200 | 210 | 206 | 240 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 9,6 | 8,7 | 9.3 | 6,9 | 6,7 | 5,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,4-7,2 | 7,4-7,2 | 8.5-8.2 | 8,7-8,6 | 9,2-9,0 | 9,9-9,7 |
| Out of town [l] | 5,2-4,9 | 5,2-4,9 | 6.0-5.5 | 5,6-5,3 | 5,9-5,6 | 6,8-6,6 |
| Combined [l] | 6,0-5,7 | 6,0-5,7 | 6.9-6.5 | 6,8-6,5 | 7,1-6,8 | 7,9-7,7 |
| CO2 emissions [g/km] | 137-134 | 137-134 | 158-152 | 155-151 | 163-159 | 181-176 |
| Low speed [l] | 9.8-9.3 | 9.8-9.3 | 10.7-10.1 | 11.3-10.8 | 11.7-11.1 | 12.0-11.6 |
| Medium speed [l] | 7.2-6.4 | 7.2-6.4 | 7.8-7.1 | 8.0-7.4 | 8.4-7.6 | 9.0-8.6 |
| High speed [l] | 6.4-5.6 | 6.4-5.6 | 6.9-6.1 | 6.9-6.2 | 7.2-6.4 | 8.0-7.85 |
| Extra high speed [l] | 7.4-6.3 | 7.4-6.3 | 8.0-7.0 | 8.0-7.1 | 8.3-7.3 | 9.2-8.5 |
| Combined speed [l] | 7.4-6.5 | 7.4-6.5 | 8.0-7.1 | 8.1-7.4 | 8.4-7.6 | 9.1-8.6 |
| CO2 emissions [g/km] | 167-148 | 167-148 | 182-162 | 184-167 | 191-172 | 208-196 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1480 | 1485 | 1555 | 1540 | 1600 | 1680 |
| Overall weight [kg] | 2010 | 2010 | 2085 | 2070 | 2125 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 740/1600 | 740/1800 | 750/1800 | 750/2000 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 435 | 435 | 435 | 435 | 435 | 435 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1060/1430 | 1060/1430 | 1060/1430 | 1060/1430 | 1060/1430 | 1060/1430 |
| Boot length [mm] | 804 | 804 | 804 | 804 | 804 | 804 |
| Boot length with rear seats folded [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 692 | 692 | 692 | 692 | 692 | 692 |
| Height of the open boot door [mm] | 2119 | 2119 | 2119 | 2119 | 2119 | 2119 |
| Boot opening height [mm] | 742 | 742 | 742 | 742 | 742 | 742 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 51 | 43 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.347 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/50 ZR19 99Y |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/50 ZR19 99Y |
| Wheel size front | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 8.0J x 19 ET49 |
| Wheel size rear | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 8.0J x 19 ET49 |
| Brake dimensions front | - | - | - | - | - | 350 x 32 |
| Brake dimensions rear | - | - | - | - | - | 330 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.54/- |
| Overall length [mm] | 4410 | 4410 | 4410 | 4410 | 4410 | 4436 |
| Overall width without/including mirrors [mm] | 1834/2020 | 1834/2020 | 1834/2020 | 1834/2020 | 1834/2020 | 1849/2020 |
| Overall height [mm] | 1611 | 1611 | 1611 | 1611 | 1611 | 1588 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1617 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1596 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | - |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | 776 | - |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18.3 | 18.3 | 18.3 | 18.3 | 18.3 | - |
| Approach angle rear [°] | 22.1 | 22.1 | 22.1 | 22.1 | 22.1 | - |
| Transition angle [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 |
| Rear elbow/shoulder width [mm] | 1393/1455 | 1393/1455 | 1393/1455 | 1393/1455 | 1393/1455 | 1393/1455 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

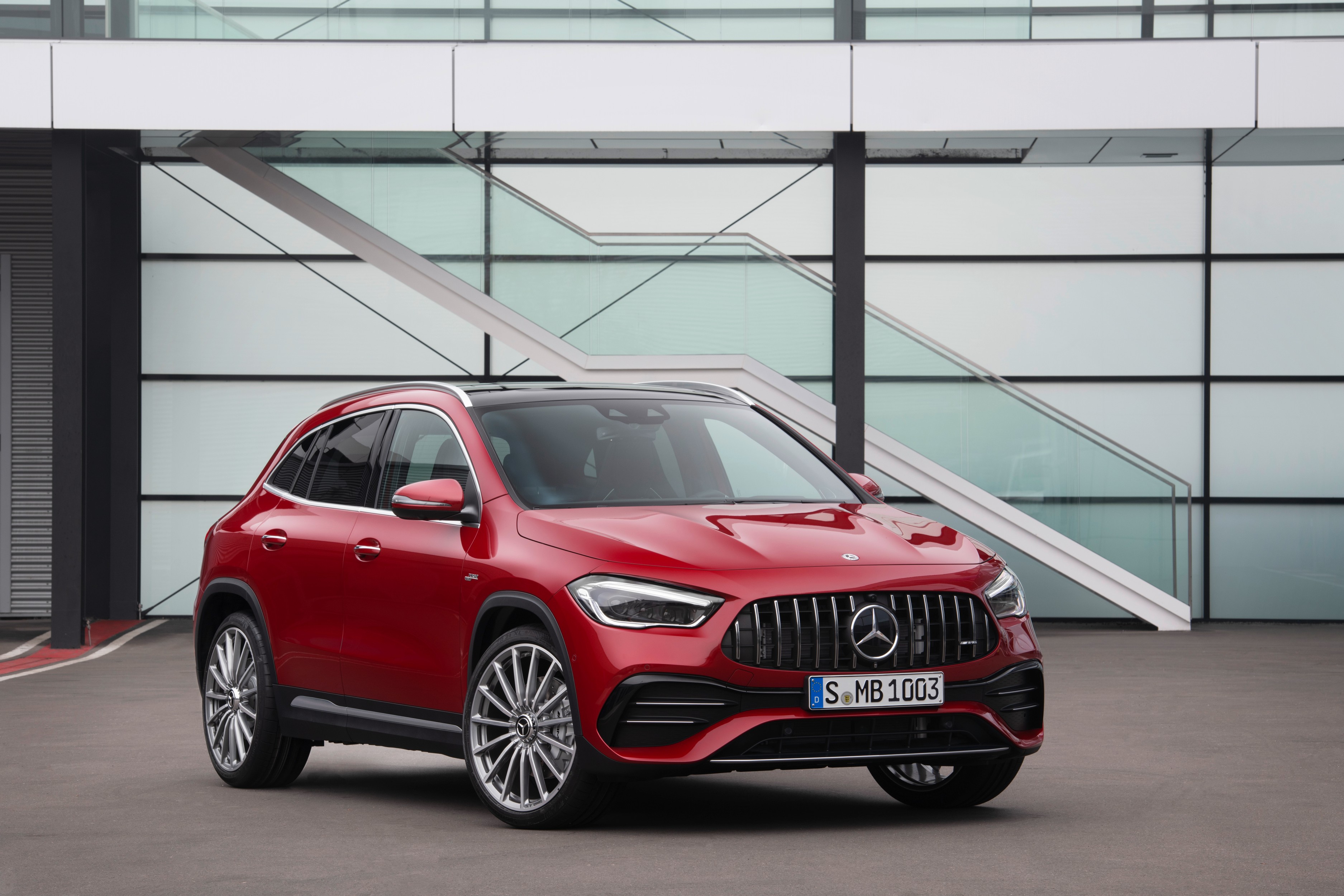

| GLA AMG 45 4MATIC+ | GLA AMG 45 S 4MATIC+ | GLA 250e | GLA 180d | GLA 200d | GLA 200d 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2020 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1332 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 285/6500 | 310/6750 | 118 combustion 75 el. 160 total | 85/3400-4400 | 110/3400-4400 | 110/3400-4400 |
| Maximum torque [Nm/min-1] | 480/4750-5000 | 500/5000-5250 | 250/1620-4000 combustion 300 el. 450 total | 280/1300-2600 | 320/1400-3200 | 320/1400-3200 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 72.2 x 81.4 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.6:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 265 | 220 | 190 | 208 | 205 |
| Acceleration 0–100 km/h [s] | 4,4 | 4,3 | 7,1 | 10,8 | 8,6 | 8,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,6-11,5 | 11,6-11,5 | - | 5,6-5,3 | 5,7-5,5 | 6,2-5,9 |
| Out of town [l] | 7,9-7,7 | 7,9-7,8 | - | 4,3-4,1 | 4,2-4,0 | 4,6-4,4 |
| Combined [l] | 9,2-9,1 | 9,3-9,2 | 1,8-1,7 [14.3-14.0 kWh] | 4,8-4,5 | 4,8-4,6 | 5,2-4,9 |
| CO2 emissions [g/km] | 211-209 | 212-210 | 41-38 | 126-123 | 126-124 | 138-134 |
| Low speed [l] | 14.0-13.8 | 14.1-13.8 | - | 7.1-6.9 | 7.1-6.6 | 7.6-7.1 |
| Medium speed [l] | 9.7-9.3 | 9.7-9.3 | - | 5.7-5.3 | 5.8-5.4 | 6.1-5.7 |
| High speed [l] | 8.4-8.0 | 8.5-8.0 | - | 5.0-4.4 | 5.0-4.5 | 5.3-4.7 |
| Extra high speed [l] | 9.7-9.0 | 9.7-9.0 | - | 6.1-5.3 | 6.0-5.3 | 6.2-5.5 |
| Combined speed [l] | 9.9-9.4 | 9.9-9.4 | 1.6-1.3 [18.0-16.0 kWh] | 5.8-5.3 | 5.8-5.3 | 6.1-5.5 |
| CO2 emissions [g/km] | 225-213 | 225-214 | 37-30 | 152-138 | 152-138 | 160-144 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 15.6 kWh | - | - | - |
| Range with fully charged battery [km] | - | - | 53-60 | - | - | - |
| Charging time | - | - |
| - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1745 | 1765 | 1775 | 1615 | 1615 | 1670 |
| Overall weight [kg] | 2270 | 2270 | 2295 | 2135 | 2135 | 2190 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1800 | 750/1600 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 435 | 435 | 385 | 425 | 425 | 425 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1060/1430 | 1060/1430 | 1010/1385 | -/1420 | -/1420 | -/1420 |
| Boot length [mm] | 804 | 804 | 820 | 804 | 804 | 804 |
| Boot length with rear seats folded [mm] | 1587 | 1587 | 1571 | 1587 | 1587 | 1587 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 692 | 692 | 692 | 692 | 692 | 692 |
| Height of the open boot door [mm] | 2119 | 2119 | 2119 | 2119 | 2119 | 2119 |
| Boot opening height [mm] | 742 | 742 | 742 | 742 | 742 | 742 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 35 | 43 | 43 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.355 | 0.361 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 235/50 ZR19 99Y | 255/40 ZR20 101Y XL | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 235/50 ZR19 99Y | 255/40 ZR20 101Y XL | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 8.0J x 19 ET49 | 8,5J x 20 ET51 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 |
| Wheel size rear | 8.0J x 19 ET49 | 8,5J x 20 ET51 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 | 6.5J x 17 ET44 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.62/- | 11.62/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4436 | 4436 | 4410 | 4410 | 4410 | 4410 |
| Overall width without/including mirrors [mm] | 1849/2020 | 1849/2020 | 1834/2020 | 1834/2020 | 1834/2020 | 1834/2020 |
| Overall height [mm] | 1588 | 1588 | 1611 | 1611 | 1611 | 1611 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1617 | 1592 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1596 | 1613 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | - | - | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | - | - | 776 | 776 | 776 | 776 |
| Clearance [mm] | - | - | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | 18.3 | 18.3 | 18.3 | 18.3 |
| Approach angle rear [°] | - | - | 22.1 | 22.1 | 22.1 | 22.1 |
| Transition angle [°] | - | - | 14.4 | 14.4 | 14.4 | 14.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1037 | 1037 | 1037 | 1037 | 1037 | 1037 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 | 1419/1456 |
| Rear elbow/shoulder width [mm] | 1393/1455 | 1393/1455 | 1393/1455 | 1393/1455 | 1393/1455 | 1393/1455 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLA 220d | GLA 220d 4MATIC | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1950 | 1950 | ||||
| Maximum output / speed [kW/min-1] | 140/3800 | 140/3800 | ||||
| Maximum torque [Nm/min-1] | 400/1600-2600 | 400/1600-2600 | ||||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | ||||
| Compression ratio | 15.5:1 | 15.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 222 | 219 | ||||
| Acceleration 0–100 km/h [s] | 7,4 | 7,3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,8-5,6 | 6,1-5,6 | ||||
| Out of town [l] | 4,4-4,1 | 4,9-4,7 | ||||
| Combined [l] | 4,9-4,7 | 5,3-5,0 | ||||
| CO2 emissions [g/km] | 129-126 | 140-136 | ||||
| Low speed [l] | 7.2-6.7 | 7.7-7.1 | ||||
| Medium speed [l] | 5.8-5.5 | 6.1-5.6 | ||||
| High speed [l] | 5.0-4.5 | 5.3-4.8 | ||||
| Extra high speed [l] | 6.1-5.4 | 6.3-5.5 | ||||
| Combined speed [l] | 5.9-5.3 | 6.1-5.5 | ||||
| CO2 emissions [g/km] | 154-140 | 161-145 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1615 | 1670 | ||||
| Overall weight [kg] | 2135 | 2190 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 425 | 425 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1420 | -/1420 | ||||
| Boot length [mm] | 804 | 804 | ||||
| Boot length with rear seats folded [mm] | 1587 | 1587 | ||||
| Boot width between wheels/max [mm] | 1050/- | 1050/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 692 | 692 | ||||
| Height of the open boot door [mm] | 2119 | 2119 | ||||
| Boot opening height [mm] | 742 | 742 | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 43 | 51 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.3 | 0.3 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | ||||
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | ||||
| Wheel size front | 6.5J x 17 ET44 | 6.5J x 17 ET44 | ||||
| Wheel size rear | 6.5J x 17 ET44 | 6.5J x 17 ET44 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | ||||
| Overall length [mm] | 4410 | 4410 | ||||
| Overall width without/including mirrors [mm] | 1834/2020 | 1834/2020 | ||||
| Overall height [mm] | 1611 | 1611 | ||||
| Wheelbase [mm] | 2729 | 2729 | ||||
| Front wheel track [mm] | 1605 | 1605 | ||||
| Rear wheel track [mm] | 1606 | 1606 | ||||
| Forward overhang [mm] | 905 | 905 | ||||
| Rear overhang [mm] | 776 | 776 | ||||
| Clearance [mm] | 143 | 143 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 18.3 | 18.3 | ||||
| Approach angle rear [°] | 22.1 | 22.1 | ||||
| Transition angle [°] | 14.4 | 14.4 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1037 | 1037 | ||||
| Headroom rear [mm] | 969 | 969 | ||||
| Front elbow/shoulder width [mm] | 1419/1456 | 1419/1456 | ||||
| Rear elbow/shoulder width [mm] | 1393/1455 | 1393/1455 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
