Mercedes-Benz GLA
Date of manufacture
2017 – 11/2019 (Medium SUV)
Platform
MFA
Manufacturing locations
Rastatt, Germany
Beijing, People's Republic of China
Samut Prakan, Thailand
Designer
Uli Baur
Tags
Compact SUV
German cars
The Mercedes-Benz GLA, a mid-size SUV with a body-on-frame design, has been available since 2017. It is manufactured in three countries - Germany, China and Thailand - on the MFA platform. It offers a wide range of engines including petrol and diesel versions. The most powerful model is the GLA 45 AMG 4MATIC with 280 kW, the highest speed reaches 270 km/h and the best acceleration 0-100 km/h in 4.4 seconds. The most economical variant is the GLA 180d with a combined consumption of 4.1 l/100 km and CO2 emissions of 109 g/km. The trunk offers a volume of 421 liters. The GLA model underwent EURONCAP safety tests in 2014 and received a rating of 5 out of 5.
Car body style
Medium SUV

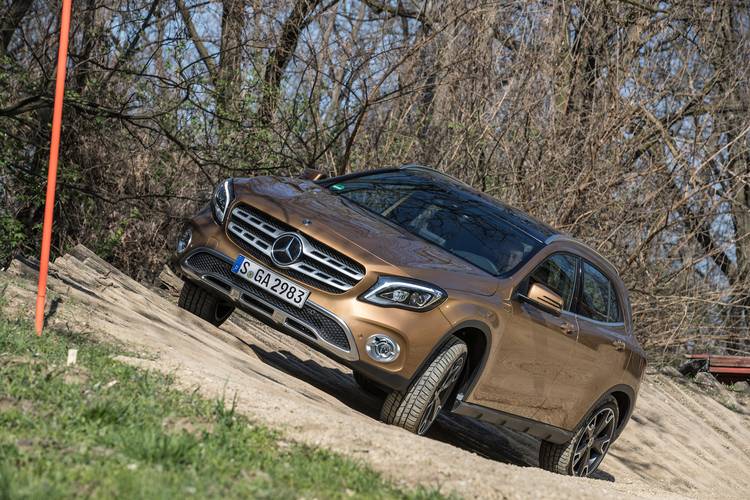

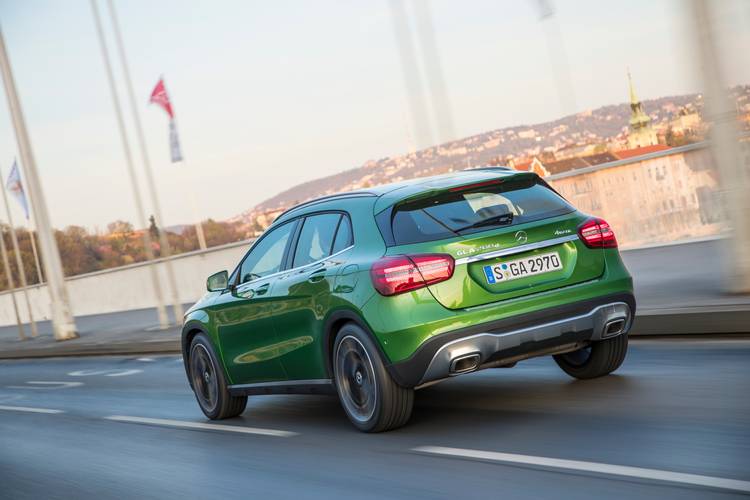

after upgrade (facelift)
Date of manufacture
2017 – 11/2019Internal designation
X156
Technical data
Medium SUV
| GLA 180 | GLA 180 | GLA 200 | GLA 200 | GLA 220 4MATIC | GLA 250 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 135/5500 | 155/5500 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 250/1200-4000 | 250/1200-4000 | 300/1200-4000 | 350/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 200 | 200 | 215 | 215 | 230 | 235 |
| Acceleration 0–100 km/h [s] | 9,0 | 8,7 | 8,4 | 8,1 | 7.1 | 6,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6-7,6 | 7,4 | 8.6-7,7 | 7,4 | 9.1-8.6 | 9.0-8,2 |
| Out of town [l] | 5.7-4,6 | 4,9-4,6 | 5.8-4,7 | 4,9-4,6 | 6.4-5.3 | 6.3-4,9 |
| Combined [l] | 7.1--5,7 | 5,8-5,6 | 6,8-5,8 | 5,8-5,6 | 7.4-6.5 | 7.3-6,1 |
| CO2 emissions [g/km] | 163-133 | 135-131 | 155-134 | 135-131 | 170-152 | 167-142 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1435 | 1395 | 1435 | 1505 | 1435 |
| Overall weight [kg] | 1940 | 1940 | 1940 | 1940 | 2015 | 1970 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 715/1200 | 695/1400 | 715/1400 | 750/1800 | 715/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 421 | 421 | 421 | 421 | 421 | 421 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/709 | -/709 | -/709 | -/709 | -/709 | -/709 |
| Loading edge height [mm] | 714 | 714 | 714 | 714 | 714 | 714 |
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | 2045 | 2045 |
| Boot opening height [mm] | 629 | 629 | 629 | 629 | 629 | 629 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 56 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.31 | 0.31 | 0.32 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Wheel size rear | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- |
| Overall length [mm] | 4424 | 4424 | 4424 | 4424 | 4424 | 4424 |
| Overall width without/including mirrors [mm] | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 |
| Overall height [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | 913 | 913 | 913 | 913 | 913 | 913 |
| Rear overhang [mm] | 812 | 812 | 812 | 812 | 812 | 812 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| Approach angle rear [°] | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 |
| Transition angle [°] | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLA 250 | GLA 250 4MATIC | GLA 45 AMG 4MATIC | GLA 180d | GLA 180d | GLA 200d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1461 | 1461 | 2143 |
| Maximum output / speed [kW/min-1] | 155/5500 | 155/5500 | 280/6000 | 80/4000 | 80/4000 | 100/3200-4400 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 350/1200-4000 | 475/2250-5000 | 260/1750-2500 | 260/1750-2500 | 300/1400-3000 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 | 83,0 x 99,0 |
| Compression ratio | 9,8:1 | 9,8:1 | 8,6:1 | 15,5:1 | 15,5:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 235 | 230 | 250 [270 subject to a surcharge] | 190 | 190 | 205 |
| Acceleration 0–100 km/h [s] | 6,6 | 6.6 | 4.4 | 11,9 | 11,7 | 9,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9-7,7 | 9.2-8.6 | 9.6 | 4,8-4,7 | 4,7-4,5 | 5,4 |
| Out of town [l] | 5,0-4,6 | 6.5-5.3 | 6.1 | 4,0-3,6 | 3,8-3,6 | 3,8-3,5 |
| Combined [l] | 6,0-5,8 | 7.5-6.5 | 7.4 | 4,3-4,0 | 4,1-3,9 | 4,4-4,2 |
| CO2 emissions [g/km] | 140-134 | 171-152 | 172 | 113-105 | 109-103 | 115-110 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1460 | 1505 | 1585 | 1440 | 1470 | 1505 |
| Overall weight [kg] | 1970 | 2015 | 2105 | 1970 | 1970 | 2035 |
| Maximum trailer weight unbraked/braked [kg] | 730/1500 | 750/1800 | - | 720/1200 | 735/1200 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 100/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 421 | 421 | 421 | 421 | 421 | 421 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/709 | -/709 | -/709 | -/709 | -/709 | -/709 |
| Loading edge height [mm] | 714 | 714 | 714 | 714 | 714 | 714 |
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | 2045 | 2045 |
| Boot opening height [mm] | 629 | 629 | 629 | 629 | 629 | 629 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 56 | 56 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.32 | 0.34 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 235/45 ZR19 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 235/45 ZR19 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 8.0J x 19 ET43.5 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Wheel size rear | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 8.0J x 19 ET43.5 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Brake dimensions front | - | - | 350 x 32 | - | - | - |
| Brake dimensions rear | - | - | 330 x 22 | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- |
| Overall length [mm] | 4424 | 4424 | 4424 | 4424 | 4424 | 4424 |
| Overall width without/including mirrors [mm] | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 |
| Overall height [mm] | 1494 | 1494 | 1479 | 1494 | 1494 | 1494 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1569 | 1569 | 1568 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1560 | 1560 | 1569 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | 913 | 913 | 913 | 913 | 913 | 913 |
| Rear overhang [mm] | 812 | 812 | - | 812 | 812 | 812 |
| Clearance [mm] | 134 | 134 | - | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.8 | 15.8 | - | 15.8 | 15.8 | 15.8 |
| Approach angle rear [°] | 21.5 | 21.5 | - | 21.5 | 21.5 | 21.5 |
| Transition angle [°] | 13.3 | 13.3 | - | 13.3 | 13.3 | 13.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLA 200d | GLA 200d 4MATIC | GLA 220d | GLA 220d 4MATIC | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | ||
| Maximum output / speed [kW/min-1] | 100/3200-4400 | 100/3200-4400 | 130/3600-3800 | 130/3600-3800 | ||
| Maximum torque [Nm/min-1] | 300/1400-3000 | 300/1400-3000 | 350/1400-3400 | 350/1400-3400 | ||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | Front | 4x4 | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 205 | 200 | 223 | 218 | ||
| Acceleration 0–100 km/h [s] | 9,1 | 9.1 | 7.7 | 7.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5,2-5,0 | 5.9-5.8 | 5.2-5.0 | 5.9-5.8 | ||
| Out of town [l] | 3,9-3,7 | 4.4-4.3 | 3.9-3.7 | 4.4-4.3 | ||
| Combined [l] | 4,4-4,2 | 5.0-4.8 | 4.4-4.2 | 5.0-4.8 | ||
| CO2 emissions [g/km] | 115-108 | 130-127 | 115-110 | 130-127 | ||
| Emission standard | EU6 | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1540 | 1595 | 1540 | 1595 | ||
| Overall weight [kg] | 2035 | 2090 | 2035 | 2090 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1800 | 750/1500 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 421 | 421 | 421 | 421 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | -/1235 | -/1235 | ||
| Boot length [mm] | 807 | 807 | 807 | 807 | ||
| Boot length with rear seats folded [mm] | 1395 | 1395 | 1395 | 1395 | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | -/709 | -/709 | -/709 | -/709 | ||
| Loading edge height [mm] | 714 | 714 | 714 | 714 | ||
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | ||
| Boot opening height [mm] | 629 | 629 | 629 | 629 | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 56 | 50 | 56 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.3 | 0.31 | 0.3 | 0.31 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | four-link | four-link | four-link | four-link | ||
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | ||
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | ||
| Wheel size front | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | ||
| Wheel size rear | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.84/- | 11.84/- | 11.84/- | 11.84/- | ||
| Overall length [mm] | 4424 | 4424 | 4424 | 4424 | ||
| Overall width without/including mirrors [mm] | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | ||
| Overall height [mm] | 1494 | 1494 | 1494 | 1494 | ||
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | ||
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | ||
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | ||
| Forward overhang [mm] | 913 | 913 | 913 | 913 | ||
| Rear overhang [mm] | 812 | 812 | 812 | 812 | ||
| Clearance [mm] | 134 | 134 | 134 | 134 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 15.8 | 15.8 | 15.8 | 15.8 | ||
| Approach angle rear [°] | 21.5 | 21.5 | 21.5 | 21.5 | ||
| Transition angle [°] | 13.3 | 13.3 | 13.3 | 13.3 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | ||
| Headroom rear [mm] | 971 | 971 | 971 | 971 | ||
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | ||
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
