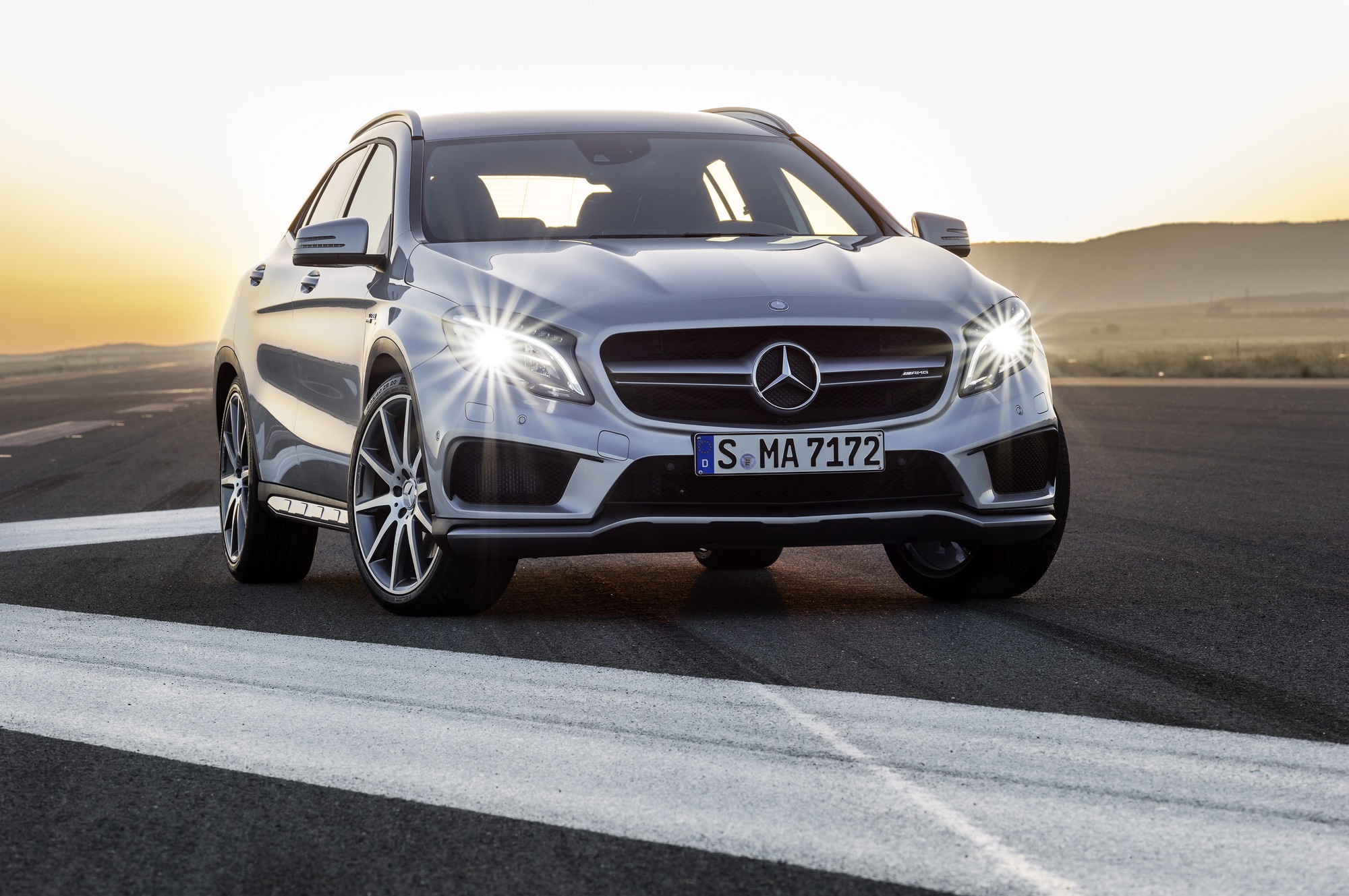

Mercedes-Benz GLA
Date of manufacture
12/2013 – 2016 (SUV)
Platform
MFA
Manufacturing locations
Rastatt, Germany
Beijing, People's Republic of China
Samut Prakan, Thailand
Designer
Uli Baur
Tags
Compact SUV
German cars
Mercedes-Benz GLA is an SUV that has been produced since 2013. The model is based on the MFA platform and offers petrol and diesel engines. The most powerful model is the GLA 45 AMG 4MATIC with a maximum power of 280 kW, the best acceleration from 0-100 km/h in 4.4 seconds and a maximum speed of 250 km/h. The most economical variant is the GLA 180 d with a combined consumption of 3.9 l/100 km and CO2 emissions of 103 g/km. The trunk size is 421 l. During EURONCAP safety tests, the model received a rating of 5 out of 5 (2014 methodology). Currently, this model is produced in three countries - Germany, China and Thailand.
Car body style
SUV
Date of manufacture
12/2013 – 2016Internal designation
X156
Technical data
SUV
| GLA 180 | GLA 180 | GLA 200 | GLA 200 | GLA 250 | GLA 250 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2014 to | from 2014 to | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 155/5500 | 155/5500 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 250/1200-4000 | 250/1200-4000 | 350/1200-4000 | 350/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 200 | 200 | 215 | 215 | 235 | 235 |
| Acceleration 0–100 km/h [s] | 9.0 | 8.7 | 8.4 | 8.1 | 6.7 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6-7.8 | 7.3 | 7.7-7.8 | 7.3 | 8.2 | 7.6-7.8 |
| Out of town [l] | 4.6-4.9 | 4.5-4.8 | 4.7-4.9 | 4.5-4.8 | 4.9-5.1 | 4.5-4.9 |
| Combined [l] | 5.7-6.0 | 5.5-5.7 | 5.8-6.0 | 5.5-5.7 | 6.1-6.2 | 5.7-5.9 |
| CO2 emissions [g/km] | 133-138 | 129-133 | 134-138 | 129-133 | 142-145 | 132-138 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1435 | 1395 | 1435 | 1435 | 1460 |
| Overall weight [kg] | 1920 | 1920 | 1920 | 1920 | 1945 | 1945 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 715/1200 | 695/1400 | 715/1400 | 715/1500 | 730/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 421 | 421 | 421 | 421 | 421 | 421 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/709 | -/709 | -/709 | -/709 | -/709 | -/709 |
| Loading edge height [mm] | 714 | 714 | 714 | 714 | 714 | 714 |
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | 2045 | 2045 |
| Boot opening height [mm] | 629 | 629 | 629 | 629 | 629 | 629 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Wheel size rear | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- |
| Overall length [mm] | 4417 | 4417 | 4417 | 4417 | 4417 | 4417 |
| Overall width without/including mirrors [mm] | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 |
| Overall height [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | 906 | 906 | 906 | 906 | 906 | 906 |
| Rear overhang [mm] | 812 | 812 | 812 | 812 | 812 | 812 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| Approach angle rear [°] | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 |
| Transition angle [°] | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLA 250 4MATIC | GLA 45 AMG 4MATIC | GLA 180 d | GLA 180 d | GLA 200 d | GLA 200 d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2014 to | from 2014 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1461 | 1461 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 155/5500 | 280/6000 | 80/4000 | 80/4000 | 100/3200-4400 | 100/3200-4400 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 475/2250-5000 | 260/1750-2500 | 260/1750-2500 | 300/1400-3000 | 300/1400-3000 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 9,8:1 | 8,6:1 | 15,5:1 | 15,5:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 230 | 250 | 190 | 190 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 6.6 | 4.4 | 11.9 | 11.9 | 9.5 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.5-8.6 | 9.6 | 4.7-4.8 | 4.5-4.7 | 5.4 | 5.0-5.2 |
| Out of town [l] | 5.2-5.4 | 6.1 | 3.6-4.0 | 3.6-3.8 | 3.5-3.8 | 3.7-3.9 |
| Combined [l] | 6.4-6.5 | 7.4 | 4.0-4.3 | 3.9-4.1 | 4.2-4.4 | 4.2-4.4 |
| CO2 emissions [g/km] | 150-153 | 172 | 105-113 | 103-109 | 100-115 | 108-115 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1585 | 1440 | 1470 | 1505 | 1535 |
| Overall weight [kg] | 1990 | 2105 | 1960 | 1960 | 2020 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | - | 720/1200 | 735/1200 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 100/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 421 | 421 | 421 | 421 | 421 | 421 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Boot length with rear seats folded [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/709 | -/709 | -/709 | -/709 | -/709 | -/709 |
| Loading edge height [mm] | 714 | - | 714 | 714 | 714 | 714 |
| Height of the open boot door [mm] | 2045 | - | 2045 | 2045 | 2045 | 2045 |
| Boot opening height [mm] | 629 | 629 | 629 | 629 | 629 | 629 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 56 | 56 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.34 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/60 R17 | 235/45 ZR19 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Tyre dimensions rear | 215/60 R17 | 235/45 ZR19 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 |
| Wheel size front | 6.5J x 17 ET38 | 8.0J x 19 ET43.5 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Wheel size rear | 6.5J x 17 ET38 | 8.0J x 19 ET43.5 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 |
| Brake dimensions front | - | 350 x 32 | - | - | - | - |
| Brake dimensions rear | - | 330 x 22 | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- |
| Overall length [mm] | 4417 | 4445 | 4417 | 4417 | 4417 | 4417 |
| Overall width without/including mirrors [mm] | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 |
| Overall height [mm] | 1494 | 1479 | 1494 | 1494 | 1494 | 1494 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1569 | 1568 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1560 | 1569 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | 906 | - | 906 | 906 | 906 | 906 |
| Rear overhang [mm] | 812 | - | 812 | 812 | 812 | 812 |
| Clearance [mm] | 134 | - | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.8 | - | 15.8 | 15.8 | 15.8 | 15.8 |
| Approach angle rear [°] | 21.5 | - | 21.5 | 21.5 | 21.5 | 21.5 |
| Transition angle [°] | 13.3 | - | 13.3 | 13.3 | 13.3 | 13.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | 971 |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLA 200 d 4MATIC | GLA 220 CDI | GLA 220 CDI 4MATIC | GLA 220 d | GLA 220 d 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2015 | from to 2015 | from 2015 to | from 2015 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | |
| Maximum output / speed [kW/min-1] | 100/3200-4400 | 125/3400-4000 | 125/3400-4000 | 130/3600-3800 | 130/3600-3800 | |
| Maximum torque [Nm/min-1] | 300/1400-3000 | 350/1400-3400 | 350/1400-3400 | 350/1400-3400 | 350/1400-3400 | |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | Front | 4x4 | Front | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 200 | 215 | 215 | 223 | 218 | |
| Acceleration 0–100 km/h [s] | 9.1 | 8.3 | 8.3 | 7.7 | 7.7 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.8-5.9 | 5.3-5.4 | 5.9-6.0 | 5.0-5.2 | 5.8-5.9 | |
| Out of town [l] | 4.3-4.4 | 3.9-4.0 | 4.4-4.5 | 3.7-3.9 | 4.3-4.4 | |
| Combined [l] | 4.8-5.0 | 4.4-4.6 | 4.9-5.1 | 4.2-4.4 | 4.8-5.0 | |
| CO2 emissions [g/km] | 127-130 | 115-119 | 126-132 | 110-115 | 127-130 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1595 | 1535 | 1595 | 1535 | 1595 | |
| Overall weight [kg] | 2075 | 2020 | 2075 | 2020 | 2075 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1500 | 750/1800 | 750/1500 | 750/1800 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 421 | 421 | 421 | 421 | 421 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1235 | -/1235 | -/1235 | -/1235 | -/1235 | |
| Boot length [mm] | 807 | 807 | 807 | 807 | 807 | |
| Boot length with rear seats folded [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | -/709 | -/709 | -/709 | -/709 | -/709 | |
| Loading edge height [mm] | 714 | 714 | 714 | 714 | 714 | |
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | 2045 | |
| Boot opening height [mm] | 629 | 629 | 629 | 629 | 629 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 56 | 50 | 56 | 50 | 56 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.31 | 0.3 | 0.31 | 0.3 | 0.31 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/60 R17 | |
| Wheel size front | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | |
| Wheel size rear | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | 6.5J x 17 ET38 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.84/- | 11.84/- | 11.84/- | 11.84/- | 11.84/- | |
| Overall length [mm] | 4417 | 4417 | 4417 | 4417 | 4417 | |
| Overall width without/including mirrors [mm] | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | 1804/2022 | |
| Overall height [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | |
| Forward overhang [mm] | 906 | 906 | 906 | 906 | 906 | |
| Rear overhang [mm] | 812 | 812 | 812 | 812 | 812 | |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | |
| Approach angle rear [°] | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | |
| Transition angle [°] | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | |
| Headroom rear [mm] | 971 | 971 | 971 | 971 | 971 | |
| Front elbow/shoulder width [mm] | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | 1391/1422 | |
| Rear elbow/shoulder width [mm] | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | 1350/1410 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
